解直角三角形

解直角三角形. 6.5 应用举例 ( 二 ). B. 解直角三角形依据. c. a. (1) 三边之间的关系:.   a 2 + b 2 = c 2 ( 勾股定理 ). C. A. (2) 锐角之间的关系:. b. ∠A + ∠ B = 90°. (3) 边角之间的关系:. cosA =. 其中 A 可换 成 B. sinA =. cotA=. tan=. 三个. 这三个关系式中,每个关系式都包含 元素,知其中 元素就可以求出. 两个. 第三个元素.

laith-welch
Download Presentation

解直角三角形

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 解直角三角形 6.5 应用举例(二)

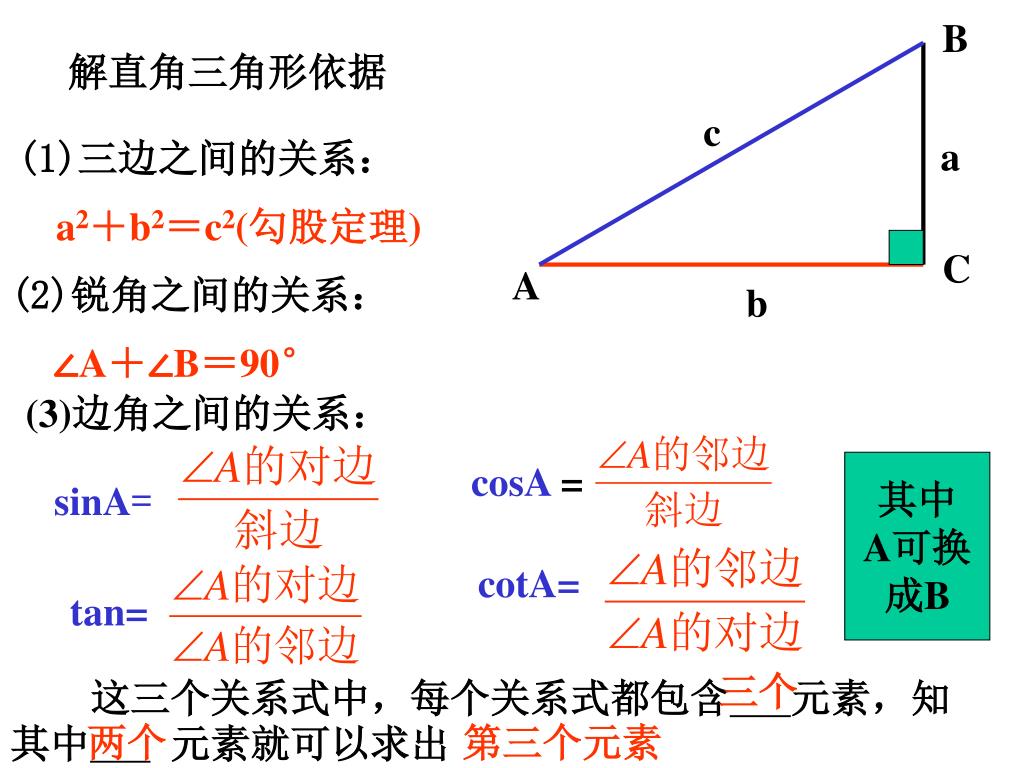

  2. B 解直角三角形依据 c a (1)三边之间的关系:   a2+b2=c2(勾股定理) C A (2)锐角之间的关系: b ∠A+∠B=90° (3)边角之间的关系: cosA = 其中 A可换 成B sinA= cotA= tan= 三个 这三个关系式中,每个关系式都包含元素,知其中 元素就可以求出 两个 第三个元素

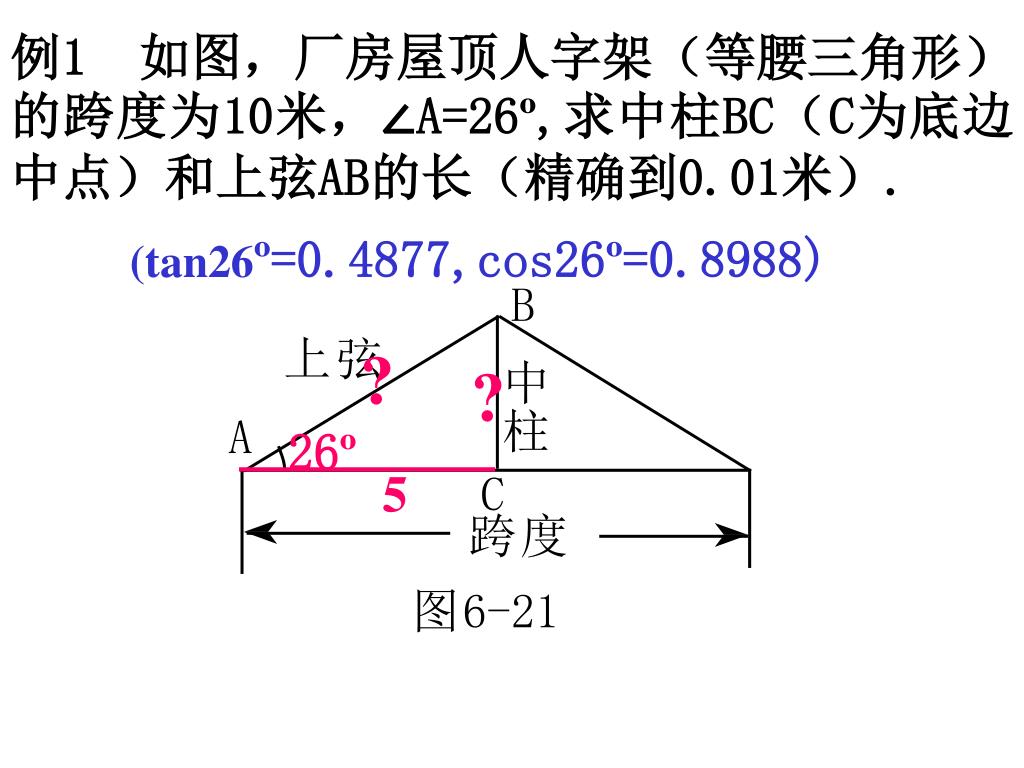

  3. 例1 如图,厂房屋顶人字架(等腰三角形)的跨度为10米,∠A=26º,求中柱BC(C为底边中点)和上弦AB的长(精确到0.01米). (tan26º=0.4877,cos26º=0.8988) ? ? 26º 5

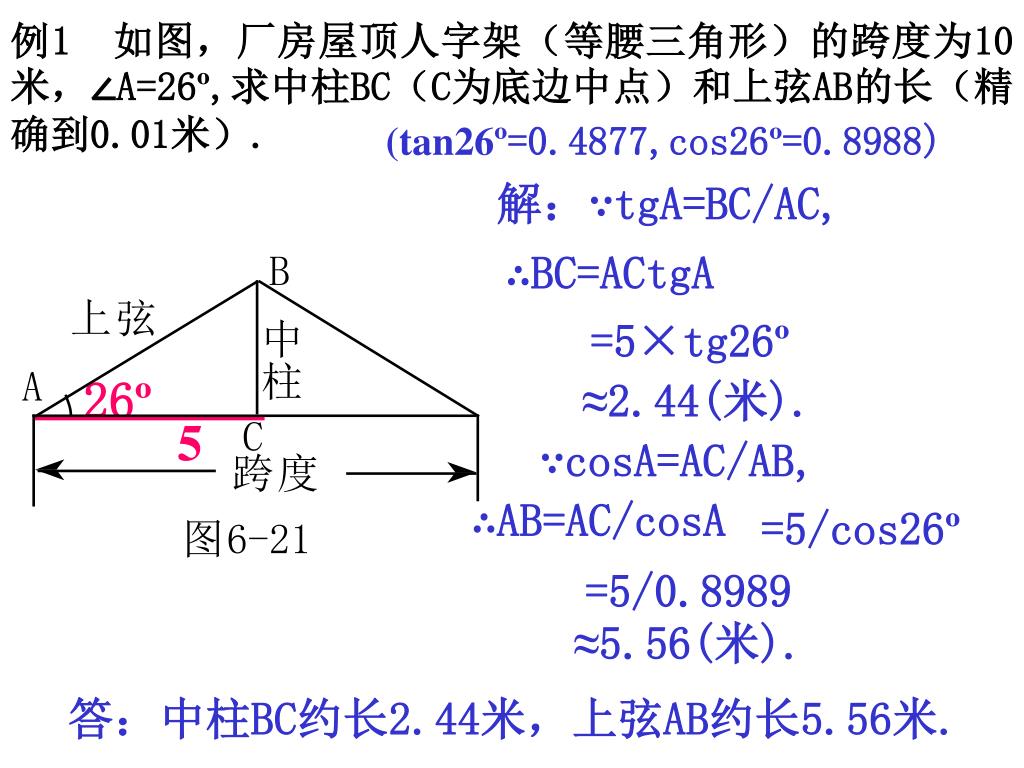

  4. 例1 如图,厂房屋顶人字架(等腰三角形)的跨度为10米,∠A=26º,求中柱BC(C为底边中点)和上弦AB的长(精确到0.01米). (tan26º=0.4877,cos26º=0.8988) 解:∵tgA=BC/AC, ∴BC=ACtgA =5×tg26º 26º ≈2.44(米). 5 ∵cosA=AC/AB, ∴AB=AC/cosA =5/cos26º =5/0.8989 ≈5.56(米). 答:中柱BC约长2.44米,上弦AB约长5.56米.

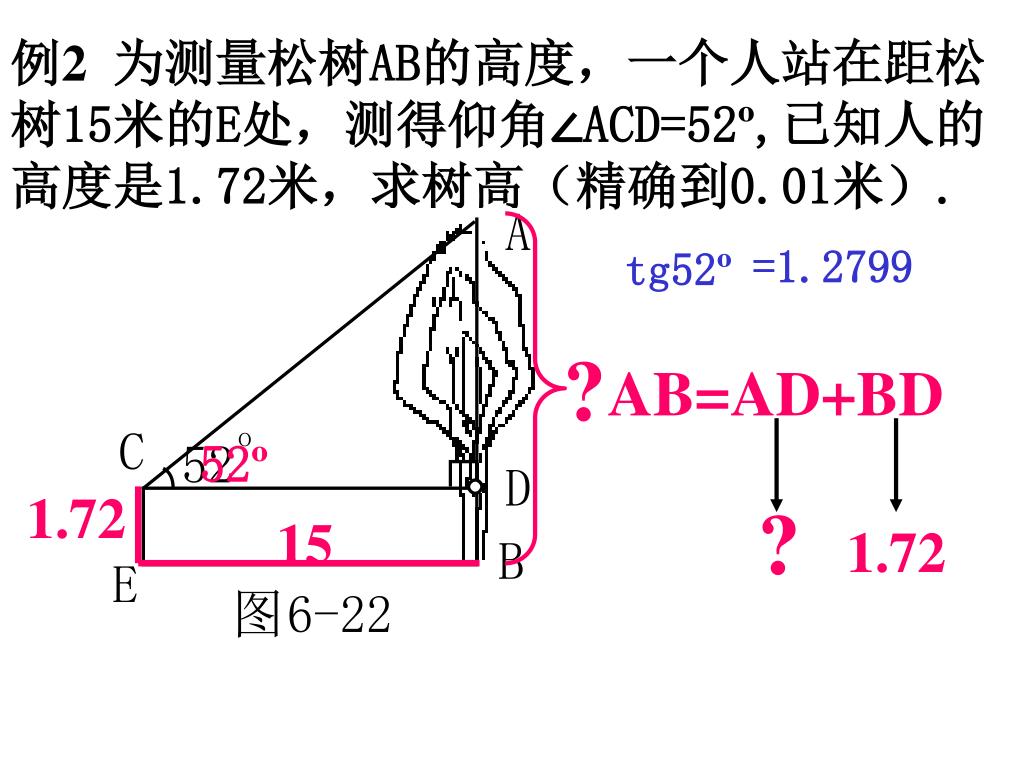

  5. =1.2799 tg52º 例2 为测量松树AB的高度,一个人站在距松树15米的E处,测得仰角∠ACD=52º,已知人的高度是1.72米,求树高(精确到0.01米). ? AB=AD+BD 52º 1.72 ? 15 1.72

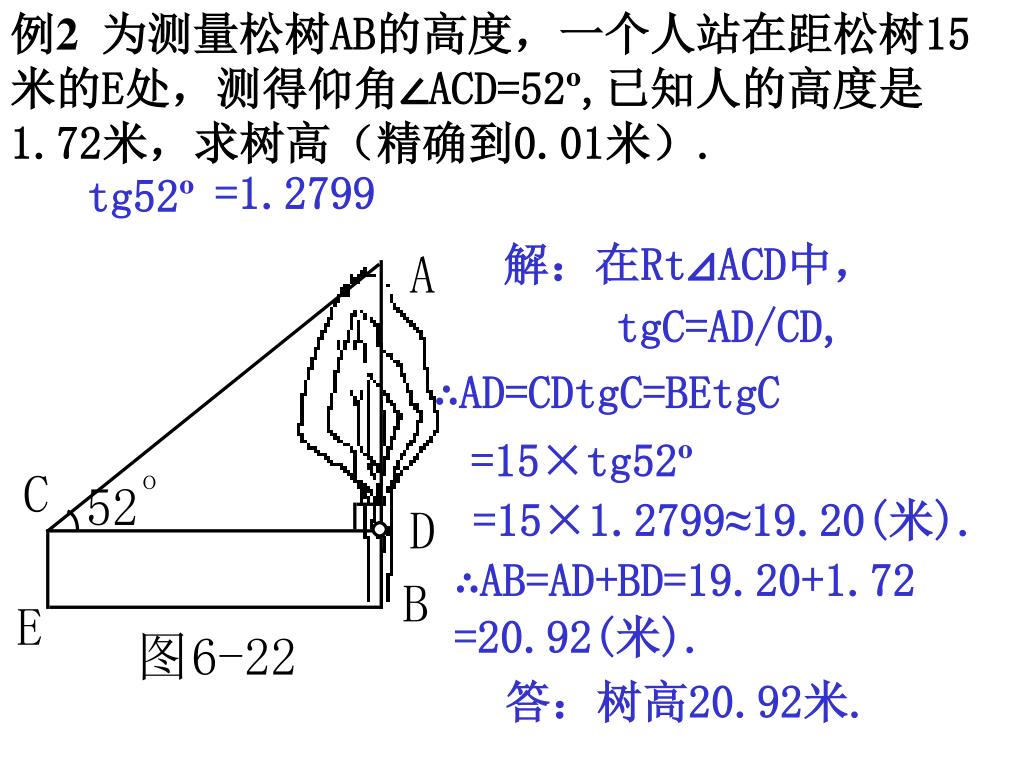

  6. 例2 为测量松树AB的高度,一个人站在距松树15米的E处,测得仰角∠ACD=52º,已知人的高度是1.72米,求树高(精确到0.01米). =1.2799 tg52º 解:在Rt⊿ACD中, tgC=AD/CD, ∴AD=CDtgC=BEtgC =15×tg52º =15×1.2799≈19.20(米). ∴AB=AD+BD=19.20+1.72 =20.92(米). 答:树高20.92米.
