สจพ

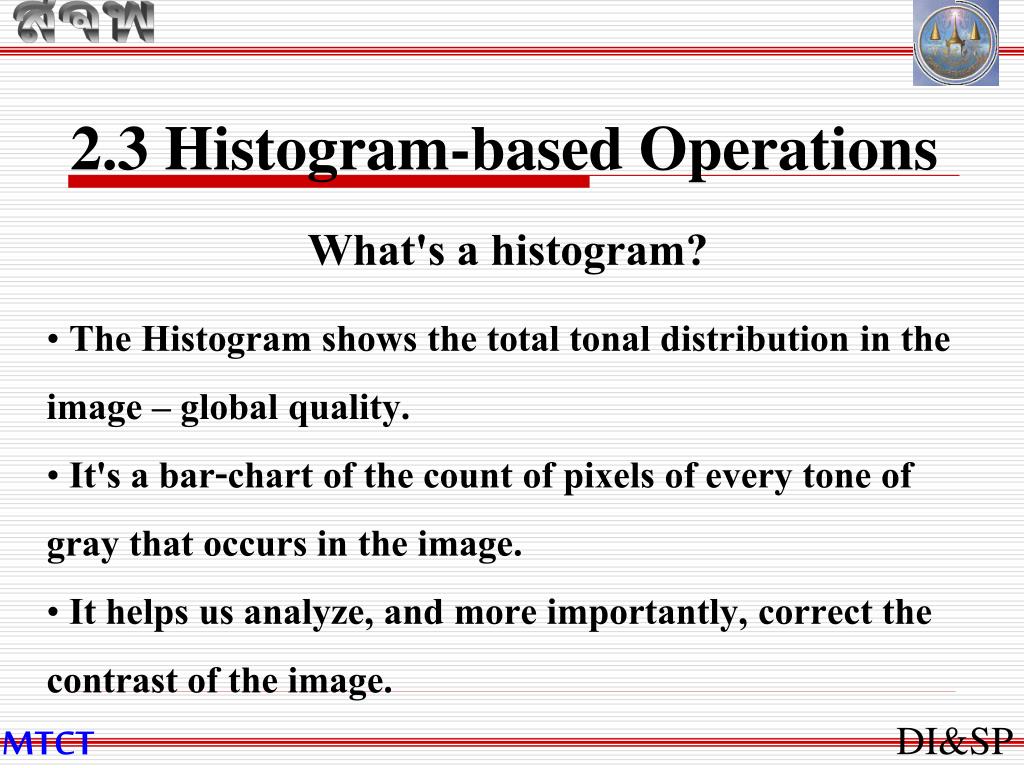

2.3 Histogram-based Operations

  • What's a histogram?

  • The Histogram shows the total tonal distribution in the image – global quality.

  • It's a bar-chart of the count of pixels of every tone of gray that occurs in the image.

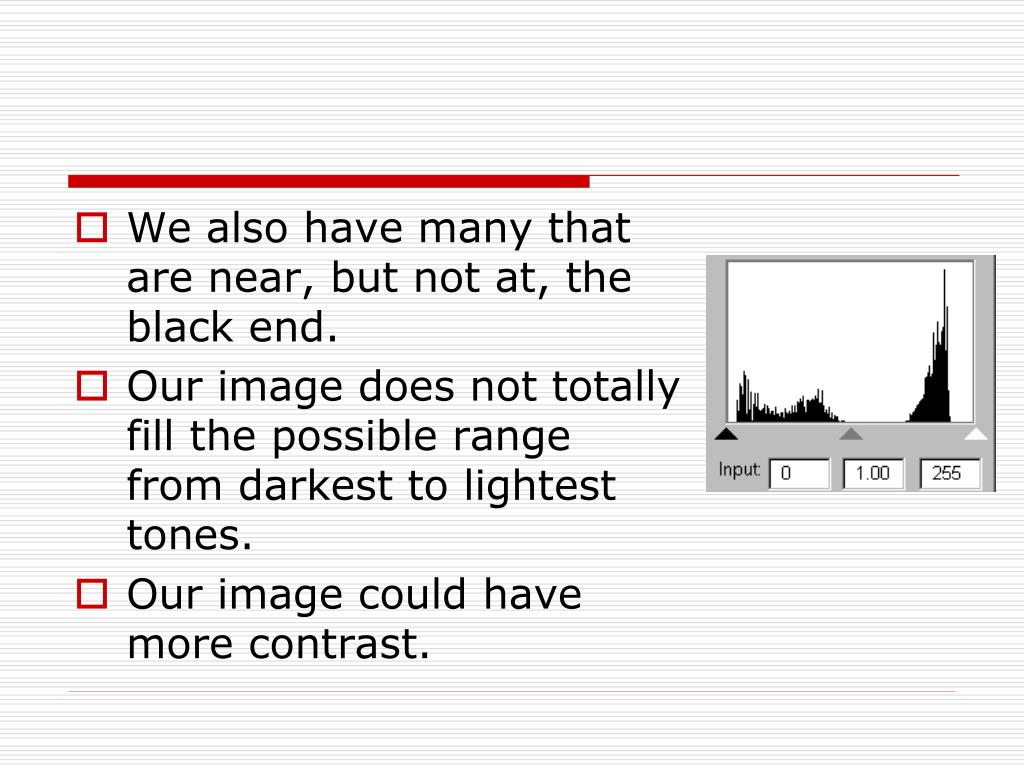

  • It helps us analyze, and more importantly, correct the contrast of the image.

DI&SP

MTCT

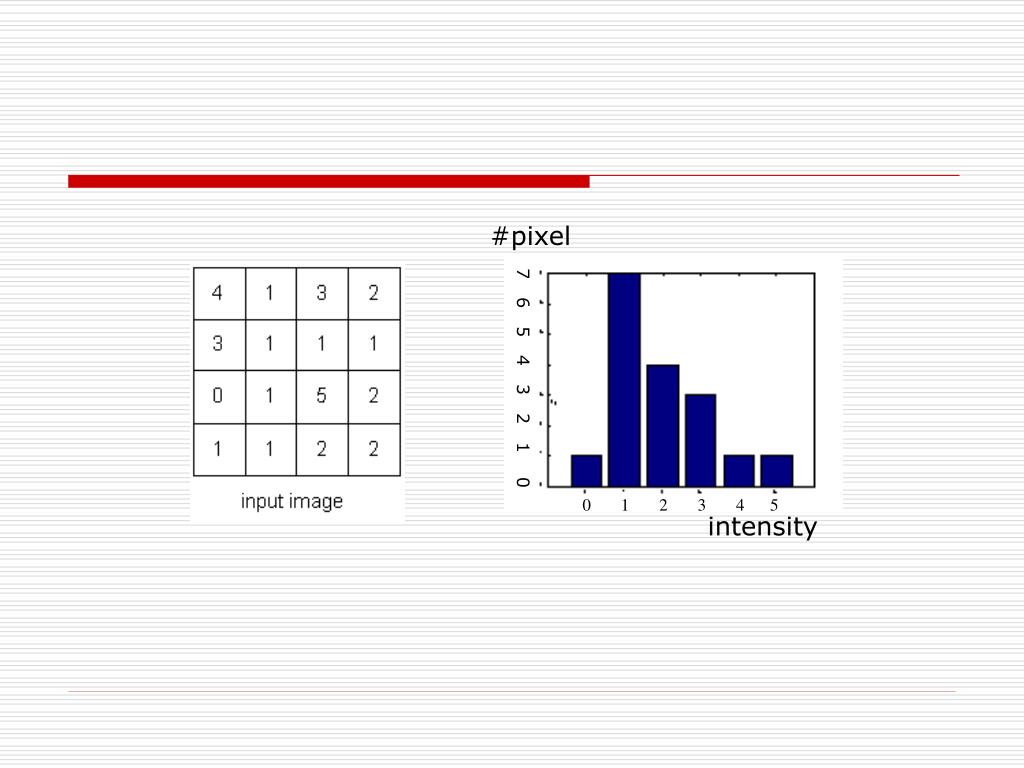

#pixel

7 6 5 4 3 2 1 0

0 1 2 3 4 5

intensity


Histogram

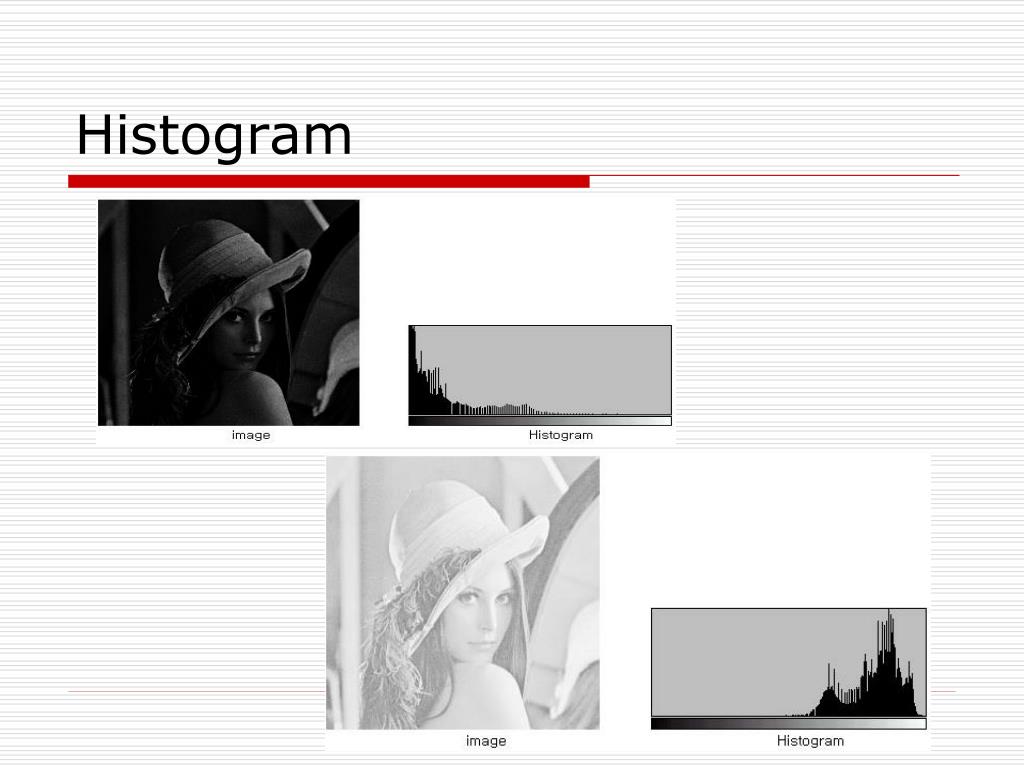

Histogram

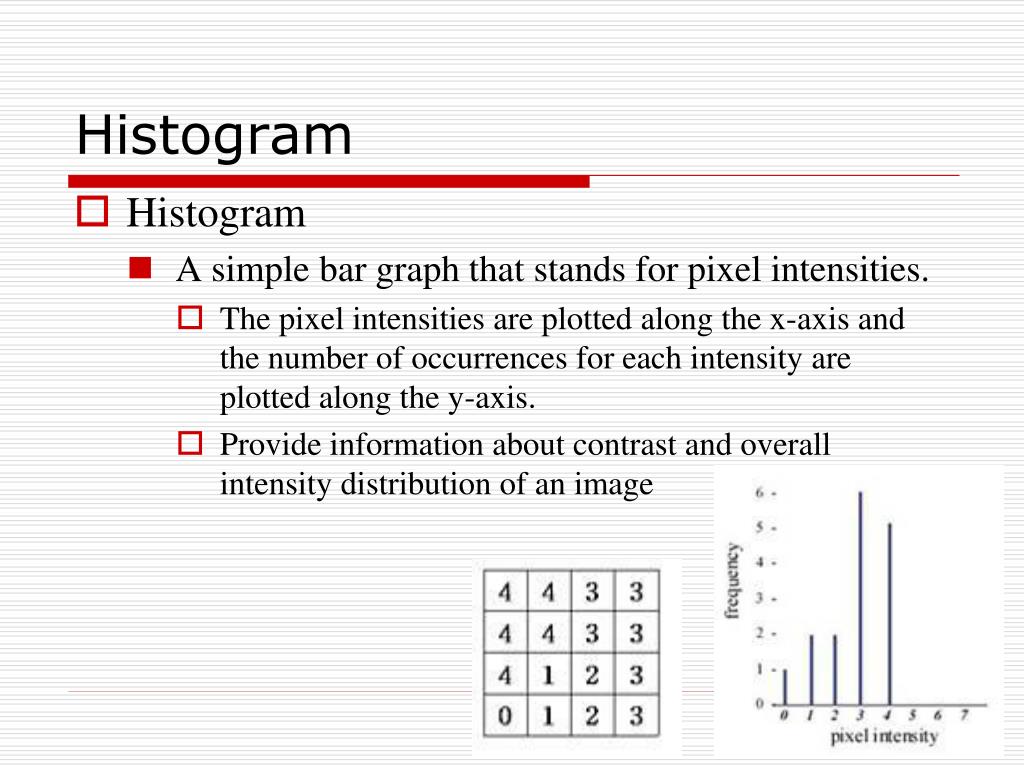

  • Histogram

    • A simple bar graph that stands for pixel intensities.

      • The pixel intensities are plotted along the x-axis and the number of occurrences for each intensity are plotted along the y-axis.

      • Provide information about contrast and overall intensity distribution of an image


สจพ

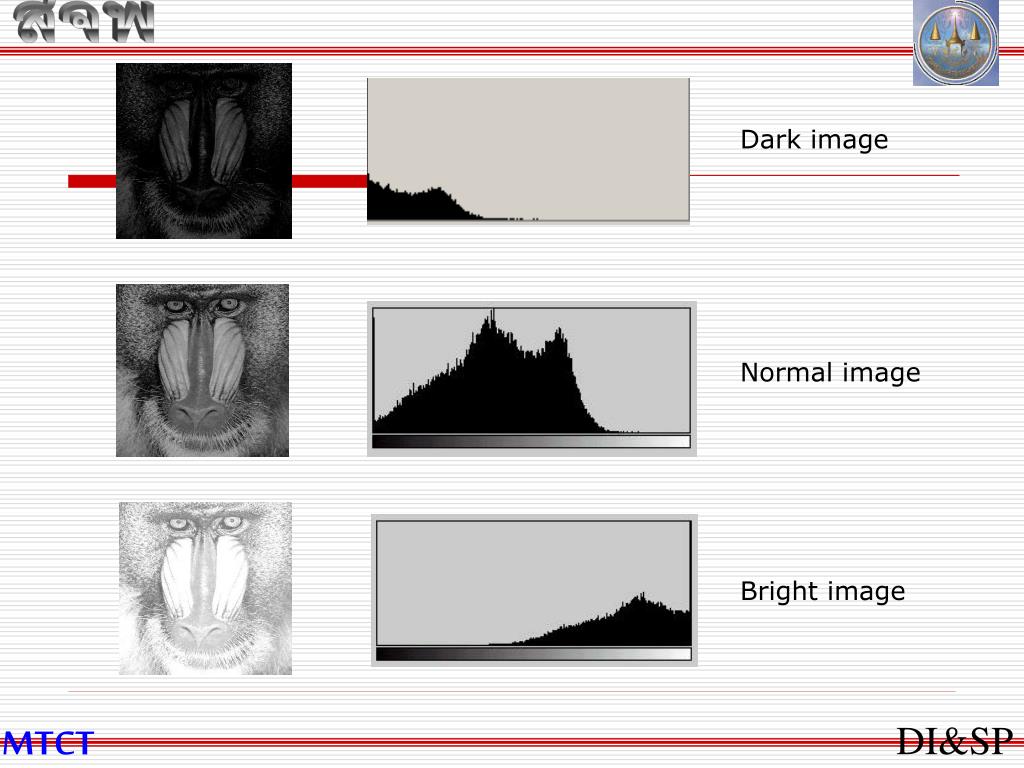

Dark image

Normal image

Bright image

DI&SP

MTCT


สจพ

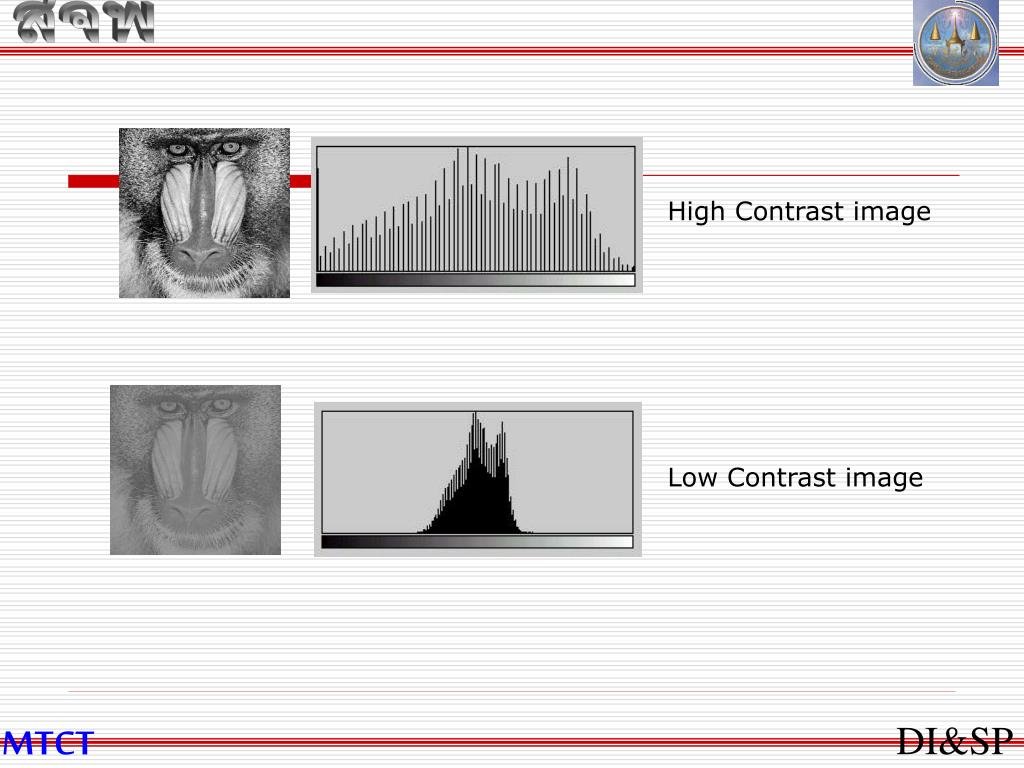

High Contrast image

Low Contrast image

DI&SP

MTCT

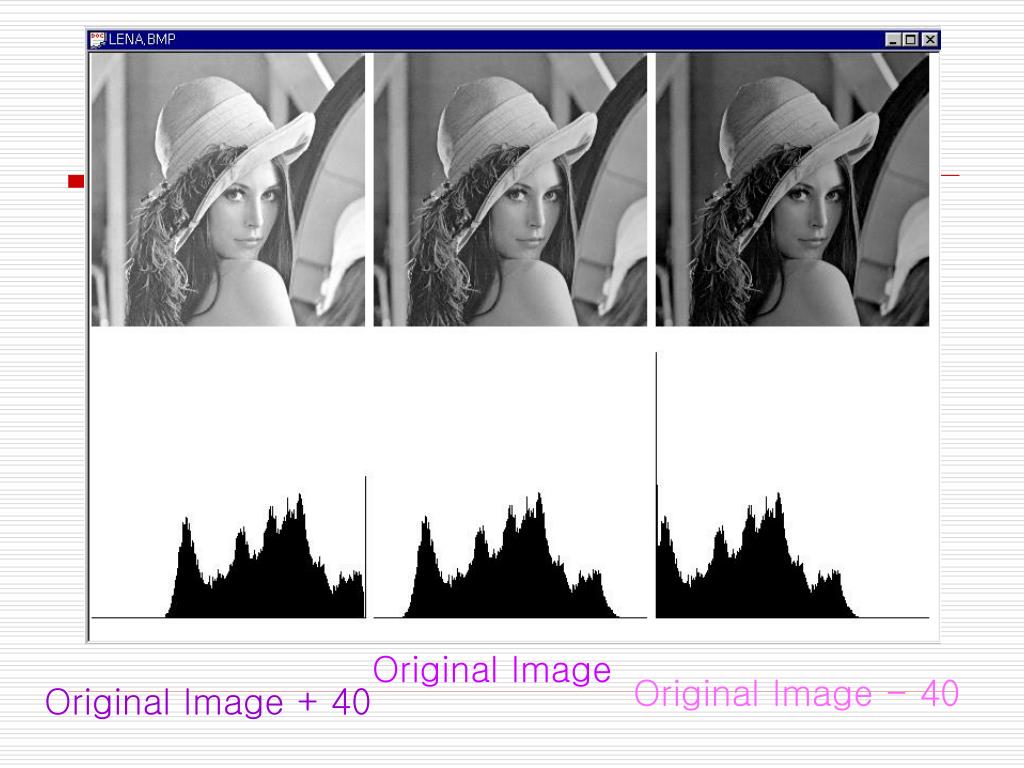

Original Image

Original Image - 40

Original Image + 40


Original Image

Original Image * 1.2

Original Image / 1.2


Histogram2
Histogram

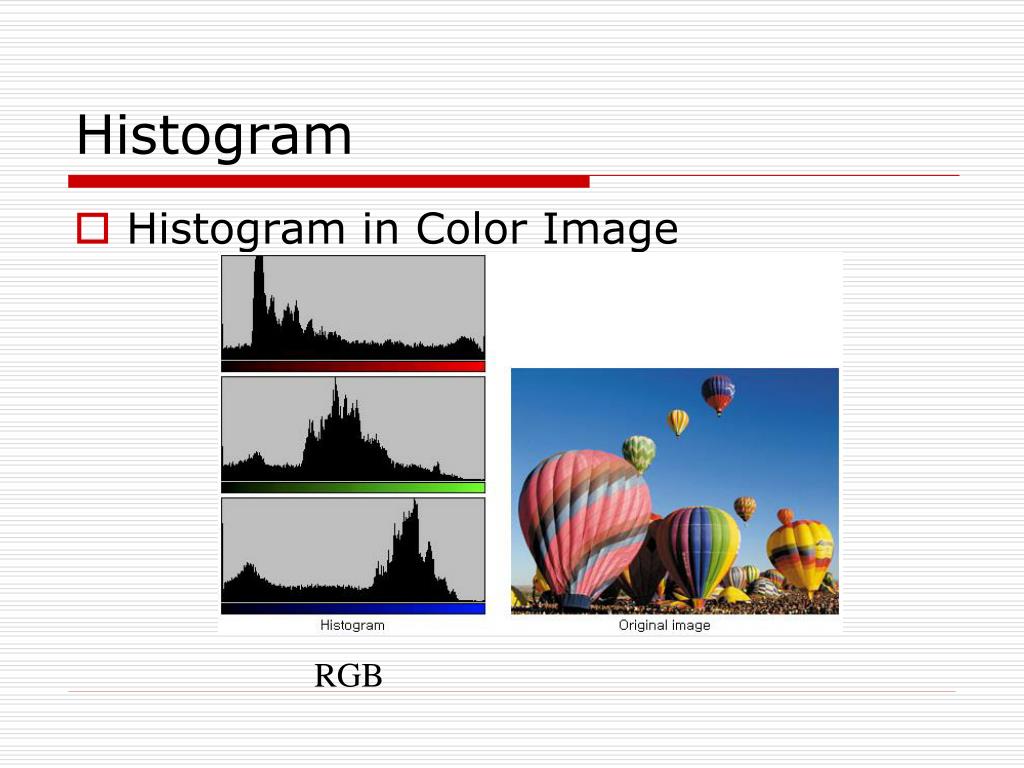

  • Histogram in Color Image

RGB


สจพ

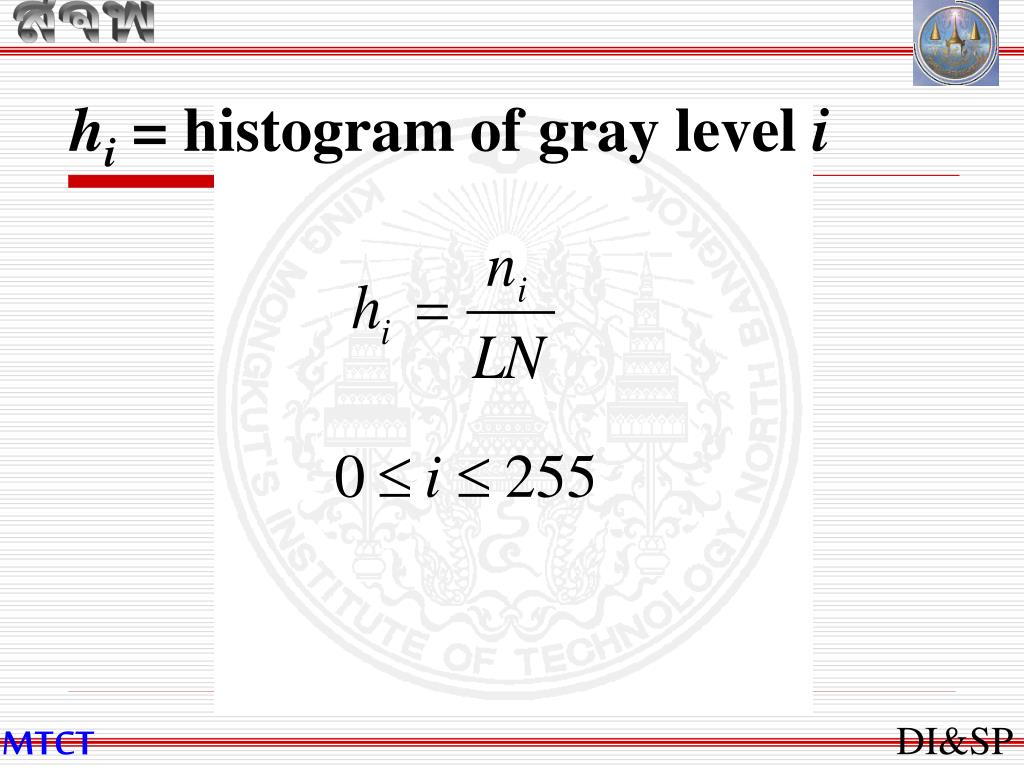

hi = histogram of gray level i

DI&SP

MTCT




2 3 1 histogram equalization

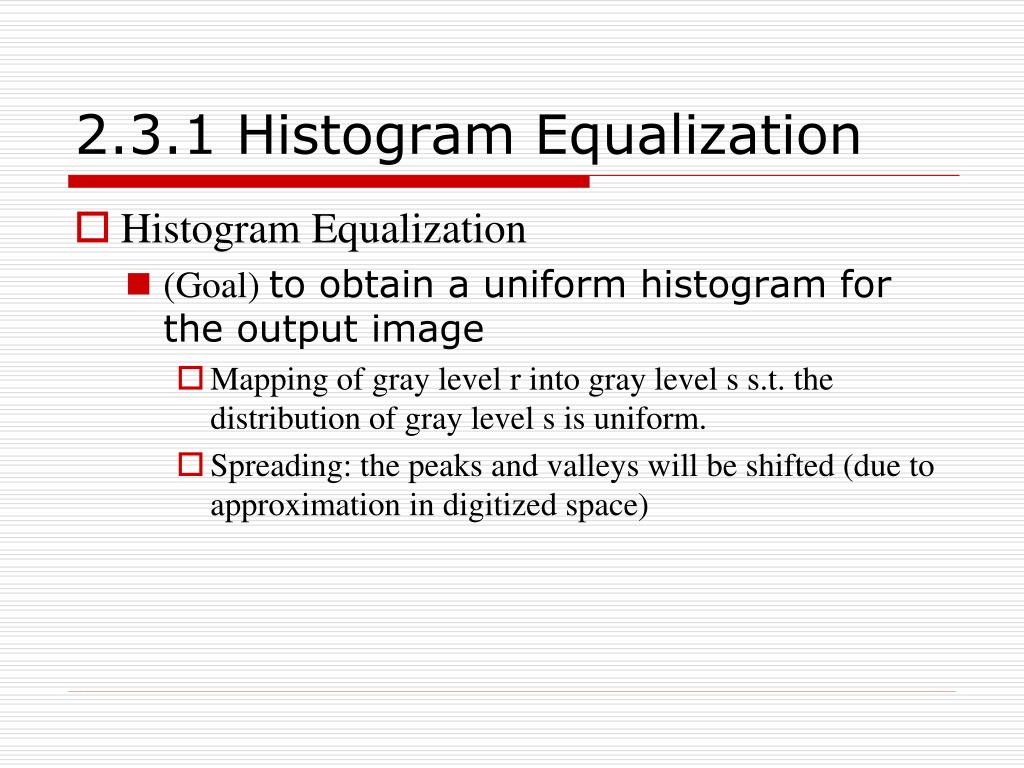

2.3.1 Histogram Equalization tone distribution over the entire range.

  • Histogram Equalization

    • (Goal) to obtain a uniform histogram for the output image

      • Mapping of gray level r into gray level s s.t. the distribution of gray level s is uniform.

      • Spreading: the peaks and valleys will be shifted (due to approximation in digitized space)


2 3 1 histogram equalization1
2.3.1 Histogram Equalization tone distribution over the entire range.

  • Histogram Equalization Steps

    • Compute histogram.

    • Calculate normalized sum of histogram

    • Transform input image to output image


Ex he

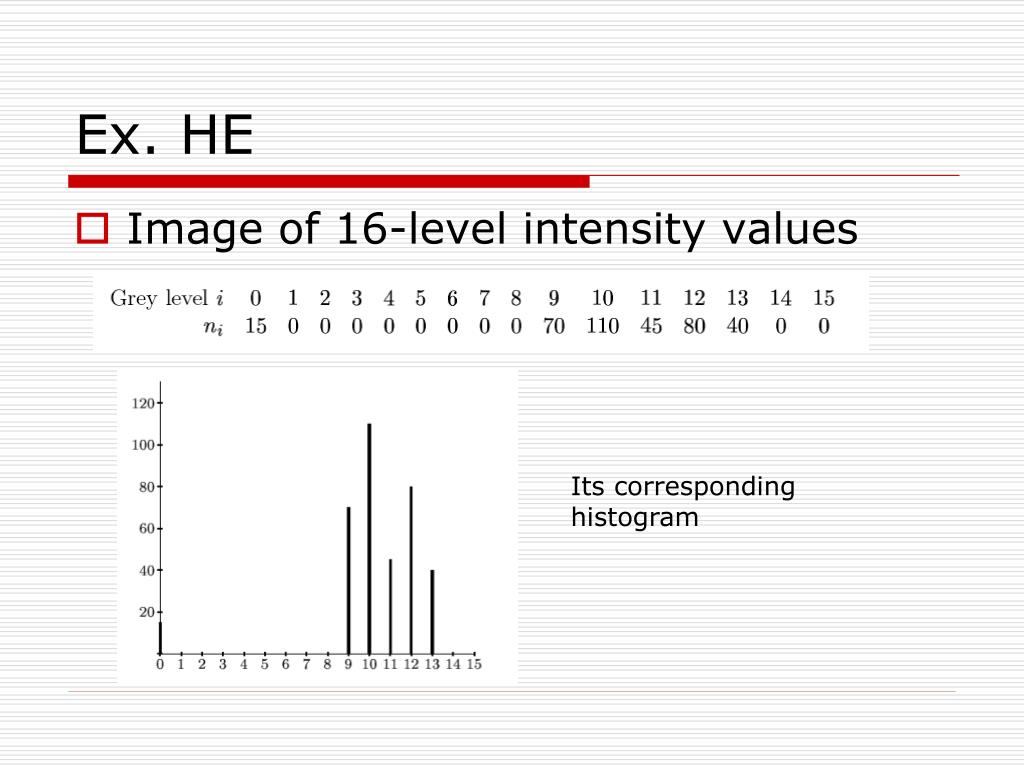

Ex. HE tone distribution over the entire range.

  • Image of 16-level intensity values

Its corresponding histogram


1 compute histogram
1) Compute histogram tone distribution over the entire range.


2 accum histogram
2) Accum. tone distribution over the entire range. histogram

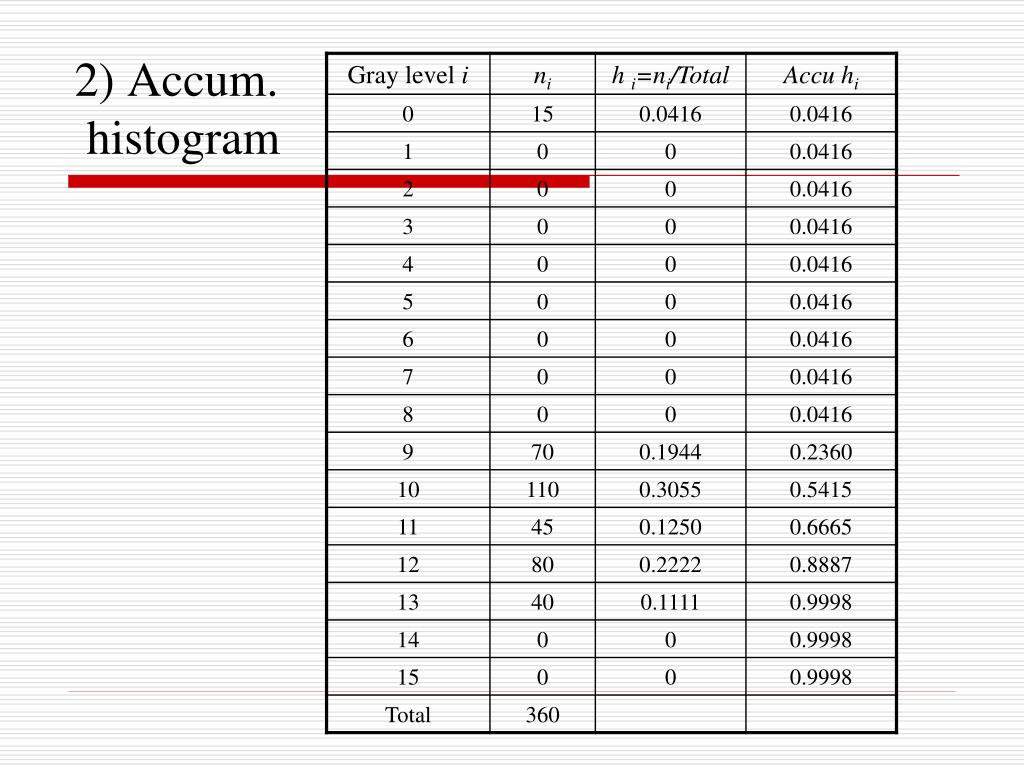

2 accum histogram1

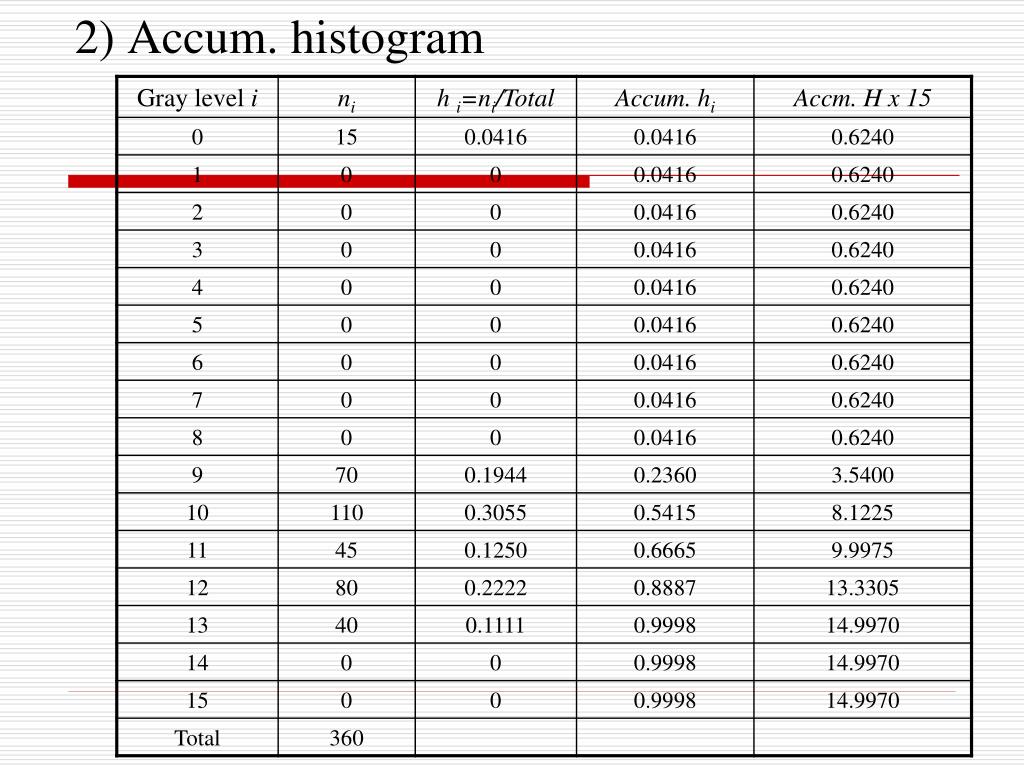

2) Accum. histogram tone distribution over the entire range.


3 transform input image to output image
3) Transform input image to output image tone distribution over the entire range.

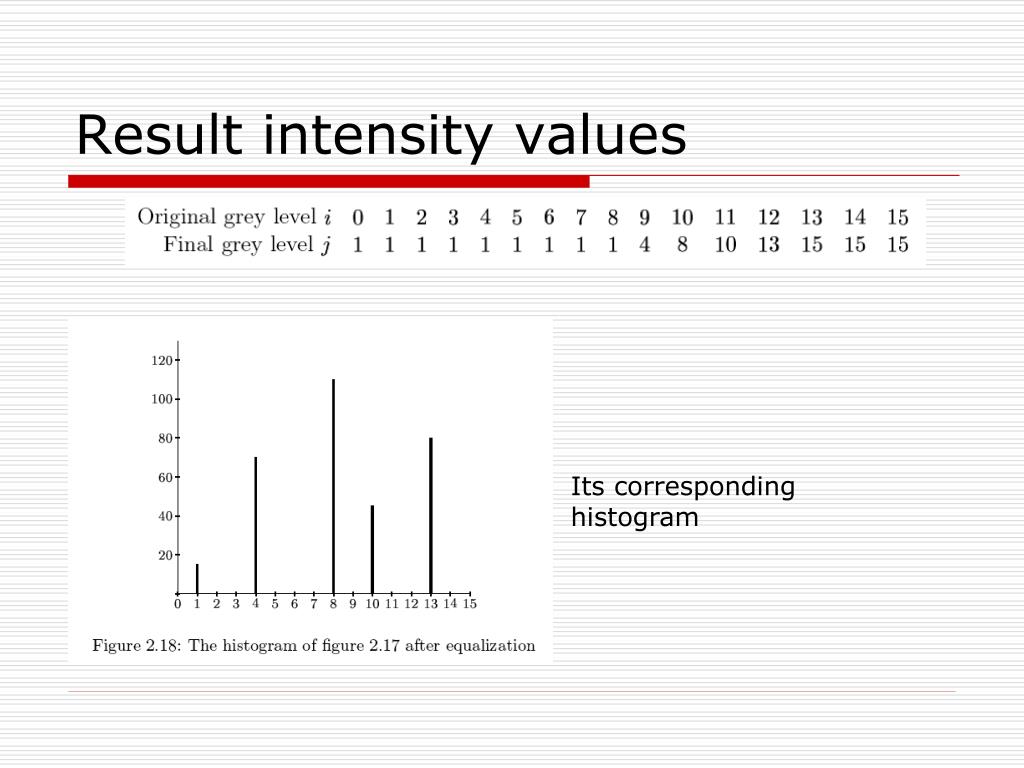

Result intensity values
Result intensity values tone distribution over the entire range.

Its corresponding histogram


Histogram equalization
Histogram Equalization tone distribution over the entire range.

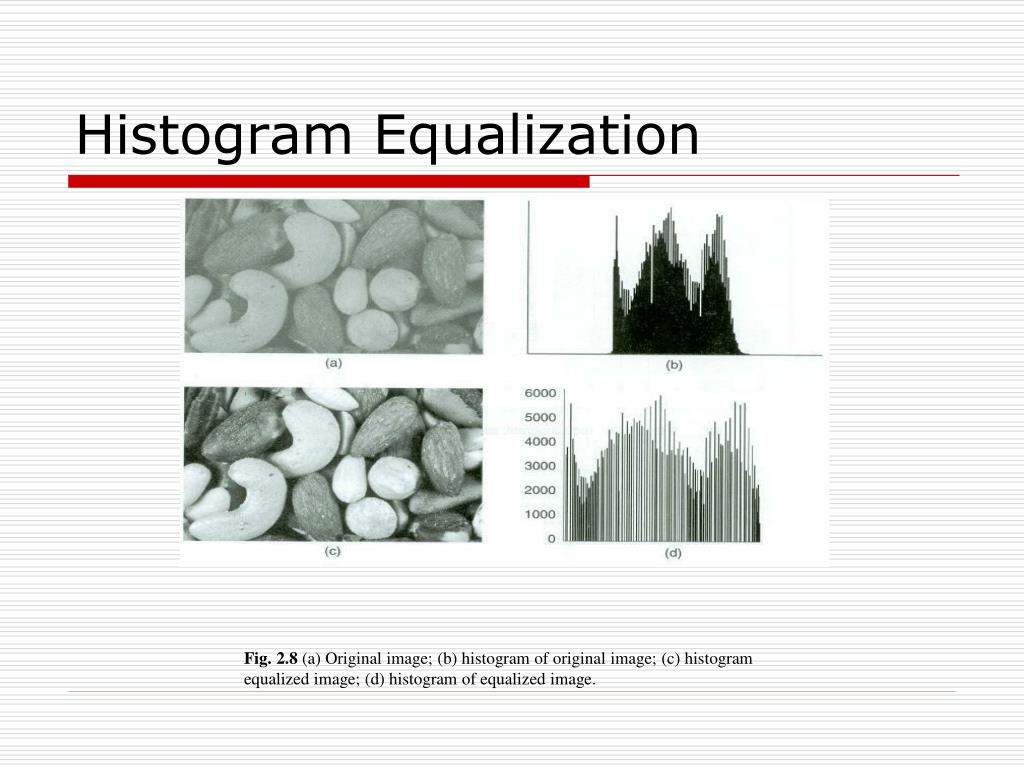

Fig. 2.8 (a) Original image; (b) histogram of original image; (c) histogram equalized image; (d) histogram of equalized image.


Histogram equalization1
Histogram Equalization tone distribution over the entire range.

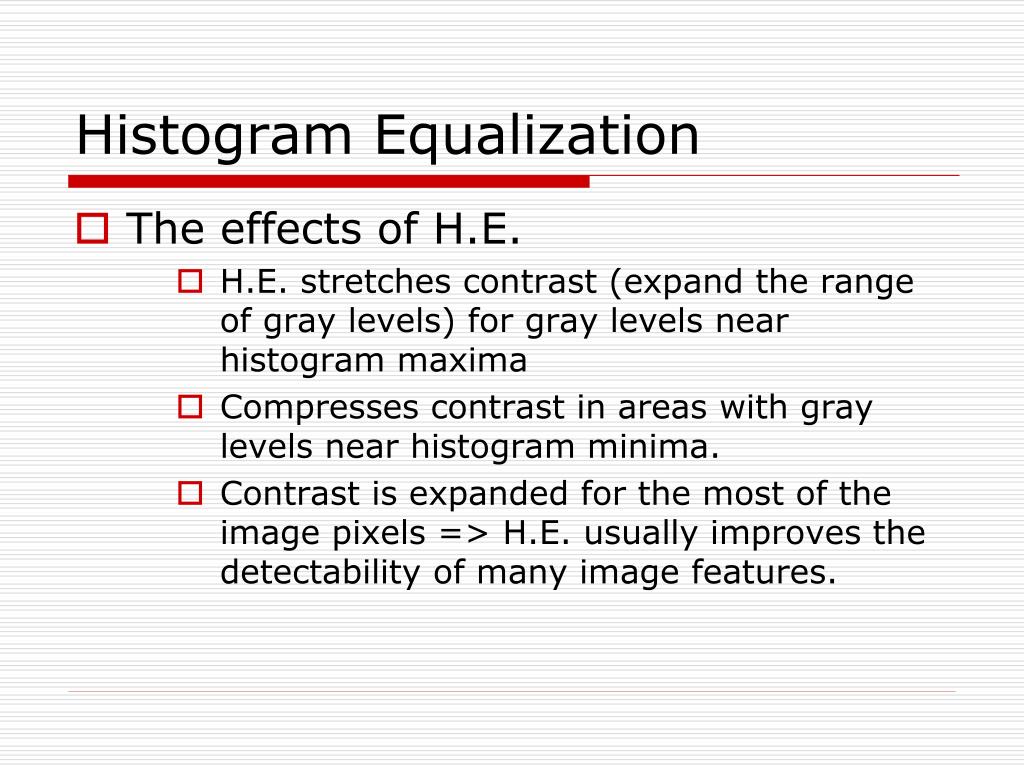

  • The effects of H.E.

    • H.E. stretches contrast (expand the range of gray levels) for gray levels near histogram maxima

    • Compresses contrast in areas with gray levels near histogram minima.

    • Contrast is expanded for the most of the image pixels => H.E. usually improves the detectability of many image features.


Histogram equalization2
Histogram Equalization tone distribution over the entire range.

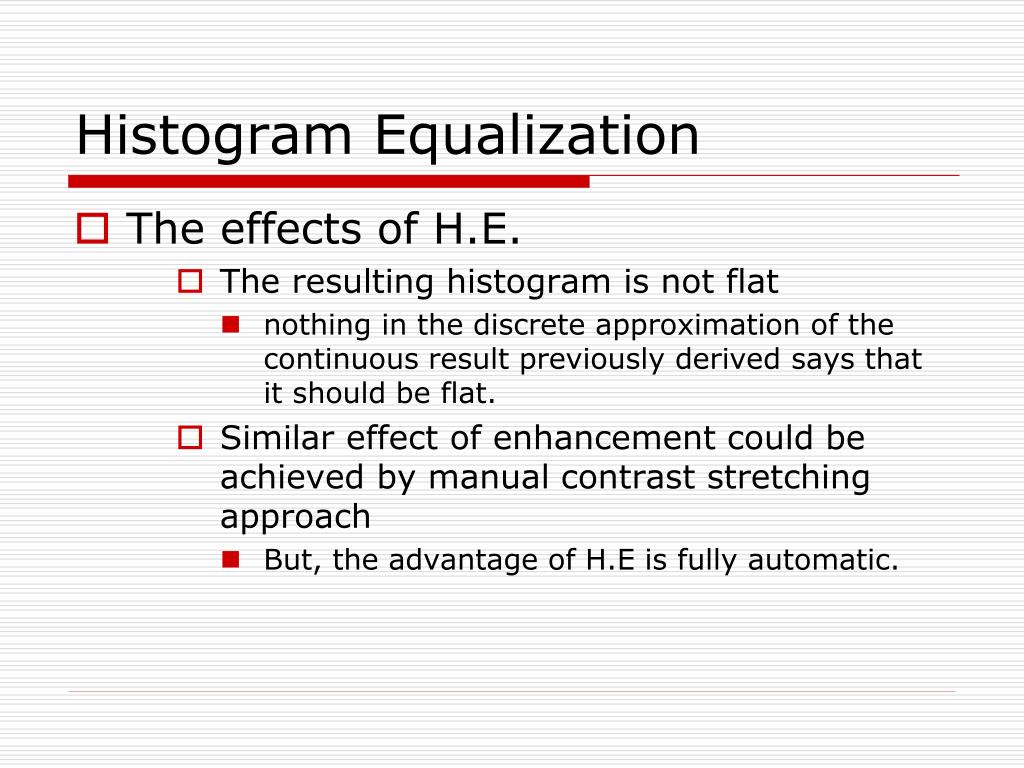

  • The effects of H.E.

    • The resulting histogram is not flat

      • nothing in the discrete approximation of the continuous result previously derived says that it should be flat.

    • Similar effect of enhancement could be achieved by manual contrast stretching approach

      • But, the advantage of H.E is fully automatic.


Histogram equalization3
Histogram Equalization tone distribution over the entire range.

// histogram

for( idx = 0; idx < IpixelValue.length; idx++ ) {    r = ( IpixelValue[idx] & 0x00FF0000 ) >> 16;    g = ( IpixelValue[idx] & 0x0000FF00 ) >> 8;    b = ( IpixelValue[idx] & 0x000000FF );    red_pixel_value[r]++;    green_pixel_value[g]++;    blue_pixel_value[b]++;}


Histogram equalization4
Histogram Equalization tone distribution over the entire range.

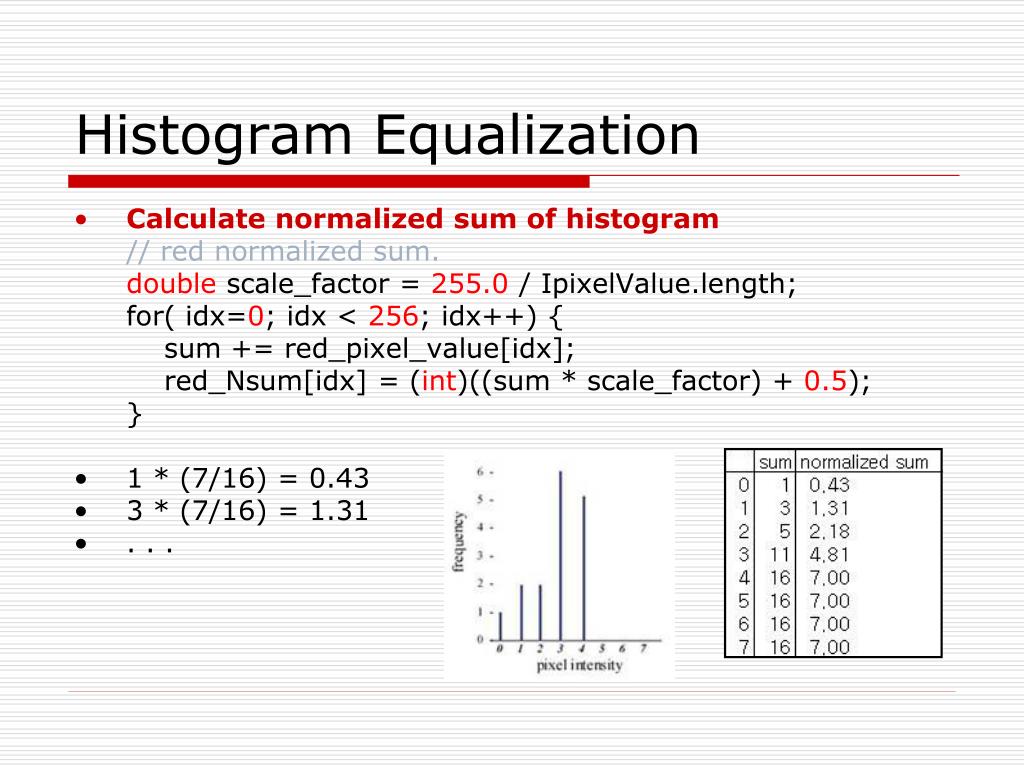

  • Calculate normalized sum of histogram// rednormalized sum.double scale_factor = 255.0 / IpixelValue.length;for( idx=0; idx < 256; idx++) {    sum += red_pixel_value[idx];    red_Nsum[idx] = (int)((sum * scale_factor) + 0.5);}

  • 1 * (7/16) = 0.43

  • 3 * (7/16) = 1.31

  • . . .


Histogram equalization5
Histogram Equalization tone distribution over the entire range.

  • Transform input image to output image// LUT inputfor( idx = 0; idx < imageBuffer.getWidth() * imageBuffer.getHeight(); idx++)    OpixelValue[idx] = 0xFF000000 | (red_Nsum[r[idx]] << 16) | (green_Nsum[g[idx]] << 8) | (blue_Nsum[b[idx]]);

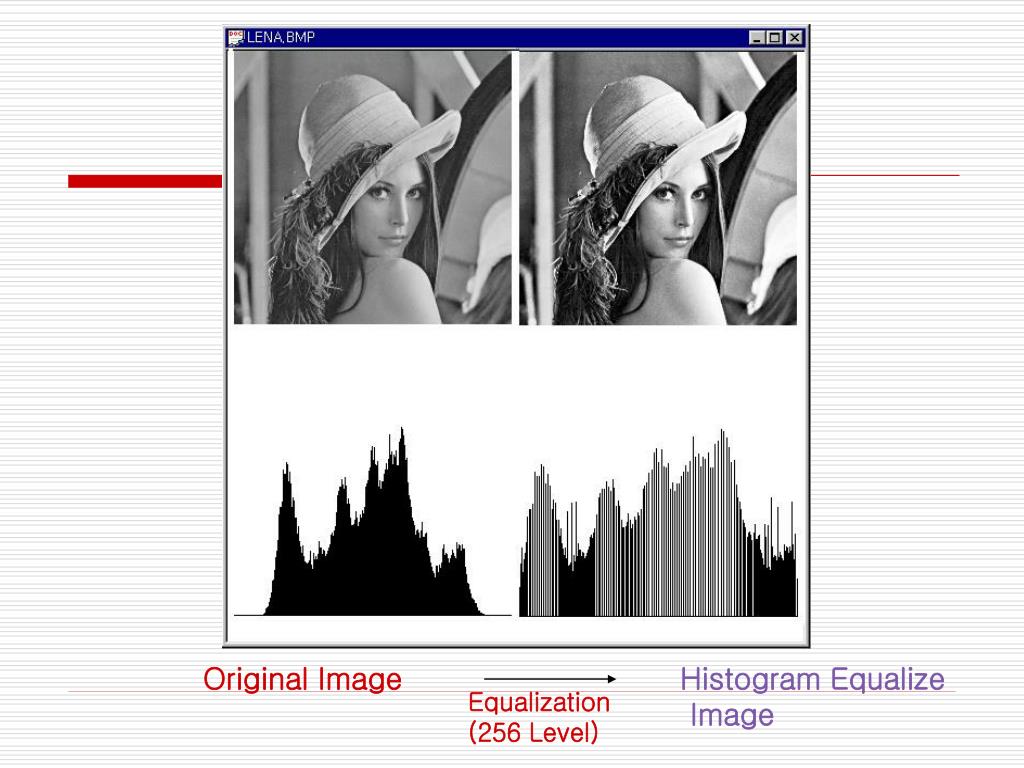

Original Image tone distribution over the entire range.

Histogram Equalize


Equalization

(256 Level)


Histogram equalization6
Histogram Equalization tone distribution over the entire range.

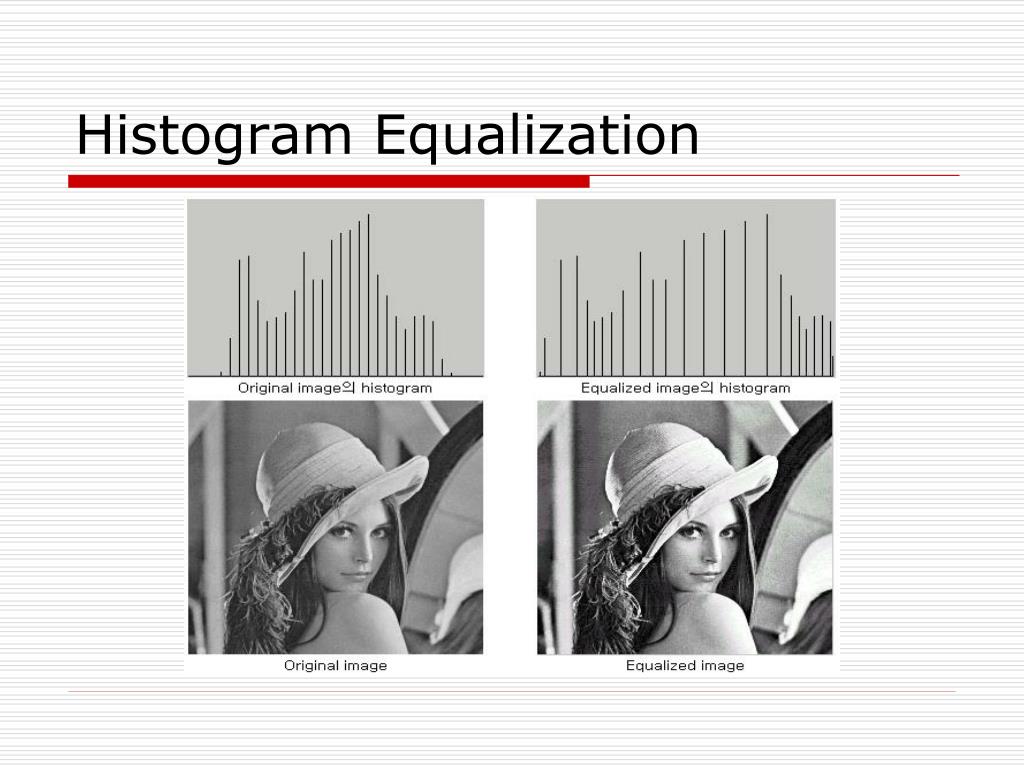

Histogram equalization7
Histogram Equalization tone distribution over the entire range.

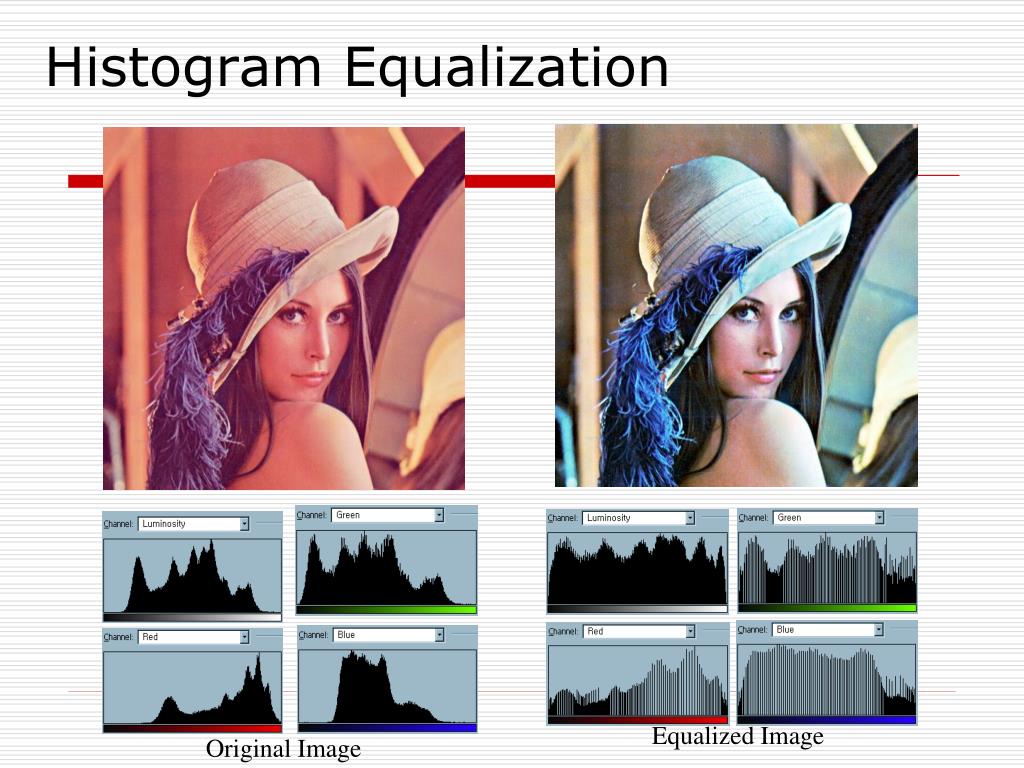

Equalized Image

Original Image


Histogram equalization8

Original Image tone distribution over the entire range.

Equalized Image

Histogram Equalization


Histogram equalization9

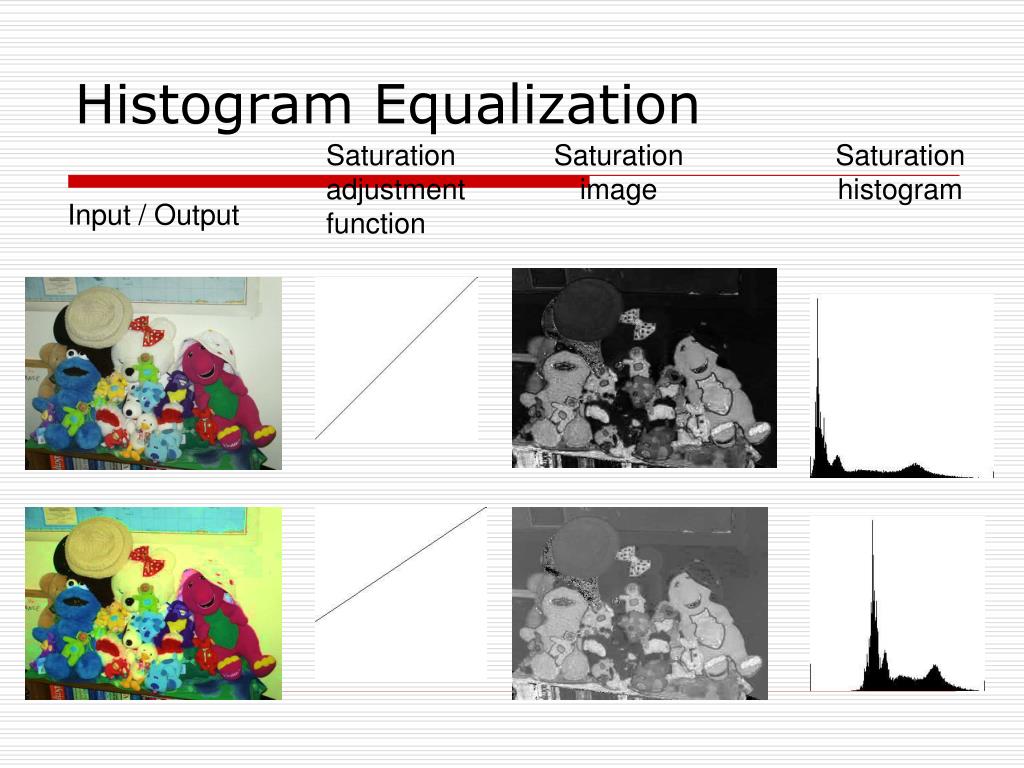

Saturation adjustment function tone distribution over the entire range.

Saturation image

Saturation histogram

Input / Output

Histogram Equalization


Histogram equalization10

Image tone distribution over the entire range.

Histogram equalized intensity

Histogram Equalization


Histogram equalization11

Original image tone distribution over the entire range.

Each R, G, B image is histogram equalized

Histogram equalized intensity

Histogram Equalization


  • /******************************************************** tone distribution over the entire range.

  • * Func: histogram_equalize

  • * Desc: histogram equalize an input image and write it out Params: buffer - pointer to image in memory * number_of_pixels - total number of pixels in image ********************************************************/

  • void histogram_equalize(image_ptr buffer, unsigned long number_of_pixels)

  • {

  • unsigned long histogram[256]; /* image histogram */

  • unsigned long sum_hist[256]; /* sum of histogram elements */


  • float scale_factor; /* normalized scale factor */ tone distribution over the entire range.

  • unsigned long i; /* index variable */

  • unsigned long sum; /* variable used to increment sum of hist */

  • /* clear histogram to 0 */

  • for(i=0; i<256; i++)

  • histogram[i]=0;

  • /* calculate histogram */

  • for(i=0; i<number_of_pixels; i++)

  • histogram[buffer[i]]++;


  • /* tone distribution over the entire range. calculate normalized sum of hist */

  • sum = 0;

  • scale_factor = 255.0 / number_of_pixels;

  • for(i=0; i<256; i++)

  • {

  • sum += histogram[i];

  • sum_hist[i] = (sum * scale_factor) + 0.5;

  • }

  • /* transform image using new sum_hist as a LUT */

  • for(i=0; i<number_of_pixels; i++)

  • buffer[i] = sum_hist[buffer[i]];

  • }
