Presentation Transcript


Cathode ray oscilloscope

cathode ray oscilloscope


Tube photograph

tube photograph

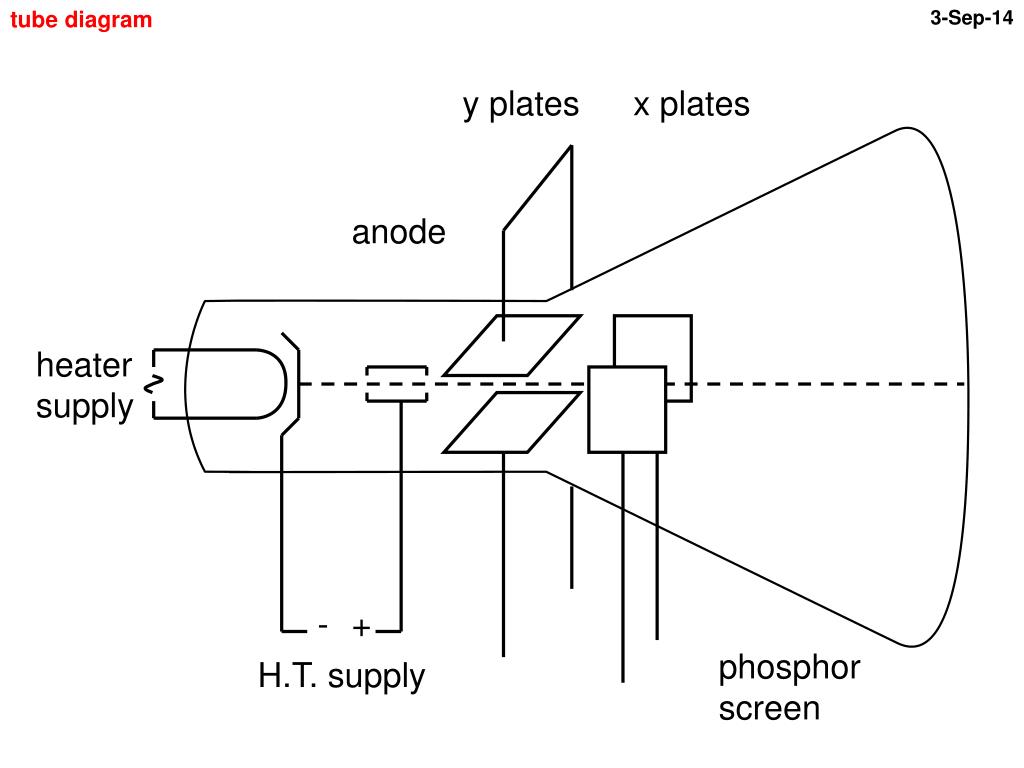

Tube diagram

tube diagram

y plates

x plates

anode

heater supply

-

+

phosphor screen

H.T. supply

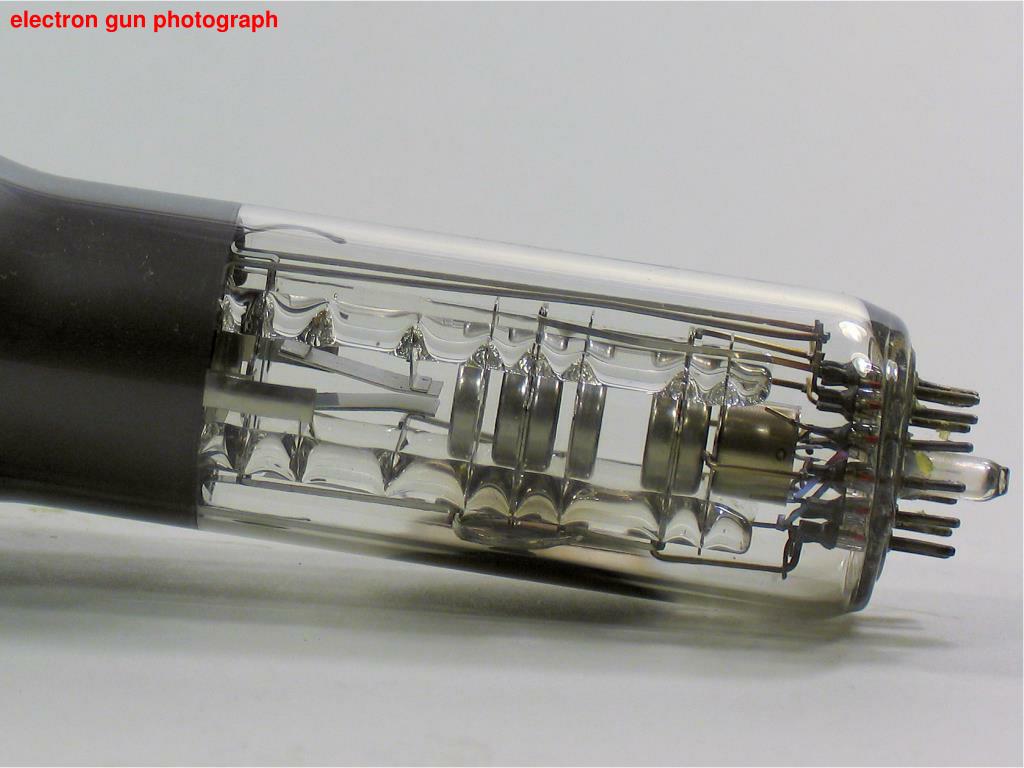

Electron gun photograph

electron gun photograph


Summary

summary

electron gun produces a beam of electrons

light produced on the screen by electron beam

a p.d. across the y plates deflects the trace vertically

a p.d. across the x plates deflects the trace horizontally

y plates

x plates

anode

heater supply

-

+

phosphor screen

H.T. supply

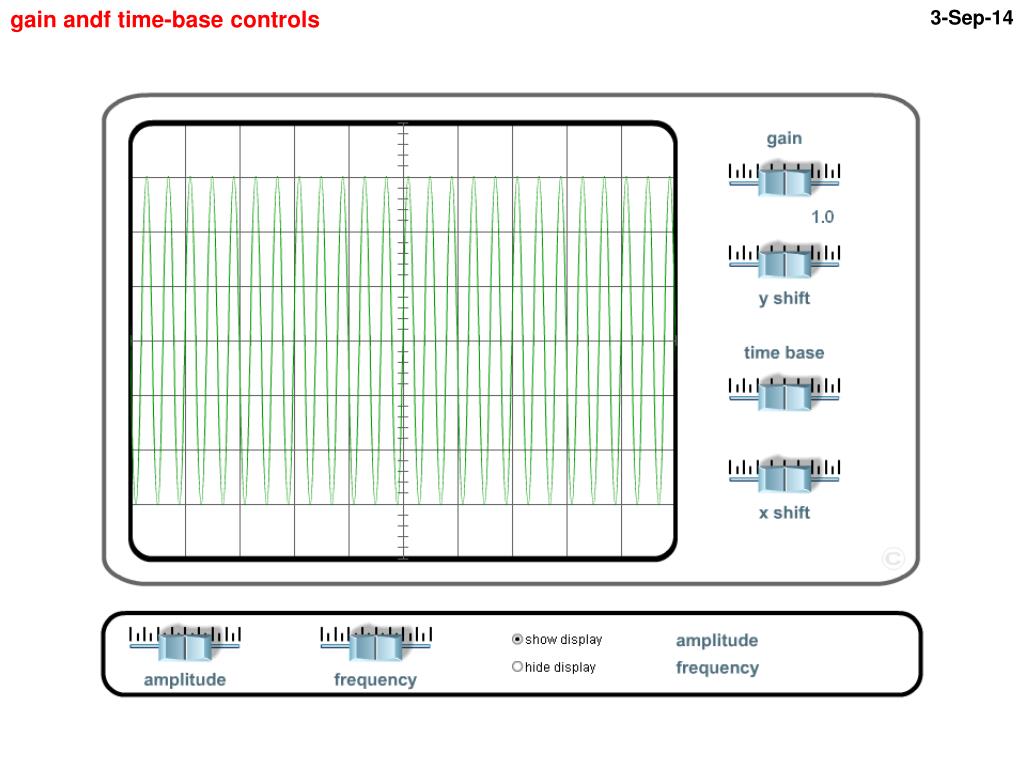

Gain andf time base controls

gain andf time-base controls


Peak voltage

peak voltage

Peak p.d. = 3 Divisions x 1.0 mV/div = 3.0 mV

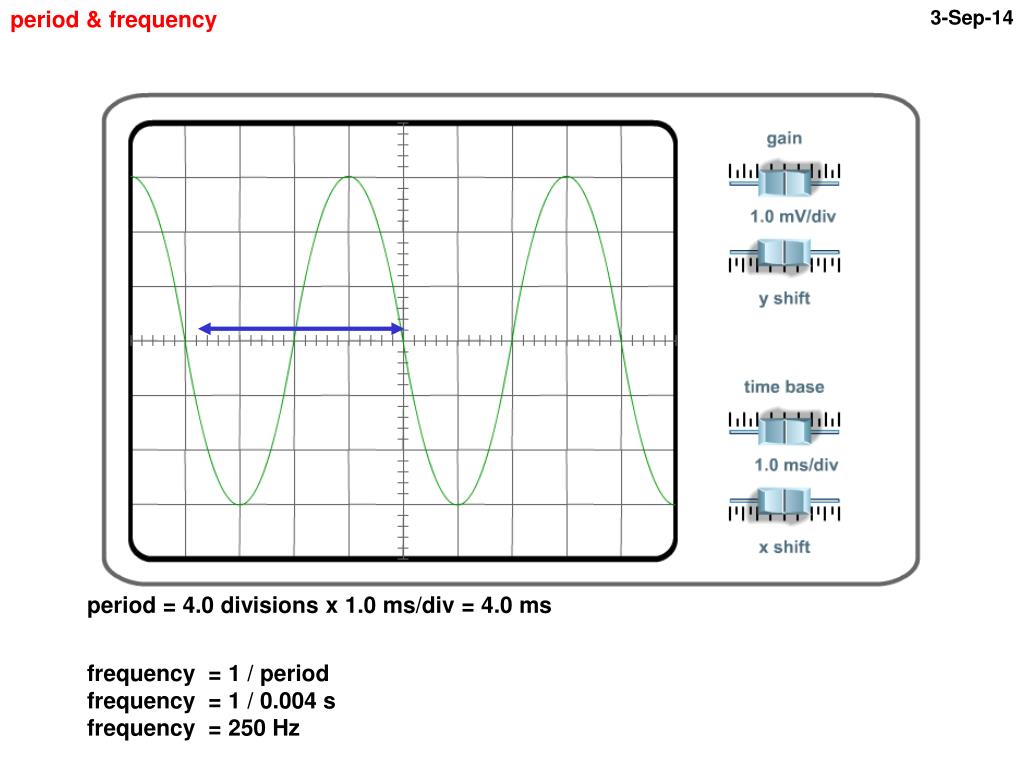

Period frequency

period & frequency

period = 4.0 divisions x 1.0 ms/div = 4.0 ms

frequency = 1 / period

frequency = 1 / 0.004 s

frequency = 250 Hz

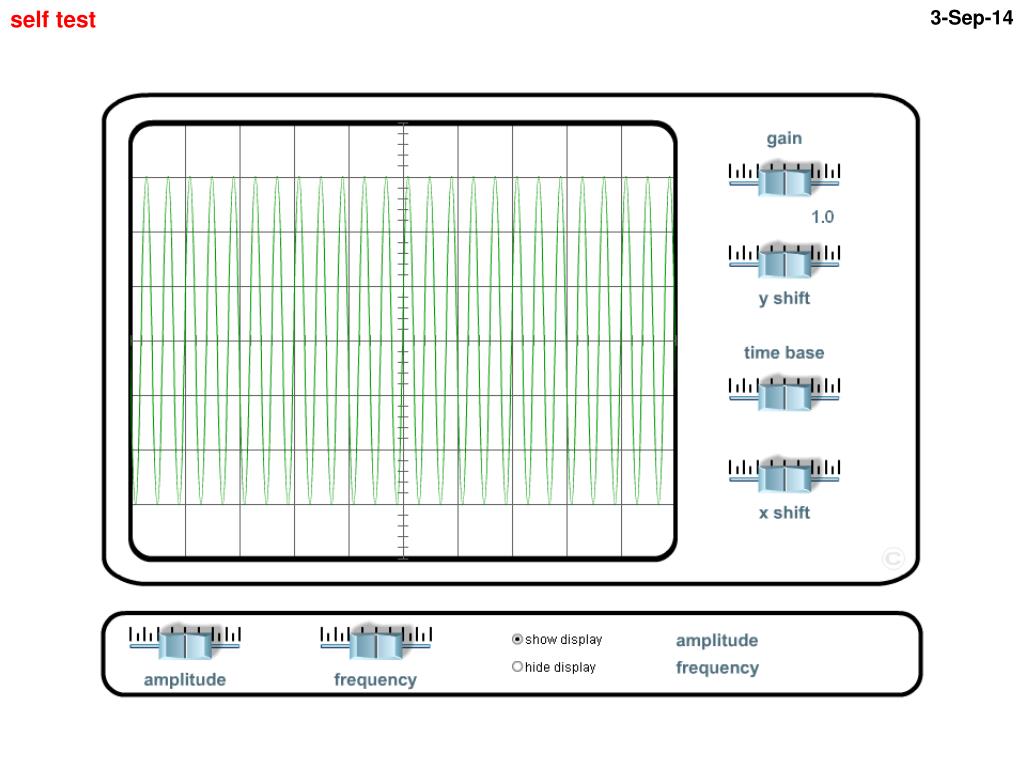

Self test

self test
