  1. ANGLES • DEF of an Angle: An angle is FORMED BY TWO RAYS WITH A COMMON ENDPOINT. • The Rays are the sides of the angle. • The endpoints of the rays are the vertex

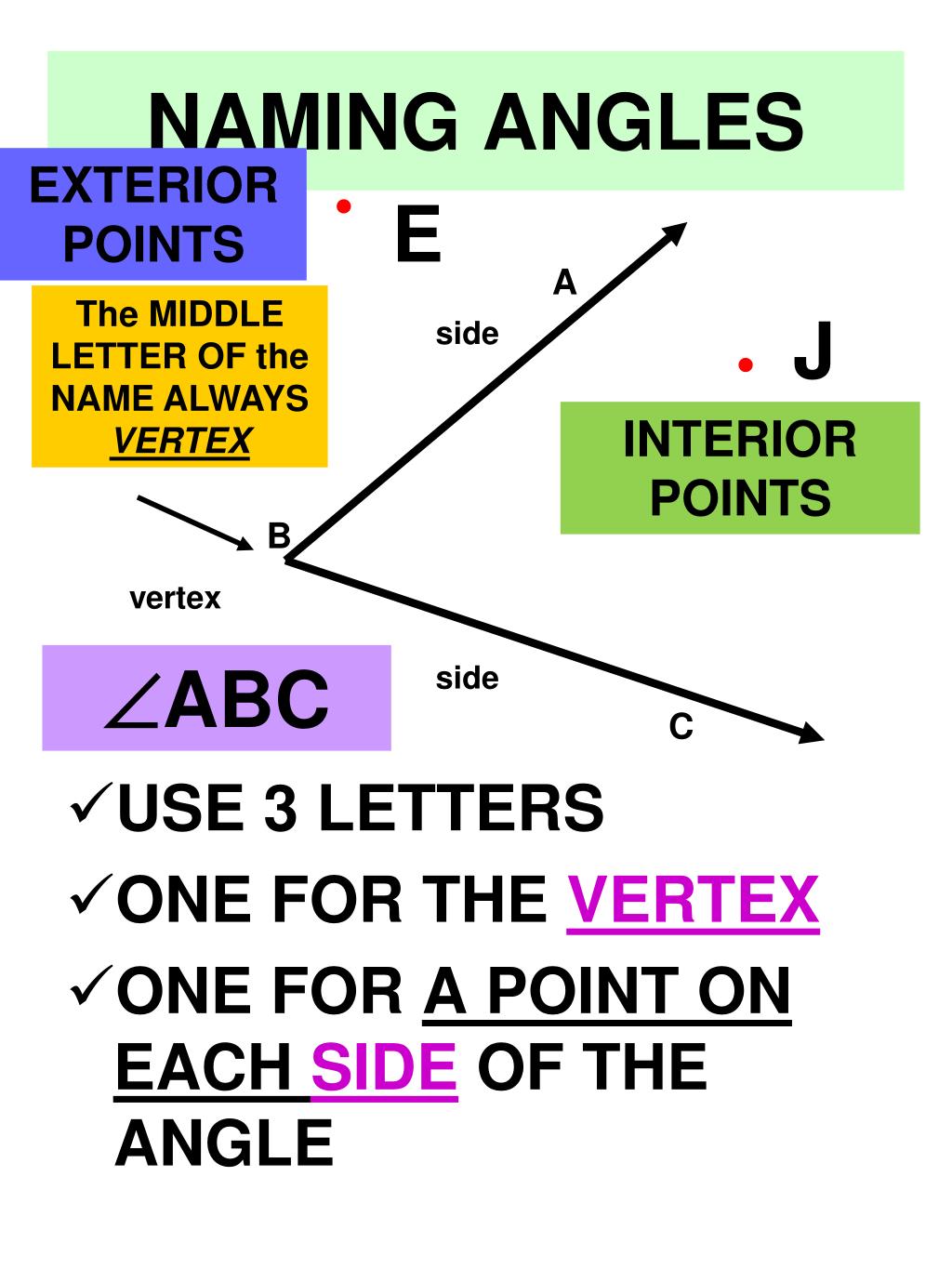

  2. side side NAMING ANGLES EXTERIOR POINTS E The MIDDLE LETTER OF the NAME ALWAYS VERTEX • USE 3 LETTERS • ONE FOR THE VERTEX • ONE FOR A POINT ON EACH SIDE OF THE ANGLE J A INTERIOR POINTS vertex ABC B C

  3. ALTERNATIVE ANGLE NAMES USE1 LETTER (THE VERTEX) OR 1 NUMBER(THE VERTEX) FOR THE NAME. WE SAY side side A 4 vertex B C 4 or B

  4. Name the angles in this the diagram… T M E V 1 2 • How does your answer change if I ask for the distinct angles in the diagram?

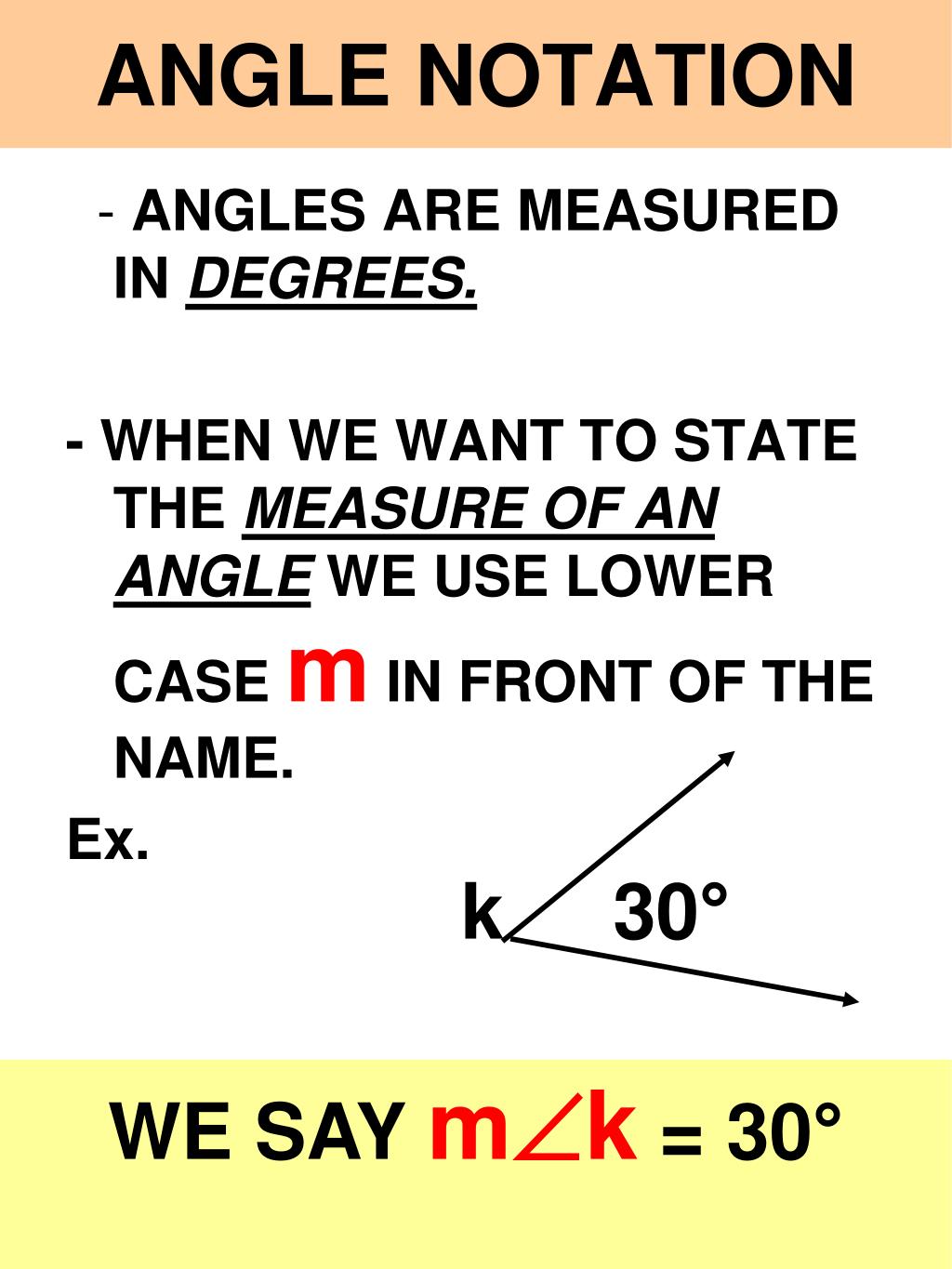

  5. k 30° ANGLE NOTATION - ANGLES ARE MEASURED IN DEGREES. - WHEN WE WANT TO STATE THE MEASURE OF AN ANGLE WE USE LOWER CASE m IN FRONT OF THE NAME. Ex. WE SAY mk = 30°

  6. If two angles have the same measure, we say ABC  CBJ CONGRUENT ANGLES REFERS TO ANGLES WITH THE SAME MEASURE. A 20° C B 20° J

  7. C M T 3 K 5 P L NAME THE ANGLES • If the angles both measure 65° then write a statement using proper notation.

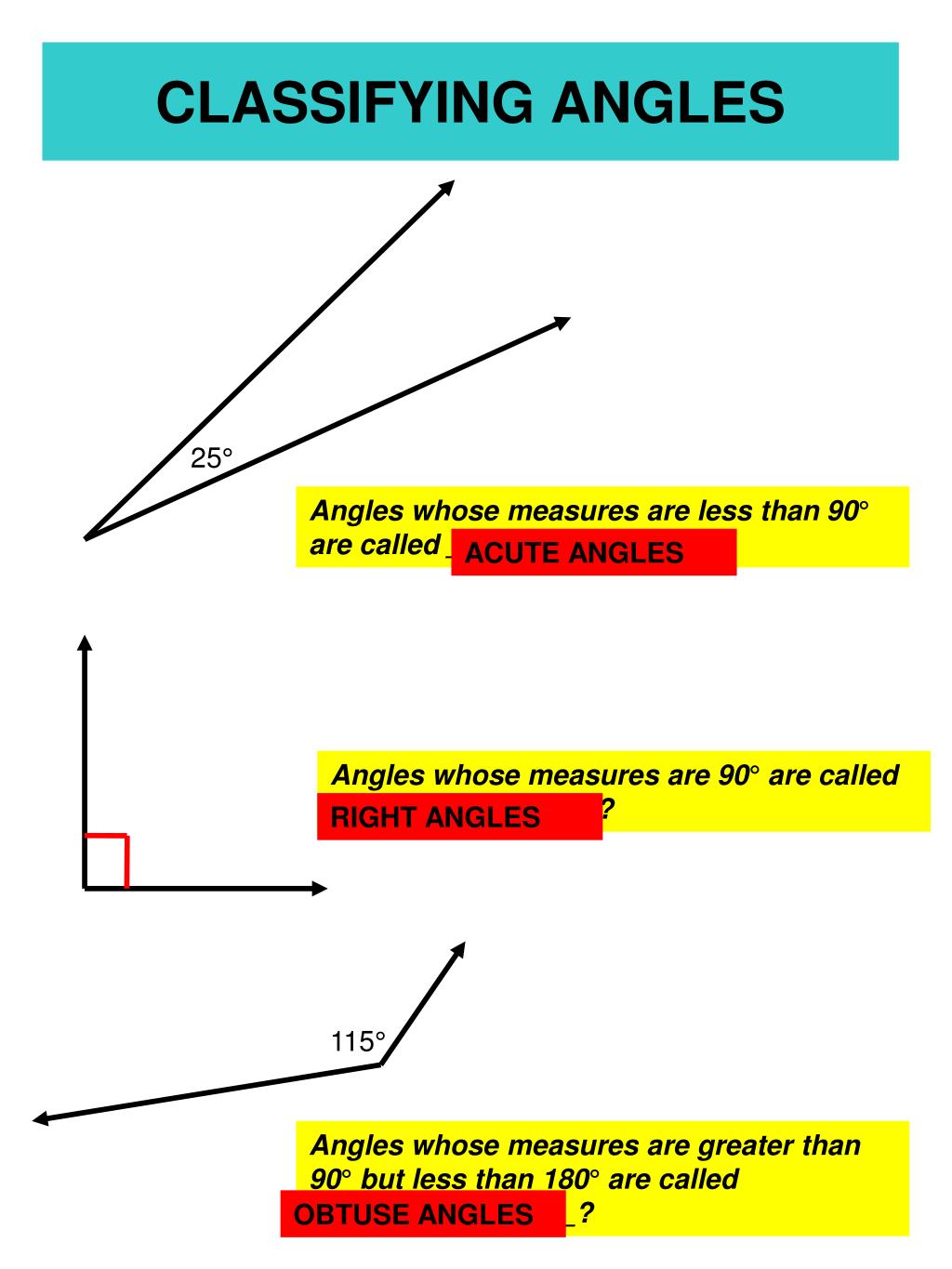

  8. CLASSIFYING ANGLES 25° Angles whose measures are less than 90° are called _________________? ACUTE ANGLES Angles whose measures are 90° are called _________________? RIGHT ANGLES 115° Angles whose measures are greater than 90° but less than 180° are called _________________? OBTUSE ANGLES

  9. C K P and Angles whose measures equal 180° are called _________________? STRAIGHT ANGLES A straight angle is a line, Formed by two opposite rays. Name the opposite rays that form the above angle…

  10. Think about this situation… V P T C m TPV = 110° m TPC = 60 ° Find m CPV = 50° This leads to the next postulate…

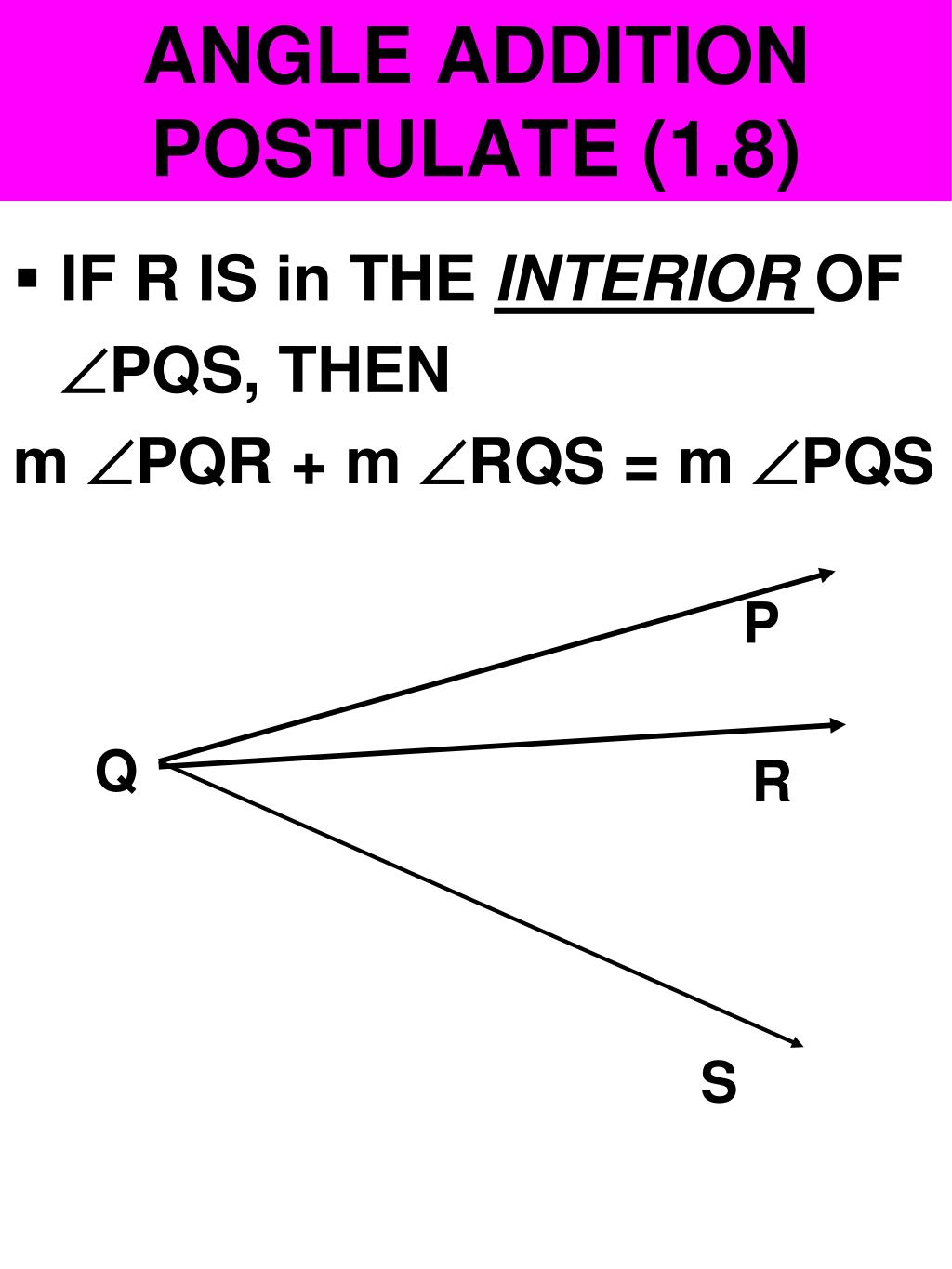

  11. P Q R S ANGLE ADDITION POSTULATE (1.8) • IF R IS in THE INTERIOR OF PQS, THEN m PQR + m RQS = m PQS

  12. EXAMPLES C G F D m CDF = 115° m CDG = 3x + 5 m GDF = 2x X = 22°

  13. EXAMPLES B A C D O m AOB = 4X – 2 m BOC = 5X + 10 m COD = 2X + 14 Find m AOD = 110°

  14. ANGLE BISECTOR • A Ray or Segment that DIVIDES AN ANGLE INTO CONGRUENT ANGLES • CONGRUENT ANGLES HAVE THE SAME MEASURE A B D ABD  DBC C IS AN ANGLE BISECTOR OFABC

  15. EXAMPLES A B C D IF IS AN ANGLE BISECTOR OF ACD, FIND m ACB. = 45°

  16. EXAMPLES F E G T IF IS AN ANGLE BISECTOR OF EFG, and mEFT = 4x + 12 and mTFG = 6x Find x: FIND m EFG. X = 6 m EFG = 72

  17. EXAMPLES H G K J IF IS AN ANGLE BISECTOR OF GHK, and mGHJ = 6x + 10 and mJHK = 3x + 28 Find x: FIND m GHK.

  18. B A C D O ANGLE RELATIONSHIPS ADJACENT ANGLES: ANGLES THAT SHARE A COMMON SIDE and VERTEX, BUT NO COMMON INTERIOR POINTS Name pairs of adjacent angles

  19. EXAMPLES G C D F Are thes angles adjacent angles? m GDF = 65° Find m CDG = 115°

  20. ANGLE RELATIONSHIPS • LINEAR PAIR: ADJACENT ANGLES WHOSE NON-COMMON SIDES ARE OPPOSITE RAYS. That is the two angles form a straight angle. 1 2

  21. ANGLE RELATIONSHIPS • Make observations about the angles in the worksheet. • THE SUM OF THE MEASURES OF THE ANGLES IN A LINEAR PAIR IS 180

  22. EXAMPLES G C D F Are thes angles a linear pair? m GDF = 7x + 2 and m CDG = 3x + 8 Find x and each angle. X = 17 m GDF = 121° m CDG = 59°

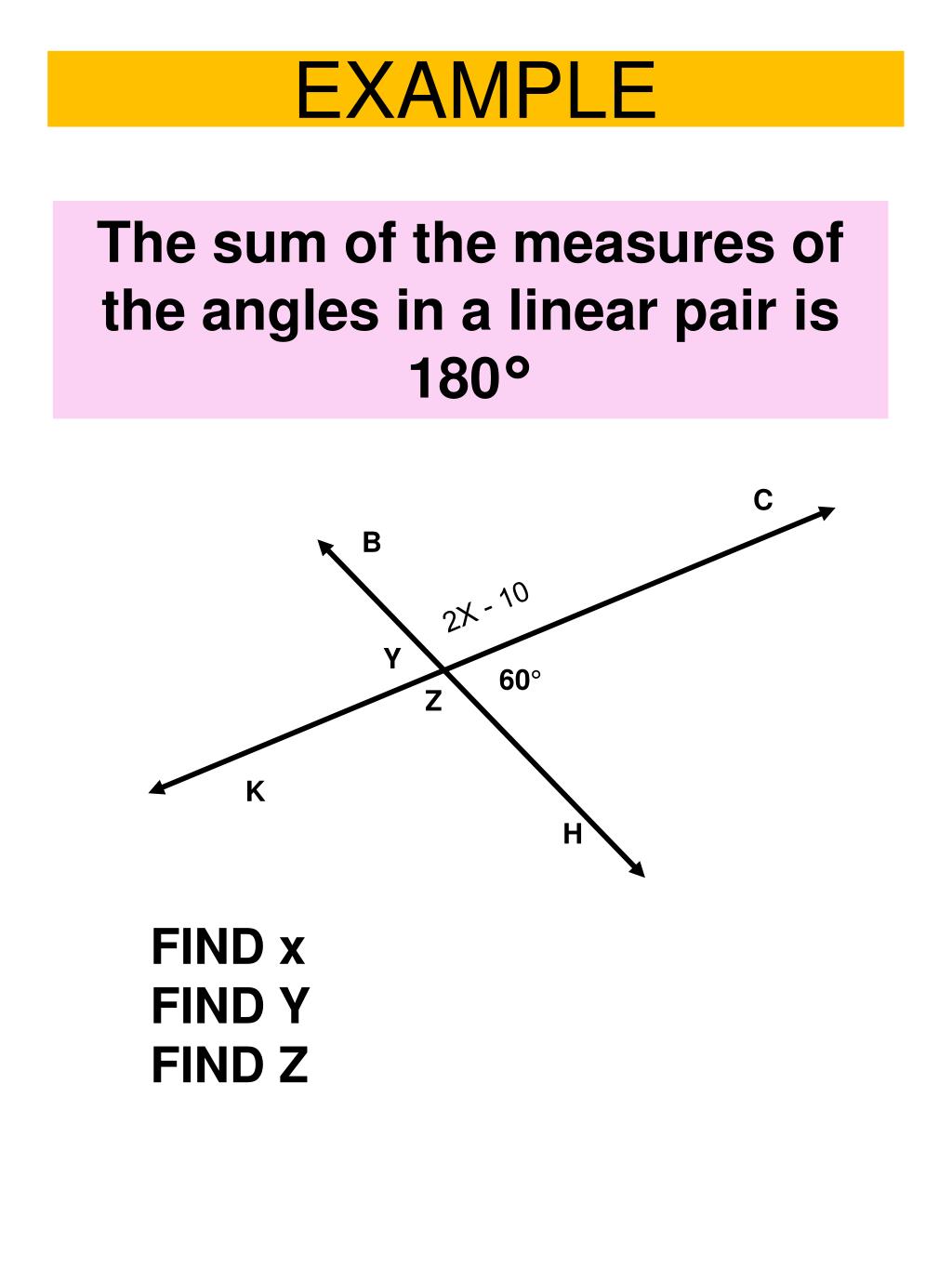

  23. EXAMPLE The sum of the measures of the angles in a linear pair is 180° C B 2X - 10 Y 60° Z K FIND x FIND Y FIND Z H

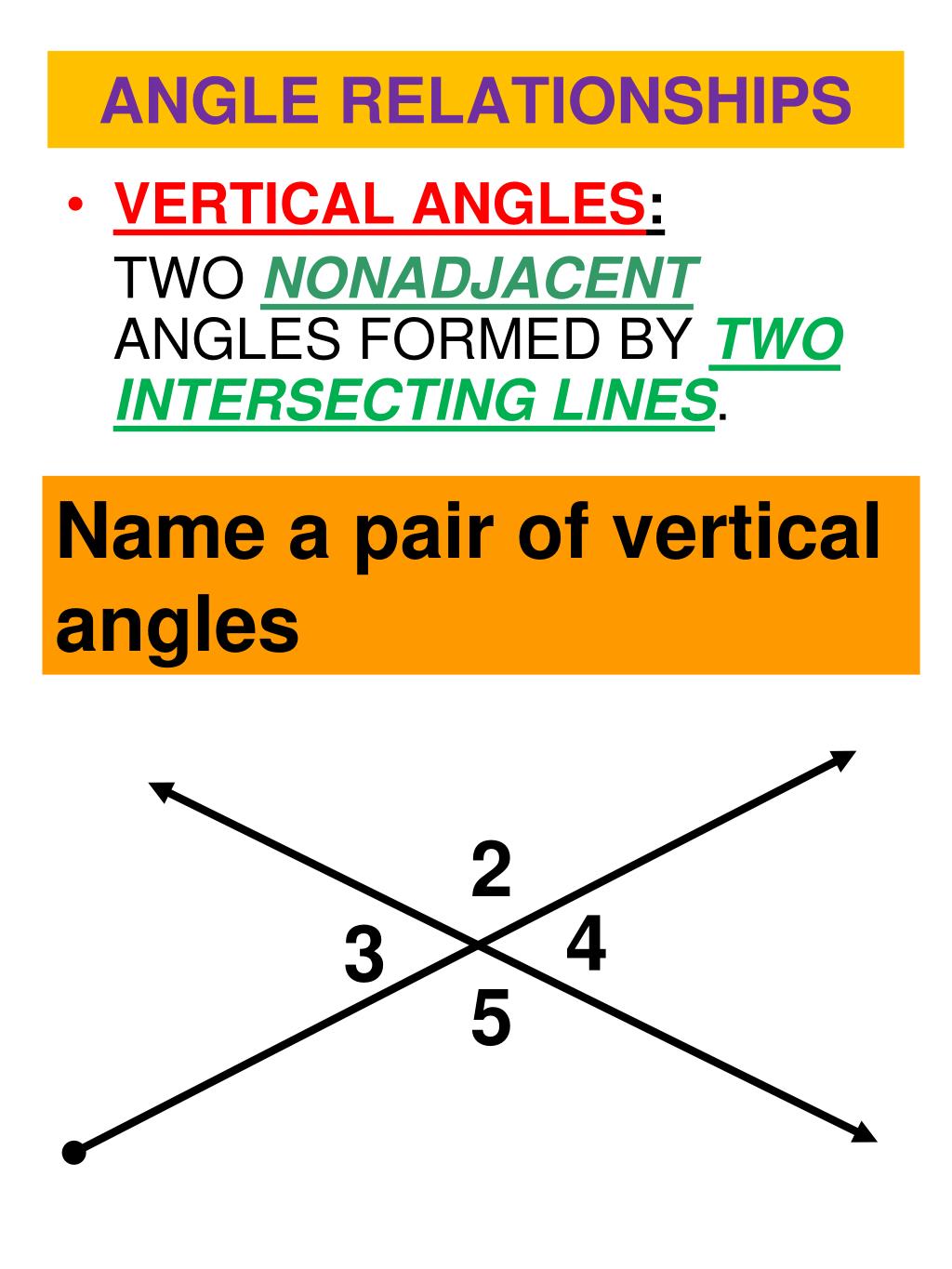

  24. 2 4 3 5 ANGLE RELATIONSHIPS • VERTICAL ANGLES: TWO NONADJACENT ANGLES FORMED BY TWO INTERSECTING LINES. Name a pair of vertical angles

  25. ANGLE RELATIONSHIPS Vertical angles are congruent C B 100° 4Y 80° A 2X K H FIND MKAH FIND MKAB FIND X Find Y 2x = 100 x = 50 2y = 80 y = 20

  26. EXAMPLES C B 10x + 5 2x + 21 I H K m BIK = 10X + 5 m HIC = 2X + 21 Find X Find m BIK Find m BIC

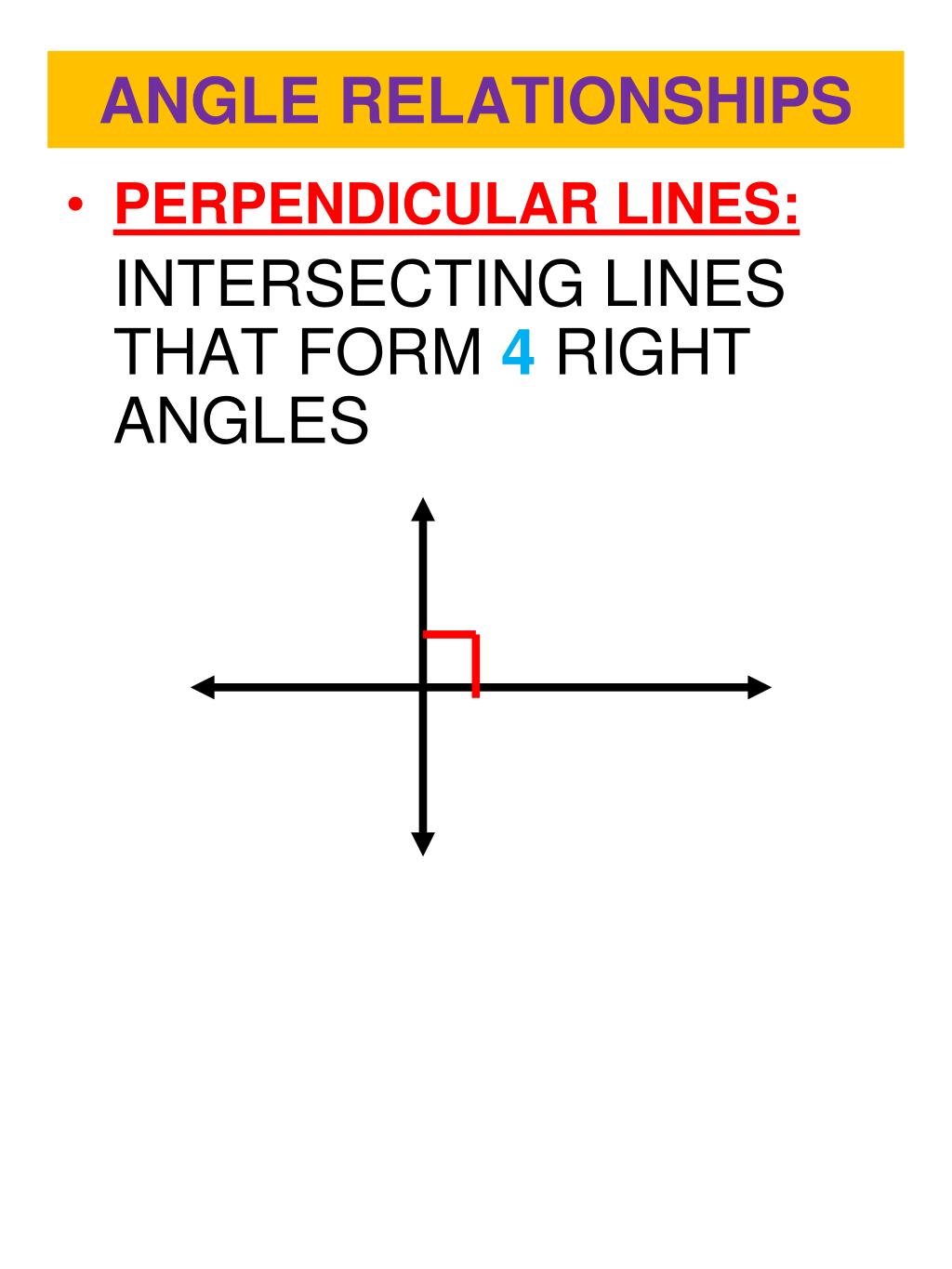

  27. ANGLE RELATIONSHIPS • PERPENDICULAR LINES: INTERSECTING LINES THAT FORM 4 RIGHT ANGLES

  28. a b d c

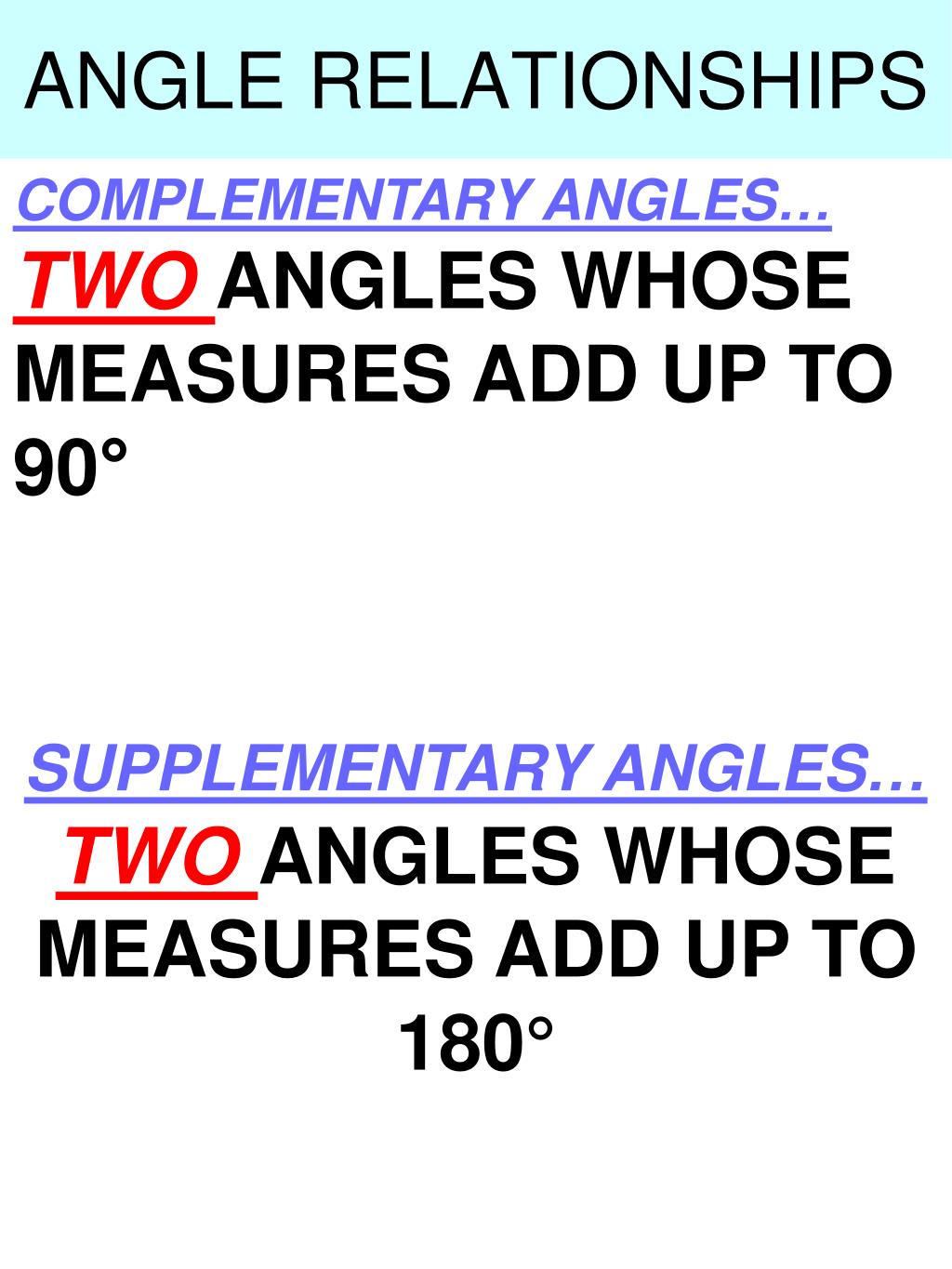

  29. ANGLE RELATIONSHIPS COMPLEMENTARY ANGLES…TWO ANGLES WHOSE MEASURES ADD UP TO 90° SUPPLEMENTARY ANGLES…TWO ANGLES WHOSE MEASURES ADD UP TO 180°

  30. EXAMPLES Two angles are complementary and one angle has 3 times the measure of the other. Find the two angles. Hint write an equation and solve. x + 3x = 90 4x = 90 X = 22.50 So one angle is 22.5° and its complement is 90 ° - 22.5° = 67.50 °

  31. EXAMPLES Two angles are supplementary and one angle measures 40 less than three times the other. Find both angles. Hint write an equation and solve. x + 3x - 40 = 180 4x = 220 X = 55 So one angle is 55° and its supplement is 180 ° - 55° = 125°
