Chapter 3 materials and basic processes
Chapter 3Materials and Basic Processes

Picture of the chip set of SensoNor’s SP13 Tire Pressure Sensor

The course material was developed in INSIGTH II, a project sponsored by the Leonardo da Vinci program of the European Union

Electronic Pack….. Chapter 3 Materials and Basic Processes


Materials metals
Materials: Metals

  • Right choice, right use and compatibility of materials is the key to good packaging and optimal properties.

    • Elemental metals:

      • High electrical conductivity

      • High thermal conductivity

      • Higher thermal coefficient of expansion (TCE) than semiconductors and most ceramics

    • Alloys: taylored to many uses:

      • Poorer electrical and thermal conductivity than elements

      • Taylored TCE

      • Lower melting point

Electronic Pack….. Chapter 3 Materials and Basic Processes


Metals continued
Metals, continued

  • (Table 3.1)

Electronic Pack….. Chapter 3 Materials and Basic Processes


Metal alloys
Metal Alloys

  • Alloys have poorer conductivity, both electrical and thermal.

  • Fig. 3.1: Phase diagram for Sn/Pb. The eutectic mixture 63%/37% has a melting point of 183°C.

Electronic Pack….. Chapter 3 Materials and Basic Processes


Insulators
Insulators

  • (Fig 3.1b)

Electronic Pack….. Chapter 3 Materials and Basic Processes


Semiconductors si and gaas
Semiconductors, Si and GaAs

  • High thermal conductivity

  • Electrical conductivity spans many orders of magnitude, depending on doping

  • Very low TCE

  • "Machinable" by anisotropic etching (Si)

  • Excellent protective oxide (Si)

Electronic Pack….. Chapter 3 Materials and Basic Processes


Ceramics
Ceramics

  • Inorganic, non-metallic

  • Made by powder, compressing or tape casting, and high temperature treatment (600-1800oC)

  • Chemically and thermally very stable

  • Electrical insulators

  • Some ceramics are very good thermal conductors

Electronic Pack….. Chapter 3 Materials and Basic Processes


Ceramics continued
Ceramics, continued

Electronic Pack….. Chapter 3 Materials and Basic Processes


Ceramics continued1
Ceramics, continued

  • Dielectric loss:

    • tan d = (1/R)/wC = 1/Q

    • e = eo(k´ - jk")

    • tan d = k"/k´.

  • Main uses:

    • Substrates for hybrid circuits, component packages, SMD resistors

    • Multilayer capacitors

    • Future: Superconductors ?

Electronic Pack….. Chapter 3 Materials and Basic Processes


Materials
Materials

  • Fig 3.1.d

Electronic Pack….. Chapter 3 Materials and Basic Processes


Ceramics continued2
Ceramics, continued

Electronic Pack….. Chapter 3 Materials and Basic Processes


Ceramics continued3
Ceramics, continued

Electronic Pack….. Chapter 3 Materials and Basic Processes


Glasses
Glasses:

  • Glasses are amorphous, supercooled liquids

    • Uses:

      • Matrix for thick film pastes

      • Hermetic seals

      • Substrates, together with ceramics

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plastics
Plastics

  • Organic, synthetic polymer materials with numerous uses in electronics

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plastics continued
Plastics, continued

  • Composition, properties:

    • Monomers derived from benzene

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plastics continued1
Plastics, continued

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plastics continued2
Plastics, continued

  • Requirements:

    • High electrical resistivity, high breakdown field, low dielectric losses, low dielectric constant

    • Thermal and mechanical stability

    • Thermal expansion compatible with Si and metals

    • High mechanical strength/softness and flexibility

    • Chemical resistance

    • Good adhesion to other materials

    • Ease of processing

    • Low water absorption, small changes of the properties during the effect of moisture.

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plastics continued3
Plastics, continued

  • Composition, properties:

    • Linear, branched or crosslinked

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plastics continued4
Plastics, continued

  • Thermoplastic or thermosetting

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plastics continued5

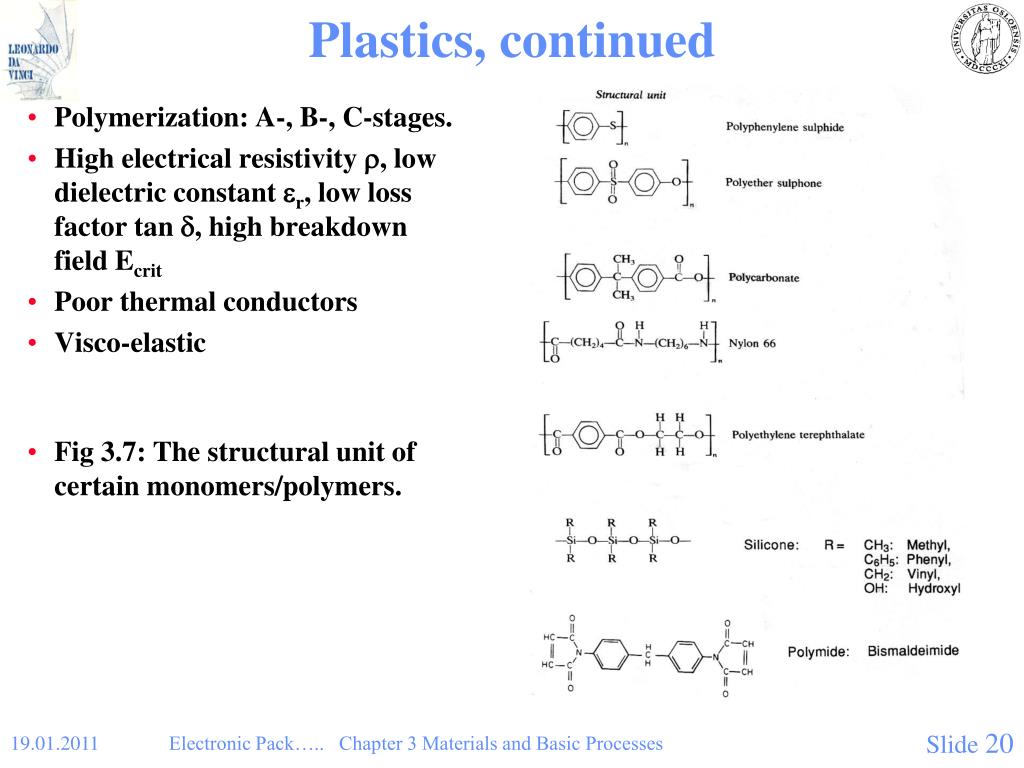

Plastics, continued

  • Polymerization: A-, B-, C-stages.

  • High electrical resistivity , low dielectric constant r, low loss factor tan , high breakdown field Ecrit

  • Poor thermal conductors

  • Visco-elastic

  • Fig 3.7: The structural unit of certain monomers/polymers.

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plastics continued6

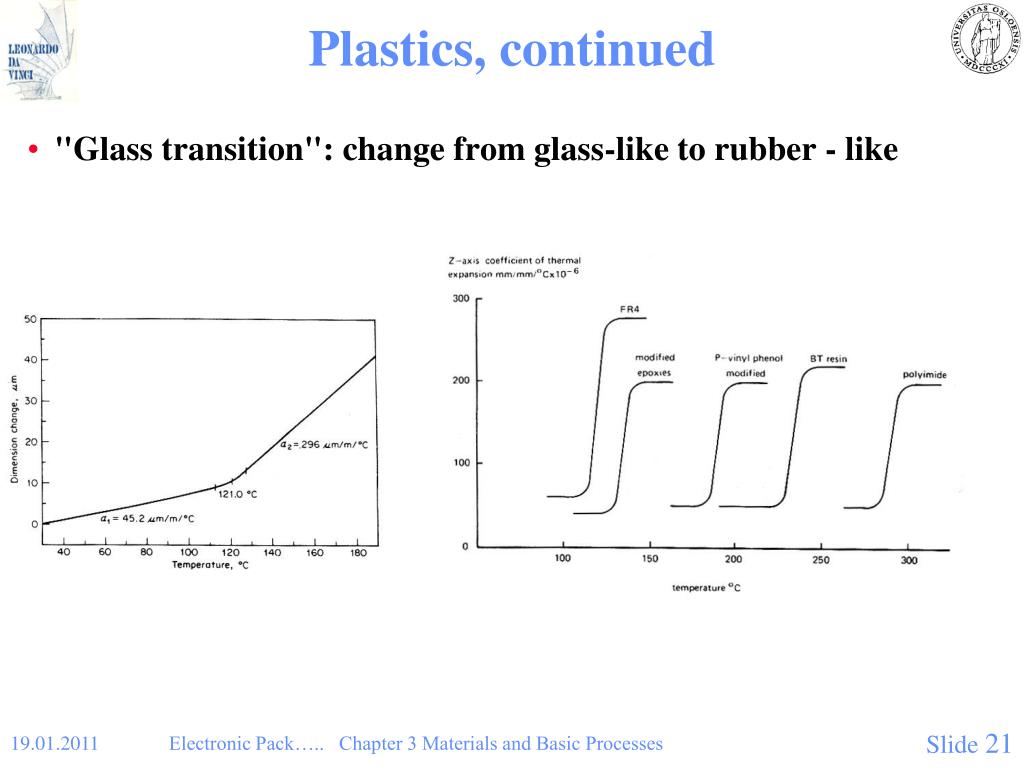

Plastics, continued

  • "Glass transition": change from glass-like to rubber - like

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plastic materials

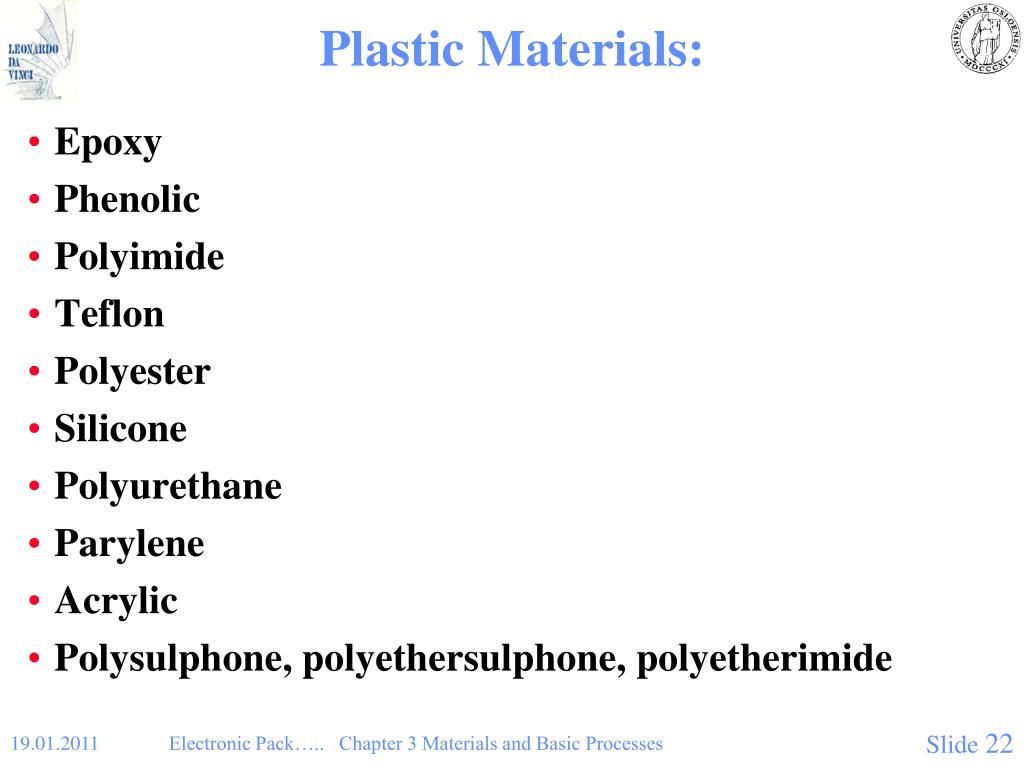

Plastic Materials:

  • Epoxy

  • Phenolic

  • Polyimide

  • Teflon

  • Polyester

  • Silicone

  • Polyurethane

  • Parylene

  • Acrylic

  • Polysulphone, polyethersulphone, polyetherimide

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plastics continued7
Plastics, continued

  • Fig. 3.9: a):The epoxide group, which is the building block in epoxy, b) - e): Starting materials for epoxy:b): Bisphenol A, which constitutes most of the starting material. The H-atoms in the places X are often replaced with Br to reduce the flammability; c): Epoxy novolac; d): The hardener dicyandiamide; e): The catalyst.

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plastics continued8
Plastics, continued

Electronic Pack….. Chapter 3 Materials and Basic Processes


Basic processes
Basic Processes

  • Description of some of the basic processes used in microelectronics, microsystems and electronic packaging.

Electronic Pack….. Chapter 3 Materials and Basic Processes


Photolithography
Photolithography

  • Fig. 3.10:The steps in photolithographic transfer of patterns and the subsequent etching of metal films with negative photoresist.

  • If positive resist is used, it is the illuminated part of the photoresist, which is removed during the development.

  • Positive resist most used today because of better accuracy

Electronic Pack….. Chapter 3 Materials and Basic Processes


Photolithography cont
Photolithography, cont

  • Also, please observe the concept of straight polarity masks and reverse polarity masks:

    • Straight polarity:In layers with straight polarity, a positive image of the layout will be transferred onto the process layer. In other words, draw the objects that need to be covered with photo-resist after development.

      • Openings: Mask pattern is repeated on the substrate for additive films etc., like metal patterns. (Assuming positive resist is used)

    • Reverse polarity:In layers with reverse polarity, draw the areas where photo-resist should be removed. The actual mask will be the negative image of the layout.

      • Mask pattern is oppositely repeated on the substrate for additive films etc., like openings in oxide for later difussion of dopants. (Assuming positive resist is used)

Electronic Pack….. Chapter 3 Materials and Basic Processes


Screen printing and stencil printing
Screen Printing and Stencil Printing

  • Fig. 3.11: Screen printing: a) and b): Printing process, c) and d): Details of the screen

Electronic Pack….. Chapter 3 Materials and Basic Processes


Etching
Etching

  • Wet, chemical etching

  • "Dry" plasma- or reactive ion etching

  • Examples, wet etching:Copper:FeCl3 + Cu -> FeCl2 + CuClIn addition:FeCl3 + CuCl -> FeCl2 + CuCl2Need organic etch resist, not good with PbSn.Gold:KI + I2 -> KI3 + KI (surplus)3 KI3 + 2 Au -> 2 KAuI4 + KI

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plating
Plating

  • Electrolytic plating:

    • Electric current of ions in electrolyte. External circuit needed. All separate parts of area to be plated must be electrically contacted to external circuit.Example: Cu in CuSO4 /H2SO4 Reaction at anode (Cu supply): Cu -> Cu2+ + 2e- Reaction at catode (substrate): Cu2+ + 2e- -> Cu

Electronic Pack….. Chapter 3 Materials and Basic Processes


Plating continued
Plating, continued

  • Chemical plating:

    • Takes place without external current

    • Needed when insulating surfacec are to be plated

    • Often preceeds electrolytic plating, to make all needed areas electrically conductive

    • Complex processes of "sensitizing", "activation" and plating

Electronic Pack….. Chapter 3 Materials and Basic Processes


Vacuum deposition and sputtering
Vacuum Deposition and Sputtering

  • Vacuum evaporation:

    • Chamber evacuated toless than 10-6 Torr

    • Resistance heating

    • Metal evaporation

Electronic Pack….. Chapter 3 Materials and Basic Processes


Other methods for deposition of conducting or insulating films
Other Methods for Deposition of Conducting or Insulating Films

  • DC Sputtering (Fig. 3.13.a)

Electronic Pack….. Chapter 3 Materials and Basic Processes


Deposition continued
Deposition, continued Films

  • Radio Frequency AC Sputtering (Fig.3.13.b)

Electronic Pack….. Chapter 3 Materials and Basic Processes


Methods for electrical and mechanical contact
Methods for Electrical and Mechanical Contact Films

  • Soldering

    • Wetting: (Fig. 3.14) Young´s eq.: gls + gl cos Q = gs

Electronic Pack….. Chapter 3 Materials and Basic Processes


Leadless soldering

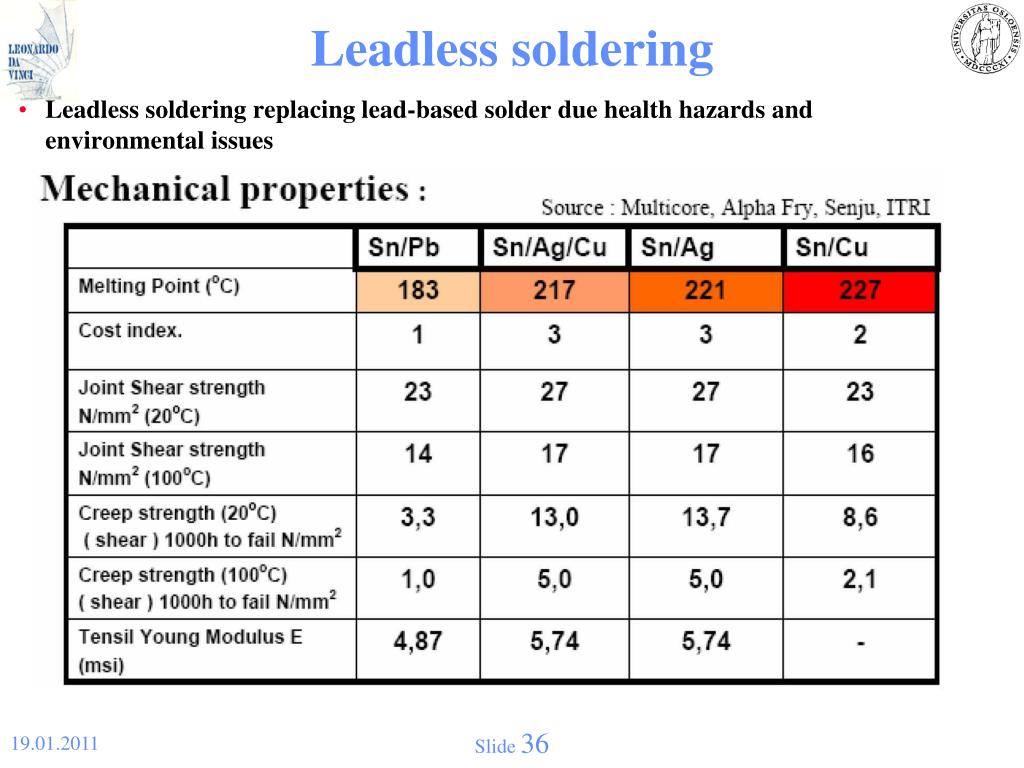

Leadless soldering Films

  • Leadless soldering replacing lead-based solder due health hazards and environmental issues


Soldering continued
Soldering, continued Films

  • Most common solder alloy: 63 % Sn / 37 % Pb (eutectic)Melting point 183 oC

Electronic Pack….. Chapter 3 Materials and Basic Processes


Soldering continued1
Soldering, continued Films

  • Fatigue: Coffin-Mansons formula:N0.5 x gp = constantwhere N is number of stress cycles, and gp is the relative deformation amplitude, meaning that both number of cycles and stress level determine lifetime

  • Useful adition : 2 % Ag (Surface mount), to reduce leaching (dissolution of the termination metal that leads to deterioration of mechanical and electrical properties)

  • Harmful contaminant: Au, will increase brittleness because of AuSn intermetallics

Electronic Pack….. Chapter 3 Materials and Basic Processes


Soldering continued2
Soldering, continued Films

  • Fig.3.15: Behaviour of solder metal at different temperatures, schematically. [W. Engelmaier].

Electronic Pack….. Chapter 3 Materials and Basic Processes


Soldering continued3
Soldering, continued Films

  • Fig. 3.16: Solder joint fatigue in surface mounted assemblies is often caused by power cycling.

Electronic Pack….. Chapter 3 Materials and Basic Processes


Soldering continued4
Soldering, continued Films

  • Fig. 3.17: Experimental data for fatigue in Sn/Pb solder fillet by cyclical mechanical stress. High temperature and low cycling frequency gives the fastest failure, because the grain structure relaxes most and is damaged

Electronic Pack….. Chapter 3 Materials and Basic Processes


Soldering continued5
Soldering, continued Films

  • Fig. 3.18. a) Left: Dissolution rate of Ag in solder metal, and in solder metal with 2 % Ag, as function of temperatureb) Right: Dissolution rate of various metals in solder alloy

Electronic Pack….. Chapter 3 Materials and Basic Processes


Soldering continued6
Soldering, continued Films

Electronic Pack….. Chapter 3 Materials and Basic Processes


Soldering continued7
Soldering, continued Films

  • Flux and cleaning

    • Purpose of flux:

      • Dissolve and remove oxides etc.

      • Protect surface

      • Improve wetting

    • Categories:

      • Soluble in organic liquids

      • Water soluble

    • Types:

      • Organic resin fluxes ("rosin")

      • Organic non resin based fluxes

      • Inorganic fluxes

Electronic Pack….. Chapter 3 Materials and Basic Processes


Soldering flux and cleaning
Soldering: Flux and cleaning Films

  • Fig. 3.19: Time for solder alloy to wet a pure Cu surface, depending on the activation of the solder flux. The degree of activation is given by the concentration of Cl- ions in the flux (temperature: 230 °C)

Electronic Pack….. Chapter 3 Materials and Basic Processes


Soldering flux and cleaning1

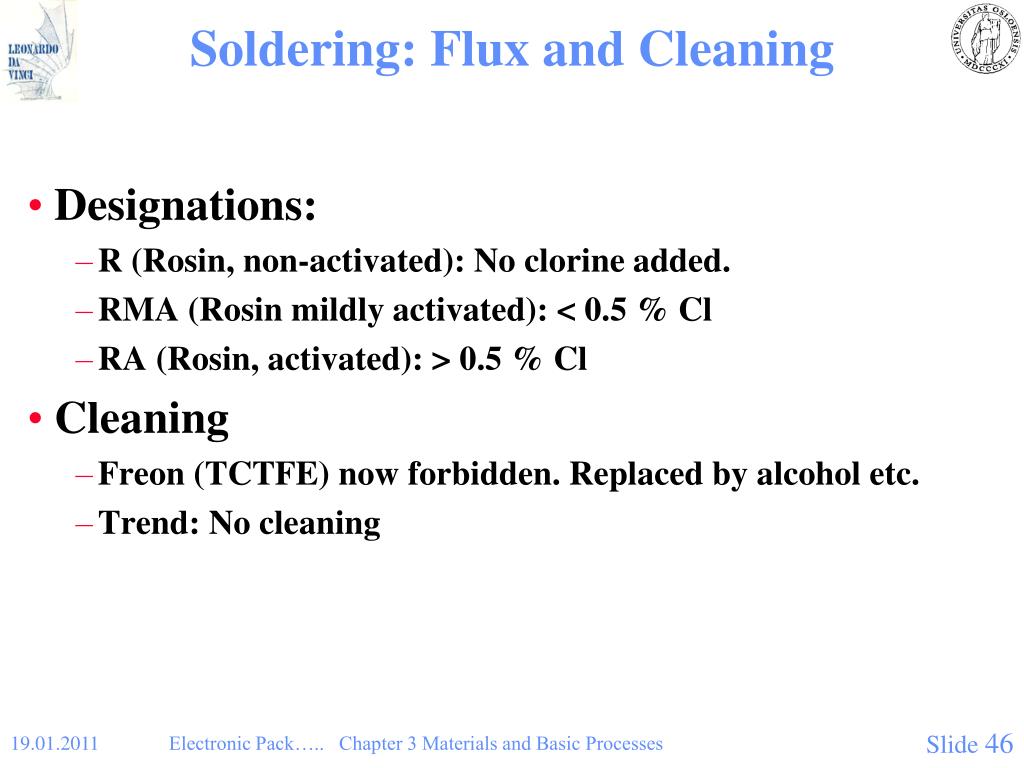

Soldering: Flux and Cleaning Films

  • Designations:

    • R (Rosin, non-activated): No clorine added.

    • RMA (Rosin mildly activated): < 0.5 % Cl

    • RA (Rosin, activated): > 0.5 % Cl

  • Cleaning

    • Freon (TCTFE) now forbidden. Replaced by alcohol etc.

    • Trend: No cleaning

Electronic Pack….. Chapter 3 Materials and Basic Processes


Gluing

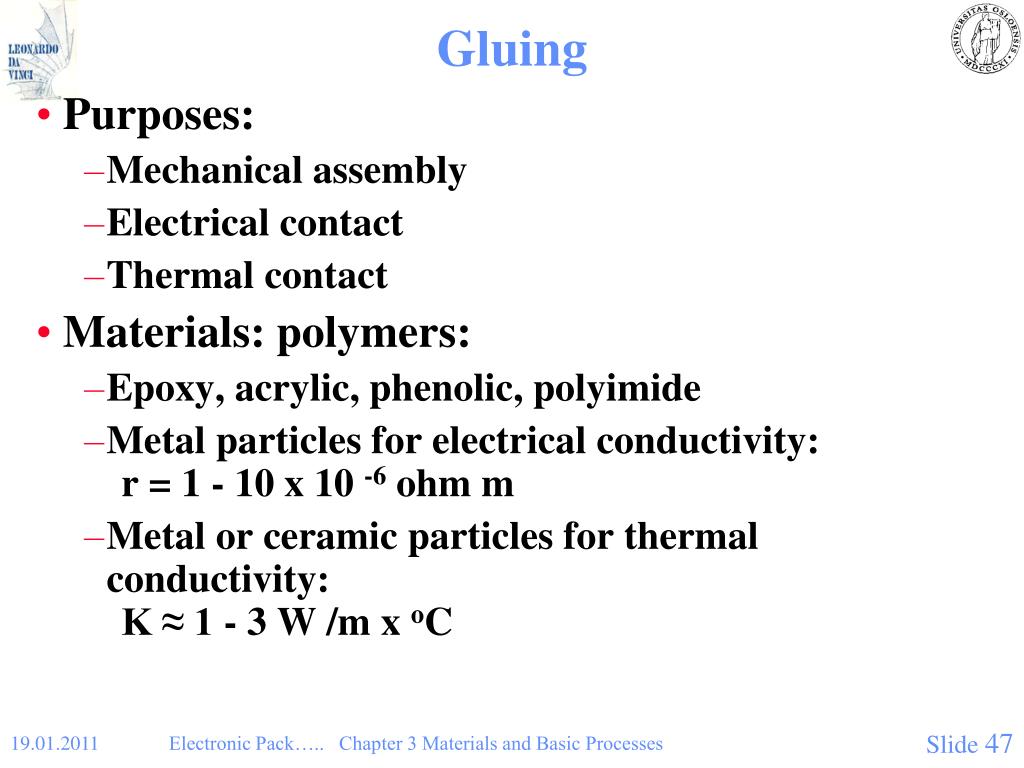

Gluing Films

  • Purposes:

    • Mechanical assembly

    • Electrical contact

    • Thermal contact

  • Materials: polymers:

    • Epoxy, acrylic, phenolic, polyimide

    • Metal particles for electrical conductivity: r = 1 - 10 x 10 -6 ohm m

    • Metal or ceramic particles for thermal conductivity: K ≈ 1 - 3 W /m x oC

Electronic Pack….. Chapter 3 Materials and Basic Processes


Gluing continued
Gluing, continued Films

  • Fig. 3.20: Thermal conductivity of epoxy adhesive with various amounts of Ag [3.16 a)]. The concentration is in volume % Ag. (23 vol. % corresponds to approximately 80 weight %).

Electronic Pack….. Chapter 3 Materials and Basic Processes


Gluing continued1
Gluing, continued Films

  • Fig. 3.21: The thermal resistance from the electronically active part, on top of the Si chip (¨junction¨) through a bonding layer of glue or soft solder and a thin alumina ceramic layer covered with Cu to heat sink. The samples with chips bonded by gluing, C and A, have approximately twice as high total thermal resistance as those which are soft soldered, D and B.

Electronic Pack….. Chapter 3 Materials and Basic Processes


Chip mounting die bonding
Chip Mounting: Die Bonding Films

  • Fig. 3.22: Thermal resistance from junction to heat sink through adhesive of various thicknesses. For thick layers the resistance approaches the value calculated, based on the bulk thermal conductivity of the adhesive. For thin layers the resistance is higher, approaching a constant value, which indicates an "interface thermal resistance" caused by defects in the adhesive layer

Electronic Pack….. Chapter 3 Materials and Basic Processes


Chip mounting die bonding continued
Chip Mounting: Die Bonding, continued Films

  • Eutectic die bonding:

    • Au/Si (363 oC), Au/Sn (280 oC)

  • Soft soldering: Sn/Pb, Ag/Pb

  • Glueing

  • Adhesive cracking, fig. 3.23: Thermal cycling induces defects giving increased thermal resistance.

Electronic Pack….. Chapter 3 Materials and Basic Processes


Chip mounting die bonding continued1
Chip Mounting: Die Bonding, continued Films

  • Fig. 3.24: Use of adhesive for contacting IC-chips with small pitch, schematically:a): Anisotropic conductive adhesive, the conduction is through the metal particles in the adhesive; b): Electrically insulating adhesive, the conduction is through point contacts where the adhesive has been squeezed out.

Electronic Pack….. Chapter 3 Materials and Basic Processes


Si chip electrical contact
Si Chip Electrical Contact Films

  • Wire bonding

  • Tape Automated Bonding (TAB)

  • Flip chip

  • Planar bonding

Electronic Pack….. Chapter 3 Materials and Basic Processes


Wire bonding
Wire Bonding Films

  • Ultrasonic

  • Thermo-compression

  • Thermosonic

  • Geometry Types

    • Ball - wedge:Shown in illustration

    • Wedge - wedge

Electronic Pack….. Chapter 3 Materials and Basic Processes


Wire bonding1
Wire Bonding Films

From Small Precision Tools

Electronic Pack….. Chapter 3 Materials and Basic Processes



Tape automated bonding tab
Tape Automated Bonding (TAB) Processes

  • Connection made in two steps:

    • Inner Lead Bonding

      • Connecting tape to chip

    • Outer Lead Bonding

      • Connecting tape to substrate

  • Connection made by thermocompression

Electronic Pack….. Chapter 3 Materials and Basic Processes


Tape automated bonding tab1
Tape Automated Bonding (TAB) Processes

  • Standard process:

    • Fabrication of gold bumps (Fig. 3.28):

      • Deposition of contact/barrier metals

      • Photolithography

      • Electroplating

      • Strip and etch barrier metals

Electronic Pack….. Chapter 3 Materials and Basic Processes


Tab continued
TAB, continued Processes

  • Fig. 3.26: A picture of a TAB film with the Cu pattern, as well as the holes in the film for excising the circuits, and the sprocket holes for moving the film during processing.

Electronic Pack….. Chapter 3 Materials and Basic Processes


Tab continued1
TAB, continued Processes

  • Fig. 3.27: The main steps in TAB processing.

Electronic Pack….. Chapter 3 Materials and Basic Processes


Tape automated bonding tab2
Tape Automated Bonding (TAB) Processes

  • Wafer cutting

  • Fabrication of TAB film

    • Hole punching

    • Cu foil lamination

    • Lithography + etch of Cu pattern

    • Tinning of Cu

  • Inner lead bonding (ILB)

Electronic Pack….. Chapter 3 Materials and Basic Processes


Tab continued2
TAB, continued Processes

  • Protection (glob top)

  • Testing

  • Outer lead bonding:

    • Excising, lead bending

    • Placement/thermode soldering

Electronic Pack….. Chapter 3 Materials and Basic Processes


Advantages of tab
Advantages of TAB: Processes

  • High packaging density

  • Can contact chips with >1000 I/O

  • Excellent electrical properties (high frequency)

  • Robust mounting

  • Pre-testable (contrary to COB)

  • Gold bumps give hermetic seal to chip

  • Gang bonding gives high yield, is less time consuming than wirebonding

  • TAB film can be used as daughter board

Electronic Pack….. Chapter 3 Materials and Basic Processes


Disadvantages of tab
Disadvantages of TAB: Processes

  • Non-standard wafer processes

  • Special custom design film for chip

  • Needs special machine/tool for OLB

  • Demanding repair

  • Low availability of std. chips and TAB service

  • Little standardization

Electronic Pack….. Chapter 3 Materials and Basic Processes


Flip chip
Flip chip Processes

  • Active face of chip is flipped towards substrate

    • Substrate pads are identical to chip pads

  • Area array connections possible

  • All connections done simultaneously

  • Smallest possible footprint (1:1)

  • Short interconnections

    • Low inductance and resistance

    • Excellent electrical properties

  • Little flexibility

    • Change of chip pad configuration implies redesign of substrate

  • Small, but increasing amount of interconnections are flip chip

  • To be dealt with in much more detail…


Flip chip1
Flip Chip Processes

  • Process:

    • Deposit barrier metals

    • Deposit solder bump metals (solder) by photolithography/metal mask and sputter or plating

    • Reflow

    • Cut wafer

    • Turn chip and mount on substrate

    • Heat substrate to reflow solder

Electronic Pack….. Chapter 3 Materials and Basic Processes


Flip chip history
Flip Chip, history Processes

  • Introduced by IBM 1962

  • Flip chip has been used for decades, but with little impact

    • Wire bonding is far more common

    • Flip chip technology has not been considered mature

    • The industrial infrastructure has been small

  • The market share of flip chip connections is believed to increase significantly

    • Wire bonding will remain dominating for many years

  • Flip chip especially for ”advanced packaging”


Flip chip continued
Flip Chip, continued Processes

  • Advantages:

    • Highest packing density

    • Excellent hi freq. properties

    • Up to 10 000 I/O

  • Disadvantages:

    • Very difficult placement and reliable solder/cleaning

    • Lack of thermal flexibility

Electronic Pack….. Chapter 3 Materials and Basic Processes


Flip chip consists of
Flip Chip consists of: Processes

  • Chip

    • Si, GaAs, etc.

  • Substrate

    • Ceramic, organic, dielectic-covered metal, silicon, etc.

  • Interconnection system:

    • Metallization on chip and substrate pads

    • Chip (or substrate) bumps

    • Bonding material

    • Underfill encapsulant


Different flip chip technologies
Different Flip Chip technologies Processes

  • Flip chip is not standardized!

From C. Lee, ESTC 2006, Dresden


Wire bonding tab and flip chip
Wire Bonding, TAB and Flip Chip Processes

Electronic Pack….. Chapter 3 Materials and Basic Processes


Planar bonding with adaptive routing
Planar Bonding with Adaptive Routing Processes

  • Fig. 3.32: Planar bonding with laser-assisted adaptive conductor routing. The top two figures a) and b) show a substrate cross section with details of the mounting of the chip in an etched through-hole. Figure c) shows the conductor layers and polyimide insulation on top of the substrate. The bottom figures show an exploded view of all the layers.

Electronic Pack….. Chapter 3 Materials and Basic Processes


End of chapter 3 materials and basic processes
End of ProcessesChapter 3 Materials and Basic Processes

  • Important issues:

    • Materials:

      • Distinguish between metals, ceramics, glasses and plastics

        • Important mechanical and thermal parameters like modulus of eleasticity, thermal expansion coefficient and thermal conductivity.

        • Important electrical parameters like dielectric constant and resistivity or conductivity

        • Have a basic understand of the importance and value of the most important materials parameter, and why they are important for the use of the specific material in specific applications.

        • For instance knowing the electrical conductivity of copper or thermal conductivity of epoxy within an accuracy of 25%

    • Basic processes

      • Lithographics, screen and stencil printing, etching, plating, vacuum deposition, sputtering, soldering, gluing, wire bonding, TAB, and flip chip

        • Other basic processes described in other chapters, like surface mount technology

  • Questions and discussions?

Electronic Pack….. Chapter 3 Materials and Basic Processes


ad
