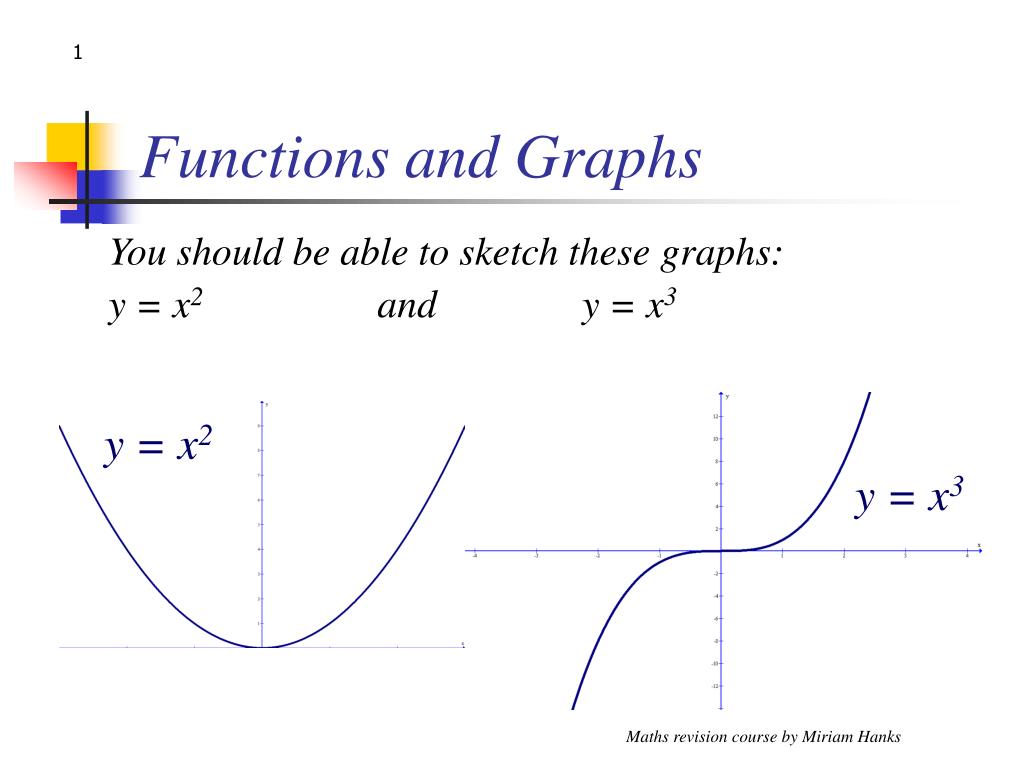

  1. Functions and Graphs You should be able to sketch these graphs: y = x2 and y = x3 y = x2 y = x3 Maths revision course by Miriam Hanks

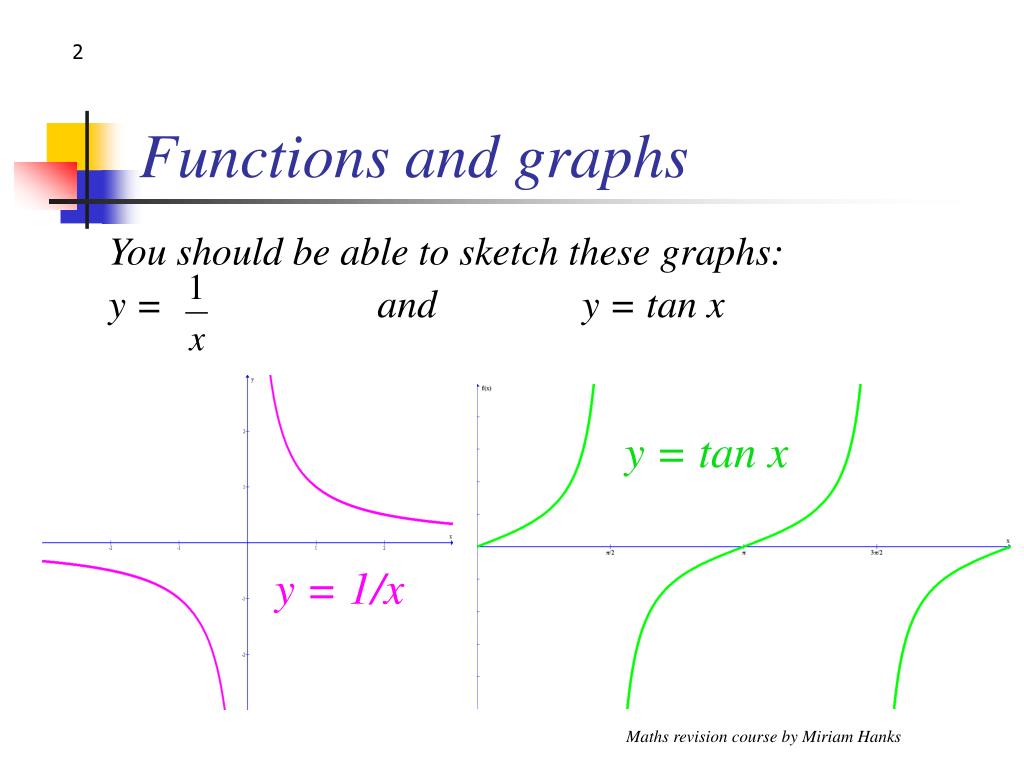

  2. Functions and graphs You should be able to sketch these graphs: y = and y = tan x y = tan x y = 1/x Maths revision course by Miriam Hanks

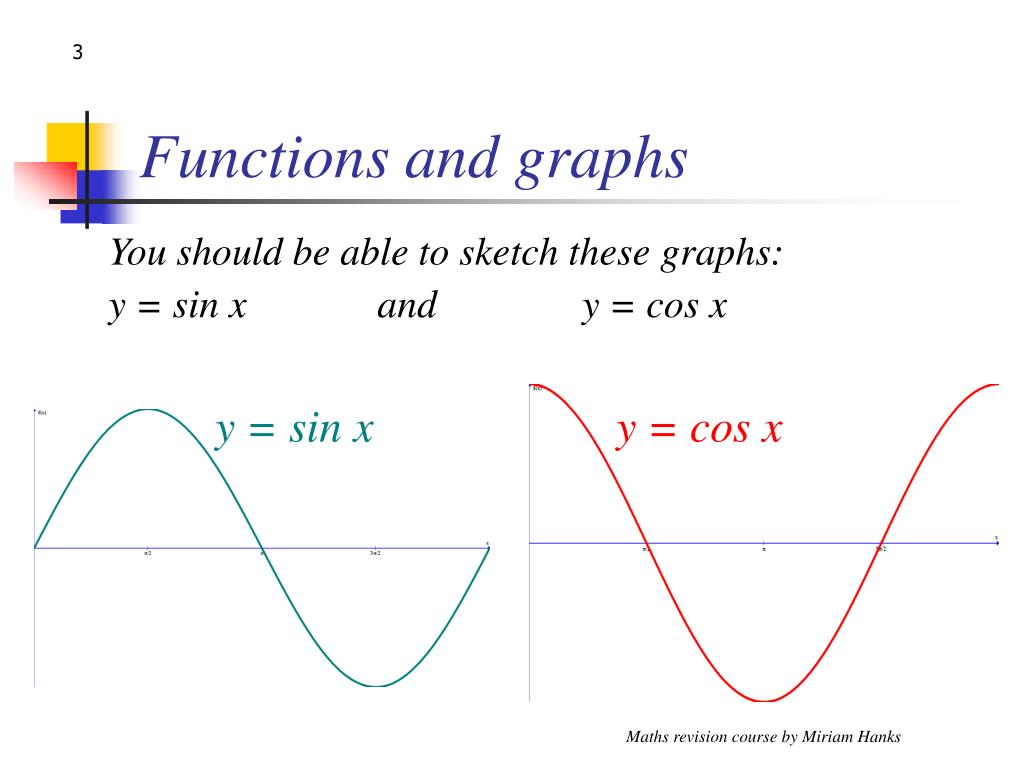

  3. Functions and graphs You should be able to sketch these graphs: y = sin x and y = cos x y = sin x y = cos x Maths revision course by Miriam Hanks

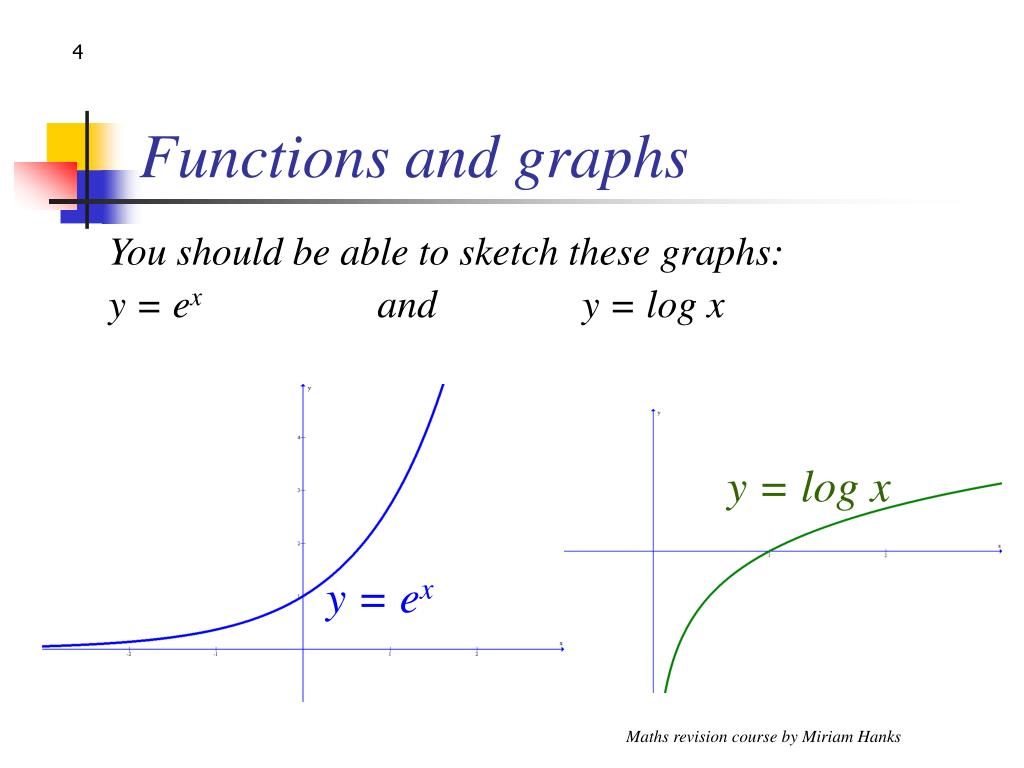

  4. Functions and graphs You should be able to sketch these graphs: y = ex and y = log x y = log x y = ex Maths revision course by Miriam Hanks

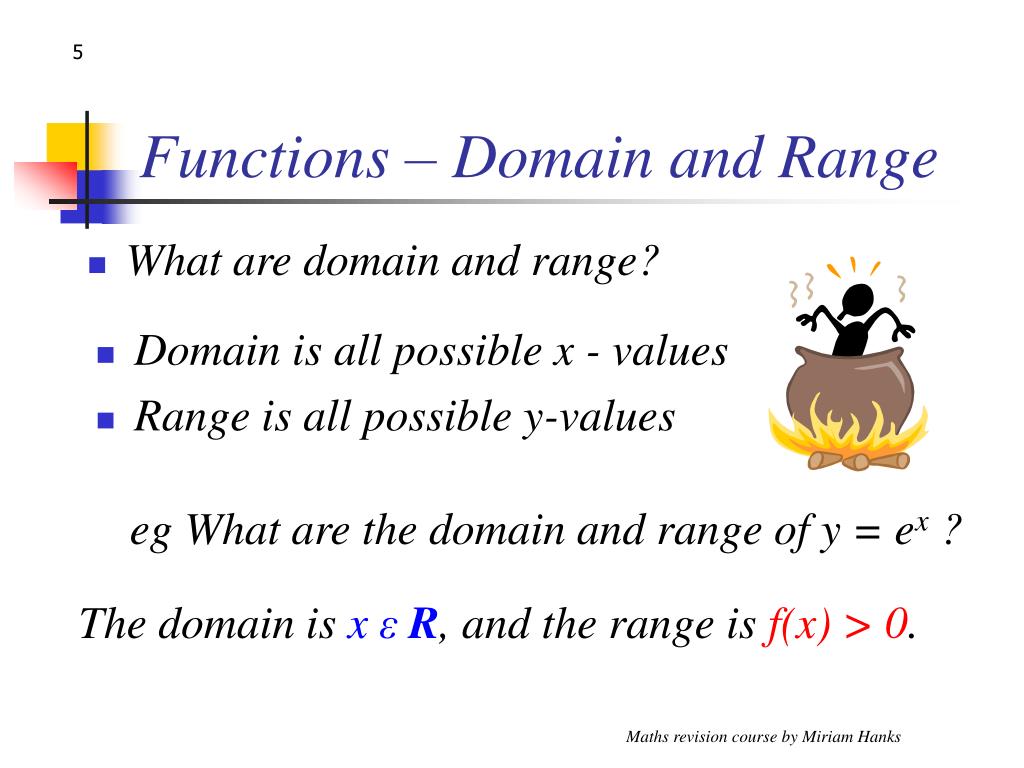

  5. Functions – Domain and Range • What are domain and range? • Domain is all possible x - values • Range is all possible y-values • eg What are the domain and range of y = ex ? The domain is x ε R, and the range is f(x) > 0. Maths revision course by Miriam Hanks

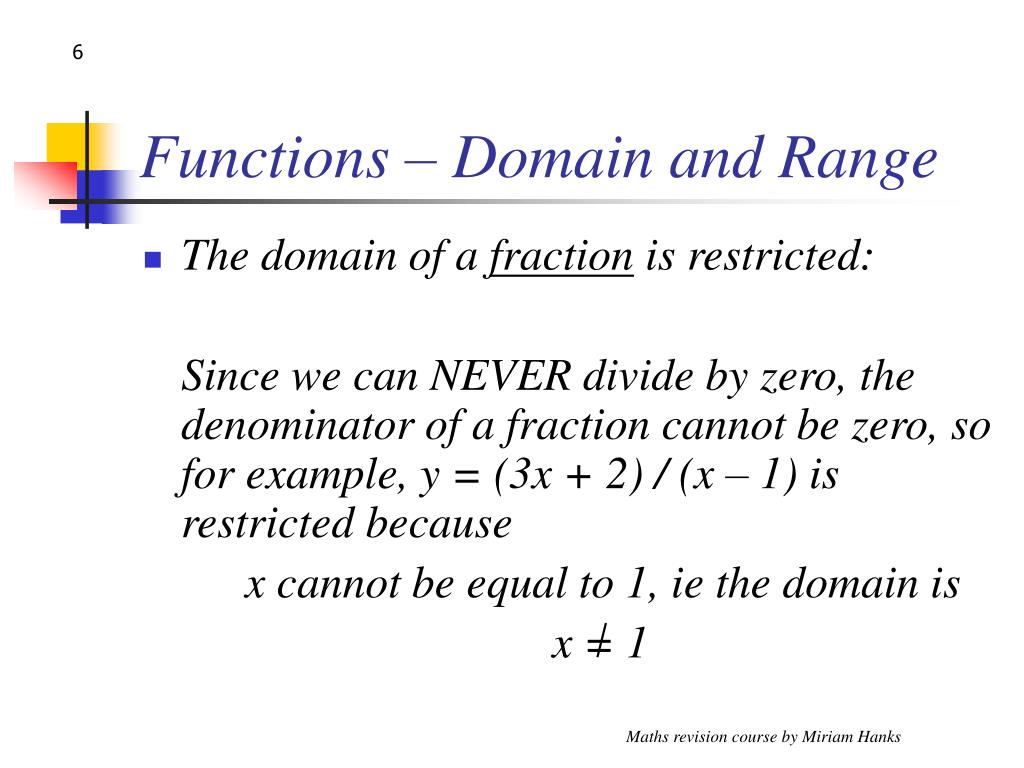

  6. Functions – Domain and Range • The domain of a fraction is restricted: Since we can NEVER divide by zero, the denominator of a fraction cannot be zero, so for example, y = (3x + 2) / (x – 1) is restricted because x cannot be equal to 1, ie the domain is x = 1 Maths revision course by Miriam Hanks

  7. Inverse functions f –1 (x) eg Find the inverse function of f(x) = 2x + 1 • To find an inverse function: • swap x and y, then rearrange it to make y the subject Swap x and y: x = 2y + 1 then rearrange to make y the subject: y = (x – 1) /2 So f –1(x) = (x – 1 )/2 Maths revision course by Miriam Hanks

  8. Inverse functions f –1 (x) eg A function f(x) = x2 has range f(x) > 0. What is the domain of the inverse function ? • To find the domain and range of an inverse function: • swap the domain and range of the original function x > 0 Maths revision course by Miriam Hanks

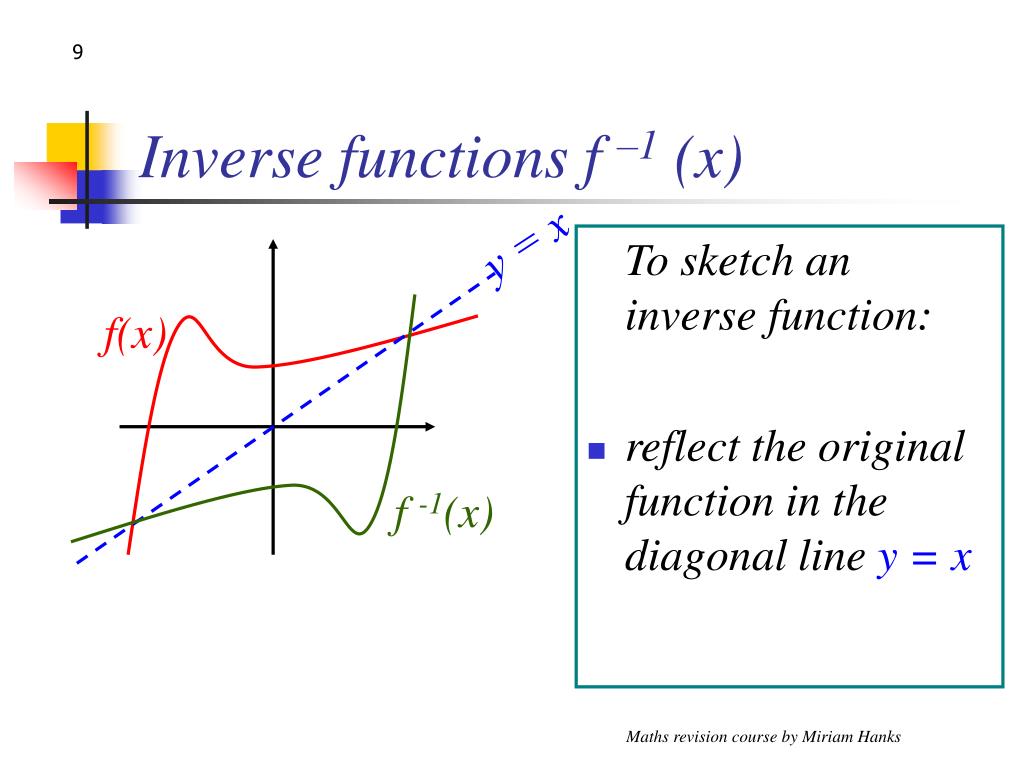

  9. Inverse functions f –1 (x) y = x • To sketch an inverse function: • reflect the original function in the diagonal line y = x f(x) f -1(x) Maths revision course by Miriam Hanks

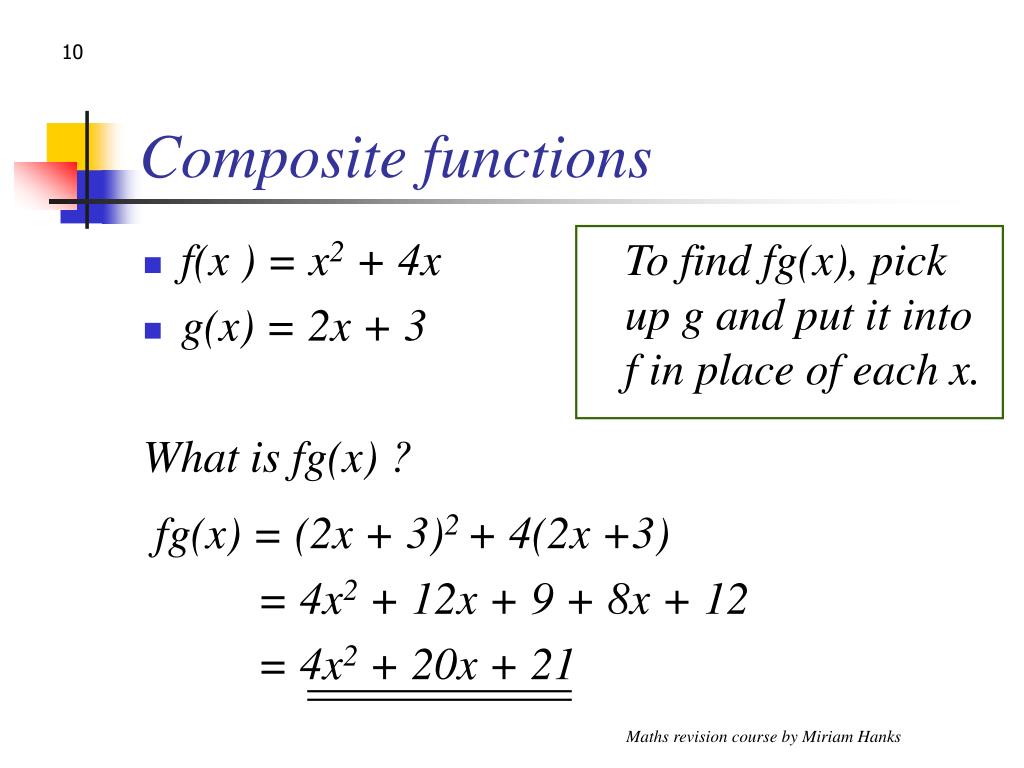

  10. Composite functions • f(x ) = x2 + 4x • g(x) = 2x + 3 • What is fg(x) ? To find fg(x), pick up g and put it into f in place of each x. fg(x) = (2x + 3)2 + 4(2x +3) = 4x2 + 12x + 9 + 8x + 12 = 4x2 + 20x + 21 Maths revision course by Miriam Hanks

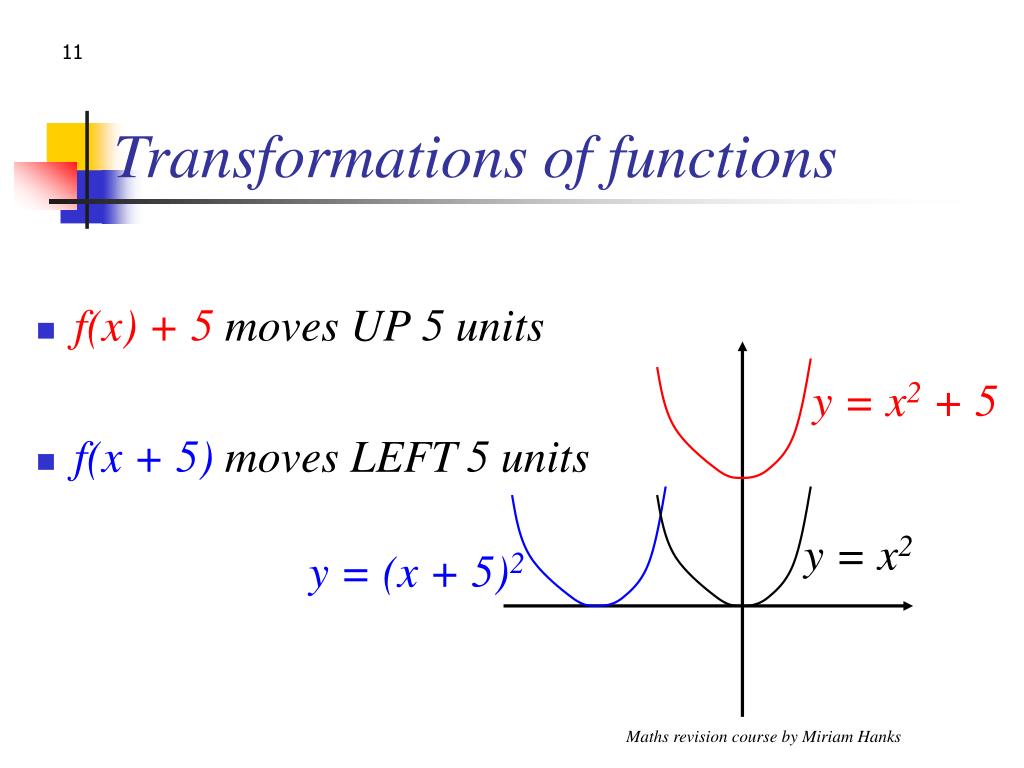

  11. Transformations of functions • f(x)+ 5 moves UP 5 units • f(x + 5) moves LEFT 5 units y = x2 + 5 y = x2 y = (x + 5)2 Maths revision course by Miriam Hanks

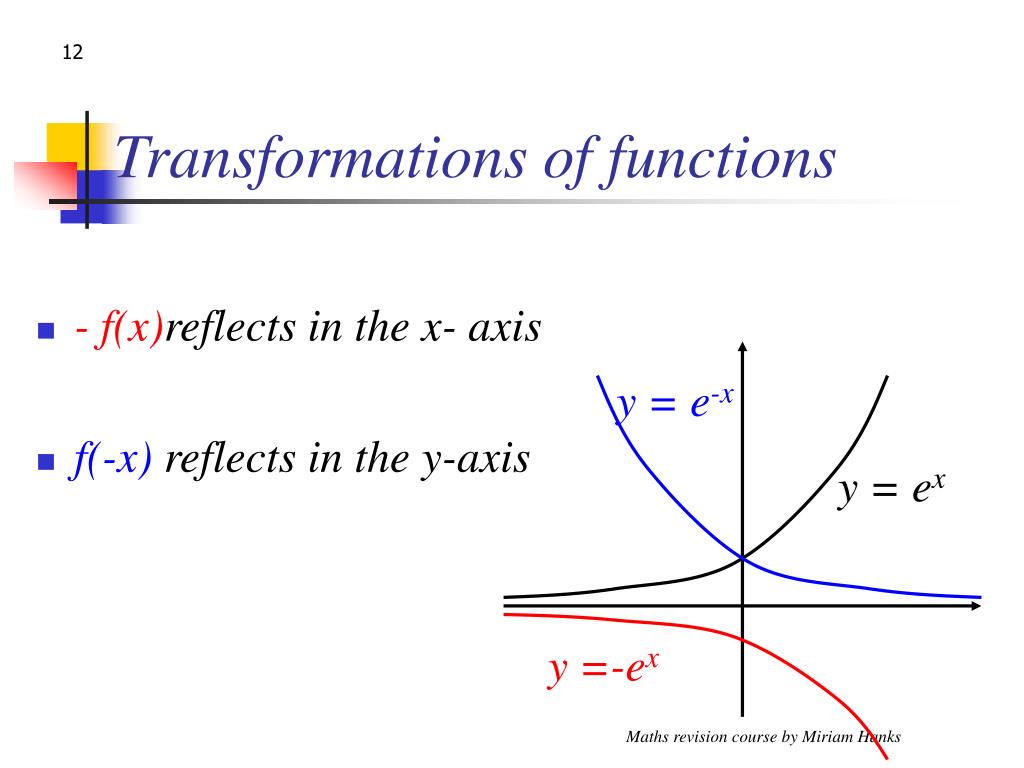

  12. Transformations of functions • - f(x)reflects in the x- axis • f(-x) reflects in the y-axis y = e-x y = ex y =-ex Maths revision course by Miriam Hanks

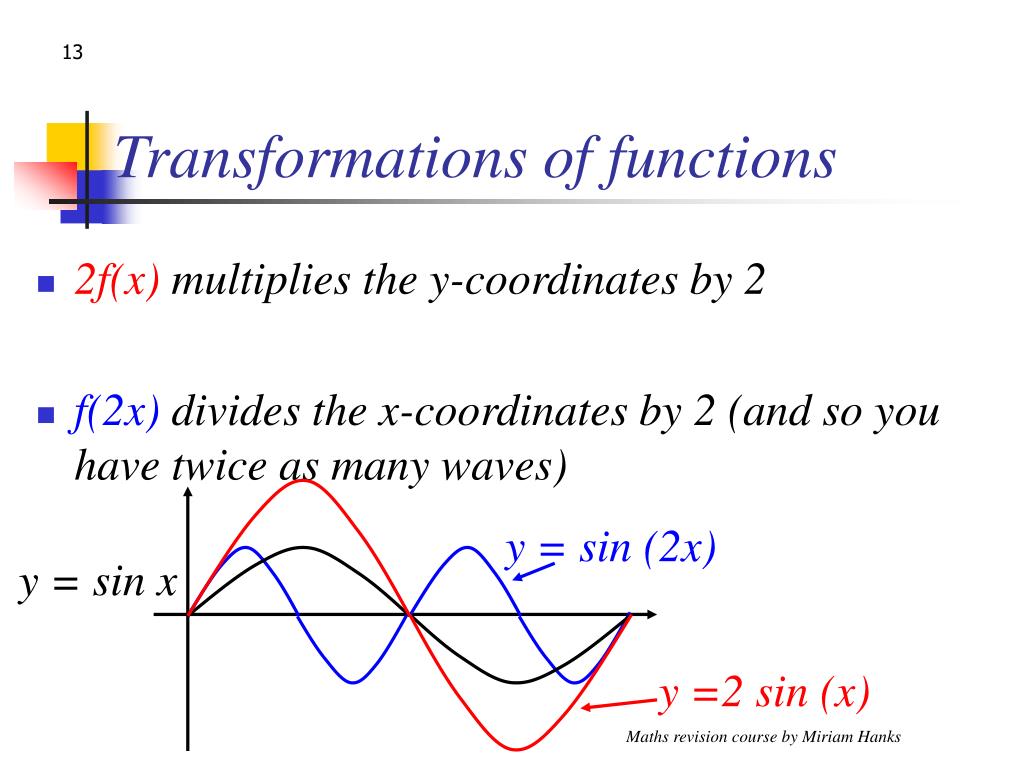

  13. Transformations of functions • 2f(x) multiplies the y-coordinates by 2 • f(2x) divides the x-coordinates by 2 (and so you have twice as many waves) y = sin (2x) y = sin x y =2 sin (x) Maths revision course by Miriam Hanks
