Thermo-Shaker-Dry-Bath

We serve the Thermo-Shaker Dry Bath LTDB-A10, which has a Shaking Speed Range of 200 to 1800 rpm, an Amplitude of 3 mm, a Power of 150 W, a Net Weight of 7 kg, etc. at Labtron.com!

labtrondigital
Download Presentation

Thermo-Shaker-Dry-Bath

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

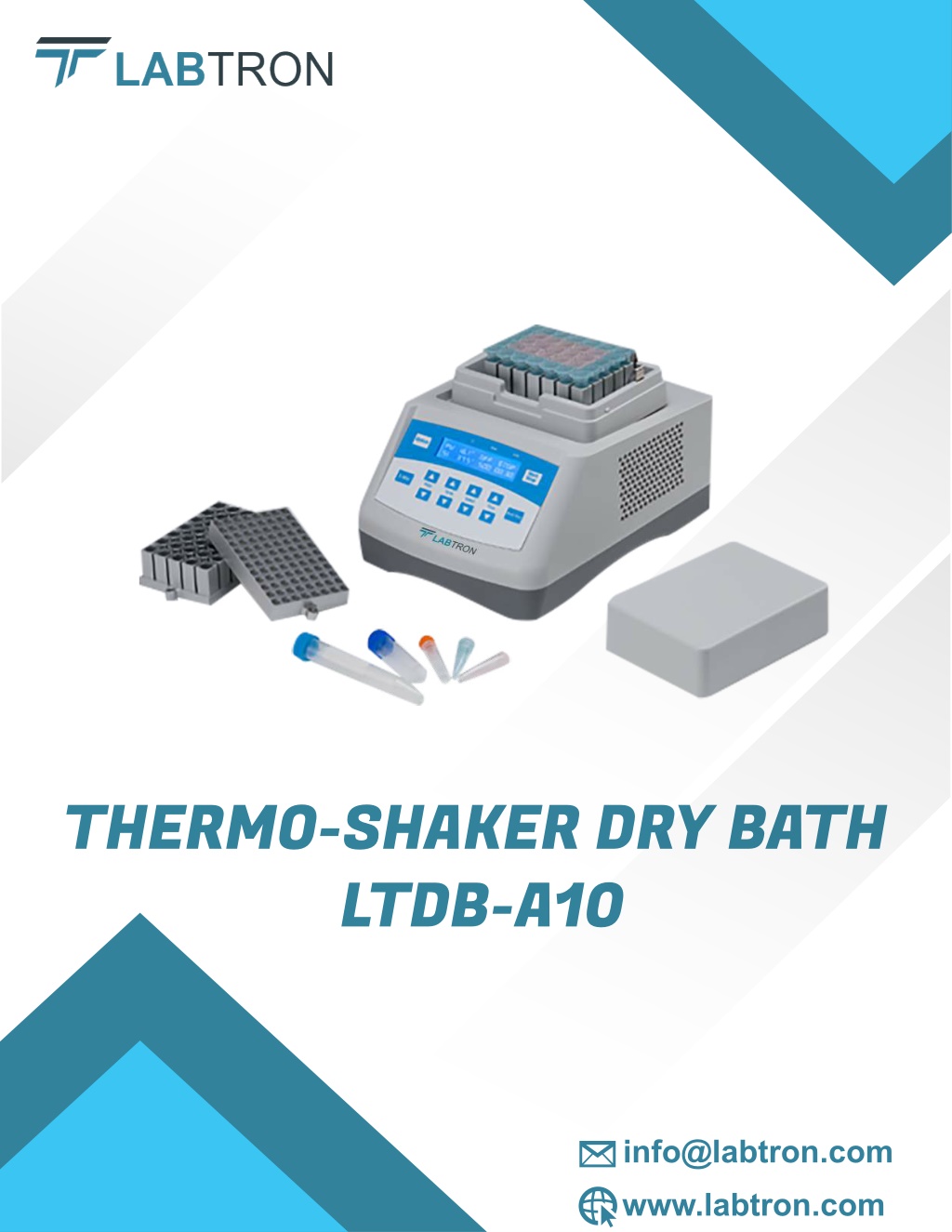

  1. THERMO-SHAKER DRY BATH LTDB-A10 info@labtron.com www.labtron.com

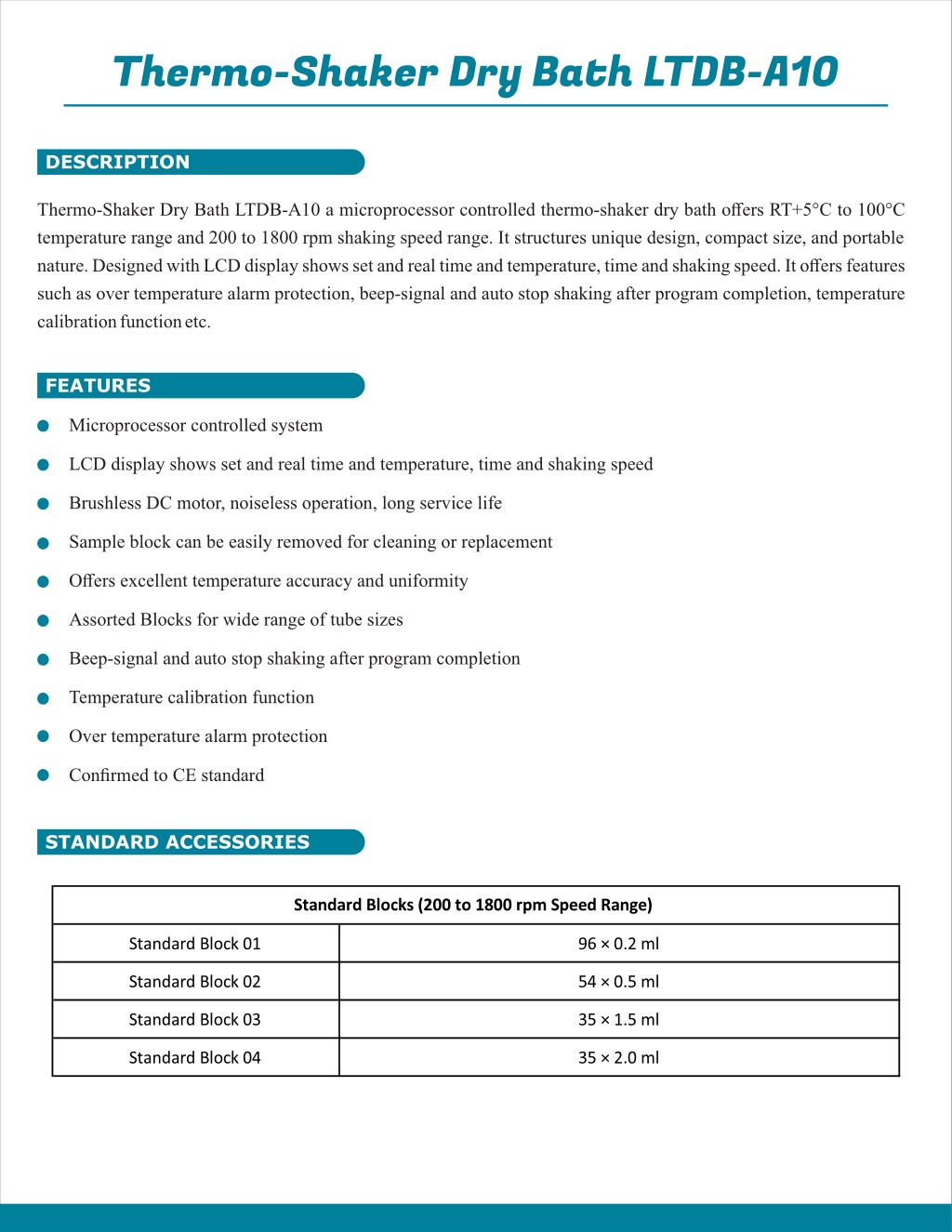

  2. Thermo-Shaker Dry Bath LTDB-A10 DESCRIPTION Thermo-Shaker Dry Bath LTDB-A10 a microprocessor controlled thermo-shaker dry bath offers RT+5°C to 100°C temperature range and 200 to 1800 rpm shaking speed range. It structures unique design, compact size, and portable nature. Designed with LCD display shows set and real time and temperature, time and shaking speed. It offers features such as over temperature alarm protection, beep-signal and auto stop shaking after program completion, temperature calibration function etc. FEATURES Microprocessor controlled system L CD display shows set and real time and temperature, time and shaking speed B rushless DC motor, noiseless operation, long service life S ample block can be easily removed for cleaning or replacement O ffers excellent temperature accuracy and uniformity A ssorted Blocks for wide range of tube sizes B eep-signal and auto stop shaking after program completion T emperature calibration function O ver temperature alarm protection Confirmed to CE standard STANDARD ACCESSORIES Standard Blocks (200 to 1800 rpm Speed Range) Standard Block 01 96 × 0.2 ml Standard Block 02 54 × 0.5 ml Standard Block 03 35 × 1.5 ml Standard Block 04 35 × 2.0 ml

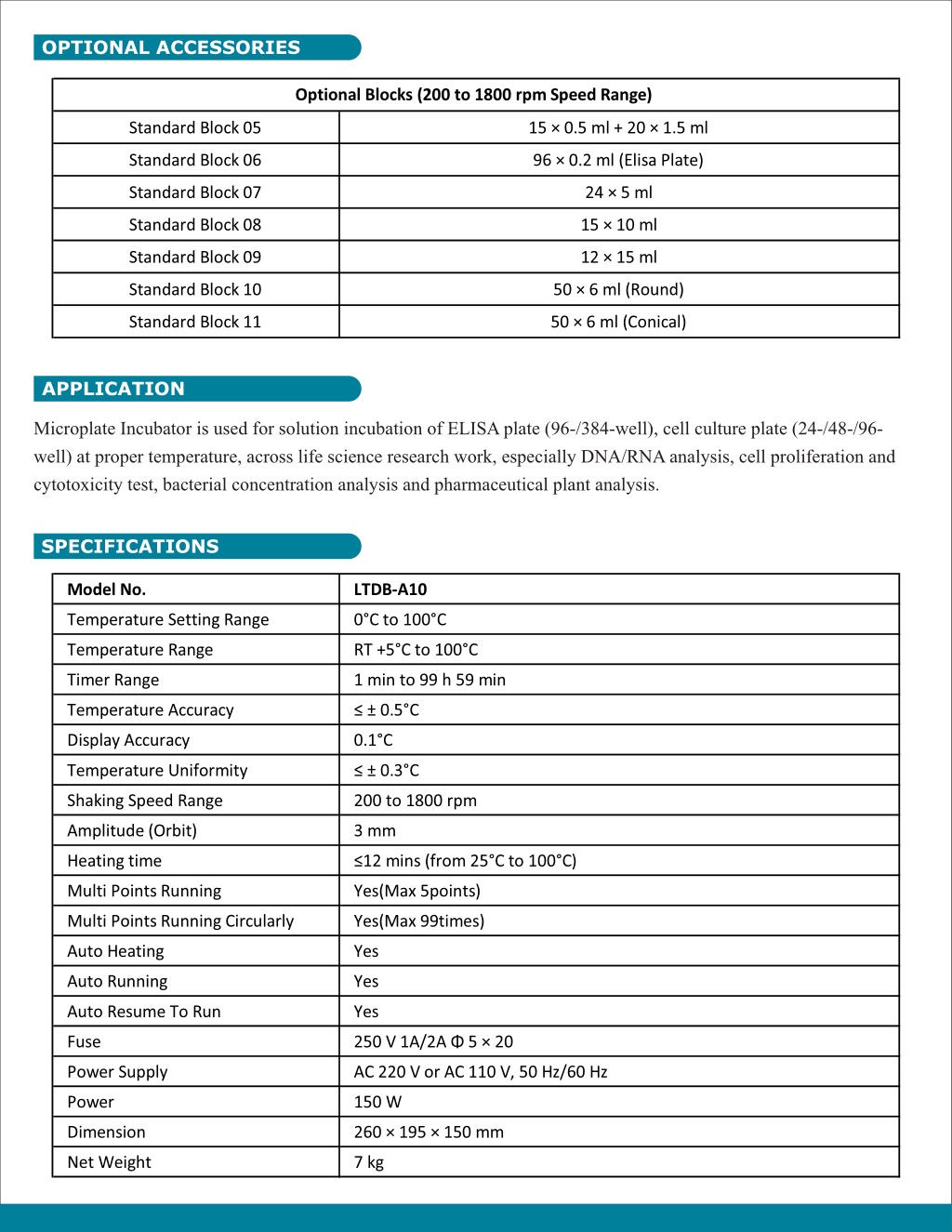

  3. OPTIONAL ACCESSORIES Optional Blocks (200 to 1800 rpm Speed Range) Standard Block 05 Standard Block 06 Standard Block 07 Standard Block 08 Standard Block 09 Standard Block 10 Standard Block 11 15 × 0.5 ml + 20 × 1.5 ml 96 × 0.2 ml (Elisa Plate) 24 × 5 ml 15 × 10 ml 12 × 15 ml 50 × 6 ml (Round) 50 × 6 ml (Conical) APPLICATION Microplate Incubator is used for solution incubation of ELISA plate (96-/384-well), cell culture plate (24-/48-/96- well) at proper temperature, across life science research work, especially DNA/RNA analysis, cell proliferation and cytotoxicity test, bacterial concentration analysis and pharmaceutical plant analysis. SPECIFICATIONS Model No. Temperature Setting Range Temperature Range Timer Range Temperature Accuracy Display Accuracy Temperature Uniformity Shaking Speed Range Amplitude (Orbit) Heating time Multi Points Running Multi Points Running Circularly Auto Heating Auto Running Auto Resume To Run Fuse Power Supply Power Dimension Net Weight LTDB-A10 0°C to 100°C RT +5°C to 100°C 1 min to 99 h 59 min ≤ ± 0.5°C 0.1°C ≤ ± 0.3°C 200 to 1800 rpm 3 mm ≤12 mins (from 25°C to 100°C) Yes(Max 5points) Yes(Max 99times) Yes Yes Yes 250 V 1A/2A Φ 5 × 20 AC 220 V or AC 110 V, 50 Hz/60 Hz 150 W 260 × 195 × 150 mm 7 kg
