Blood-Thaw-Machine

At Labtron, manufacturers the quality Blood Thaw Machine LBTM-A10 having maximum blood bags are 6 pcs, capacity 50 to 200 ml, and Chamber volume of 20L. For more details visit labtron.com!

labtrondigital
Download Presentation

Blood-Thaw-Machine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

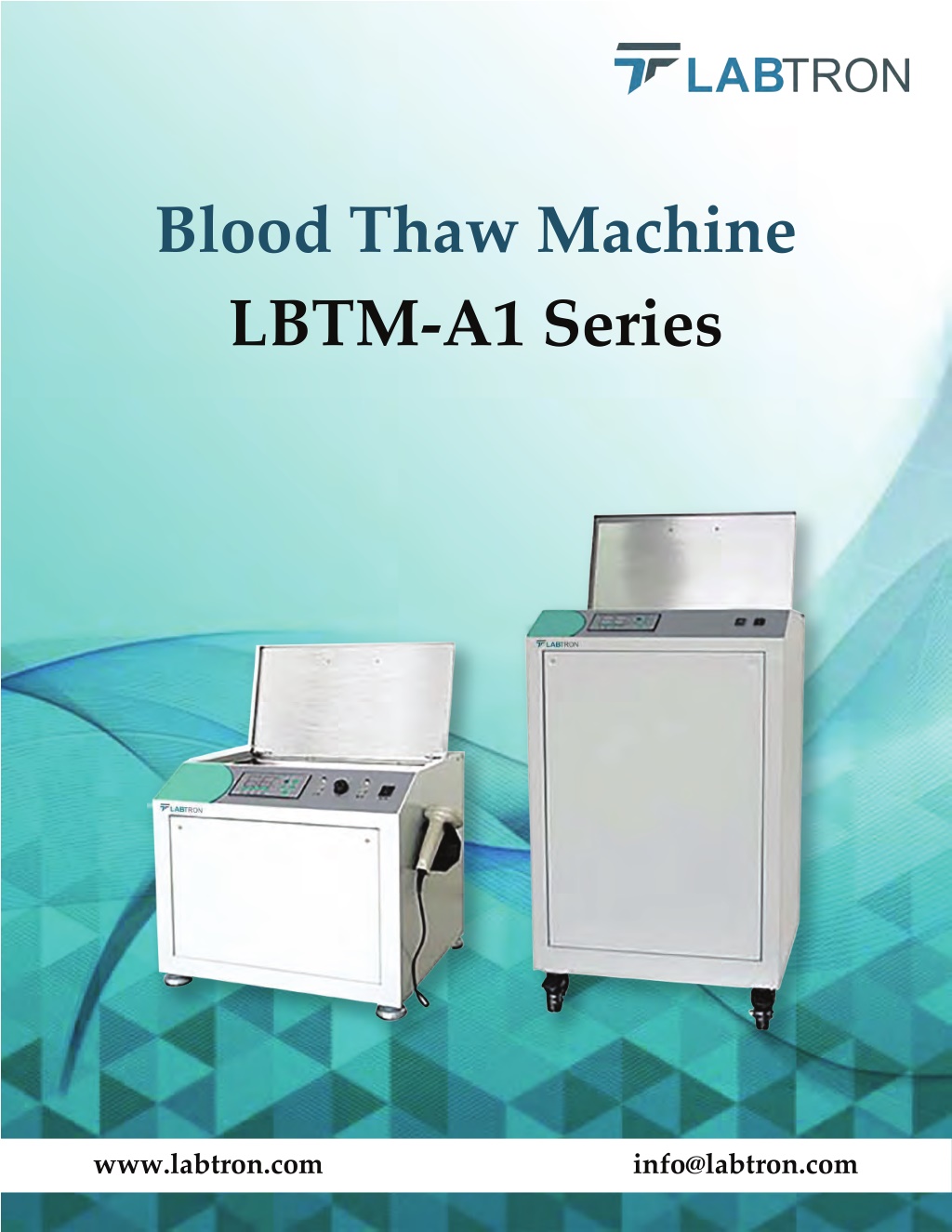

  1. Blood Thaw Machine LBTM-A1 Series www.labtron.com info@labtron.com

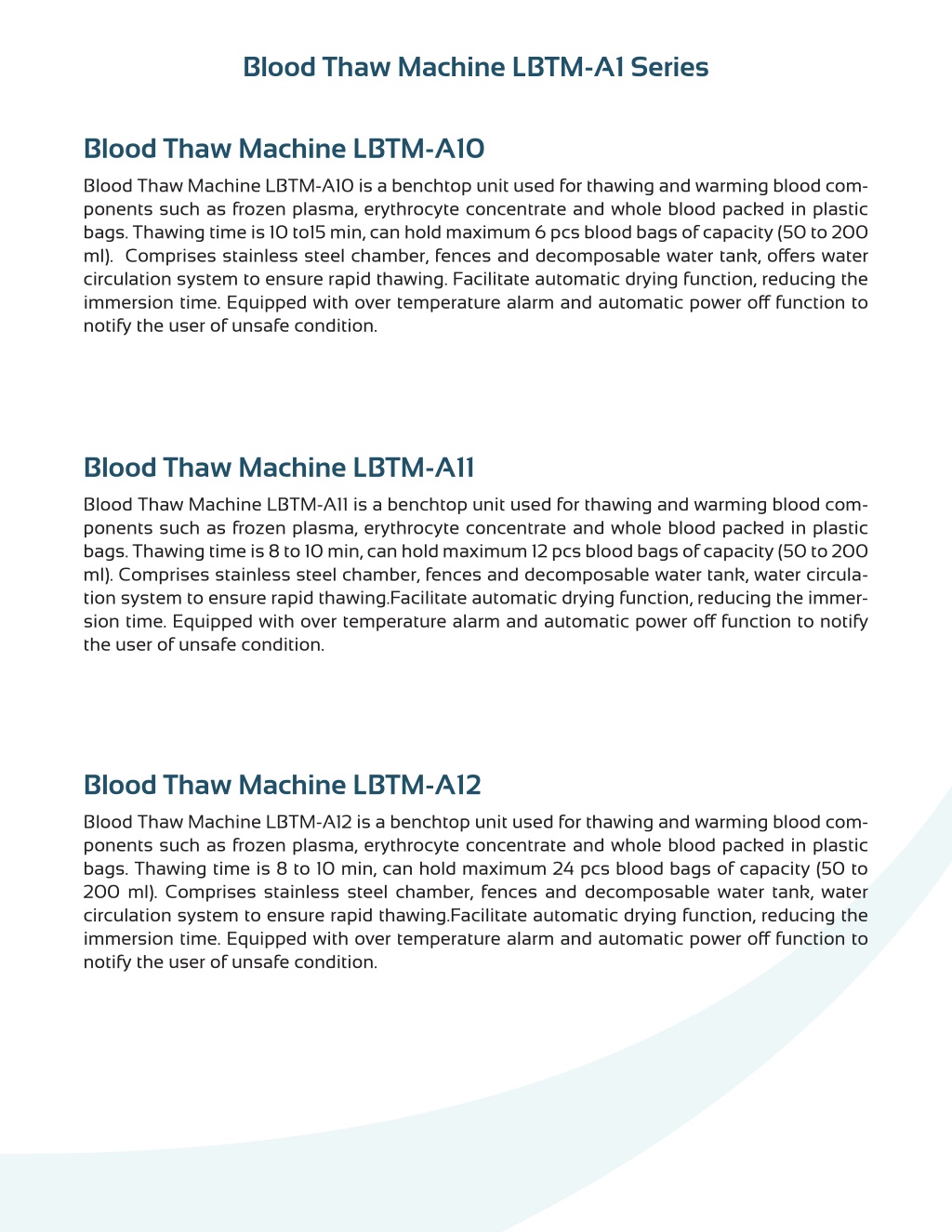

  2. Blood Thaw Machine LBTM-A1 Series Blood Thaw Machine LBTM-A10 Blood Thaw Machine LBTM-A10 is a benchtop unit used for thawing and warming blood com- ponents such as frozen plasma, erythrocyte concentrate and whole blood packed in plastic bags. Thawing time is 10 to15 min, can hold maximum 6 pcs blood bags of capacity (50 to 200 circulation system to ensure rapid thawing. Facilitate automatic drying function, reducing the notify the user of unsafe condition. Blood Thaw Machine LBTM-A11 Blood Thaw Machine LBTM-A11 is a benchtop unit used for thawing and warming blood com- ponents such as frozen plasma, erythrocyte concentrate and whole blood packed in plastic bags. Thawing time is 8 to 10 min, can hold maximum 12 pcs blood bags of capacity (50 to 200 ml). Comprises stainless steel chamber, fences and decomposable water tank, water circula- tion system to ensure rapid thawing.Facilitate automatic drying function, reducing the immer- the user of unsafe condition. Blood Thaw Machine LBTM-A12 Blood Thaw Machine LBTM-A12 is a benchtop unit used for thawing and warming blood com- ponents such as frozen plasma, erythrocyte concentrate and whole blood packed in plastic bags. Thawing time is 8 to 10 min, can hold maximum 24 pcs blood bags of capacity (50 to 200 ml). Comprises stainless steel chamber, fences and decomposable water tank, water circulation system to ensure rapid thawing.Facilitate automatic drying function, reducing the notify the user of unsafe condition.

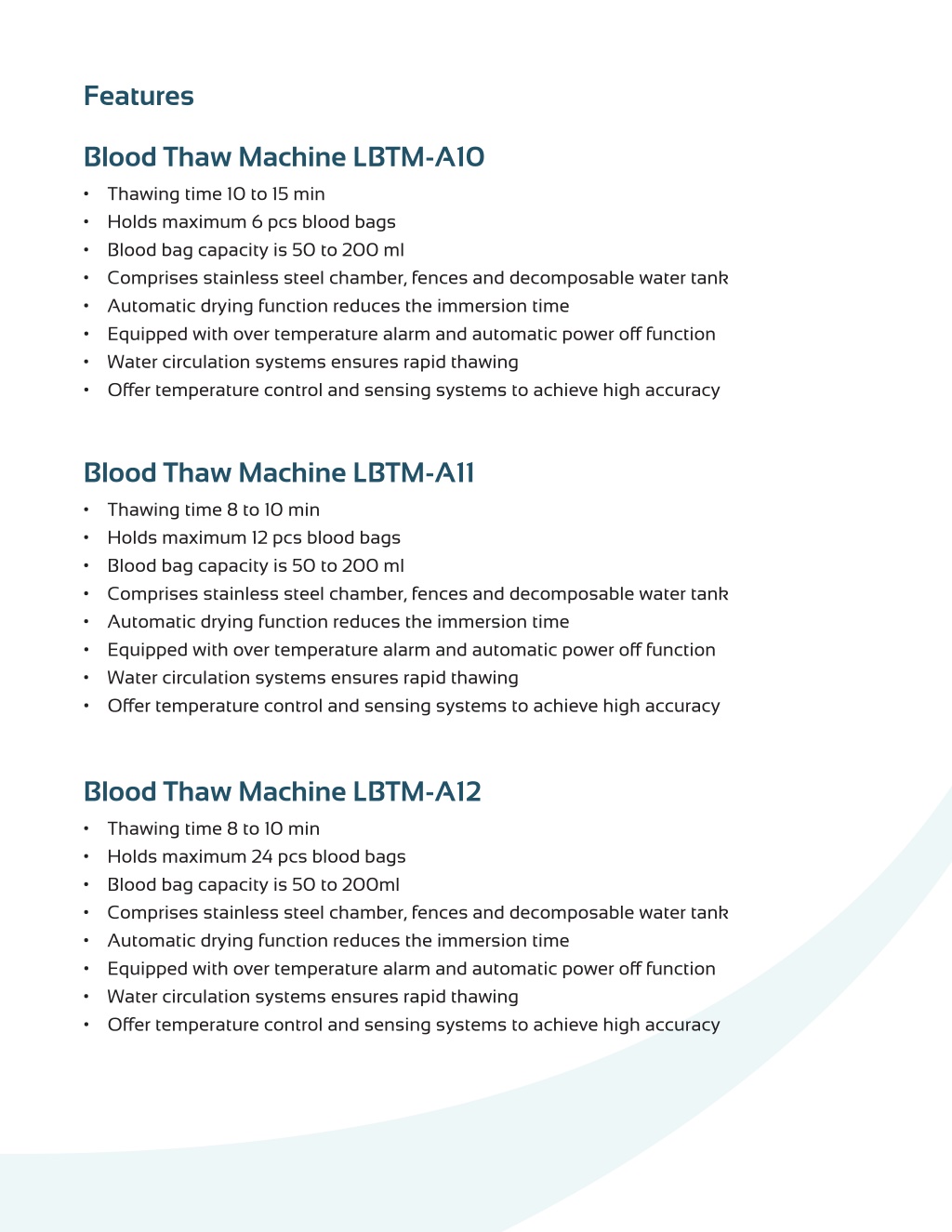

  3. Features Blood Thaw Machine LBTM-A10 • Thawing time 10 to 15 min • Holds maximum 6 pcs blood bags • Blood bag capacity is 50 to 200 ml • Comprises stainless steel chamber, fences and decomposable water tank • Automatic drying function reduces the immersion time • Water circulation systems ensures rapid thawing Blood Thaw Machine LBTM-A11 • Thawing time 8 to 10 min • Holds maximum 12 pcs blood bags • Blood bag capacity is 50 to 200 ml • Comprises stainless steel chamber, fences and decomposable water tank • Automatic drying function reduces the immersion time • Water circulation systems ensures rapid thawing Blood Thaw Machine LBTM-A12 • Thawing time 8 to 10 min • Holds maximum 24 pcs blood bags • Blood bag capacity is 50 to 200ml • Comprises stainless steel chamber, fences and decomposable water tank • Automatic drying function reduces the immersion time • Water circulation systems ensures rapid thawing

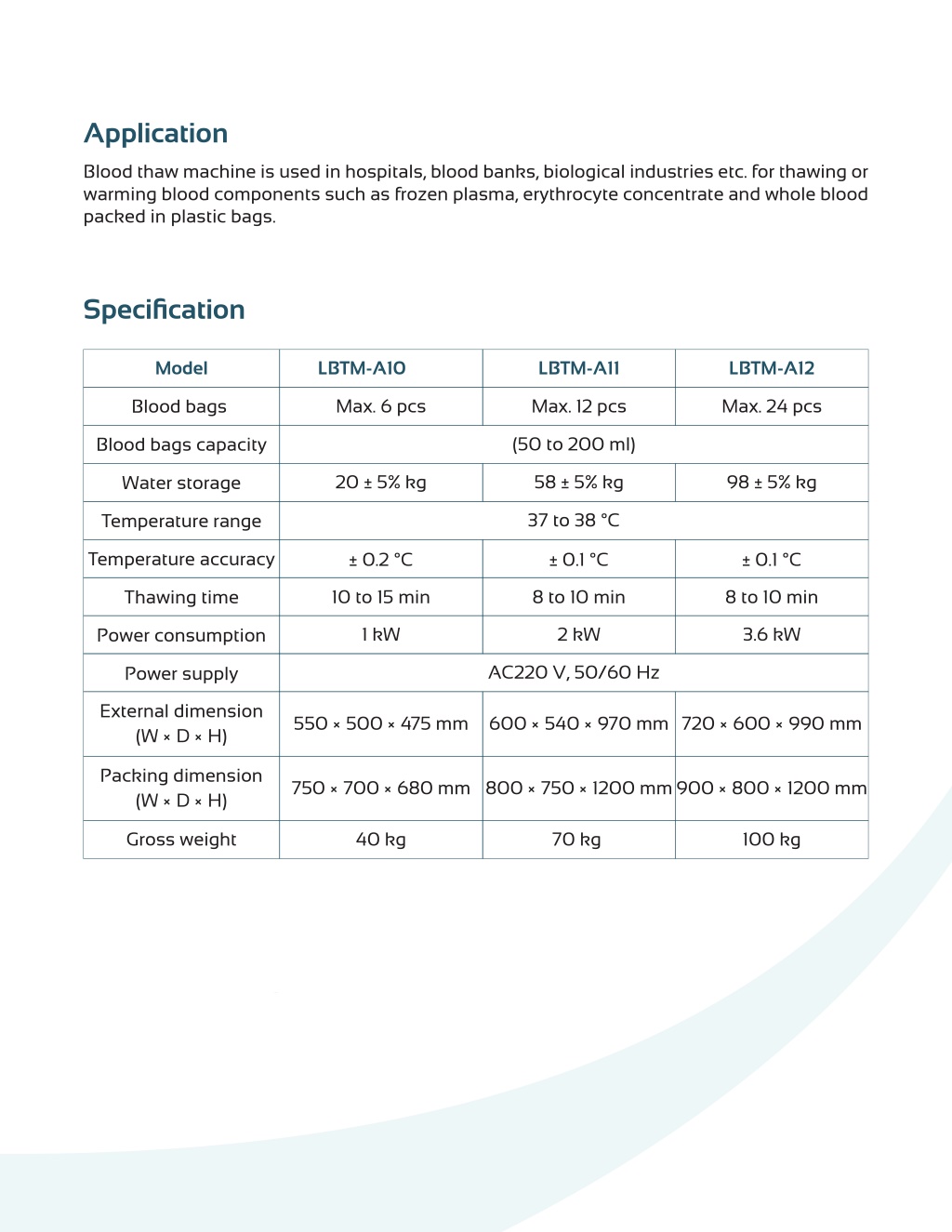

  4. Application Blood thaw machine is used in hospitals, blood banks, biological industries etc. for thawing or warming blood components such as frozen plasma, erythrocyte concentrate and whole blood packed in plastic bags. Specification Model LBTM-A10 LBTM-A11 LBTM-A12 Max. 6 pcs Max. 12 pcs Max. 24 pcs Blood bags (50 to 200 ml) Blood bags capacity 98 ± 5% kg 20 ± 5% kg 58 ± 5% kg Water storage 37 to 38 °C Temperature range Temperature accuracy ± 0.2 °C ± 0.1 °C ± 0.1 °C 10 to 15 min 8 to 10 min 8 to 10 min Thawing time 1 kW 2 kW 3.6 kW Power consumption AC220 V, 50/60 Hz Power supply External dimension (W × D × H) 550 × 500 × 475 mm 600 × 540 × 970 mm 720 × 600 × 990 mm Packing dimension (W × D × H) 750 × 700 × 680 mm 800 × 750 × 1200 mm 900 × 800 × 1200 mm Gross weight 40 kg 70 kg 100 kg Optional Accessories • Scanning bar code function to scan code on blood bag
