Air-jacketed-CO2 Incubator

The touchscreen controller for the Labmate Air-jacketed CO2 Incubator LMAC-A100 has a 72-hour machine operating record inquiry capability to aid users in tracking unusual situations.

Download Presentation

Air-jacketed-CO2 Incubator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

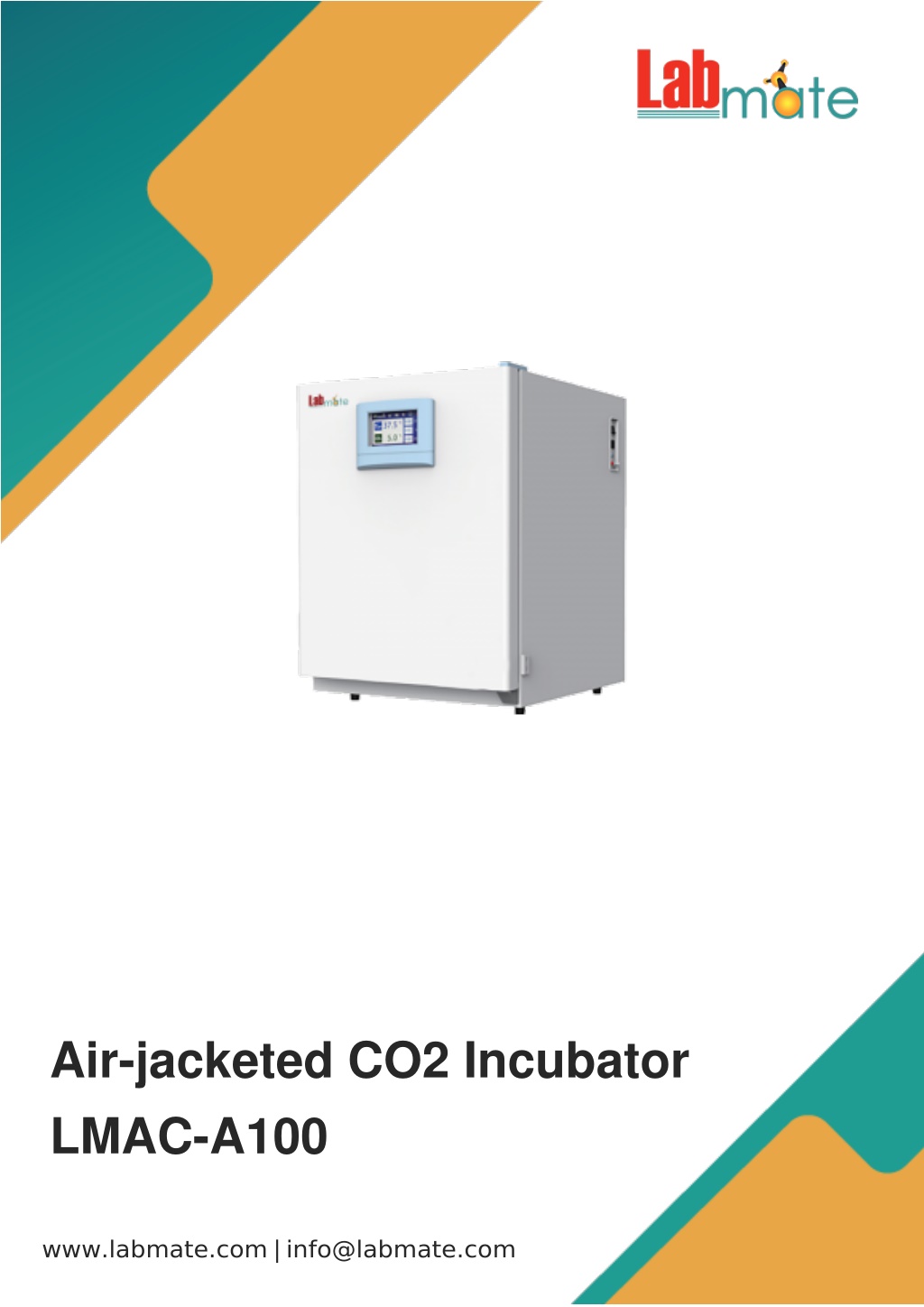

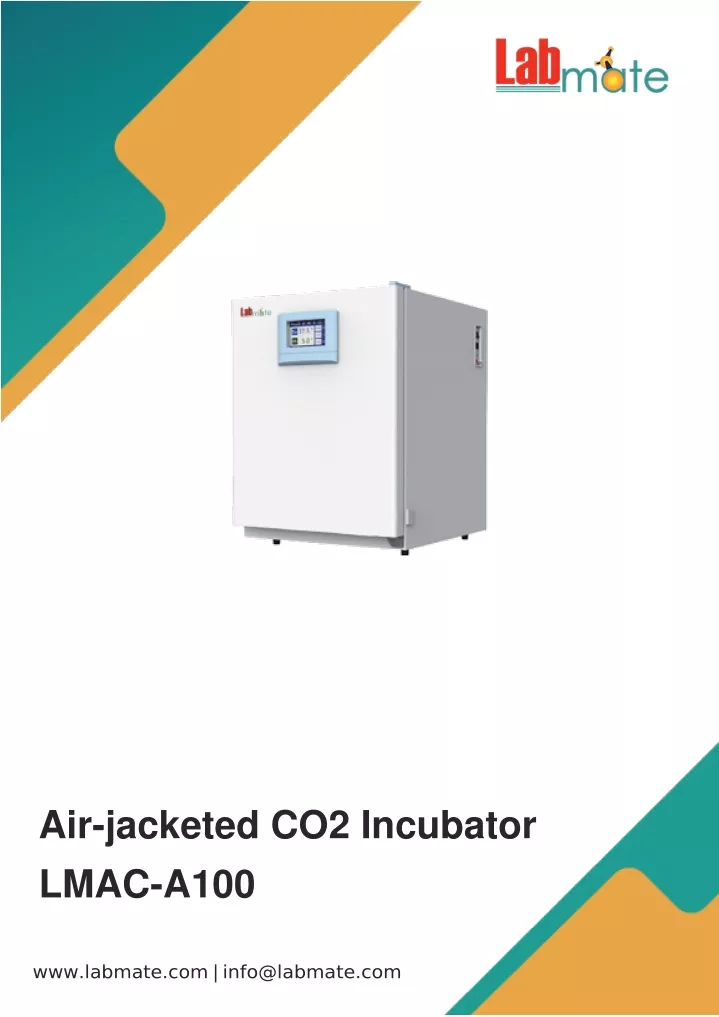

  1. Air-jacketed CO2 Incubator LMAC-A100 www.labmate.com info@labmate.com |

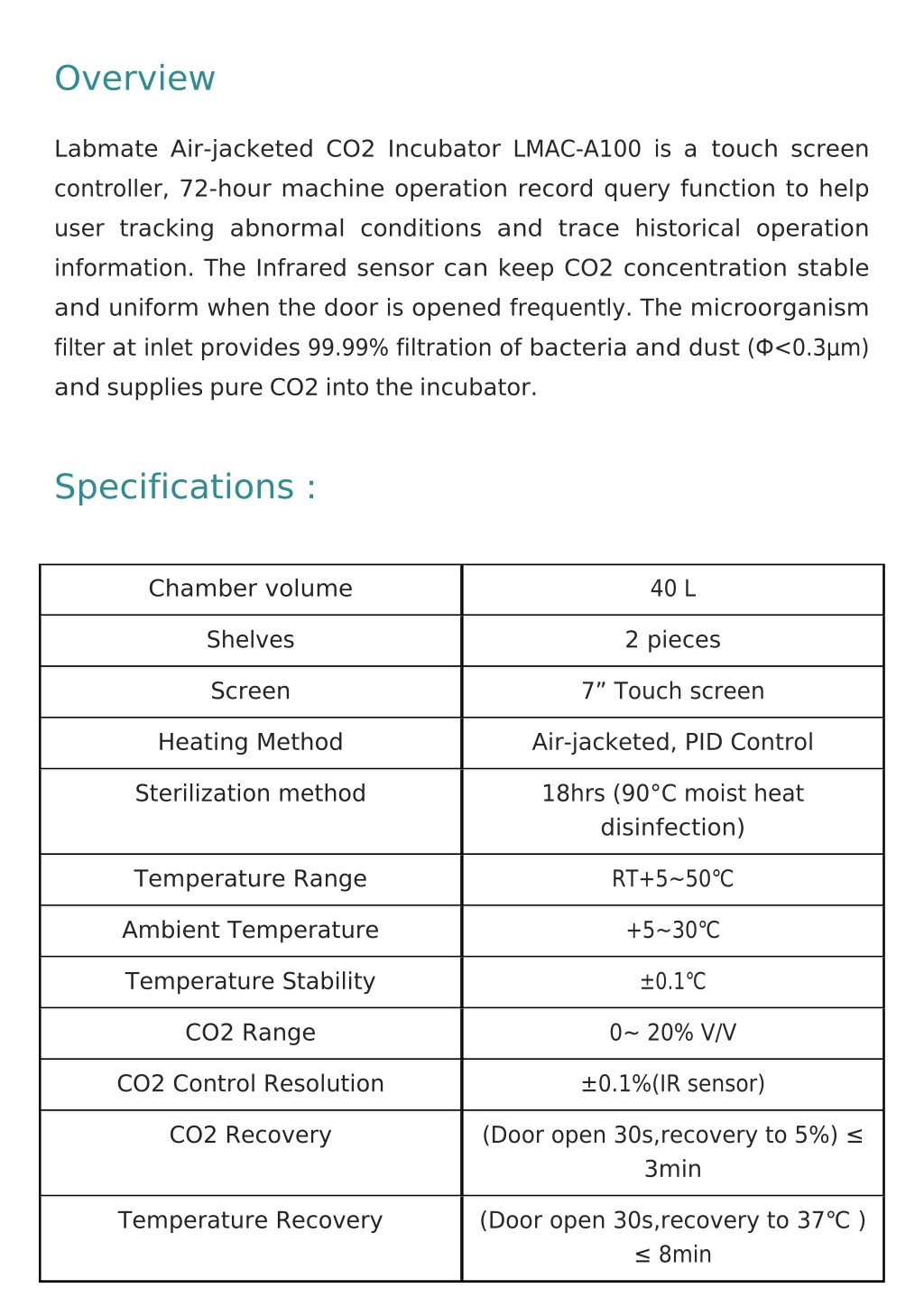

  2. Overview Labmate Air-jacketed CO2 Incubator LMAC-A100 is a touch screen controller, 72-hour machine operation record query function to help user tracking abnormal conditions and trace historical operation information. The Infrared sensor can keep CO2 concentration stable and uniform when the door is opened frequently. The microorganism filter at inlet provides 99.99% filtration of bacteria and dust (Ф<0.3μm) and supplies pure CO2 into the incubator. Specifications : Chamber volume 40 L Shelves 2 pieces Screen 7” Touch screen Heating Method Air-jacketed, PID Control Sterilization method 18hrs (90°C moist heat disinfection) Temperature Range RT+5~50℃ Ambient Temperature +5~30℃ Temperature Stability ±0.1℃ CO2 Range 0~ 20% V/V CO2 Control Resolution ±0.1%(IR sensor) CO2 Recovery (Door open 30s,recovery to 5%) ≤ 3min Temperature Recovery (Door open 30s,recovery to 37℃ ) ≤ 8min

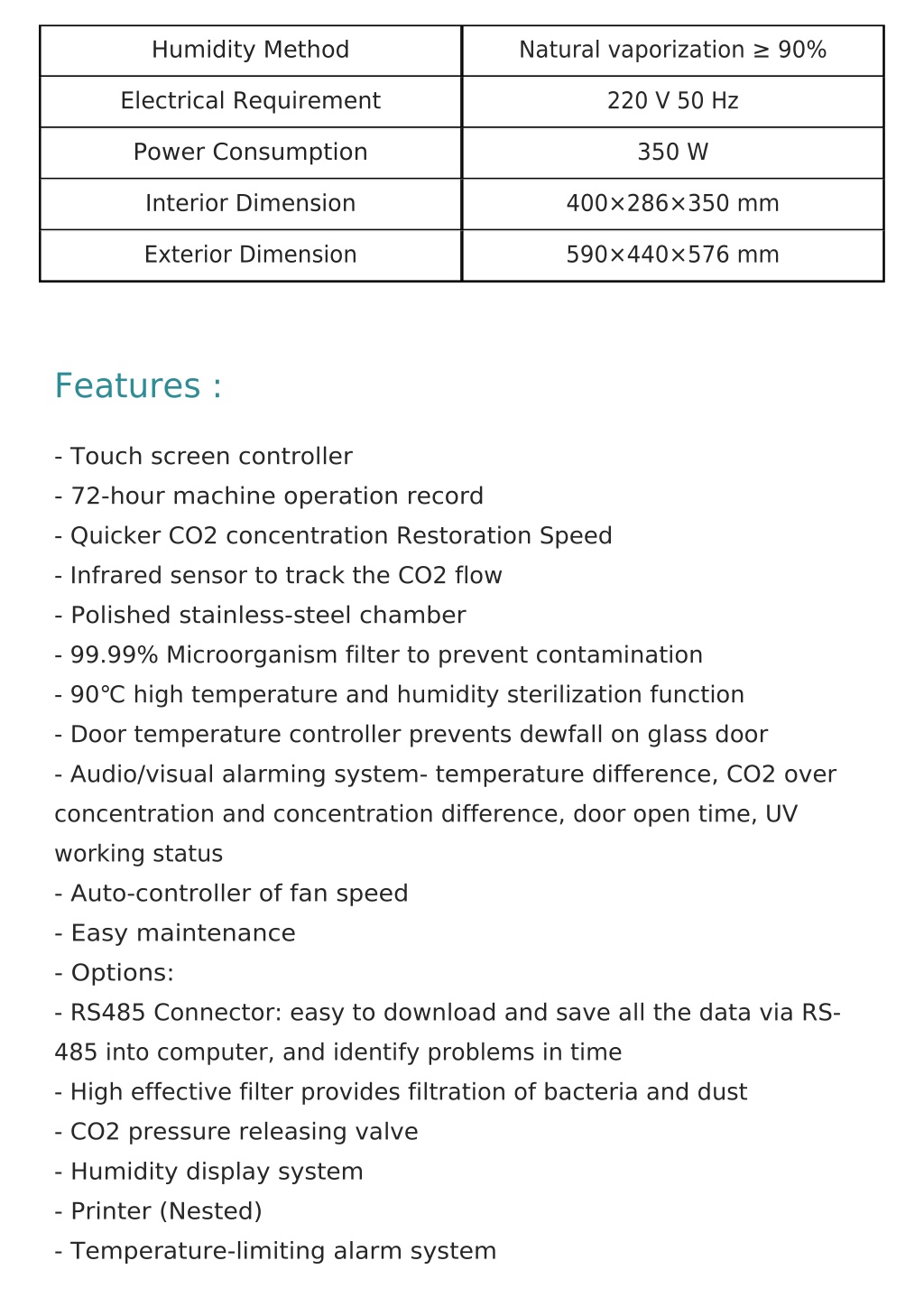

  3. Humidity Method Natural vaporization ≥ 90% Electrical Requirement 220 V 50 Hz Power Consumption 350 W Interior Dimension 400×286×350 mm Exterior Dimension 590×440×576 mm Features : - Touch screen controller - 72-hour machine operation record - Quicker CO2 concentration Restoration Speed - Infrared sensor to track the CO2 flow - Polished stainless-steel chamber - 99.99% Microorganism filter to prevent contamination - 90℃ high temperature and humidity sterilization function - Door temperature controller prevents dewfall on glass door - Audio/visual alarming system- temperature difference, CO2 over concentration and concentration difference, door open time, UV working status - Auto-controller of fan speed - Easy maintenance - Options: - RS485 Connector: easy to download and save all the data via RS- 485 into computer, and identify problems in time - High effective filter provides filtration of bacteria and dust - CO2 pressure releasing valve - Humidity display system - Printer (Nested) - Temperature-limiting alarm system

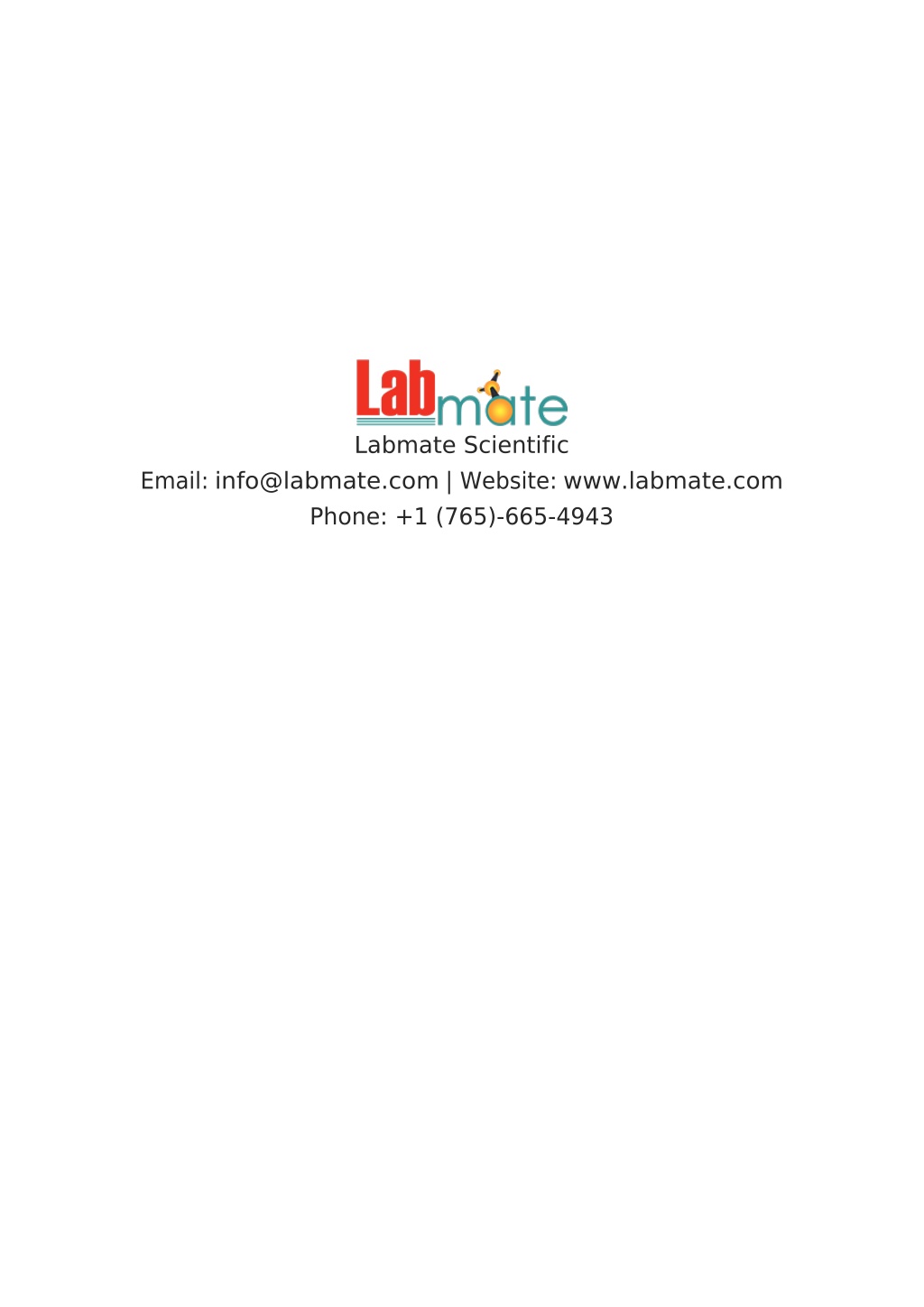

  4. Labmate Scientific | Website: Phone: +1 (765)-665-4943 Email: info@labmate.com www.labmate.com
