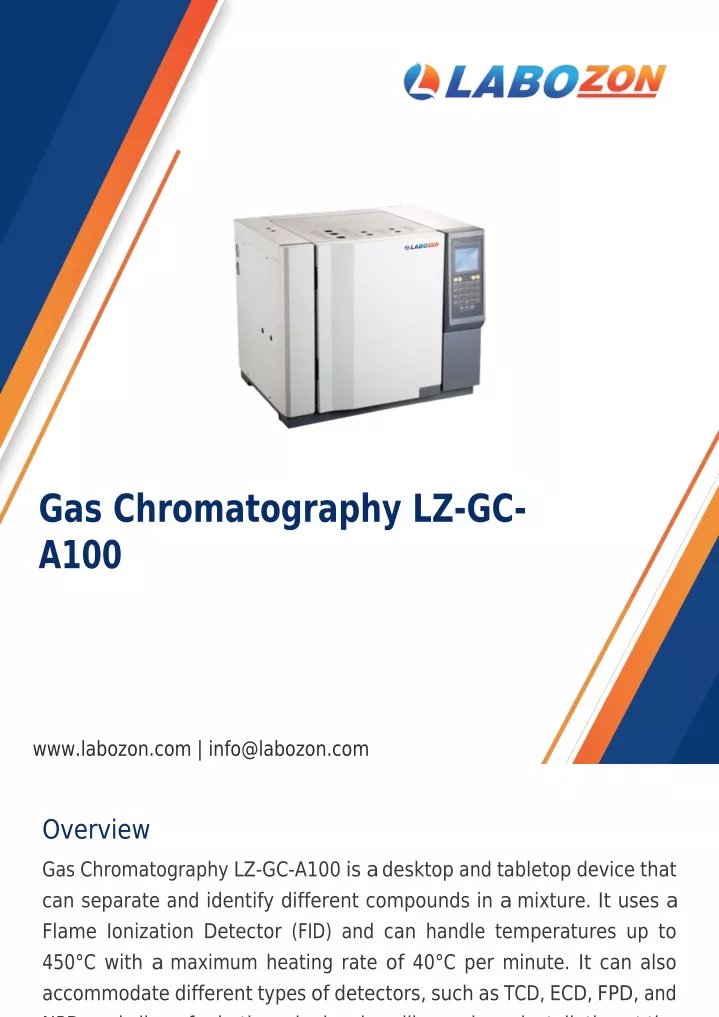

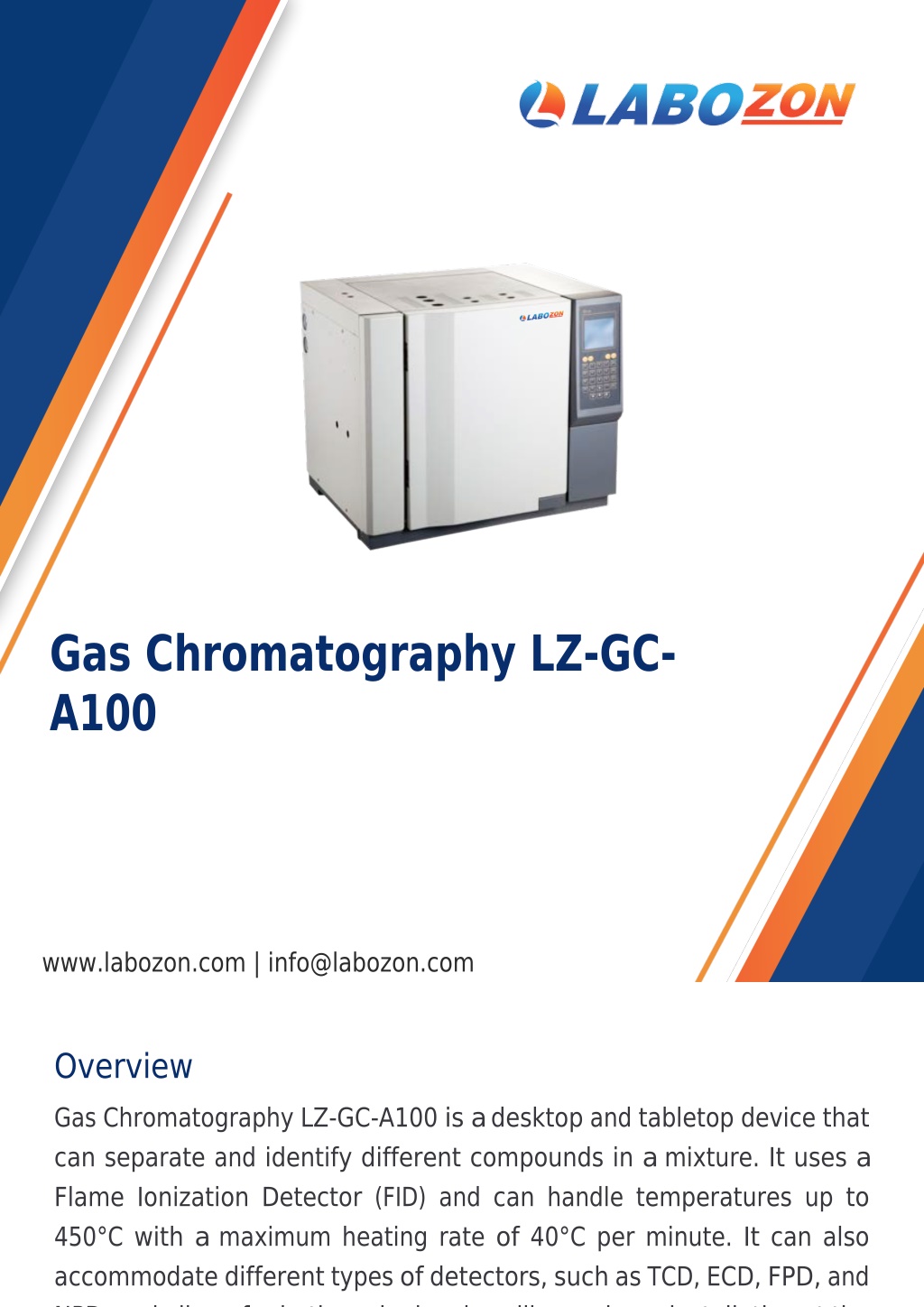

  1. Gas Chromatography LZ-GC- A100 www.labozon.com | info@labozon.com Overview Gas Chromatography LZ-GC-A100 is adesktop and tabletop device that can separate and identify different compounds in a mixture. It uses a Flame Ionization Detector (FID) and can handle temperatures up to 450°C with a maximum heating rate of 40°C per minute. It can also accommodate different types of detectors, such as TCD, ECD, FPD, and NPD, and allows for both packed and capillary column installation at the

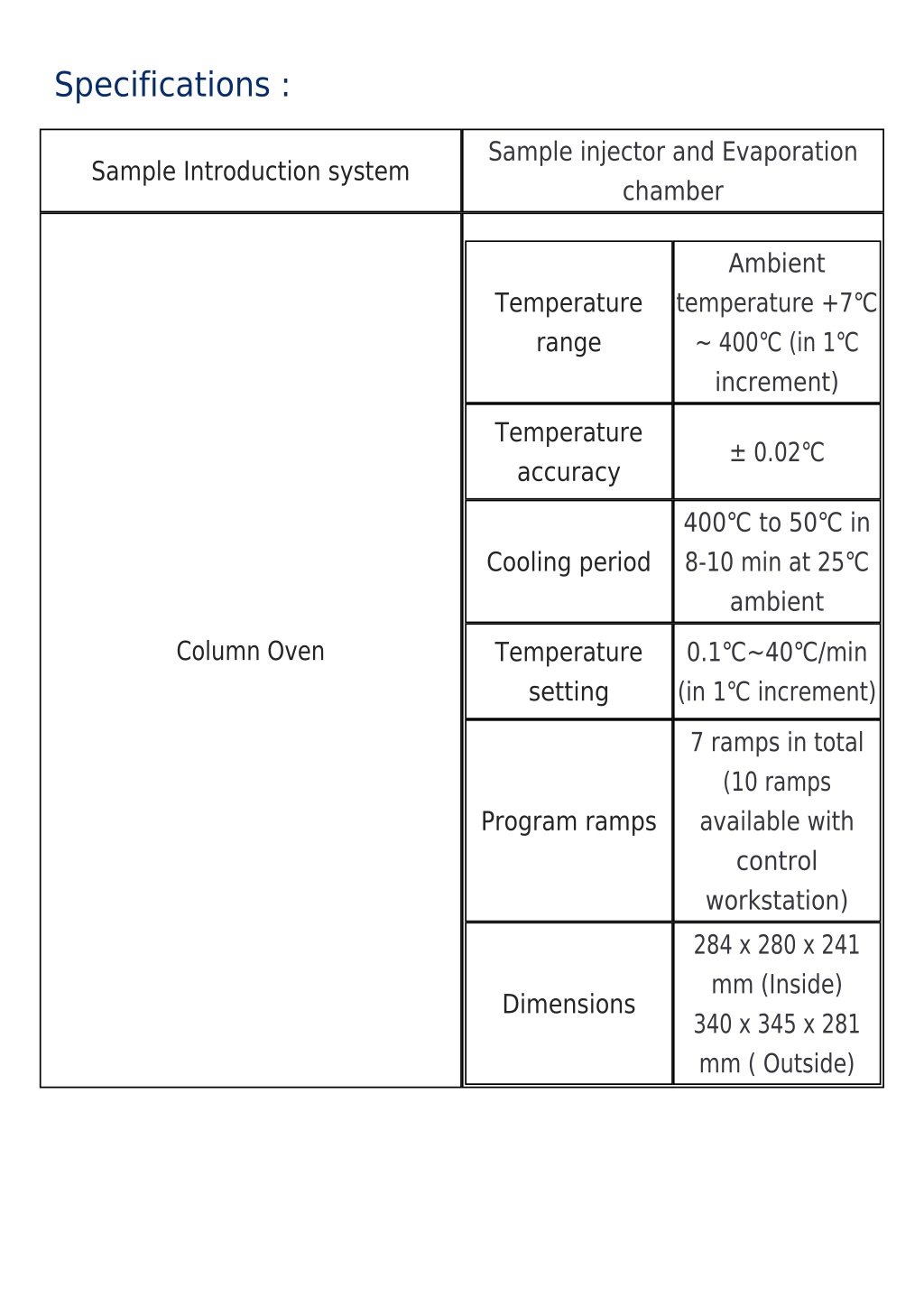

  2. Specifications : Sample injector and Evaporation chamber Sample Introduction system Ambient Temperature range temperature +7℃ ~ 400℃ (in 1℃ increment) Temperature accuracy ± 0.02℃ 400℃ to 50℃ in 8-10 min at 25℃ ambient Cooling period Column Oven Temperature setting 0.1℃~40℃/min (in 1℃ increment) 7 ramps in total (10 ramps available with control workstation) Program ramps 284 x 280 x 241 mm (Inside) 340 x 345 x 281 mm ( Outside) Dimensions

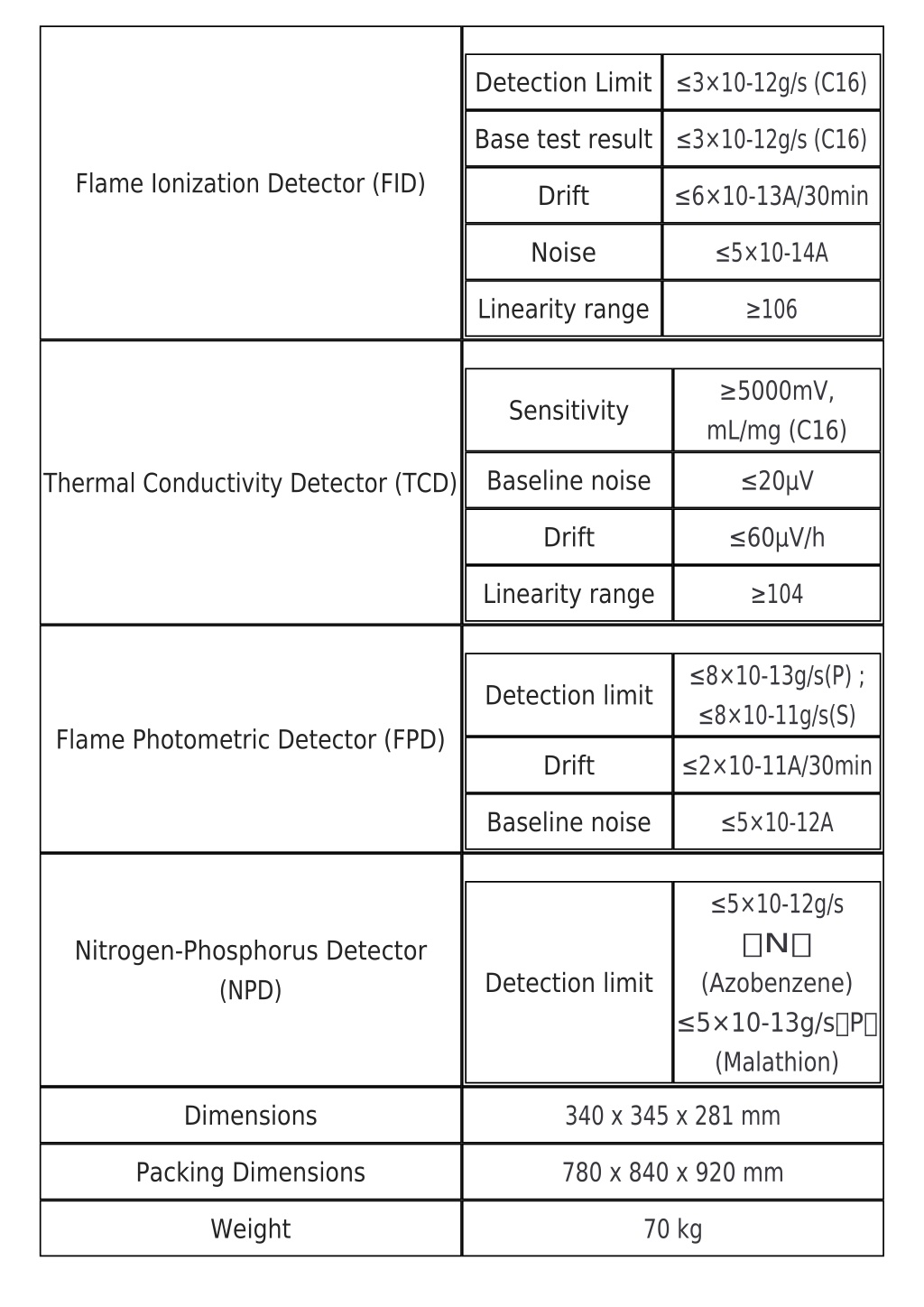

  3. Detection Limit ≤3×10-12g/s (C16) Base test result ≤3×10-12g/s (C16) Flame Ionization Detector (FID) Drift ≤6×10-13A/30min Noise ≤5×10-14A Linearity range ≥106 ≥5000mV, mL/mg (C16) Sensitivity Baseline noise ≤20µV Thermal Conductivity Detector (TCD) Drift ≤60µV/h Linearity range ≥104 ≤8×10-13g/s(P) ; ≤8×10-11g/s(S) Detection limit Flame Photometric Detector (FPD) Drift ≤2×10-11A/30min Baseline noise ≤5×10-12A ≤5×10-12g/s （N） (Azobenzene) ≤5×10-13g/s（P） (Malathion) Nitrogen-Phosphorus Detector (NPD) Detection limit Dimensions 340 x 345 x 281 mm Packing Dimensions 780 x 840 x 920 mm Weight 70 kg

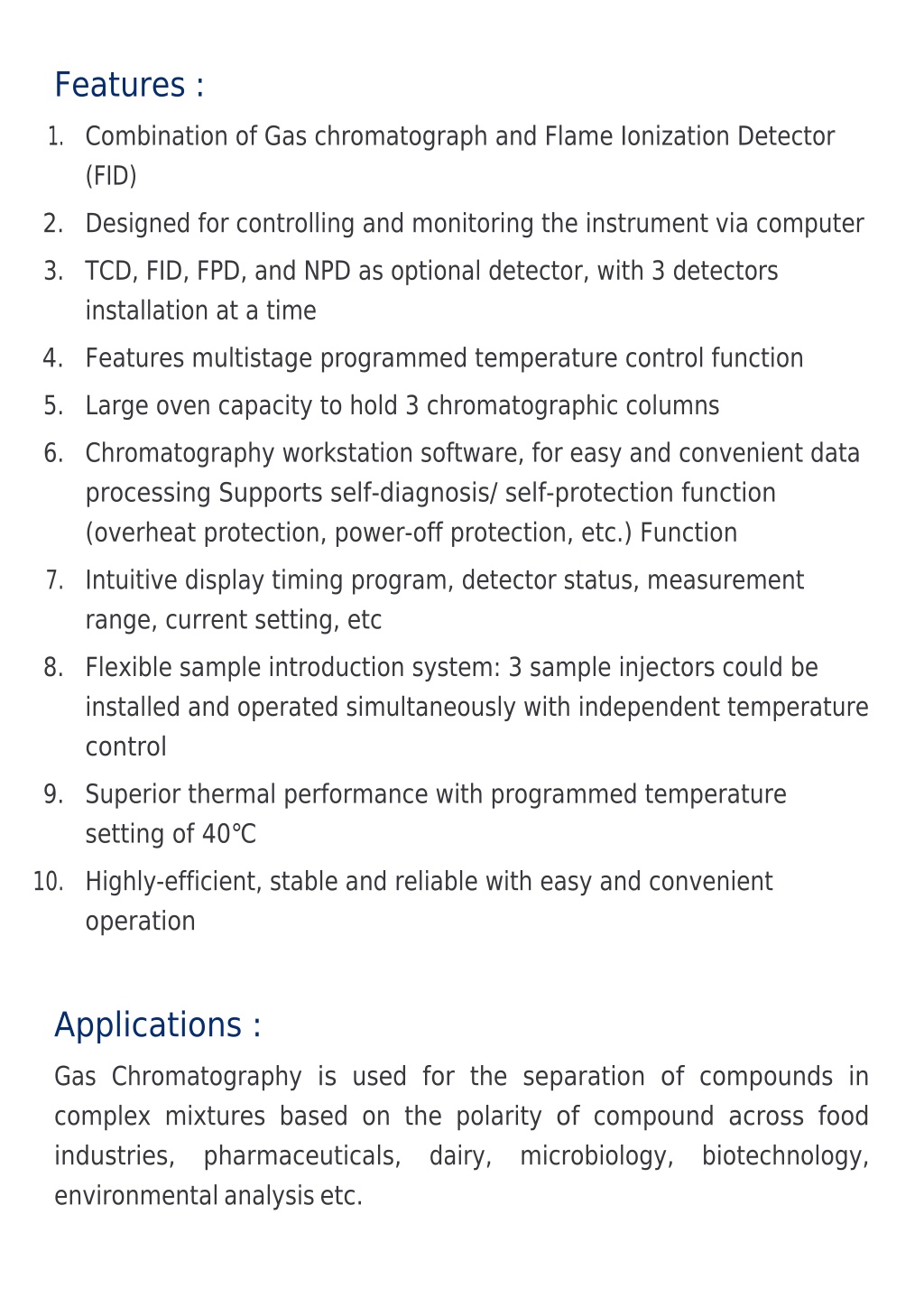

  4. Features : 1. Combination of Gas chromatograph and Flame Ionization Detector (FID) 2. Designed for controlling and monitoring the instrument via computer 3. TCD, FID, FPD, and NPD as optional detector, with 3 detectors installation at a time 4. Features multistage programmed temperature control function 5. Large oven capacity to hold 3 chromatographic columns 6. Chromatography workstation software, for easy and convenient data processing Supports self-diagnosis/ self-protection function (overheat protection, power-off protection, etc.) Function 7. Intuitive display timing program, detector status, measurement range, current setting, etc 8. Flexible sample introduction system: 3 sample injectors could be installed and operated simultaneously with independent temperature control 9. Superior thermal performance with programmed temperature setting of 40℃ 10. Highly-efficient, stable and reliable with easy and convenient operation Applications : Gas Chromatography is used for the separation of compounds in complex mixtures based on the polarity of compound across food industries, pharmaceuticals, dairy, environmental analysis etc. microbiology, biotechnology,

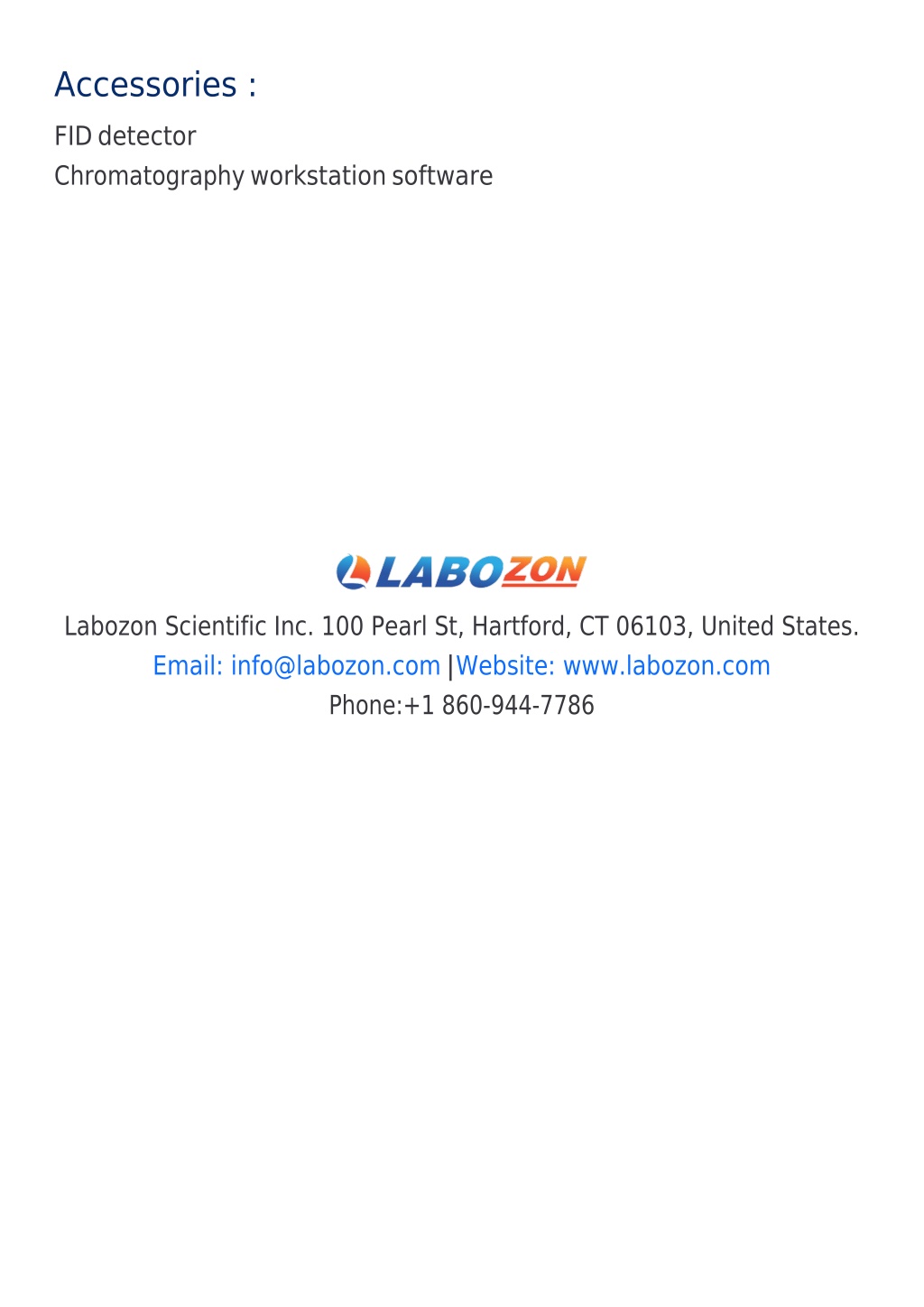

  5. Accessories : FID detector Chromatography workstation software Labozon Scientific Inc. 100 Pearl St, Hartford, CT 06103, United States. | Phone:+1 860-944-7786 Email: info@labozon.com Website: www.labozon.com
