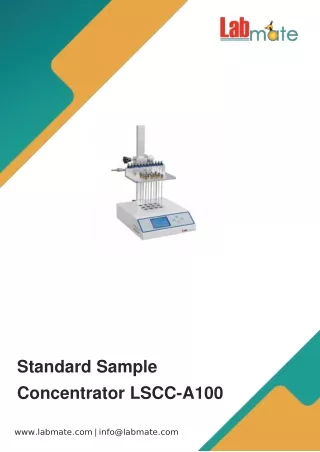

1. Standard Sample Concentrator LSCC-A100 www.labmate.com info@labmate.com |

2. Specifications : Temperature Range RT + 5 °C- 150 °C Blocks Quantity 1 piece Height of gas needle 150 mm Temperature accuracy ( 40-100 °C) ± 0.5 °C Temperature accuracy ( 100-150 °C) ± 1 °C Temperature uniformity (100 °C) ± 0.5 °C Nitrogen Flow Rate 0 - 10 L / min Nitrogen Pressure ≤ 0.1 mPa Heating Time ≤ 30 min (from 40 °C to 150 °C) Time Range 9999 min Power 200 W Dimensions 310 x 220 x 530 mm Features : - LED display for temperature and time - Independently controlled gas needle with adjustable position - Independently blown and flow regulated gas needle - Built-in overheat protection, automatic fault detection and fault alarm features Optional Blocks :

3. Hole Diameter NO. of Holes Module Size Model No Image LSCC-OB1 6 mm 12 95.5 x 76.5 x 50 mm LSCC-OB2 7 mm 12 95.5 x 76.5 x 50 mm LSCC-OB3 10 mm 12 95.5 x 76.5 x 50 mm LSCC-OB4 12 mm 12 95.5 x 76.5 x 50 mm LSCC-OB5 13 mm 12 95.5 x 76.5 x 50 mm LSCC-OB6 15 mm 12 95.5 x 76.5 x 50 mm LSCC-OB7 16 mm 12 95.5 x 76.5 x 50 mm

4. LSCC-OB8 19 mm 12 95.5 x 76.5 x 50 mm LSCC-OB9 20 mm 6 95.5 x 76.5 x 50 mm LSCC-OB10 26 mm 6 95.5 x 76.5 x 50 mm LSCC-OB11 28 mm 4 95.5 x 76.5 x 50 mm LSCC-OB12 40 mm 2 95.5 x 76.5 x 50 mm LSCC-OB13 0.2 mL 12 95.5 x 76.5 x 50 mm LSCC-OB14 0.5 mL tube 12 95.5 x 76.5 x 50 mm LSCC-OB15 1.5 mL tube 12 95.5 x 76.5 x 50 mm

5. LSCC-OB16 2.0 mL tube 12 95.5 x 76.5 x 50 mm Labmate Scientific | Website: Phone: +1 (765)-665-4943 Email: info@labmate.com www.labmate.com
