Karl-Fisher-Titrator

The Coulometric approach is utilized by the Karl Fisher Titrator to measure and titrate, which is used to estimate moisture in numerous specific solutions. for more visit www.labmate.com

Download Presentation

Karl-Fisher-Titrator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

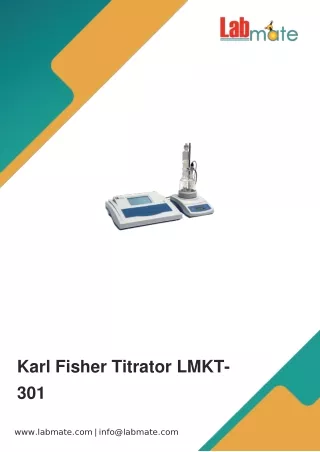

  1. Karl Fisher Titrator LMKT- 301 www.labmate.com info@labmate.com |

  2. Overview Karl Fisher Titrator LMKT-301 uses Coulometric method to measure and titration that is used to carry out moisture estimation in many specific solutions. The Coulometric titration process involves constant current electrolysis using the electrolytic control method. It is employed to get the exact endpoint which is provided by the generational cell with a diaphragm that possesses a titration range of 10 μg and 20 mg. Specifications : Coulometric Titration Range 10 μg to 20 mg Coulometric Titration Polarization Current Accuracy ±0.2 μA Coulometric Titration Working Current 10 mA, 20 mA, 50 mA, 100 mA Coulometric Titration Repeatability 0.5% Power Supply ± (5%+3) μA Dimension 300×235×100 mm Weight 3 kg Features : - The LCD display is present that offers clear visible measured values to note down the data - Generator cell with the diaphragm is present and automatic background drift correction for the precise outcome

  3. - Units can be selected according to choice such as mg, mg/L, %, ppm, etc. - Adjustable parameters for the desired result can be done such as measurement unit, polarization current, stirring rate, titration rate, stop volume, endpoint potential, stop criterion and etc. - Auto-reset option that changes after the process to default factory reset option provides a new start for the next procedure - Data can be easily stored and transferred to the printer through an RS-232 communication interface Standard Accessories : Coulometric titration cell Applications : Karl Fischer titration is widely used for direct analysis of water content in various industries, as a reliable and healthy method. In food industry it is used for water content determination in fruit juices, honey where as it is needed in petroleum industry to check the water content in different oils, also in cosmetic industry for determination of water in the products. It is required in pharmaceutic industry for raw materials, active substances, lyophilized substrates, tablets, ointments, oils.

  4. Labmate Scientific | Website: Phone: +1 (765)-665-4943 Email: info@labmate.com www.labmate.com
