3441 industrial instruments 1 chapter 5 mechanical sensors

Princess Sumaya Univ.Electronic Engineering Dept.

3441Industrial Instruments 1Chapter 5MechanicalSensors

Dr. Bassam Kahhaleh


Mechanical sensors

3441 - Industrial Instruments 1

Mechanical Sensors

Objective

Understand how mechanical sensors work and how to interface them.


Mechanical sensors1

+

3441 - Industrial Instruments 1

Mechanical Sensors

Displacement, Location, or Position Sensors

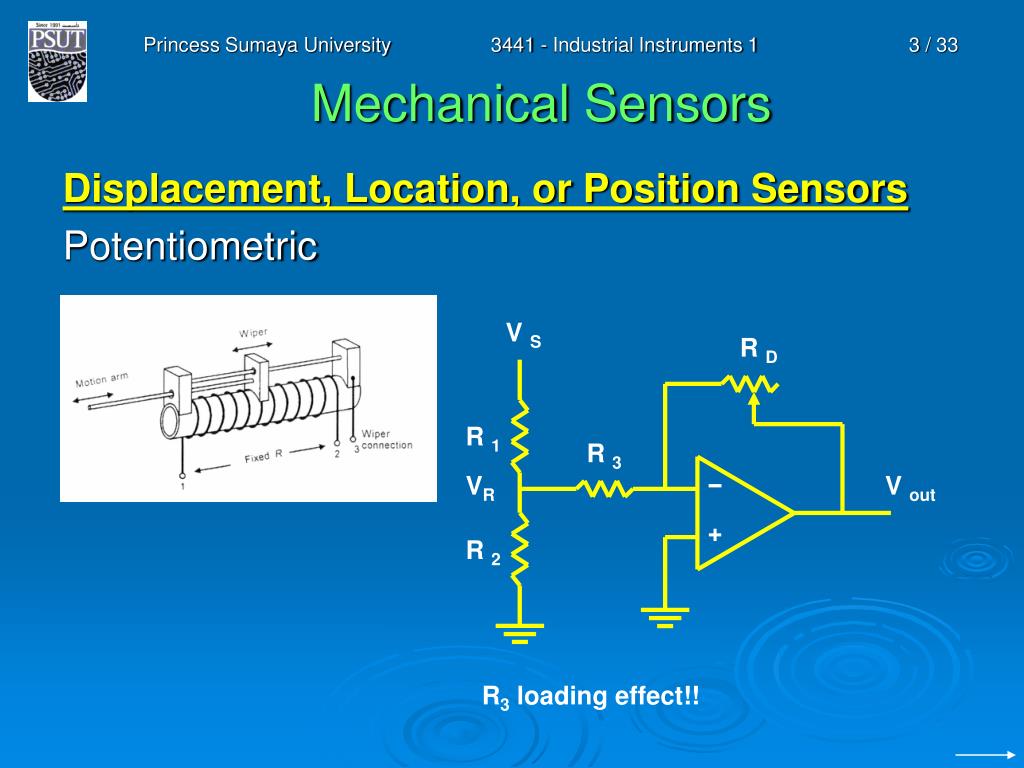

Potentiometric

V S

R D

R 1

R 3

VR

V out

R 2

R3 loading effect!!


Mechanical sensors2

3441 - Industrial Instruments 1

Mechanical Sensors

Displacement, Location, or Position Sensors

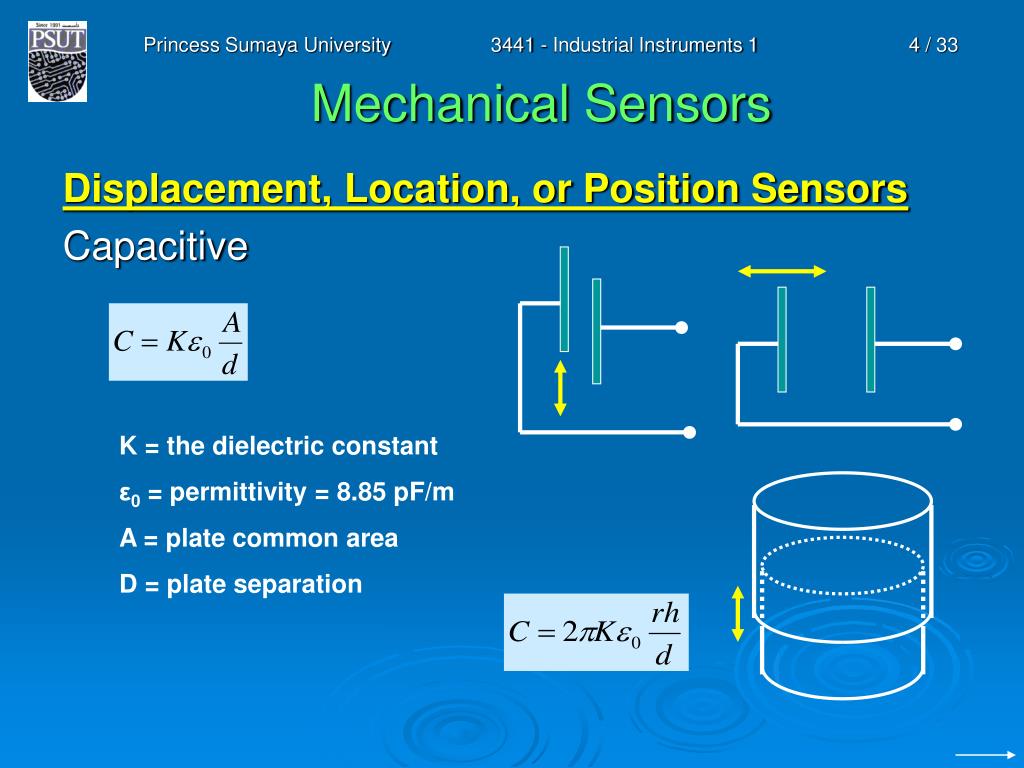

Capacitive

K = the dielectric constant

ε0 = permittivity = 8.85 pF/m

A = plate common area

D = plate separation


Mechanical sensors3

3441 - Industrial Instruments 1

Mechanical Sensors

Displacement, Location, or Position Sensors

Inductive

Permeable core


Mechanical sensors4

3441 - Industrial Instruments 1

Mechanical Sensors

Displacement, Location, or Position Sensors

Variable Reluctance

Linear Variable Differential Transformer (LVDT)


Mechanical sensors5

3441 - Industrial Instruments 1

Mechanical Sensors

Displacement, Location, or Position Sensors

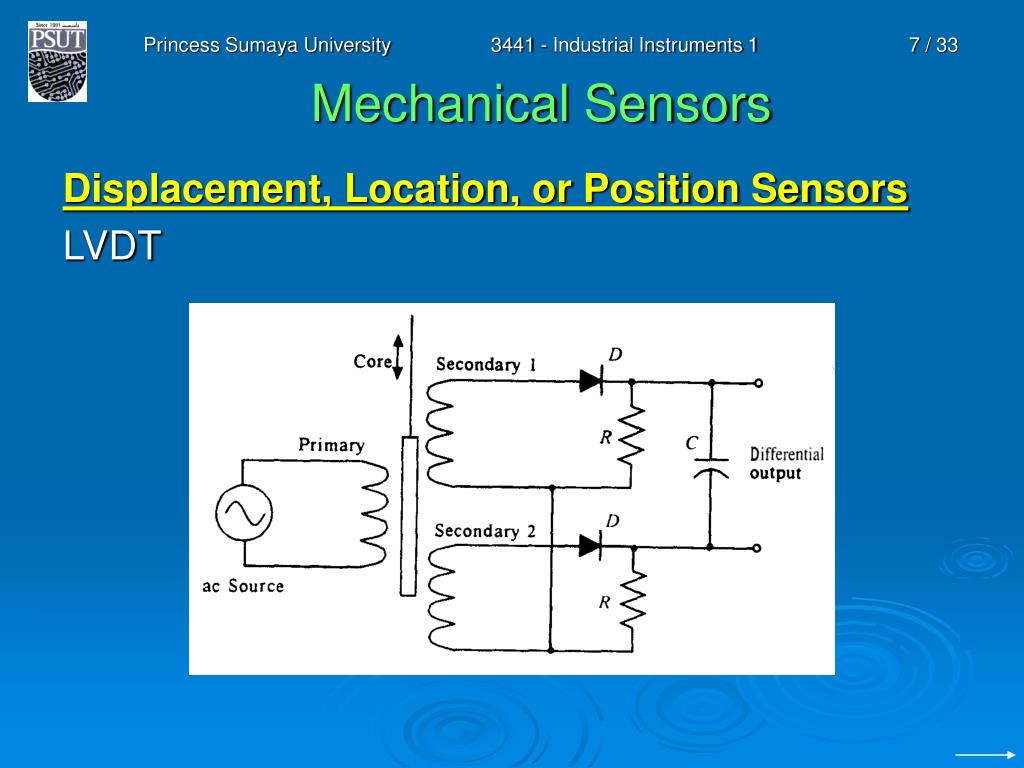

LVDT


Mechanical sensors6

3441 - Industrial Instruments 1

Mechanical Sensors

Displacement, Location, or Position Sensors

Level Sensors

  • Mechanical

  • Electrical

  • Ultrasonic

  • Pressure


Mechanical sensors7

A

A

F

F

F

F

l

l

3441 - Industrial Instruments 1

Mechanical Sensors

Strain Sensors

Stress: Forces applied to an object

Strain: the result (deformation) of stress

  • Tensile Stress-Strain

  • Compressional Stress-Strain

F = applied force in N

A = cross-sectional area in m2

Δl = change in length in m

l = original length in m


Mechanical sensors8

F

l

A

F

3441 - Industrial Instruments 1

Mechanical Sensors

Strain Sensors

  • Shear Stress-Strain

Δx

F

l

F


Mechanical sensors9

3441 - Industrial Instruments 1

Mechanical Sensors

Strain Sensors

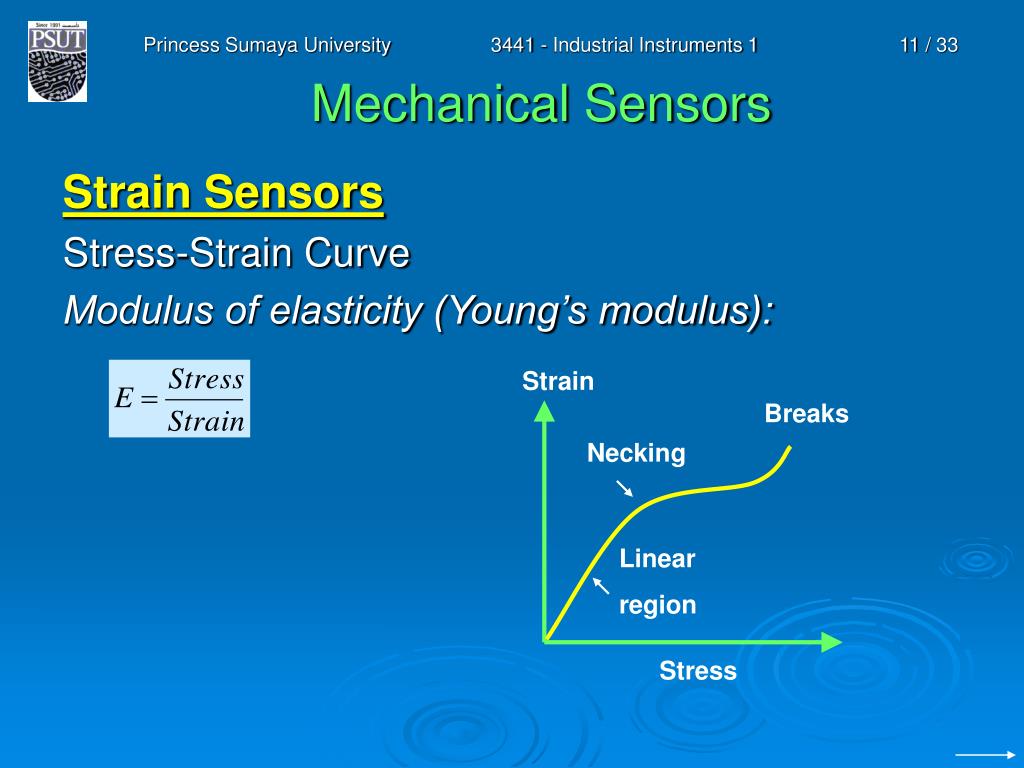

Stress-Strain Curve

Modulus of elasticity (Young’s modulus):

Strain

Breaks

Necking

Linear

region

Stress


Mechanical sensors10

3441 - Industrial Instruments 1

Mechanical Sensors

Strain Sensors

Strain Gauge (SG)

Resistance in metals:

Constant volume:


Mechanical sensors11

3441 - Industrial Instruments 1

Mechanical Sensors

Strain Sensors

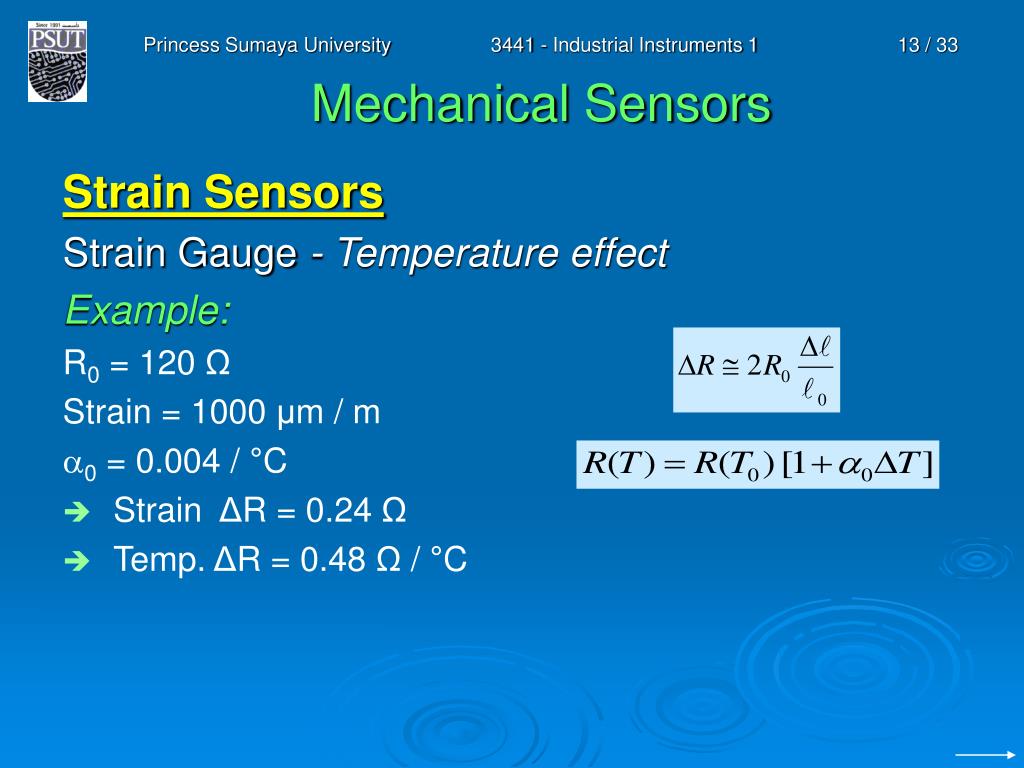

Strain Gauge - Temperature effect

Example:

R0 = 120 Ω

Strain = 1000 μm / m

0 = 0.004 / °C

  • Strain ΔR = 0.24 Ω

  • Temp. ΔR = 0.48 Ω / °C


Mechanical sensors12

3441 - Industrial Instruments 1

Mechanical Sensors

Strain Sensors

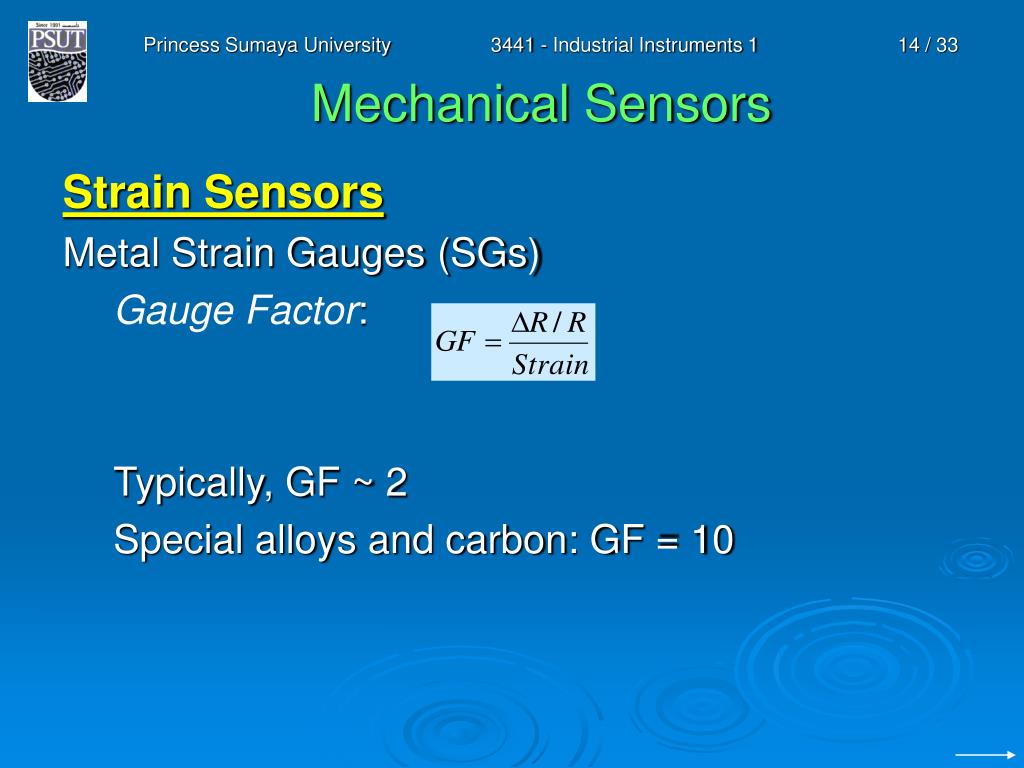

Metal Strain Gauges (SGs)

Gauge Factor:

Typically, GF ~ 2

Special alloys and carbon: GF = 10


Mechanical sensors13

3441 - Industrial Instruments 1

Mechanical Sensors

Strain Sensors

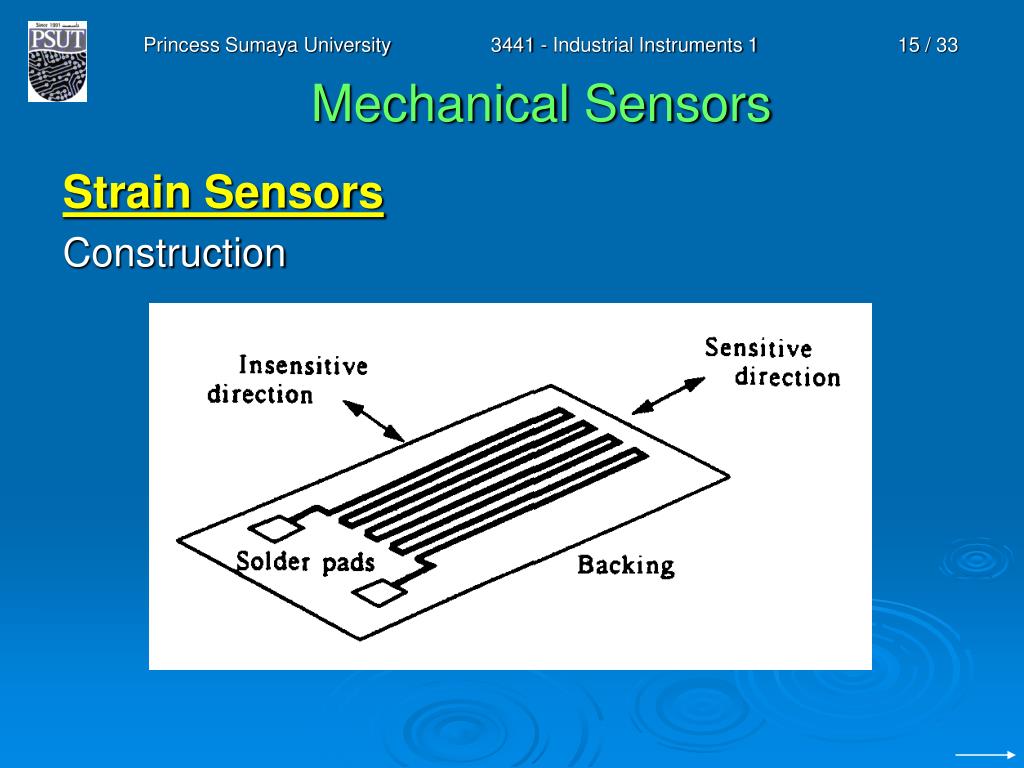

Construction


Mechanical sensors14

3441 - Industrial Instruments 1

Mechanical Sensors

Strain Sensors

Signal Conditioning

R 1

R 2

D

VS

a

b

R D

R A


Mechanical sensors15

3441 - Industrial Instruments 1

Mechanical Sensors

Strain Sensors

Two-arm Bridge

D 1

D 2

D

VS

a

b

A 1

A 2


Mechanical sensors16

3441 - Industrial Instruments 1

Mechanical Sensors

Strain Sensors

Semiconductor Strain Gauges (SGs)

Typically, GF: −50 ~ −200


Mechanical sensors17

3441 - Industrial Instruments 1

Mechanical Sensors

Strain Sensors

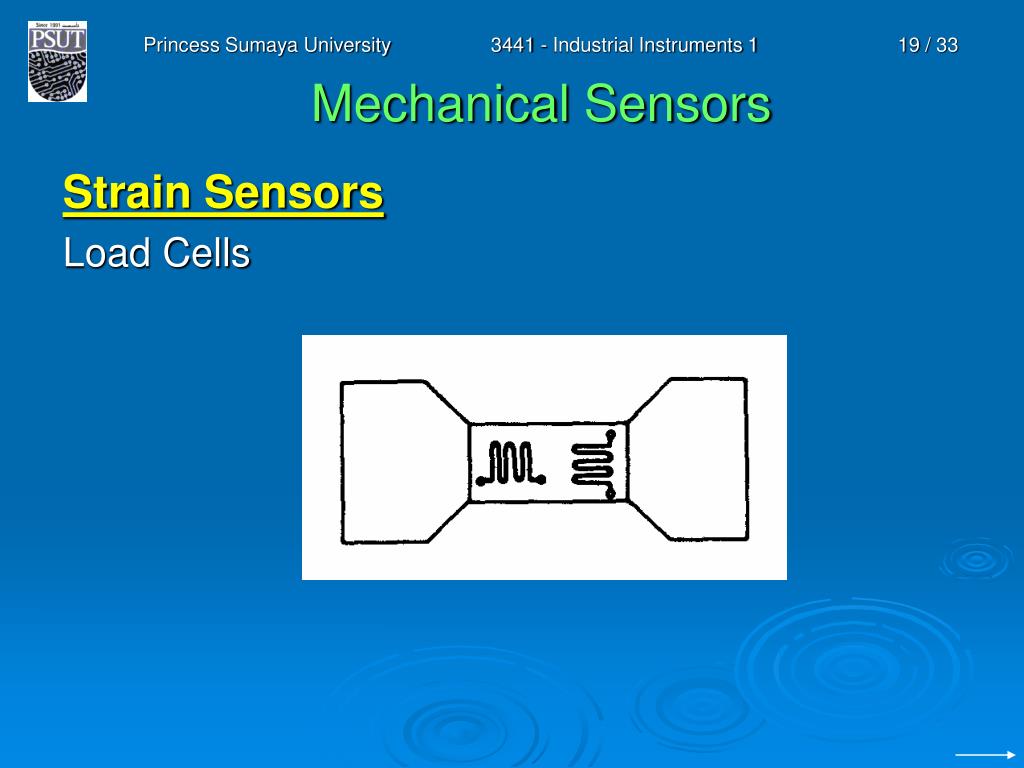

Load Cells


Mechanical sensors18

3441 - Industrial Instruments 1

Mechanical Sensors

Motion Sensors

Types of Motion

  • Rectilinear

  • Angular

  • Vibration

  • Shock


Mechanical sensors19

3441 - Industrial Instruments 1

Mechanical Sensors

Motion Sensors

Accelerometer

Spring-Mass System

k = spring constant in N/m

There is a natural frequency at which the system oscillates without acceleration.

Use it with frequency < 1 / (2.5 fN)


Mechanical sensors20

3441 - Industrial Instruments 1

Mechanical Sensors

Motion Sensors

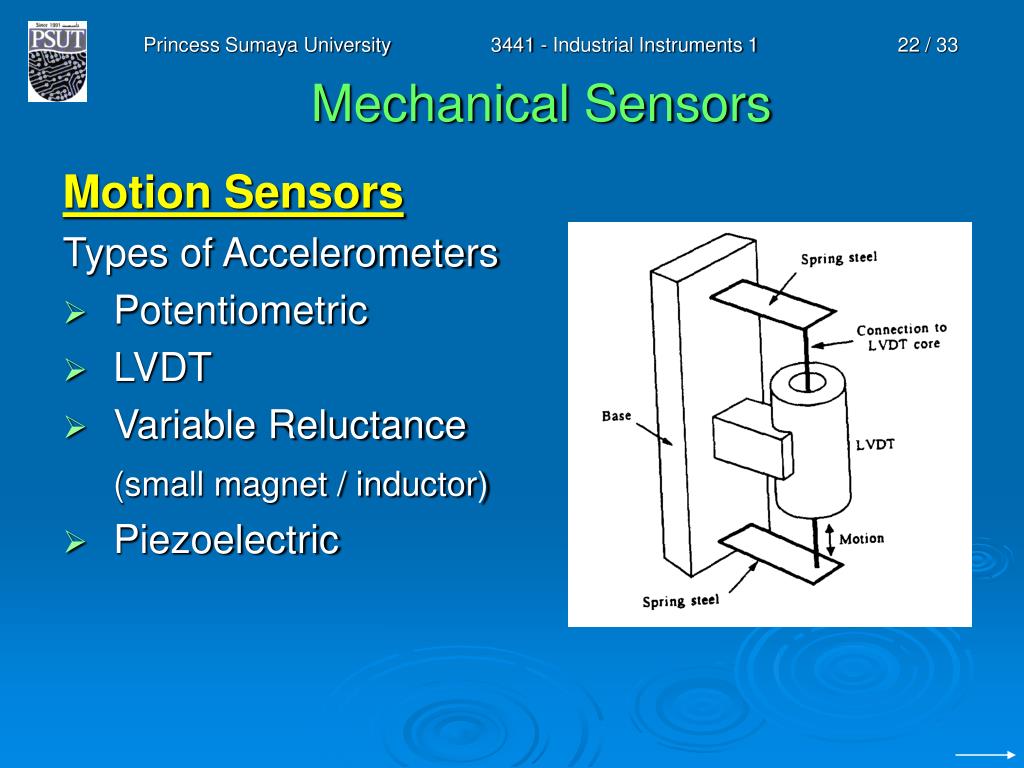

Types of Accelerometers

  • Potentiometric

  • LVDT

  • Variable Reluctance

    (small magnet / inductor)

  • Piezoelectric


Mechanical sensors21

C

R 2

R

V in

R 1

V out

+

+

3441 - Industrial Instruments 1

Mechanical Sensors

Motion Sensors

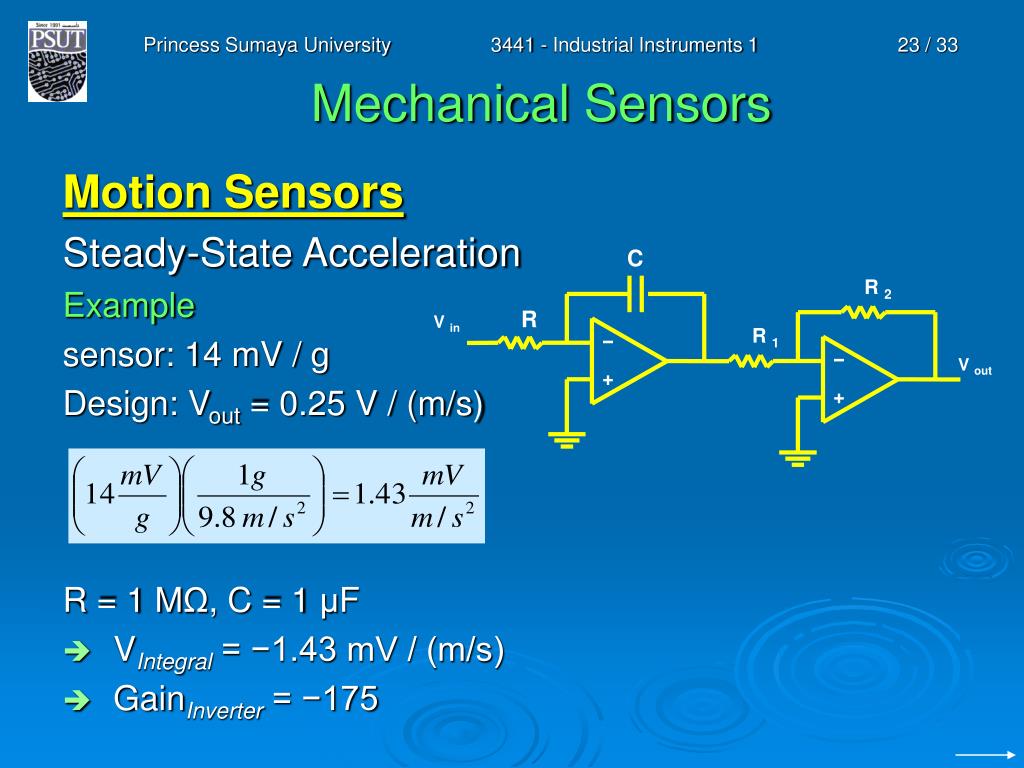

Steady-State Acceleration

Example

sensor: 14 mV / g

Design: Vout = 0.25 V / (m/s)

R = 1 MΩ, C = 1 μF

  • VIntegral = −1.43 mV / (m/s)

  • GainInverter = −175


Mechanical sensors22

3441 - Industrial Instruments 1

Mechanical Sensors

Pressure Sensors

p > 1 atmosphere

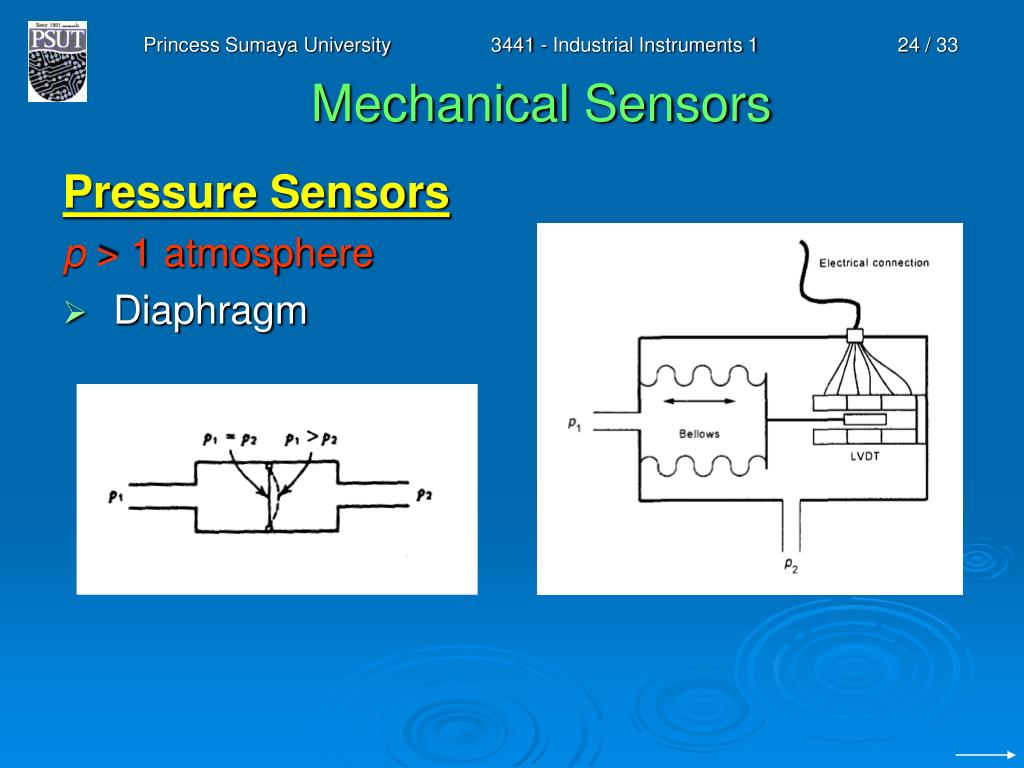

  • Diaphragm


Mechanical sensors23

3441 - Industrial Instruments 1

Mechanical Sensors

Pressure Sensors

p > 1 atmosphere

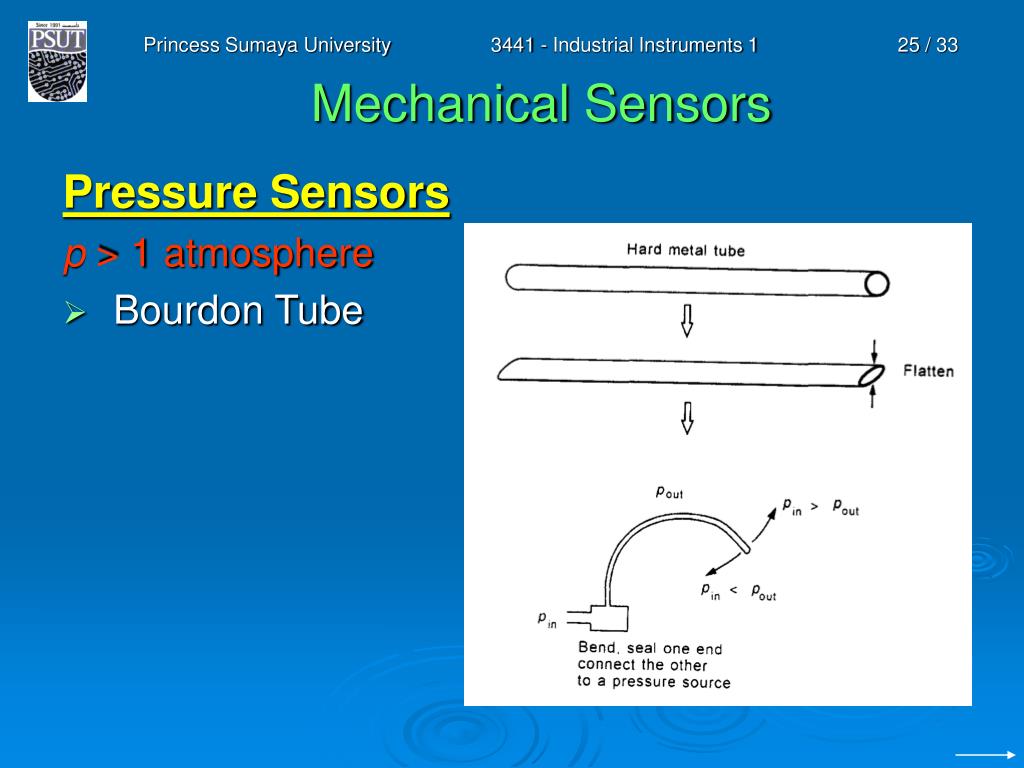

  • Bourdon Tube


Mechanical sensors24

3441 - Industrial Instruments 1

Mechanical Sensors

Pressure Sensors

p > 1 atmosphere

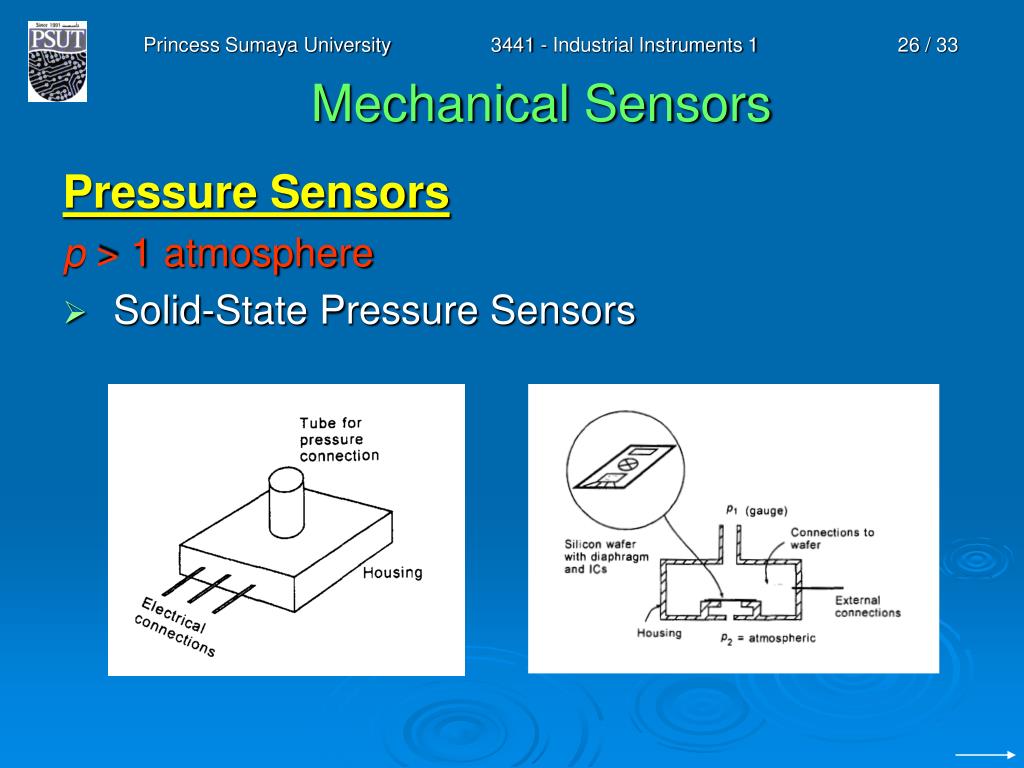

  • Solid-State Pressure Sensors


Mechanical sensors25

3441 - Industrial Instruments 1

Mechanical Sensors

Pressure Sensors

p > 1 atmosphere

  • Solid-State Pressure Sensors


Mechanical sensors26

3441 - Industrial Instruments 1

Mechanical Sensors

Pressure Sensors

p < 1 atmosphere

In low-pressure environment, the heat loss is proportional

to the number of gas molecules per unit volume.

  • Pirani Gauge

    Measure filament resistance (RTD)

  • Thermocouple

  • Ionization Gauge


Mechanical sensors27

3441 - Industrial Instruments 1

Mechanical Sensors

Flow Sensors

Solid-Flow Measurement

Where:

Q = flow (kg /min)

W = weight of material on section of length L

R = conveyor speed (m/min)

L = length of weighing platform (m)


Mechanical sensors28

3441 - Industrial Instruments 1

Mechanical Sensors

Flow Sensors

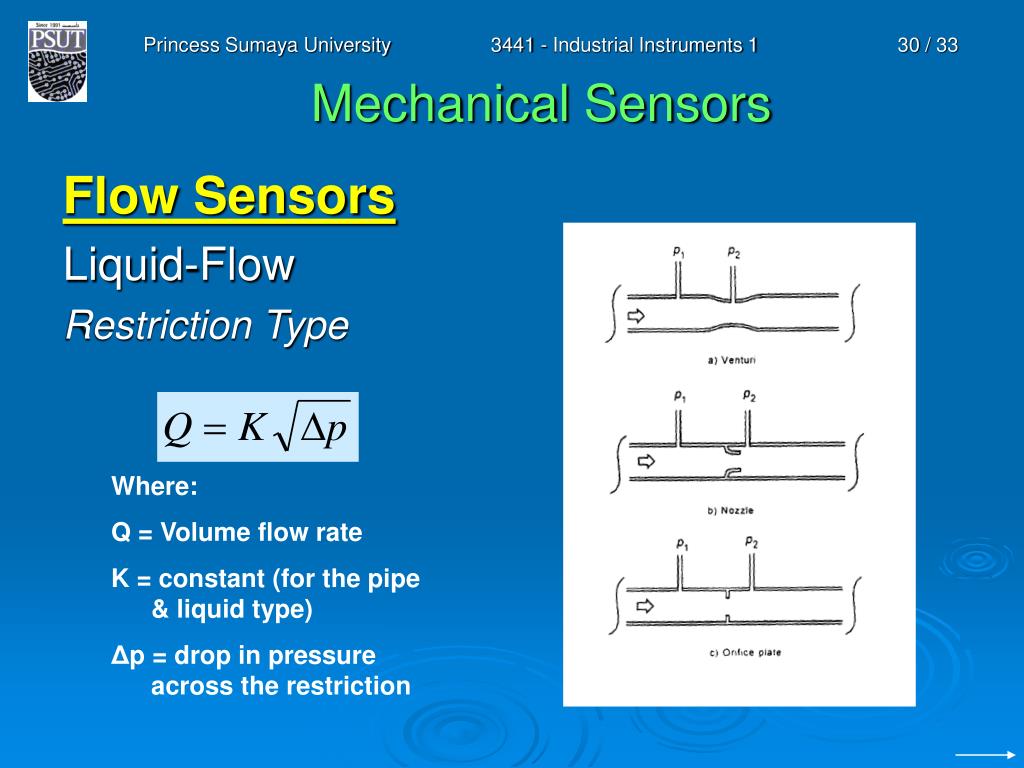

Liquid-Flow

Restriction Type

Where:

Q = Volume flow rate

K = constant (for the pipe & liquid type)

Δp = drop in pressure across the restriction


Mechanical sensors29

3441 - Industrial Instruments 1

Mechanical Sensors

Flow Sensors

Liquid-Flow

Obstruction Type


Mechanical sensors30

3441 - Industrial Instruments 1

Mechanical Sensors

Flow Sensors

Liquid-Flow

Magnetic Type

Conducting

liquids


Mechanical sensors31

3441 - Industrial Instruments 1

Mechanical Sensors

End of Chapter 5
