1. IDE DCS developments EwaStanecka INP Kraków ID Week, 19.05.2014

2. Plan • Overview of the IDE DCS • IDE DCS migration – progress, manpower, timescale • New TEH control system commissioning • New systems integration- Sonar and thermosiphon • Summary

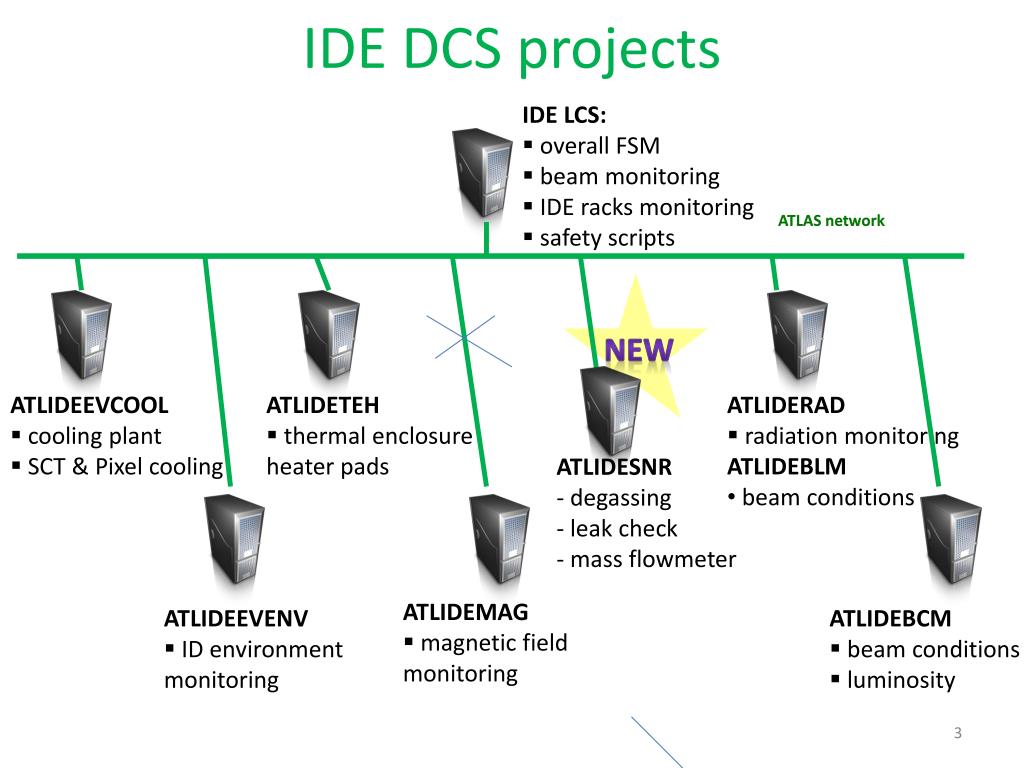

3. IDE DCS projects • IDE LCS: • overall FSM • beam monitoring • IDE racks monitoring • safety scripts ATLAS network New • ATLIDEEVCOOL • cooling plant • SCT & Pixel cooling • ATLIDETEH • thermal enclosure heater pads • ATLIDERAD • radiation monitoring • ATLIDEBLM • beam conditions • ATLIDESNR • degassing • leak check • - mass flowmeter • ATLIDEMAG • magnetic field monitoring • ATLIDEEVENV • ID environment monitoring • ATLIDEBCM • beam conditions • luminosity

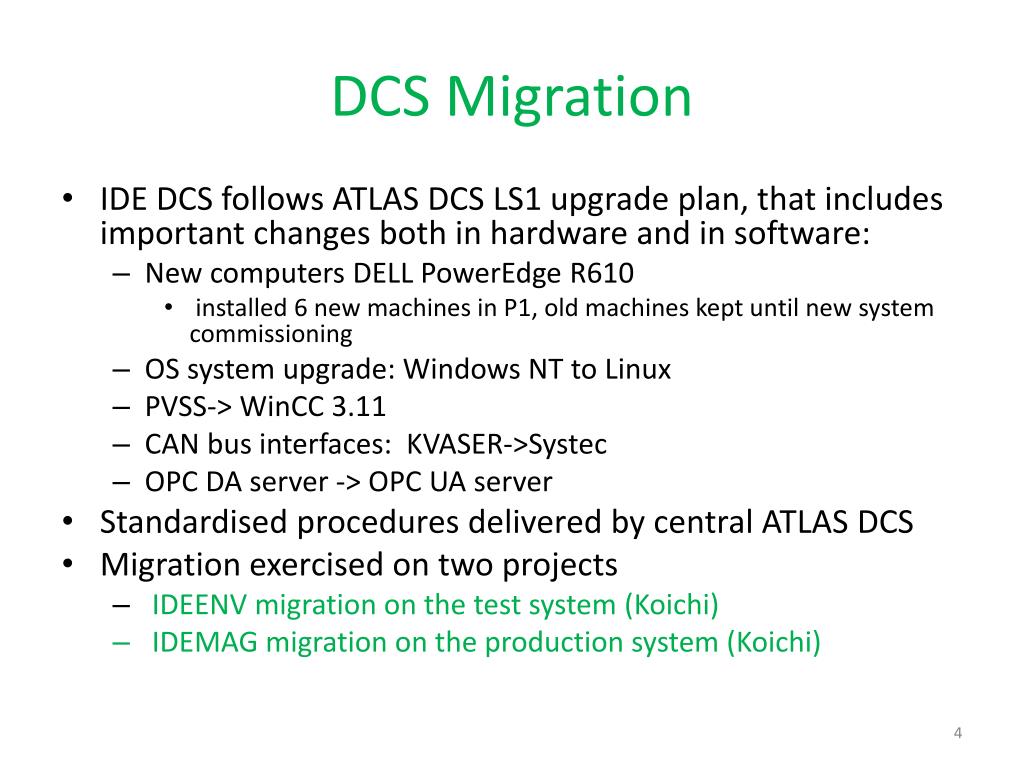

4. DCS Migration • IDE DCS follows ATLAS DCS LS1 upgrade plan, that includes important changes both in hardware and in software: • New computers DELL PowerEdge R610 • installed 6 new machines in P1, old machines kept until new system commissioning • OS system upgrade: Windows NT to Linux • PVSS-> WinCC 3.11 • CAN bus interfaces: KVASER->Systec • OPC DA server -> OPC UA server • Standardised procedures delivered by central ATLAS DCS • Migration exercised on two projects • IDEENV migration on the test system (Koichi) • IDEMAG migration on the production system (Koichi)

5. DCS Migration • More attention needed in the systems using dedicated solutions • EVCOOL • In some ELMB framework was not used , we need to write script for readdressing data points • Test migration pending – prepare OPC config file, scripts for re-addressing ELMB data points in DCS project, etc. • TEH – custom ELMB firmware • scripts for migrations prepared (Alex Madsen, Ewa) • Test system using new standards commissioned in SR1 (Alex, Ewa, Jacek) • BCM • DCS and FPGA(ROD) communication via UDP protocol and dedicated dll extension • low voltage power supply similar to SCT LVPS – can profit from SCT DCS experience • BLM, RadMon – standard

6. Personnel considerations • IDE DCS core (EVCOOL, ENV, TEH, IDSCS, MAG) – Koichi, Ewa, Alex Madsen (TEH) • BCM/BLM/Radmon – BostianMacek starting from June (?), more manpower needed • Technical support - JacekPieron is leaving very soon, he provides support in many ID areas, it will be very hard to replace him ! • Timescale for migration: • IDE DCS core – June/July • BCM/BLM/RadMon/Sonar – by the end of 2014

7. TEH recap • Two Functions • To maintain the thermal interface between the various components of the Inner Detector (this includes TRT, SCT, Pixels, IDEP) at a constant temperature of 20oC. • To prevent condensation on exposed cold parts in the event that we need to open the detector and keep the cooling operational. • Construction and Layout • The Pads are Copper on Kapton technology (largest pads 0.64m2), glued to the detectors and are installed with them. • The power ranges from 10s of Watts to 120 Watts. (typical density (excl PST) 100W/m2) • There are 280 pads in total with a total power capacity of 23.2kW -> Pixel support tube (PST), TRT barrel, SCT barrel, SCT endcap, ID endplate • Most important pads between the SCT and TRT (-25oC one side and 20oC the other). • There are 8 Pads between SCT and TRT in Barrel Region (total power 512W) • There are 24 sets of pads between SCT and TRT in each End-Cap (48 total) (2.8KW).

8. TEH control system • New Control system • Several deficiencies of the switching system were identified in the old control system. The deficiencies were both electrical and mechanical in nature. • The new control system was designed and produced to address these deficiencies .

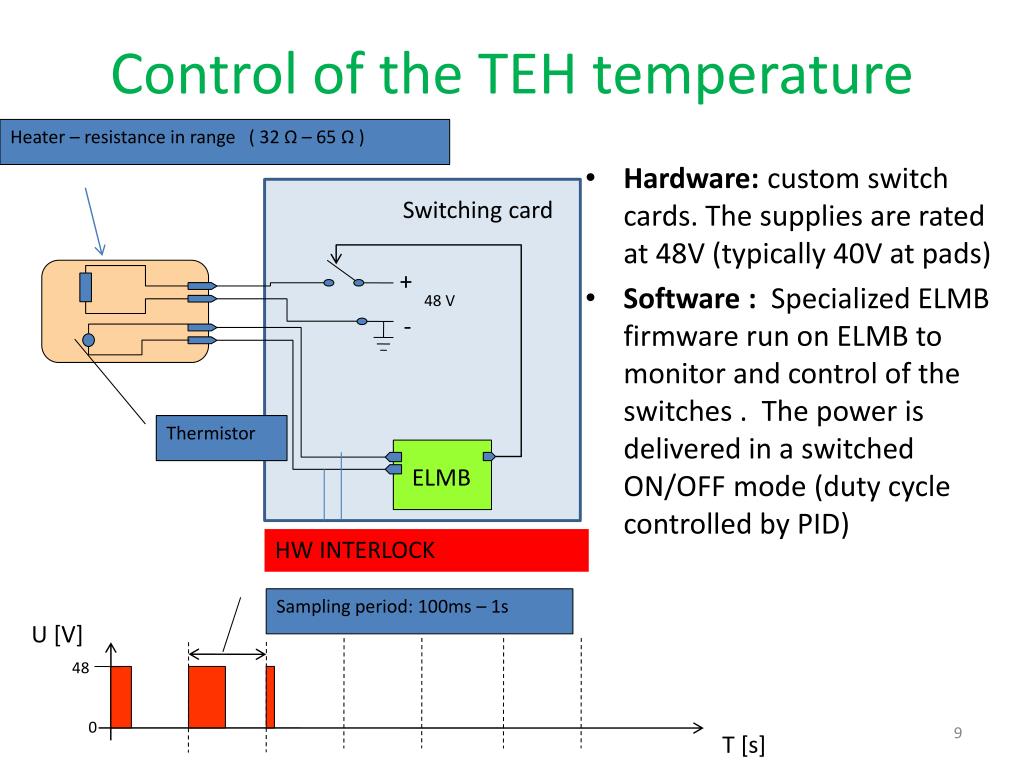

9. Control of the TEH temperature Heater – resistance in range ( 32 Ω – 65 Ω ) • Hardware: custom switch cards. The supplies are rated at 48V (typically 40V at pads) • Software : Specialized ELMB firmware run on ELMB to monitor and control of the switches . The power is delivered in a switched ON/OFF mode (duty cycle controlled by PID) Switching card + 48 V - Thermistor ELMB HW INTERLOCK Sampling period: 100ms – 1s U [V] 48 0 T [s]

10. TEH control system – switching card • Interlock mechanism at the level of single channel • Full monitoring of the states of all switches, interlocks, switches configuration, DSS_RQ and Maser Enable control signals, power inputs • Improvements in single channel switching circuit, grounding, power distribution • The newly-designed reset system allows for issuing hardware reset commands to ELMB and hardware interlocks

11. TEH control system – control card • The ELMB reset function (single and group ELMB reset) • The reset of hardware interlocks (all hardware interlocks can now be reset by any of the Control Cards). • The Power Monitoring allows to remotely control and monitor power in the entire system. The Control Card is able to turn on/off each part of the power system (48V, +/-5V) and to monitor it

12. TEH control system installation • NEW TEH control system installed during TS1: • May/June 2013 -> EC C and EC A commissioned and tested • each „heater pad group” was switched separately to check mapping • All left for ~ 30min in „auto” mode • Very smooth start for heater pads that were working during normal detector operation • Software/hardware mapping verified and corrected for pads that were not in use so far • August 2013 –> Consolidation of TEH pads/sensor connections on PP1 side C, recovered 15 out of 17 bad pad/sensor connections. • April 2014 -> • recovered channels implemented into TEH DCS configuration • Consolidation of PST pads and whole system re-commissioning. • new control panels commissioned • Tuning PID parameters for operation – to be done with cooling operational • End Plate pads are disconnected

13. TEH plans • New TEH control system for PST, TRT barrel, SCT barrel and SCT end caps is installed and ready to go. • A few small fixes to be done by the end of June. • ID endplate pads to be commissioned • Prepare documentation and procedures for ID experts • We need a person to take over hardware maintenance from Jacek.

14. New systems integration - Thermosiphon • Prepare panels for monitoring thermosiphon • detector parts remain unchanged, the same control on single line level • monitoring of the plant changes • Thermosiphonwill be monitored from the local server based on UNICOS CPC 6 framework of EN/ICE • These local data servers will be located in CCC • ID DCS and Thermosiphon data exchange via DIP (?) • A few crucial parameters will be monitored directly from PLC • Work to be done in IDE DCS • Exercise communication with CCC and PLC • definelist of parameters to be exchanged and operation procedures • replace “compressor module” by “thermosiphon module”, panels etc.

15. New systems integration - Sonar • The Sonar DCS project is installed in the pit and operational • Example of sound velocity, concentration, tube temperature panel in WINCC Graphical User Interface

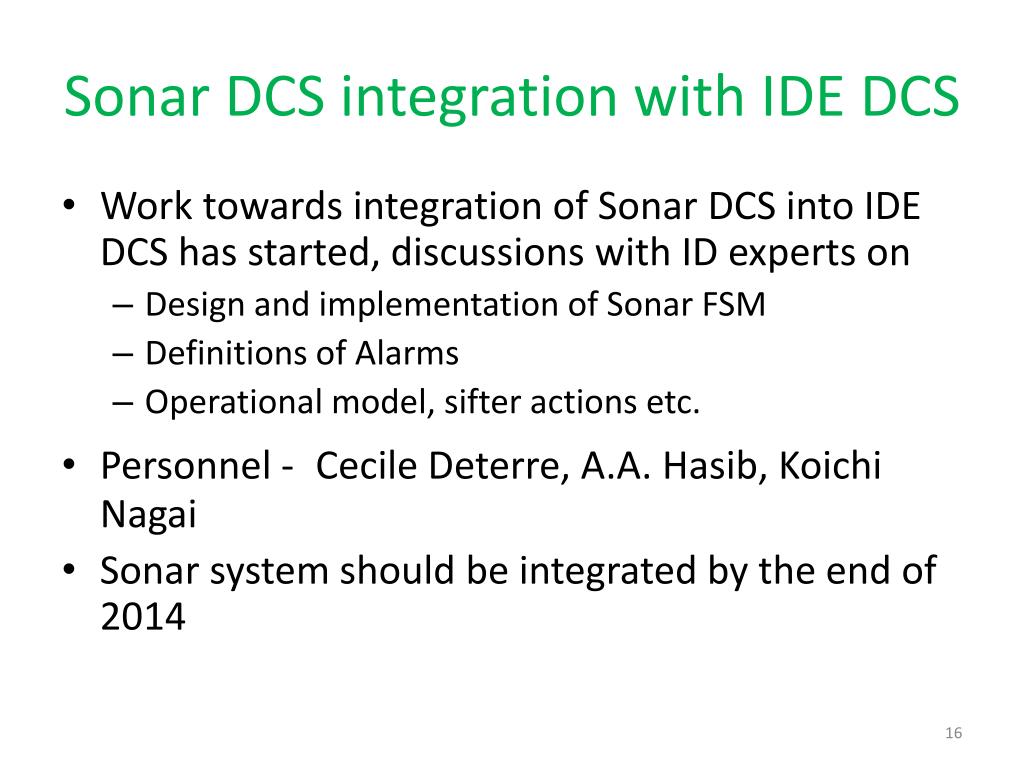

16. Sonar DCS integration with IDE DCS • Work towards integration of Sonar DCS into IDE DCS has started, discussions with ID experts on • Design and implementation of Sonar FSM • Definitions of Alarms • Operational model, sifter actions etc. • Personnel - Cecile Deterre, A.A. Hasib, Koichi Nagai • Sonar system should be integrated by the end of 2014

17. Summary • IDE DCS migration to new standards is pending • TEH, IDEENV, MAG migration done on the test systems • New TEH control system is commissioned. • Ongoing work towards integration of Sonar DCS into IDE DCS

18. Additional Material

19. Example of sound velocity, concentration, tube temperature panel in WINCC Graphical User Interface Disclaimer: Material provided by Greg Hallwell ATLAS ID day, CERN, May 19th , 2014

20. Future integration for sonar into IDE panel (slide of Koichi Nagai) Disclaimer: Material provided by Greg Hallwell ATLAS ID day, CERN, May 19th , 2014

21. Future integration for sonar into IDG panel (slide of Koichi Nagai) ATLAS ID day, CERN, May 19th , 2014 Disclaimer: Material provided by Greg Hallwell

22. First ideas for sonar alarm & type reporting Disclaimer: Material provided by Greg Hallwell Shifter alarm: Shifter alarm: + call SNR & ID cooling expert (or GSM automatic?) Shifter alarm: + call SNR & EN-CV cooling expert (or GSM automatic?)

23. IDG and IDE panels will be modified before end LS1 by ID experts • SNR experts to propose parameters to be shown in IDE panel (space restrictions!) • SNR experts to prepare “SNR panels” & FSM tree below “ATLIDESNR” branch • in “IDE panel ” following standard ATLAS DCS rules • Sonar alarms will appear on the IDE alarm screen! • Shifters & IDE experts must take care of “Errors” immediately • (sonar generates no “Fatals”) • Alarm help to be displayed on alarm screen: how to treat error, which expert to call, etc. • Also document/twiki for experts with detailed description of causes of problem • & relatedphenomena, withexpert actions needed to solve problem • SNR experts making a risk analysis document including: • - list of all possible incidents - categorized into “Error” or “Warning” • - description of causes and corresponding shifter or expert actions • Need to review the list of alarms with ID/Central DCS. Disclaimer: Material provided by Greg Hallwell ATLAS ID day, CERN, May 19th , 2014

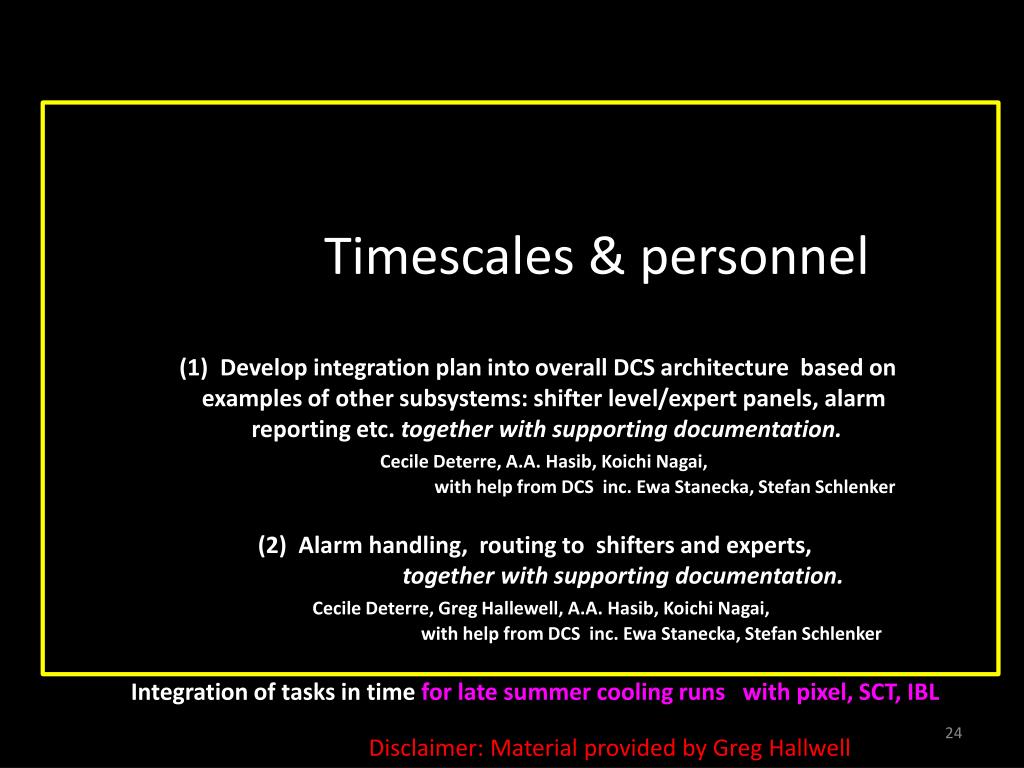

24. Timescales & personnel (1) Develop integration plan into overall DCS architecture based on examples of other subsystems: shifter level/expert panels, alarm reporting etc. together with supporting documentation.Cecile Deterre, A.A. Hasib, Koichi Nagai, with help from DCS inc. EwaStanecka, Stefan Schlenker (2) Alarm handling, routing to shifters and experts, together with supporting documentation. Cecile Deterre, Greg Hallewell, A.A. Hasib, Koichi Nagai, with help from DCS inc. EwaStanecka, Stefan Schlenker Integration of tasks in time for late summer cooling runs with pixel, SCT, IBL 92ndSonar Meeting, CERN, May 7th , 2014 Disclaimer: Material provided by Greg Hallwell
