Presentation Transcript
slide1

SIM Toolkit in GSM

Wilson Cheung

Schlumberger Technologies (Asia) Ltd.

communication
Communication

Schlumberger

Electronic Transactions

Communication between any smart card and

Terminal must follow ISO 7816-3

Command

Status Word

command and status word
Command and Status Word

Examples of commands:

CREATE FILE

UPDATE RECORD

SELECT

What are status words:

SUCCESSFUL

FILE ALREADY EXISTS

ACCESS CONDITION NOT FULFIL

command
Command

Cls

Ins

P1

P2

P3

Data (Optional)

Each command must have this format:

Class

Instruction

Parameter 1

Parameter 2

Parameter 3

example of command
Example of Command

A0

D6

05

10

Data

For the Command UPDATE BINARY:

Offset in file to update (5 bytes)

00

Instruction code

for UPDATE BINARY

length of data to update (16 bytes)

example of status word

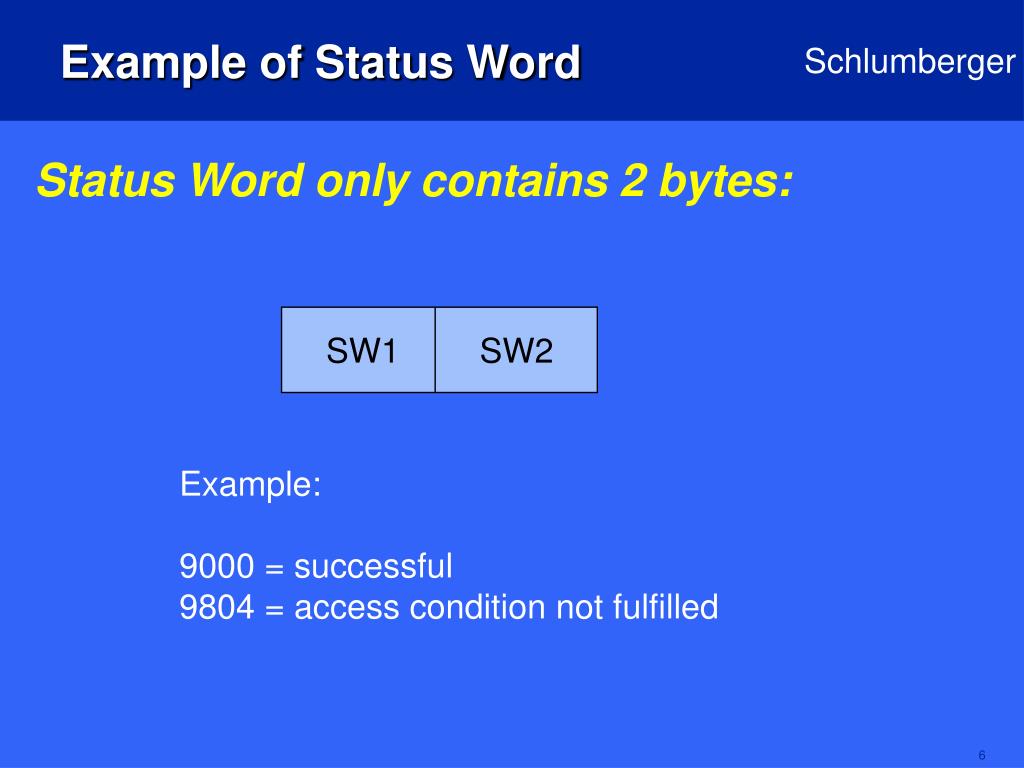

Example of Status Word

Status Word only contains 2 bytes:

SW1

SW2

Example:

9000 = successful

9804 = access condition not fulfilled

phase 2 and phase 2
Phase 2 and Phase 2+

Schlumberger

Electronic Transactions

The essence of Phase 2 (w/o STK) is that the mobile

phone is the MASTER and the SIM is the SLAVE

Give me the content of

the 12th phone number

OK. Here is the phone number you want

example of phase 2 operation
Example of phase 2 operation

Schlumberger

Electronic Transactions

What did the phone and SIM actually send in the

previous slide?

Select file 6F3A

No data sent, SW = 9000

Read Record no. 12

Data sent, SW = 9000

what is different in phase 2
What is different in phase 2+ ?

Now, SIM can be the MASTER!

The applications in phase 2+(with STK) is done by sending

PROACTIVE COMMANDS to the phone.

Do this Proactive Command for me!

OK, and here is the status of

your command

4 new me commands
4 new ME commands

New ME commands:

1. TERMINAL PROFILE (Which proactive commands ME can do)

2. FETCH (ME gets the proactive command from SIM)

3. TERMINAL RESPONSE (Status of the execution of the command)

4. ENVELOPE (Activation of STK)

what are proactive commands
What are Proactive Commands?

Proactive Commands to be executed by the phone

Examples:

Display Text

Get Input

Select Item

Send Short Message

Set Up Call

Send SS

Play Tone

Provide Loci

how to send proactive commands within iso 7816 3

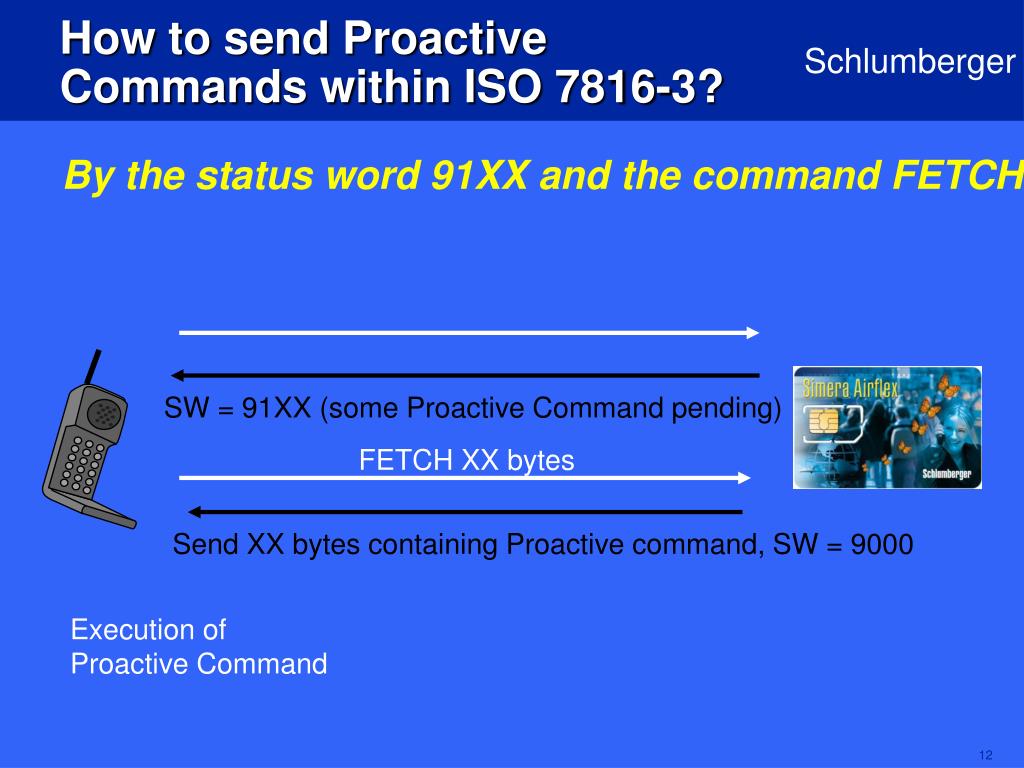

How to send Proactive Commands within ISO 7816-3?

SW = 91XX (some Proactive Command pending)

FETCH XX bytes

Send XX bytes containing Proactive command, SW = 9000

By the status word 91XX and the command FETCH

Execution of

Proactive Command

how does the phone send status to the sim
How does the phone send statusto the SIM ?

By the command TERMINAL RESPONSE

Execution of

Proactive Command

TERMINAL RESPONSE (status = OK)

SW = 91XX (if more Proactive Command pending)

SW = 9000 (if no Proactive Command pending)

initialization procedure normal
Initialization Procedure ( Normal )

Read EF phase ID

ME

Phase = 03

SIM

TERMINAL PROFILE

91XX

FETCH XX bytes

SETUP MENU

ME setup level 1 and 2 of user menu, then send TERMINAL RESPONSE

9000

sim application operating procedure
SIM Application Operating Procedure

Initialization Procedure

When user selects any item in level 2 of the user menu

ENVELOPE (MENU SELECTION)

SIM sends sw = 91XX

ME “FETCH” proactive command

SIM sends sw = 91XX

ME sends TERMINAL RESPONSE to SIM

SIM sends sw = 9000

End of session, phone will go to idle mode

the structure of proactive commands tlv
The structure of proactive commands : TLV

TLV is the short form for Tag, Length and Value

V

T

L

Value: the actual data for this data field

Length: Length for the Value part

Tag: meaning / identifier for this data field

* GSM 11.14 contain the complete reference for structures of all Proactive Command

proactive command setup call

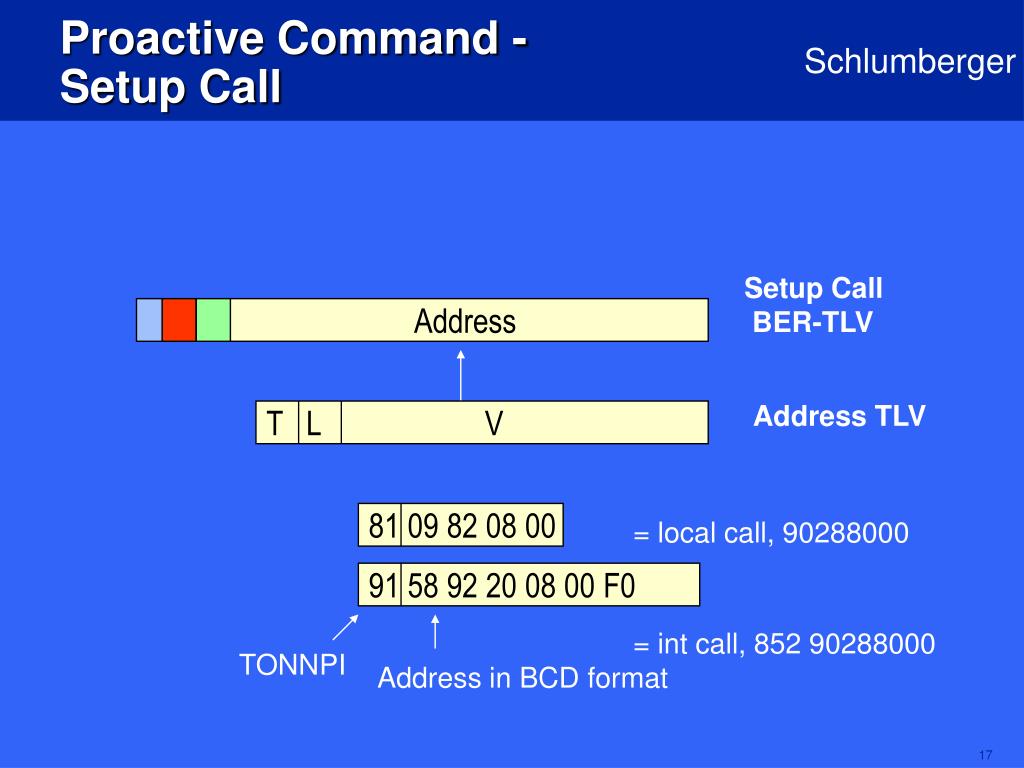

Proactive Command - Setup Call

Setup Call

BER-TLV

`

Address

Address TLV

T L V

81 09 82 08 00

= local call, 90288000

91 58 92 20 08 00 F0

= int call, 852 90288000

TONNPI

Address in BCD format

proactive command send sms
Proactive Command - Send SMS

Send SMS

BER-TLV

address alpha tpdu (SMS-SUBMIT)

tpdu TLV

T L V

01 00 03 81 21 F3 00 04 05 32 31 32 31 31

User data

TONNPI for

dest addr

No of digits

in dest. addr

Dest addr

= 123

PID

DCS

7-bit, 8-bit and 16-bit (=UCS2)

User data length

sms pp data download sms from network to sim
SMS-PP data download(SMS from network to SIM)

SMSPP is an other way to receive a SMS from the network.

  • With Phase 2 SMS the SIM is the SLAVE
  • With Phase 2+ SMSPP the SIM can be THE MASTER

- decrypt a message like stock trading information

- activation of application already stored in the

SIM

- ...

smspp download
SMSPP download

GSM SMS Service Center

04 03 81 21 F3 7FF6 05 32 31 32 31 31

User data

TONNPI for

dest addr

No of digits

in dest. addr

Dest addr

= 123

PID

DCS

User data length
