Presentation Transcript


Natural language processing for action recognition

Natural Language Processing for Action Recognition

JHU Summer School

Evelyne Tzoukermann, Ph.D.

  • Friday, June 11, 2010


What is the role of natural language in action recognition

What is the role of Natural Language in Action Recognition?

  • Provide temporal information

    • Where in the video is the action happening?

  • Provide semantic information

    • Parse the phrasal constituents to determine action type and human interaction through objects, instruments, and other contextual information

    • E.g.: cut potatoes  semantic representation

      • <instrument> knife

      • <human interaction> hands

      • <location> cutting board


Function of natural language in action recognition

Function of Natural Language in Action Recognition?

  • Facilitate action recognition from the video.

  • Ground video processing

  • Extract relevant entities and semantics associated with them

  • Allow fusion of knowledge from text with action primitives

  • Leverage already existing techniques and knowledge


Completed

Completed

  • Dataset domains:

    • Cooking

    • Crafts

  • Classification of Actions

  • Categorization of Actions


Cooking domain

Cooking domain

  • DVD’s:

    • Cook like a chef

    • Martha’s Favorite Family Dinners

    • Joanne Wier’s cooking class

  • CMU Kitchen dataset

  • Food Network: 12 consecutive hours of recorded time

  • PBS Kids: Sprout – 5 shows

  • URADL: U. of Rochester Activities of Daily Living

    • 12 activities, 5 individuals, 3 recordings each


Craft domain

Craft domain

  • PBS Kids: Sprout – over 25 shows


Tuples of entities

Tuples of Entities

  • Time stamps for temporal information

  • Verbs - capture actions

  • Objects - what is acted upon

  • Instruments - with what tool

  • Location – for recognition

  • Camera position – for scalability

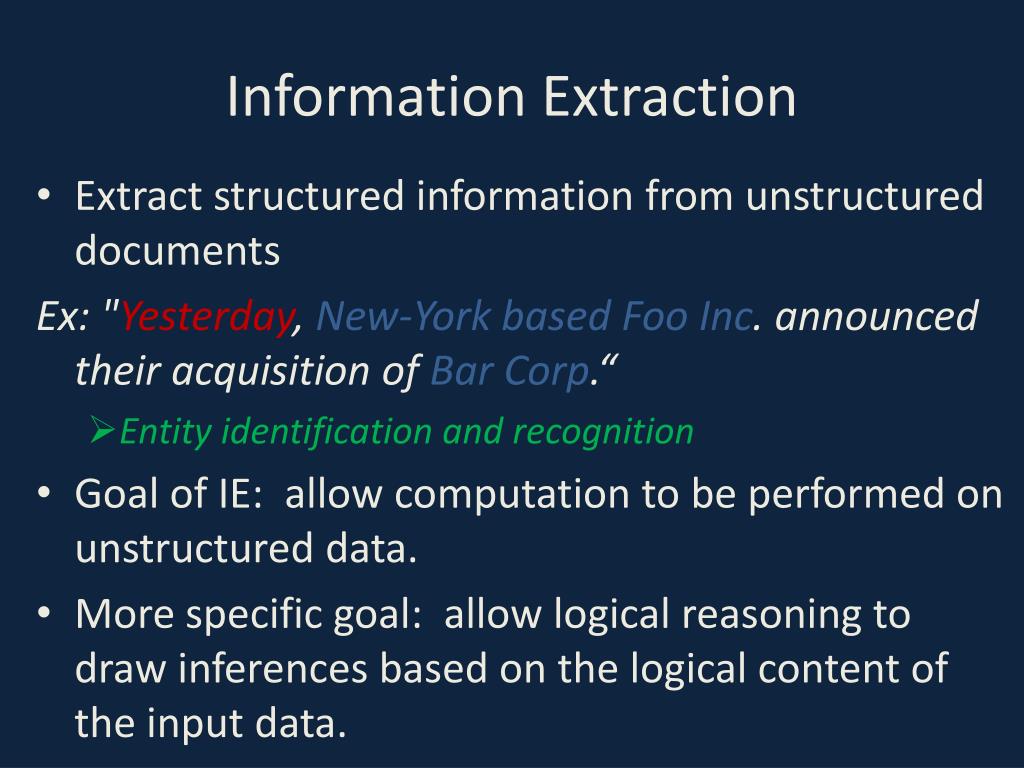

Information extraction

Information Extraction

  • Extract structured information from unstructured documents

    Ex: "Yesterday, New-York based Foo Inc. announced their acquisition of Bar Corp.“

    • Entity identification and recognition

  • Goal of IE: allow computation to be performed on unstructured data.

  • More specific goal: allow logical reasoning to draw inferences based on the logical content of the input data.


Entity recognition for video

Entity Recognition for Video

  • Can be considered an IE task with a list of entities

  • Find a tuple or an ordered list with a temporal dimension

  • Goal of text-based Information Extraction:

    “Who did what to whom where”

    • Find the different entities that fill these slots

  • Goal of video and text IE

    • Find the temporal, and other entities


Angelina s ballet slippers

Angelina’s Ballet Slippers

  • Video

  • Web page


Angelina s ballet slippers1

Angelina’s Ballet Slippers

Ingredients

  • 1 red pepper, cut in half with seeds removed

  • 1⁄2 cup quick cook brown rice

  • 1⁄2 cup vegetable stock

  • 1 cup canned mixed vegetables, no added salt

  • 1⁄4 tsp. black pepper

  • 1 tsp. chopped fresh parsley

  • 1 tsp. extra virgin olive oil

  • 1 lemon

  • Decorative cabbage

  • 1⁄4 cup shredded cheddar cheese, divided

Supplies

  • Measuring cups and spoons

  • Cutting board & knife

  • Cooking pot

  • Small cooking pot

  • Mixing spoons

  • Slotted spoon

  • High-sided baking dish

  • Pastry brush

  • Large serving plate


Sprout alphabet book

Sprout - Alphabet book


Baby picture frames

Baby Picture Frames


Action recognition and complexity

Action Recognition and Complexity

Input

  • transcripts and closed captions

  • text transcripts alone

  • list of ingredients and utensils

  • Evaluation can follow these levels

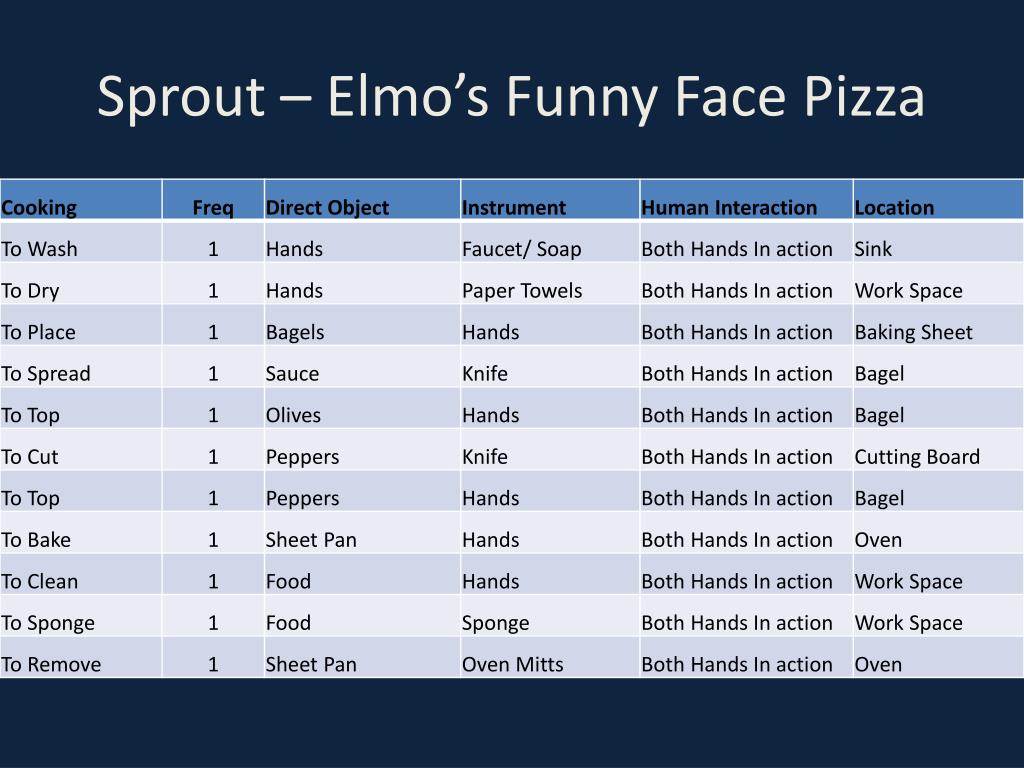

Sprout elmo s funny face pizza

Sprout – Elmo’s Funny Face Pizza


Sprout caillou s crunchy carrot salad

Sprout – Caillou’s Crunchy Carrot Salad


Martha stewart episode 2

Martha Stewart Episode 2

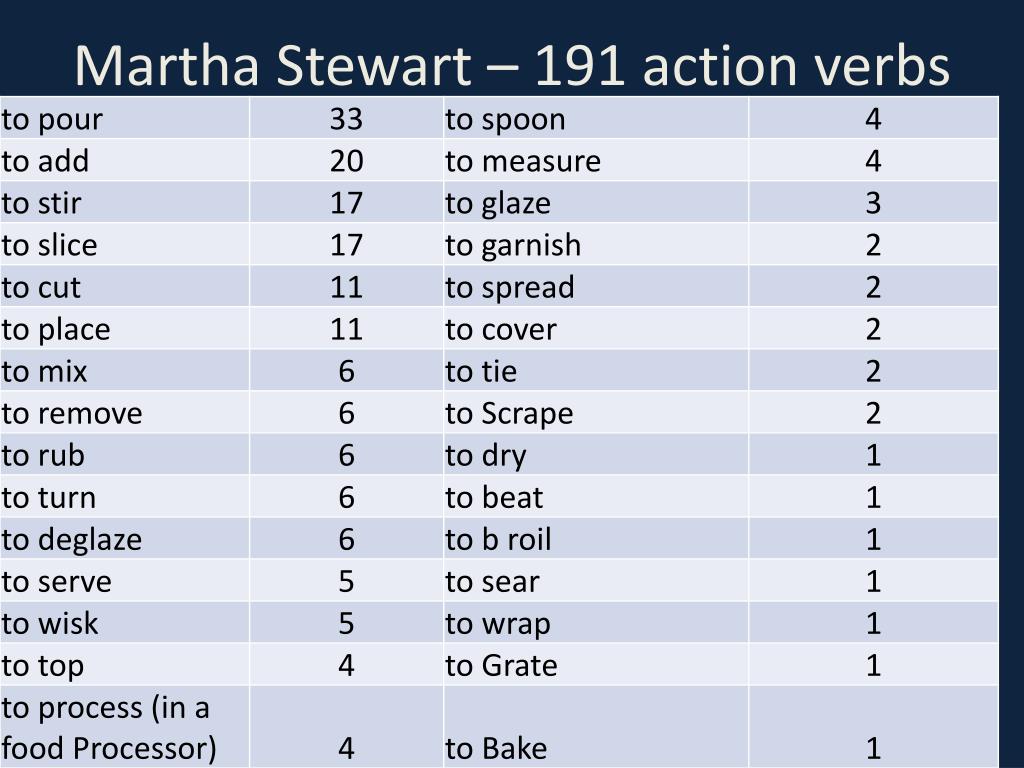

Martha stewart 191 action verbs

Martha Stewart – 191 action verbs


Semantic categorization of actions

Semantic Categorization of Actions


Cmu kitchen set verbs

CMU Kitchen Set - Verbs

  • take

  • put

  • Open

  • fill

  • crack

  • beat

  • stir

  • pour

  • clean

  • switchon

  • read

  • spray

  • close

  • walk

  • wist_on

  • twist_off

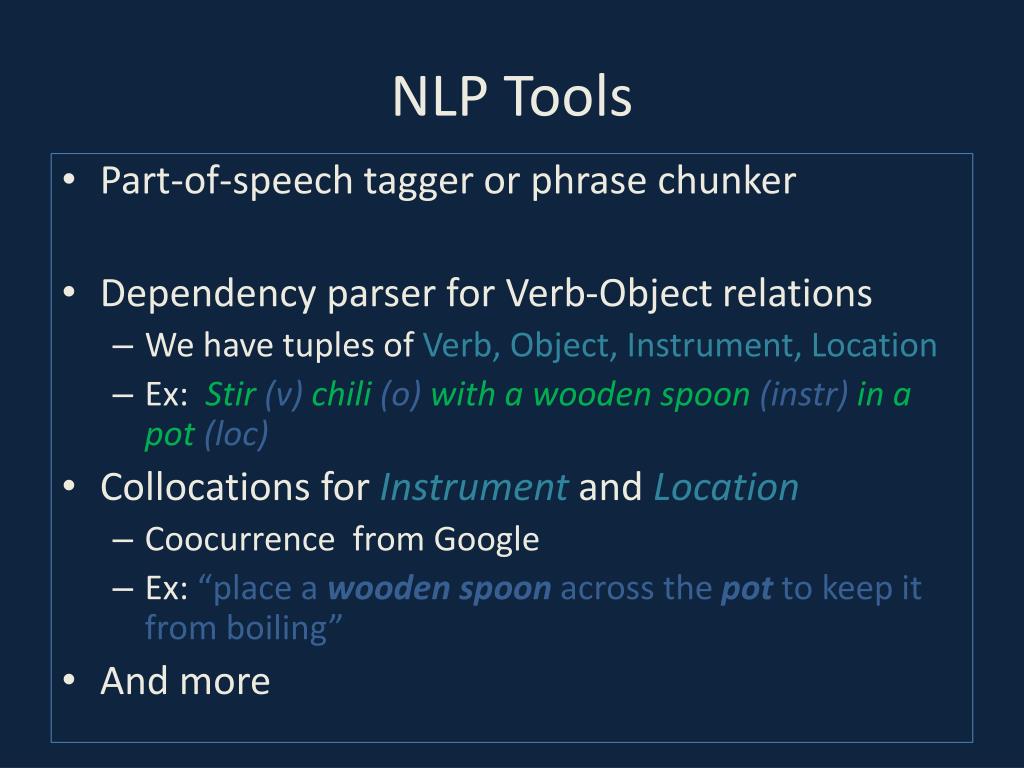

Nlp tools

NLP Tools

  • Part-of-speech tagger or phrase chunker

  • Dependency parser for Verb-Object relations

    • We have tuples of Verb, Object, Instrument, Location

    • Ex: Stir(v)chili(o)with a wooden spoon (instr) in a pot(loc)

  • Collocations for Instrument and Location

    • Coocurrence from Google

    • Ex: “place a wooden spoon across the pot to keep it from boiling”

  • And more


Ontology

Ontology

  • Need to capture:

    • Concepts

    • Relationships

    • Properties

    • Timestamps (video_name [beg_time, end_time])

    • Validation


Ontology for cooking and craft

Ontology for cooking and craft

  • Need to capture:

    • Actions

    • Food – including the state and transformation

      or

    • Objects – paper, paper roll, …

    • Instruments: kitchen utensils, scissors, crayons

    • Location

    • Timing

    • (Recipes)


Ontology1

Ontology

  • Use of Protégé http://protege.stanford.edu/

    • ontology editor and knowledge-base framework.

  • Knowtator : Protégé plug-in for annotation

    • can be used for evaluating or

    • training a variety of NLP systems.

  • Write a plug-in that takes the output of a syntactic parser and connects it to visual frames


Prot g knowledge base

Protégé knowledge-base

  • class,

    • Represent the concepts of a domain

    • organized in a subsumption hierarchy

  • instance, correspond to individuals of a class

  • slot, define properties of a class or instance

  • facet frames constrain the values that slots can have.


Dependency parser input sentence next we need to open the can of veggies

Dependency ParserInput Sentence: “Next we need to open the can of veggies”

ROOT [next-1]

( SBAR [next-1]

( next-1(Next)/IN

S [need-6] (

NP [we-3] (

we-3/PRP

)

VP [need-6] (

need-6/VBP

S [to-8] (

VP [to-8] (

to-8/TO

VP [open-10] (

open-10/VB

NP [can-14] (

NP [can-14] (

the-12/DT

can-14/NN

)

PP [of-17] (

of-17/IN

NP [veggy-19] (

veggy-19(veggies)/NNS

)

)


Dependency parser input sentence next we need to open the can of veggies1

Dependency ParserInput Sentence: “Next we need to open the can of veggies”

ROOT [next-1]

( SBAR [next-1]

( next-1(Next)/IN

S [need-6] (

NP [we-3] (

we-3/PRP

)

VP [need-6] (

need-6/VBP

S [to-8] (

VP [to-8] (

to-8/TO

VP [open-10] (

open-10/VB

NP [can-14] (

NP [can-14] (

the-12/DT

can-14/NN

)

PP [of-17] (

of-17/IN

NP [veggy-19] (

veggy-19(veggies)/NNS

)

)

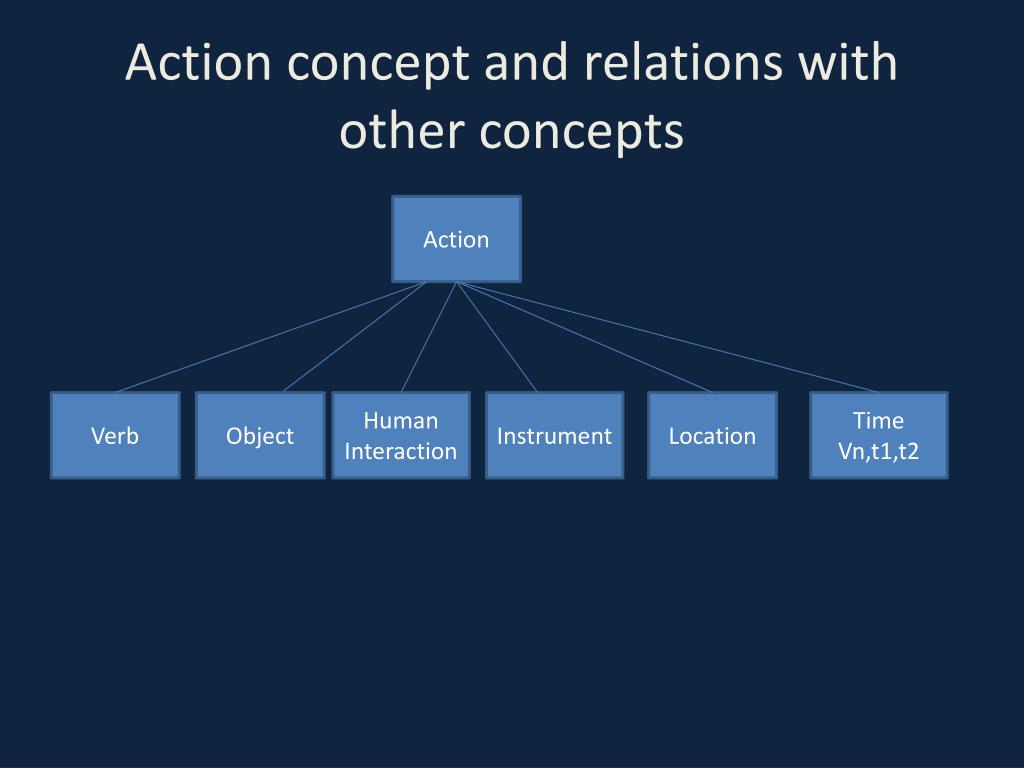

Action concept and relations with other concepts

Action concept and relations with other concepts

Action

Verb

Object

Human

Interaction

Instrument

Location

Time

Vn,t1,t2


Knowtator annotation plug in

Knowtator: Annotation Plug-in

  • General purpose annotation tool

  • Facilitates creation of training and evaluation corpora for language processing tasks

  • Ease of use

  • Straightforward to incorporate domain knowledge


Knowtator an example

Knowtator: an example


Processes

Processes

Ontology

Creation

Syntactic

Parser

Ontology

Annotation

Corpus enrichment using collocations


Related research

Related Research

  • Ontology and cooking

  • Parsing “restricted” languages

  • Connecting text with images

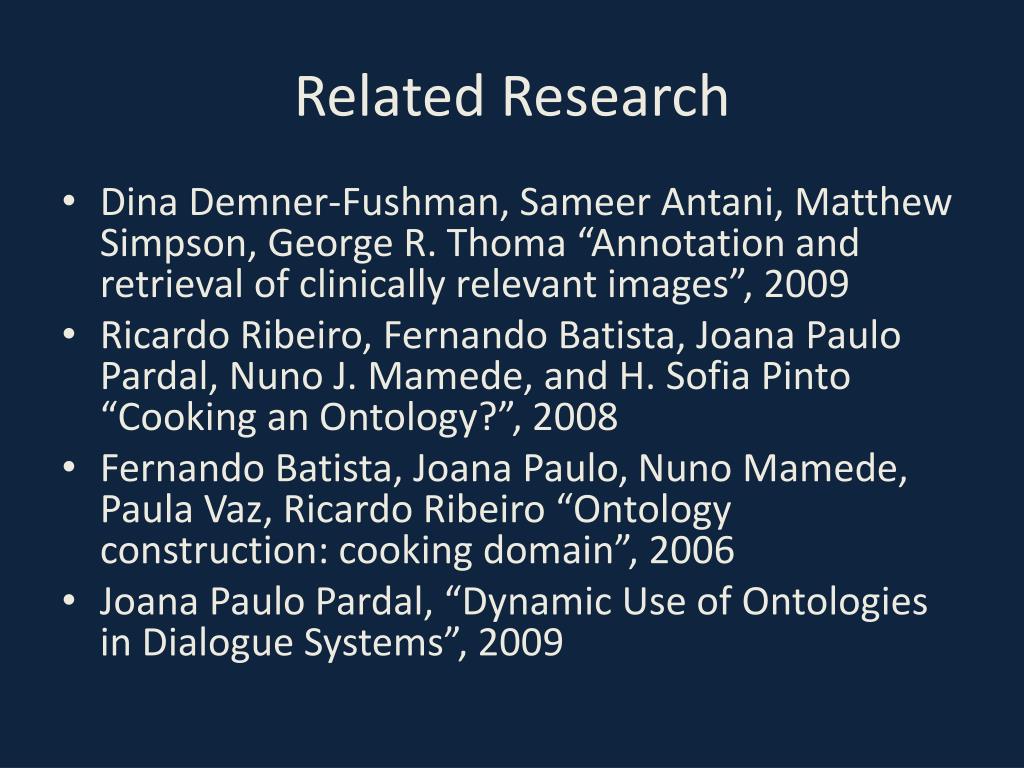

Related research1

Related Research

  • Dina Demner-Fushman, SameerAntani, Matthew Simpson, George R. Thoma “Annotation and retrieval of clinically relevant images”, 2009

  • Ricardo Ribeiro, Fernando Batista, Joana Paulo Pardal, Nuno J. Mamede, and H. Sofia Pinto “Cooking an Ontology?”, 2008

  • Fernando Batista, Joana Paulo, NunoMamede, Paula Vaz, Ricardo Ribeiro “Ontology construction: cooking domain”, 2006

  • Joana Paulo Pardal, “Dynamic Use of Ontologies in Dialogue Systems”, 2009


Related research2

Related Research

  • Mutsuo Sano, Ichiro Ide, Kenzaburo Miyawaki “Overview of the ACM Multimedia 2009 Workshop on Multimedia for Cooking and Eating Activities (CEA’09)”

  • Keigo Kitamura Toshihiko Yamasaki KiyoharuAizawa

    “FoodLog: Capture, Analysis and Retrieval of Personal

    Food Images via Web”, 2009 distinguishes food images from other images

  • Dan Tasse and Noah Smith (CMU) SOUR CREAM:Toward Semantic Processing of Recipes, 2008

    • new techniques for semantic parsing by focusing on the domain of cooking recipes

    • first order logic
