  1. Evolution-based least-squares fitting using Pythagorean hodograph spline curves • Speaker: Ying .Liu • November 29. 2007

  2. www.ag.jku.at Institute of Applied Geometry, Jphannes Kepler University ,Linz, Austira Bert Juttler Martin Aigner

  3. Author: • Martin Aigner: • Dr. Mag., research assistant • Email: martin. aigner @ jku .at • Zbynek Sir: • Dr.; research assistant at FWF-Projekt P17387-N12 • Alumni

  4. Author: Bert Juttler • Selected scientific activities: • Since 2003:associated editor of CAGD • Organizer of various Mini symposia • Member of program committees of numerous conferences • Research interests: • CAGD, Applied Geometry, Kinematics, Robotics, Differential Geometry

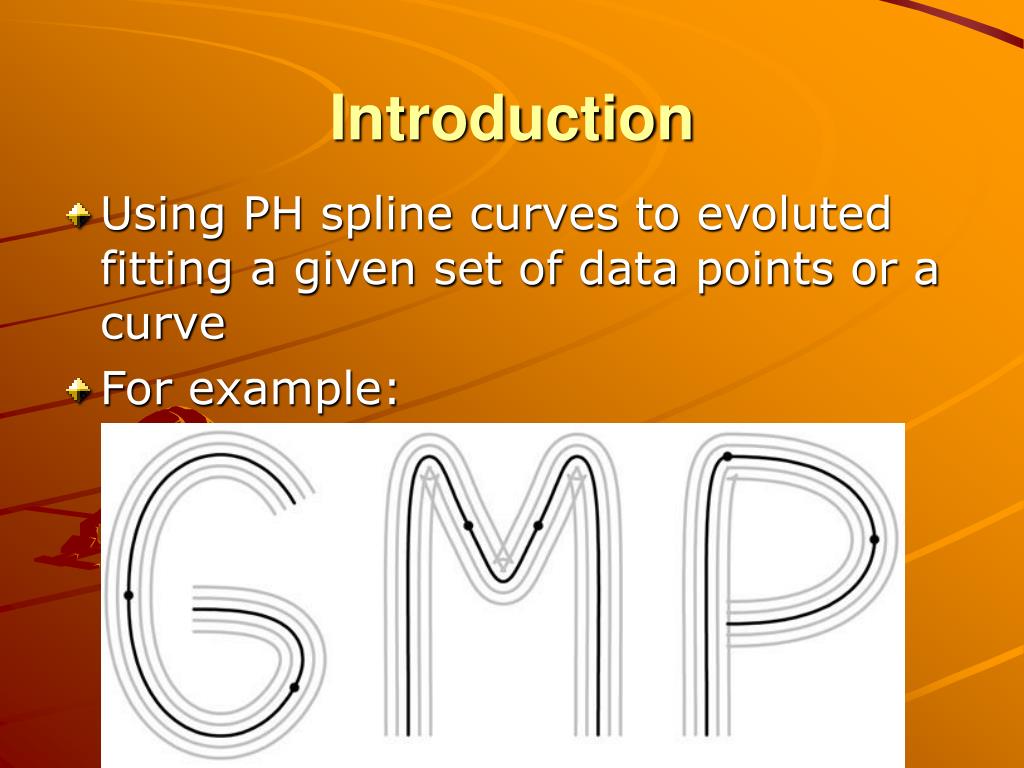

  5. Introduction • Using PH spline curves to evoluted fitting a given set of data points or a curve • For example:

  6. Steps: • Introduce a general framework for abstract curve fitting • Apply this framework to PH curves • Discuss the relationship between this method and Gauss-Newton iteration

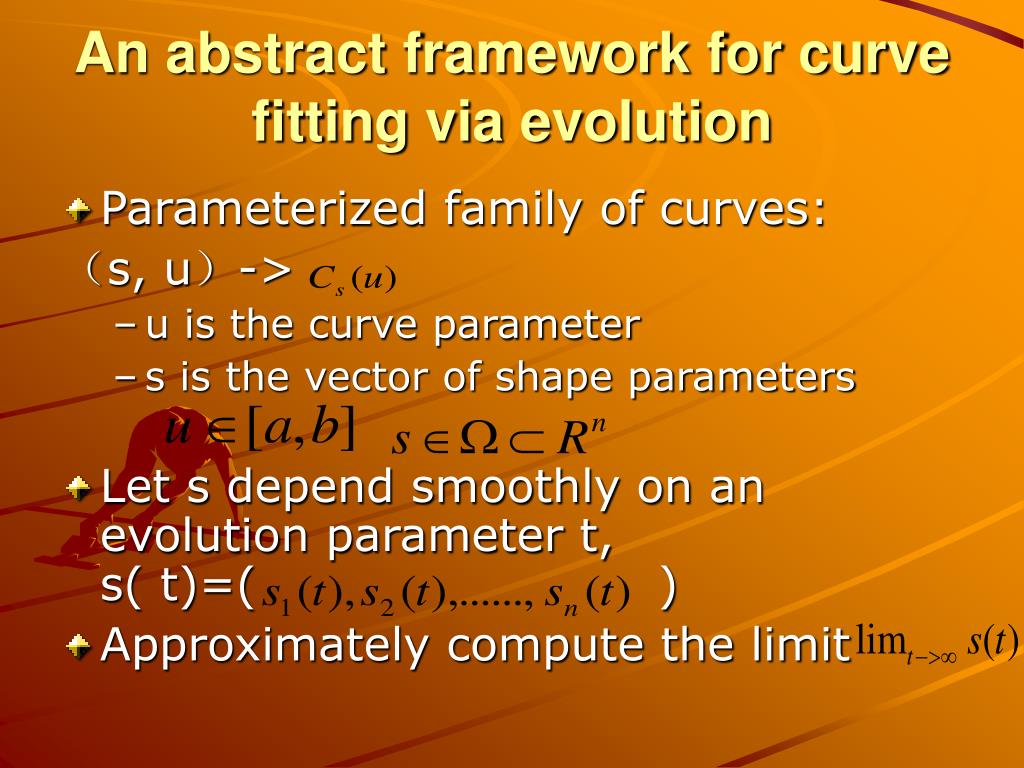

  7. An abstract framework for curve fitting via evolution • Parameterized family of curves: （s, u）-> • u is the curve parameter • s is the vector of shape parameters • Let s depend smoothly on an evolution parameter t, s( t)=( ) • Approximately compute the limit

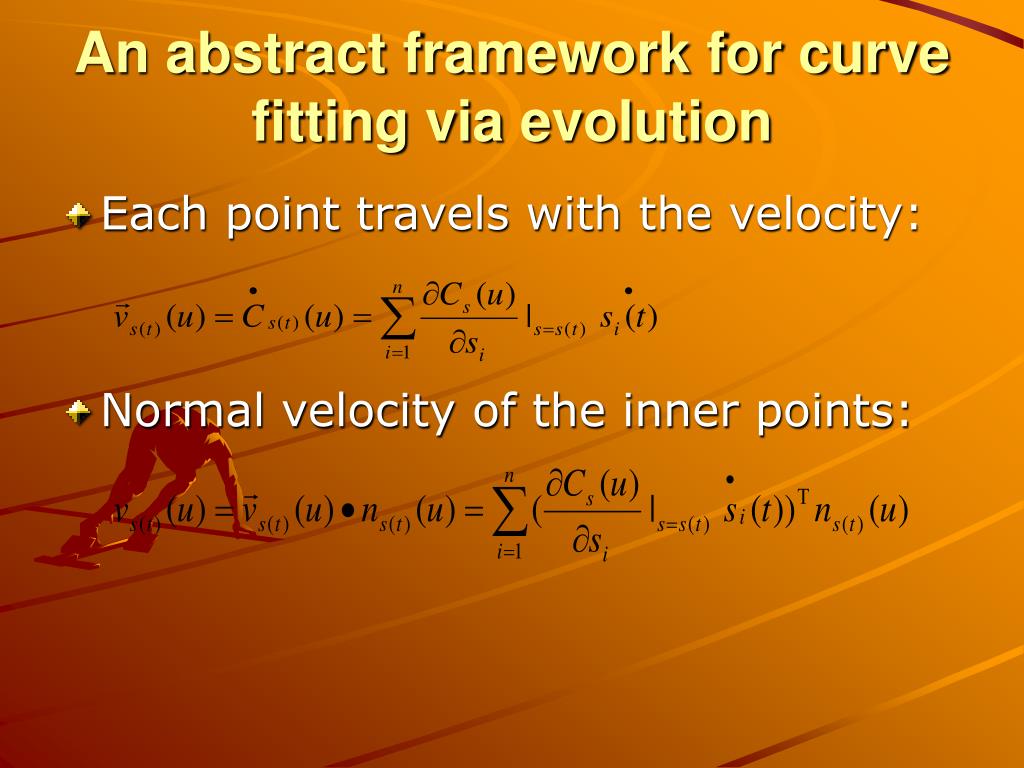

  8. An abstract framework for curve fitting via evolution • Each point travels with the velocity: • Normal velocity of the inner points:

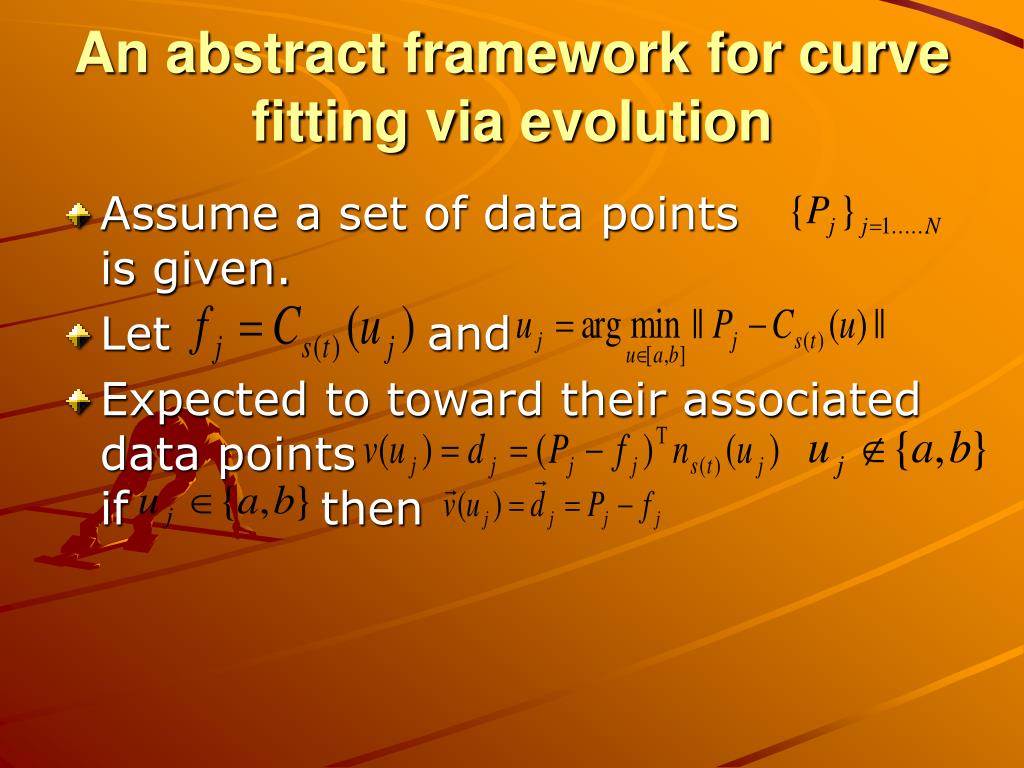

  9. An abstract framework for curve fitting via evolution • Assume a set of data points is given. • Let and • Expected to toward their associated data points if then

  10. An abstract framework for curve fitting via evolution

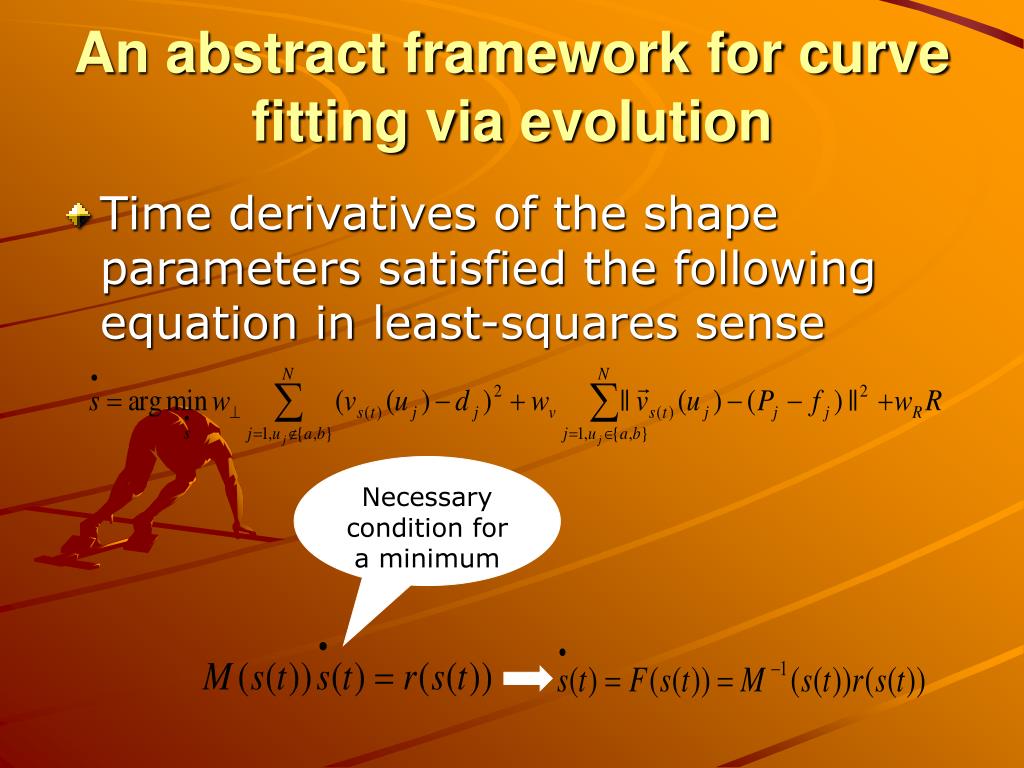

  11. An abstract framework for curve fitting via evolution • Time derivatives of the shape parameters satisfied the following equation in least-squares sense Necessary condition for a minimum

  12. An abstract framework for curve fitting via evolution • Definition: • A given curve: • a set of parameters U is said to be regular: • A set parameters: that and • Unit normal vectors • That the matrix has a maximal rank

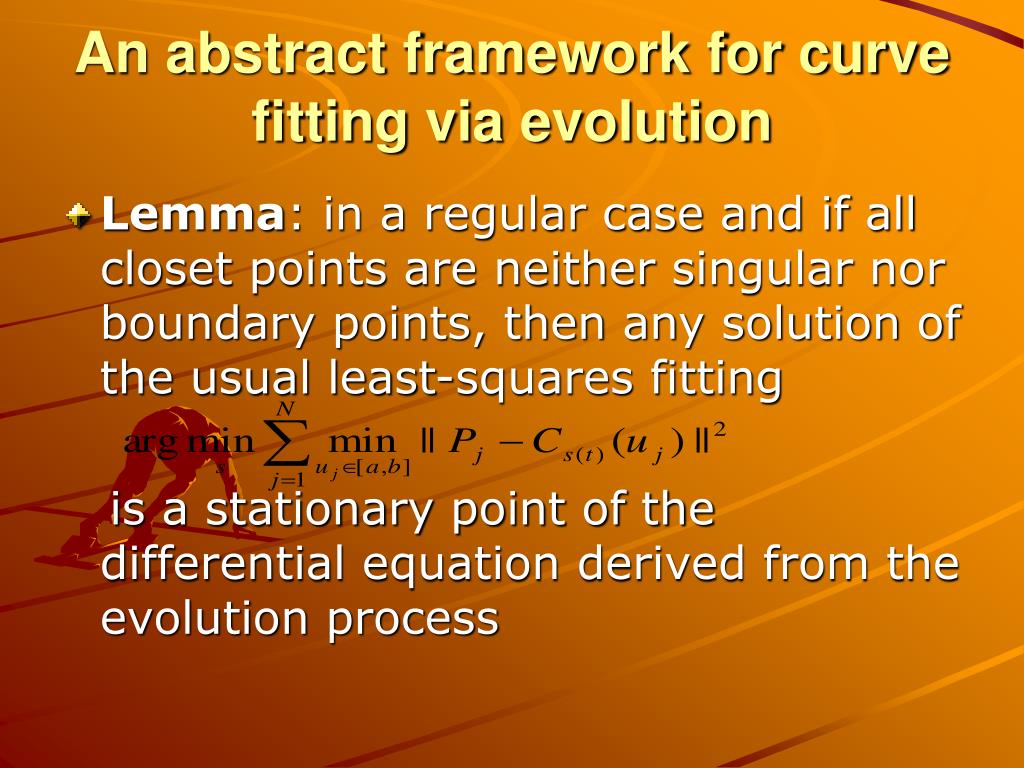

  13. An abstract framework for curve fitting via evolution • Lemma: in a regular case and if all closet points are neither singular nor boundary points, then any solution of the usual least-squares fitting is a stationary point of the differential equation derived from the evolution process

  14. Evolution of PH splines • Ordinary PH curves c (u)=[x ( u) ,y (u)] satisfied the following conditions: • Regular PH curves: let w=1. • The difference : gcd (x’ ( u ),y’ (u)) is a square of a polynomial • called preimage curve

  15. Evolution of PH splines • Proposition: if a regular PH curve c (u) and then: • Smooth field of unit tangent vectors for all u • Parametric speed and arc-length are polynomial functions • Its offsets are rational curves

  16. Evolution of PH splines • Let an open integral B-spline curve, and • Let

  17. Evolution of PH splines • In the evolution we fix the knot vector, so the shape parameters are • the velocity • The unit normals

  18. Evolution of PH splines • The length of PH spline: • The regularization term: • Which forces the length to converge to some constant value

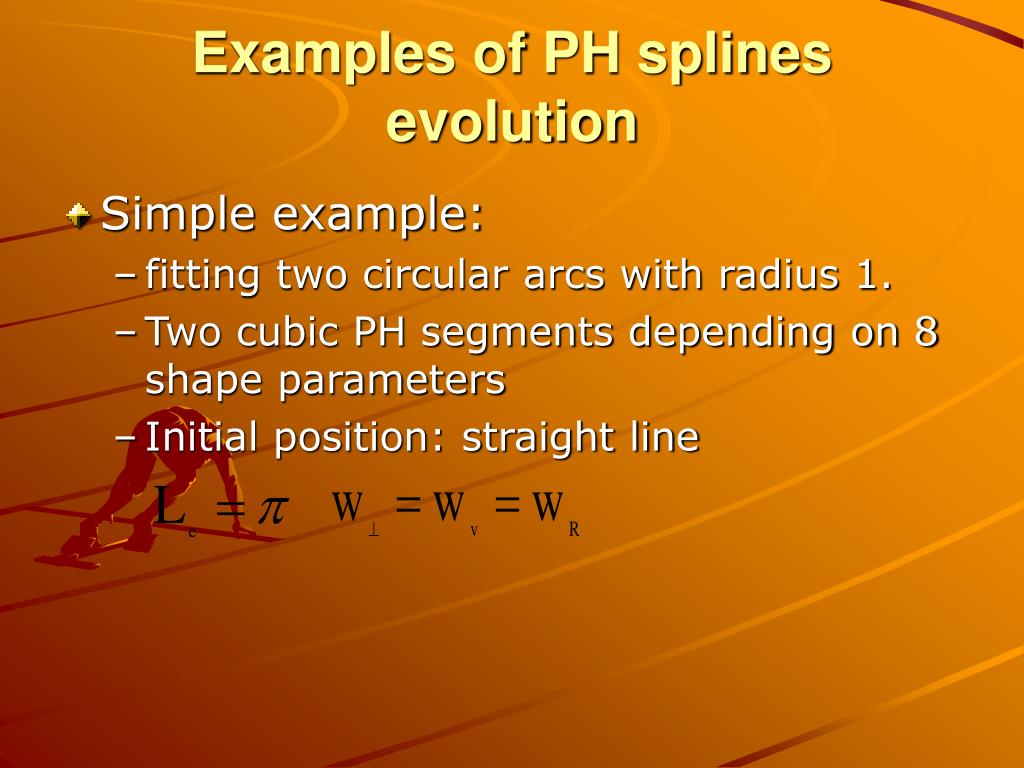

  19. Examples of PH splines evolution • Simple example: • fitting two circular arcs with radius 1. • Two cubic PH segments depending on 8 shape parameters • Initial position: straight line

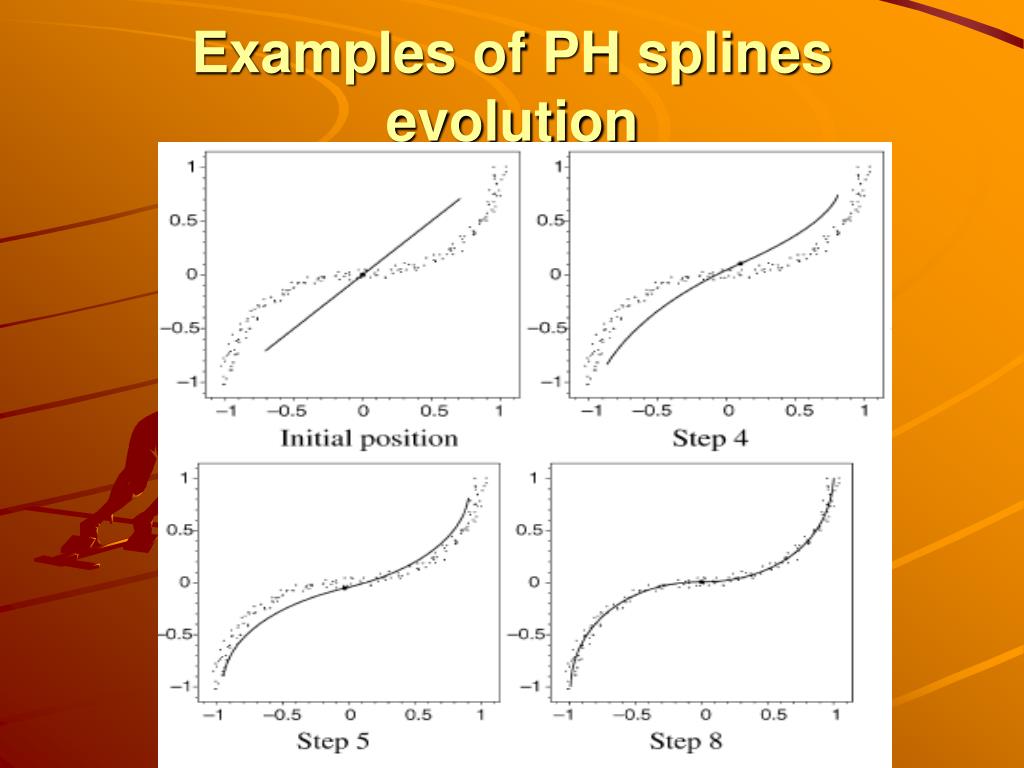

  20. Examples of PH splines evolution

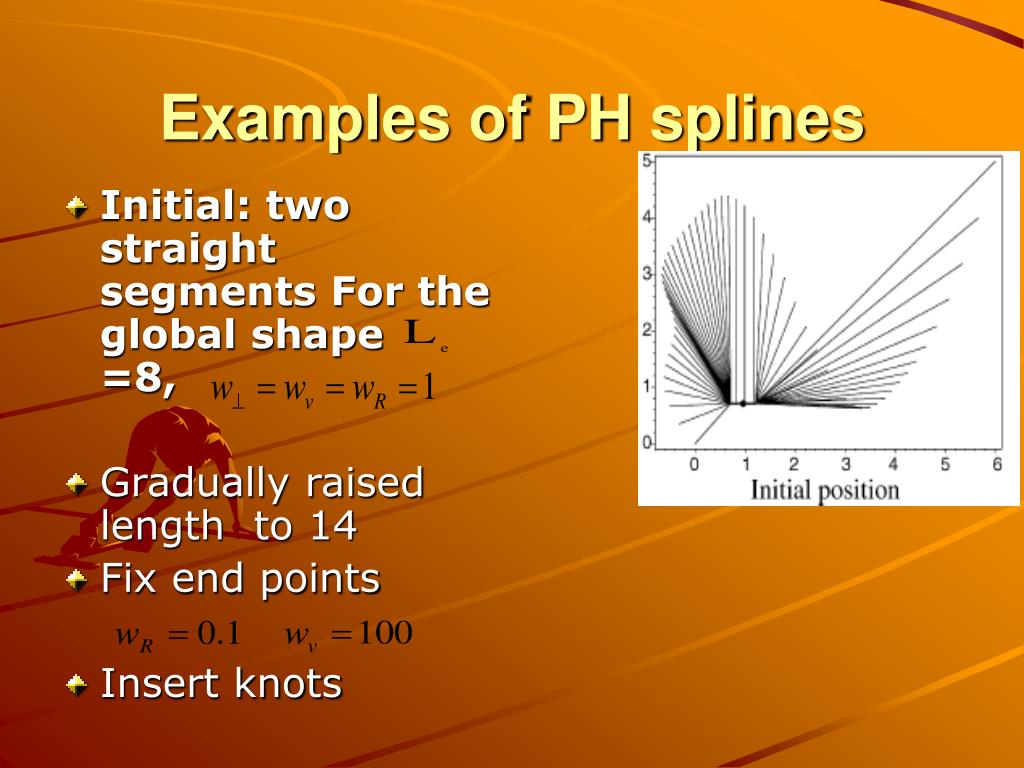

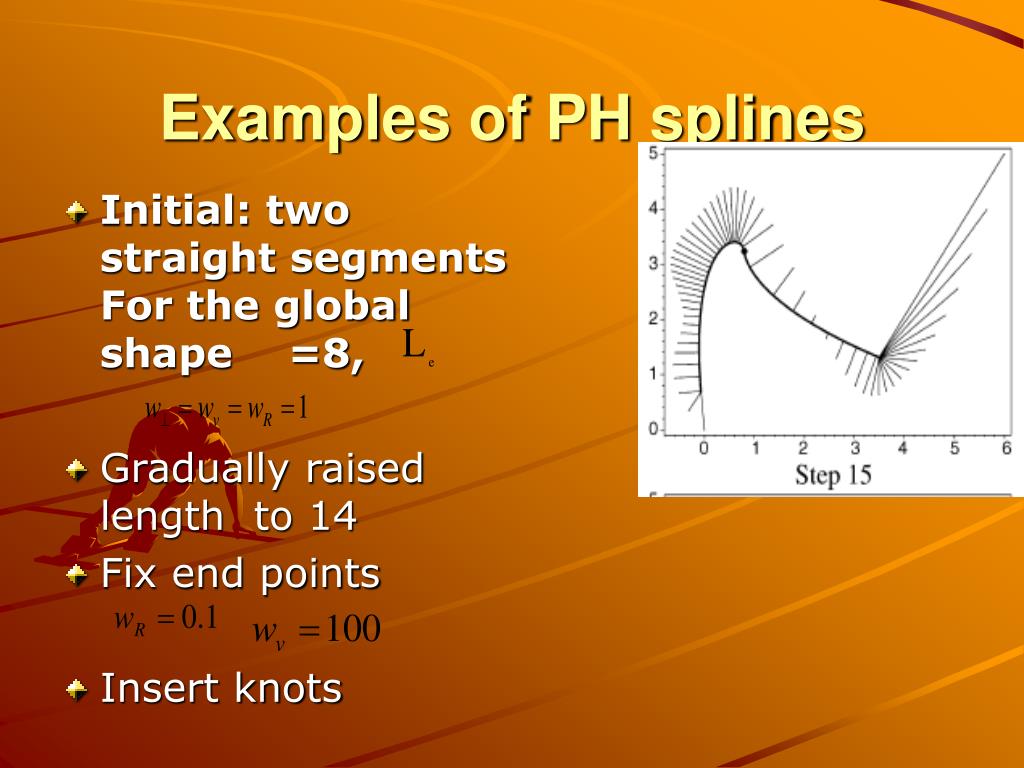

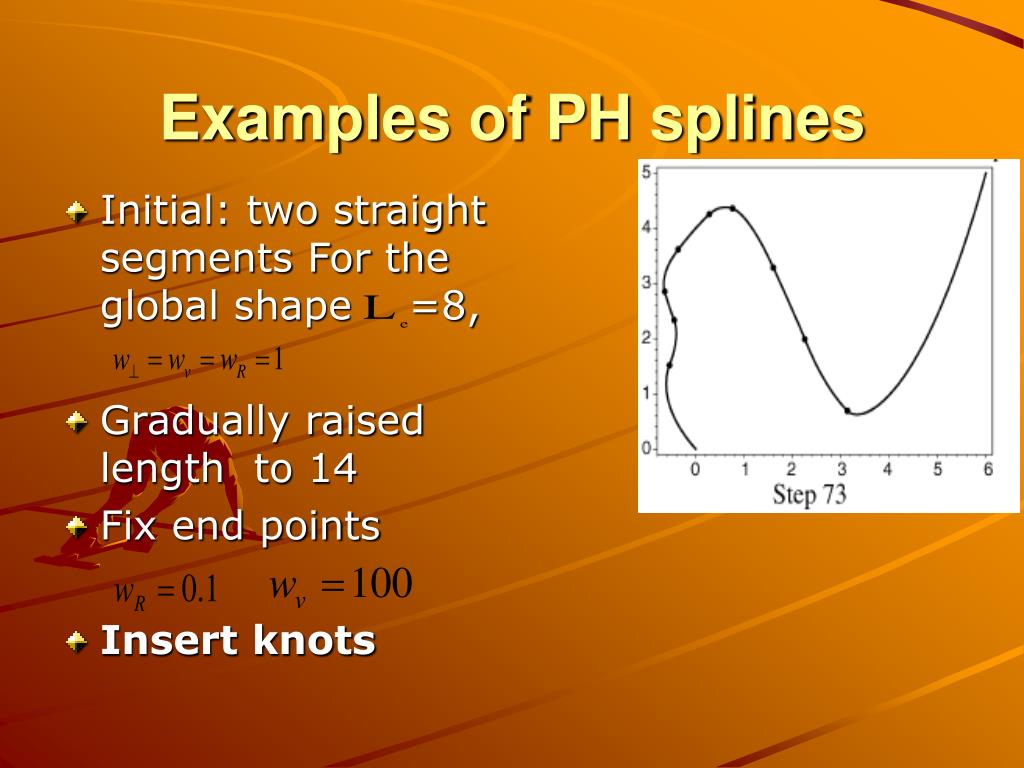

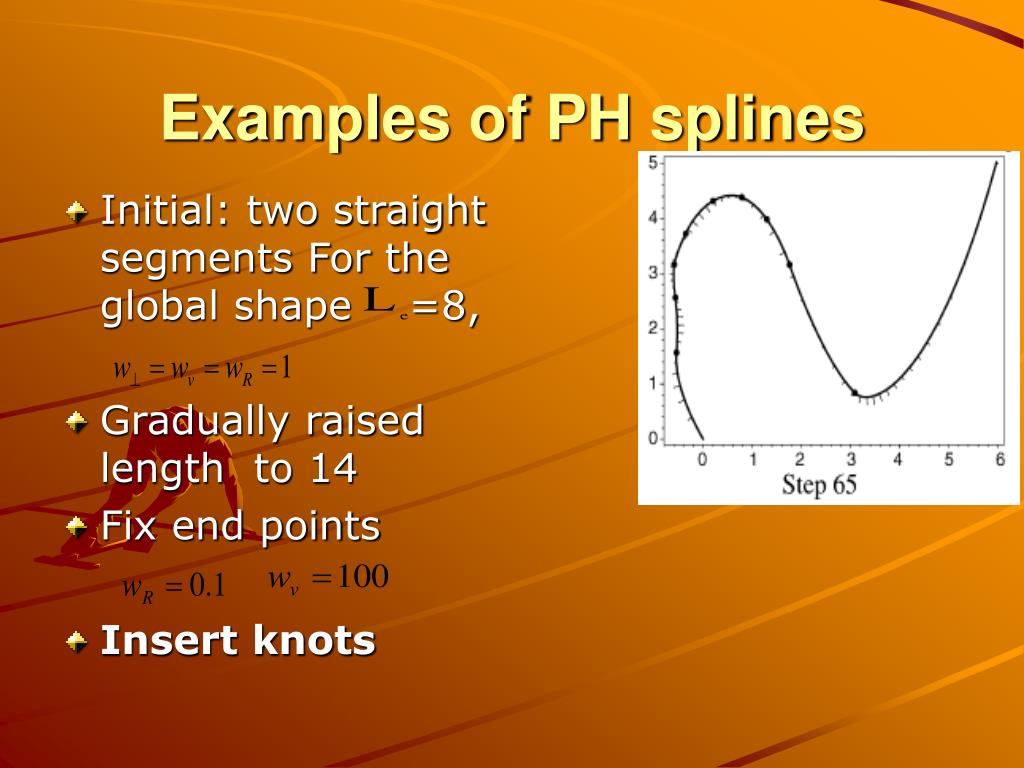

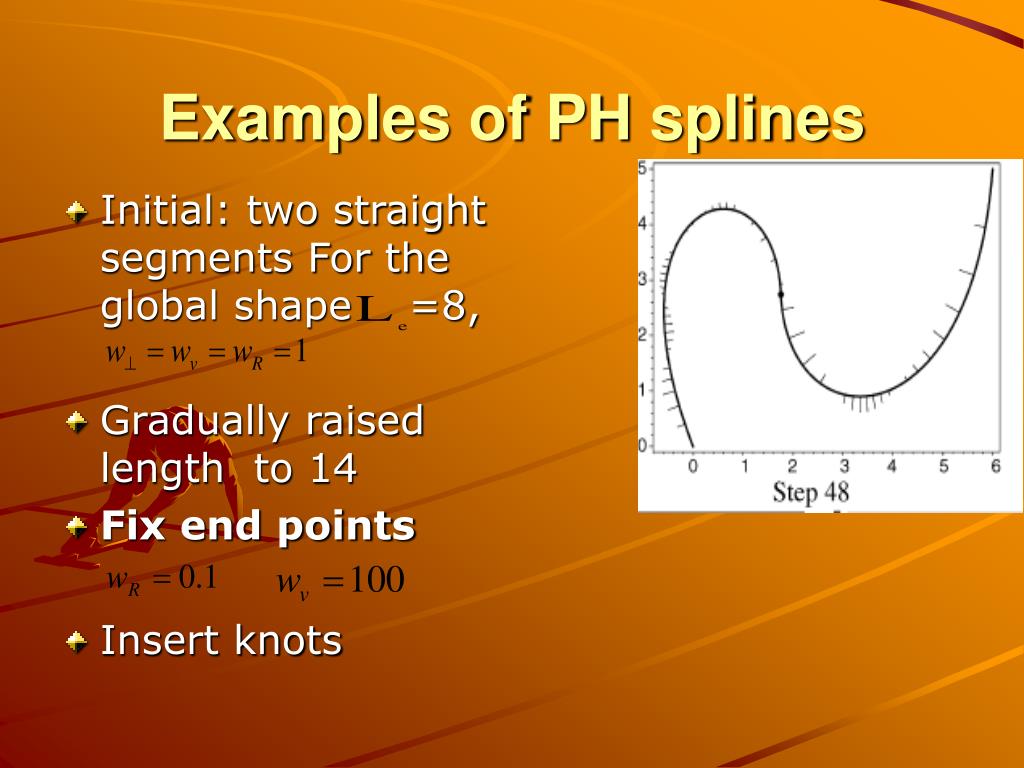

  21. Initial: two straight segments For the global shape =8, Gradually raised length to 14 Fix end points Insert knots Examples of PH splines

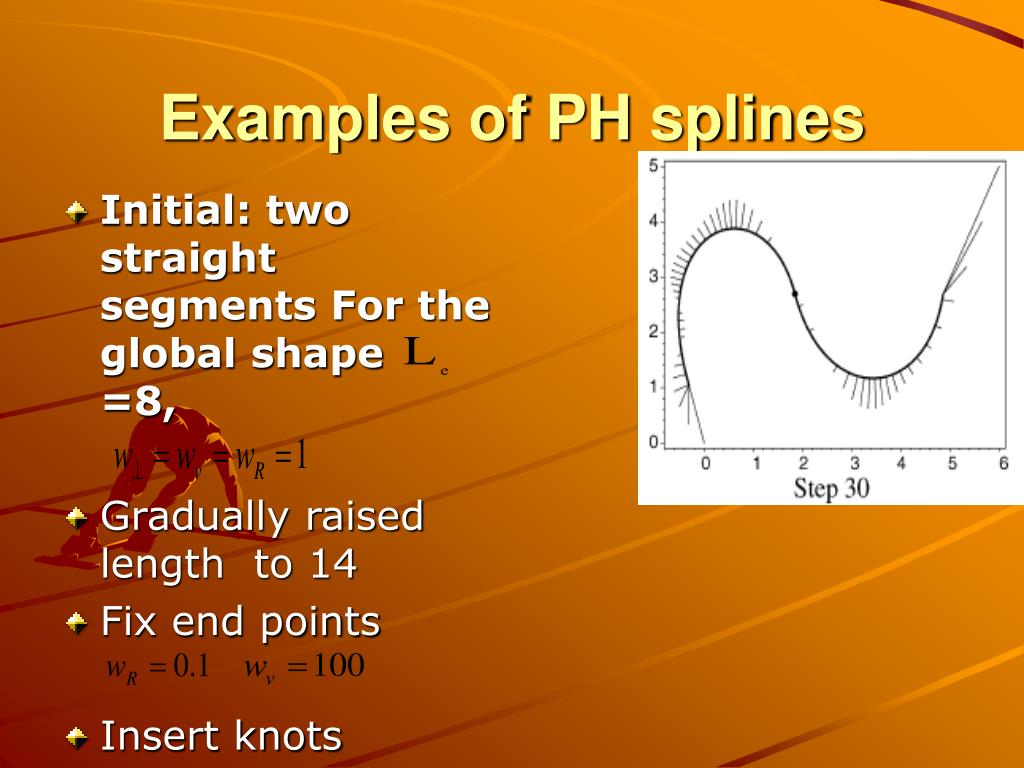

  22. Initial: two straight segments For the global shape =8, Gradually raised length to 14 Fix end points Insert knots Examples of PH splines

  23. Initial: two straight segments For the global shape =8, Gradually raised length to 14 Fix end points Insert knots Examples of PH splines

  24. Initial: two straight segments For the global shape =8, Gradually raised length to 14 Fix end points Insert knots Examples of PH splines

  25. Initial: two straight segments For the global shape =8, Gradually raised length to 14 Fix end points Insert knots Examples of PH splines

  26. Initial: two straight segments For the global shape =8, Gradually raised length to 14 Fix end points Insert knots Example of PH splines

  27. Initial: two straight segments For the global shape =8, Gradually raised length to 14 Fix end points Insert knots Examples of PH splines

  28. Initial: two straight segments For the global shape =8, Gradually raised length to 14 Fix end points Insert knots Examples of PH splines

  29. Examples of PH splines • Initial value by Hermite interpolation • Split data points at estimated inflections

  30. Speed of convergence • Lemma: the Euler update of the shape parameters for the evolution with step h is equivalent to a Gauss-Newton step with the same h of the problem • Provided that

  31. Speed of convergence

  32. Speed of convergence • Quadratic convergence of the method

  33. Concluding remarks • Least-squares fitting by PH spline cuves is not necessarily more complicated than others • Future work is devoted to using the approximation procedure in order to obtain more compact representation of NC tool paths

  34. Q&A

  35. Thanks!
