Status of BFEM Event Display

N.Lumb and G. Spandre

I.N.F.N.- Pisa

1 Italian software meeting, Pisa, 11-10-2001


Improvements since the last meeting
Improvements since the last meeting

Seems to be well received and widely used in the US, hence

many changes driven by user requests.

  • Redesigned canvas – added top views.

  • Click and inspect capability for all objects on canvas.

  • Added tkr reconstruction.

  • Display only strips/logs perp. to canvas plane in 2-D views.

  • Display tkr layers – and show position of missing ladders.

  • Indicate position of SuperGlast absorber layers.

  • Colour-coded energy scale for CAL, ACD and XGT.

  • Implemented updated pedestals for CAL.

  • Handling of G4Sim files.

  • TOT plots in analysis histos.

2 Italian software meeting, Pisa, 11-10-2001


Event display drawing canvas
Event display drawing canvas

3 Italian software meeting, Pisa, 11-10-2001


Latest developments
Latest developments

  • Transition from interpreted to compiled code.

  • Complete re-think of program design.

  • Largely transparent to the user, except:

    • Faster

    • More robust (hopefully – still a few bugs!)

  • Easier for us to maintain.

  • Runs under Linux ONLY!

4 Italian software meeting, Pisa, 11-10-2001

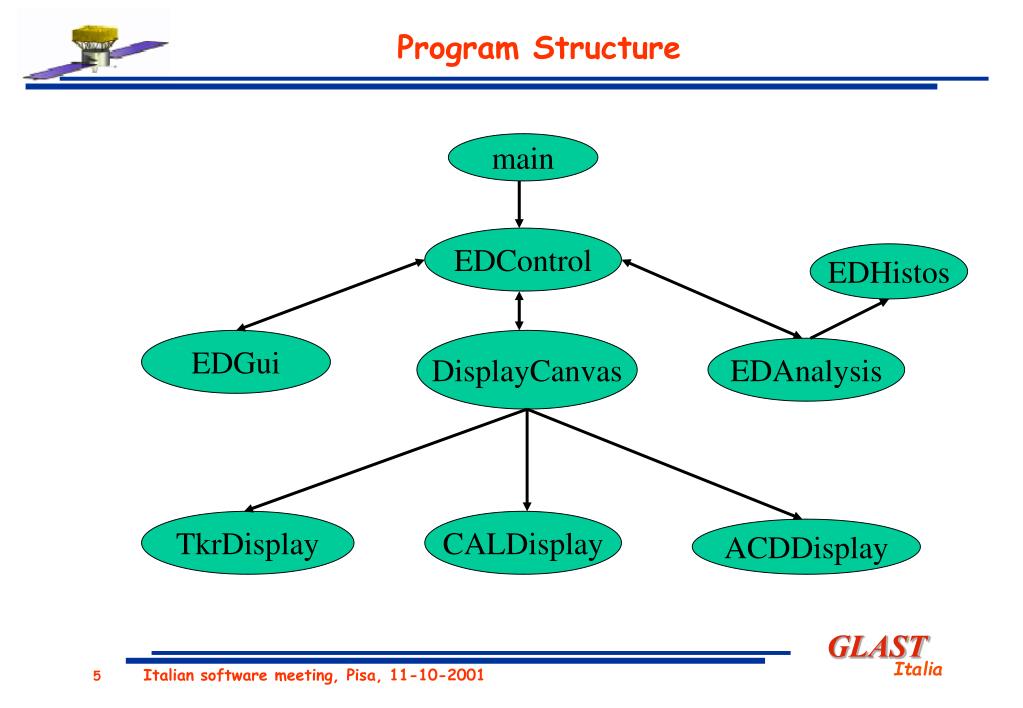

Program structure

main

EDControl

EDHistos

EDGui

DisplayCanvas

EDAnalysis

TkrDisplay

CALDisplay

ACDDisplay

Program Structure

5 Italian software meeting, Pisa, 11-10-2001


Event display main classes

main

EDControl

EDHistos

EDGui

DisplayCanvas

EDAnalysis

TkrDisplay

CALDisplay

ACDDisplay

Event Display main classes

Main: ROOT set-up, starts overall control

and Cint session (TRint).

EDControl: file management (TFile),

event control, response to GUI commands,

overall control of display (using TCanvas)

and analysis.

DisplayCanvas: gets one event from file

and displays on the canvas. Controls

display sub-classes (TkrDisplay, etc.)

Intensive use of TShape and TNode.

EDGui: Draws GUI using ROOT GUI

classes (TFrame, TGButton, TGMenuBar,

etc.) Responds to GUI events via ROOT

ProcessMessage method.

EDAnalysis: Analysis of raw data and

display via EDHistos class.

6 Italian software meeting, Pisa, 11-10-2001

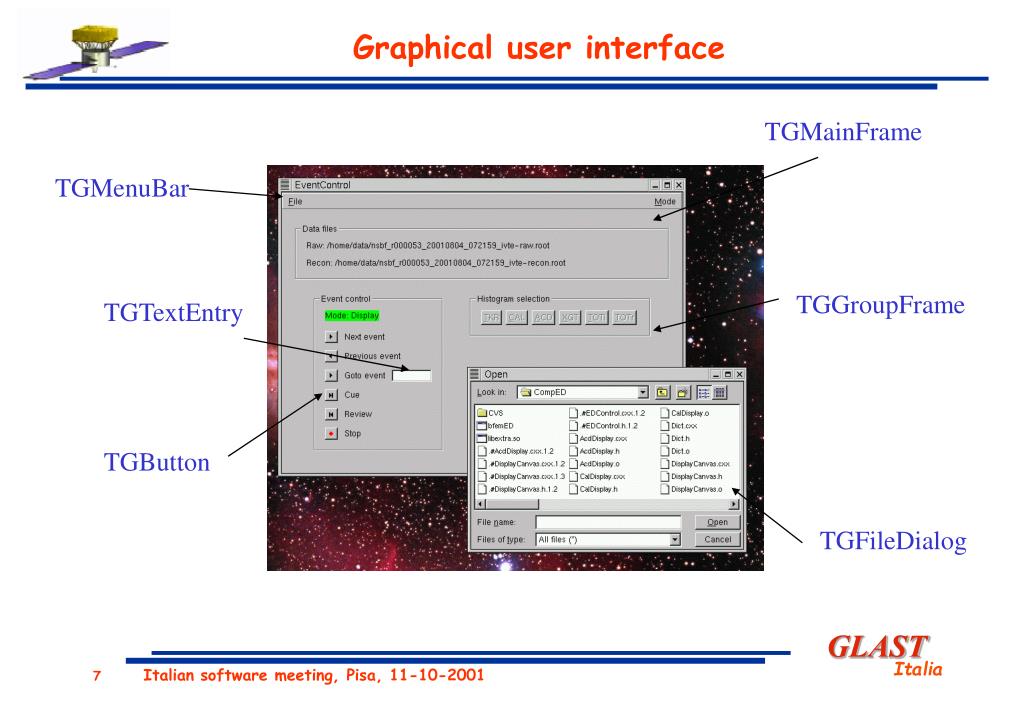

Graphical user interface
Graphical user interface

TGMainFrame

TGMenuBar

TGGroupFrame

TGTextEntry

TGButton

TGFileDialog

7 Italian software meeting, Pisa, 11-10-2001


Drawing node structure

TkrFrameNode

AllHitsXNode

AllHitsYNode

TkrLayerNode

TkrLayerNode

sgLayerNode

sgLayerNode

TkrHitNode

TkrHitNode

TkrReconHitNode

TkrReconHitNode

Drawing node structure

Set up nodes for detector outline once only

Add raw and recon hit nodes event

by event (delete old nodes!)

Exploit TNode::SetVisibility() to hide nodes.

8 Italian software meeting, Pisa, 11-10-2001


Future plans
Future plans

  • Re-design of GUI, e.g. simpler event selection using TGSlideBar.

  • Fix memory leak problems with more elegant node tree scheme.

  • Compare analysis part against RootAnalysis package.

  • Allow easy specification of cuts derived from analysis histos.

  • Implement CAL recon.

  • Port to Windows – create ROOT shared library?

  • Support of XML detector geometry files.

  • Import to SLAC repository under CMT.

9 Italian software meeting, Pisa, 11-10-2001
