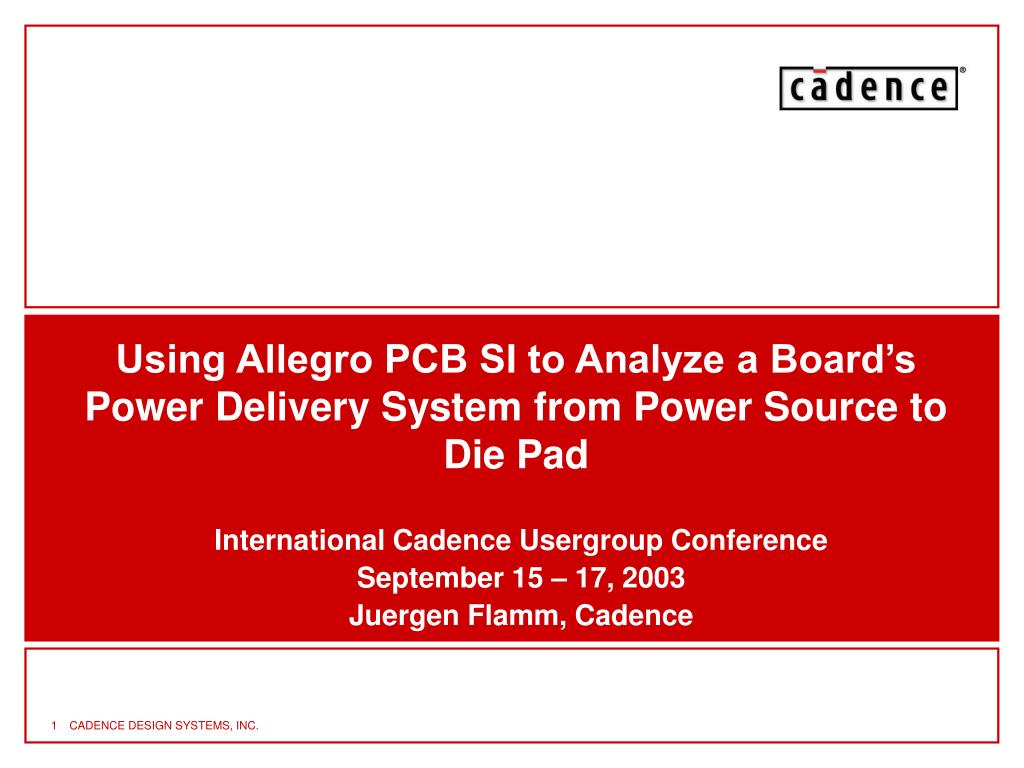

  1. Using Allegro PCB SI to Analyze a Board’s Power Delivery System from Power Source to Die Pad International Cadence Usergroup Conference September 15 – 17, 2003 Juergen Flamm, Cadence

  2. About the Author Juergen Flamm Senior Technical Sales Leader Cadence Design Systems Juergen holds a MS EE degree from the “University Fridericiana” in Karlsruhe (Germany) Throughout his career, he has been actively involved at all levels and in all aspects of electronic design. He started designing wideband telephony line amplifiers and repeaters at AEG Telefunken. Next he joined Litef (Litton Germany) as the lead engineer for sensor electronic development. He designed mixed mode analog/digital ASICs, miniaturized hybrid electronics and next level multi-board system in a box electronics. He relocated to the United States in 1990 to join Litton corporate as the leader of an international technology transfer team. Shortly after, he was promoted to manager of the Analog Design Group to move on to manager of the Electronic Engineering Department. With the beginning of 2001, a planned careerr change brought Juergen to Cadence. He joined PSD as a Senior Technical Sales Leader with focus on the Allegro PCB SI family of tools. He holds 5 patents in the areas of performance electronics for fiber optic and MEMS sensors.

  3. Agenda • Introduction • Describing the problem • Developing a Solution • Step1: Power delivery system analysis for a board using Allegro PCB PI • Step2: Power delivery system analysis for a board/package combination using Allegro PCB SI SSN • Step3: Combining Step1 and Step2 and more • Summary • Q & A

  4. Introduction • Today’s high speed circuits, operating at fast edge rates (<1nsec) and/or high frequencies (>100MHz), combined with decreasing supply voltage and increasing supply current demands, have been placing growing challenges on the design of power delivery systems. • This presentation will show how Allegro PCB SI can be utilized to perform post-layout analysis of the power delivery system of a completed board design (see ICU 2003 paper #2 for details). • Post-layout analysis is only one use model of Allegro PCB SI. The tool’s real power will be experienced when also proactively employed for pre-layout design and analysis as well as for floor planning of a power delivery system. However, these use models are not subject of this presentation.

  5. Describing the Problem • Parasitic elements in the PWR/GND supply path cause power supply noise and fluctuations on the chip supply rails • Example:

  6. Describing the Problem (cont.) • Multiple elements must be considered simultaneously when analyzing a board’s PWR/GND path from power source to the chip supply rails. • Board power source (VRM) • Output current slew rate capability, dynamic source impedance, … • Board plane structures • Differential and common mode impedance, resonances, … • Board decoupling capacitors • Type, quantity, pin escape and via connections, placement location, … ---- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ---- • Board traces and associated vias • Interconnecting PWR/GND planes and chip package pins, … • Package model (chip) • Pins, traces, planes, vias, bond wires, …

  7. Developing a solution • Step1 • Analyze a board’s PWR/GND plane pair’s impedance, including decoupling capacitors, using Allegro PCB PI frequency domain simulation. • Step2 • Analyze the PWR/GND connection path from planes to the chip power rails using Allegro PCB SI SSN time domain simulation. • Step3 • Append Step2 model with Step1 source impedance model. • Use appended model and Allegro PCB SI SSN simulation to evaluate PWR/GND bounce impact on signal waveform and timing.

  8. Step1 • Allegro PCB PI • Prepare board for and run Allegro PCB PI frequency domain simulations • Complete Allegro PCB SI “Setup Advisor”, focus on “Identify DC Nets” • Complete Allegro PCB PI “Setup Wizard”, select at least 1 standard library capacitor • Use “Report” to identify capacitor types per plane pair • Create/assign models for/to identified capacitor types • Under “Cap Libraries” in Board Folder and select used capacitor types • Approximate maximum worst case switching current, place noise source • Determine VRM model parameters and place VRM • Set preferences and run multi node simulations • Analyze resulting impedance graphs • Optionally determine a simple worst case source impedance model (R, L, C)

  9. Step1 Library Setup Design & Analysis Report

  10. Step1 Board with highlighted Plane Shapes, VRM, Noise Source, Grid Size

  11. Step1 Multi Node Simulation result Simple source impedance approximation: Z = 40mOhm + j2pi*f*0.32nH

  12. Step2 • Allegro PCB SI -SSN • Prepare board for and run Allegro PCB SI SSN time domain simulations • Use Allegro PCB SI “Setup Advisor”, focus on “Device Setup” and “SI Model assignment” • Check targeted device model for pin parasitic values • Assign power bus to associated power pins of device model • Assign ground bus to associated ground pins of device model • Assign power and ground bus to desired simultaneously switching I/O pins of device model • Select preferences as intended and run Allegro PCB SI SSN simulation to create waveforms

  13. Step2 • Device model preparation Power & ground bus assignments Pin data • A large package model instead of pin data could be used to provide a more comprehensive model.

  14. Step2 Power and ground bounce wave forms

  15. Step2 • Additional signal waveform evaluation options • Extract net into Allegro PCB SI 210 (SigXp) tool, add current probe and perform reflection simulation • Evaluate single net voltage and current waveforms • Helpful to determine/validate rise/fall times and maximum switching current used in step1 • Set up and run EMI simulation • Evaluate single net spectral current distribution • Helpful to determine needed bandwidth for target impedance in step1

  16. Step2 Extracted net with current probe Driver voltage wave form Spectral current distribution Driver current wave form

  17. Step3 • Allegro PCB SI SSN with added simple source impedance model parameters from Step1 • Use R and L model from Step1 (slide 11) • Divide R and L in half and add the values to each power and ground pin’s parasitic values in the device model. • Other options • Add to large package model parameters • Combine Step1 and Step2 net lists • …

  18. Step3 Comparison of Allegro PCB SI-SSN simulations with and without additional source impedance model added to pin parameters

  19. Step3 • More • Performing a comparison between Reflection and SSN simulation results. • Evaluate power and ground bounce impact on a signal’s waveform • Evaluate power and ground bounce impact on a signal’s timing • Evaluate …

  20. Step3 Reflection/SSN simulation comparison Falling edge detail

  21. Summary • Using Allegro PCB SI, we have briefly introduced options to perform post-layout analysis of a power delivery path from power source to the chip supply rails. • We have used a three step approach utilizing Allegro PCB PI (SQ-PI) and Allegro PCB SI-SSN options and features of the tool. • We have briefly touched on capabilities, which enable the design engineer to perform comprehensive types of simulations. • For example: Simulating the effect of power and ground bounce on signal waveform and timing. • Knowing and intelligently utilizing the features and options of Allegro PCB SI can significantly increase a design engineer’s success. • For example: Performing virtual prototyping, pre-layout analysis and floor planning of the power delivery system.

  22. Q&A • Contact information: • Juergen Flamm • Cell phone: 818-642-2633 • Office phone: 818-881-9965 • E-mail: jflamm@cadence.com
