Flux =  = B • A = BA cos 

Flux =  = B • A = BA cos . Area vector = A is constructed normal to surface with a length = to its area π r 2. A. B. B. Flux =  = B • A = BA cos . Area vector = A is constructed normal to surface with a length = to its area π r 2. A. B. B. Flux =  = B • A = BA cos .

kyle
Download Presentation

Flux =  = B • A = BA cos 

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Flux =  = B•A = BA cos Area vector = A is constructed normal to surface with a length = to its area πr2. A B B

  2. Flux =  = B•A = BA cos Area vector = A is constructed normal to surface with a length = to its area πr2. A B B

  3. Flux =  = B•A = BA cos Area vector = A is constructed normal to surface with a length = to its area πr2. A B B

  4. The AP B Ref Table writes A loop of wire having an area of 0.25 m2 contains a magnetic field intensity of 16 Teslas as shown. Find the magnetic flux through the loop. B

  5. The AP B Ref Table writes A loop of wire having an area of 0.25 m2 has 8 Webers of magnetic flux passing through the loop. Find then strength of the magnetic field inside the loop. B

  6. The E&M C Ref Tables write…….. A loop of wire having an area of 0.25 m2 has 8 Webers of magnetic flux passing through the loop. Find then strength of the magnetic field inside the loop. B

  7. The AP B Ref Table writes And E&M C says…. A loop of wire having an area of 0.25 m2 has 8 Webers of magnetic flux passing through the loop. If the field collapsed in 4 seconds…….. a) find the EMF the loop would generate. b) tell which way current would flow to resist the change. c) What if there were 3 loops? B n

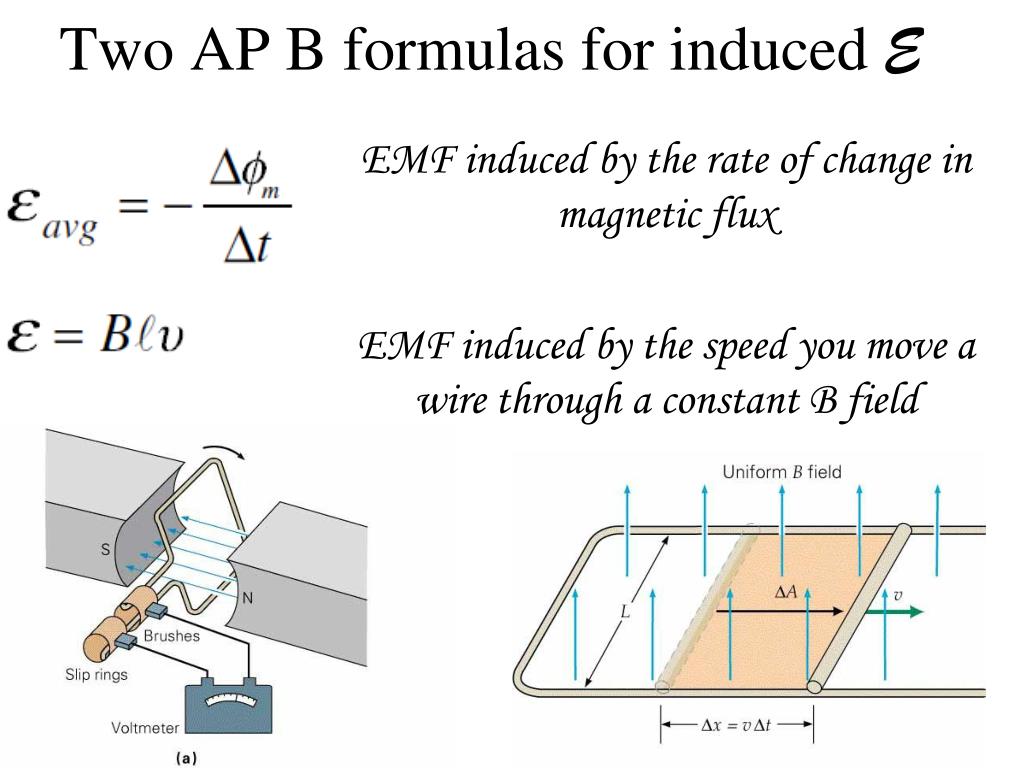

  8. Two AP B formulas for induced E EMF induced by the rate of change in magnetic flux EMF induced by the speed you move a wire through a constant B field

  9. Example problem: A 50 cm rod of resistance 2 ohms is moved across a 4 Tesla magnetic field at 2 m/s. Calculate….. a)…the EMF generated. b) …the current generated. The direction of I is defined by the cross product E = l v x B

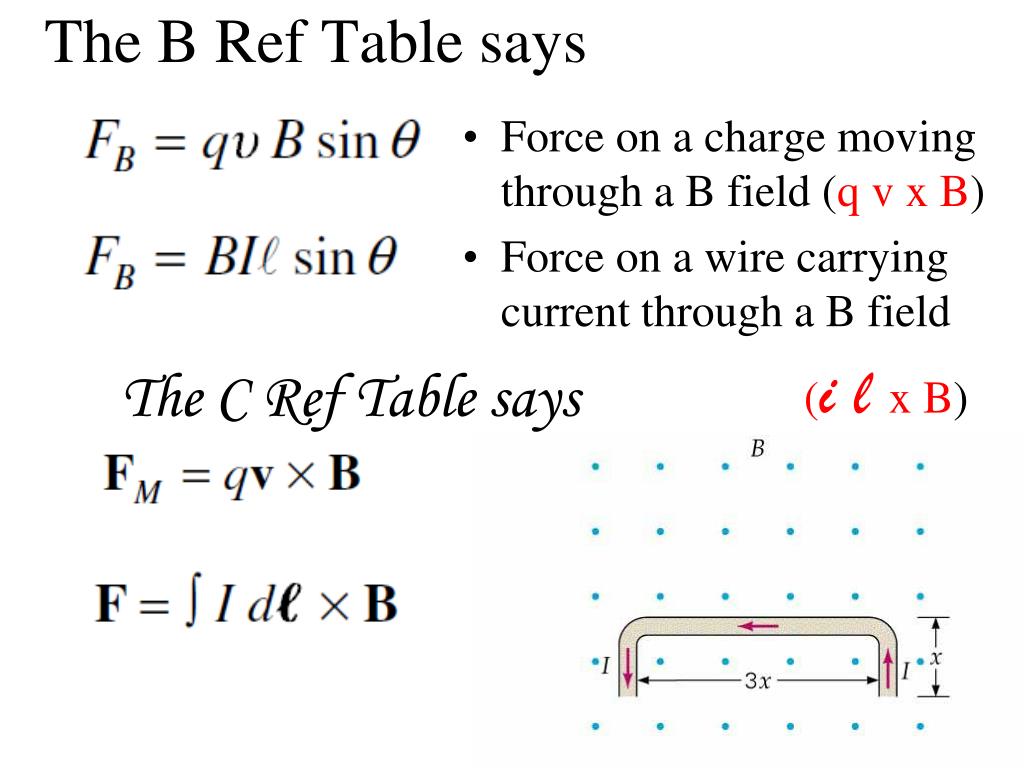

  10. The B Ref Table says • Force on a charge moving through a B field (q v x B) • Force on a wire carrying current through a B field (i l x B) The C Ref Table says

  11. Find the direction and magnitude of the force on a 20 cm wire that carries 3 Amperes across a 4 Tesla field. • Force on a charge moving through a B field (q v x B) • Force on a wire carrying current through a B field (l ix B)

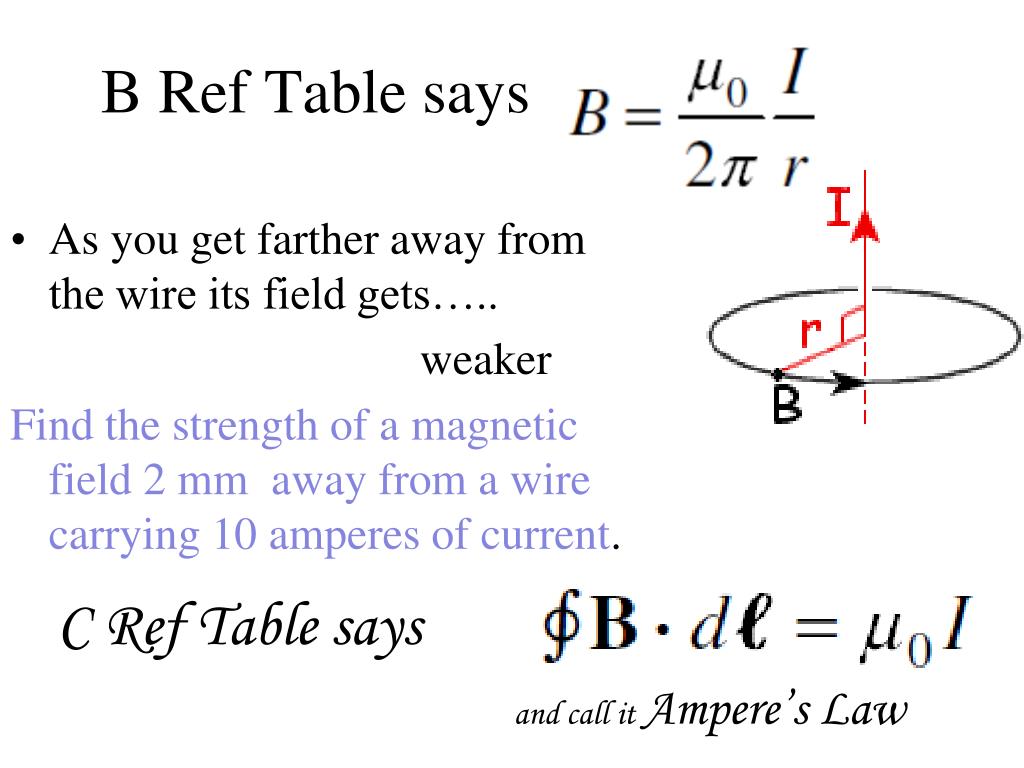

  12. B Ref Table says • As you get farther away from the wire its field gets….. weaker Find the strength of a magnetic field 2 mm away from a wire carrying 10 amperes of current. C Ref Table says and call it Ampere’s Law
