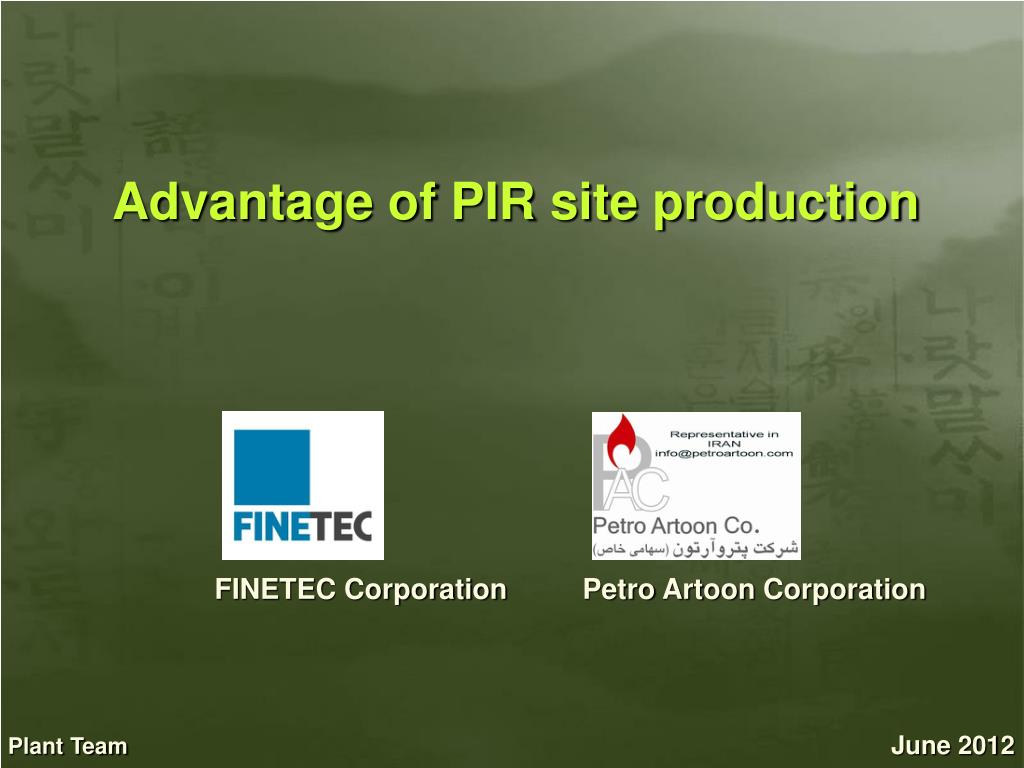

  1. Advantage of PIR site production FINETEC Corporation Petro Artoon Corporation Plant Team June 2012

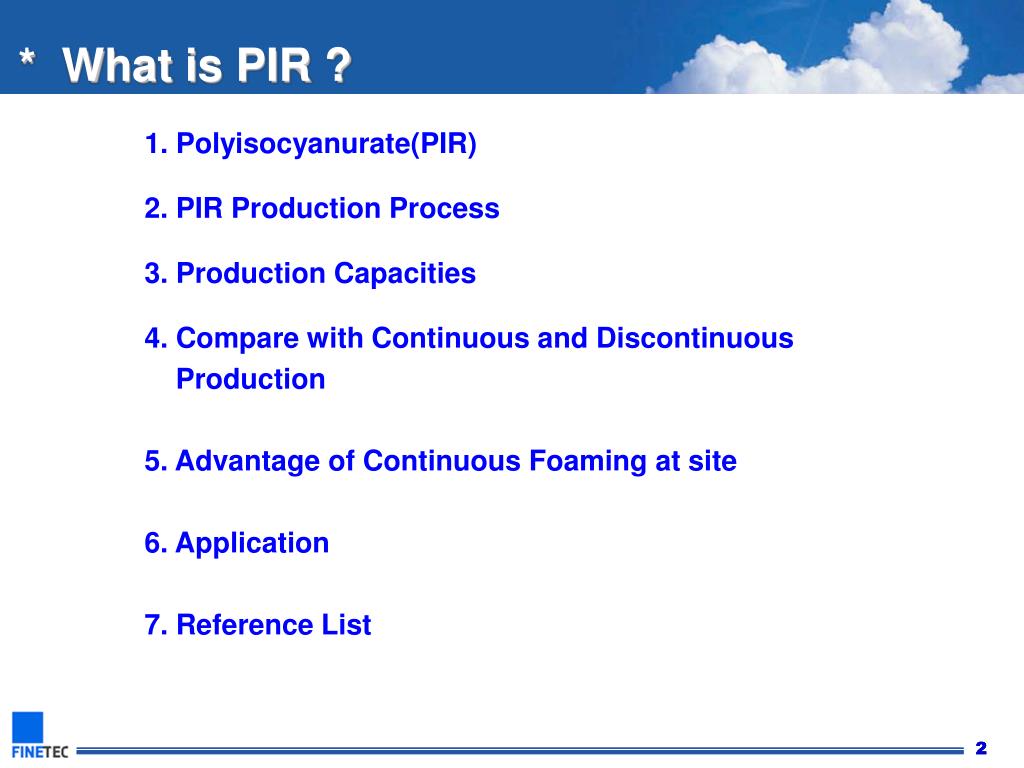

  2. * What is PIR ? 1. Polyisocyanurate(PIR) 2. PIR Production Process 3. Production Capacities 4. Compare with Continuous and Discontinuous Production 5. Advantage of Continuous Foaming at site 6. Application 7. Reference List

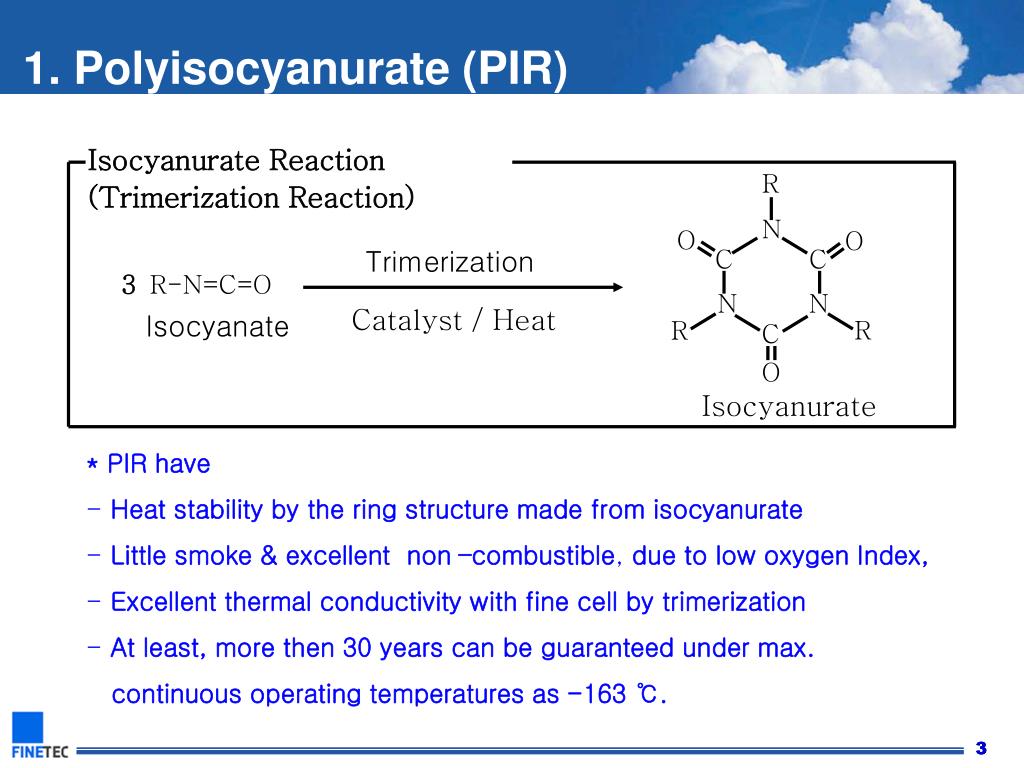

  3. 1. Polyisocyanurate (PIR) Isocyanurate Reaction (Trimerization Reaction) Trimerization 3 R-N=C=O Catalyst / Heat Isocyanate Isocyanurate R N O O C C N N R R C O • * PIR have • Heat stability by the ring structure made from isocyanurate • Little smoke & excellent non –combustible, due to low oxygen Index, • Excellent thermal conductivity with fine cell by trimerization • At least, more then 30 years can be guaranteed under max. • continuous operating temperatures as -163 ℃.

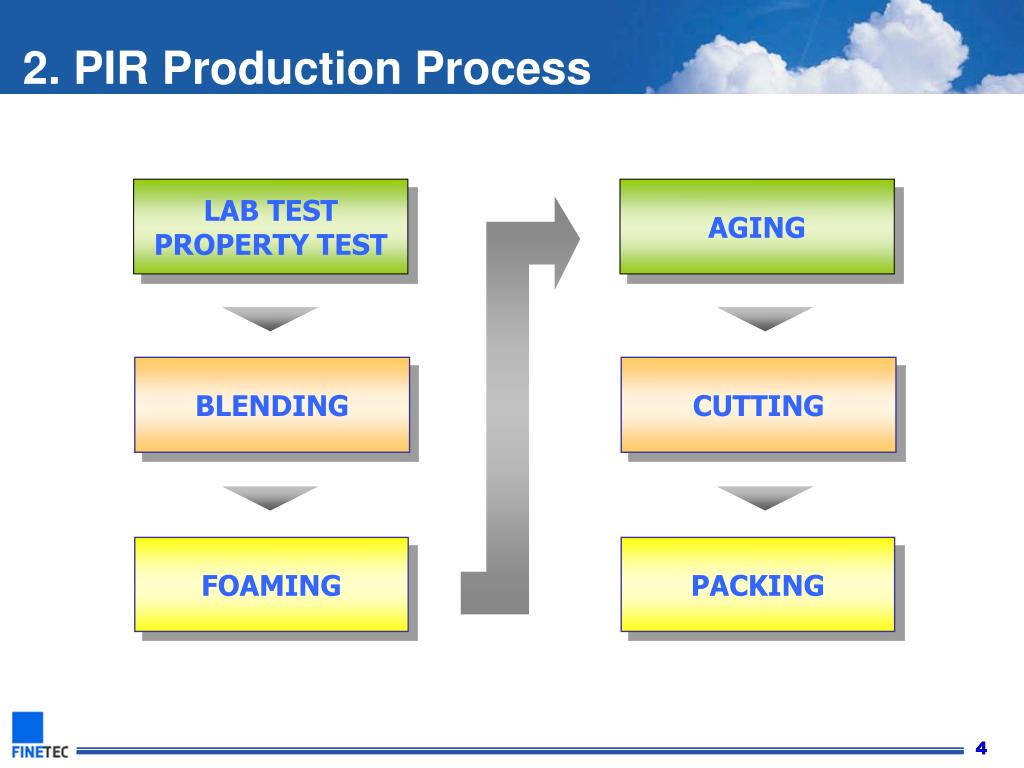

  4. 2. PIR Production Process LAB TEST PROPERTY TEST AGING BLENDING CUTTING FOAMING PACKING

  5. Foaming PIR BLOCK FOAMING AT CONTAINERIZED CONTINUOUS LINE

  6. Aging AGING OF PUR/PIR FOAM (Minimum 15 days)

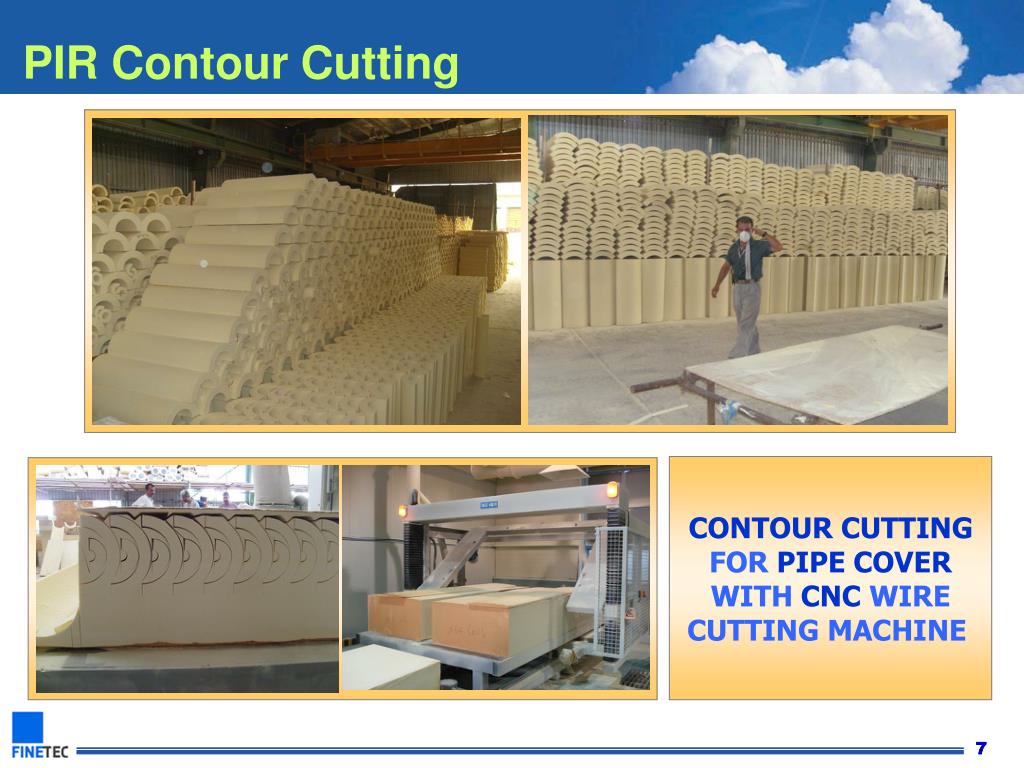

  7. PIR Contour Cutting CONTOUR CUTTING FOR PIPE COVER WITH CNC WIRE CUTTING MACHINE

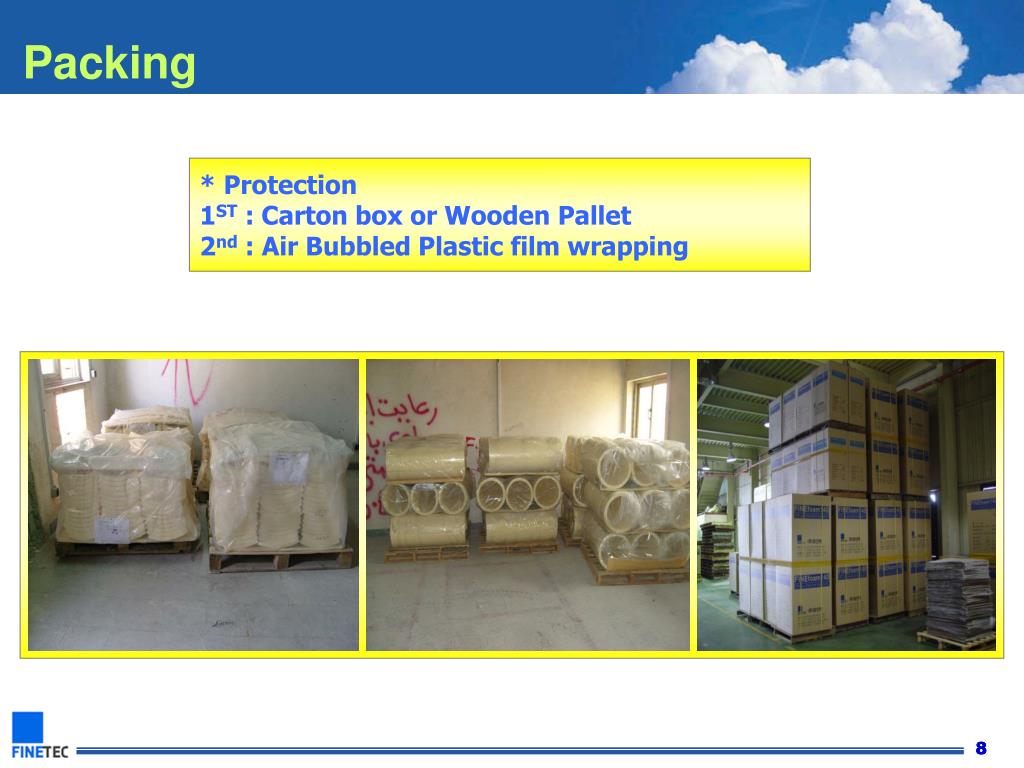

  8. Packing * Protection 1ST : Carton box or Wooden Pallet 2nd : Air Bubbled Plastic film wrapping

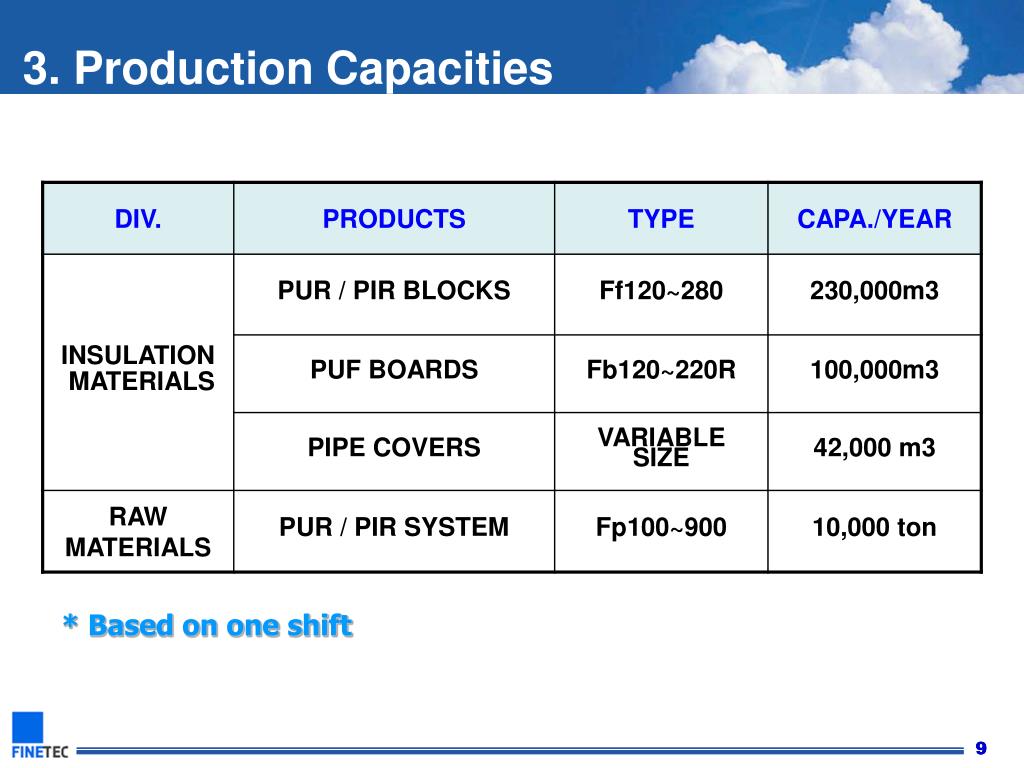

  9. 3. Production Capacities * Based on one shift

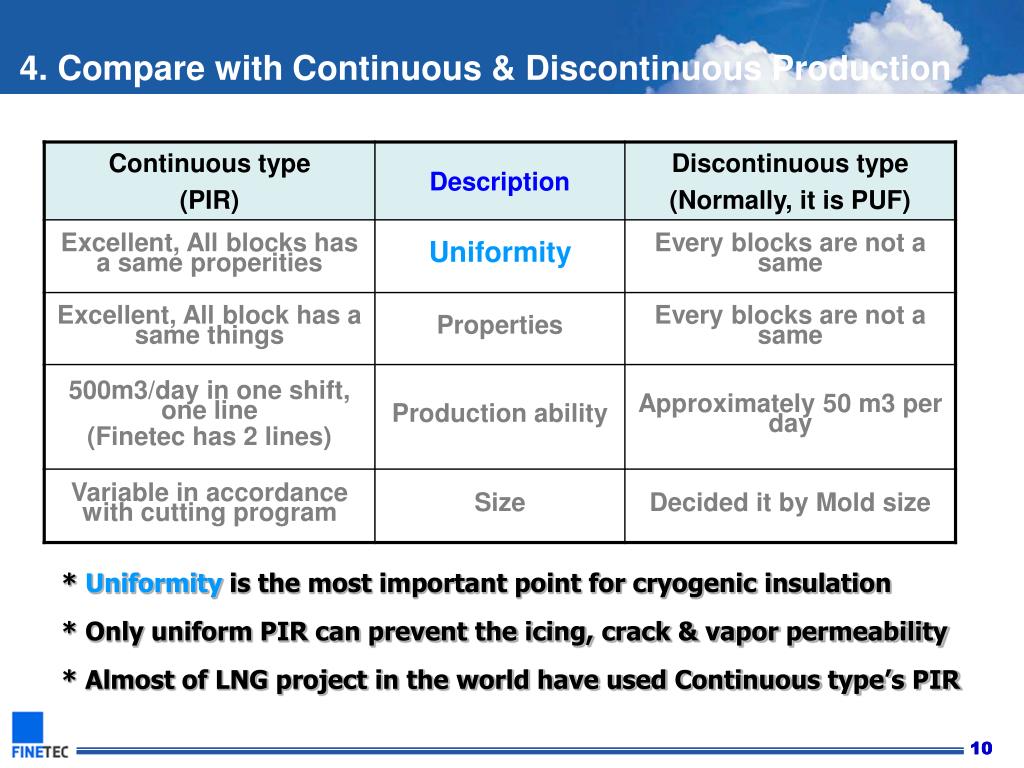

  10. 4. Compare with Continuous & Discontinuous Production * Uniformity is the most important point for cryogenic insulation * Only uniform PIR can prevent the icing, crack & vapor permeability * Almost of LNG project in the world have used Continuous type’s PIR

  11. 5. Advantage of containerized continuous foaming & cutting as Artoon-FINEfoam 140 at Project site ☞Cost saving ☞On time delivery ☞ Easy the production plan control according to site situation ☞ Quality is checked & controlled by Owner at production site ☞ Final product can be stored in production shelter, not site ☞ Easy movable to any Project site

  12. 6. Application * LNG / LPG / LEG Terminal facilities Equipment Insulation Pipe Insulation

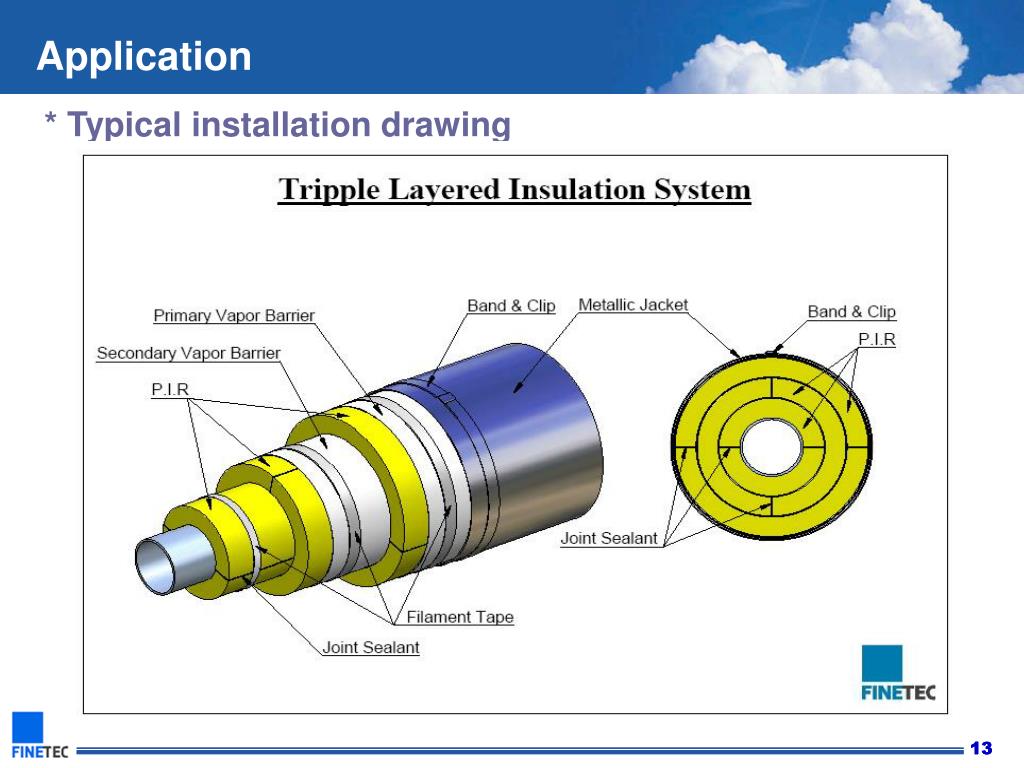

  13. Application * Typical installation drawing

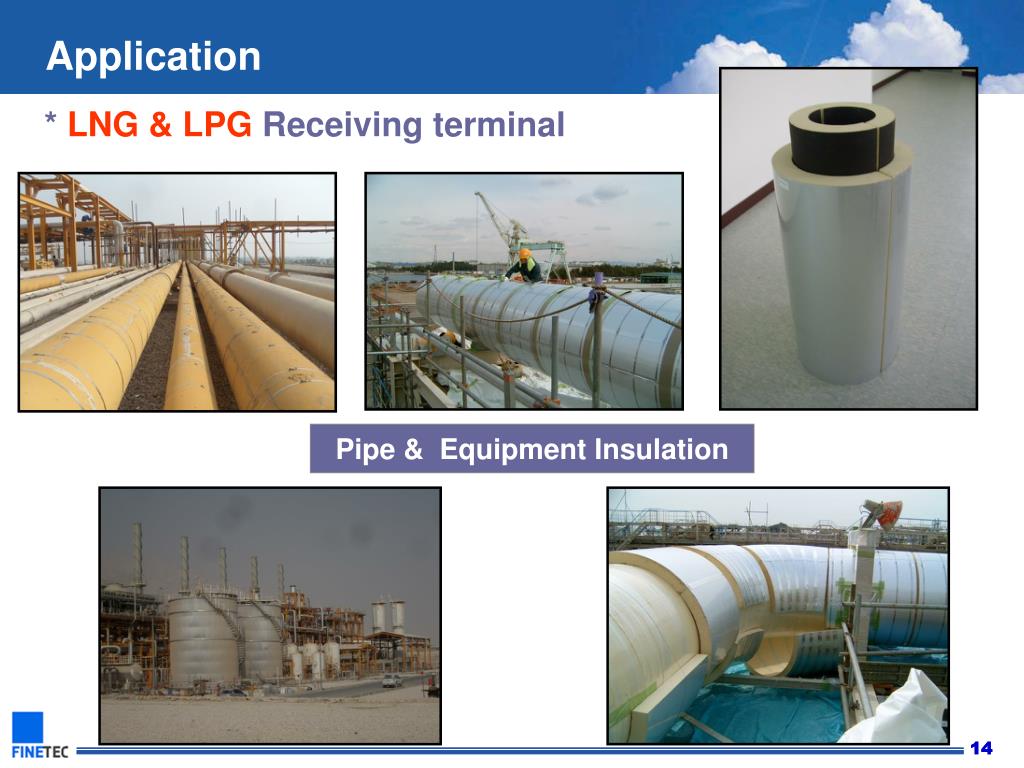

  14. Application * LNG & LPG Receivingterminal Pipe & Equipment Insulation

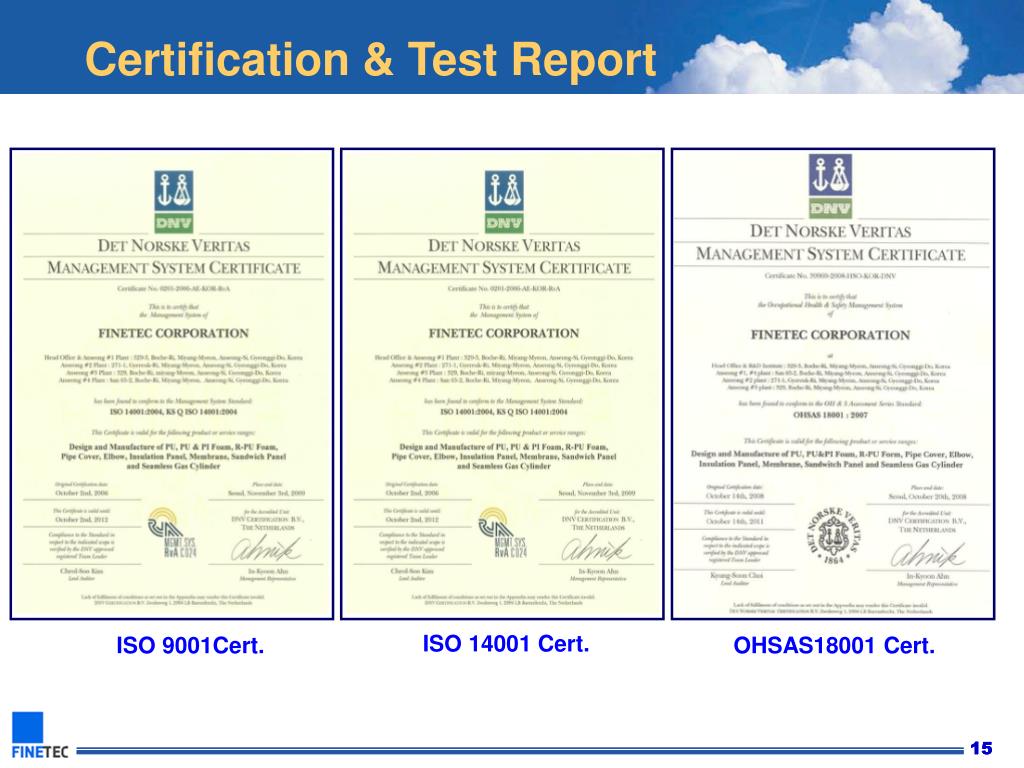

  15. Certification & Test Report ISO 9001Cert. OHSAS18001 Cert. ISO 14001 Cert.

  16. Test Report PIR Test Report ASTM C 591 Thermal Conductivity-ASTM C591

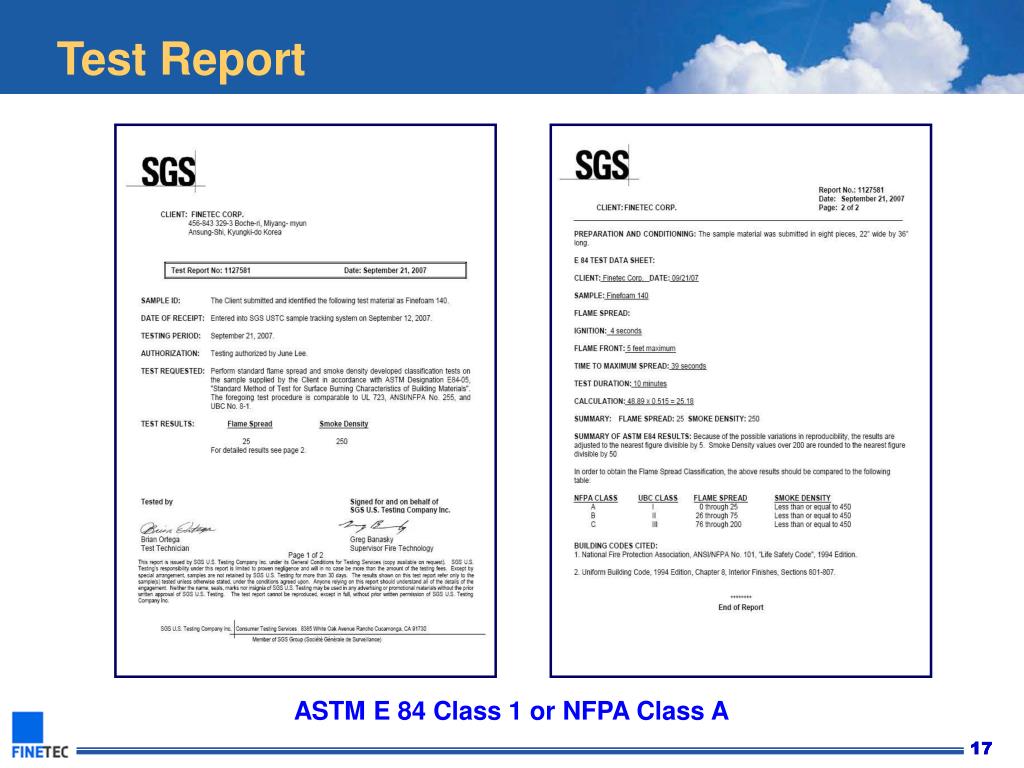

  17. Test Report ASTM E 84 Class 1 or NFPA Class A

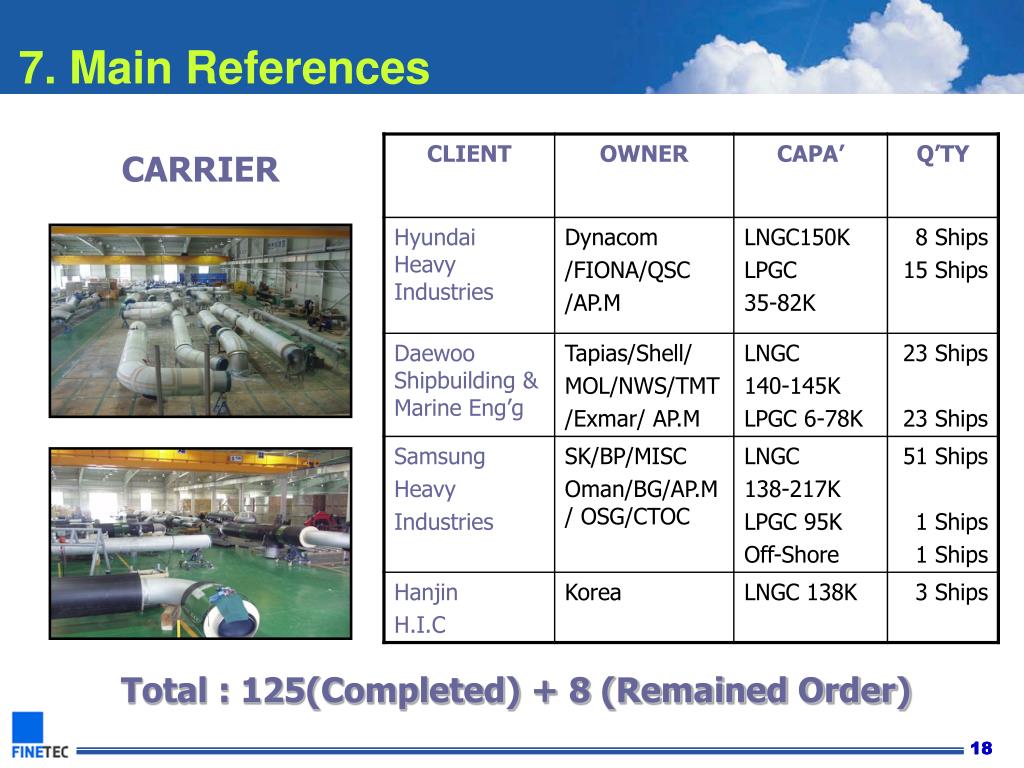

  18. 7. Main References CARRIER Total : 125(Completed) + 8 (Remained Order)

  19. Main References LNG TERMINAL 100% Market share for Domestic PIR business

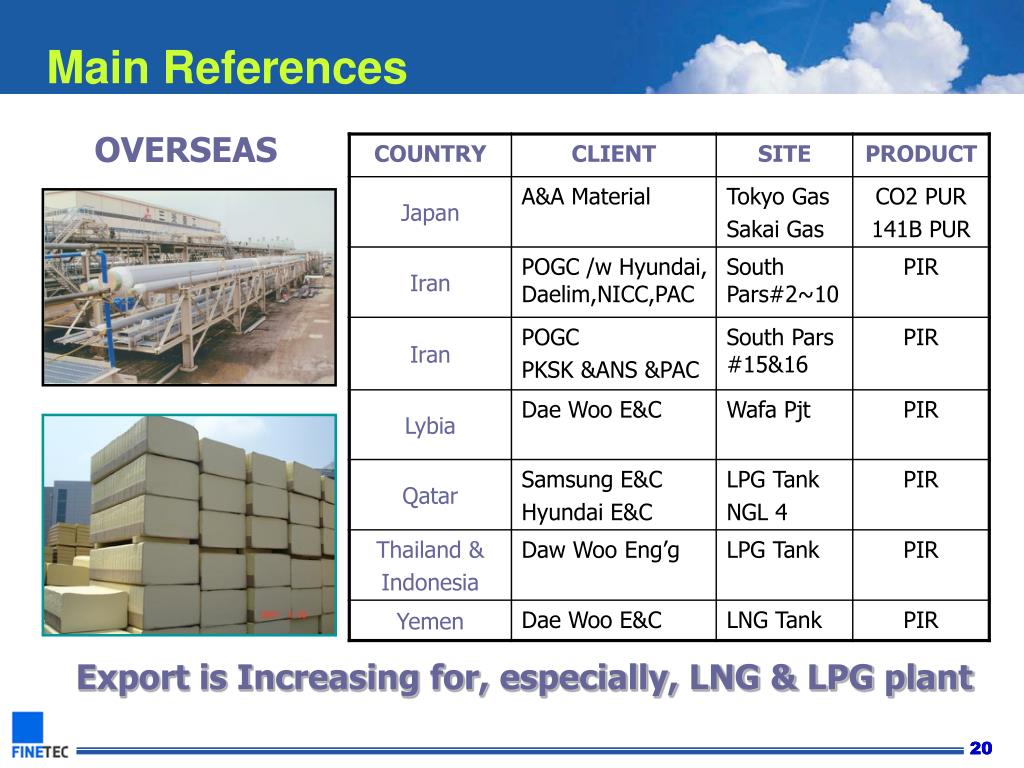

  20. Main References OVERSEAS Export is Increasing for, especially, LNG & LPG plant

  21. THANK YOU VERY MUCH
