Presentation Transcript


Msc linux

10 October 2000

MSC.Linux


Who is msc linux

Who is MSC.Linux?

  • Dedicated MSC.Software Division

    • Core Team Dedicated to Linux

    • Access to Complete MSC.Software Infrastructure

  • Activities

    • Research and Development

    • Business Development

    • Sales and Marketing

    • Support, Services and Training

  • Focus on Extreme Performance for Technical Computing with Linux

  • Own MSC.Linux Distribution


Why linux

Why Linux?

  • Very Cost-Efficient

  • Very Stable, e.g. Web Servers

  • Highly Scalable from Laptops to Extreme Performance Cluster Supercomputing; Customizable

  • Supported by all Major Hardware Vendors

  • Enthusiastic Supporters all around the World, Open Source


Why msc linux

Why MSC.Linux?

  • Strong Worldwide Presence

  • Excellent Relationships with Major Hardware Vendors

  • MSC.Software Understands the Work of Engineers

  • Recognized Leader in High Performance Computing

  • Expertise in:

    • Numerical Performance

    • Distributed & Shared Parallel Computing

    • Application Tuning/Porting

    • Kernel Tuning


Msc linux offerings

MSC.Linux Offerings

  • Software

    • MSC.Linux OS Distribution

    • Engineering Applications

    • Desktop Environment

  • Services

    • Porting

    • Training and Support

    • Embedding Engineering Software into your Processes

  • Appliances

    • 2Go Solutions


Msc linux software

MSC.Linux Software

  • MSC.Linux OS Distribution

    • Best Suited out-of-the-box Linux Distribution for Technical Applications

    • Lean Distribution, for Intel Compatible Computers

    • Compelling Price-Performance

    • Easy to Implement and Support

    • Open Source and Proprietary Contributions

  • Engineering Applications

    • MSC.Software Simulations

    • MSC.Nastran V70.7 R3: DMP, FLEXlm, Large File Support

    • 3rd Party

  • Desktop Environment

    • Tools for the Engineer and Designer (CD!)


Msc linux services

MSC.Linux Services

  • Education, Training and Support

  • Process & Systems Integration

  • IT Services

  • Porting (incl. 3rd Party Software)

  • Tuning

  • Parallel Processing

  • Web Portal http://www.msclinux.com

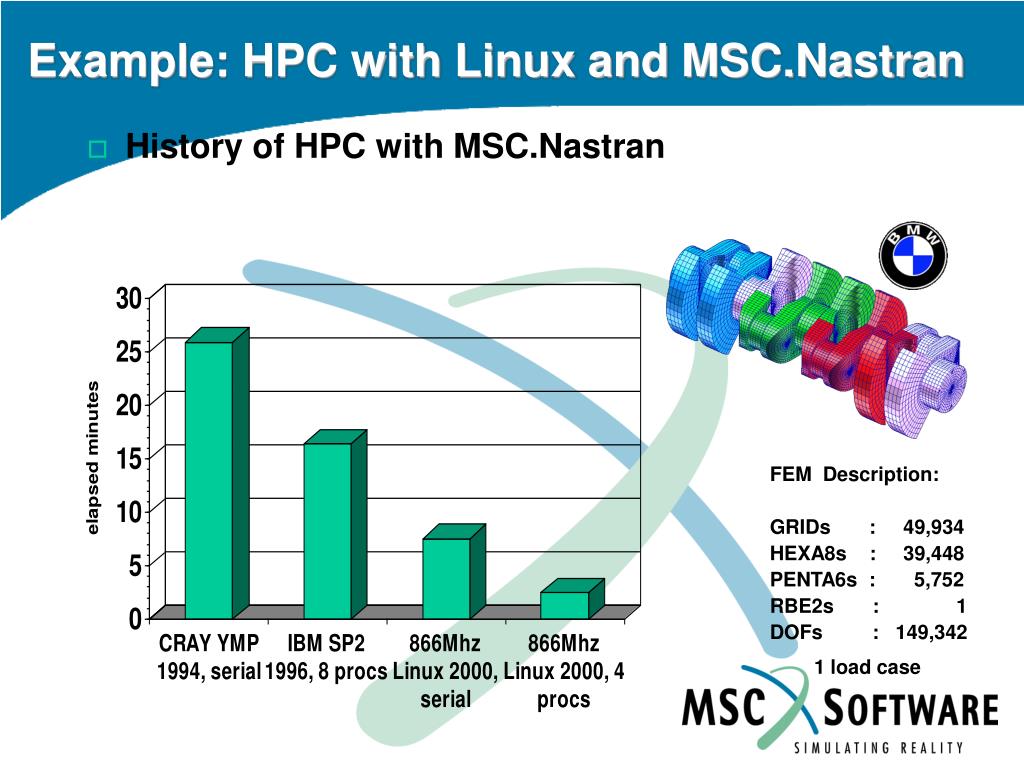

Example hpc with linux and msc nastran

Example: HPC with Linux and MSC.Nastran

  • History of HPC with MSC.Nastran

FEM Description:

GRIDs : 49,934

HEXA8s : 39,448

PENTA6s : 5,752

RBE2s : 1

DOFs : 149,342

1 load case


Example hpc with linux and msc nastran1

Example: HPC with Linux and MSC.Nastran

  • Serial results for large car body structure on Intel hardware

    • MSC’s hardware, OS and application tuning experience is part of MSC’s added value for Linux environments


Example msc marc ddm

Example: MSC.Marc DDM

  • SGI Origin 2000

    • 8x 250MHz (!) R10k

    • 180GB FiberChannel Disks

    • 16GB Memory

  • Linux Cluster

    • 4xHP P-class with 1x866Mhz PIII

    • 4x 1GB Memory

    • 100 Mbit/s network


Msc linux offerings1

MSC.Linux Offerings

  • “Extreme Performance Solutions” for Desktops, Servers and Clusters

  • 2Go Solutions

    • fixed hardware/software bundle to be purchased from MSC

    • special setup for each 2Go program

  • Turnkey Systems

    • hardware and software configuration tailored to customer’s needs

    • Upon customer request, MSC consults on ideal hardware/software combination as recognized leader in High Performance Computing with excellent relationships to all major hardware vendor


Linux clusters

Linux Clusters

Cluster Solution:

  • Master (Head) Node

    • Connected to LAN

    • KVM Switch

  • Compute Nodes

    • optimized for application

  • Communication Backbone

    • Fast Ethernet, Myrinet ...

    • Switch

    • other

  • Software

    • System Administration

    • Queue System

    • MPI


Msc supercomputing

Customer Investment:

Traditional SuperComputing

Range from$500,000.00 to $1.5 M

MSC.SuperComputing on MSC.Linux Clusters

Comparable Solution $200,000.00

MSC.Supercomputing


Msc supercomputing1

Design is the Difference

Computing not everyone can deliver

Application Know-how

Specialized OS

MSC.SuperComputing

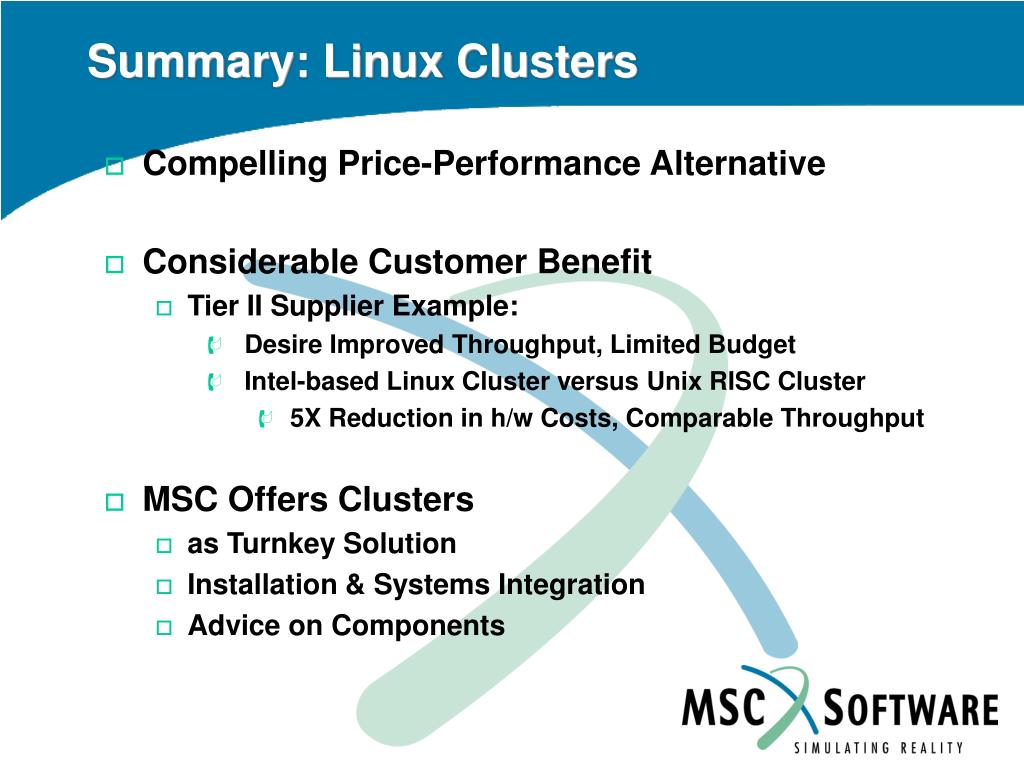

Summary linux clusters

Summary: Linux Clusters

  • Compelling Price-Performance Alternative

  • Considerable Customer Benefit

    • Tier II Supplier Example:

      • Desire Improved Throughput, Limited Budget

      • Intel-based Linux Cluster versus Unix RISC Cluster

        • 5X Reduction in h/w Costs, Comparable Throughput

  • MSC Offers Clusters

    • as Turnkey Solution

    • Installation & Systems Integration

    • Advice on Components


Msc linux opportunities

MSC.Linux Opportunities:

  • Most Customer Applications on Unix Today

    • Can Leverage Investments

    • While Linux Port Easy Versus NT

    • And Retain Benefits of Unix (Solid, Network Perf., Throughput)

  • Can Leverage MSC.Software’s Expertise to Provide

    • Extreme Performance Applications

    • Parallel Processing

    • Porting

    • Services

    • Kernel Tuning as Required

  • Excellent Relationship with Hardware Vendors

  • Worldwide Business Infrastructure
