Lecture 8 Chapter 5

Lecture 8 Chapter 5. Def 5.1 Every local optimum for a LP is a global optimum. Def 5.3 If x is an extreme point of a convex set, then there are no other points y and z in the set such that x lies on the line segment connecting y and z. Extreme Points. Unique LP Optimum.

kylar
Download Presentation

Lecture 8 Chapter 5

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

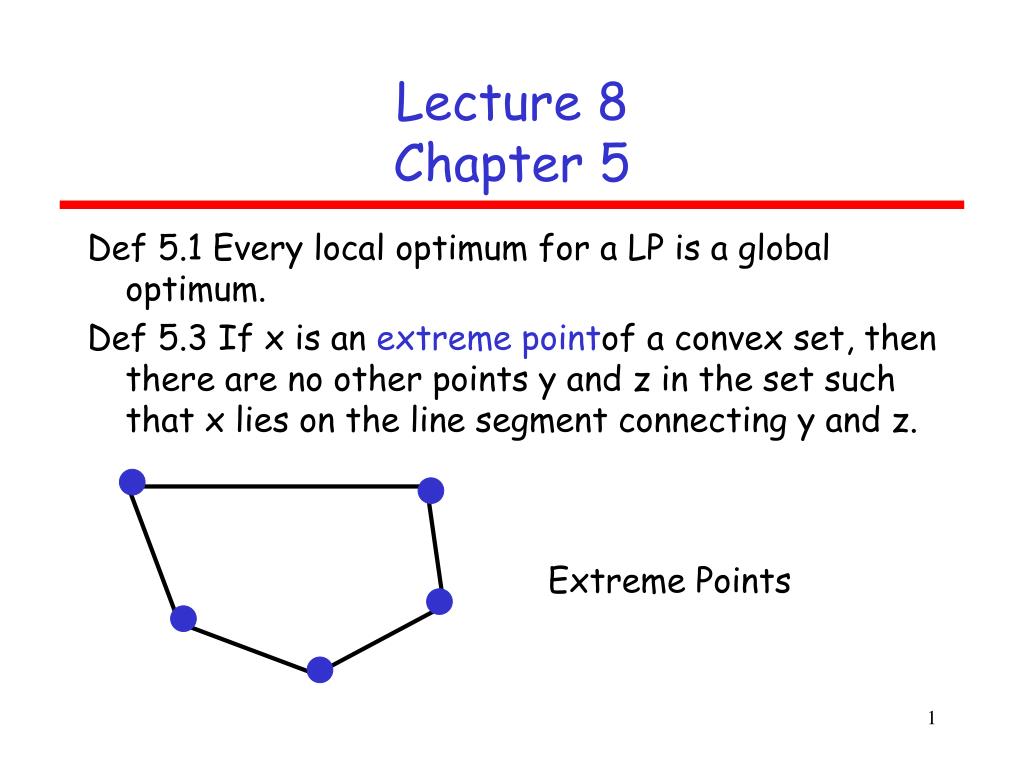

  1. Lecture 8Chapter 5 • Def 5.1 Every local optimum for a LP is a global optimum. • Def 5.3 If x is an extreme pointof a convex set, then there are no other points y and z in the set such that x lies on the line segment connecting y and z. Extreme Points

  2. Unique LP Optimum • Def 5.5 If an LP has an optimum, then it has some extreme point that is an optimum. • (There may be other points that are optimal as well.) Unique Optimal Solution

  3. Infinite Number Of Optimal Solutions • Infinite number of optimal solutions. Do we have an extreme point that is an optimum?

  4. Interior Point That Is An Optimum • Please give an example of a LP that has an interior point as an optimum. Minimize cx What is c, so that red point is an optimum?

  5. Standard Notation For LPs • Minimize j cjxj • Subject to • j aijxj = bi, all i • xj> 0, for all j • Minimixe cx • Subject to • Ax = b • x > 0 Summation Notation Matrix Notation

  6. Converting To Standard Notation • Converting inequalities to equalities • 2x + y < 10, x > 0, y > 0 • Becomes • 2x + y + s = 10, x > 0, y > 0, s > 0 • Try it • x = 3, y = 3.5 • Implies that s must be 0.5 • How do you handle 2x + y > 10, x > 0, y > 0

  7. Solving Systems Of Equations • (Finding The Inverse By Inspection) • Example #1 • X1 + X2 = 10 • -X1 = -5 • -X2 – X3 = -3 • In matrix notation we have Bx = b b = B =

  8. B-1 Is Inverse Of B • BB-1 = I = • Find B-1 by inspection

  9. Matrix Multiply • B B-1 = I • Matrix Multiply: Row r of B time Col c of B-1 • Produces the r,c element of the result

  10. Determine 1st Row • B B-1 = I • Matrix Multiply: Row r of B time Col c of B-1 • Produces the r,c element of the result

  11. Determine 2nd Row • B B-1 = I • Matrix Multiply: Row r of B time Col c of B-1 • Produces the r,c element of the result

  12. Determine 3rd Row • B B-1 = I • Matrix Multiply: Row r of B time Col c of B-1 • Produces the r,c element of the result

  13. Solution To Equations • x = B-1b = = • Check The Solution X1 = 5, X2 = 5, X3 = -2 • X1 + X2 = 10 • -X1 = -5 • -X2 – X3 = -3

  14. Example 2 • X1 + X2 = 10 • -X1 = -2 • X3 = -3 • X4 = -1 • -X2 – X3 – X4 + X5 = 2 • Bx = b

  15. What Row Do We Find First? • B B-1 = I

  16. Row 3 • B B-1 = I

  17. Row 1 • B B-1 = I

  18. Row 2 • B B-1 = I

  19. Row 4 • B B-1 = I

  20. Row 5 • B B-1 = I

  21. Solution • Solution is given by x = B-1b =

  22. Check • X1 = 2, X2 = 8, X3 = -3, X4 = -1, X5 = 6 X1 + X2 = 10 -X1 = -2 X3 = -3 X4 = -1 -X2 – X3 – X4 + X5 = 2

  23. To Solve LPs • To solve linear programs, we have to solve a sequence of systems of equations. Actually, we solve • vB = cB and By = aj • for v any y at each iteration (step). • cB, B, and aj are all original data in the problem.
