  1. Ventilation Intermediate SFFMA Objectives: 8-02.01 – 8-02.05 8Hrs received

  2. SFFMA Objectives Covered

  3. Selecting Place to Ventilate • Ideal situation one with as much information as possible about fire, building, occupancy • Many factors have bearing on where to ventilate (Continued) Firefighter I

  4. Selecting Place to Ventilate • Many considerations before ventilating building Firefighter I

  5. DISCUSSION QUESTION Why is it important for ventilation to be coordinated with other operations such as fire attack? Firefighter I

  6. Vertical Ventilation • Opening roof/existing roof openings for allowing heated gases, smoke to escape • Firefighters must understand basic types, designs of roofs (Continued) Firefighter I

  7. Vertical Ventilation • Firefighters must know how roofs in the response areas are constructed (Continued) Firefighter I

  8. Vertical Ventilation — Preincident Inspections • Identify • New construction projects • Existing construction • Use of lightweight building materials • Information that can alert firefighters Firefighter I

  9. Likelihood of Roof Collapse During Vertical Ventilation • Based on • Volume of fire • How long fire has been burning • Type of construction • Level of protection • Load on roof Firefighter I

  10. Responsibilities During Vertical Ventilation — Officer in Charge • Determine it can be done safely, effectively • Consider age, type of construction • Consider location, duration, extent of fire • Observe safety precautions (Continued) Firefighter I

  11. Responsibilities During Vertical Ventilation — Officer in Charge • Identify escape routes • Select place to ventilate • Move personnel, tools to roof Firefighter I

  12. Responsibilities During Vertical Ventilation — Leader on Roof • Ensure roof safe to operate on • Ensure only required openings made • Direct efforts to minimize secondary damage • Coordinate crew’s efforts with firefighters inside building (Continued) Firefighter I

  13. Responsibilities During Vertical Ventilation — Leader on Roof • Ensure safety of all personnel • Ensure team leaves roof as soon as assignment completed Firefighter I

  14. Safety Precautions During Vertical Ventilation • Check wind direction with relation to exposures • Work with wind at back/side to provide protection while cutting • Note existence of roof obstructions/excessive weight on roof (Continued) Firefighter I

  15. Safety Precautions During Vertical Ventilation • Provide secondary means of escape for crews (Continued) Firefighter I

  16. Safety Precautions During Vertical Ventilation • Ensure main structural components not cut while creating opening • Guard opening to prevent personnel falling into it • Evacuate roof promptly when ventilation complete (Continued) Firefighter I

  17. Safety Precautions During Vertical Ventilation • Use lifelines, roof ladders, other means to prevent sliding/falling • Make sure roof ladder (if used) firmly secured over roof’s peak • Exercise caution when working around electric, guy wires (Continued) Firefighter I

  18. Safety Precautions During Vertical Ventilation • Ensure all personnel on roof wear full PPE including SCBA • Keep other firefighters out of range of those swinging axes, operating saws • Caution axe users to be aware of overhead obstructions (Continued) Firefighter I

  19. Safety Precautions During Vertical Ventilation • Start power tools on ground to ensure operation; shut off before hoisting/carrying to roof • Extend ladders 3-5 rungs above roof line, secure ladder • When operating from aerial ladder platforms, floor of platform even with/slightly above roof level (Continued) Firefighter I

  20. Safety Precautions During Vertical Ventilation • Check roof for structural integrity before stepping on, continue sounding throughout operation (Continued) Firefighter I

  21. Safety Precautions During Vertical Ventilation • Always walk on bearing walls, strongest points of roof structure • Ensure ceilings punched through to enhance ventilation Firefighter I

  22. Unsafe Roof — Warning Signs • Melting asphalt • Spongy Roof • Smoke coming from roof • Fire coming from roof Firefighter I

  23. DISCUSSION QUESTION What should you do if you are assigned to ventilate a roof and find warning signs present? Firefighter I

  24. Roof Coverings • Part of roof exposed to weather • Types • Some susceptible to ignition from sparks, burning embers; others not • Some have coating of insulating material Firefighter I

  25. Existing Roof Openings • Sometimes used for vertical ventilation • Rarely in best location/large enough • Usually supplement cut holes (Continued) Firefighter I

  26. Existing Roof Openings • Scuttle hatches • Skylights • Monitors • Ventilating shafts • Penthouse/bulkhead doors Firefighter I

  27. General Ventilation Considerations for Roofs • Square/rectangular opening easier to cut, easier to repair • One large opening better than several small Firefighter I

  28. Flat Roofs • Commonly found on commercial, industrial, apartment buildings • Common on many single-family residences (Continued) Firefighter I

  29. Flat Roofs • May/may not have slight slope for drainage • Frequently penetrated by chimneys, vent pipes, etc. • May be surrounded and/or divided by parapets (Continued) Firefighter I

  30. Flat Roofs • May support water tanks, HVAC equipment, etc. • Structural part • Decking • Construction materials determine equipment necessary to ventilate Firefighter I

  31. Pitched Roofs • Among most common are those elevated in center along ridge with roof deck sloping down to eaves along roof edges (Continued) Firefighter I

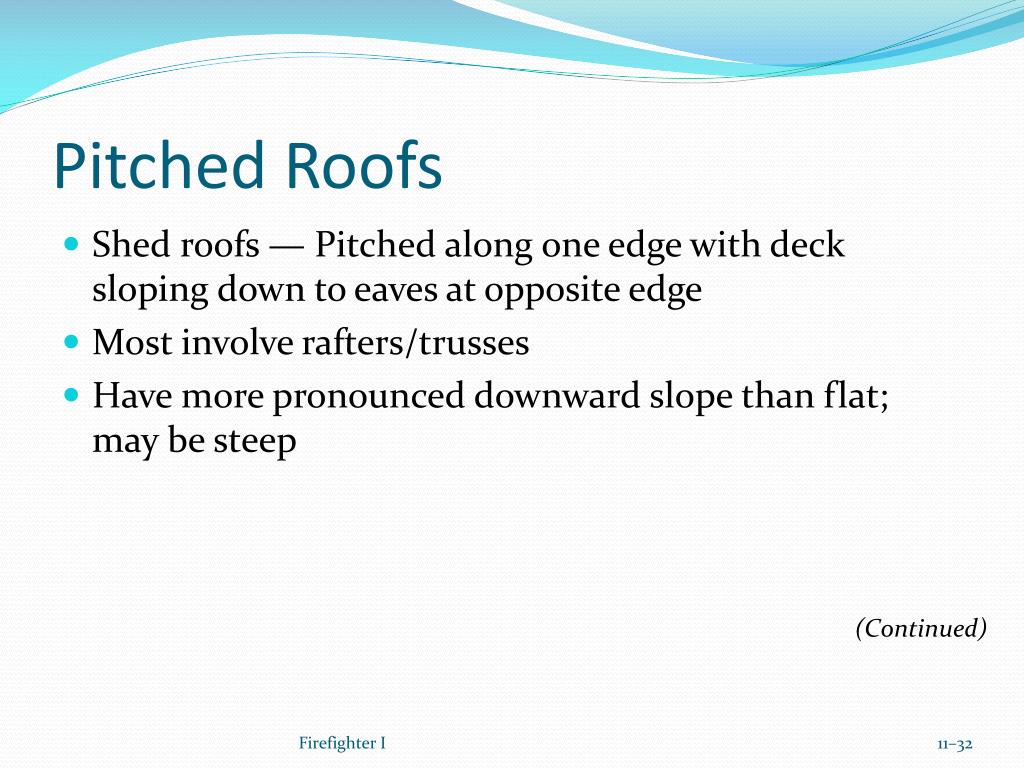

  32. Pitched Roofs • Shed roofs — Pitched along one edge with deck sloping down to eaves at opposite edge • Most involve rafters/trusses • Have more pronounced downward slope than flat; may be steep (Continued) Firefighter I

  33. Pitched Roofs • Procedures for opening similar to flat roofs; precautions must be taken to prevent slipping • Some types may require different opening techniques Firefighter I

  34. Arched Roofs • Can span large open areas unsupported by pillars/posts • One type uses bowstring trusses (Continued) Firefighter I

  35. Arched Roofs • Lamella or trussless arched roofs (Continued) Firefighter I

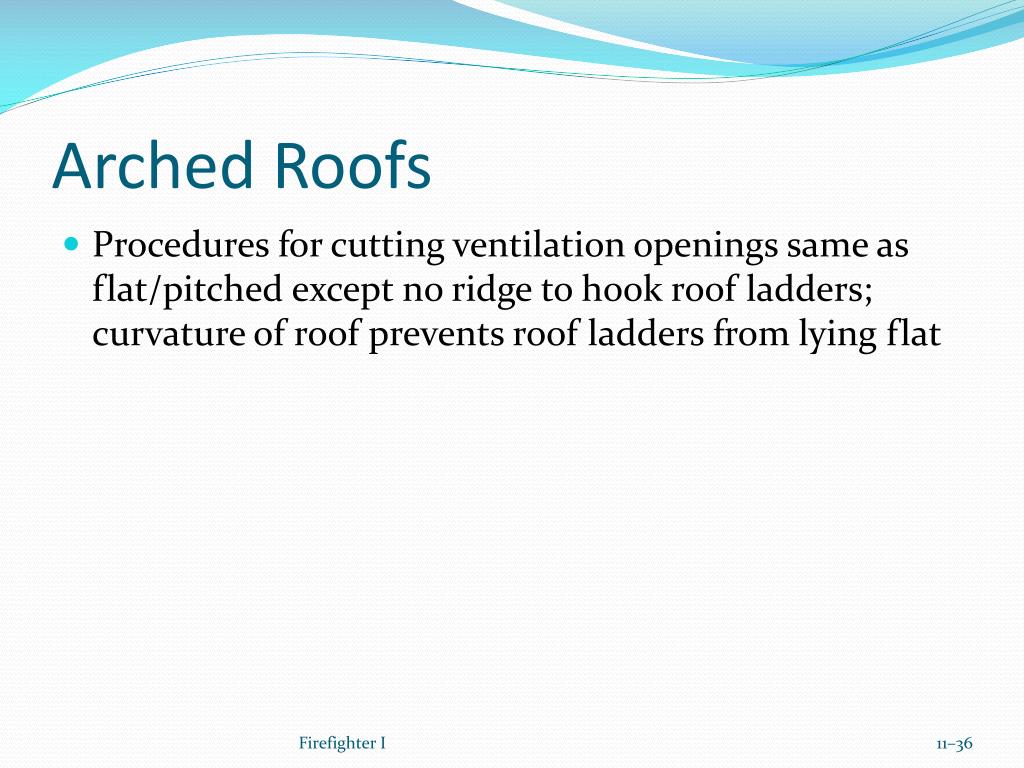

  36. Arched Roofs • Procedures for cutting ventilation openings same as flat/pitched except no ridge to hook roof ladders; curvature of roof prevents roof ladders from lying flat Firefighter I

  37. Precast Concrete Roofs • Can be fabricated off-site • Available in many shapes, sizes, designs • Some use lightweight material (Continued) Firefighter I

  38. Precast Concrete Roofs • Lightweight usually finished with roofing felt and mopping of hot tar • Extremely difficult to break through • Existing openings should be used for ventilation on heavy roofs Firefighter I

  39. Poured-In Place Concrete Roofs • Some lightweight concrete roof decks poured in place over permanent form boards, steel roof decking, paper-backed mesh, or metal rib lath (Continued) Firefighter I

  40. Poured-In Place Concrete Roofs • Relatively easy to penetrate • Some can be penetrated with hammer-head pick or power saw with concrete blade • Heavier roofs require jackhammer/diamond-tipped chain saw Firefighter I

  41. Metal Roofs • Made from several different kinds of metal; constructed in many styles (Continued) Firefighter I

  42. Metal Roofs • Light-gauge steel roof decks can be supported on steel frameworks/laid over existing roof • Light-gauge cold-formed steel sheets used primarily for industrial buildings (Continued) Firefighter I

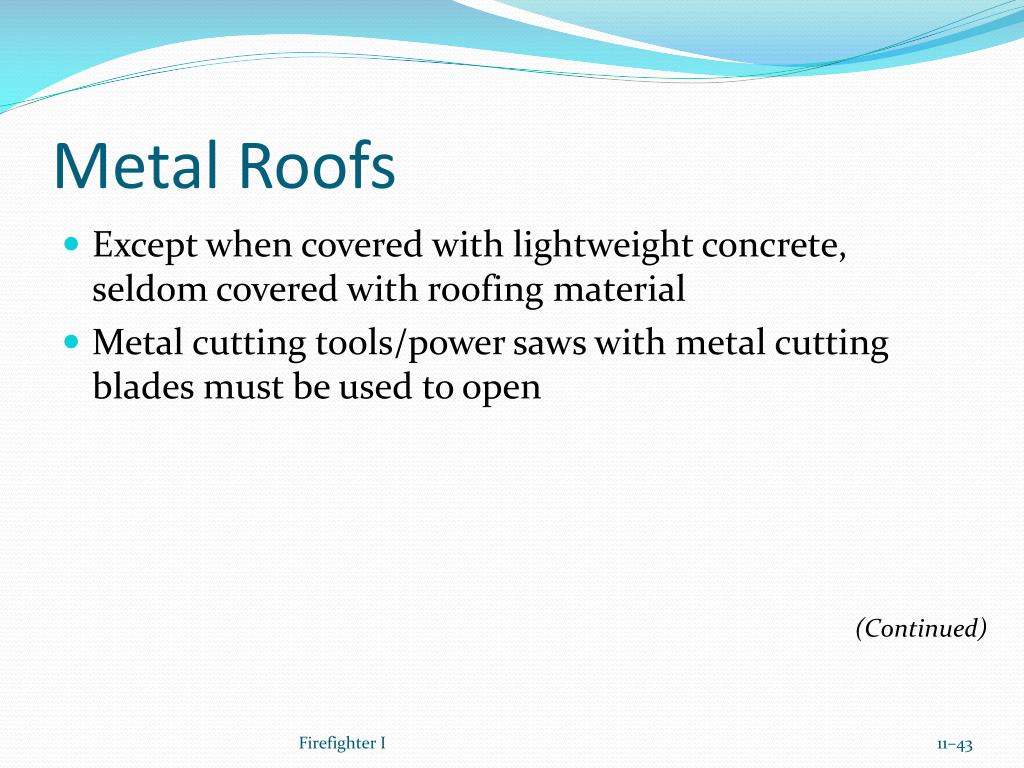

  43. Metal Roofs • Except when covered with lightweight concrete, seldom covered with roofing material • Metal cutting tools/power saws with metal cutting blades must be used to open (Continued) Firefighter I

  44. Metal Roofs • Often penetrated by roof openings • Older buildings may have roofs made of large pieces of sheet metal laid over skip sheathing Firefighter I

  45. DISCUSSION QUESTION What are some examples of occupancies in your area? How would these occupancies need to be addressed when ventilating the building? Firefighter I

  46. Trench Ventilation (Strip Ventilation) • Used to stop spread of fire in long, narrow structure (Continued) Firefighter I

  47. Trench Ventilation (Strip Ventilation) • Performed by cutting large opening at least 4 feet (1.2 m) wide extending from one exterior wall to opposite exterior wall • Often, large ventilation opening is cut between trench cut and fire Firefighter I

  48. Mechanical Ventilation • Forced ventilation is accomplished using mechanical ventilation • Tools to complete mechanical ventilation: • Fans • Gas Fans • Electric Fans • Blowers
