  1. Principles of Stochastic Discrimination and Ensemble Learning ICPR 2006 Tin Kam Ho Bell Laboratories Lucent Technologies

  2. Supervised Classification Discrimination, Anomaly Detection

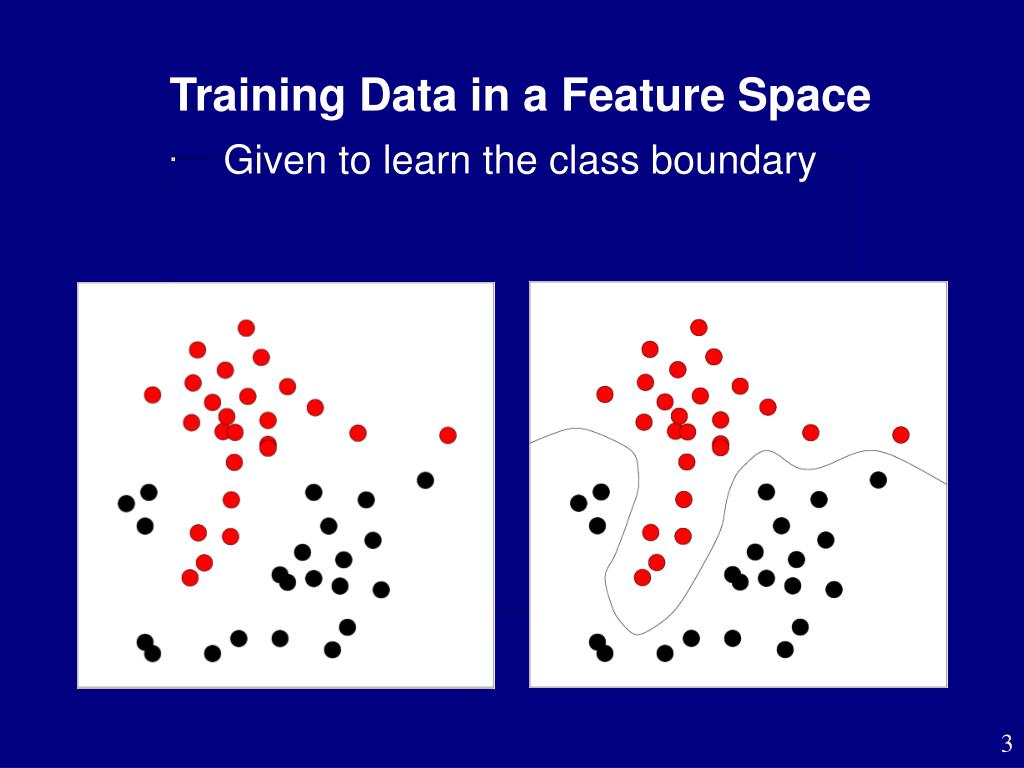

  3. Training Data in a Feature SpaceGiven to learn the class boundary

  4. Modeling the Classes Stochastic Discrimination

  5. Stochastic Discrimination • Make random guesses of the class models • Use the training set to evaluate them • Select and combine them to build a classifier … “decision fusion” But, does it work? Will any set of random guesses do it? Under what conditions does it work?

  6. History • Mathematical theory [Kleinberg 1990 AMAI, 1996 AoS, 2000 MCS] • Development of theory [Berlind 1994 Thesis, Chen 1997 Thesis] • Algorithms, experimentation, variants: [Kleinberg, Ho, Berlind, Bowen, Chen, Favata, Shekhawat, 1993 -] • Outlines of algorithm [Kleinberg 2000 PAMI] • Papers available athttp://kappa.math.buffalo.edu/sd

  7. Part I. The SD Principles.

  8. Key Concepts and Tools in SD • Set-theoretic abstraction • Symmetry of probabilities in model space and feature space • Enrichment / Uniformity / Projectability • Convergence of discriminant by the law of large numbers

  9. Set-Theoretic Abstraction • Study classifiers by their decision regions • Ignore all algorithmic details • Two classifiers are equivalent if their decision regions are the same

  10. The Combinatorics:set covering

  11. Covering5 points{A,B,C,D,E} using size 3 models{m1,…}

  12. Promoting uniformity of coverage

  13. Promoting uniformity of coverage

  14. A Uniform Cover of5 points{A,B,C,D,E} using 10 models{m1,…,m10}

  15. Uniformity Implies Symmetry:The Counting Argument Count the number of pairs (q,m) such that “model m covers point q”, call this number N If each point is covered by the same number  of models (the collection is a uniform cover), N = 5 points in space x  covering models for each point = 3 points in each model x  models in the collection 5 = 3  =>  /  = 3 / 5 ( = 6,  = 10)

  16. Example • Given a feature space F containing a set A with 10 points: • Consider all subsets m of F that cover exactly 5 points of A, e.g., m = {q1, q2, q6, q8, q9} • Each model m has captured 5/10 = 0.5 of A ProbF (q m| q  A) = 0.5 • Call this set of models M 0.5, A q0 q1 q2 q3 q4 q5 q6 q7 q8 q9

  17. Some Members of M 0.5, A

  18. q0 q1 q2 q3 q4 q5 q6 q7 q8 q9 01234 01235 01236 23456 12678 13579

  19. There are C(10,5) = 252 models in M 0.5, A • Permute this set randomly to give m1,m2,…,m252

  20. First 10 Items Listed by the indices i of qi

  21. Make collections of increasing size M1 = {m1} M2 = {m1, m2} … M252 = {m1, m2, …, m252} • For each point q in A, count how many members of each Mt cover q • Normalize the count by size of Mt, obtain Y(q,Mt) = ---  Cmk(q) = ProbM (q m| m  Mt) where Cm(q) = 1 if q  m, = 0 otherwise t 1 t k=1

  22. The Y table continues … As t goes to 252, Y values become …

  23. Trace the value of Y(q, Mt) for each q as t increases • Values of Y converge to 0.5 • They are very close to 0.5 far before t=252

  24. When t is large, we have Y(q,Mt) = ProbM (q m| m  Mt) = 0.5 = ProbF (q m| q  A) • We have a symmetry of probabilities in two different spaces: M and F • This is due to the uniform coverage of Mt on A i.e., any two points in A are covered by the same number of models in Mt

  25. Two-class discrimination • Label points in A with 2 classes: TR1= {q0, q1, q2, q7, q8} TR2 = {q3, q4, q5, q6, q9} • Calculate a rating of each model m for each class: r1= ProbF (q m| q TR1) r2 = ProbF (q m| q TR2) q0 q1 q2q3 q4 q5 q6q7 q8q9

  26. Enriched Models • Ratings r1and r2 describe how well m is in capturing classes c1 and c2 as observed with TR1 and TR2 r1 (m) = ProbF (q m| q TR1) r2(m) = ProbF (q m| q TR2) e.g. m = {q1, q2, q6, q8, q9} r1 (m) = 3/5 enrichment degree d12(m) = r2(m) = 2/5 r1(m)-r2(m) = 0.2 q0 q1 q2q3 q4 q5 q6q7 q8q9

  27. The Discriminant • Recall Cm(q) = 1 if q  m, = 0 otherwise • Define X12 (q,m) = ------------------ • Define a discriminant Y12 (q,Mt) = --- X12 (q,mk) Cm(q) – r2(m) r1(m) – r2(m) t 1 t k=1

  28. The Y table continues … q0 q1 q2q3 q4 q5 q6q7 q8q9 As t goes to 252, Y values become …

  29. Trace the value of Y(q, Mt) for each q as t increases • Values of Y converge to 1 or 0 (1 for TR1, 0 for TR2) • They are very close to 1 or 0 far before t=252

  30. Why? Cm(q) – r2(m) X12 (q,m) = Cm(q) X12 (q,m) = ------------------ r1(m) – r2(m) t Y12 (q,Mt) = --- X12 (q,mk) 1 t k=1

  31. Profile of Coverage • Find the fraction of models of each rating that cover a fixed point q f Mt, r1, TR1(q) and f Mt, r2, TR2(q) • Since Mt is expanded in a uniform way, as t increases, for all x, f Mt, x, TRi(q)  x

  32. Ratings of m in Mt We have models of 6 different “types”

  33. Profile of Coverage of q0 at t=10 m3,m5.m10 m2,m8

  34. Ratings of m (repeated for reference)

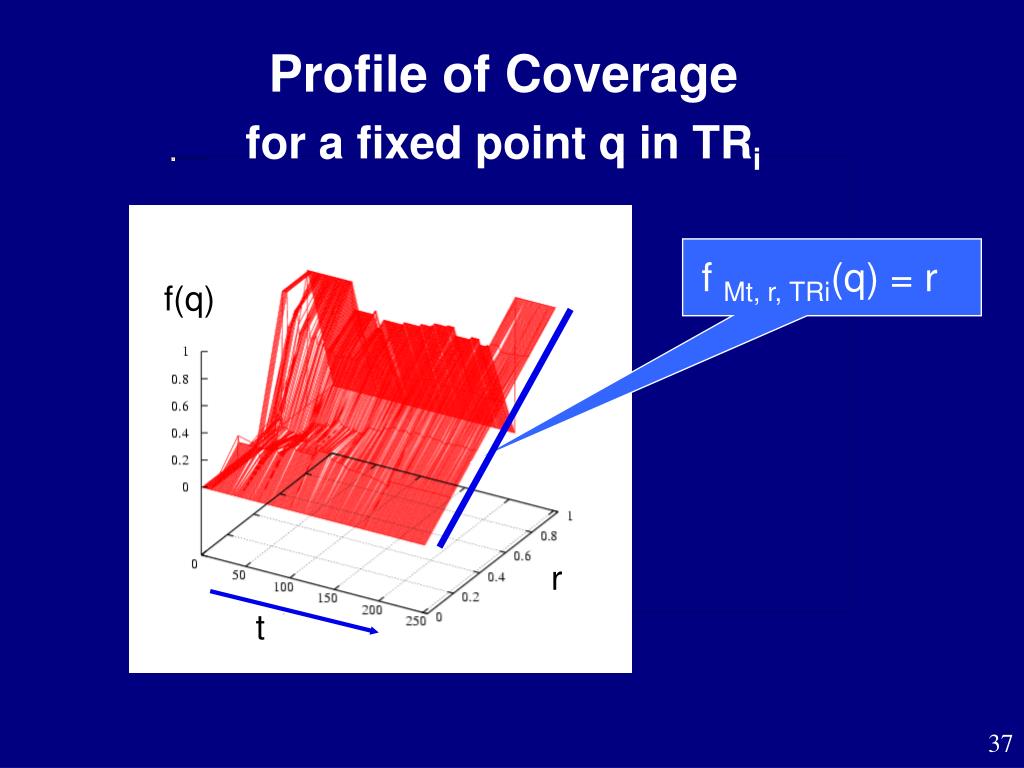

  35. Profile of Coverage for a fixed point q in TRi f Mt, r, TRi(q) = r f(q) r t

  36. Profile of coverage as a function of r1: f Mt, r1, TR1(q) q0 q1 q2 q3 q4 q5 q6q7 q8q9 Profile of coverage as a function of r2: f Mt, r2, TR2(q) q0 q1 q2 q3 q4 q5 q6q7 q8q9

  37. Profile of coverage as a function of r1: f Mt, r1, TR1(q) q0 q1 q2 q3 q4 q5 q6q7 q8q9 Profile of coverage as a function of r2: f Mt, r2, TR2(q) q0 q1 q2 q3 q4 q5 q6q7 q8q9

  38. Decomposition of Y Duality due to uniformity Can be shown to be 0 for qTR2 in a similar way.

  39. Projectability of Models • If F has more than the training points q: • If the models m are larger – not only including the q points but also their neighboring p, the same discriminant Y12can be used to classify the p points • The points p and q are Mt-indiscernible q0,p0 q1,p1 q2,p2q3,p3 q4,p4 q5,p5 q6,p6q7,p7 q8,p8q9,p9

  40. Example Definition of a Model q0,p0 q1,p1 q2,p2q3,p3 q4,p4 q5,p5 q6,p6q7,p7 q8,p8q9,p9   Points within m are m-indiscernible

  41. M-indiscernibility • Two points cannot be distinguished w.r.t. the definition of m • Within the descriptive power of m, the two points are considered the same • Berlind’s hierarchy of indiscernibility m B A Points A, B within m are m-indiscernible

  42. M-Indiscernibility:similarity w.r.t. a specific criterion • Give me a book similar to this one. • A clone? • A photocopy on loose paper? • A translation? • Another adventure story? • Another paperback book? • …

  43. Simulated vs. Real-World Data • Model based anomaly detection • How much of the real-world do we need to reproduce in the simulator? • What properties is our discriminator sensitive to by construction? • Which ones are don’t-cares? • How do we measure the success? “Transductive learning”: no estimation of underlying distributions. Good as long as you can make correct predictions.

  44. In the SD method:Model Size and Projectability • Points within the same model share the same interpretation • Larger models -> more stable the ratings are w.r.t. sampling differences -> more similar classification between TR and TE • Tradeoff with ease to achieve uniformity

  45. Some Possible Forms of Weak Models Choice of model form can be based on domain knowledge: What type of local generalization is expected?

  46. Enrichment and Convergence • Larger enrichment degree -> smaller variance in X -> Y converges faster • But, models with large enrichment degree are more difficult to obtain • Thus it is more difficult to achieve uniformity

  47. Enrichment Uniformity Projectability The 3-way Tension

  48. The 3-way Tension, in more familiar terms Enrichment: Discriminating Power Uniformity: Projectability: Complementary Information Generalization Power
