Human Identity Recognition in Aerial Images

1. Human Identity Recognition in Aerial Images Omar Oreifej RaminMehran Mubarak Shah CVPR 2010,  June Computer Vision Lab of UCF

2. Outline • Introduction • Challenges • Problem Definition • Weighted Region Matching (WRM) • Pre-processing steps • Human Detection • Blob Extraction • Alignment • Measuring the Distance Between Blobs • Determining the Voter’s Weight • Experiments and Results

3. Introduction • Identity recognition from aerial platforms is a daunting task. • Highly variant features in different poses • Vanish details under low quality images • In tracking, objects are usually considered to have small displacements between observations. • Mean Shift [4] • Kalman filter-based tracking • with long temporal gaps, all assumptions of the continuous motion models become weak

4. Challenges • Low quality images • High pose variations • Possibility of high density crowds • We employ a robust region-based appearance matching.

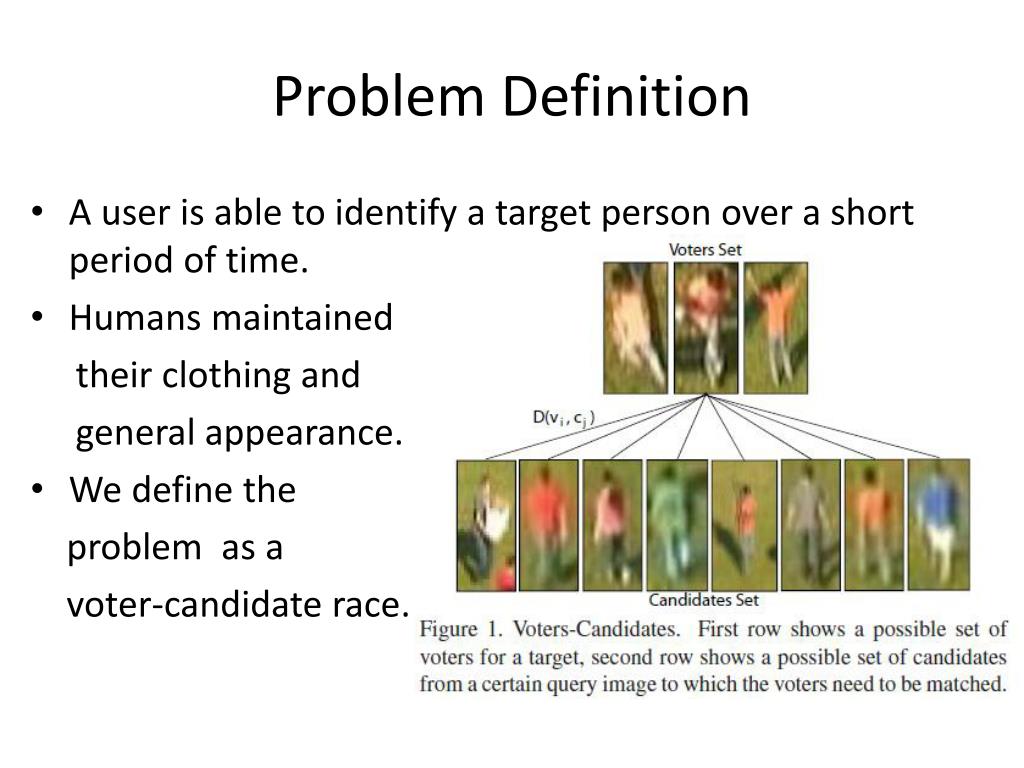

5. Problem Definition • A user is able to identify a target person over a short period of time. • Humans maintained their clothing and general appearance. • We define the problem as a voter-candidate race.

6. Weighted Region Matching (WRM) where P(vi) is the voter’s prior.

7. Weighted Region Matching (WRM) • Equation (1) can be rewritten in a form similar to a mixture of Gaussians: • where τ is a constant parameter • Provide a robust representation of the distance between every voter-candidate pair. • Specify the weight of every voter.

8. Human Detection • We train a SVM classifier based on the HOG descriptor [6]. • 6000 positive images: • humans at different scales and poses • 6000 negative examples: • the background and non-human objects • Train over a subset of 9000. • Validation using the rest of the dataset.

9. Blob Extraction • The background regions contained in the bounding boxes do not provide any information about a specific person. • Segmentation method: kernel density estimator [12, 15] Estimate the pdf directly from the data without any assumptions about the underlying distributions.

10. Alignment • To eliminate the variations from camera orientation and human pose. • Edge detection is noisy. • A coarse alignment: • eight point head, shoulders and torso (HST) model • The model captures the basic orientation of the upper part of the body.

11. Alignment • Find the best fit of the HST model over human blobs • we train an Active Appearance Model (AAM)

12. Alignment • We employ to compute an affine transformation to a desired pose. • Align all the blobs to the mean pose generated by the AAM training set.

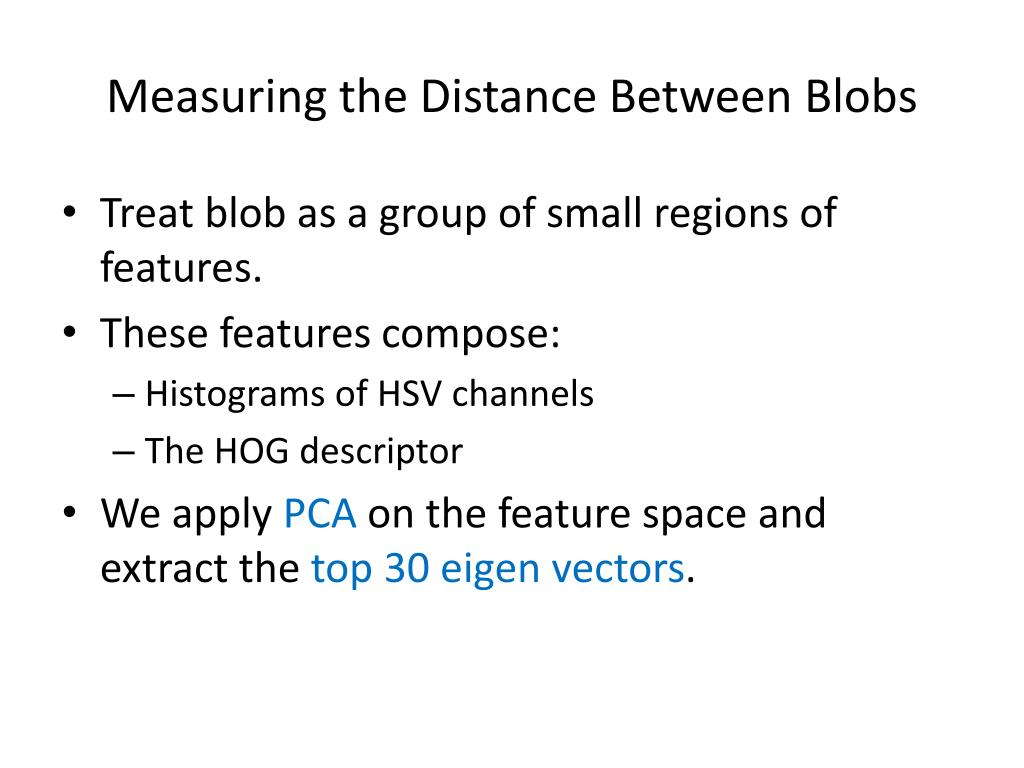

13. Measuring the Distance Between Blobs • Treat blob as a group of small regions of features. • These features compose: • Histograms of HSV channels • The HOG descriptor • We apply PCA on the feature space and extract the top 30 eigen vectors.

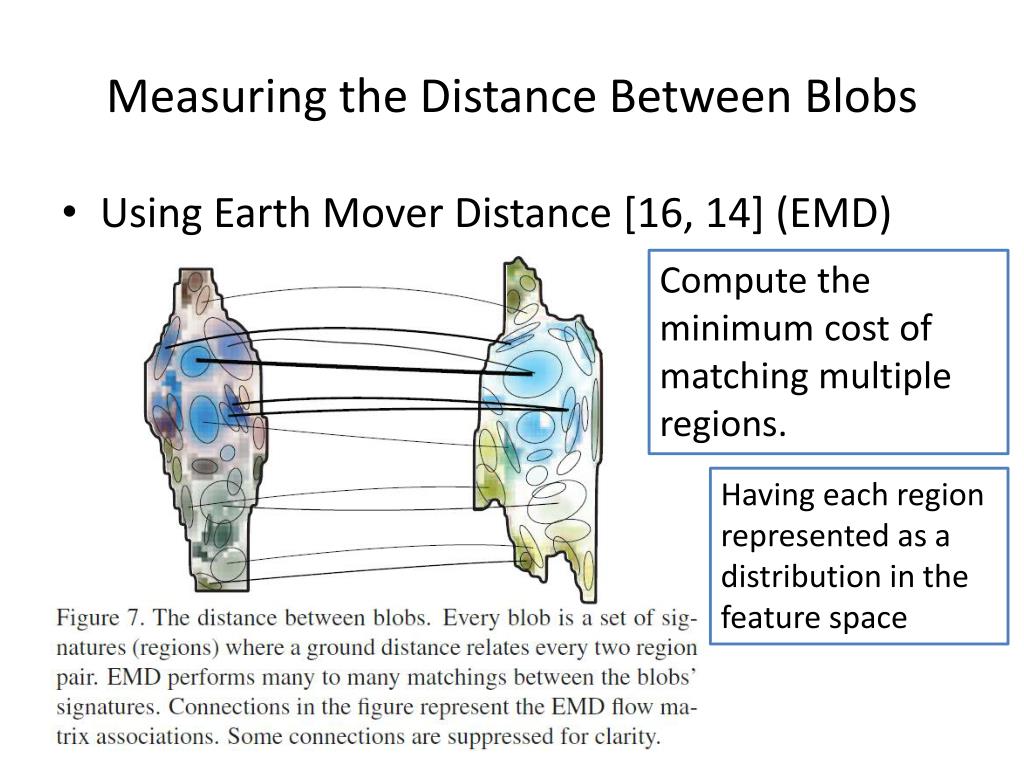

14. Measuring the Distance Between Blobs • Using Earth Mover Distance [16, 14] (EMD) Compute the minimum cost of matching multiple regions. Having each region represented as a distribution in the feature space

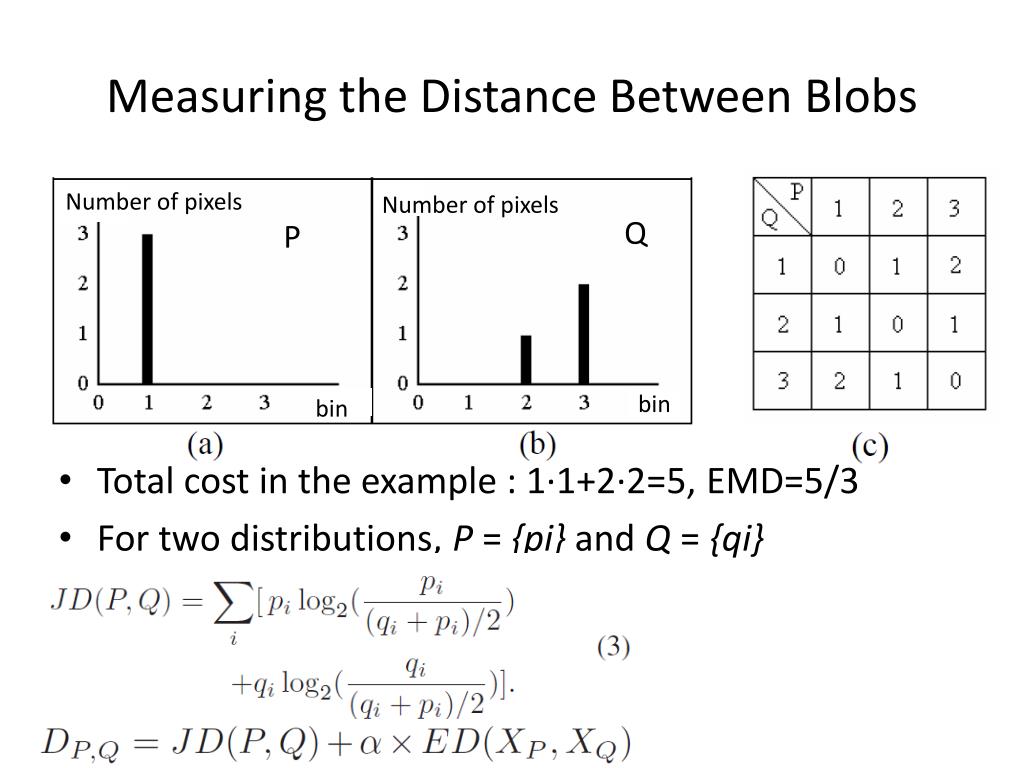

15. Measuring the Distance Between Blobs Number of pixels Number of pixels • Total cost in the example : 1·1+2·2=5, EMD=5/3 • For two distributions, P = {pi} and Q = {qi} Q P bin bin

16. Determining the Voter’s Weight • We rank the collection of input images according to the value of information. • Given the set of regions from all voters, R = {rk} • We assign a weight for every region such that the most consistent regions are given higher weights • Use the PageRank algorithm [3]

17. PageRank VisualRank: Applying PageRank to Large-Scale Image Search,余償鑫 • Conception • Vote • based on a random walk algorithm A B D C PR(A) = PR(B) + PR(C) + PR(D)

18. PageRank VisualRank: Applying PageRank to Large-Scale Image Search,余償鑫 A B C D

19. PageRank VisualRank: Applying PageRank to Large-Scale Image Search,余償鑫

20. In G, we connect every region from voter ito the K nearest neighbor regions of voter j where i != j. The final weight for a region rk: PR Region size the voter’s weight wi= normalized sum of weights of its regions

21. Matching • Substituting the distances and the weights in equation 2, we compute a probability for every candidate to belong to the target. • The best match should be the candidate with the highest probability.

22. Experiments and Results

23. Experiments and Results

24. Experiments and Results
