Presentation Transcript


Nvr simple calculator main window

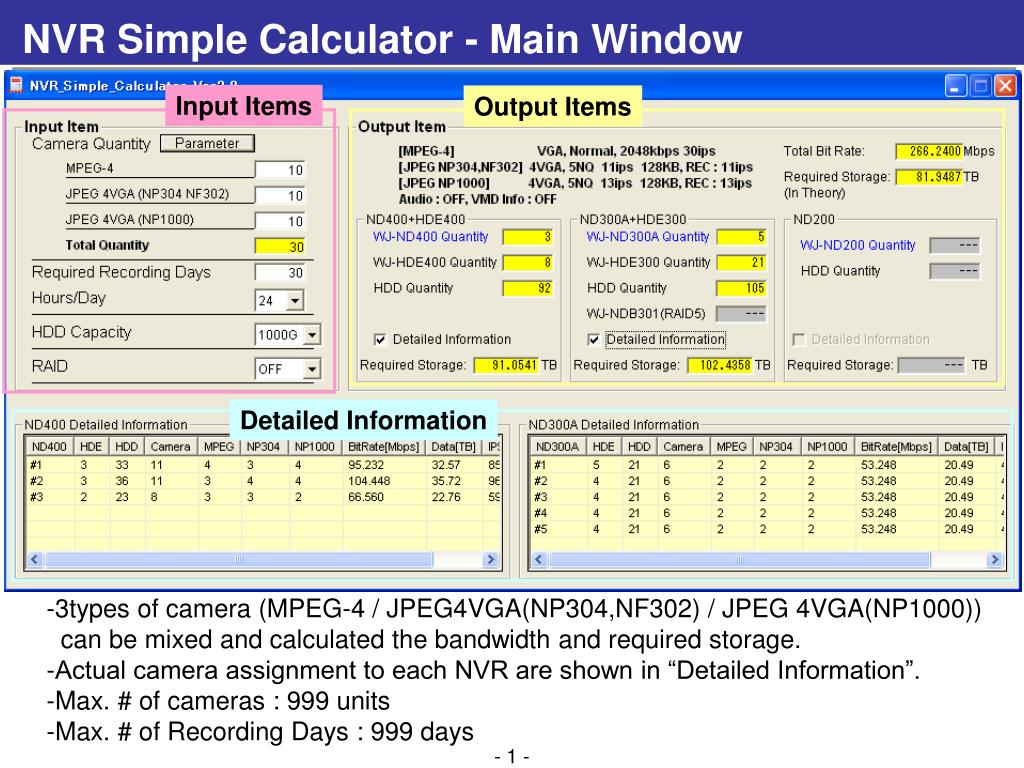

NVR Simple Calculator - Main Window

Input Items

Output Items

Detailed Information

  • 3types of camera (MPEG-4 / JPEG4VGA(NP304,NF302) / JPEG 4VGA(NP1000))

  • can be mixed and calculated the bandwidth and required storage.

  • Actual camera assignment to each NVR are shown in “Detailed Information”.

  • Max. # of cameras : 999 units

  • Max. # of Recording Days : 999 days

- 1 -


Nvr simple calculator main window1

NVR Simple Calculator - Main Window

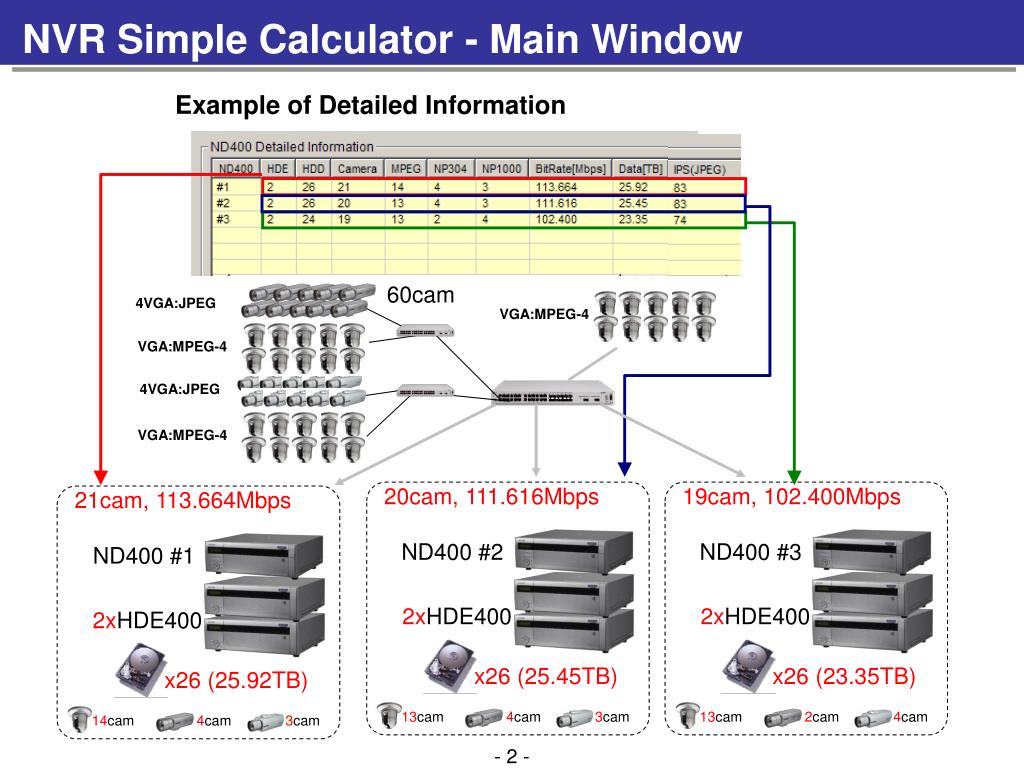

Example of Detailed Information

60cam

4VGA:JPEG

VGA:MPEG-4

VGA:MPEG-4

4VGA:JPEG

VGA:MPEG-4

20cam, 111.616Mbps

19cam, 102.400Mbps

21cam, 113.664Mbps

ND400 #2

ND400 #3

ND400 #1

2xHDE400

2xHDE400

2xHDE400

x26 (25.45TB)

x26 (23.35TB)

x26 (25.92TB)

13cam

4cam

3cam

13cam

2cam

4cam

14cam

4cam

3cam

- 2 -


Nvr simple calculator parameter window

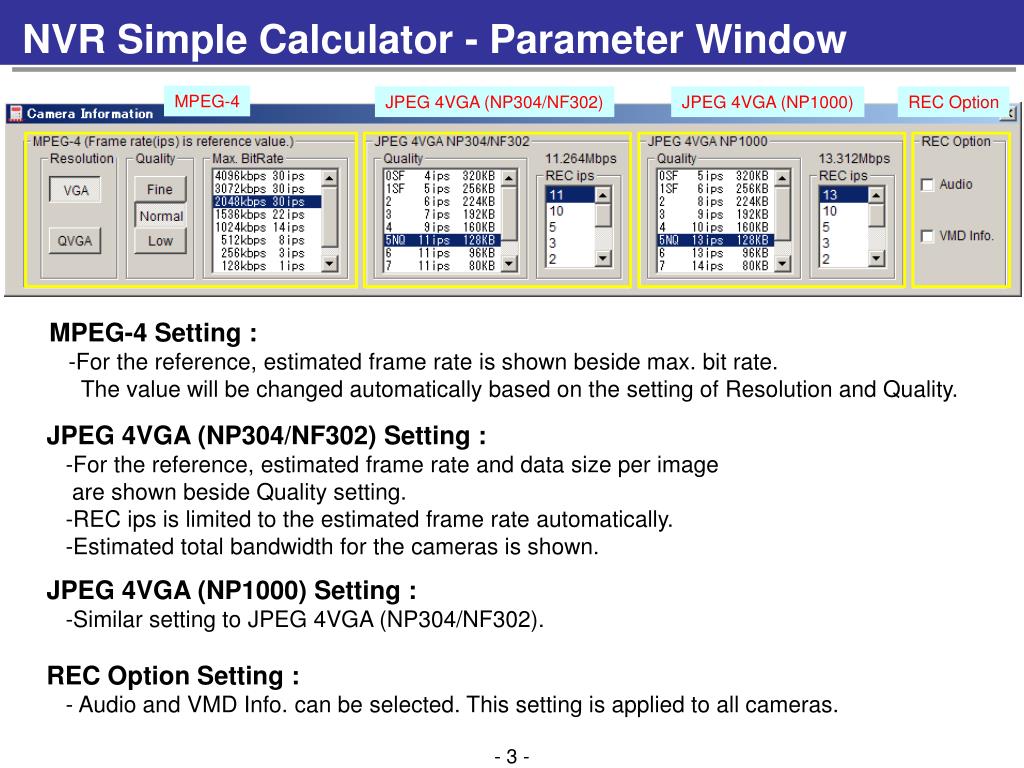

NVR Simple Calculator - Parameter Window

MPEG-4

JPEG 4VGA (NP304/NF302)

JPEG 4VGA (NP1000)

REC Option

MPEG-4 Setting :

-For the reference, estimated frame rate is shown beside max. bit rate.

The value will be changed automatically based on the setting of Resolution and Quality.

JPEG 4VGA (NP304/NF302) Setting :

-For the reference, estimated frame rate and data size per image

are shown beside Quality setting.

-REC ips is limited to the estimated frame rate automatically.

-Estimated total bandwidth for the cameras is shown.

JPEG 4VGA (NP1000) Setting :

-Similar setting to JPEG 4VGA (NP304/NF302).

REC Option Setting :

- Audio and VMD Info. can be selected. This setting is applied to all cameras.

- 3 -


Nvr simple calculator preface and features

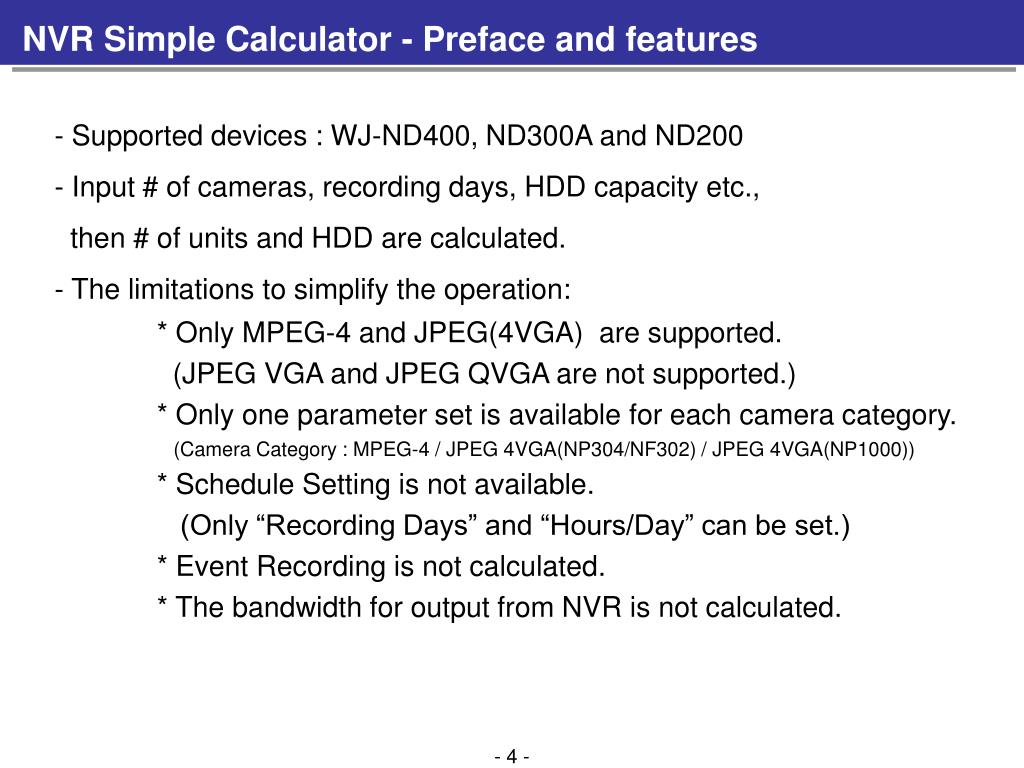

NVR Simple Calculator - Preface and features

  • - Supported devices : WJ-ND400, ND300A and ND200

  • Input # of cameras, recording days, HDD capacity etc.,

  • then # of units and HDD are calculated.

  • - The limitations to simplify the operation:

  • * Only MPEG-4 and JPEG(4VGA) are supported.

  • (JPEG VGA and JPEG QVGA are not supported.)

  • * Only one parameter set is available for each camera category.

  • (Camera Category : MPEG-4 / JPEG 4VGA(NP304/NF302) / JPEG 4VGA(NP1000))

  • * Schedule Setting is not available.

  • (Only “Recording Days” and “Hours/Day” can be set.)

  • * Event Recording is not calculated.

  • * The bandwidth for output from NVR is not calculated.

- 4 -


Nvr simple calculator main window

NVR Simple Calculator - Calculation Rules

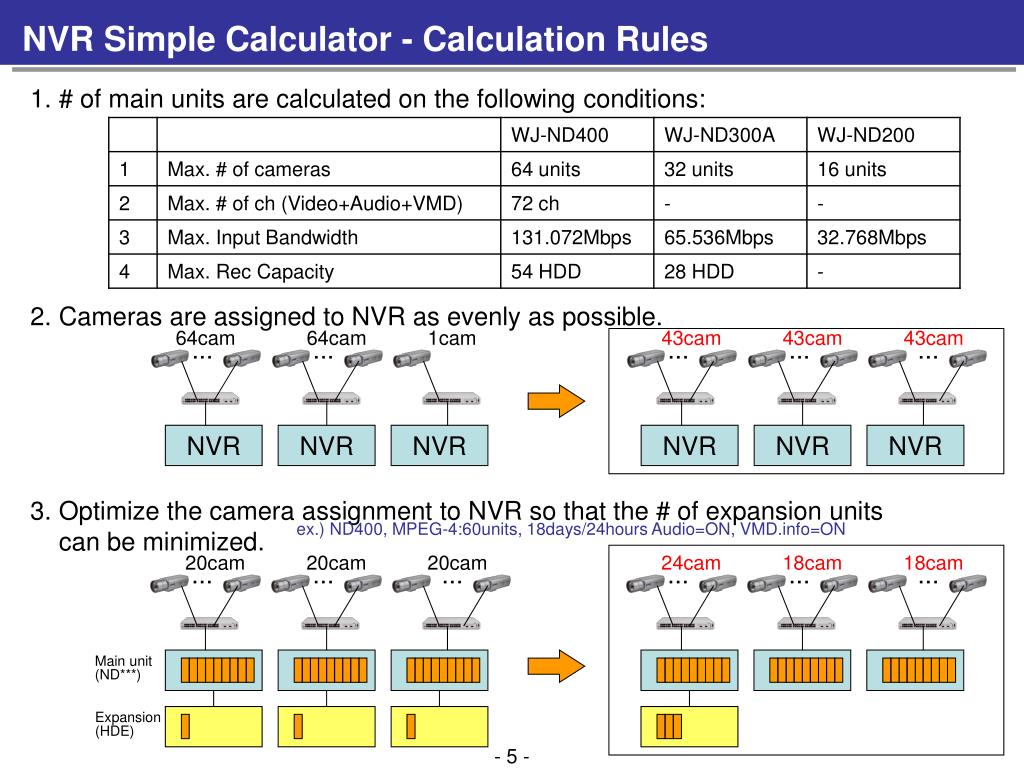

1. # of main units are calculated on the following conditions:

2. Cameras are assigned to NVR as evenly as possible.

64cam

64cam

1cam

43cam

43cam

43cam

...

...

...

...

...

NVR

NVR

NVR

NVR

NVR

NVR

3. Optimize the camera assignment to NVR so that the # of expansion units

can be minimized.

ex.) ND400, MPEG-4:60units, 18days/24hours Audio=ON, VMD.info=ON

20cam

20cam

20cam

24cam

18cam

18cam

...

...

...

...

...

...

Main unit

(ND***)

Expansion

(HDE)

- 5 -


Nvr simple calculator main window

NVR Simple Calculator - Calculation Rules

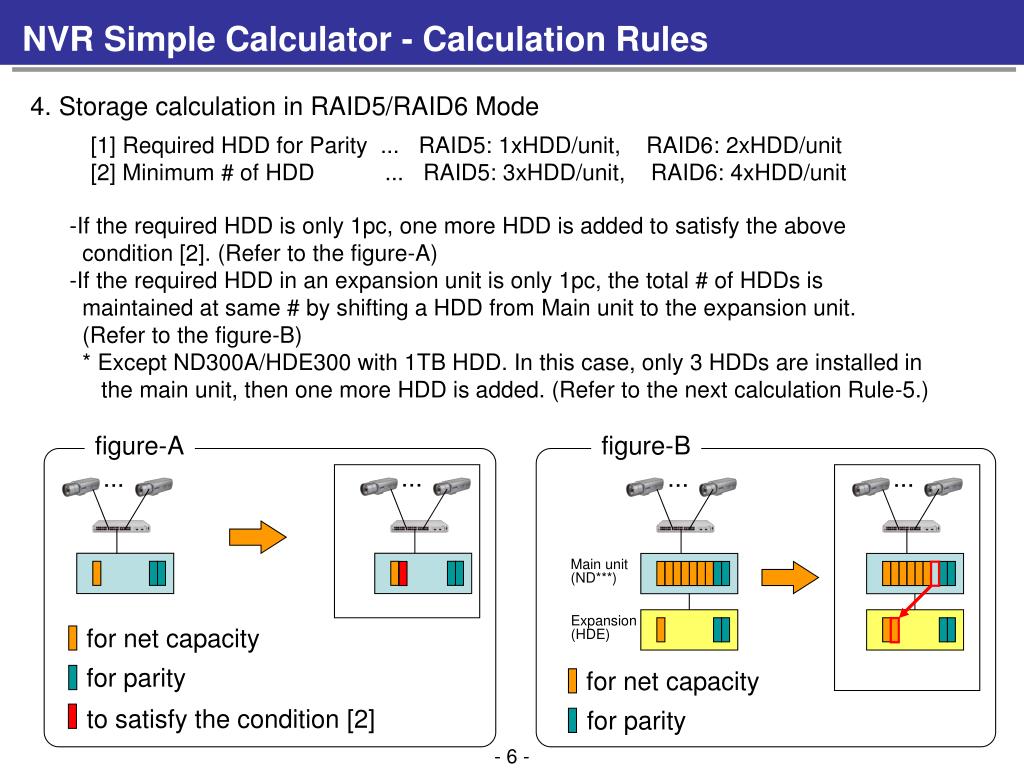

4. Storage calculation in RAID5/RAID6 Mode

[1] Required HDD for Parity ... RAID5: 1xHDD/unit, RAID6: 2xHDD/unit

[2] Minimum # of HDD ... RAID5: 3xHDD/unit, RAID6: 4xHDD/unit

  • If the required HDD is only 1pc, one more HDD is added to satisfy the above

  • condition [2]. (Refer to the figure-A)

  • -If the required HDD in an expansion unit is only 1pc, the total # of HDDs is

  • maintained at same # by shifting a HDD from Main unit to the expansion unit.

  • (Refer to the figure-B)

  • * Except ND300A/HDE300 with 1TB HDD. In this case, only 3 HDDs are installed in

  • the main unit, then one more HDD is added. (Refer to the next calculation Rule-5.)

figure-A

figure-B

...

...

...

...

Main unit

(ND***)

Expansion

(HDE)

for net capacity

for parity

for net capacity

to satisfy the condition [2]

for parity

- 6 -


Nvr simple calculator main window

NVR Simple Calculator - Calculation Rules

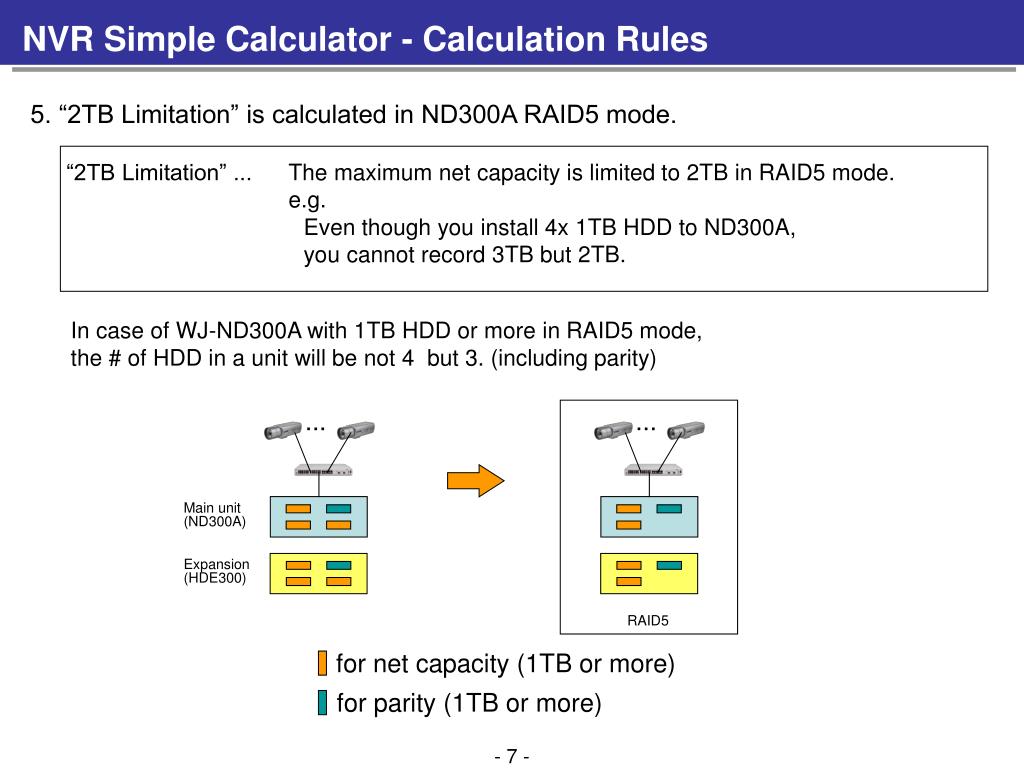

5. “2TB Limitation” is calculated in ND300A RAID5 mode.

“2TB Limitation” ...

The maximum net capacity is limited to 2TB in RAID5 mode.

e.g.

Even though you install 4x 1TB HDD to ND300A,

you cannot record 3TB but 2TB.

In case of WJ-ND300A with 1TB HDD or more in RAID5 mode,

the # of HDD in a unit will be not 4 but 3. (including parity)

...

...

Main unit

(ND300A)

Expansion

(HDE300)

RAID5

for net capacity (1TB or more)

for parity (1TB or more)

- 7 -


Nvr simple calculator main window

NVR Simple Calculator - Calculation Rules

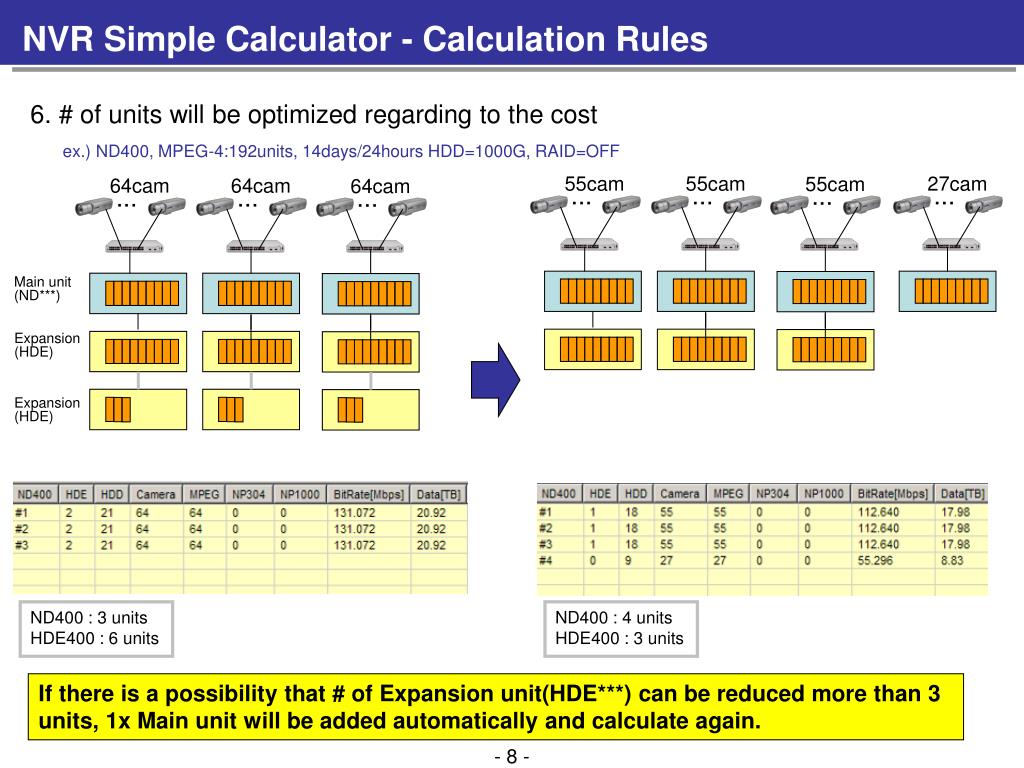

6. # of units will be optimized regarding to the cost

ex.) ND400, MPEG-4:192units, 14days/24hours HDD=1000G, RAID=OFF

55cam

55cam

27cam

55cam

64cam

64cam

64cam

...

...

...

...

...

...

...

Main unit

(ND***)

Expansion

(HDE)

Expansion

(HDE)

ND400 : 3 units

HDE400 : 6 units

ND400 : 4 units

HDE400 : 3 units

If there is a possibility that # of Expansion unit(HDE***) can be reduced more than 3 units, 1x Main unit will be added automatically and calculate again.

- 8 -


Nvr simple calculator main window

NVR Simple Calculator - Calculation Rules

7. Others

- HDD use efficiency

- Communication Overhead : 5%

- Audio bit rate : 32kbps/cam

- VMD.Info : 6kbps/cam

When VMD.Info is ON, MPEG-4 bit rate will be max.15ips.

- 9 -
