infs 6510 competitive intelligence systems

INFS 6510 – Competitive Intelligence Systems

Normalization vs.

Denormalization

relational databases rdbms

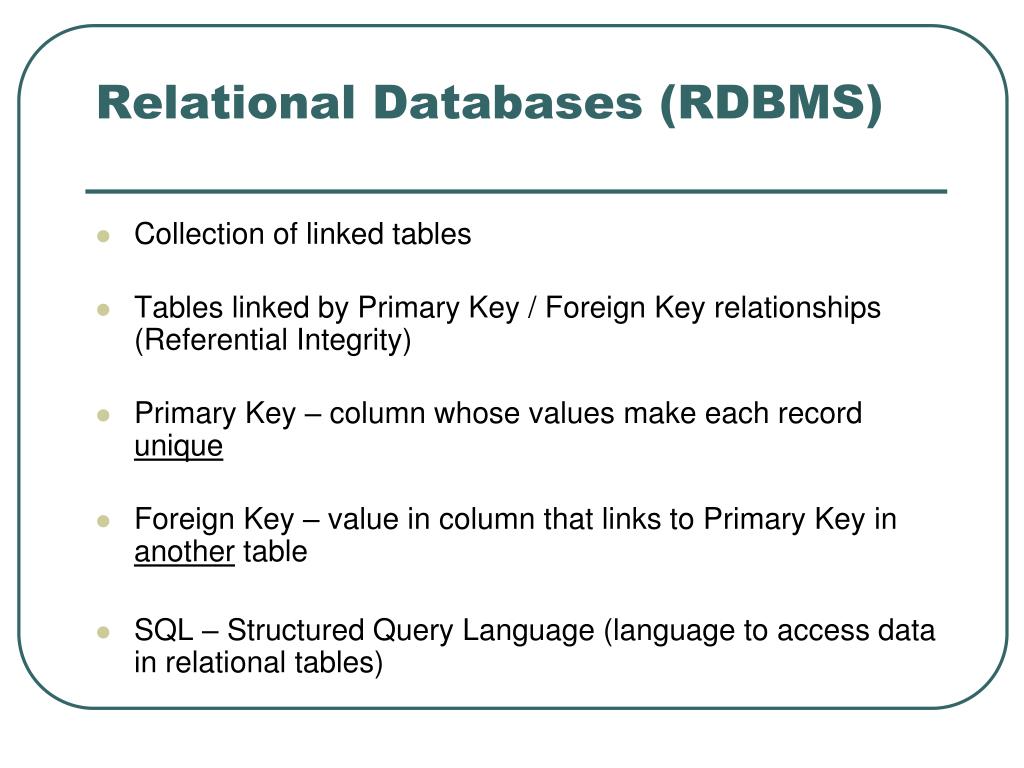

Relational Databases (RDBMS)
  • Collection of linked tables
  • Tables linked by Primary Key / Foreign Key relationships (Referential Integrity)
  • Primary Key – column whose values make each record unique
  • Foreign Key – value in column that links to Primary Key in another table
  • SQL – Structured Query Language (language to access data in relational tables)
relational db example

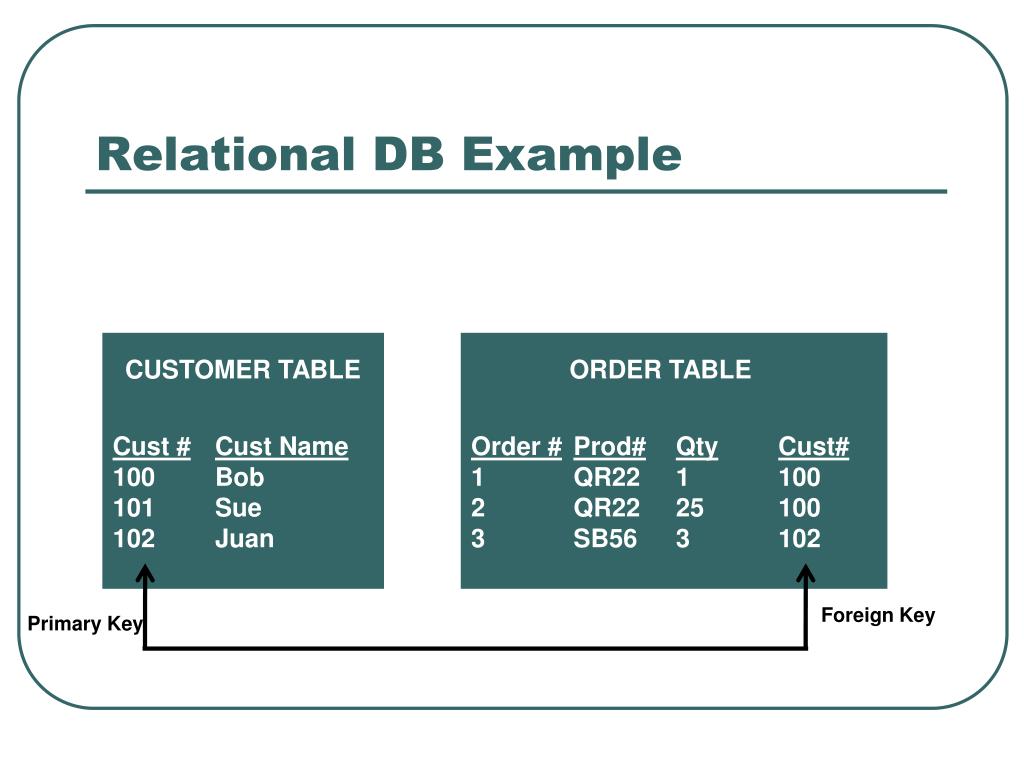

Relational DB Example

Cust #Cust Name

100 Bob

101 Sue

102 Juan

Order #Prod#QtyCust#

1 QR22 1 100

2 QR22 25 100

3 SB56 3 102

CUSTOMER TABLE

ORDER TABLE

Foreign Key

Primary Key

database structure design
Database Structure & Design
  • 2 Approaches:

Conflict

1. Optimize for

Data Capture

i.e., CapturingTransactions

2. Optimize for

Data Access

i.e., Queries & Reporting

approach 1 optimize for data capture

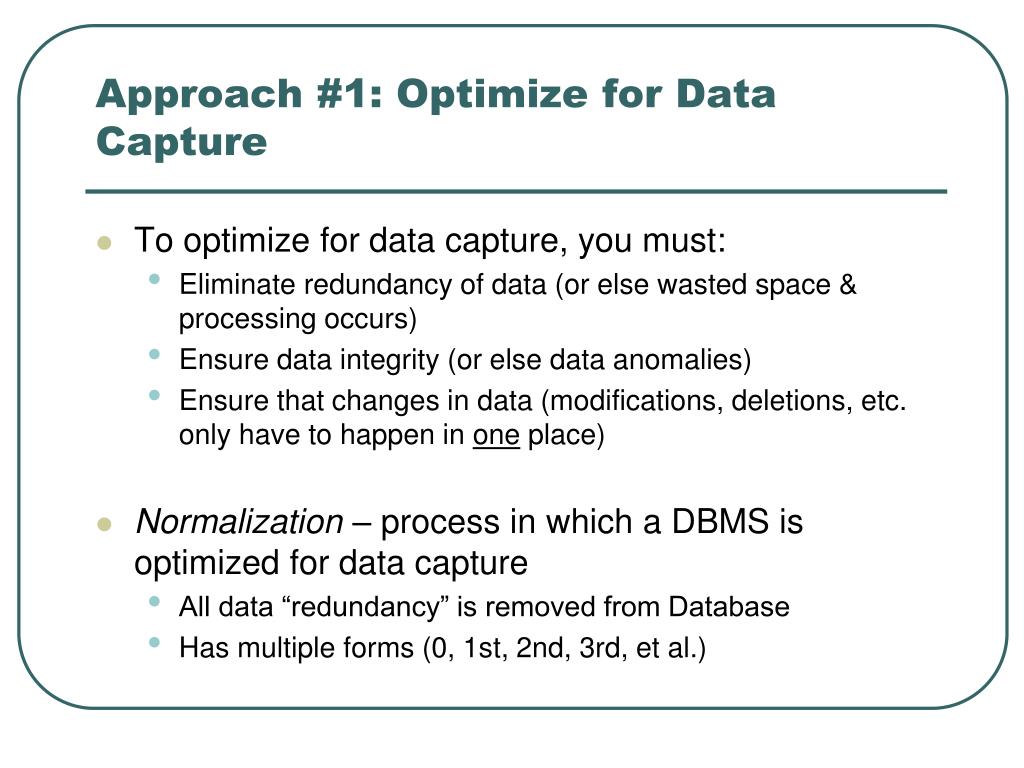

Approach #1: Optimize for Data Capture
  • To optimize for data capture, you must:
    • Eliminate redundancy of data (or else wasted space & processing occurs)
    • Ensure data integrity (or else data anomalies)
    • Ensure that changes in data (modifications, deletions, etc. only have to happen in one place)
  • Normalization – process in which a DBMS is optimized for data capture
    • All data “redundancy” is removed from Database
    • Has multiple forms (0, 1st, 2nd, 3rd, et al.)
slide6
Moving from 0NF to 1NFRule: Make a separate table for each set of related attributes, and give each table a primary key of unique values.

Cust # CustName

100, 100, 101 Bob, Sue, Juan

CUSTOMER TABLE

ONF

Cust #Cust Name

100 Bob

101 Sue

102 Juan

CUSTOMER TABLE

1NF

Primary Key Created with Unique values

slide7

Dependency on Primary Key

100 Bob

100 Bob

Moving from 1NF to 2NFRule: Eliminate any repeating values caused by a dependency on a “keyed” column (i.e., either Primary or Foreign)

Cust #Cust NameOrder#

100 Bob 1

100 Bob 2

101 Sue 3

TABLE X

1NF

Cust #Cust Name

100 Bob

101 Sue

Order #Cust#

1 100

2 100

3 101

CUSTOMER TABLE

ORDER TABLE

2NF

slide8

Dependency b/t 2 non-key columns

PGH 2 days

PGH 2 days

Moving from 2NF to 3NFRule: Eliminate any repeating values caused by a dependency on a “non-keyed” column (i.e., dependency on ANY column)

Cust #CityOrder#ShipTime

100 PGH 1 2 days

101 PGH 2 2 days

102 LA 3 5 days

TABLE X

2NF

City #CityShipTime

10 PGH 2 days

20 LA 5 days

Cust #City#

100 10

101 10

102 20

SHIP TIME TABLE

CUSTOMER TABLE

3NF

approach 2 optimize for data access in a separate read only data warehouse

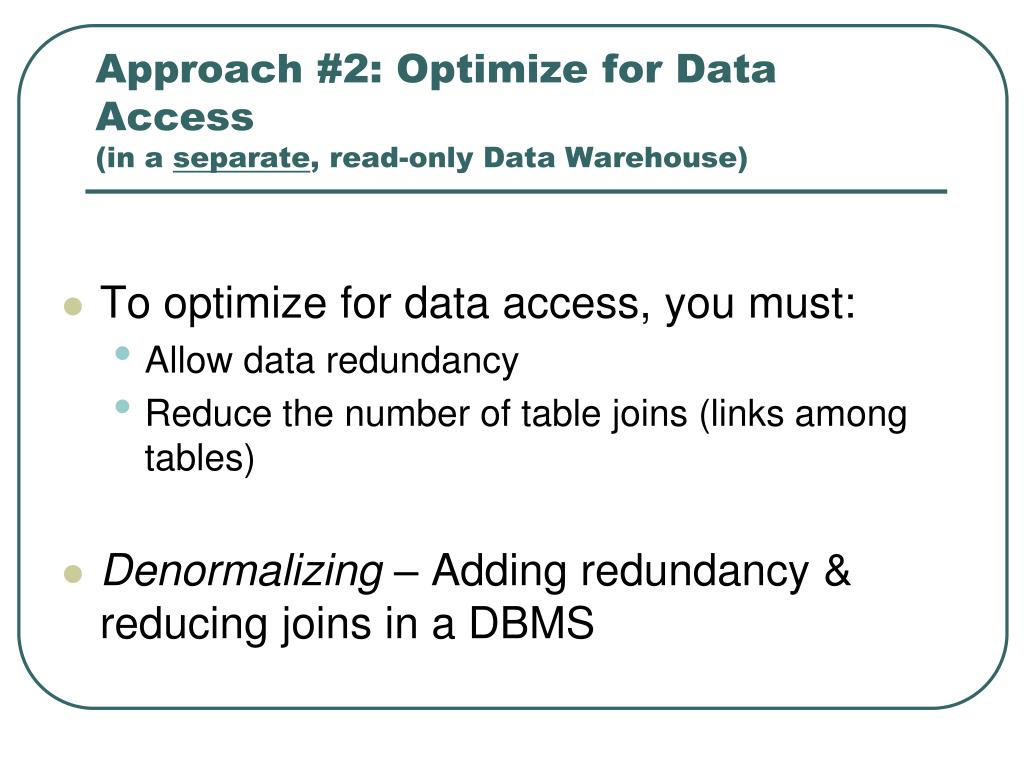

Approach #2: Optimize for Data Access(in a separate, read-only Data Warehouse)
  • To optimize for data access, you must:
    • Allow data redundancy
    • Reduce the number of table joins (links among tables)
  • Denormalizing – Adding redundancy & reducing joins in a DBMS
denormalizing most common approach

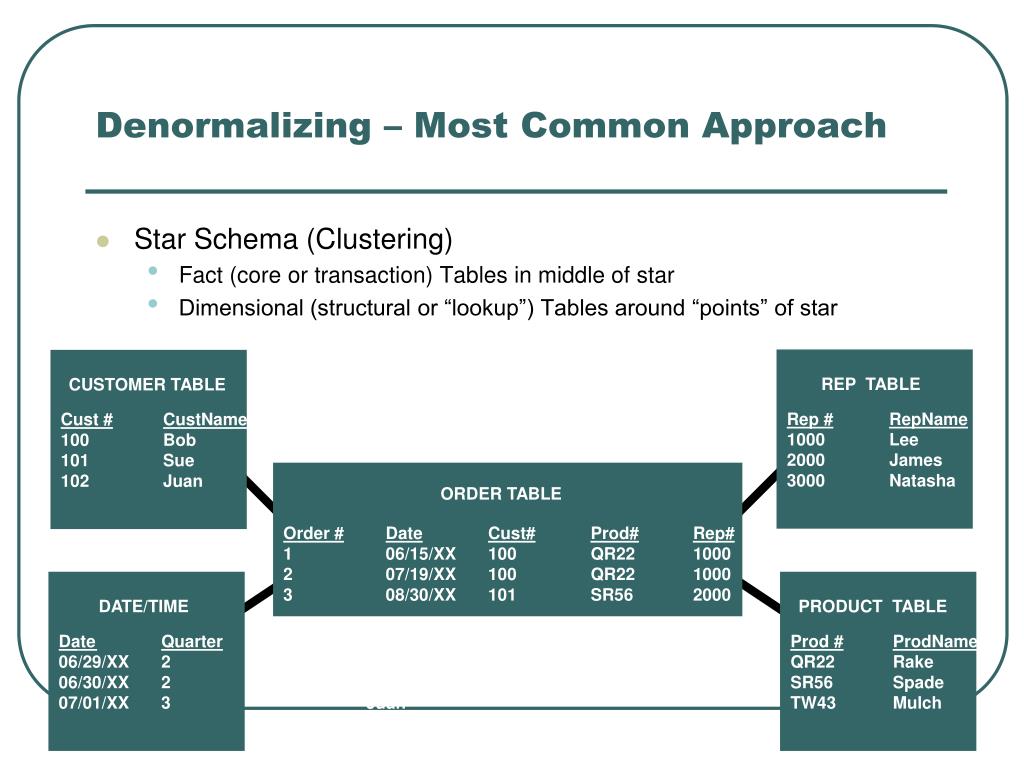

Denormalizing – Most Common Approach
  • Star Schema (Clustering)
    • Fact (core or transaction) Tables in middle of star
    • Dimensional (structural or “lookup”) Tables around “points” of star

Cust #CustName

100 Bob

101 Sue

102 Juan

Prod #ProdName

QR22 Rake

SR56 Spade

TW43 Mulch

CUSTOMER TABLE

PRODUCT TABLE

Order #DateCust#Prod#Rep#

1 06/15/XX 100 QR22 1000

2 07/19/XX 100 QR22 1000

3 08/30/XX 101 SR56 2000

ORDER TABLE

Rep #RepName

1000 Lee

2000 James

3000 Natasha

Date Quarter

06/29/XX 2 Bob

06/30/XX 2 Sue

07/01/XX 3 Juan

REP TABLE

DATE/TIME

denormalizing continued stars are linked via common i e conformed dimensions to form data warehouse

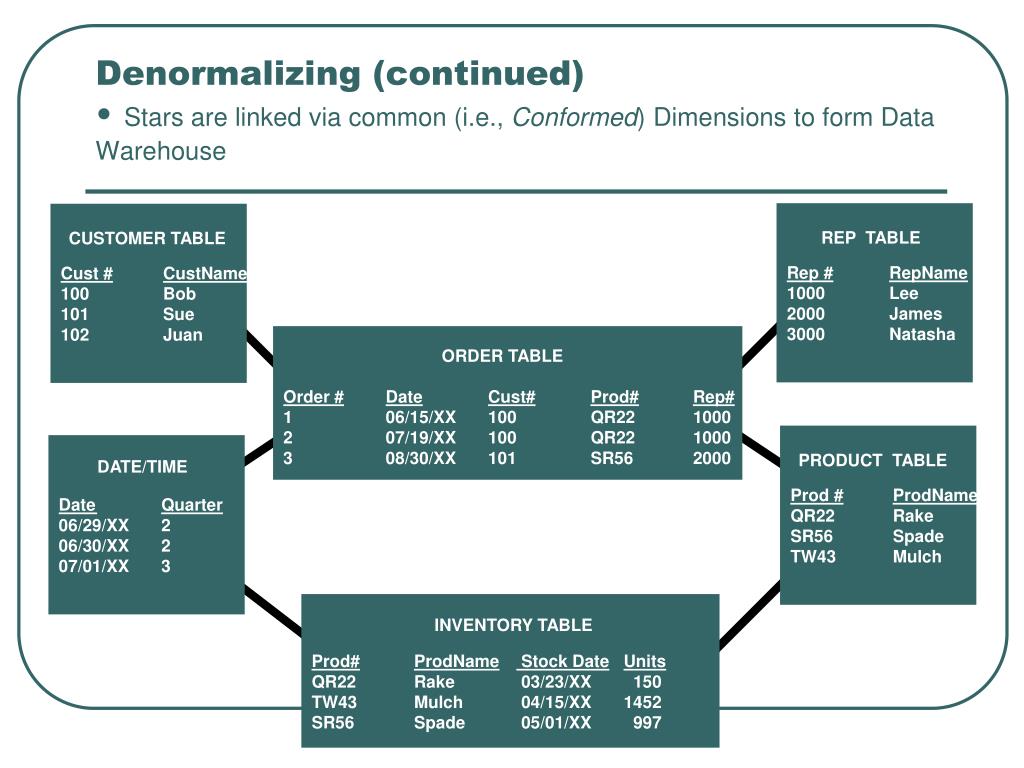

Denormalizing (continued)• Stars are linked via common (i.e., Conformed) Dimensions to form Data Warehouse

Cust #CustName

100 Bob

101 Sue

102 Juan

CUSTOMER TABLE

Order #DateCust#Prod#Rep#

1 06/15/XX 100 QR22 1000

2 07/19/XX 100 QR22 1000

3 08/30/XX 101 SR56 2000

ORDER TABLE

ORDER TABLE

Prod #ProdName

QR22 Rake

SR56 Spade

TW43 Mulch

PRODUCT TABLE

Date Quarter

06/29/XX 2 Bob

06/30/XX 2 Sue

07/01/XX 3 Juan

CUSTOMER TABLE

TIME

DATE/TIME

Rep #RepName

1000 Lee

2000 James

3000 Natasha

REP TABLE

Prod#ProdName Stock DateUnits

QR22 Rake 03/23/XX 150

TW43 Mulch 04/15/XX 1452

SR56 Spade 05/01/XX 997

INVENTORY TABLE
