M-Mode Echocardiography

M-Mode Echocardiography. John N. Hamaty D.O. SJHG. M-Mode Echo. Used in combination with 2-dimentional Rapid sampling of a region results in placing sequential parallel data lines so close together that individual points of brightness appear as continuous horizontal lines.

Download Presentation

M-Mode Echocardiography

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

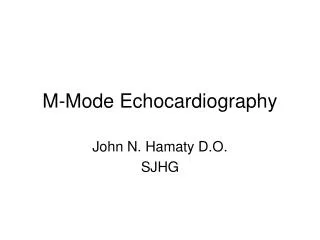

  1. M-Mode Echocardiography John N. Hamaty D.O. SJHG

  2. M-Mode Echo • Used in combination with 2-dimentional • Rapid sampling of a region results in placing sequential parallel data lines so close together that individual points of brightness appear as continuous horizontal lines. • 90 degrees to sample- “ice pick”

  3. M-Mode Echo • This narrow field allows fewer pulses with a higher frame rate and therefore better temporal resolution • Factors that shorten the time required to make a frame will act to improve temporal resolution.

  4. Improving Temporal Resolution • Minimize depth of view • Use single focus • Narrow sector • Minimize line density • As temporal resolution improves, image quality may degrade.

  5. Mitral Valve Disease M-Mode Echo

  6. Anterior Mitral Valve Prolapse(Mid-Late Systole)

  7. Mitral Stenosis

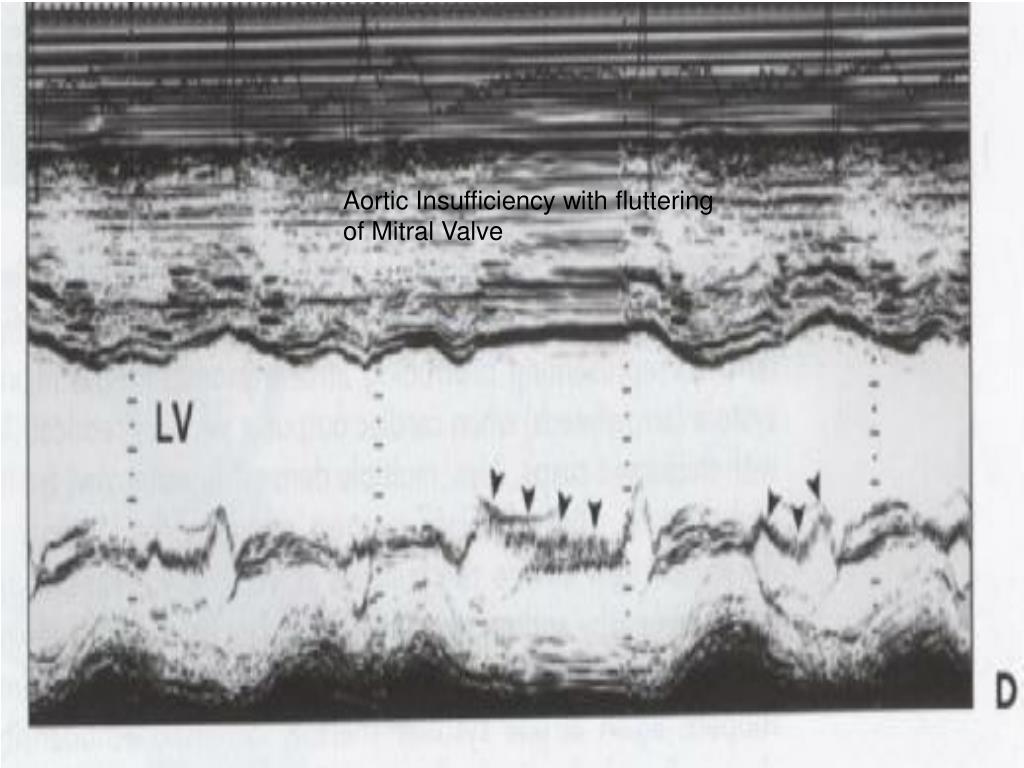

  8. Aortic Insufficiency with fluttering of Mitral Valve

  9. Mitral Valve Endocarditis

  10. Aortic Valve Disease M-Mode Echo

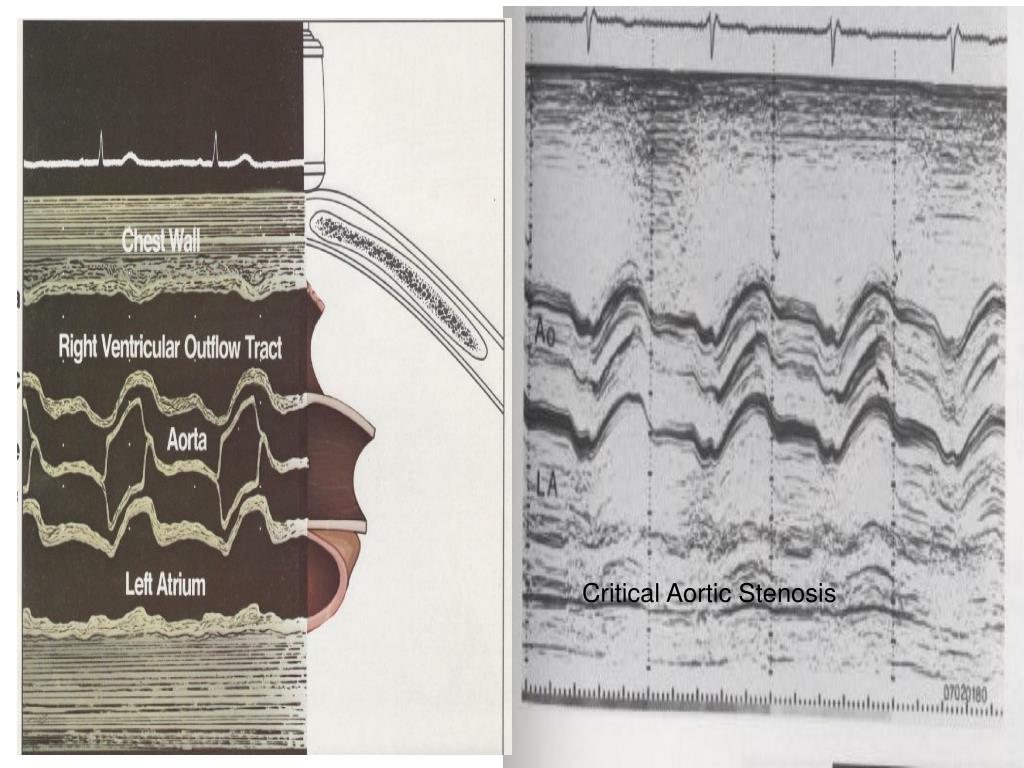

  11. Critical Aortic Stenosis

  12. Early closure of AV due to Severe LV dysfun

  13. St Jude Prosthetic Aortic Valve

  14. Pulmonic Valve Disease M-Mode Echo

  15. Pulmonary HTN with “Flying W sign”

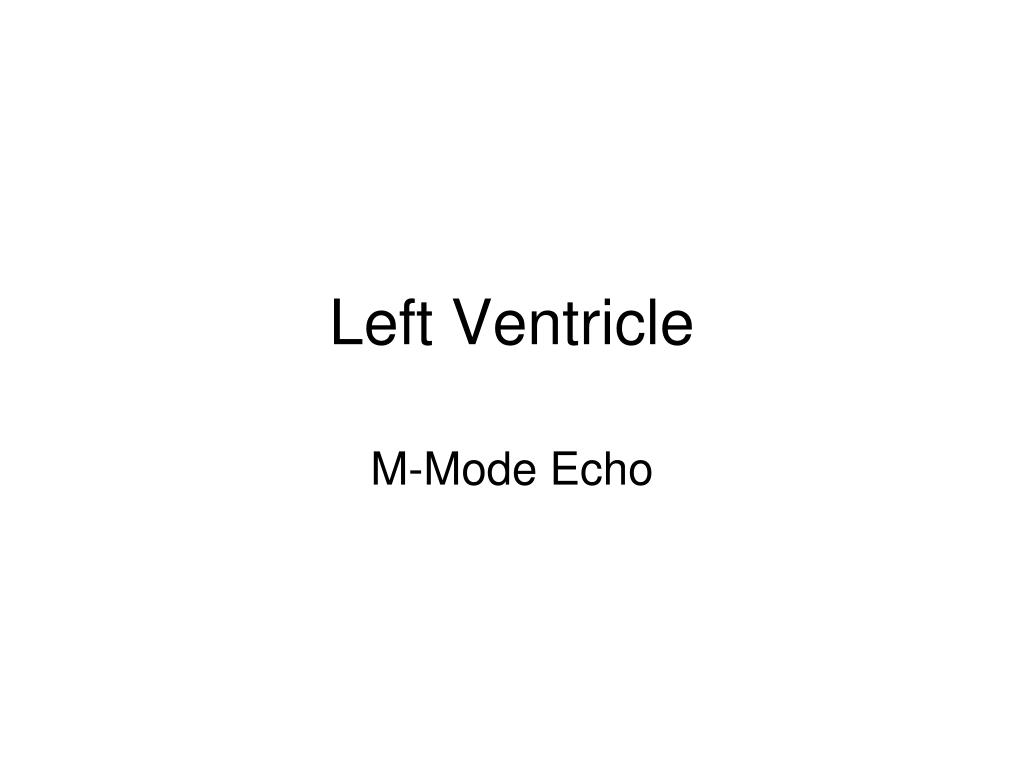

  16. Left Ventricle M-Mode Echo

  17. Dilated Cardiomyopathy

  18. “B” bump due to elevated EDP

  19. Hypertrophic Cardiomyopathy

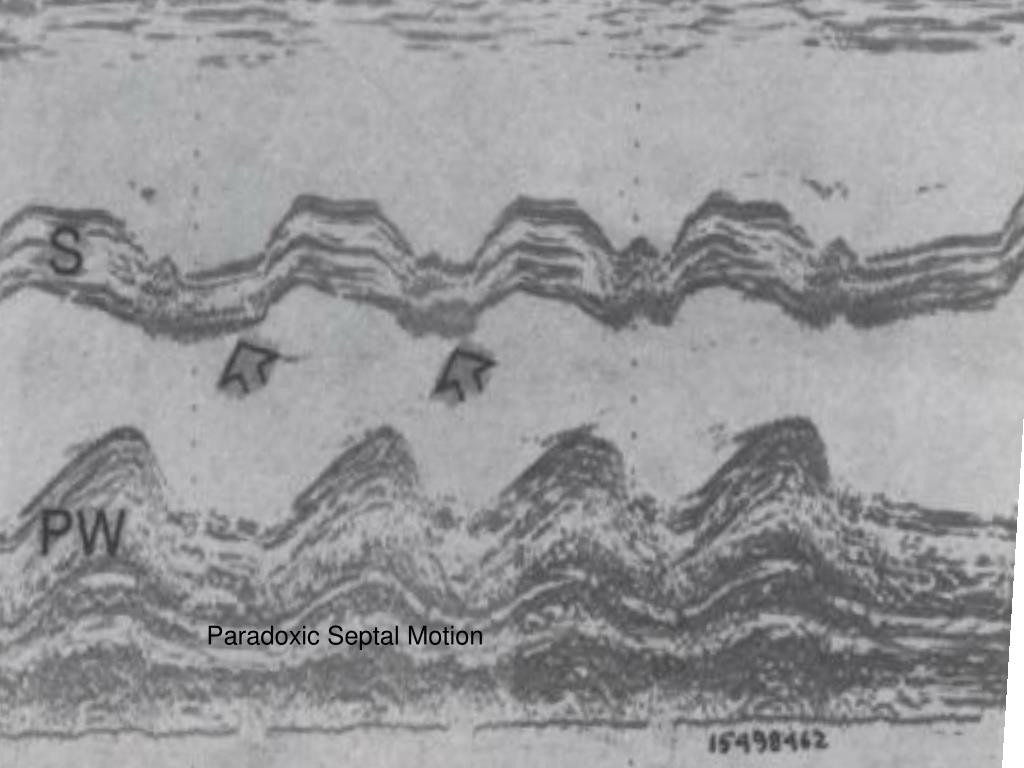

  20. Paradoxic Septal Motion
