DEP Regulatory RequirementsChapter 78 Subchapter D

Dave English

Division of Compliance and Data Management

Bureau of Oil and Gas Management


Focus

Focus

  • Significant changes to Subchapter D.

  • Relevant revisions to Subchapters A, C, and E


Dep regulatory requirements chapter 78 subchapter d

Oil and Gas Wells and the Middle Devonian Marcellus Formation


Chapter 78 subchapter d addresses

Chapter 78 Subchapter D addresses:

  • New well drilling, casing, cementing, completion and operational practices


Chapter 78 subchapter d addresses1

Chapter 78 Subchapter D addresses:

  • Currently operating oil and gas wells


Chapter 78 subchapter d addresses2

Chapter 78 Subchapter D addresses:

  • Plugging abandoned wells


Rationale for proposed rulemaking needs assessment

Rationale for Proposed Rulemaking: Needs Assessment

  • New drilling and completion practices used to develop Marcellus and other “unconventional” formations

  • Stray gas migration incidents (Marcellus and shallow oil and gas wells)

  • Well control incidents (e.g. EOG incident June 3, 2010 in Clearfield County)

  • Hydraulic fracturing additive disclosure

  • Mandatory production reporting – Act 15


Final rulemaking 25 pa code chapter 78 background

Final Rulemaking 25 Pa. Code Chapter 78Background

  • Initial draft presented to TAB September 17, 2009

    • DEP met with TAB and subcommittee four additional times (10/28/09, 1/14/10, 1/21/10, 3/25/10)

  • Advanced Notice of Proposed Rulemaking: Public comment period January 30, 2010 – March 2, 2010

  • Notice of Final Rulemaking: Public comment period July 10, 2010 – August 9, 2010

  • Approval by EQB, IRRC, Attorney General’s Office.

  • Final Regulations approved on publication in the Pennsylvania Bulletin February 5, 2011


Final rulemaking 25 pa code chapter 78 significant revisions

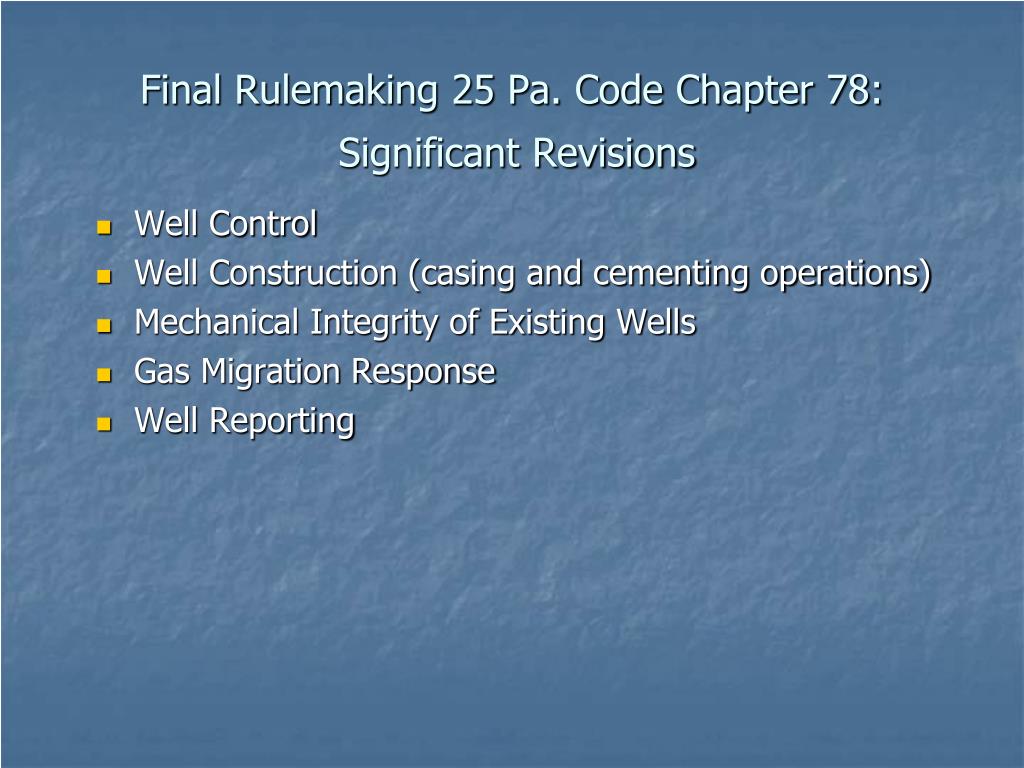

Final Rulemaking 25 Pa. Code Chapter 78:Significant Revisions

Well Control

Well Construction (casing and cementing operations)

Mechanical Integrity of Existing Wells

Gas Migration Response

Well Reporting


Future rulemaking next regulatory package

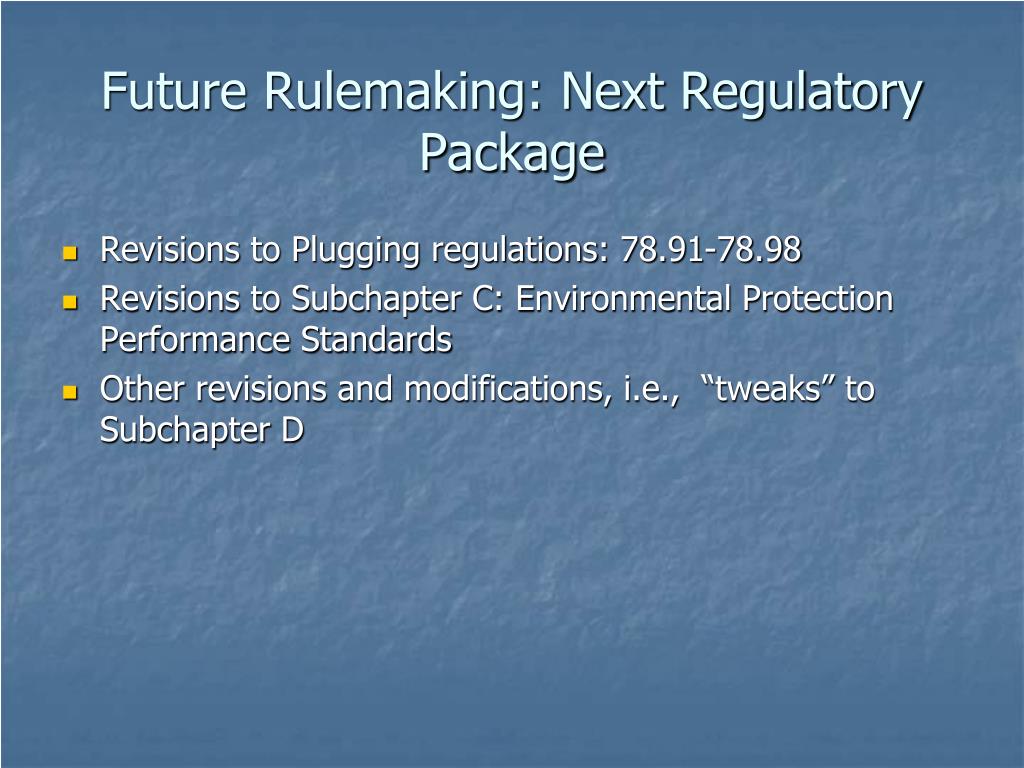

Future Rulemaking: Next Regulatory Package

  • Revisions to Plugging regulations: 78.91-78.98

  • Revisions to Subchapter C: Environmental Protection Performance Standards

  • Other revisions and modifications, i.e., “tweaks” to Subchapter D


Chapter 78 oil and gas wells

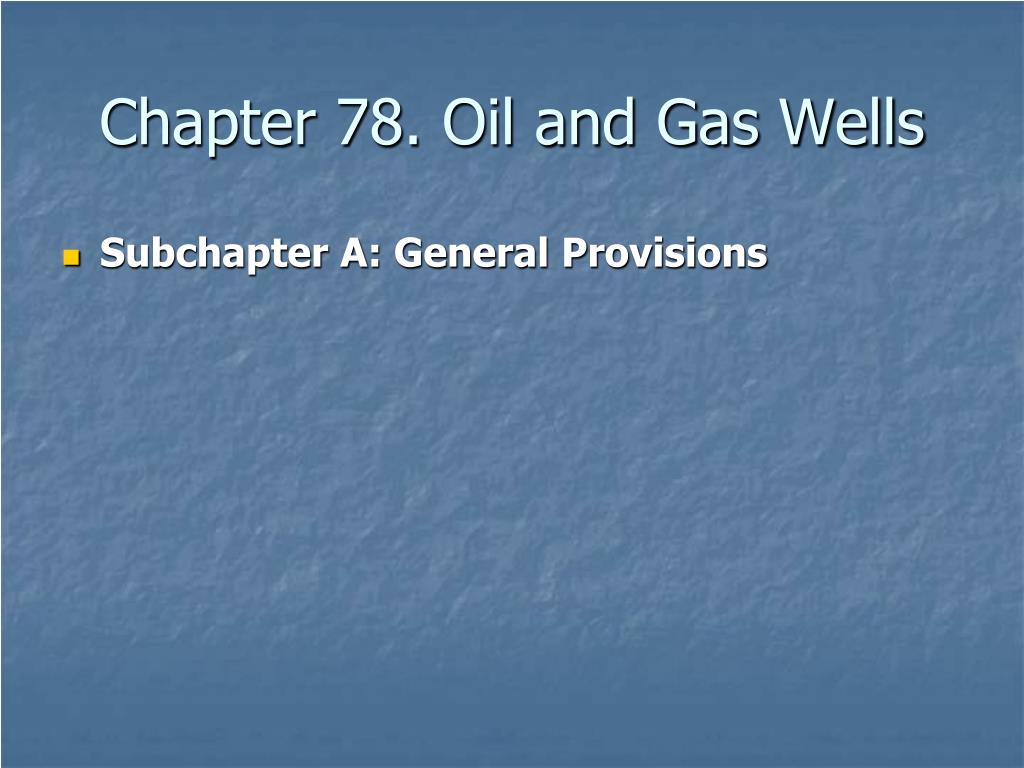

Chapter 78. Oil and Gas Wells

Subchapter A: General Provisions


Chapter 78 oil and gas wells1

Chapter 78. Oil and Gas Wells

Subchapter A: General Provisions – new definitions added

Conductor pipe

Intermediate casing

L.E.L. (lower explosive limit)

Unconventional formations


Chapter 78 oil and gas wells2

Chapter 78. Oil and Gas Wells

Subchapter C: Environmental Protection Performance Standards


78 55 control and disposal plan

78.55. Control and Disposal Plan

Plan must include operator’s pressure barrier policy that identifies barriers to be used during specific operations

Plan must be available at the well site for review during drilling and completion activities

List of emergency contact phone numbers for the area in which the site is located must be prominently displayed at the well site during drilling, completion, and workover activities


Chapter 78 oil and gas wells3

Chapter 78. Oil and Gas Wells

  • Subchapter D: Well Drilling, Operation and Plugging


78 72 use of safety devices bop equipment new language in italics

78.72 Use of Safety Devices – BOP Equipment(New language in italics)

BOP equipment to be used:

When drilling well intended to produce natural gas from an unconventional formation

When drilling out frac plugs

Where pressures are anticipated at the well site that may result in a loss of well control

Where operator is drilling in an area where there is no prior knowledge of pressure or natural open flow

When drilling conservation wells

When drilling within 200 feet of a building


78 72 use of safety devices bop equipment

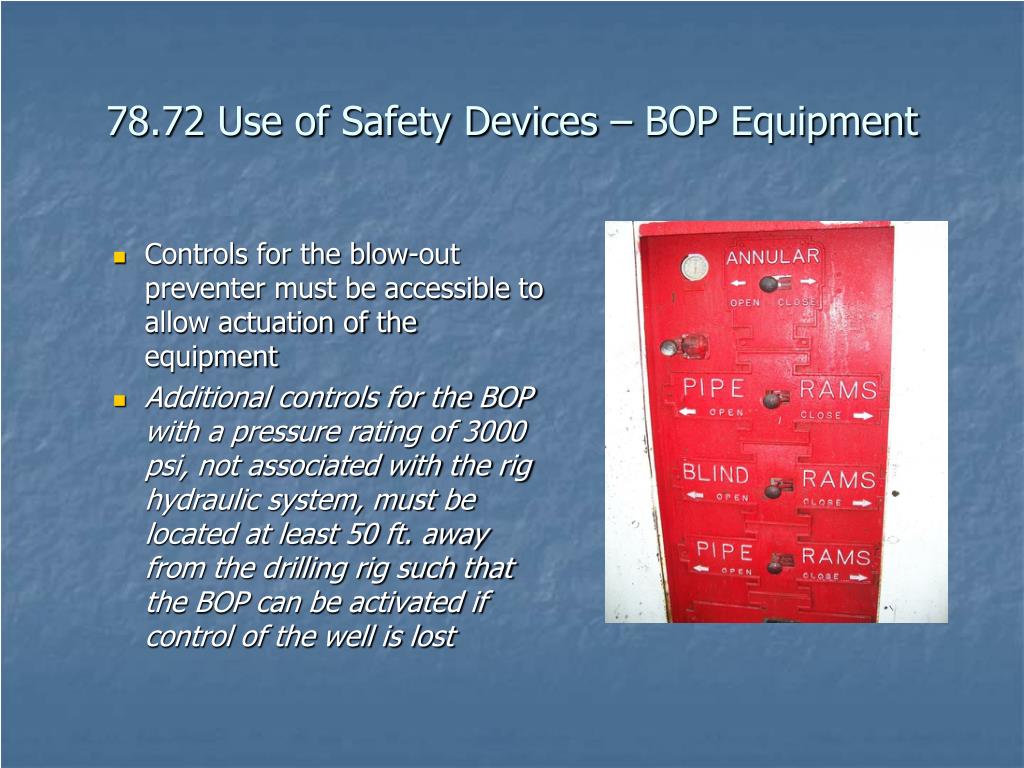

78.72 Use of Safety Devices – BOP Equipment

  • Controls for the blow-out preventer must be accessible to allow actuation of the equipment

  • Additional controls for the BOP with a pressure rating of 3000 psi, not associated with the rig hydraulic system, must be located at least 50 ft. away from the drilling rig such that the BOP can be activated if control of the well is lost


Dep regulatory requirements chapter 78 subchapter d

78.72 Use of Safety Devices – BOP Equipment

  • Remote Accumulator for BOP Actuation

  • Close-up of BOP Controls


78 72 d bop equipment testing

78.72 (d) BOP Equipment Testing

  • Annular-type: must test according to the manufacturer’s instructions, or by a professional engineer, before placing in service

  • Equipment failing test must not be used until it is repaired/replaced and passes the test


78 72 d bop equipment testing1

78.72(d) BOP Equipment Testing

  • Ram-type: must test for both pressure and ram operation before placing in service on the well

  • Testing in accordance with API RP53

  • If not in good working order, drilling must cease until BOP equipment is repaired/replaced and re-tested


78 72 bop additional requirements

78.72 BOP: Additional requirements

  • All lines, valves and fittings between the closing unit and the BOP stack must be flame resistant and have a rated working pressure that meets or exceeds the requirements of the BOP system

  • When BOP is installed or required, an individual must be present at the well site with a current certification from a well control course accredited by the International Association of Drilling Contractors or other organization approved by DEP

  • Pressure barriers identified in drilling and completions operations requiring two mechanical barriers must be capable of being tested. This does not mean that all operations utilizing BOP equipment must employ two mechanical barriers

  • A stripper barrier or stripper heads are not considered adequate barriers

  • A coiled tubing rig or hydraulic workover unit with appropriate BOP equipment must be utilized during post-completion cleanout operations in unconventional formations penetrated by a horizontal wellbore

  • DEP will be developing pressure barrier policy


Chapter 78 major changes to well construction and cementing and other changes to subchapter d

Chapter 78 Major Changes to Well Construction and Cementing and Other Changes to Subchapter D

  • Revised casing standards

  • New requirement for casing and cementing plan

  • New Section on lost circulation

  • Revised cement standards

  • New Section on mechanical integrity of existing wells


78 73 general provisions revised language

78.73 General Provisions: Revised language

  • Operator must construct well in accordance with this Chapter and ensure that the integrity of the well is maintained and health, safety, environment and property are protected

  • Operator must prevent gas, oil, brine, completion and servicing fluids, and any other fluids or materials from below the casing seat from entering fresh groundwater, and shall otherwise prevent pollution or diminution of fresh groundwater

  • Reduced pressure at surface or coal protective casing seat may not exceed 80% of the hydrostatic pressure of the surrounding fresh groundwater (0.8 X 0.433) X casing length (ft)


78 73 general provisions new language

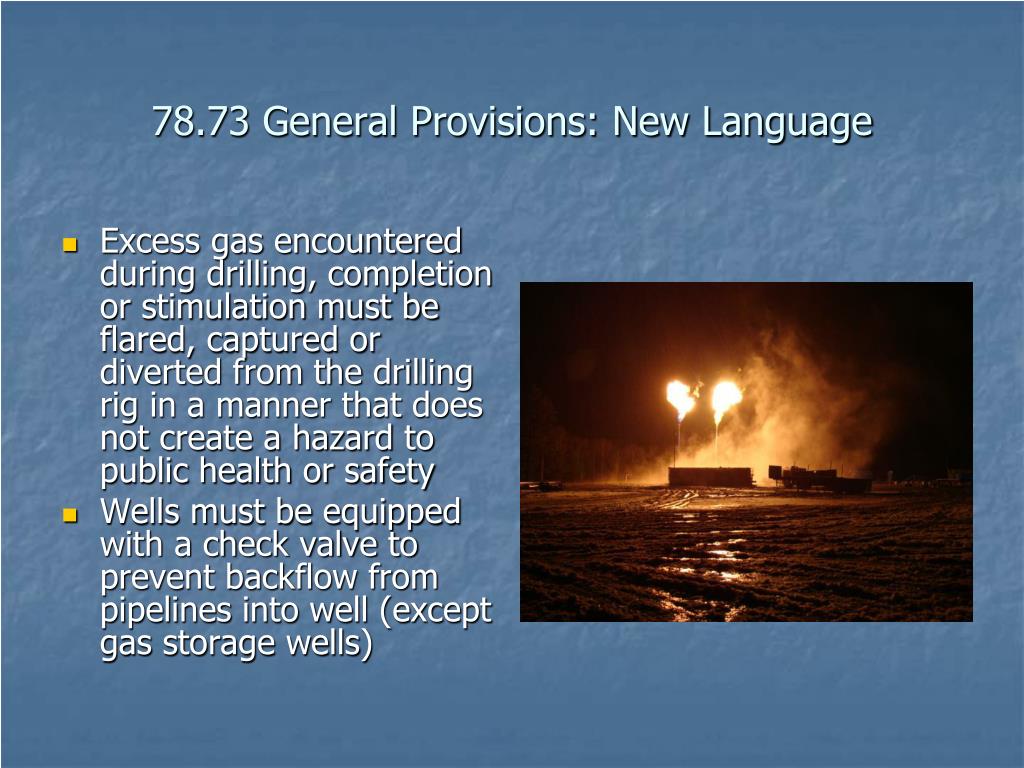

78.73 General Provisions: New Language

  • Excess gas encountered during drilling, completion or stimulation must be flared, captured or diverted from the drilling rig in a manner that does not create a hazard to public health or safety

  • Wells must be equipped with a check valve to prevent backflow from pipelines into well (except gas storage wells)


78 75a new section area of alternative methods

78.75a. New Section: Area of Alternative Methods

  • DEP may designate an area of alternative methods if it determines that well drilling and operating requirements beyond those provided in this Chapter are necessary

  • Notice of proposed area of alternative methods will be published in PA Bulletin

  • Wells drilled within this area must meet the requirements specified by the Department unless the operator obtains DEP approval to drill, operate or plug the well in a different manner that is at least as safe and protective of the environment as the requirements in the area of alternative methods


78 76 drilling within a gas storage reservoir

78.76. Drilling within a Gas Storage Reservoir

  • An operator proposing to drill in a gas storage area (or the surrounding reservoir protective area….normally 2000 ft) must send a copy of the location plat, the drilling/casing/cementing plan, and the anticipated date drilling will commence to the gas storage reservoir operator

  • New language requires that information above also be sent to the Department along with proof of notification to the gas storage reservoir operator; DEP must approve the proposal prior to drilling


78 81 78 87 casing and cementing

78.81-78.87. Casing and Cementing


78 81 general provisions

78.81 General Provisions

  • Casing and cementing must:

    • Allow effective control of the well at all times

    • Prevent the migration of gas and other fluids into fresh groundwater

    • Prevent the pollution or diminution of fresh groundwater

    • Prevent the migration of gas or other fluids into coal seams


78 82 use of conductor pipe

78.82. Use of Conductor Pipe

  • New rulemaking additions:

    • Conductor pipe shall be installed in a manner that prevents the subsurface infiltration of surface water or fluids

    • Conductor pipe shall be made of steel


78 83 surface and coal protective casing and cementing procedures new language

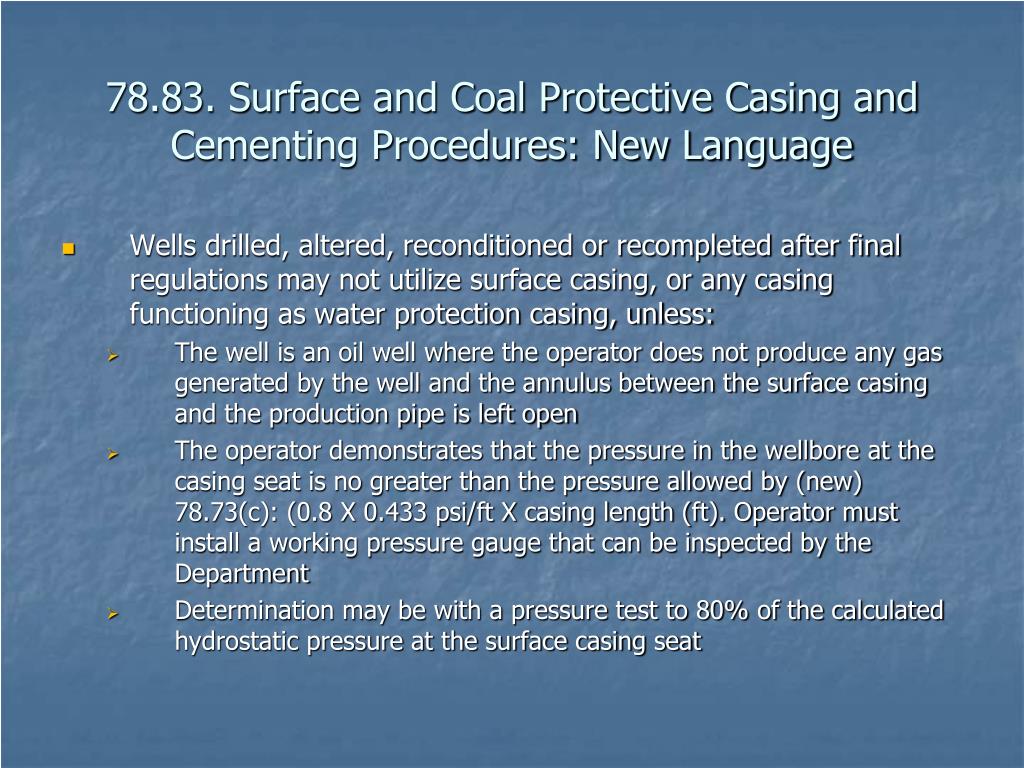

78.83. Surface and Coal Protective Casing and Cementing Procedures: New Language

  • Wells drilled, altered, reconditioned or recompleted after final regulations may not utilize surface casing, or any casing functioning as water protection casing, unless:

    • The well is an oil well where the operator does not produce any gas generated by the well and the annulus between the surface casing and the production pipe is left open

    • The operator demonstrates that the pressure in the wellbore at the casing seat is no greater than the pressure allowed by (new) 78.73(c): (0.8 X 0.433 psi/ft X casing length (ft). Operator must install a working pressure gauge that can be inspected by the Department

    • Determination may be with a pressure test to 80% of the calculated hydrostatic pressure at the surface casing seat


78 83 surface and coal protective casing and cementing procedures new language1

78.83. Surface and Coal Protective Casing and Cementing Procedures: New Language

Surface casing may not be set more than 200 feet below the deepest fresh groundwater except as necessary to set the casing in consolidated rock

Surface casing hole must be drilled using air, freshwater, or freshwater-based drilling fluid

Wellbore must be conditioned to ensure an adequate cement bond between the casing and formation prior to cementing

Centralizers: at least one within 50 ft. of the surface casing seat, then in intervals no greater than every 150 ft. above the first centralizer


78 83 surface and coal protective casing and cementing procedures new language2

78.83. Surface and Coal Protective Casing and Cementing Procedures: New Language

  • Operator must document the depth of the fresh groundwater zone in the well and record if additional fresh groundwater is encountered below the surface casing

  • Coal protective string must have at least two centralizers, one within 50 ft. of the casing seat and the second within 100 ft. of the surface

  • When cementing in lost circulation zones, using a pour string/tremie pipe to cement above the cement basket does not constitute “permanently cementing” the surface or coal protective casing pursuant to new Section 78.78b (relating to Casing and Cementing – Lost Circulation)


78 83a casing and cementing plan new section

78.83a. Casing and Cementing Plan: New Section

  • Operator must prepare a casing and cementing plan showing how the well will be drilled and completed

  • Plan must include:

    • Anticipated depth and thickness of any producing formation, expected pressures and anticipated fresh groundwater zones, and the method or information by which the depth of the deepest fresh groundwater was determined (discussed later)

    • Diameter of the borehole

    • Casing type, depth, diameter, wall thickness, and burst pressure rating

    • Cement type, additives, and estimated amount

    • Estimated location of centralizers

    • Proposed borehole conditioning procedures

    • Alternative methods or materials as required by DEP as a condition of the well permit

  • Plan must be available at the well site for review, may be required by the Department for review and approval (for permit issuance), and any revisions to the plan made as a result of on-site modifications must be documented by the operator, initialed and dated, and available for DEP review


Section 78 83a a 1 methodology for determining deepest fresh groundwater

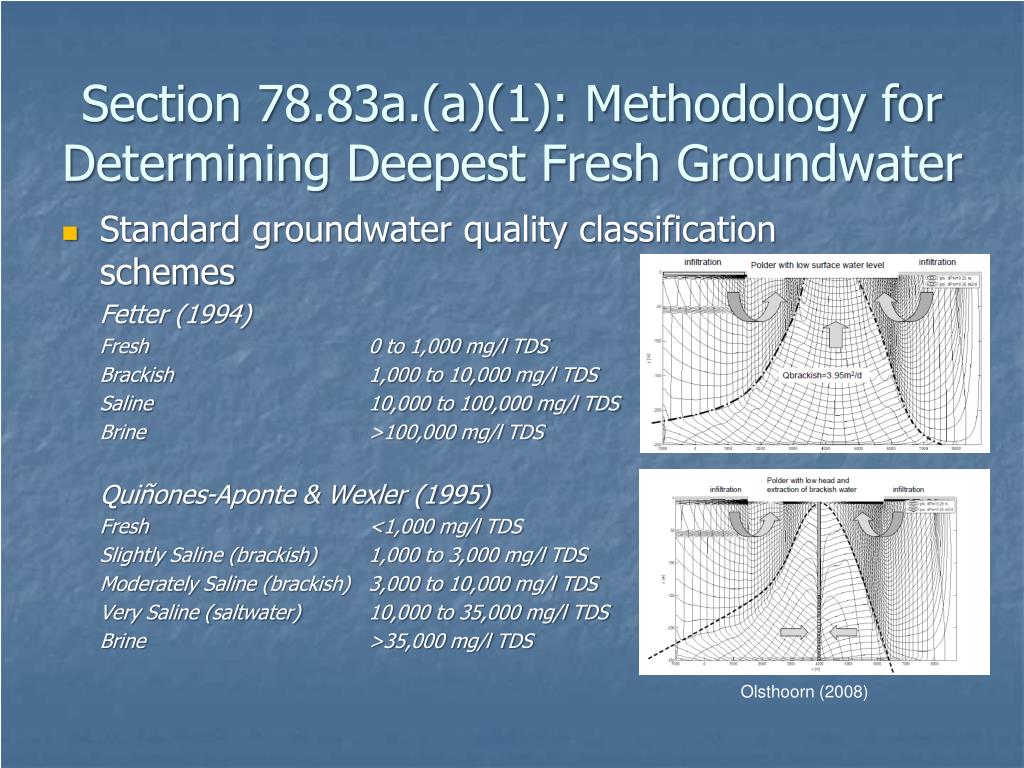

Section 78.83a.(a)(1): Methodology for Determining Deepest Fresh Groundwater

Regulatory definition of “deepest fresh groundwater”

“The deepest fresh groundwater bearing formation penetrated by the wellbore as determined from drillers logs from the well or from other wells in the area surrounding the well or from historical records of the normal surface casing seat depths in the area surrounding the well, whichever is deeper. “

Buckwalter & Moore (2006)


Section 78 83a a 1 methodology for determining deepest fresh groundwater1

Section 78.83a.(a)(1): Methodology for Determining Deepest Fresh Groundwater

Standard groundwater quality classification schemes

Fetter (1994)

Fresh0 to 1,000 mg/l TDS

Brackish1,000 to 10,000 mg/l TDS

Saline10,000 to 100,000 mg/l TDS

Brine>100,000 mg/l TDS

Quiñones-Aponte & Wexler (1995)

Fresh<1,000 mg/l TDS

Slightly Saline (brackish)1,000 to 3,000 mg/l TDS

Moderately Saline (brackish)3,000 to 10,000 mg/l TDS

Very Saline (saltwater)10,000 to 35,000 mg/l TDS

Brine>35,000 mg/l TDS

Olsthoorn (2008)


Section 78 83a a 1 methodology for determining deepest fresh groundwater2

Section 78.83a.(a)(1): Methodology for Determining Deepest Fresh Groundwater

Some numerical considerations in Pennsylvania

Delaware River Basin Commission (DRBC)

Freshwater is “water containing less than 1,000 mg/l of dissolved solids, most often salt.”

40 CFR 144.3 – United States EPA

“Underground source of drinking water (USDW) means an aquifer or its portion: (a)(1) Which supplies any public water system; or (2) Which contains a sufficient quantity of ground water to supply a public water system; and (i) Currently supplies drinking water for human consumption; or (ii) Contains fewer than 10,000 mg/l total dissolved solids; and (b) Which is not an exempted aquifer.”

“10,000 mg/l is FAR TOO SALINE for drinking water supplies in this Commonwealth”


Section 78 83a a 1 methodology for determining deepest fresh groundwater3

Section 78.83a.(a)(1): Methodology for Determining Deepest Fresh Groundwater

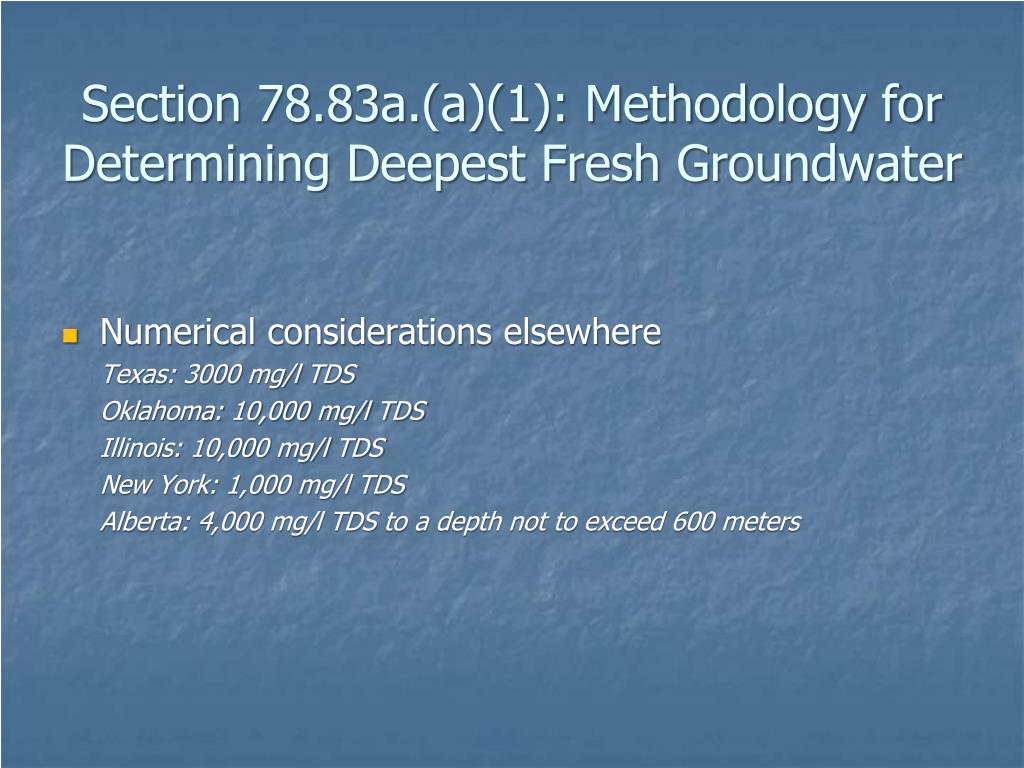

Numerical considerations elsewhere

Texas: 3000 mg/l TDS

Oklahoma: 10,000 mg/l TDS

Illinois: 10,000 mg/l TDS

New York: 1,000 mg/l TDS

Alberta: 4,000 mg/l TDS to a depth not to exceed 600 meters


Section 78 83a a 1 methodology for determining deepest fresh groundwater4

Section 78.83a.(a)(1): Methodology for Determining Deepest Fresh Groundwater

Numerical considerations (31 states surveyed)

GWPC (2009)


Section 78 83a a 1 methodology for determining deepest fresh groundwater5

Section 78.83a.(a)(1): Methodology for Determining Deepest Fresh Groundwater

Numerical considerations (15 states with quantitative definition)

GWPC (2009)


Section 78 83a a 1 methodology for determining deepest fresh groundwater6

Section 78.83a.(a)(1): Methodology for Determining Deepest Fresh Groundwater

Techniques for defining base of deepest fresh groundwater aquifer

Estimating fracture zone yield and measuring specific conductance using a calibrated meter during drilling

Standard water well geophysical logging of tophole – specific conductance critical, but other logs may help corroborate water-bearing zones

More sophisticated geophysical logging of tophole per EPA UIC recommendations (SP log or resistivity/porosity log)

Installation of monitoring wells at well pad and groundwater testing

Information from offset wells including water well testing, geophysical log data, and surface casing set depths;considering water well offsets alone will typically not be enough

Williams (2010)


78 83b casing and cementing lost circulation new section

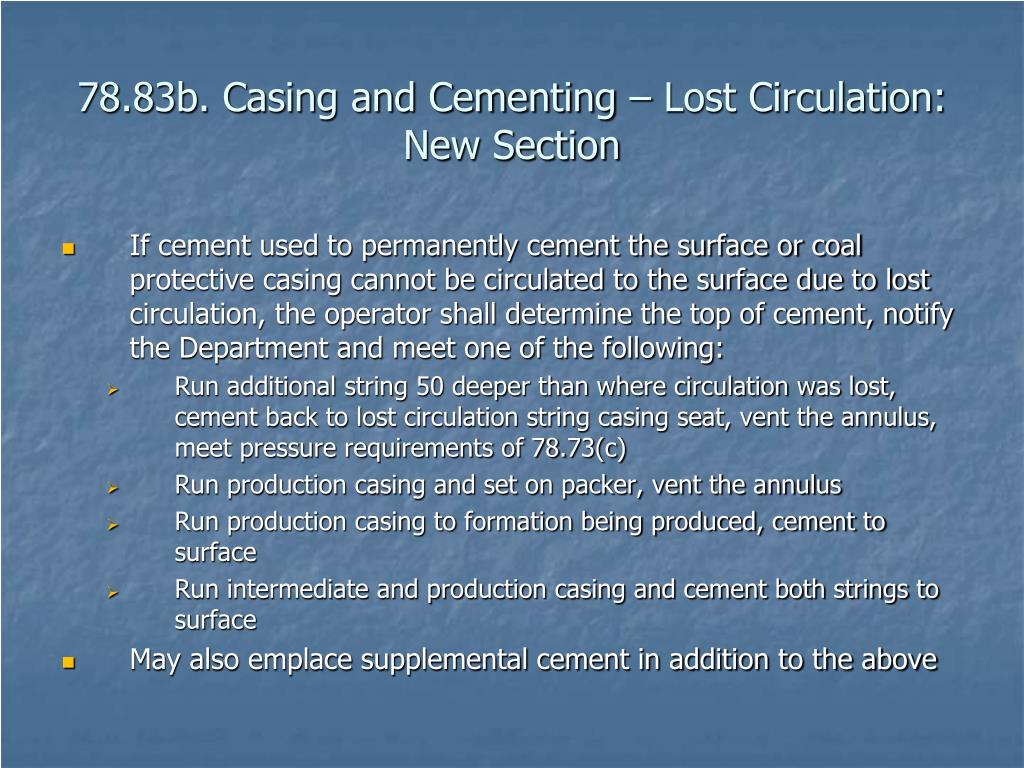

78.83b. Casing and Cementing – Lost Circulation: New Section

  • If cement used to permanently cement the surface or coal protective casing cannot be circulated to the surface due to lost circulation, the operator shall determine the top of cement, notify the Department and meet one of the following:

    • Run additional string 50 deeper than where circulation was lost, cement back to lost circulation string casing seat, vent the annulus, meet pressure requirements of 78.73(c)

    • Run production casing and set on packer, vent the annulus

    • Run production casing to formation being produced, cement to surface

    • Run intermediate and production casing and cement both strings to surface

  • May also emplace supplemental cement in addition to the above


78 83b casing and cementing lost circulation new section continued

78.83b. Casing and Cementing – Lost Circulation: New Section- continued

Policy: cement returns to surface followed by cement drop may be considered to be permanently cementedifthe DEP inspector determines an adequate amount of surface casing cement was placed above the seat.

Top of cement determination must be made and notification given to the DEP inspector for evaluation of casing cement adequacy and subsequent approval for remedial casing options. Must be done prior to continuation of drilling (e.g. no TOC determination after well drilled/completed to TD).

In addition to remedial casing options, the minimum amount of surface casing cement above seat and corresponding maximum amount of uncemented surface casing will be made on a case-by-case basis by DEP. In certain cases, the well may need to be plugged and abandoned if only a minimal amount of cement exists above the surface casing seat (a “catastrophic” loss of cement).

DEP may require remedial cementing from surface and/or pressure-testing of the casing string to determine integrity of the well and ensure protection of the surface casing seat.


78 83c intermediate and production casing new section

78.83c. Intermediate and Production Casing: New Section

  • Prior to cementing intermediate and production casing, the borehole, mud, and cement must be conditioned to ensure an adequate cement bond between the casing and the formation

  • If a well is to be equipped with intermediate casing, centralizers must be used and the casing must be cemented to the surface by the displacement method; gas may be produced off the intermediate casing if a shoe test demonstrates that all gas will be contained within the well and a relief valve is installed at the surface that is set at less than the shoe test pressure (this pressure must be recorded in the completion report)

  • Except as provided by 78.83, each well must be equipped with production casing; centralizers must be used; the production string may be set on a packer or cemented in place; annular space must be cemented to a point at least 500 ft. above the TVD or at least 200 ft. above the uppermost perforations, whichever is greater.


78 84 casing standards original language

78.84. Casing Standards: Original Language

  • Casing must withstand the effects of tension, and prevent burst and collapse during its installation, cementing, and subsequent drilling and producing operations

  • Casing must be equipped with appropriate equipment to center the casing through the hole in fresh groundwater zones

  • Coal protective casing must have a minimum wall thickness of 0.23 inches


78 84 casing standards new language

78.84. Casing Standards: New Language

  • All casing must be a string of new pipe with a pressure rating at least 20% greater than the anticipated maximum pressure

  • Used casing may be approved but must be pressure tested after cementing and before continuation of drilling; a passing pressure test is holding the maximum anticipated pressure for 30 minutes with no more than a 10% change in pressure. Pressure testing should be done before significant gel strength has developed in the cement. API RP65 Part 2

  • New or used plain end casing that is welded must be pressure tested and hold the maximum anticipated pressure for 30 minutes with no more than a 10% change in pressure

  • Welded casing must be welded using at least three passes with the joint cleaned between each pass

  • Welder must be trained and certified in the applicable API, ASME, AWS or equivalent standard for welding casing and pipe or an equivalent training and certification program; a person with 10 or more years of experience welding casing does not need to be certified Note that the certification requirements do not kick in until August 5, 2011


78 85 cement standards original requirements

78.85. Cement Standards: Original Requirements

  • Cement must resist degradation by chemical and physical conditions in the well

  • Minimum compressive strength of 350 psi in accordance with API spec 10; cement must set for a minimum period of eight (8) hours prior to the resumption of actual drilling

  • Operator may request approval from DEP to reduce the cement setting time when special cement or additives are used


Chapter 78 85 new cement standards

Chapter 78.85: New Cement Standards

Revised cement standards:

Cement must protect casing from corrosion and geochemical, lithologic and physical conditions of the surrounding wellbore

Gas-block additives and low fluid-loss slurries in areas of known shallow gas-producing zones are required

Zone of critical cement around surface casing seat

True eight-hour WOC (wait on cement) before casing may be disturbed

One-day notification to DEP prior to cementing of surface casing

Cement job log must be prepared and available at the well site during drilling operations and maintained for at least five years


Chapter 78 85 new cement standards1

Chapter 78.85: New Cement Standards

Zone of Critical Cement:

Applies to bottom 300 ft. of surface casing cement, or entire cemented string if the surface casing string is less than 300 ft

Cement must achieve a 72-hour compressive strength of 1200 psi

Cement must achieve a free-water separation of no more than 6 milliliters of water per 250 milliliters of cement


Chapter 78 85 new cement standards2

Chapter 78.85: New Cement Standards

Eight-hour WOC (wait on cement) – casing may be not be disturbedby:

Releasing pressure on the cement head; if check valves on float shoe are secure, the pressure may be released at a continuous, gradual rate after four hours

Nippling up on or in conjunction to the casing

Slacking off by the rig supporting the casing in the cement sheath

Running drill pipe or other mechanical devices into or out of the wellbore with the exception of a wireline used to determine the top of cement


Chapter 78 85 new cement standards3

Chapter 78.85: New Cement Standards

Cement job log – required components:

Mix water temperature and pH

Type of cement with listing and quantity of additives

Volume, yield, and density in ppg of the cement

Amount of cement returned to the surface

Cementing procedural information including a description of the pumping rates in bbl/min, pressure in psi, time in min, and the sequence of events during the cementing operations

Logs must be available for all cement jobs done after 2/5/2011.


Section 78 88 mechanical integrity of operating wells

Section 78.88: Mechanical Integrity of Operating Wells

Quarterly monitoring program will begin first quarter after the Department develops a standard form for collecting mechanical integrity data

Key monitoring/testing provisions

Pressure monitoring associated with production casing

Pressure monitoring in annular space associated with production casing

Pressure monitoring at relevant casing seat

Checking well fluid level in production casing

Corrosion and equipment deterioration survey

Monitoring for leaking gas

Clear methodology for addressing over-pressured wells

Flexibility for Department to require additional testing

Report detailing results of quarterly inspections must be submitted to Department annually by January 31 of year following inspections


Operating wells 78 88 mechanical integrity of operating wells

Operating Wells 78.88 Mechanical Integrity of Operating Wells

For wells not in compliance, the operator must immediately notify DEP and take corrective action to mitigate the excess pressure on the surface casing seat, coal protective casing seat, or intermediate casing seat when the intermediate casing seat is used in conjunction with the surface casing seat to isolate fresh groundwater

Corrective action occurs in the following hierarchy:

Operator must reduce the shut-in or producing back pressure to achieve compliance with 78.73(c)

Operator must retrofit the well by installing production casing to reduce pressure on the casing seat to achieve compliance with 78.73(c); the annular space surrounding the production casing must be open to the atmosphere; production casing must either be cemented in place or installed on a permanent packer

Operator must notify DEP 7 days prior to initiating corrective action


Section 78 88 mechanical integrity of operating wells1

Section 78.88: Mechanical Integrity of Operating Wells

Potential well problems


Section 78 88 mechanical integrity of operating wells2

Section 78.88: Mechanical Integrity of Operating Wells

Potential well problems: overpressuring

Harrison (1985)


Section 78 88 mechanical integrity of operating wells3

Section 78.88: Mechanical Integrity of Operating Wells

Potential well problems: overpressuring (continued)

Harrison (1985)


Section 78 88 mechanical integrity of operating wells4

Section 78.88: Mechanical Integrity of Operating Wells

Potential well problems: overpressuring (continued)

Harrison (1985)


Section 78 88 mechanical integrity of operating wells5

Section 78.88: Mechanical Integrity of Operating Wells

Potential well problems: cement failures and inadequate casing/tubing


Section 78 88 mechanical integrity of operating wells6

Section 78.88: Mechanical Integrity of Operating Wells

Some notable items

Operators will not be required to retrofit older wells for pressure monitoring

Overpressured conditions or problems noted during well corrosion/equipment deterioration survey must be reported immediately

7-day notification for wells that will be retrofitted with production casing


Section 78 88 mechanical integrity of operating wells7

Section 78.88: Mechanical Integrity of Operating Wells

Some notable items (continued)

Water protection depth will apply in older wells where fluid levels can be determined

Pressure monitoring locations will vary as a function of well construction


Section 78 88 mechanical integrity of operating wells8

Section 78.88: Mechanical Integrity of Operating Wells

Department projects underway or being considered to assist the industry

Development of comprehensive technical guidance/instructions to accompany form to ensure consistency and ease of implementation

Development of tracking system for problems noted to help identify what well maintenance procedures are critical during various points throughout operational history

M.I.C.S.(2011)


78 89 stray gas mitigation response

78.89. Stray Gas Mitigation Response

  • Establishes protocol for operator, DEP, and local emergency response agencies to determine the nature of a gas migration incident, assess the potential for hazards to public health and safety, and mitigate any hazard posed by the release of natural gas

  • Operator, in conjunction with the Department and local emergency response agencies, must take measures necessary to ensure public health and safety


Section 78 89 gas migration response

Section 78.89: Gas Migration Response

Stray gas migration incidents continue to represent one of the most significant problems associated with oil and gas development in the Commonwealth

Previous discussion on well integrity highlighted some problems that result in stray gas migration incidents

Other contributing factor in Pennsylvania is the number of legacy/abandoned wells that were never properly plugged and whose locations remain unknown

Stray gas migration associated with Marcellus Shale development has been geographically isolated


Section 78 89 gas migration response1

Section 78.89: Gas Migration Response

  • Physical properties of methane

    The simplest of all paraffin hydrocarbon gas

    Flammable, colorless, and odorless

    Specific gravity: 0.555

    Explosive range: 5-15%

    Maximum solubility in water: 26-32 mg/l at standard temperature and pressure, but higher at depth due to pressure regime

Baldassare (2009)


Section 78 89 gas migration respon se

Section 78.89: Gas Migration Response

  • Factors influencing stray gas migration

    Changes in barometric pressure

    Soil and bedrock porosity/permeability

    Pore water

    Temperature contrasts

    Other meteorological conditions including precipitation (rain vs. snow) and ground cover (layer of snow or frozen ground)

Figure courtesy of John Harper, PA Topographic and Geologic Survey


Section 78 89 gas migration response2

Section 78.89: Gas Migration Response

  • Types of gas and isotopic signatures (Baldassare, 2009)

    Subsurface microbial gas (deep-sea sediments and drift gas)

    Near-surface microbial gas (marsh gas and landfill gas)

    Thermogenic gas (natural gas and coalbed gas)

Baldassare (2009)


Section 78 89 gas migration response3

Section 78.89: Gas Migration Response

Locations: total number of stray gas cases since 1987 compared to all permitted drilling activity


Section 78 89 gas migration respon se1

Section 78.89: Gas Migration Response

Location: of Marcellus Shale stray gas cases since 2008 compared to Marcellus Shale drilling activity between 2008 and 2010


Section 78 89 gas migration response4

Section 78.89: Gas Migration Response

Recent trends in stray gas incidents: Marcellus Shale versus non-Marcellus Shale wells


Section 78 89 gas migration response5

Section 78.89: Gas Migration Response

  • Key components of stray gas regulations

    Operators notified about a potential stray gas migration incident must immediately conduct an investigation to determine nature of incident, assess potential hazards, and mitigate hazards as needed

    Response actions are tiered based on the severity of the incident

    Investigation closure dependent upon Department approval


Section 78 89 gas migration response6

Section 78.89: Gas Migration Response

  • A three-tiered approach

    Category 1 (Immediate Threat): detectable concentrations equal to or greater than 10% of the lower explosive limit (LEL) or combustible gas in a building or structure(s), or otherwise deemed Category 1 by the Department.

    Category 2 (Potential Threat): detectable concentrations less than 10% of the LEL of combustible gas in a building or structure(s), and/or combustible gas greater than 50% of the LEL in the headspace of a water well, and/or visual or audible evidence of stray gas bubbling through a water well column or surface body, and/or detectable concentrations of stray gas in the soils, and/or concentrations of dissolved methane in water at or above 25% of the lower solubility limit for methane (7 mg/l).

    Category 3 (No Apparent Threat): none of the above conditions were met. If conditions indicate methane in groundwater at concentrations above 0.5 mg/l, but below 7 mg/l, continued monitoring is necessary to ensure that concentrations do not trend to a Category 2 potential threat.


Section 78 89 gas migration respons e

Section 78.89: Gas Migration Response

Department projects underway or being considered to assist the industry

Development of stray gas migration technical guidance document to compliment new regulations

NCRO Stray Gas Prevention Program

Series of joint technical guidance and public outreach documents with Emergency Response staff


Plugging 78 91 78 98

Plugging: 78.91 – 78.98

  • Second attempt to remove production casing after cutting, ripping, shooting or other method approved by the Department.

  • Cement plug now to be placed across oil or gas-bearing strata (rather than gel).

  • Next regulatory package will significantly revise plugging regulations.


Chapter 78 oil and gas wells4

Chapter 78. Oil and Gas Wells

Subchapter E: Well Reporting


Chapter 78 oil and gas wells5

Chapter 78. Oil and Gas Wells

Subchapter E: Well Reporting – Revisions

78.121. Production reporting: Incorporates the requirements of Act 15 of 2010 which mandates semi-annual reporting of production of Marcellus Shale wells (8/15 & 2/15); Non-Marcellus wells report annually (2/15); Information is posted on DEP’s website

78.122. Well record and completion report: Completion report to include: descriptive list of chemical additives used in the stimulation fluid; the percent by volume of those additives; a list of hazardous chemicals used in the stimulation fluid (MSDS/CAS #); the percent by volume of those hazardous chemicals; the total volume of water used; a list of water sources used pursuant to an approved water management plan; the total volume of recycled water used; and the pump rate and pressure used in completing the well

Operator must designate separate sheet as confidential or a trade secret; DEP will prevent disclosure of confidential information to the extent provided by the Right-To-Know Law

Well record adds certification by operator that well has been constructed in accordance with this Subchapter and any permit conditions imposed by DEP


Thank you daenglish@state pa us 717 772 2199

Thank [email protected](717) 772-2199


  • Login
