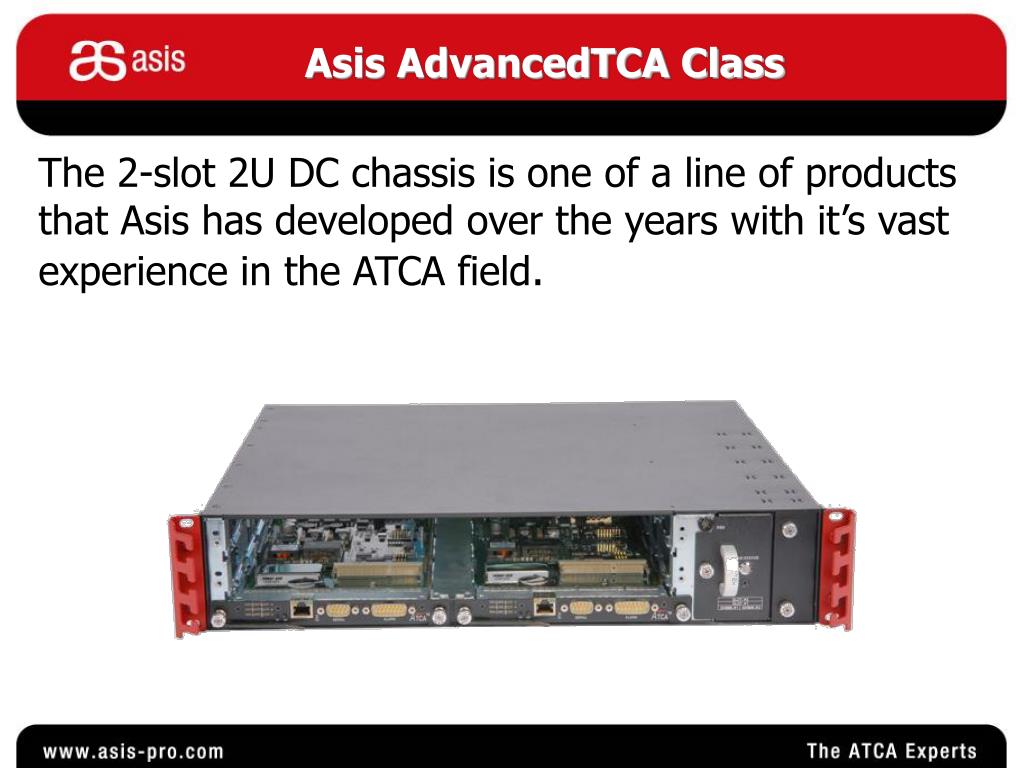

  1. Asis AdvancedTCA Class The 2-slot 2U DC chassis is one of a line of products that Asis has developed over the years with it’s vast experience in the ATCA field.

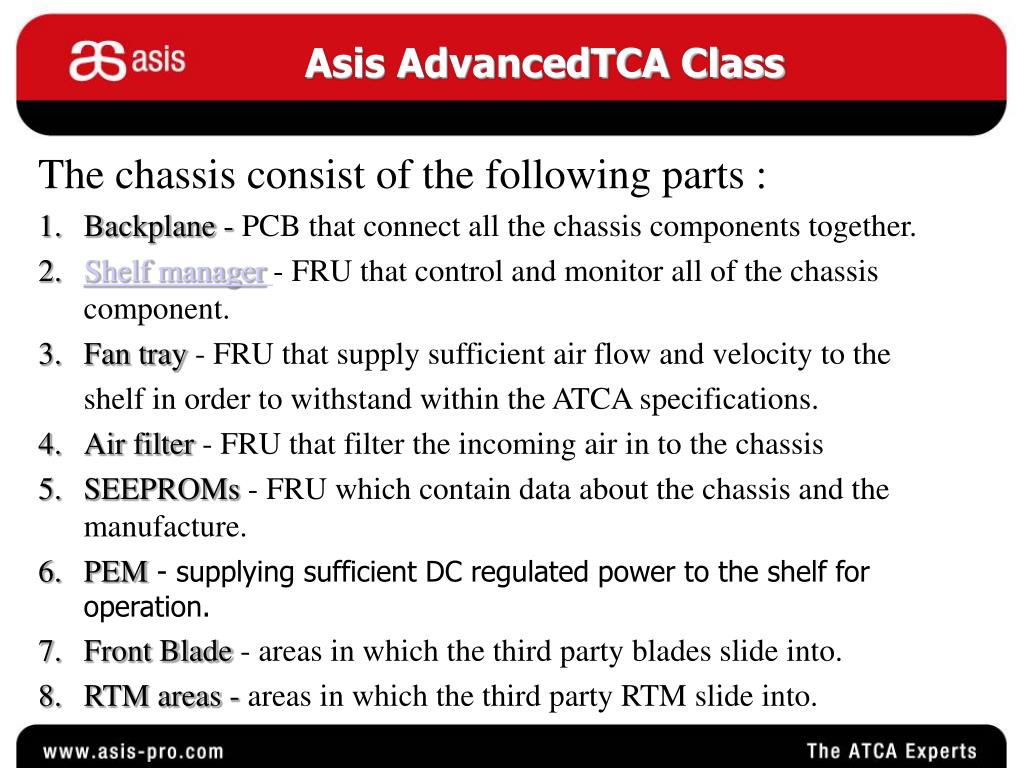

  2. Asis AdvancedTCA Class • The chassis consist of the following parts : • Backplane - PCB that connect all the chassis components together. • Shelf manager- FRU that control and monitor all of the chassis component. • Fan tray - FRU that supply sufficient air flow and velocity to the • shelf in order to withstand within the ATCA specifications. • Air filter - FRU that filter the incoming air in to the chassis • SEEPROMs - FRU which contain data about the chassis and the manufacture. • PEM- supplying sufficient DC regulated power to the shelf for operation. • Front Blade - areas in which the third party blades slide into. • RTM areas - areas in which the third party RTM slide into.

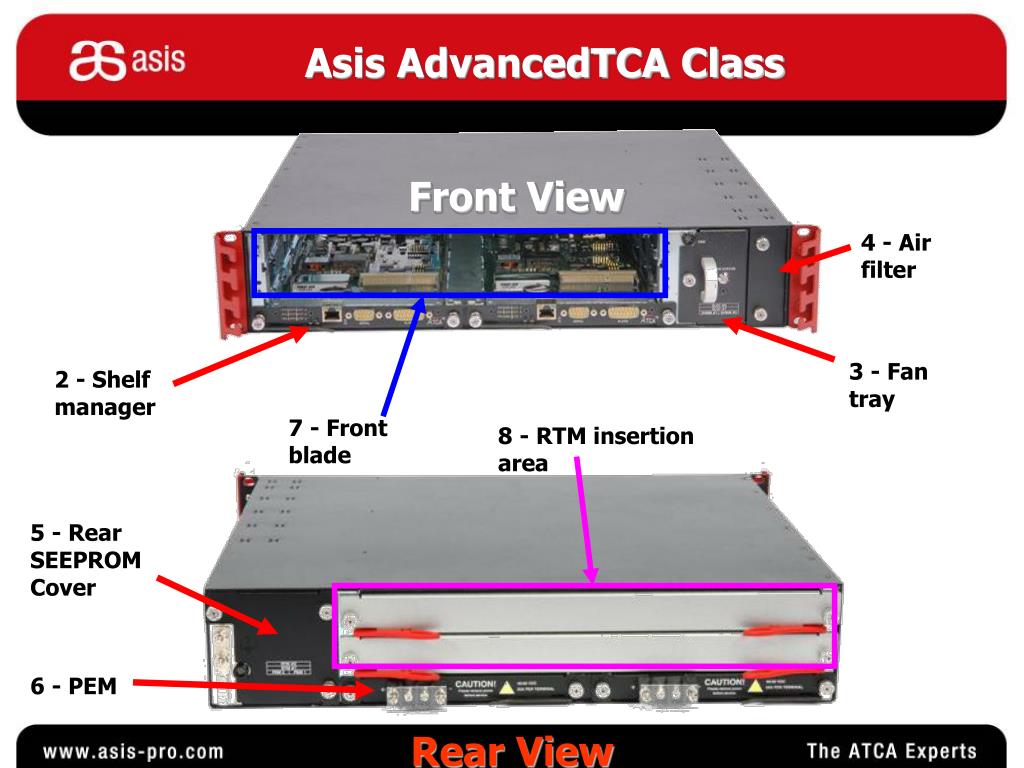

  3. Asis AdvancedTCA Class Front View 4 - Air filter 3 - Fan tray 2 - Shelf manager 7 - Front blade 8 - RTM insertion area 5 - Rear SEEPROM Cover 6 - PEM Rear View

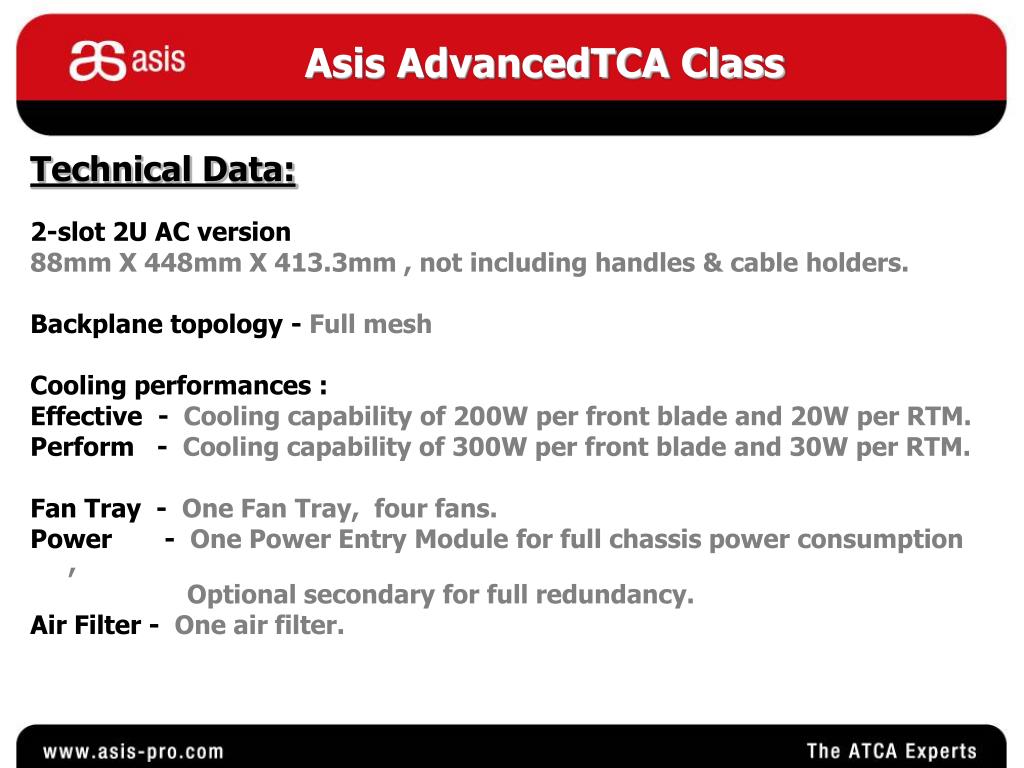

  4. Asis AdvancedTCA Class Technical Data: 2-slot 2U AC version 88mm X 448mm X 413.3mm , not including handles & cable holders. Backplane topology - Full mesh Cooling performances : Effective - Cooling capability of 200W per front blade and 20W per RTM. Perform - Cooling capability of 300W per front blade and 30W per RTM. Fan Tray - One Fan Tray, four fans. Power - One Power Entry Module for full chassis power consumption , Optional secondary for full redundancy. Air Filter - One air filter.

  5. Asis AdvancedTCA Class

  6. Asis AdvancedTCA Class In order to get further information about the Chassis Please refer to the chassis user Manual. At www.asis-pro.com, login at the Partners zone In order to download the manual.
