  1. ENTC 395 Lecture 1bOverview of Dynamic Systems R. W. Bolton Thompson 120D 845-0588 bbolton@tamu.edu

  2. Today • 1st order systems • Examples • Response • 2nd order systems • Examples • Response

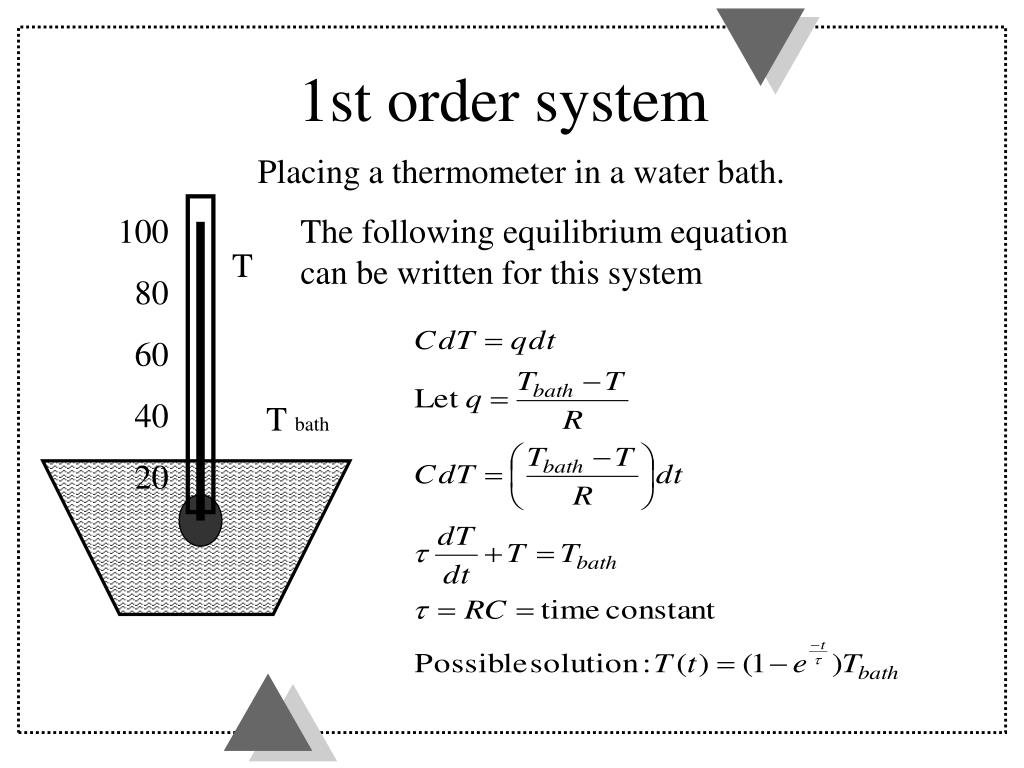

  3. 1st order system Placing a thermometer in a water bath. 100 80 60 40 20 The following equilibrium equation can be written for this system T T bath

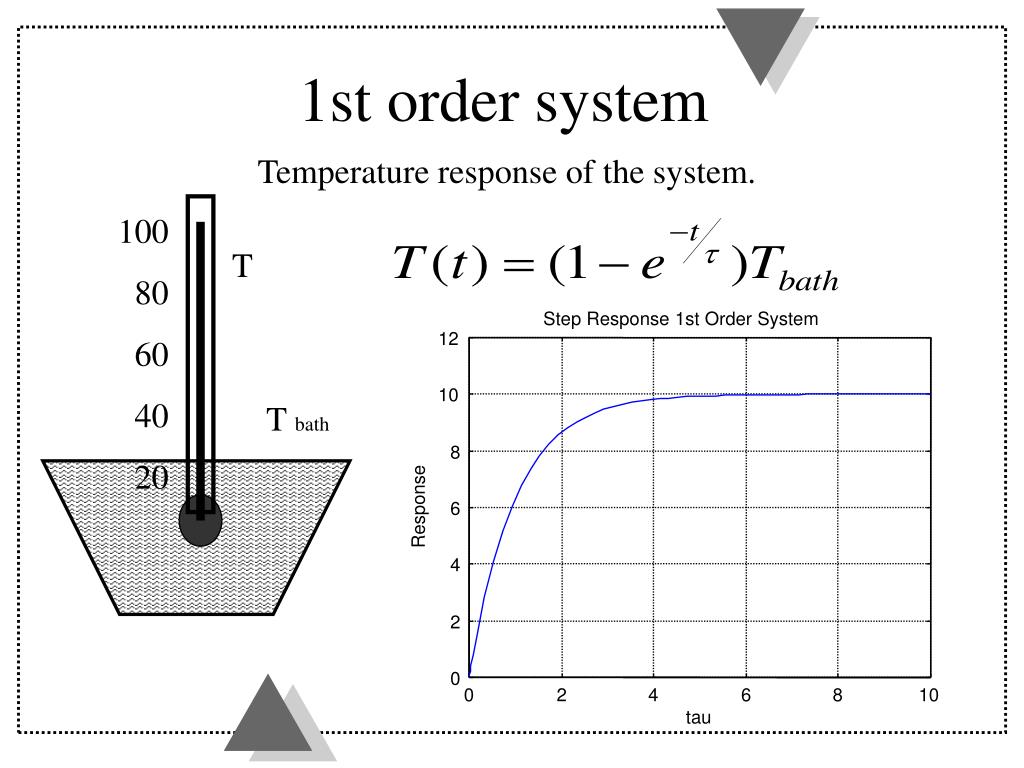

  4. 1st order system Temperature response of the system. 100 80 60 40 20 T Step Response 1st Order System 12 10 T bath 8 Response 6 4 2 0 0 2 4 6 8 10 tau

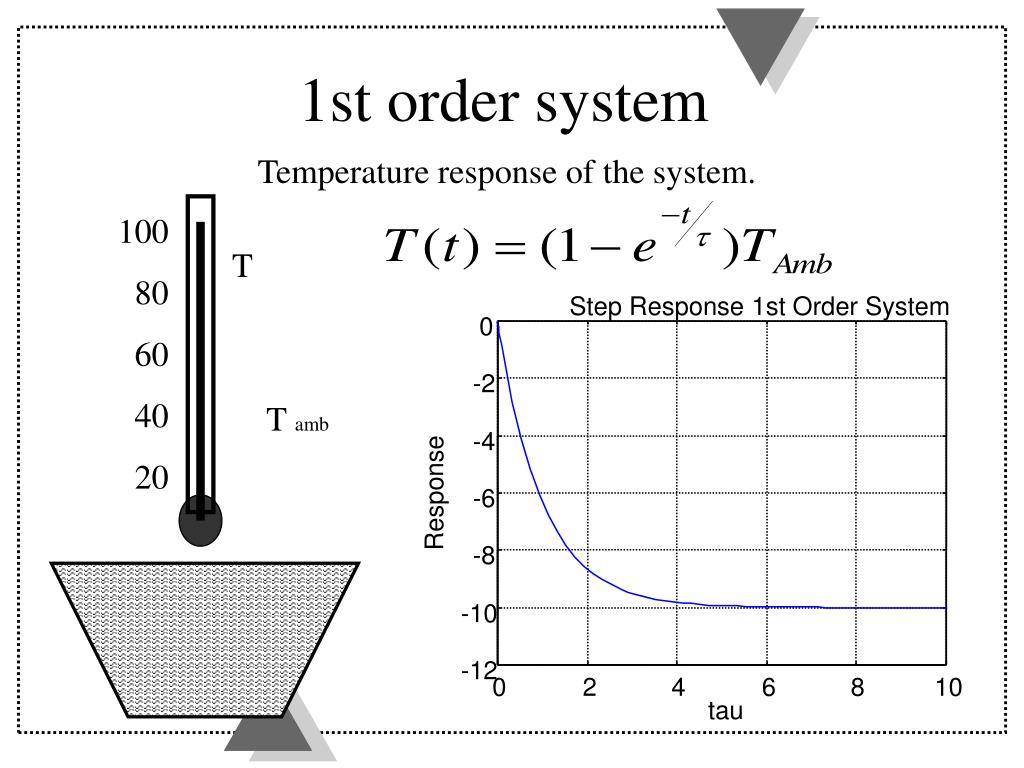

  5. Step Response 1st Order System 0 -2 -4 -6 Response -8 -10 -12 0 2 4 6 8 10 tau 1st order system Temperature response of the system. 100 80 60 40 20 T T amb

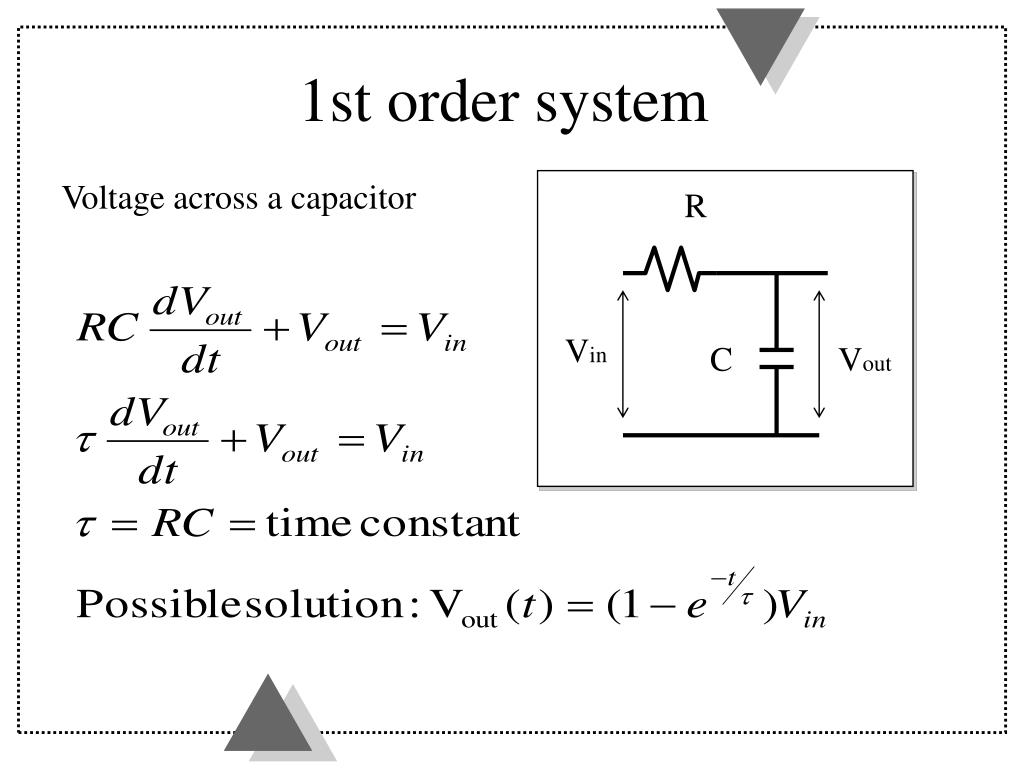

  6. R Vin C Vout 1st order system Voltage across a capacitor

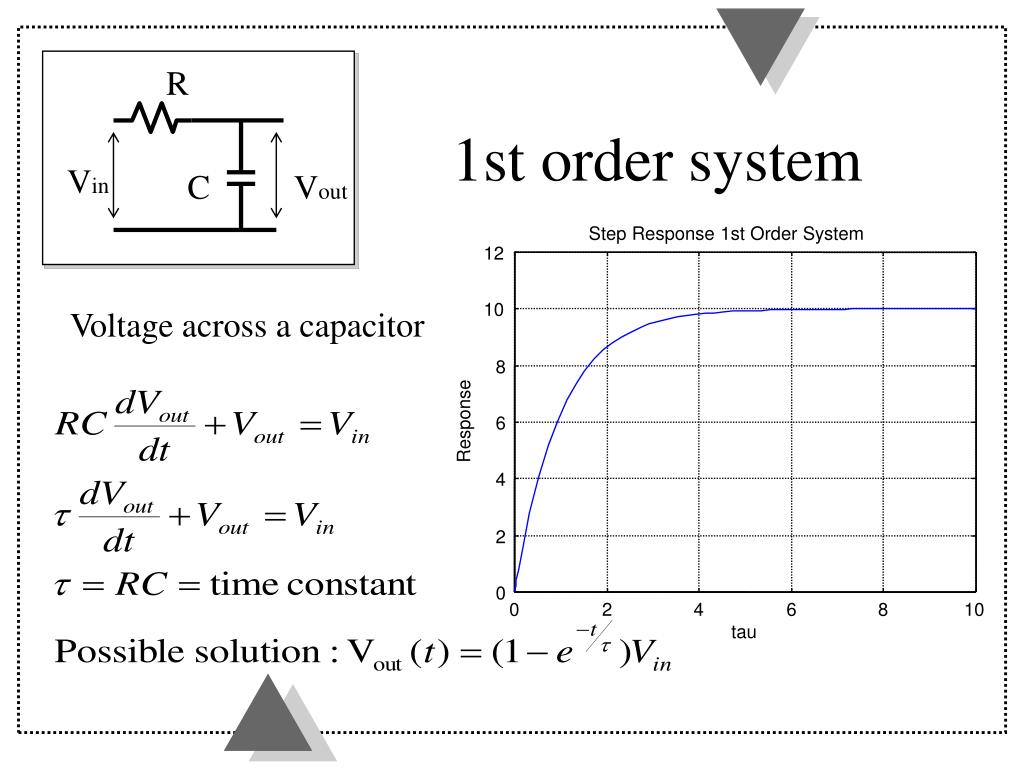

  7. Step Response 1st Order System R 12 10 8 Vin C Vout Response 6 4 2 0 0 2 4 6 8 10 tau 1st order system Voltage across a capacitor

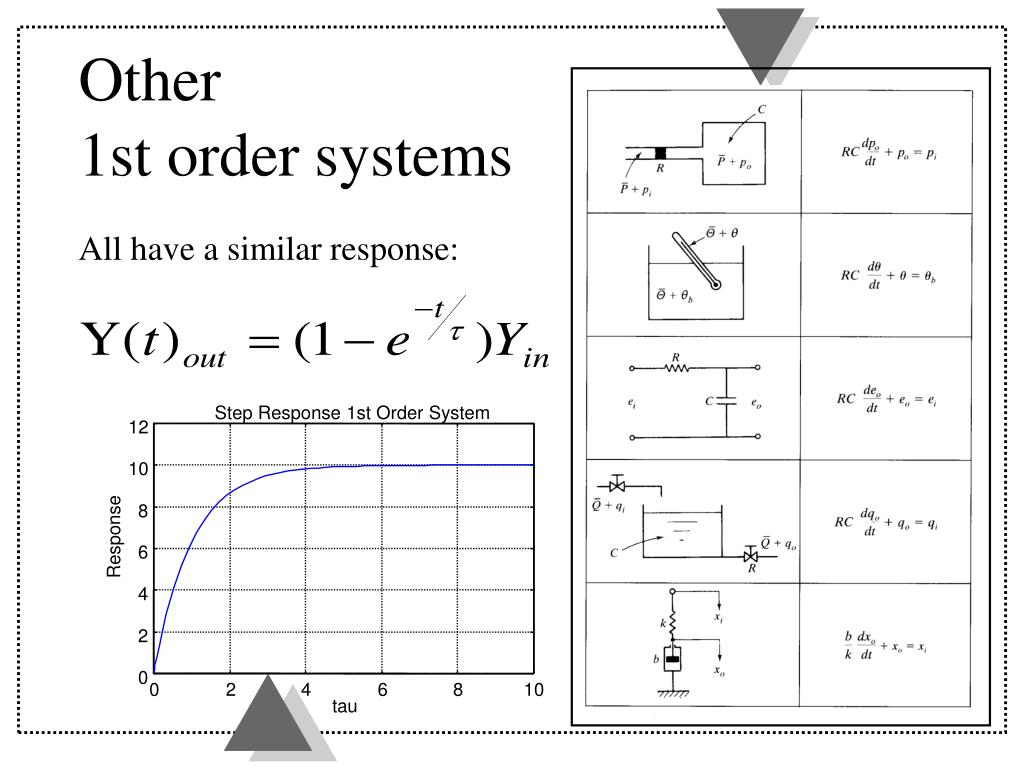

  8. Step Response 1st Order System 12 10 8 Response 6 4 2 0 0 2 4 6 8 10 tau Other1st order systems All have a similar response:

  9. 2nd order systems The cart is a second order mechanical system

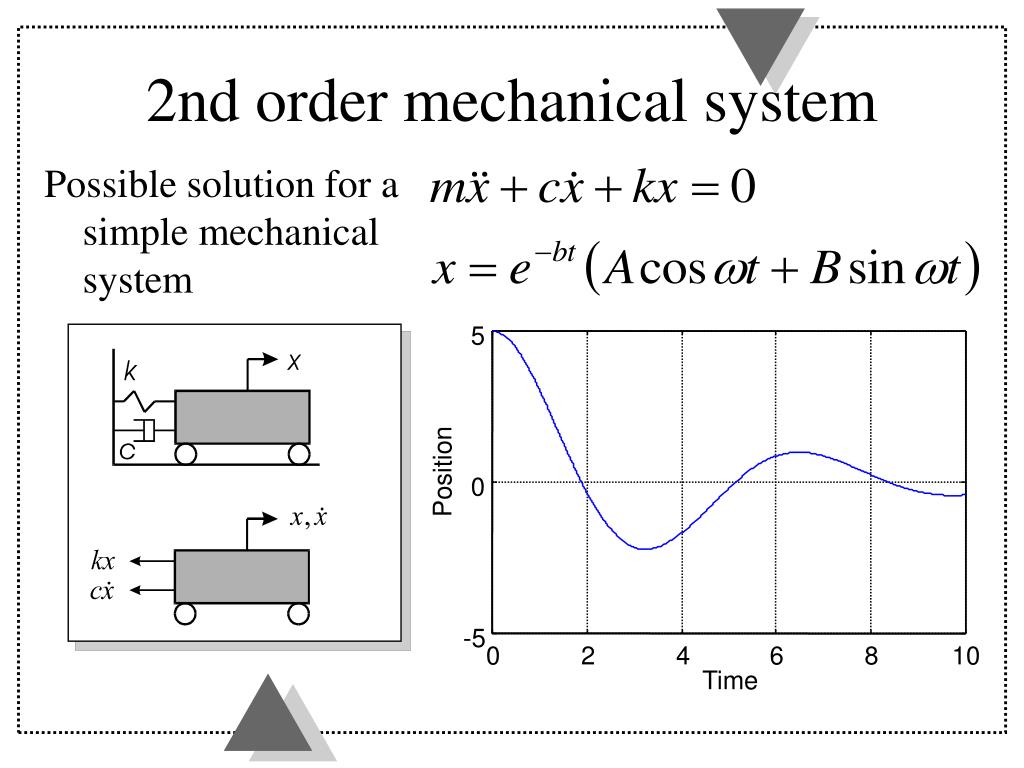

  10. 5 Position 0 -5 0 2 4 6 8 10 Time 2nd order mechanical system Possible solution for a simple mechanical system

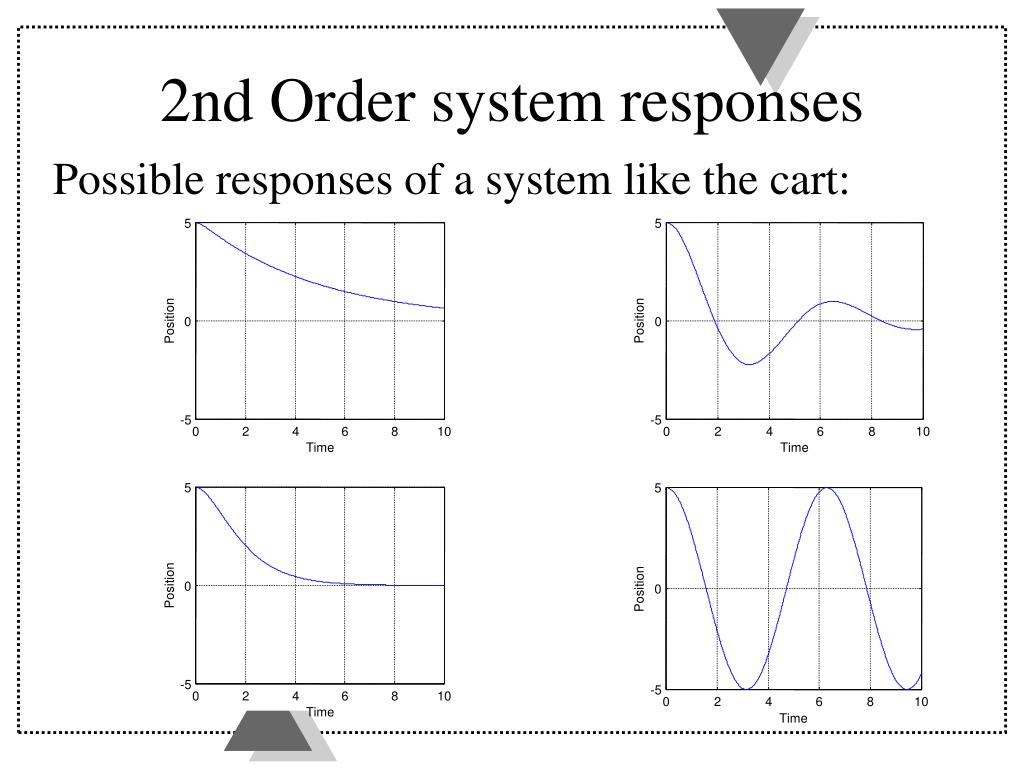

  11. 5 5 Position Position 0 0 -5 -5 0 2 4 6 8 10 0 2 4 6 8 10 Time Time 5 5 Position 0 0 Position -5 -5 0 2 4 6 8 10 0 2 4 6 8 10 Time Time 2nd Order system responses Possible responses of a system like the cart:

  12. 5 4 3 Position 2 1 0 0 2 4 6 8 10 Time Step response Step response of a damped system: • Transient zone • Steady-state zone • Final offset • Overshoot

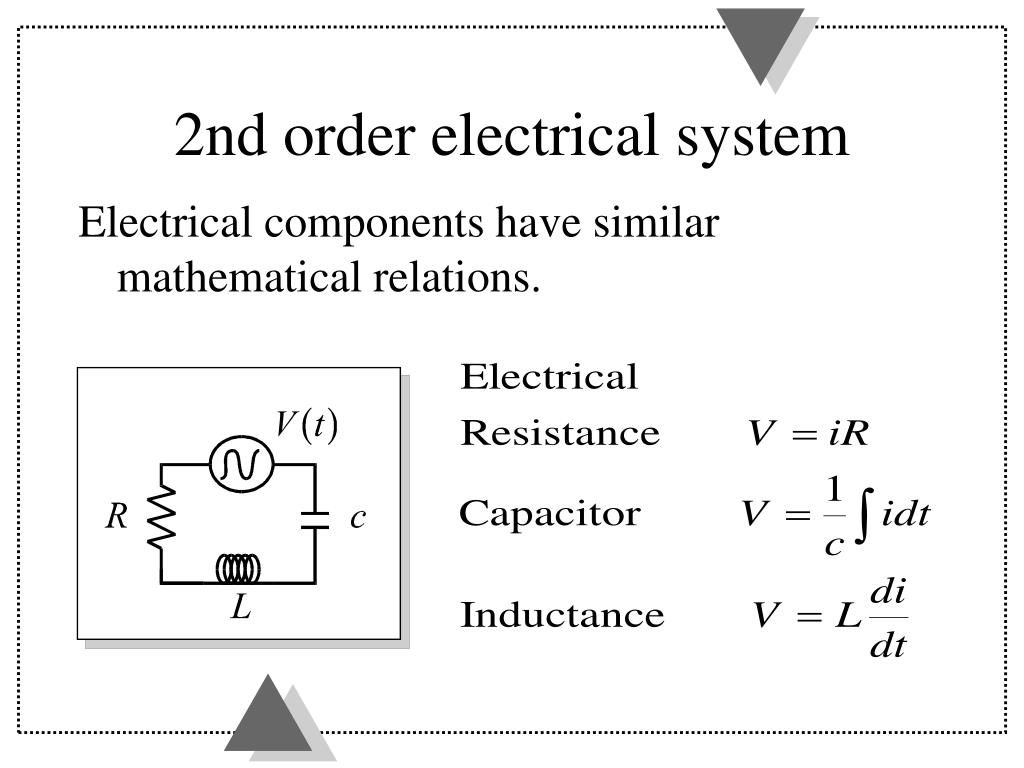

  13. 2nd order electrical system Electrical components have similar mathematical relations.

  14. Electrical System The governing equation in this electrical system is the sum of voltages around a closed loop.
