Presentation Transcript

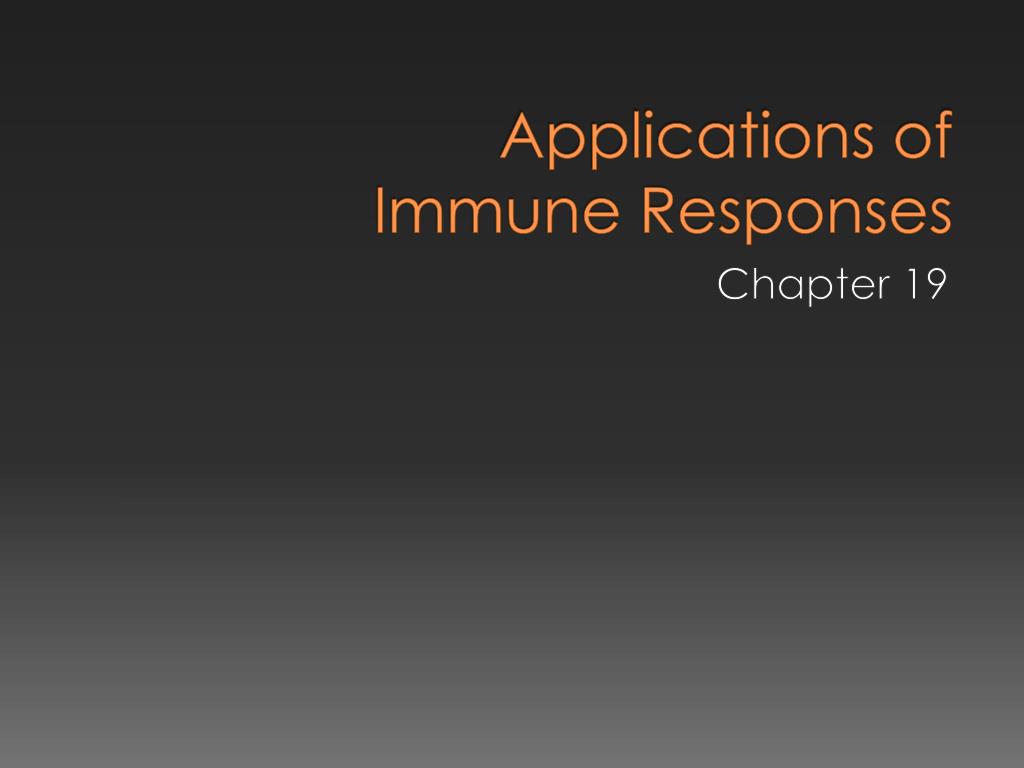

Applications of immune responses

Applications of Immune Responses

Chapter 19


Principles of immunization

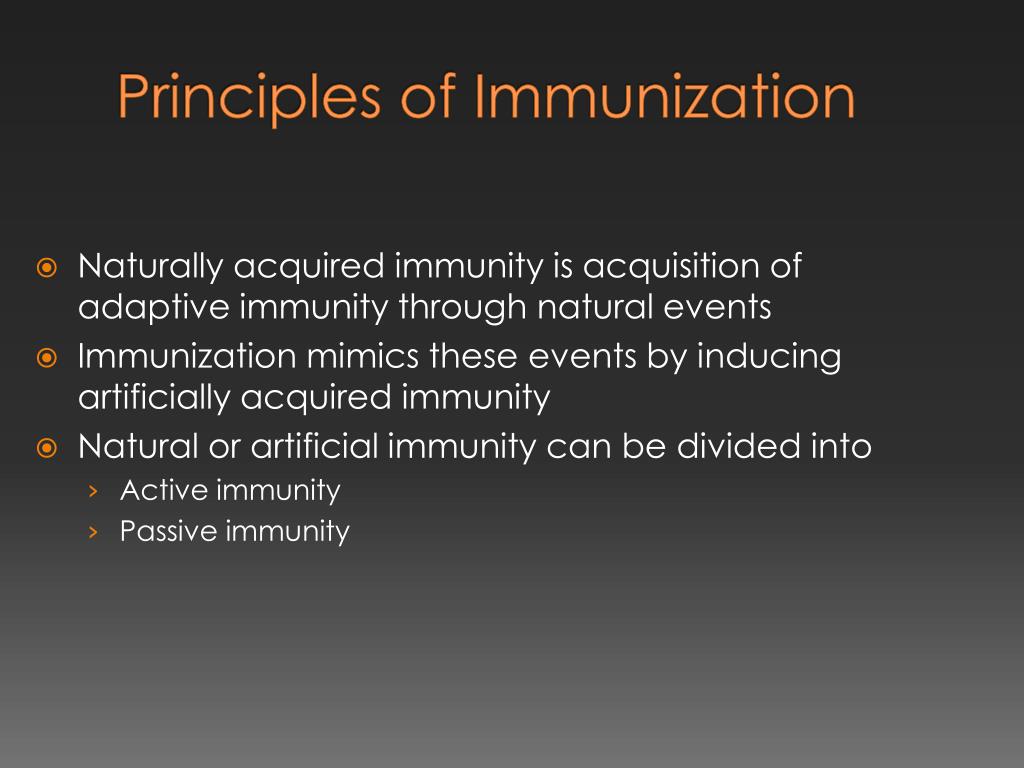

Principles of Immunization

  • Naturally acquired immunity is acquisition of adaptive immunity through natural events

  • Immunization mimics these events by inducing artificially acquired immunity

  • Natural or artificial immunity can be divided into

    • Active immunity

    • Passive immunity

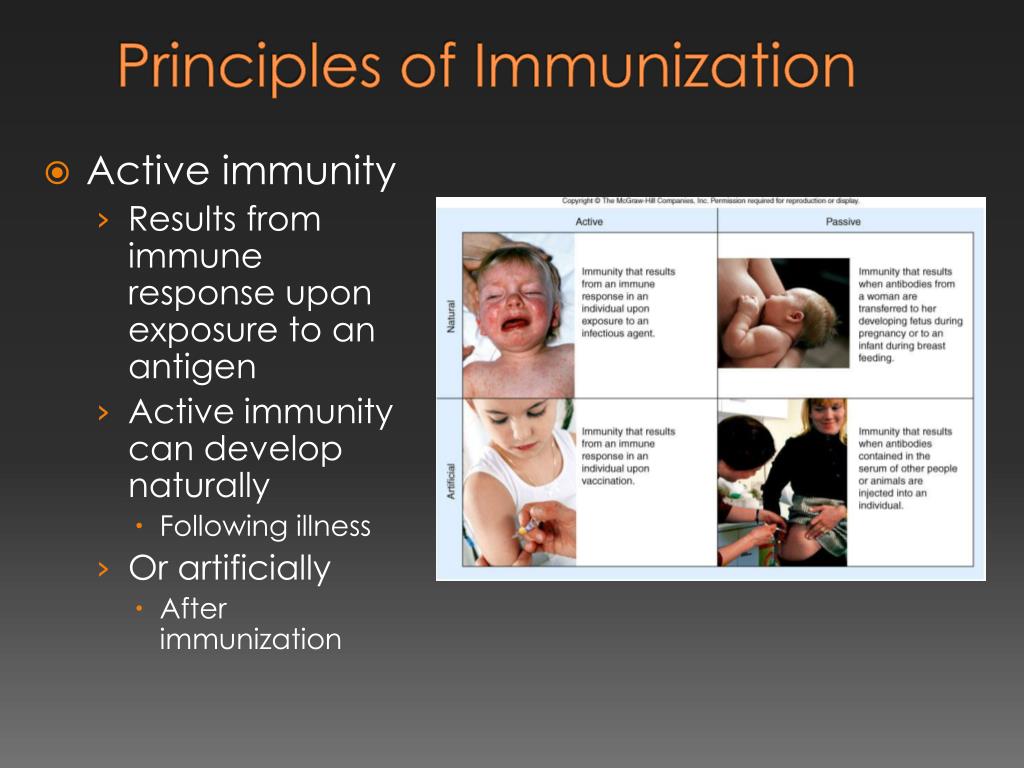

Principles of immunization1

Principles of Immunization

  • Active immunity

    • Results from immune response upon exposure to an antigen

    • Active immunity can develop naturally

      • Following illness

    • Or artificially

      • After immunization


Principles of immunization2

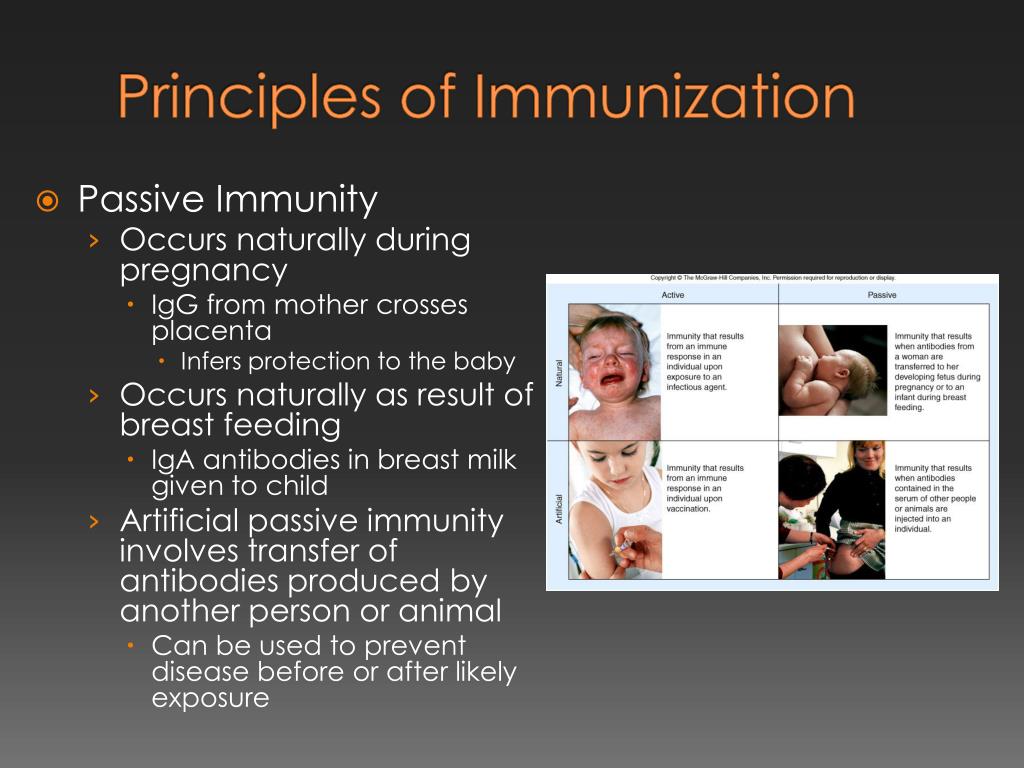

Principles of Immunization

  • Passive Immunity

    • Occurs naturally during pregnancy

      • IgG from mother crosses placenta

        • Infers protection to the baby

    • Occurs naturally as result of breast feeding

      • IgA antibodies in breast milk given to child

    • Artificial passive immunity involves transfer of antibodies produced by another person or animal

      • Can be used to prevent disease before or after likely exposure

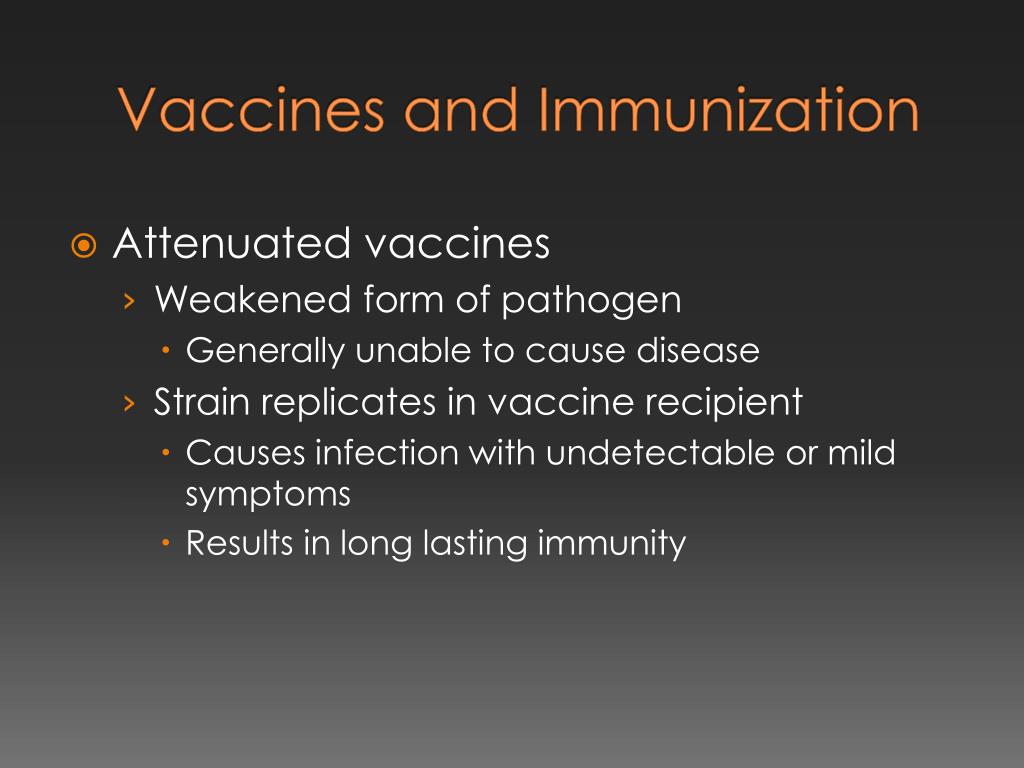

Vaccines and immunization

Vaccines and Immunization

  • Attenuated vaccines

    • Weakened form of pathogen

      • Generally unable to cause disease

    • Strain replicates in vaccine recipient

      • Causes infection with undetectable or mild symptoms

      • Results in long lasting immunity

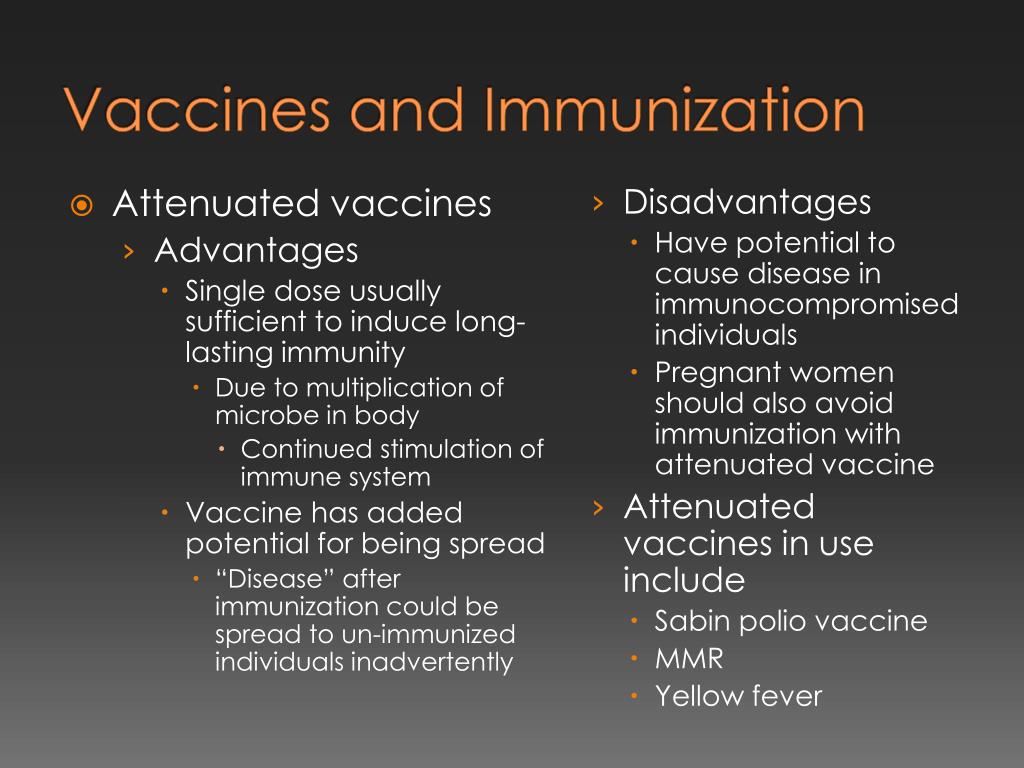

Vaccines and immunization1

Vaccines and Immunization

  • Attenuated vaccines

    • Advantages

      • Single dose usually sufficient to induce long-lasting immunity

        • Due to multiplication of microbe in body

          • Continued stimulation of immune system

      • Vaccine has added potential for being spread

        • “Disease” after immunization could be spread to un-immunized individuals inadvertently

  • Disadvantages

    • Have potential to cause disease in immunocompromised individuals

    • Pregnant women should also avoid immunization with attenuated vaccine

  • Attenuated vaccines in use include

    • Sabin polio vaccine

    • MMR

    • Yellow fever


Vaccines and immunization2

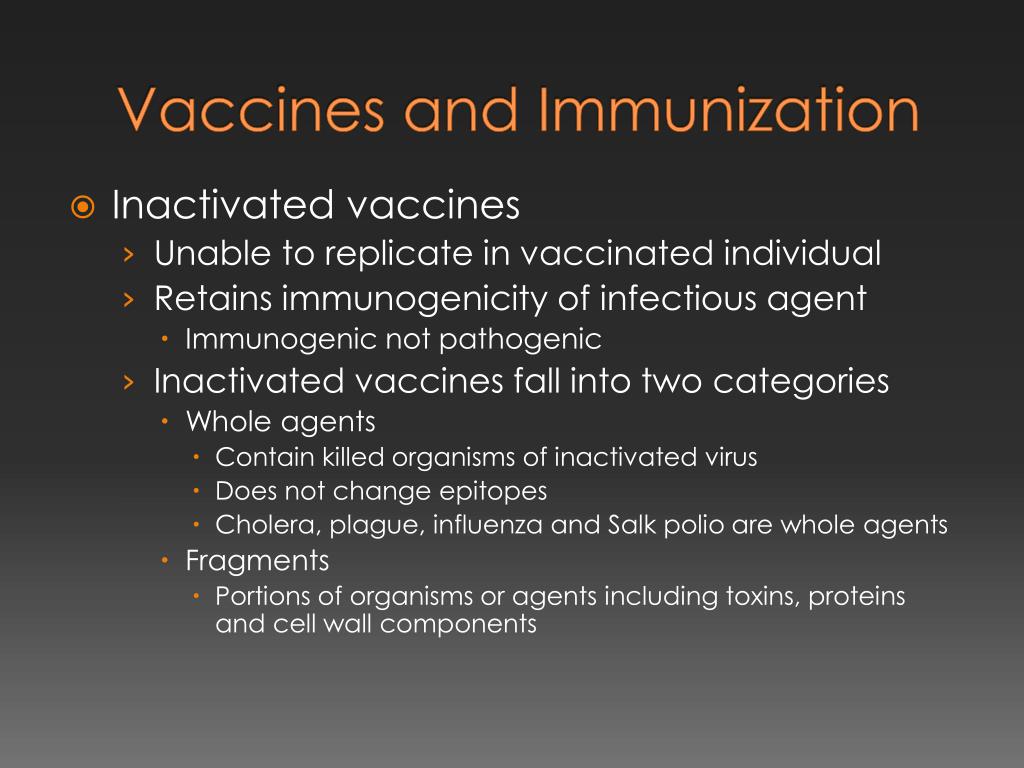

Vaccines and Immunization

  • Inactivated vaccines

    • Unable to replicate in vaccinated individual

    • Retains immunogenicity of infectious agent

      • Immunogenic not pathogenic

    • Inactivated vaccines fall into two categories

      • Whole agents

        • Contain killed organisms of inactivated virus

        • Does not change epitopes

        • Cholera, plague, influenza and Salk polio are whole agents

      • Fragments

        • Portions of organisms or agents including toxins, proteins and cell wall components

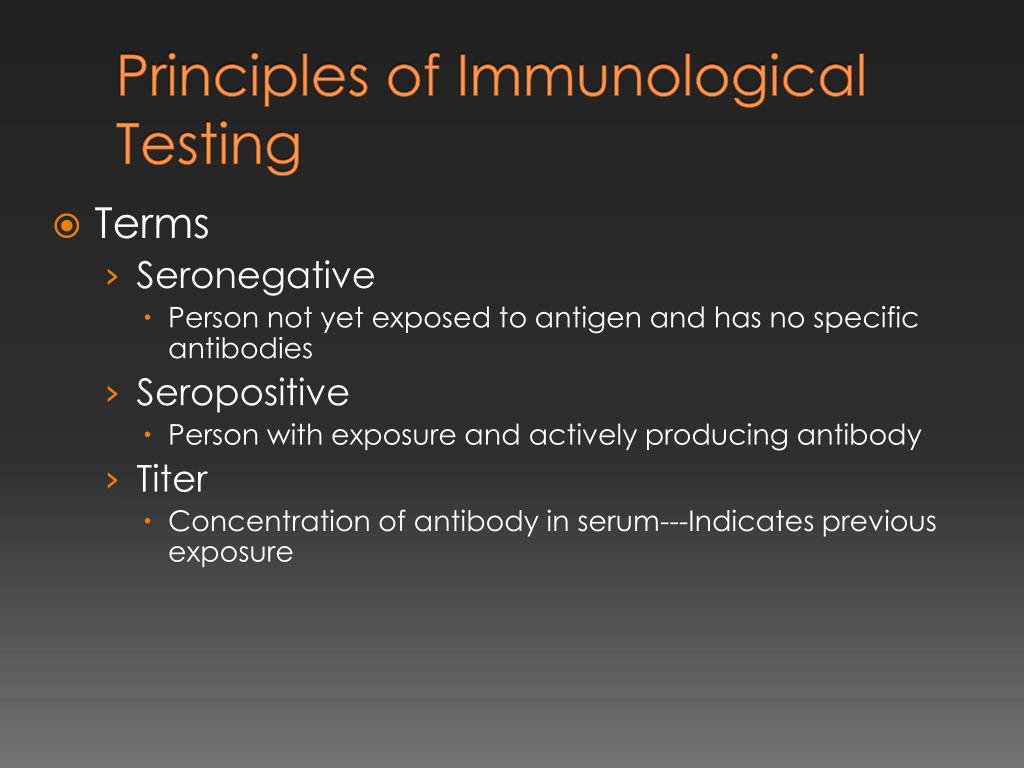

Principles of immunological testing

Principles of Immunological Testing

  • Terms

    • Seronegative

      • Person not yet exposed to antigen and has no specific antibodies

    • Seropositive

      • Person with exposure and actively producing antibody

    • Titer

      • Concentration of antibody in serum---Indicates previous exposure

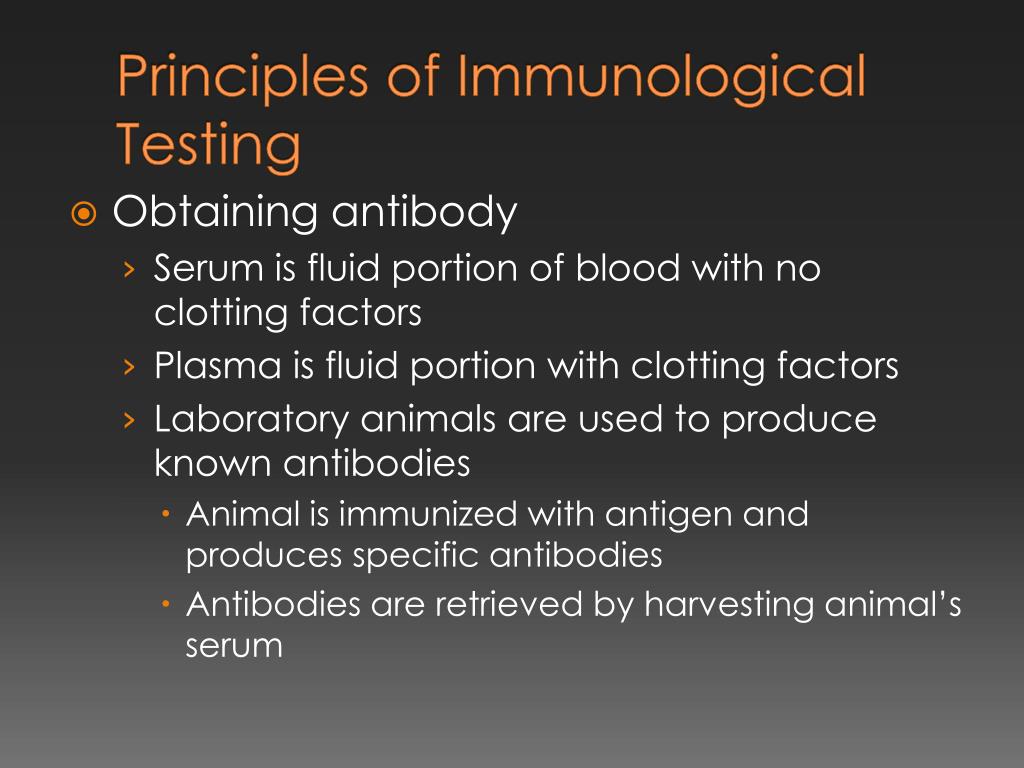

Principles of immunological testing1

Principles of Immunological Testing

  • Obtaining antibody

    • Serum is fluid portion of blood with no clotting factors

    • Plasma is fluid portion with clotting factors

    • Laboratory animals are used to produce known antibodies

      • Animal is immunized with antigen and produces specific antibodies

      • Antibodies are retrieved by harvesting animal’s serum

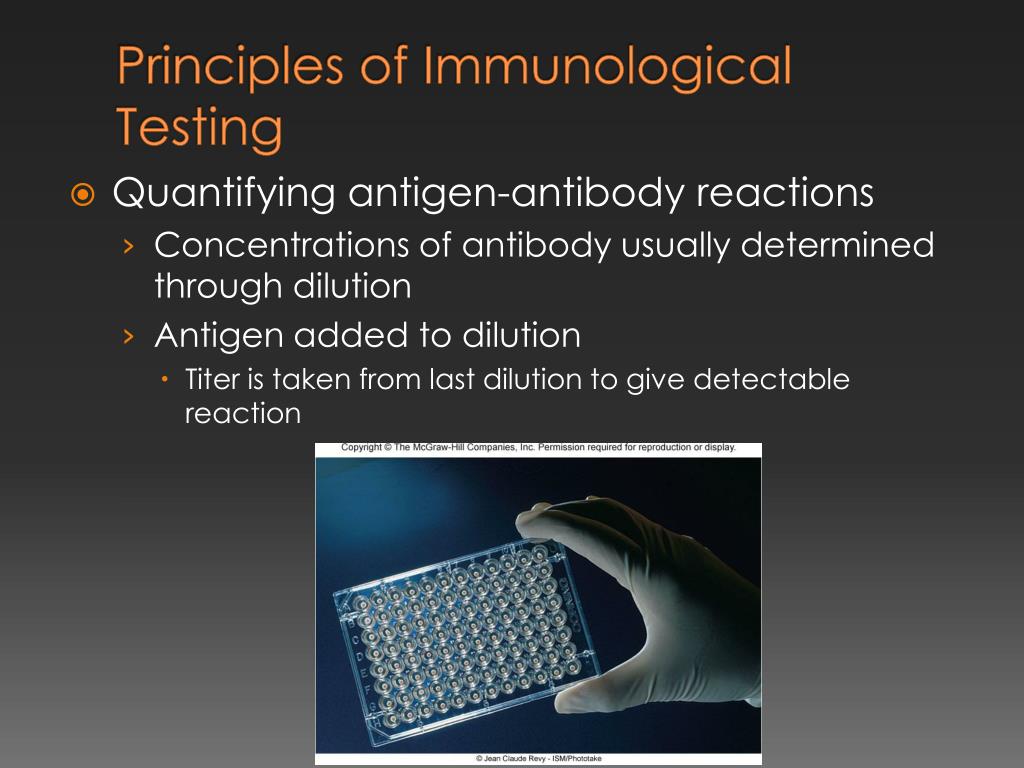

Principles of immunological testing2

Principles of Immunological Testing

  • Quantifying antigen-antibody reactions

    • Concentrations of antibody usually determined through dilution

    • Antigen added to dilution

      • Titer is taken from last dilution to give detectable reaction

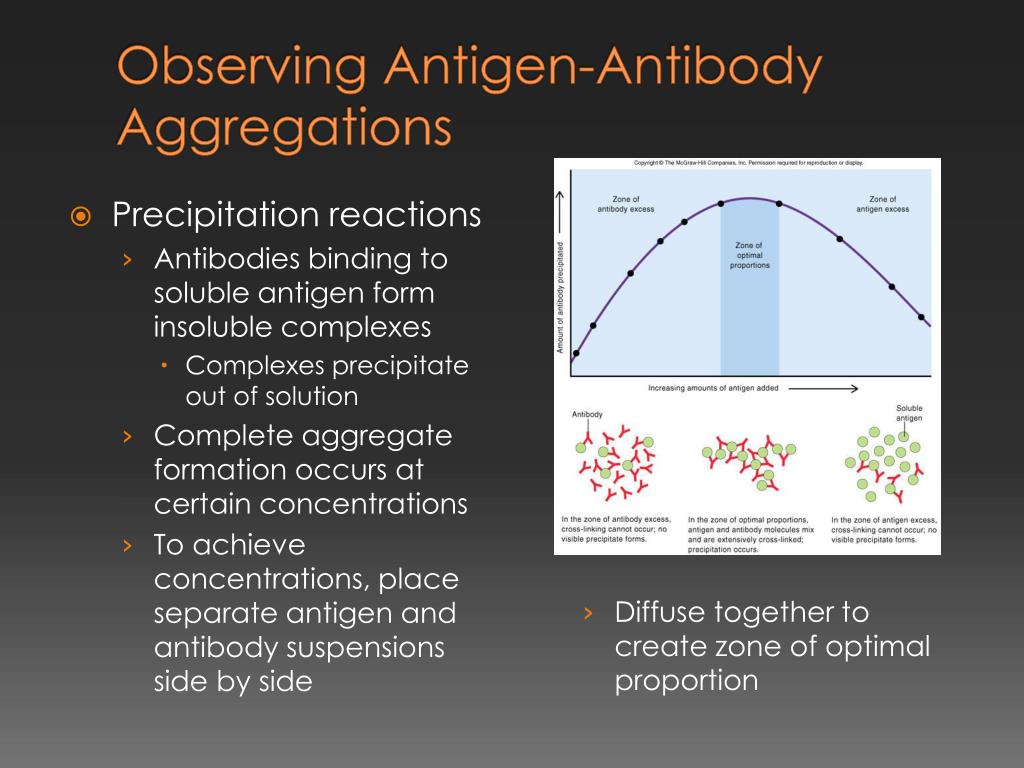

Observing antigen antibody aggregations

Observing Antigen-Antibody Aggregations

  • Precipitation reactions

    • Antibodies binding to soluble antigen form insoluble complexes

      • Complexes precipitate out of solution

    • Complete aggregate formation occurs at certain concentrations

    • To achieve concentrations, place separate antigen and antibody suspensions side by side

  • Diffuse together to create zone of optimal proportion

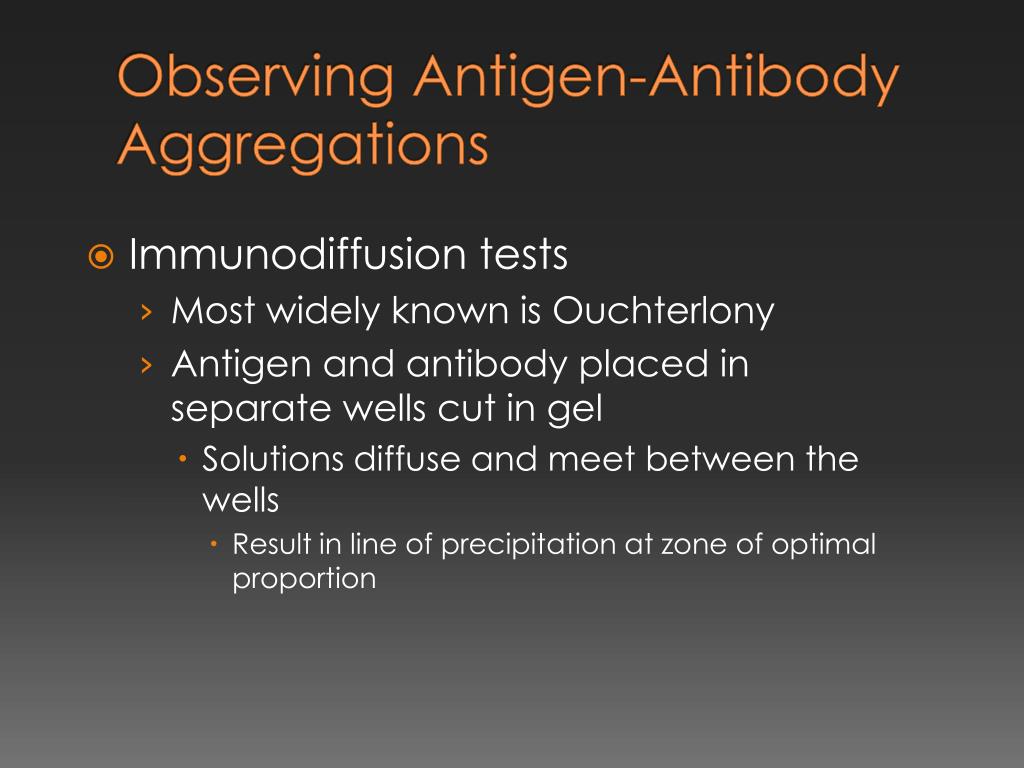

Observing antigen antibody aggregations1

Observing Antigen-Antibody Aggregations

  • Immunodiffusion tests

    • Most widely known is Ouchterlony

    • Antigen and antibody placed in separate wells cut in gel

      • Solutions diffuse and meet between the wells

        • Result in line of precipitation at zone of optimal proportion


Observing antigen antibody aggregations ouchterlony technique

Observing Antigen-Antibody Aggregations: Ouchterlony Technique


Observing antigen antibody aggregations2

Observing Antigen-Antibody Aggregations

  • Immunodiffusion tests

    • Radial immunodiffusion test is quantitative

    • Antibody is added to liquid agar that is allowed to harden

      • Creates a uniform antibody concentration

    • Antigen added to wells cut in gel

      • Diffusion outward forms concentration gradient

      • Ring forms at antigen-antibody precipitation

    • Standards can be used to construct standard curve to establish concentration


Observing antigen antibody aggregations3

Observing Antigen-Antibody Aggregations

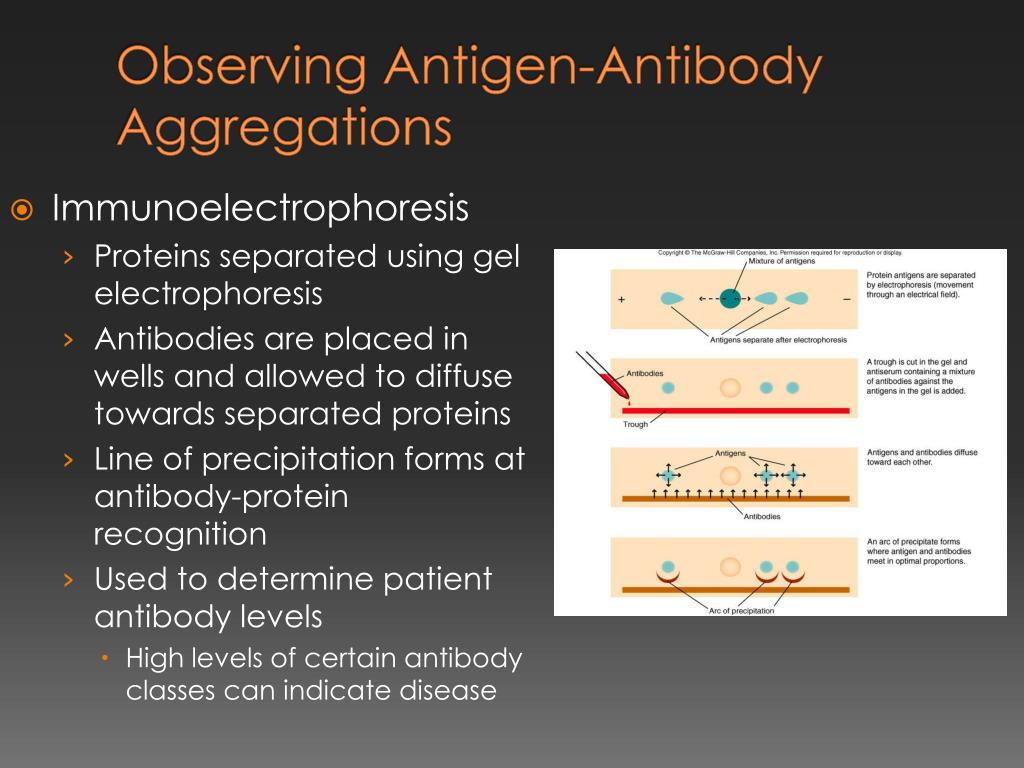

Observing antigen antibody aggregations4

Observing Antigen-Antibody Aggregations

  • Immunoelectrophoresis

    • Proteins separated using gel electrophoresis

    • Antibodies are placed in wells and allowed to diffuse towards separated proteins

    • Line of precipitation forms at antibody-protein recognition

    • Used to determine patient antibody levels

      • High levels of certain antibody classes can indicate disease


Observing antigen antibody aggregations5

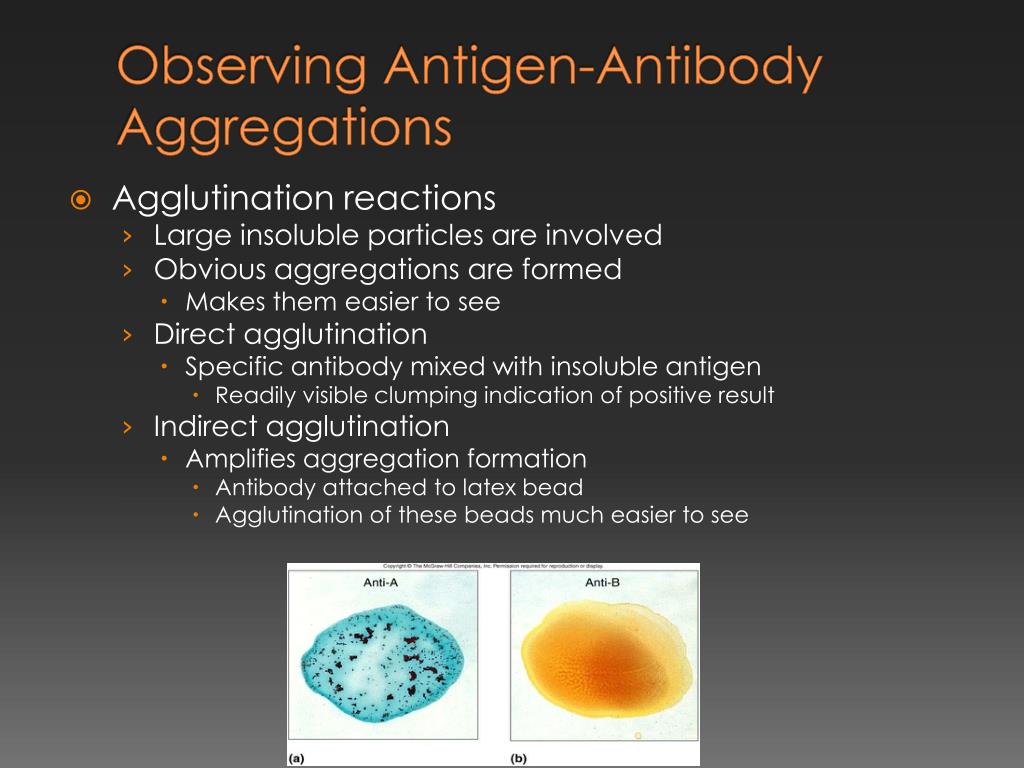

Observing Antigen-Antibody Aggregations

  • Agglutination reactions

    • Large insoluble particles are involved

    • Obvious aggregations are formed

      • Makes them easier to see

    • Direct agglutination

      • Specific antibody mixed with insoluble antigen

        • Readily visible clumping indication of positive result

    • Indirect agglutination

      • Amplifies aggregation formation

        • Antibody attached to latex bead

        • Agglutination of these beads much easier to see


Using labeled antibodies to detect interactions

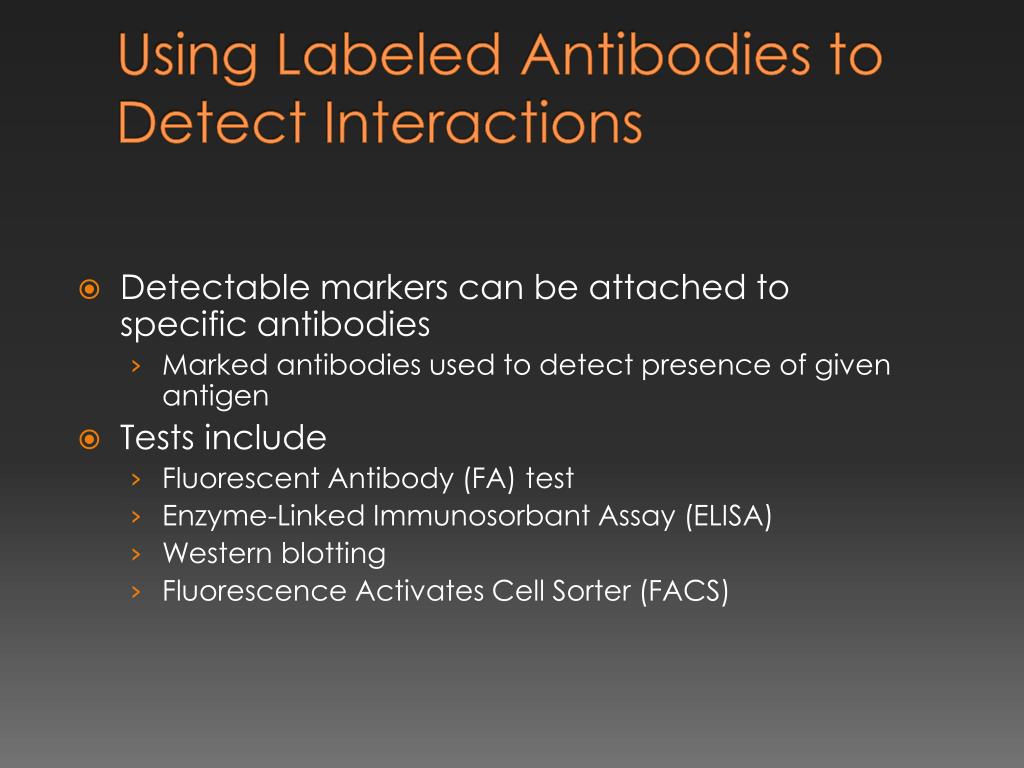

Using Labeled Antibodies to Detect Interactions

  • Detectable markers can be attached to specific antibodies

    • Marked antibodies used to detect presence of given antigen

  • Tests include

    • Fluorescent Antibody (FA) test

    • Enzyme-Linked Immunosorbant Assay (ELISA)

    • Western blotting

    • Fluorescence Activates Cell Sorter (FACS)


Using labeled antibodies to detect interactions1

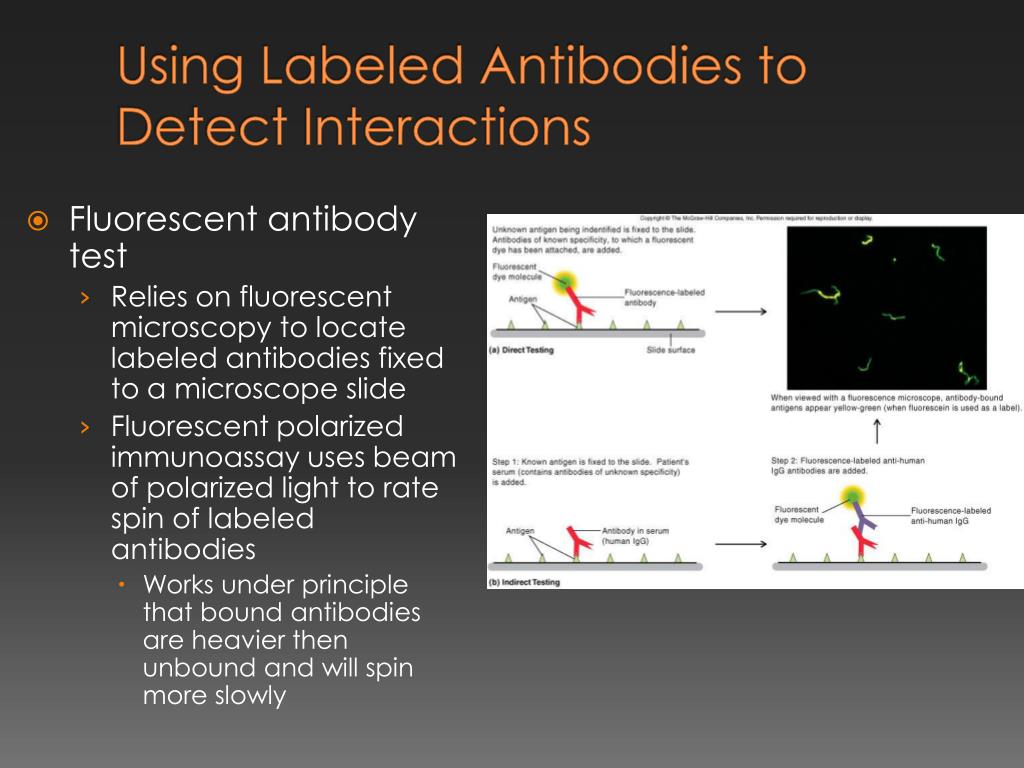

Using Labeled Antibodies to Detect Interactions

  • Fluorescent antibody test

    • Relies on fluorescent microscopy to locate labeled antibodies fixed to a microscope slide

    • Fluorescent polarized immunoassay uses beam of polarized light to rate spin of labeled antibodies

      • Works under principle that bound antibodies are heavier then unbound and will spin more slowly


Using labeled antibodies to detect interactions2

Using Labeled Antibodies to Detect Interactions

  • Enzyme-Linked Immunosorbant Assay (ELISA)

    • Employs antibody that has been labeled with detectable enzyme

      • Commonly horseradish peroxidase

    • Labels antibody bonds to antigen

      • Binding can be direct or indirect

    • Antigen location is determined using colormetric assay


Using labeled antibodies to detect interactions3

Using Labeled Antibodies to Detect Interactions

  • Enzyme-Linked Immunosorbant Assay

    • Direct ELISA

      • Looks for specific antigen

        • Specimen placed in wells of microtiter plate

          • Wells treated with antibody for antigen

    • Indirect ELISA

      • Looks for antibody in patient serum

        • Human IgG

        • Wells of plate treated with known antigen


Using labeled antibodies to detect interactions4

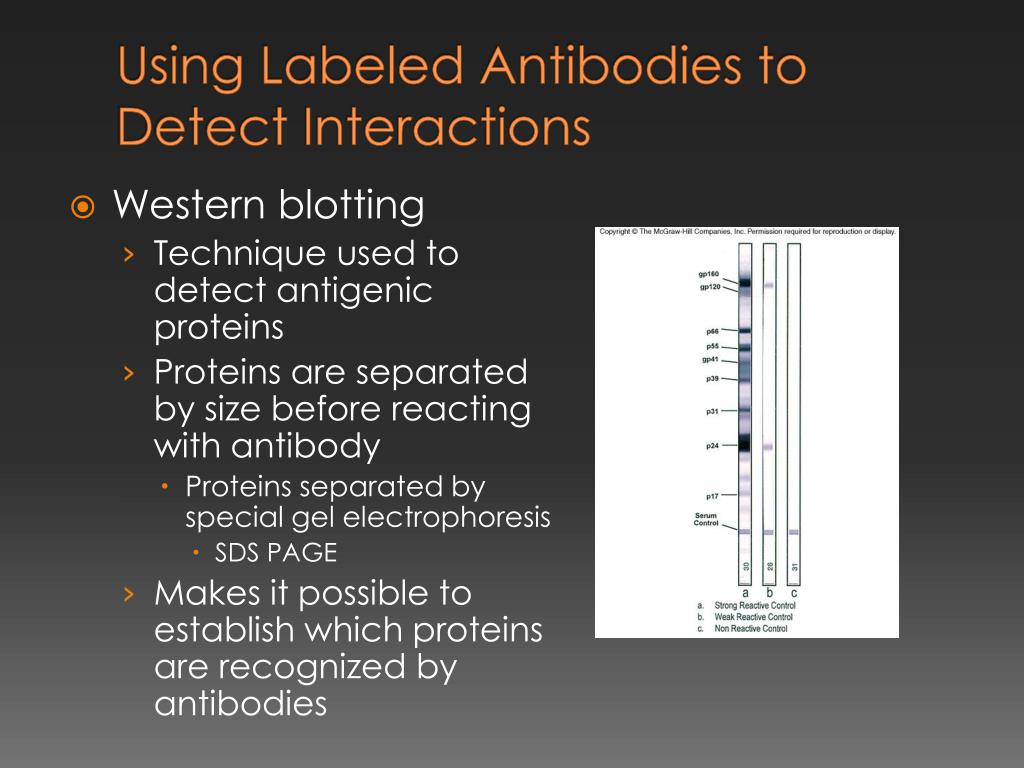

Using Labeled Antibodies to Detect Interactions

  • Western blotting

    • Technique used to detect antigenic proteins

    • Proteins are separated by size before reacting with antibody

      • Proteins separated by special gel electrophoresis

        • SDS PAGE

    • Makes it possible to establish which proteins are recognized by antibodies


Using labeled antibodies to detect interactions5

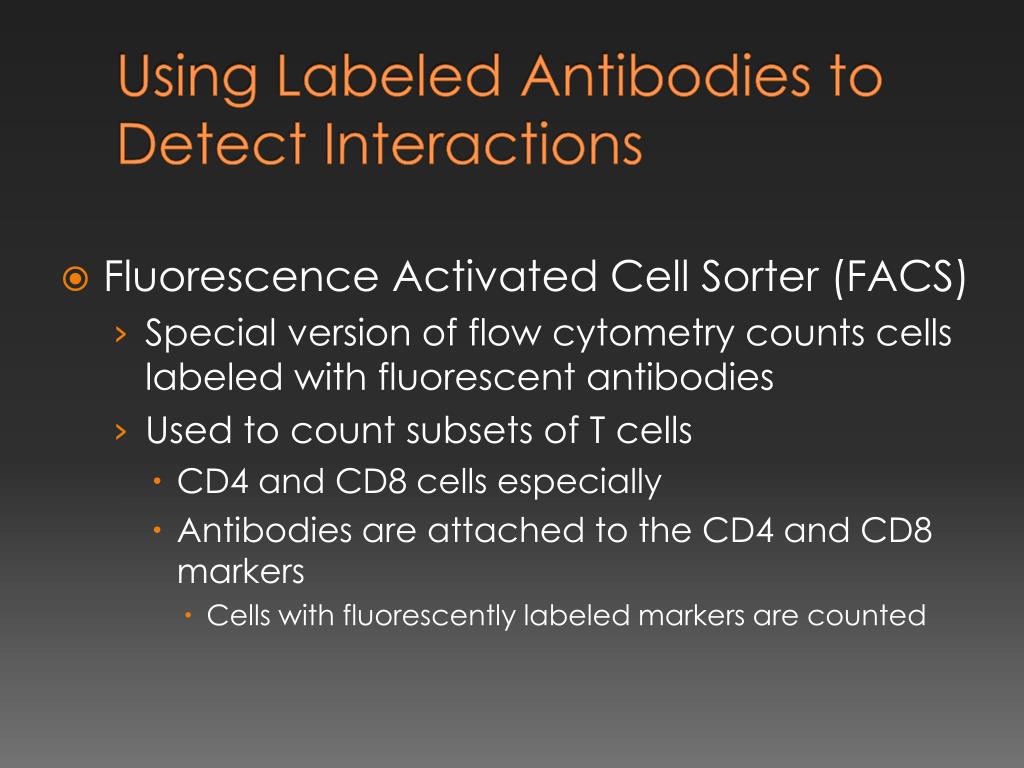

Using Labeled Antibodies to Detect Interactions

  • Fluorescence Activated Cell Sorter (FACS)

    • Special version of flow cytometry counts cells labeled with fluorescent antibodies

    • Used to count subsets of T cells

      • CD4 and CD8 cells especially

      • Antibodies are attached to the CD4 and CD8 markers

        • Cells with fluorescently labeled markers are counted
