Overview

  • 8x8 elements and 2x2 elements circular waveguide array antennas have been developed for millimeter-wave ad hoc wireless access system.

  • To realize single side band self-heterodyne scheme with small size, these antennas have built-in 5stage waveguide filters.

  • The antenna gain of more than 25dBi is measured for 8x8 element antenna, and the loss of 5stage filter is less than 1.0dB.

Reed Fisher, Seiji Nishi Oki


Slide4 l.jpg

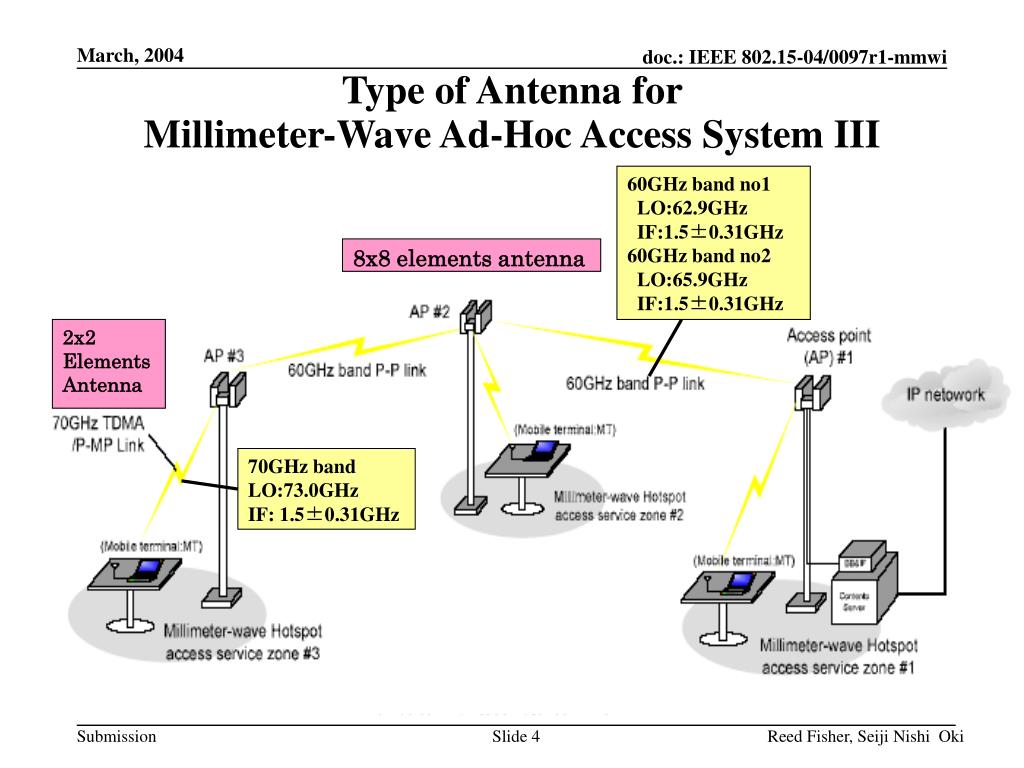

Type of Antenna for

Millimeter-Wave Ad-Hoc Access System III

60GHz bandno1

LO:62.9GHz

IF:1.5±0.31GHz

60GHz band no2

LO:65.9GHz

IF:1.5±0.31GHz

8x8 elements antenna

2x2

Elements

Antenna

70GHz band

LO:73.0GHz

IF: 1.5±0.31GHz

Reed Fisher, Seiji Nishi Oki


Slide5 l.jpg

Appearance

Outline drawing of 2x2 circular

wave guide array antenna with built-in filter.

Size is 40mmx24mmx11mm.

Photograph of 8x8 circular waveguide array antenna with built-in filter.

Size is 45.6mmx45.6mmx11mm

Reed Fisher, Seiji Nishi Oki


Slide6 l.jpg

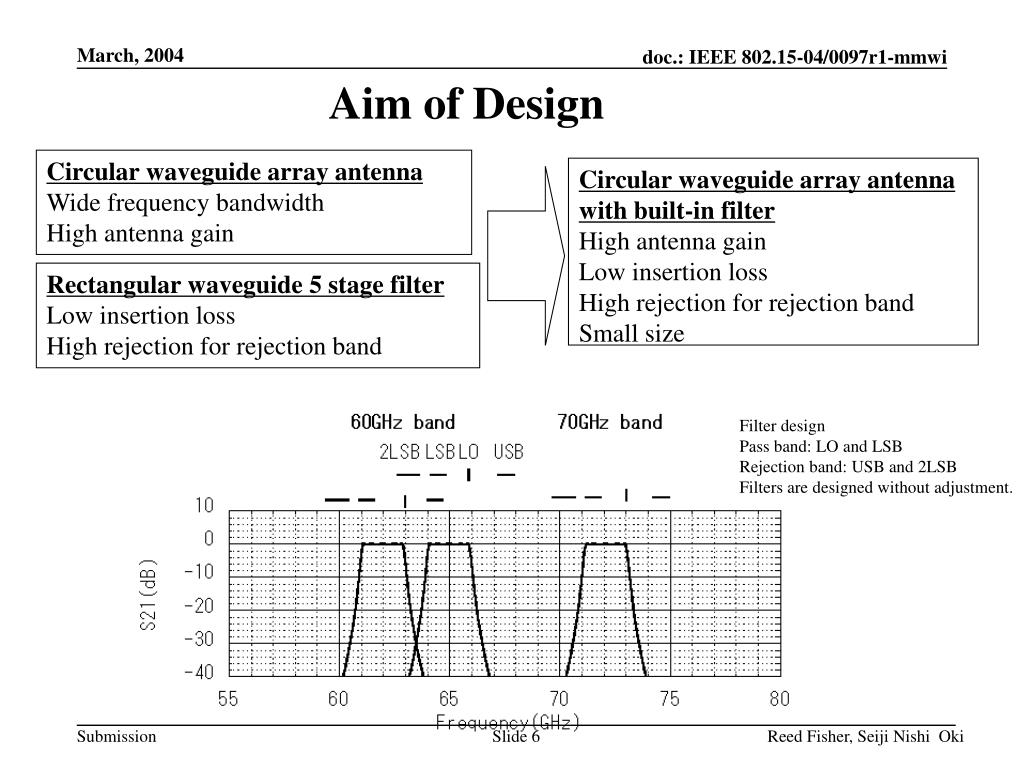

Aim of Design

Circular waveguide array antenna

Wide frequency bandwidth

High antenna gain

Circular waveguide array antenna

with built-in filter

High antenna gain

Low insertion loss

High rejection for rejection band

Small size

Rectangular waveguide 5 stage filter

Low insertion loss

High rejection for rejection band

Filter design

Pass band: LO and LSB

Rejection band: USB and 2LSB

Filters are designed without adjustment.

Reed Fisher, Seiji Nishi Oki


Slide7 l.jpg

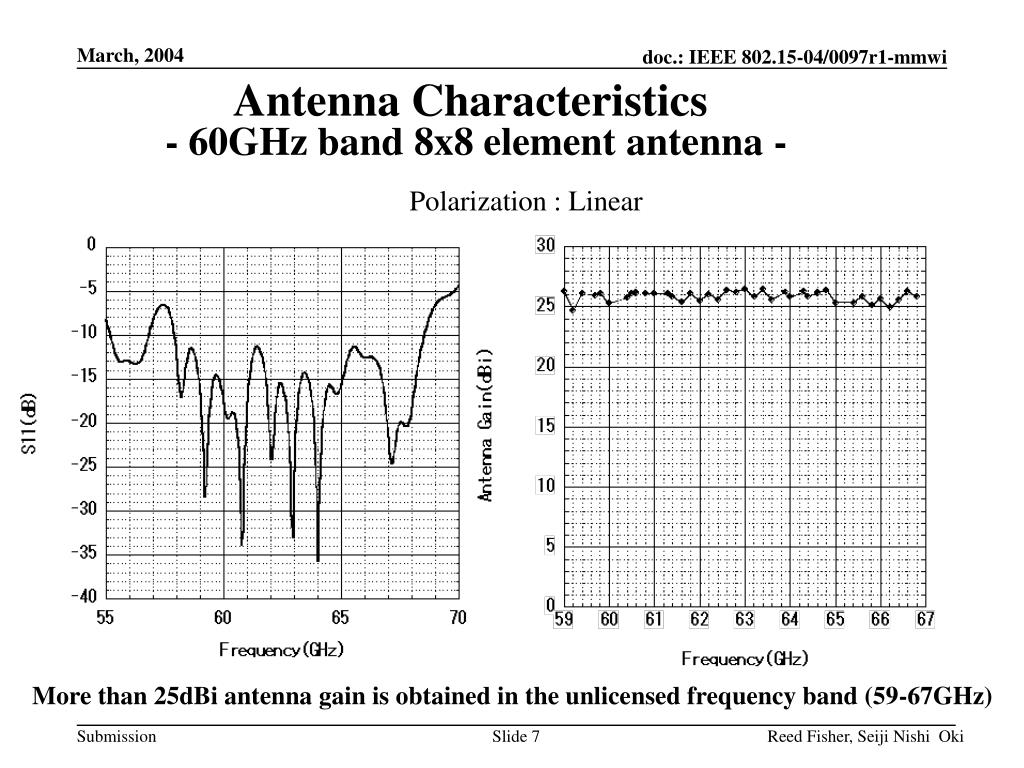

Antenna Characteristics

- 60GHz band 8x8 element antenna -

Polarization : Linear

More than 25dBi antenna gain is obtained in the unlicensed frequency band (59-67GHz)

Reed Fisher, Seiji Nishi Oki


Slide8 l.jpg

Antenna Characteristics

- 60GHz band 8x8 element antenna -

Polarization : Linear

Reed Fisher, Seiji Nishi Oki


Slide9 l.jpg

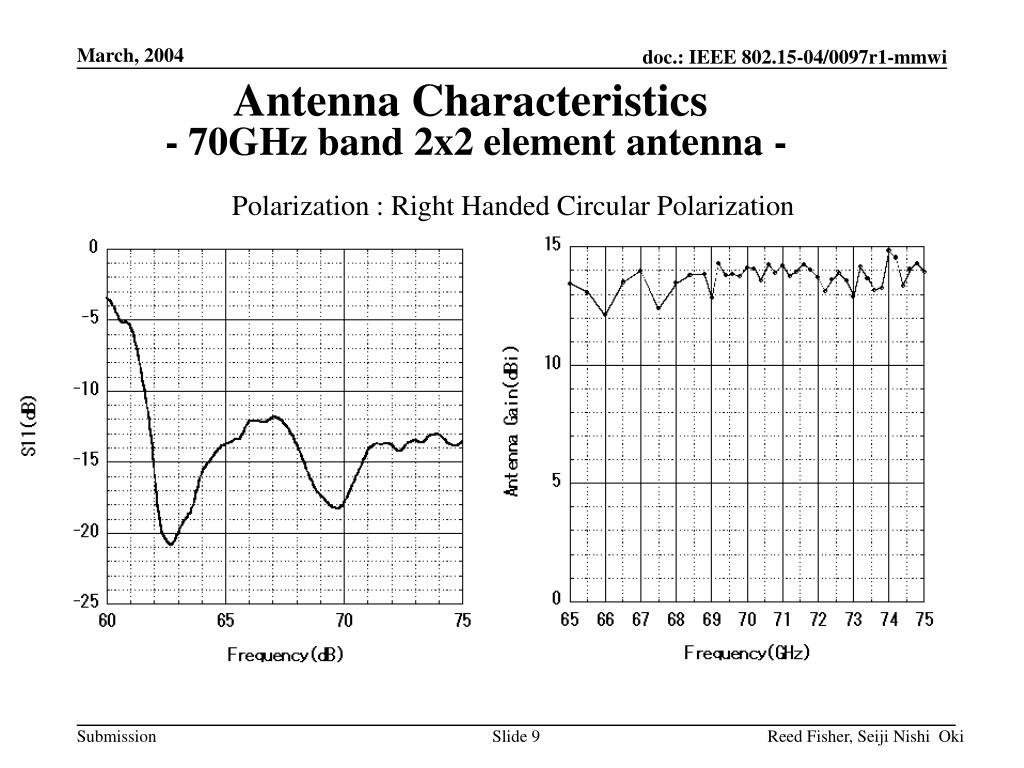

Antenna Characteristics

- 70GHz band 2x2 element antenna -

Polarization : Right Handed Circular Polarization

Reed Fisher, Seiji Nishi Oki


Slide10 l.jpg

Antenna Characteristics

- 70GHz band 2x2 element antenna -

Polarization : Right Handed Circular Polarization

Reed Fisher, Seiji Nishi Oki


Slide11 l.jpg

Antenna Characteristics

- 70GHz band 2x2 element antenna -

Polarization : Right Handed Circular Polarization

Reed Fisher, Seiji Nishi Oki


Slide12 l.jpg

Antenna Characteristics

- 70GHz band 2x2 element antenna -

Axial ratio measurement

About 1m apart

Reed Fisher, Seiji Nishi Oki


Slide13 l.jpg

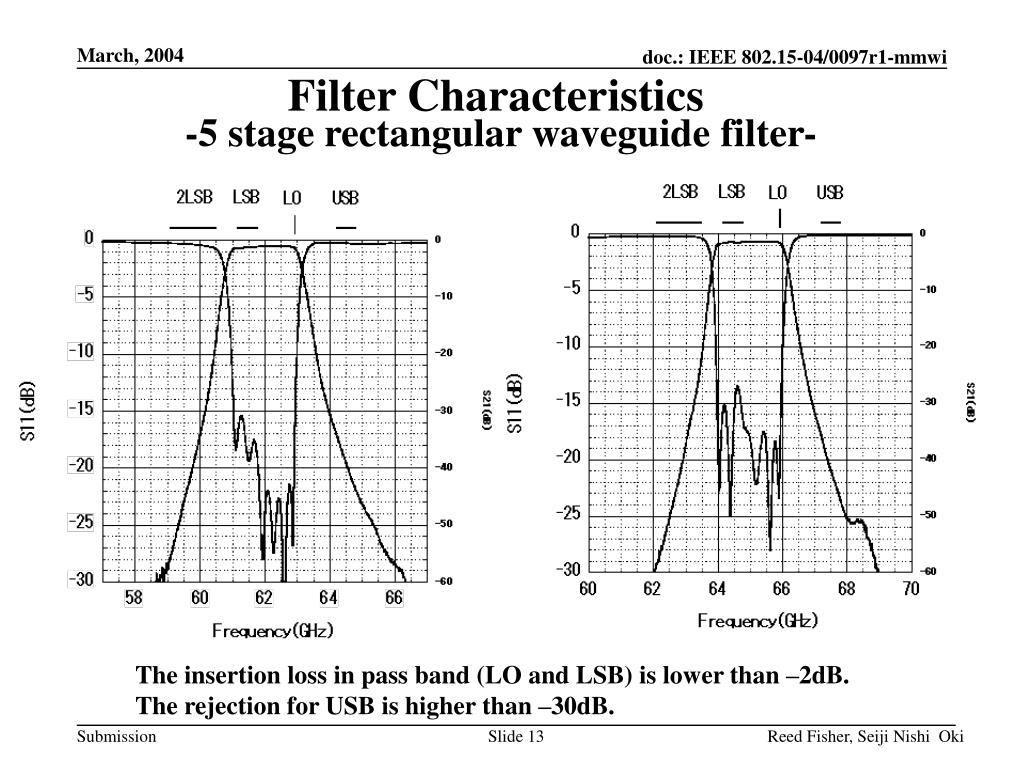

Filter Characteristics

-5 stage rectangular waveguide filter-

The insertion loss in pass band (LO and LSB) is lower than –2dB.

The rejection for USB is higher than –30dB.

Reed Fisher, Seiji Nishi Oki


Slide14 l.jpg

Filter Characteristics

-5 stage rectangular waveguide filter-

The insertion loss in pass band (LO and LSB) is lower than –2dB.

The rejection for USB is higher than –30dB.

Reed Fisher, Seiji Nishi Oki


Slide15 l.jpg

Characteristics

of antenna with built-in filter

Reed Fisher, Seiji Nishi Oki


Slide16 l.jpg

Conclusion

  • We developed the 2x2 element circular polarized (RHCP) antenna with built-in filter for 70GHz band ad hoc wireless link, and 8x8 element linear polarized antenna with built-in filter for 60GHz band wireless link and good characteristics are obtained.

  • The antenna gain of 8x8 element antenna is as large as 25.5dBi without filter. The loss of the filter for 70GHz band wireless link in pass band is lower than 1.0dB. The rejection for USB is larger than 30dB.

  • These results confirmed that the circular waveguide array antenna is suitable for broadband millimeter-wave wireless system.

  • Also we realized very small size antenna with built-in filter. The size of the 2x2 element antenna with built-in filter is 40mmx24mmx11mm, and that of the 8x8 element antenna is as small as 45.6mmx45.6mmx11mm
