Overview of GCM (Grid Component Model)and GridCOMPEU Project Denis Caromel OASIS INRIA-UNSA-CNRS I3SMelbourne, Jan. 29 2007

1. ProActive context2. GCM

INSERT PROJECT ACRONYM HERE BY EDITING THE MASTER SLIDE (VIEW / MASTER / SLIDE MASTER)


Proactive and gcm
ProActive and GCM

  • Structuring

    of the library

    • 3 big layers

    • Inner bricks

  • Component

    Aspects: not

    only

    in Cp Box!


Proactive
ProActive

  • New GUIs

    • IC2D Eclipse

    • TimIt


Grid computing with proactive

Shanghai

Amsterdam

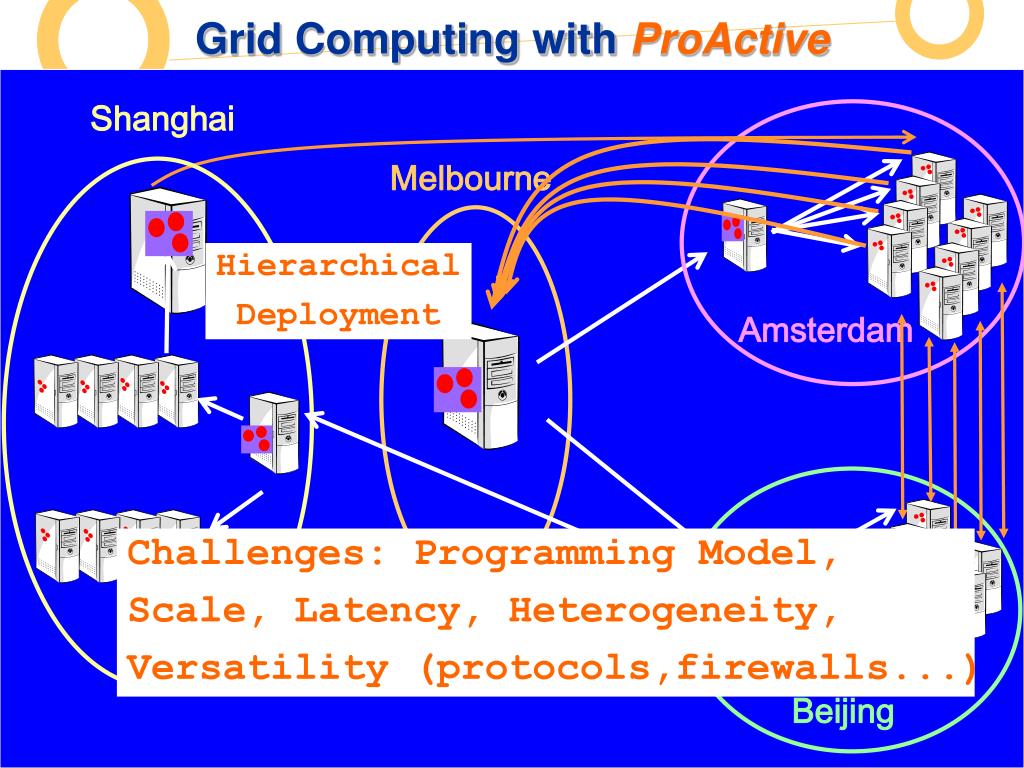

Grid Computing with ProActive

Melbourne

Hierarchical

Deployment

Challenges: Programming Model,

Scale, Latency, Heterogeneity,

Versatility (protocols,firewalls...)

Beijing


Proactive active objects

JVM

A

A

WBN!

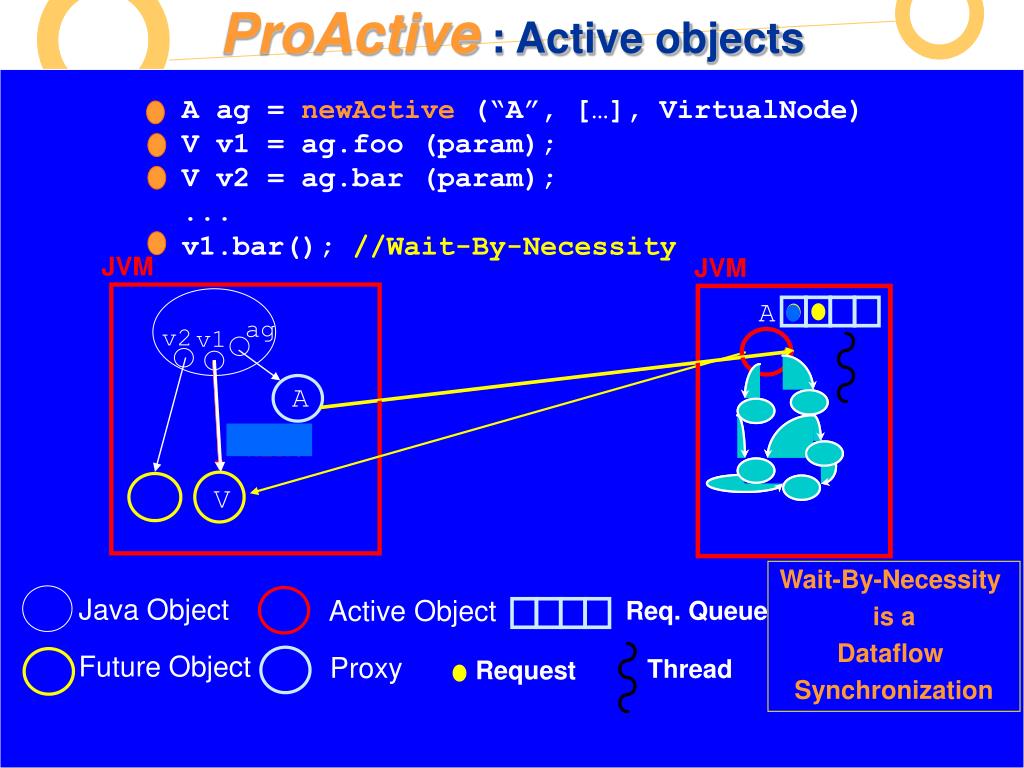

ProActive : Active objects

A ag =newActive (“A”, […], VirtualNode)

V v1 = ag.foo (param);

V v2 = ag.bar (param);

...

v1.bar(); //Wait-By-Necessity

JVM

ag

v2

v1

V

Wait-By-Necessity

is a

Dataflow

Synchronization

Java Object

Active Object

Req. Queue

Future Object

Proxy

Thread

Request


Creating ao and groups

A

V

Creating AO and Groups

A ag = newActiveGroup (“A”, […], VirtualNode)

V v = ag.foo(param);

...

v.bar(); //Wait-by-necessity

JVM

Group, Type, and Asynchrony

are crucial for Cpt. and GRID

Typed Group

Java or Active Object


Objects to distributed components
Objects to Distributed Components

ComponentIdentity Cpt = newActiveComponent (params);

A a = Cpt … .getFcInterface ("interfaceName");

V v = a.foo(param);

A

Example

of a

component

instance

V

Truly

Distributed

Components

Typed Group

Java or Active Object

JVM


GCM +

Scopes and Objectives:

Grid Codes that Compose and Deploy

No programming, No Scripting, … No Pain

Innovation:

Composite Components

Multicast and GatherCast

MultiCast

GatherCast

INSERT PROJECT ACRONYM HERE BY EDITING THE MASTER SLIDE (VIEW / MASTER / SLIDE MASTER)


  • GCM: Grid Component Model

    • GCM Being defined in the NoE CoreGRID

      (42 institutions)

    • Open Source ObjectWebProActive

      implements a preliminary version of GCM

    • Service Oriented: NESSI relation exp.

  • GridCOMP takes:

    • GCM as a first specification,

    • ProActive as a starting point, and

      Open Source reference implementation.

The vision: GCM to be the GRID GSM




Gcm technical structure
GCM Technical Structure

  • Component Specification as an XML schema or DTD

  • Run-Time API defined in several languages

    C, Java

  • Packaging described as an XML schema

  • Information for Deployment

    (Virtual Nodes, … Variables, File Transfer, …)


Content and activities
Content and Activities

  • 1 - Primitive Component Programming

  • 2 - Legacy Code Wrapping, Interoperability

  • 3 - Composition and Composites, Deployment

  • 4 – Autonomic features

  • 5 – IDE for GCM (Composition GUI, etc.)



Collective interfaces1
Collective Interfaces

  • Simplify the design and configuration of component systems

  • Expose the collective nature of interfaces

    • Cardinality attribute

    • Multicast, Gathercast, gather-multicast

  • The framework handles collective behaviour

  • at the level of the interface

  • Based on Fractal API :

    • Dedicated controller

    • Interface typing  Verifications


Multicast interfaces
Multicast interfaces

Transform a single invocation into a list of invocations

  • Multiple invocations

    • Parallelism

    • Asynchronism

    • Dispatch

  • Data redistribution (invocation parameters)

    • Parameterisable: Distribution Function

    • Broadcast, scattering

    • Dynamic redistribution: Dynamic dispatch

  • Result = list of results


Multicast interfaces1
Multicast interfaces

  • Results as lists of results

  • Invocation parameters may also be distributed from lists

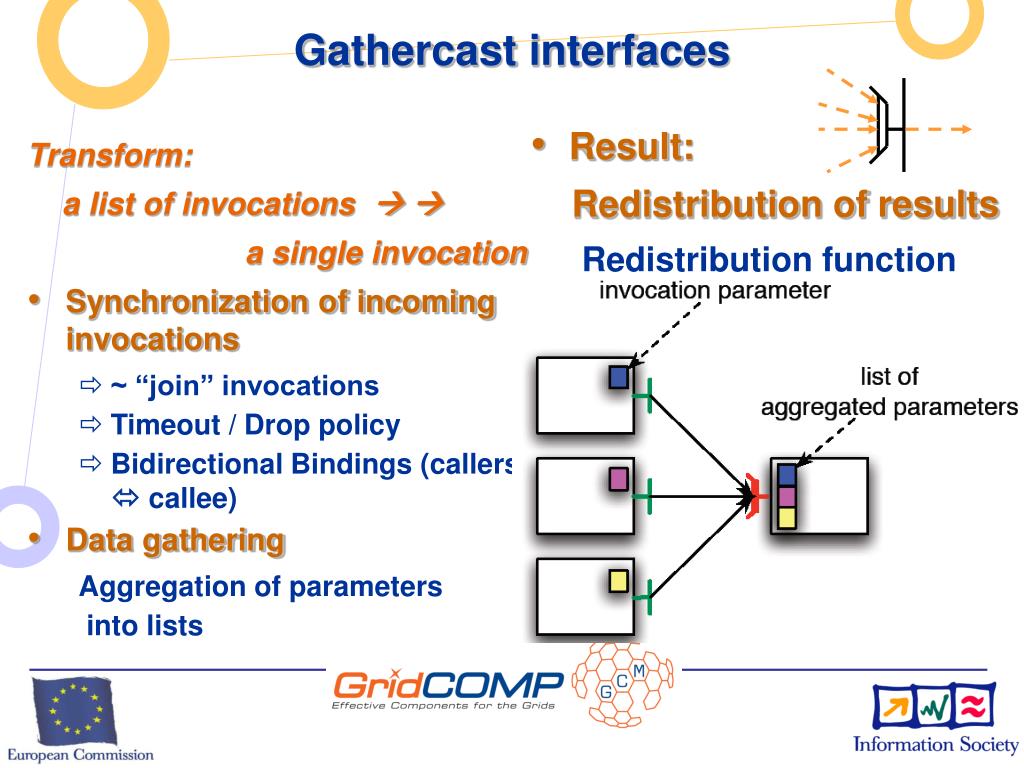

Gathercast interfaces

Transform:

a list of invocations  

a single invocation

Synchronization of incoming invocations

~ “join” invocations

Timeout / Drop policy

Bidirectional Bindings (callers  callee)

Data gathering

Aggregation of parameters

into lists

Result:

Redistribution of results

Redistribution function

Gathercast interfaces


Status of gcm in proactive
Status of GCM in ProActive

  • Partial implementation:

    • ADL schema, API, Multicast, Gathercast, …

    • Component GUI (prototype)

  • Distributed components for various applications:

    • Numerical, Legacy, …

  • On-going experiments:

    • up to 300+ CPUs


Current gcm experiments in proactive
Current GCM experiments in ProActive

  • JEM3D: 3D electromagnetic application:

    a single Cp on 300+ CPUs on Grid

  • Vibro-Acoustic application with EADS (legacy MPI coupling)


Current gcm experiments in proactive1
Current GCM experiments in ProActive

  • IBM:

    • Security Fingerprint System

  • ATOS Origin:

    • Financial Application Optimization

  • GridSystems:

    • Wing Simulation

    • Telecom Application, EDR processing


Update on proactive and gcm 1
Update on ProActive and GCM (1)

  • New Version under preparation:

    • Nov. 10: ProActive Version 3.2 Beta

    • Jan. 26: ProActive Version 3.2

      (After PlugTests’ Learning, New Web Site)

    • New features in 3.2 release:

      Next slide




Update on proactive and gcm 2

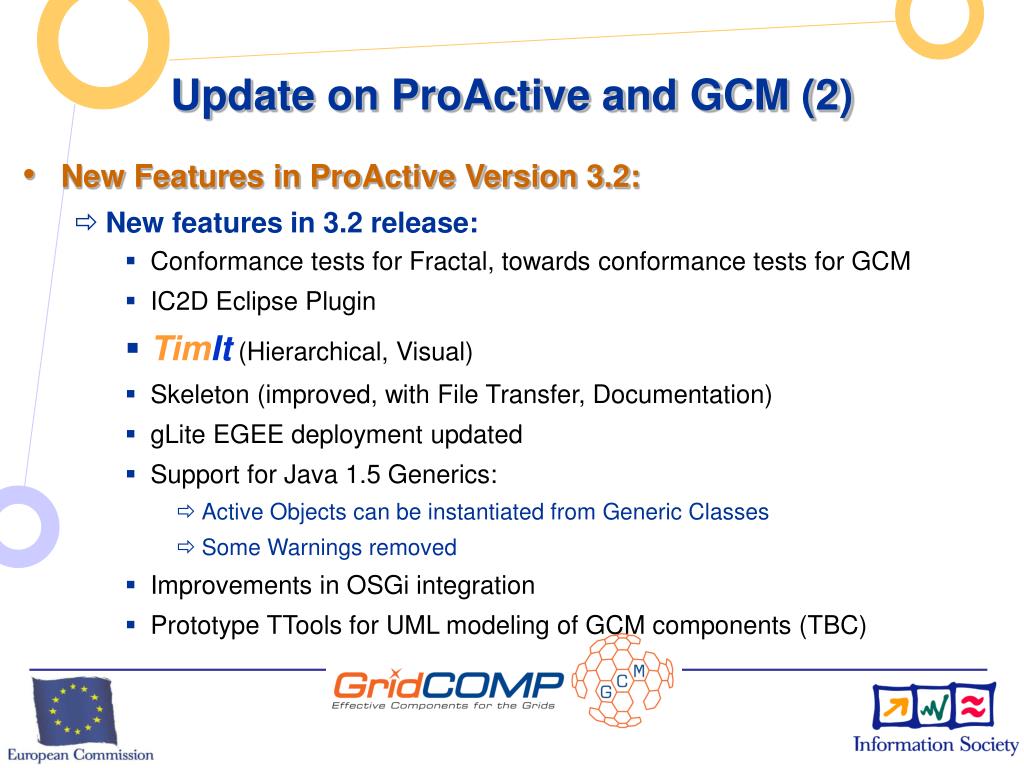

Update on ProActive and GCM (2)

  • New Features in ProActive Version 3.2:

    • New features in 3.2 release:

      • Conformance tests for Fractal, towards conformance tests for GCM

      • IC2D Eclipse Plugin

      • TimIt (Hierarchical, Visual)

      • Skeleton (improved, with File Transfer, Documentation)

      • gLite EGEE deployment updated

      • Support for Java 1.5 Generics:

        • Active Objects can be instantiated from Generic Classes

        • Some Warnings removed

      • Improvements in OSGi integration

      • Prototype TTools for UML modeling of GCM components (TBC)


A vision gcm as eu s gsm
A Vision:GCM as EU’s GSM

  • Once upon a time:

    • GSM: Global System for Mobile communication

  • Process:

    • “critical decisions […] the GSM initiative became a success in Europe […]

    • Initially the strategy and technical specifications were agreed for Europe and […] incorporating all non-European requirements […] worldwide to participate ”

      From: Gsm & Umts: The Creation

      of Global Mobile Communications

      Standardization of GSM was crucial for

      EU advances in Mobile Telephony

      (Science and Business)


A vision gcm as eu s gsm1
A Vision:GCM as EU’s GSM

GRID faces the same challenge:

  • Build Flexibility

  • Openness

  • Interoperability

    Objectives:

    Build a Word-Wide standard for

    Science and Business GRIDs: GCM


Gsm and gcm pictures
GSM and GCM Pictures

  • GSM cells:

  • Components:




Conclusion 1 scientific issues and directions components in the membrane
Conclusion (1)Scientific Issues and DirectionsComponents in the membrane:

  • Membrane:

    • Meta-Objects

       Java Objects

  • Components:

    • Active Objects

  • If Cp in Mb:

    • Active Objects as Meta-Objects

    • Not suited for all cases.

      If Dist. AO If light+local POJO

      TBD


Conclusion 2 key technology advancements
Conclusion (2) Key technology advancements

  • Programming the Grid with reusable, composable, components

    • vs. ad hoc solutions

  • Component for Separation of Concerns and AOP:

    • Gathercast allows to have synchronisation outside functional code

  • Deployment on various architectures

    • Super Computer Center, Clusters, data-center, desktop Grids, …

  • Interoperability with related Grid software

  • Integration into Service Oriented Architecture (SOA)

INSERT PROJECT ACRONYM HERE BY EDITING THE MASTER SLIDE (VIEW / MASTER / SLIDE MASTER)


Conclusion 3 research challenges
Conclusion (3) Research Challenges

  • A general enough GCM, still efficient

  • Effective composition:

    Semantics, Deployment, Portability

  • Non-Functional Aspects:

    Security, Load-Balancing, Fault-tolerance,

    CP. Specif (Lotos, UML TTools, pNets) and

    Model Checking Verification

INSERT PROJECT ACRONYM HERE BY EDITING THE MASTER SLIDE (VIEW / MASTER / SLIDE MASTER)
