First steps with. Fwin - Maintenance TSS - Software. Themes. This introduction gives a short overview about:. the start screen the equipment list the input / readout from incidents documentation und scheduling of maintenance and graphical evaluations. Themes. Additional Info:.

Download Presentation

First steps with

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


First steps with

First steps with

Fwin - Maintenance

TSS - Software


Themes

Themes

  • This introduction gives a short overview about:

  • the start screen

  • the equipment list

  • the input / readout from incidents

  • documentation und scheduling of maintenance

  • and graphical evaluations


Themes1

Themes

  • Additional Info:

All machines in our example are identified with their short cut names.

e.g. „A31“ = name of machine 31


We begin with the start screen

We begin with the start screen

All machines to be maintained are shown in this window

And here you can see all pending work orders for your machines


We begin with the start screen1

We begin with the start screen

The last inputs given to the program you can see here...

With a mouse click on a day of calendar you can check all registration for that day


A central position of the software is the equipment list

A central position of the software is the equipment list

Click the button „equipment list“ of the quick menu


Equipment list

Equipment list

In the equipment list you can administrate all machines and other equipment

The display can also be filtered, e.g. all machines of Hall 1, or show only robots etc.

With a double click you can edit the data...


Edit data of machine equipment

Edit data of machine / equipment

...or you can view stored incidents, documents, evaluations or the built in spare parts for the displayed machine or equipment.


Practical examples

Practical examples

Now we want to show some practical examples:

typical applications:


Search and display information

Search and display information

You have to fix a problem at the robot „RO2“ .

The error message of the robot is displayed “measurement alarm”

Go to quick menu and press the button „Show incidents“


Search and display information1

Search and display information

In the display options you can search for the robot „RO2“ to show all incidents,

Or you take as search phrase simply “measurement alarm”...


Search and display information2

Search and display information

In the display options you can search for the robot „RO2“ to show all incidents,

Or you take as search phrase simply “measurement alarm”...


Select data from hit list

Select data from hit list…

Now you get a hit list from all machines or equipment where the search phrase “measurement alarm is included:

Click on desired data set entry to show it completely


And show desired data set

...and show desired data set:

You will get now the complete report of the last same or similar problem and you just know what could be wrong and how to fix.


Input of a new incident machine problem

Input of a new incident (machine problem)

You just fixed a problem at a machine and now you want to document your repair work.

Go to quick menu and press the button

“new incident”


Input of a new incident

Input of a new incident

In this input mask you can describe the problem in short form, the machine’s name can be dragged from the equipment list


Input of a new incident1

Input of a new incident

In this input mask you can describe the problem in short form, the machine’s name can be dragged from the equipment list

... and click „Apply“


Input of a new incident2

Input of a new incident

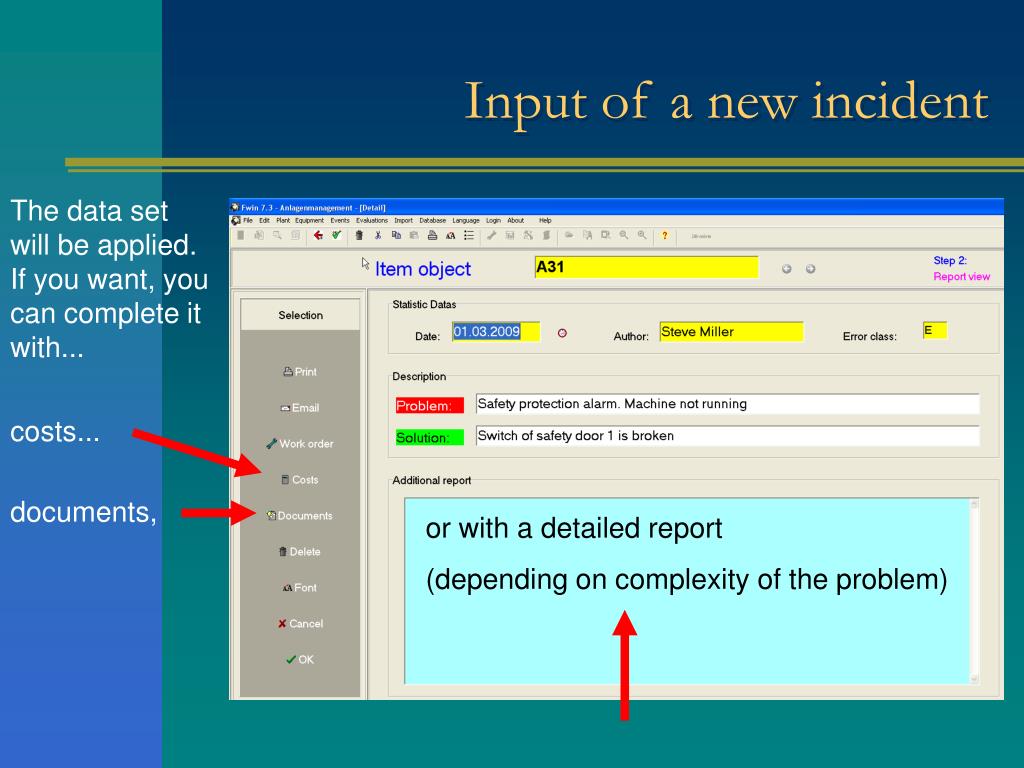

The data set will be applied. If you want, you can complete it with...

costs...

documents,

or with a detailed report

(depending on complexity of the problem)


The maintenance menu

The maintenance menu :

After request of menu item „Maintenance“ you can go directly to the maintenance center of the machine,

...you can display all pending maintenance activities for this week,

...or you can display all maintenance activities done in a defined period


The maintenance preview

The maintenance preview:

In the maintenance preview / planning you can see all necessary maintenance activities for a defined period.

… and of course you can print out all displayed and necessary maintenance activities


The maintenance preview1

The maintenance preview:

... Or like our example jump directly to the maintenance center of machine „A30“ with a mouse click ...


Doing maintenance

Doing maintenance

After request of menu item „Maintenance“ the maintenance center of the machine appears

Please click now on “Show maintenance”


Doing maintenance1

Doing maintenance

Now you can print out the maintenance job with the defined items ...

... And after job is done save the document into the maintenance book...

Additional to each maintenance item you can store any „long text“, e.g. item: lubrication  long text: lubricate gear, lubricatemotor, etc.


Example for the use of long text

Example for the use of „long text“

Maintenance item

“long text” which describes the maintenance job

With using the word „ACTUAL“ + colon the program will ask you for the measured actual value and store it to maintenance book

The long text can be saved especially for one machine, for all machines from same type, or for all machines from the same manufacturer


Display maintenance book

Display maintenance book

All maintenance activities will be stored in maintenance book with date and name of worker

When doing electrical inspection the software will ask for measured values and store it to maintenance book, too


Doing maintenance2

Doing maintenance

After expiration of the maintenance interval you will be remembered automatically for the next maintenance job !

The necessary maintenance activity will also be displayed in start screen


Graphical evaluations

Graphical evaluations

With the graphical evaluation you have several possibilities:

Now we want to compare all machines with the amount of problems occurred


Graphical evaluations1

Graphical evaluations

In this window you can filter the result (e.g. show only robots...

... and fix the evaluation period...


Graphical evaluations2

Graphical evaluations

You will get a graphical overview about costs, amount of problems and much more

The presentation as pie graphic is also possible


Graphical evaluations3

Graphical evaluations

Now we want to analyze a machine for failure reasons...


Graphical evaluations4

Graphical evaluations

...you select the machine and evaluation period...

...and get the allocation (in %) of failure categories (e.g. electrical problems, mechanical problems, maintenance gap and more.


Graphical evaluations5

Graphical evaluations

...you select the machine and evaluation period...

...or the display in absolute due to failure categories (e.g. electrical problems, mechanical problems, maintenance gap and more.


Analytical evaluations

Analytical evaluations

Data and facts you will get with the analytical evaluation

Here you can display incidents, repair hours and costs in relation to failure categories in a selected period.

As display filter you can use each field of database – also combined.


Final review

Final review

With this little introduction we could show you only a few functions of the software, but we hope that we could show the basic principal of Fwin-Maintenance and how easy and intuitive the usage of the program is.

All shown functions and much more can be tried with the cost free demo version !

Also the usage of the software in your network / server environment can be tested with the demo version
