Presentation Transcript

Restrictive lung disease l.jpg


By Sat Sharma

Assistant Professor

University of Manitoba

Background l.jpg


The lung volumes are reduced either because of:

1.Alteration in lung parenchyma.

2.Diseases of the pleura, chest wall or neuromuscular


Physiologically restrictive lung diseases are defined by reduced total lung capacity, vital capacity and functional residual capacity, but with preserved air flow.

Slide3 l.jpg

Restrictive lung diseases may be divided into the following groups:

  • Intrinsic lung diseases (diseases of the lung parenchyma)

  • Extrinsic disorders (extra-parenchymal diseases)

Intrinsic lung diseases l.jpg

Intrinsic Lung Diseases

These diseases cause either:

  • Inflammation and/or scarring of lung tissue (interstitial lung disease)


  • Fill the air spaces with exudate and debris (pneumonitis).

  • These diseases are classified further according to the etiological factor.

Extrinsic disorders l.jpg

Extrinsic Disorders

The chest wall, pleura and respiratory muscles are the components of respiratory pump.

Disorders of these structures will cause lung restriction and impair ventilatory function.

These are grouped as:

  • Non-muscular diseases of the chest wall.

  • Neuromuscular disorders.

Pathophysiology l.jpg


Intrinsic lung diseases:

  • Diffuse parenchymal disorders cause reduction in all lung volumes.

  • This is produced by excessive elastic recoil of the lungs.

  • Expiratory flows are reduced in proportion to lung volumes.

  • Arterial hypoxemia is caused by ventilation/perfusion mismatch.

  • Impaired diffusion of oxygen will cause exercise-induced desaturation.

  • Hyperventilation at rest secondary to reflex stimulation.

Extrinsic disorders7 l.jpg

Extrinsic Disorders

  • Diseases of the pleura, thoracic cage, decrease compliance of respiratory system.

  • There is reduction in lung volumes.

  • Secondarily, atelectasis occurs leading to V/Q mismatch  hypoxemia.

  • The thoracic cage and neuromuscular structures are a part of respiratory system.

  • Any disease of these structures will cause restrictive disease and ventilatory dysfunction.

Diseases of the lung parenchyma l.jpg

Diseases of the Lung Parenchyma

Structure of the alveolar wall l.jpg

Structure of the Alveolar Wall

Em in pulmonary fibrosis l.jpg

EM in Pulmonary Fibrosis

Interstitium l.jpg

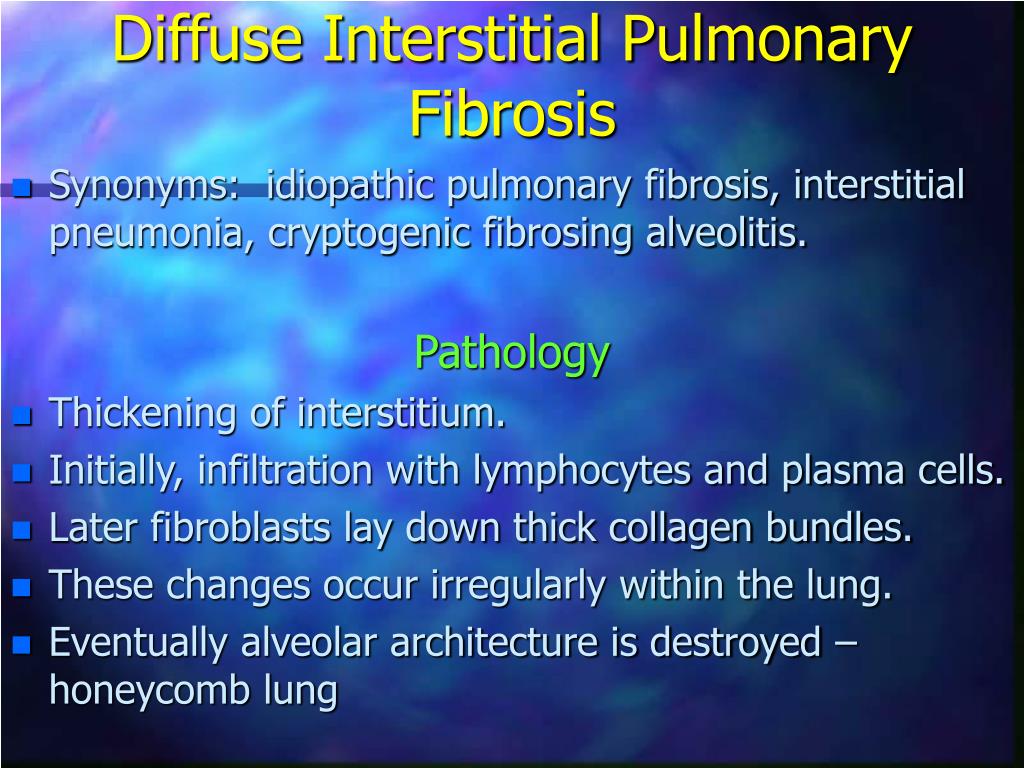

Diffuse interstitial pulmonary fibrosis l.jpg

Diffuse Interstitial Pulmonary Fibrosis

  • Synonyms: idiopathic pulmonary fibrosis, interstitial pneumonia, cryptogenic fibrosing alveolitis.


  • Thickening of interstitium.

  • Initially, infiltration with lymphocytes and plasma cells.

  • Later fibroblasts lay down thick collagen bundles.

  • These changes occur irregularly within the lung.

  • Eventually alveolar architecture is destroyed – honeycomb lung

Slide13 l.jpg


Unknown, may be immunological reaction.

Clinical Features

  • Uncommon disease, affects adults in late middle age.

  • Progressive exertional dyspnea, later at rest.

  • Non-productive cough.

  • Physical examination shows finger clubbing, fine inspiratory crackles throughout both lungs.

  • Patient may develop respiratory failure terminally.

  • The disease progresses insidiously, median survival 4-6 years.

Pulmonary function l.jpg

Pulmonary Function

  • Spirometry reveals a restrictive pattern. FVC is reduced, but FEV1/FVC supernormal.

  • All lung volumes – TLC, FRC, RV – are reduced.

  • Pressure volume curve of the lung is displaced downward and flattened.

Gas exchange l.jpg

Gas Exchange

  • Arterial PaO2 and PaCO2 are reduced, pH normal.

  • On exercise PaO2 decreases dramatically.

  • Physiologic dead space and physiologic shunt and VQ mismatch are increased.

  • Diffuse impairment contributes to hypoxemia on exercise.

  • There is marked reduction in diffusing capacity due to thickening of blood gas barrier and VQ mismatch.

Diagnosis l.jpg


  • Diagnosis is often suggested by history, chest radiograph and high resolution CT scan of the lungs.

  • If old chest x-rays show classical disease, absence of other disease processes on history and no occupational or environmental exposure – clinical diagnosis can be made.

  • In other cases a surgical lung biopsy is obtained.

Treatment l.jpg


  • Each patient is individually assessed.

  • Patients are treated if they have symptoms or progressive dysfunction on pulmonary function tests.

  • Corticosteroids (Prednisone 1 mg/kg) is standard therapy.

  • Prednisone dose is lowered over 6-8 weeks and continued at 15 mg for 1-2 years.

  • Addition of Imuran may benefit survival.

  • Cyclophosphamide occasionally used.

  • Antifibrotics such as colchicine may be used.

  • Ancillary therapies such as oxygen, rehabilitation, psychosocial aspects are helpful.

Sarcoidosis l.jpg


  • A disease characterized by the presence of granulomatous tissue.

  • This is a systemic disease which involves eyes, brain, heart, lungs, bones and kidneys, skin, liver and spleen.

  • On pathology a non-caseating granuloma composed of histiocytes, giant cells and lymphocytes.

  • In advanced lung disease fibrotic changes are seen.

Etiology l.jpg


  • Unknown, likely immunological basis.

    Clinical Features

    Four stages are identified:

  • Stage 0: No obvious intrathoracic involvement

  • Stage 1: Bilateral hilar lymphadenopathy, often accompanied by arthritis, uveitis and erythema nodosum.

  • Stage 2: Pulmonary parenchyma is also involved, changes in mid and upper zones.

  • Stage 3: Pulmonary infiltrates and fibrosis without adenopathy.

Non caseating granulomas in sarcoidosis l.jpg

Non-caseating granulomasin Sarcoidosis

Stage i bilateral hilar adenopathy l.jpg

Stage I (bilateral hilar adenopathy)

Stage ii reticular nodules and bhl l.jpg

Stage IIReticular nodules and BHL

Hrct subpleural nodules l.jpg

HRCT – subpleural nodules

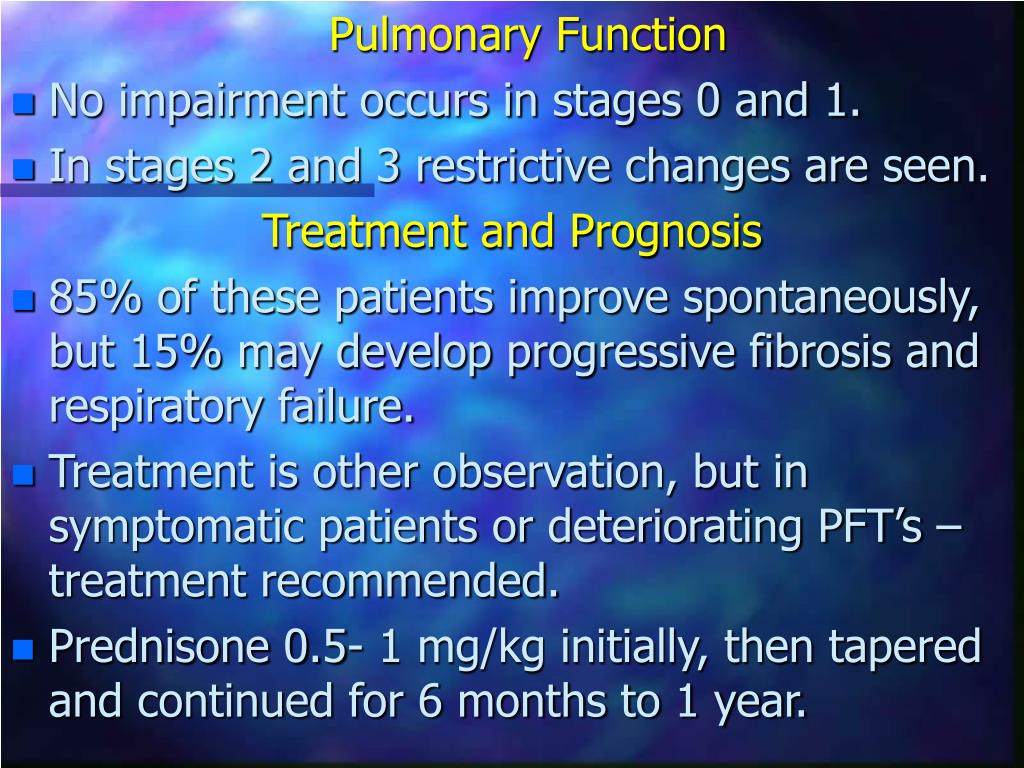

Slide28 l.jpg

Pulmonary Function

  • No impairment occurs in stages 0 and 1.

  • In stages 2 and 3 restrictive changes are seen.

    Treatment and Prognosis

  • 85% of these patients improve spontaneously, but 15% may develop progressive fibrosis and respiratory failure.

  • Treatment is other observation, but in symptomatic patients or deteriorating PFT’s – treatment recommended.

  • Prednisone 0.5- 1 mg/kg initially, then tapered and continued for 6 months to 1 year.

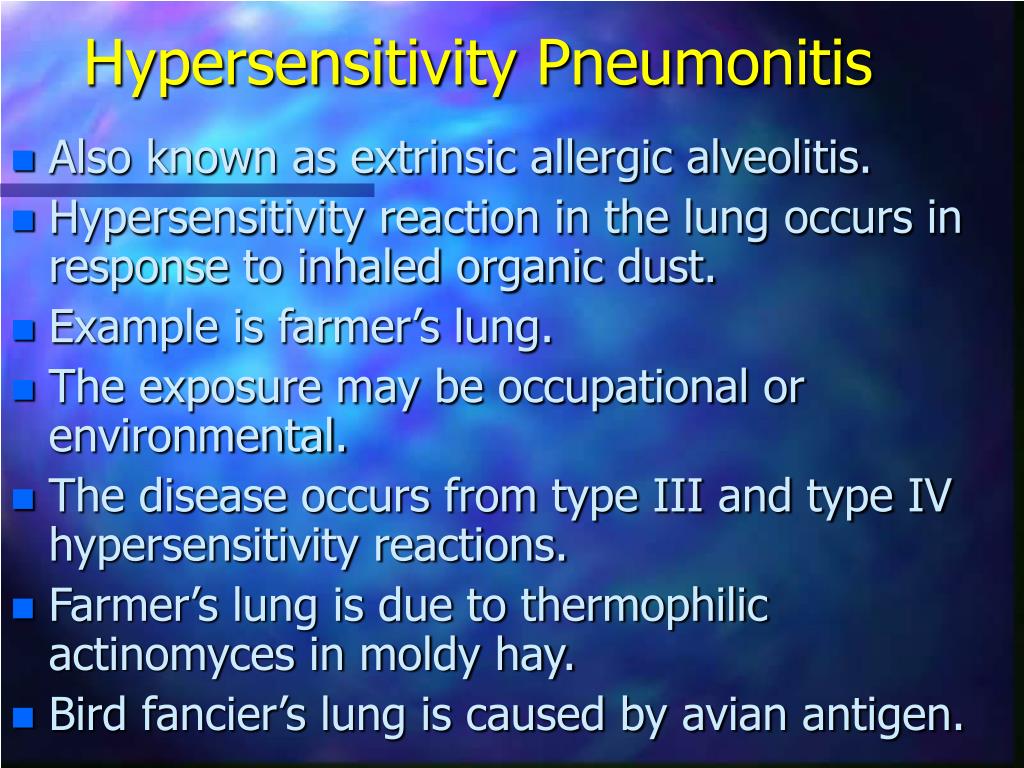

Hypersensitivity pneumonitis l.jpg

Hypersensitivity Pneumonitis

  • Also known as extrinsic allergic alveolitis.

  • Hypersensitivity reaction in the lung occurs in response to inhaled organic dust.

  • Example is farmer’s lung.

  • The exposure may be occupational or environmental.

  • The disease occurs from type III and type IV hypersensitivity reactions.

  • Farmer’s lung is due to thermophilic actinomyces in moldy hay.

  • Bird fancier’s lung is caused by avian antigen.

Slide30 l.jpg


  • There is infiltration of alveolar walls with lymphocytes, plasma cells and histiocytes.

  • There are loosely formed granulomas.

  • Fibrotic changes occur in advanced disease.

Clinical features l.jpg

Clinical Features

  • The disease may occur in acute or chronic forms.

    Acute HP

  • Dyspnea, fever, malaise and cough appear 4-6 hours after exposure.

  • These symptoms continue for 24-48 hours.

  • Physical examination shows fine crackles throughout the lungs.

  • These patients present with progressive dyspnea over a period of years.

  • Chest radiograph may be normal, but may show reticular nodular infiltration.

Hrct in acute hp l.jpg

HRCT in Acute HP

Slide34 l.jpg

Chronic HP

  • These patients present with progressive dyspnea.

  • Physical examination shows bilateral inspiratory crackles.

  • Chest x-ray shows reticular nodular infiltration and fibrosis predominantly in upper lobes.

  • Pulmonary function tests – restrictive pattern.

  • Gas exchange shows hypoxemia which worsens on exercise.

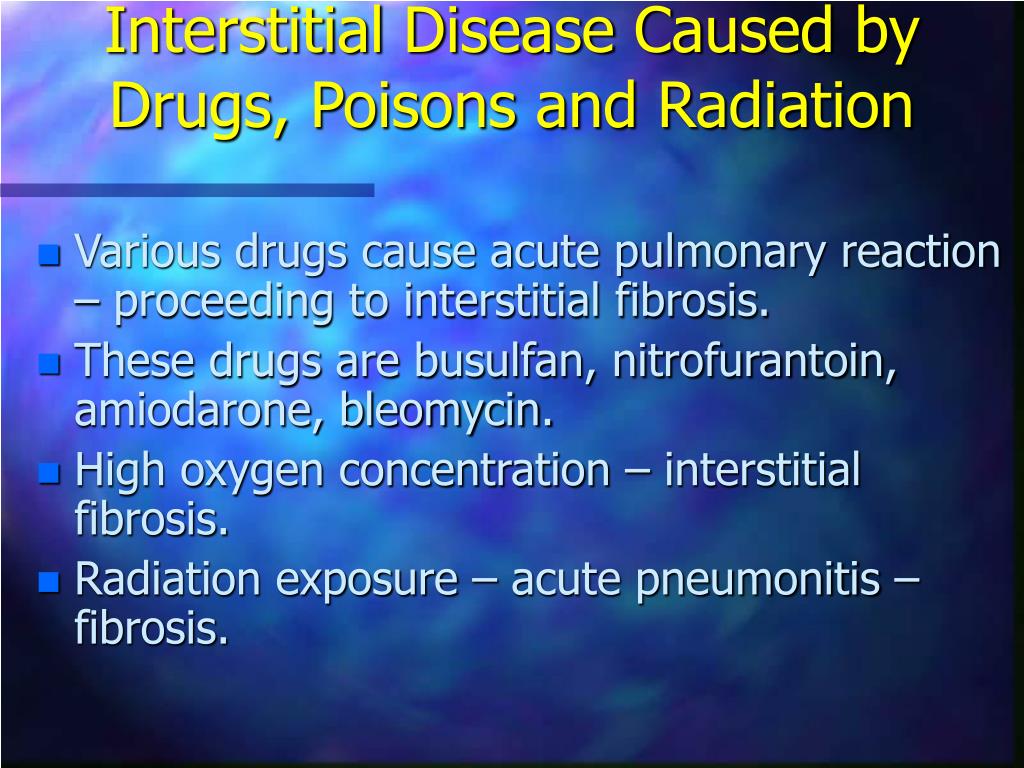

Interstitial disease caused by drugs poisons and radiation l.jpg

Interstitial Disease Caused by Drugs, Poisons and Radiation

  • Various drugs cause acute pulmonary reaction – proceeding to interstitial fibrosis.

  • These drugs are busulfan, nitrofurantoin, amiodarone, bleomycin.

  • High oxygen concentration – interstitial fibrosis.

  • Radiation exposure – acute pneumonitis – fibrosis.

Collagen vascular diseases l.jpg

Collagen Vascular Diseases

  • Several collagen vascular diseases particularly systemic sclerosis and lupus and rheumatoid arthritis may lead to systemic sclerosis.

  • Dyspnea is often severe.

  • A definite diagnosis requires surgical lung biopsy.

  • Treatment is corticosteroids plus cytotoxic therapy.

Pleural diseases l.jpg

Pleural Diseases

  • Pneumothorax could be either primary or secondary.

  • Pleural effusion can be acute or chronic.

  • Pleural effusion is divided into exudate and transudate.

  • Pleural thickening – longstanding pleural effusion results in fibrotic pleura which splints the lung and prevents its expansion.

  • If the disease is bilateral – may cause restrictive lung diease.

  • Treatment may be decortication.

Diseases of the chest wall l.jpg

Diseases of the Chest Wall

  • Deformity of thoracic cage such as kyphoscoliosis and ankylosing spondylitis.

  • Scoliosis – lateral curvature of spine, kyphosis – posterior curvature.

  • Cause is unknown, polio and previous tuberculosis.

  • Patients develop exertional dyspnea, rapid shallow breathing.

  • Hypoxemia, hypercapnia and cor-pulmonale supervene.

  • Pulmonary function tests show RVP with normal diffusion.

  • Cause of death is respiratory failure or intracurrent pulmonary infection.

  • Treatment is non-invasive or invasive chronic ventilation.

Neuromuscular disorders l.jpg

Neuromuscular Disorders

  • Diseases affecting muscles of respiration or their nerve supply.

  • Poliomyelitis, Guillain-Barre syndrome, ALS, myasthenia gravis, muscular dystrophies.

  • All these lead to dyspnea and respiratory failure.

  • PFT’s show reduced FVC, TLC and FEV1.

  • The progress of disease can be monitored by FVC and blood gases.

  • Maximal inspiratory and expiratory pressures are reduced.

  • Treatment is either treating the underlying cause or assisted ventilation.

Restrictive lung disease41 l.jpg


By Sat Sharma

Assistant Professor

University of Manitoba
