orbit response measurements
Orbit Response Measurements

Update 9/30/10

J. Rzepiela

orbit response program

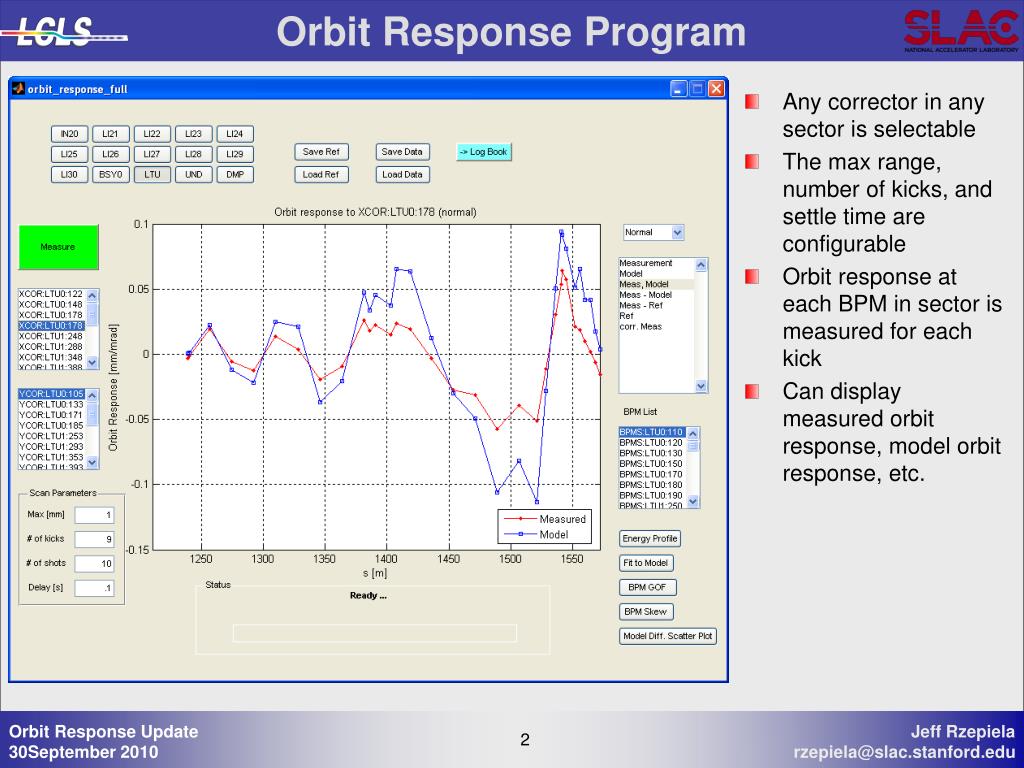

Orbit Response Program
  • Any corrector in any sector is selectable
  • The max range, number of kicks, and settle time are configurable
  • Orbit response at each BPM in sector is measured for each kick
  • Can display measured orbit response, model orbit response, etc.
measurements
Measurements
  • 3.464 GeV, 250 pC
    • LTU
  • 4.3 GeV , 250 pC
    • LI21, LI27-30, BSY, LTU, UND (partial)
li21 results
LI21 Results

BPMS:LI21:233

(BPMS11)

li21 results xcor
LI21 Results (XCOR)

Larger signal in normal component (as compared to model) and

near zero signal in skew component implies a error in scaling (as opposed

to rotation

li21 results1
LI21 Results

BPMS:LI21:233

(BPMS11)

li21 ycor
LI21 (YCOR)

Small error in normal component (as compared to model),

large skew component

orbit response fitting
Orbit Response Fitting
  • Fit data from all x and y corrector kicks
  • Use all BPM data.
  • Fit gain and angle parameters for all BPMs.
    • Correct BPM signals to account for scaling in x and y (gx, gy) as well as rotation (φ).
corrected results li21
Corrected results (LI21)

Fit results:

Θ= -4º

gx=0.3646

gy=1.0604

corrected results li211
Corrected results (LI21)

Fit results:

Θ= -4º

gx=0.3646

gy=1.0604

ltu results x corrs
LTU Results: X Corrs

Xcorr 122

Xcorr 148 (offline)

Xcorr 178

Xcorr 248

Xcorr 288

Xcorr 348

ltu results x corrs1
LTU Results: X Corrs

Xcorr 388

Xcorr 448

Xcorr 488

Xcorr 548

Xcorr 588

Xcorr 642

ltu x corrs
LTU: X Corrs

Xcorr 678

Xcorr 718

Xcorr 738

Xcorr 758

ltu y corrs
LTU: Y Corrs

Ycorr 105

Ycorr 133

Ycorr 171

Ycorr 185

Ycorr 253

Ycorr 293

ltu results y corrs
LTU Results: Y Corrs

Ycorr 353

Ycorr 393

Ycorr 453

Ycorr 493

Ycorr 553

Ycorr 593

y corrs
Y Corrs

Ycorr 611

Ycorr 657

Ycorr 727

Ycorr 747

Ycorr 767

general observations
General Observations
  • Xcorr scans show generally good agreement with model
  • Ycorr scans for Ycorr 453  767 show generally good agreement with model
  • Ycorr scans for Ycorr 105  393 show poor agreement with model, particularly farther downstream (BPMs 110  450 show better agreement than BPMs downstream)
historical comparison
Historical comparison

12/02/09: 5.8 GeV

8/31/10: 3.464 GeV

9/17/10: 4.3 GeV
