  1. Ladders, Couches, and Envelopes An old technique gives a new approach to an old problemDan Kalman American UniversityFall 2007

  2. The Ladder Problem: How long a ladder can you carry around a corner?

  3. The Traditional Approach • Reverse the question • Instead of the longest ladder that will go around the corner … • Find the shortest ladder that will not

  4. A Direct Approach • Why is this reversal necessary? • Look for a direct approach: find the longest ladder that fits • Conservative approach: slide the ladder along the walls as far as possible • Let’s look at a mathwright simulation

  5. About the Boundary Curve • Called the envelope of the family of lines • Nice calculus technique to find its equation • Technique used to be standard topic • Well known curve (astroid, etc.) • Gives an immediate solution to the ladder problem

  6. Solution to Ladder Problem • Ladder will fit if (a,b) is outside the region W • Ladder will not fit if (a,b) is inside the region • Longest L occurs when (a,b) is on the curve:

  7. A famous curve Hypocycloid: point on a circle rolling within a larger circle Astroid: larger radius four times larger than smaller radius Animated graphic from Mathworld.com

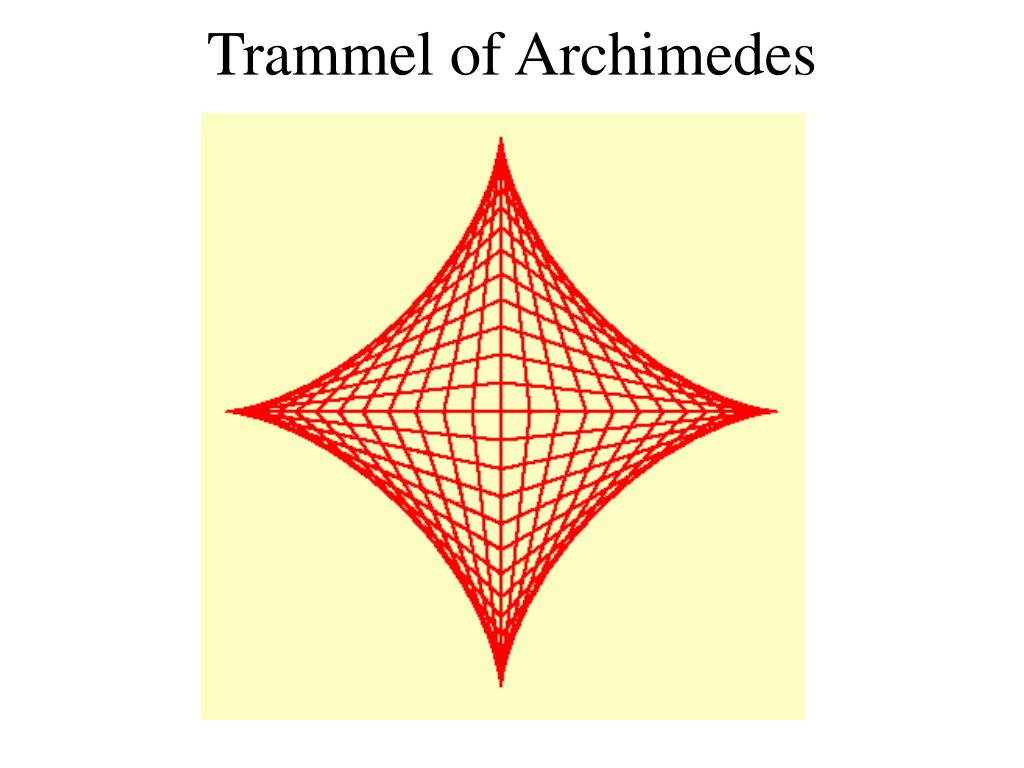

  8. Trammel of Archimedes

  9. Alternate View • Ellipse Model: slide a line with its ends on the axes, let a fixed point on the line trace a curve • The length of the line is the sum of the semi major and minor axes

  10. x = a cosq • y = b sin q

  11. Family of Ellipses • Paint an ellipse with every point of the ladder • Family of ellipses with sum of major and minor axes equal to length L of ladder • These ellipses sweep out the same region as the moving line • Same envelope

  12. Animated graphic from Mathworld.com

  13. Finding the Envelope • Family of curves given by F(x,y,a) = 0 • For each a the equation defines a curve • Take the partial derivative with respect to a • Use the equations of F and Fato eliminate the parameter a • Resulting equation in x and y is the envelope

  14. Parameterize Lines • L is the length of ladder • Parameter is angle a • Note x and y intercepts

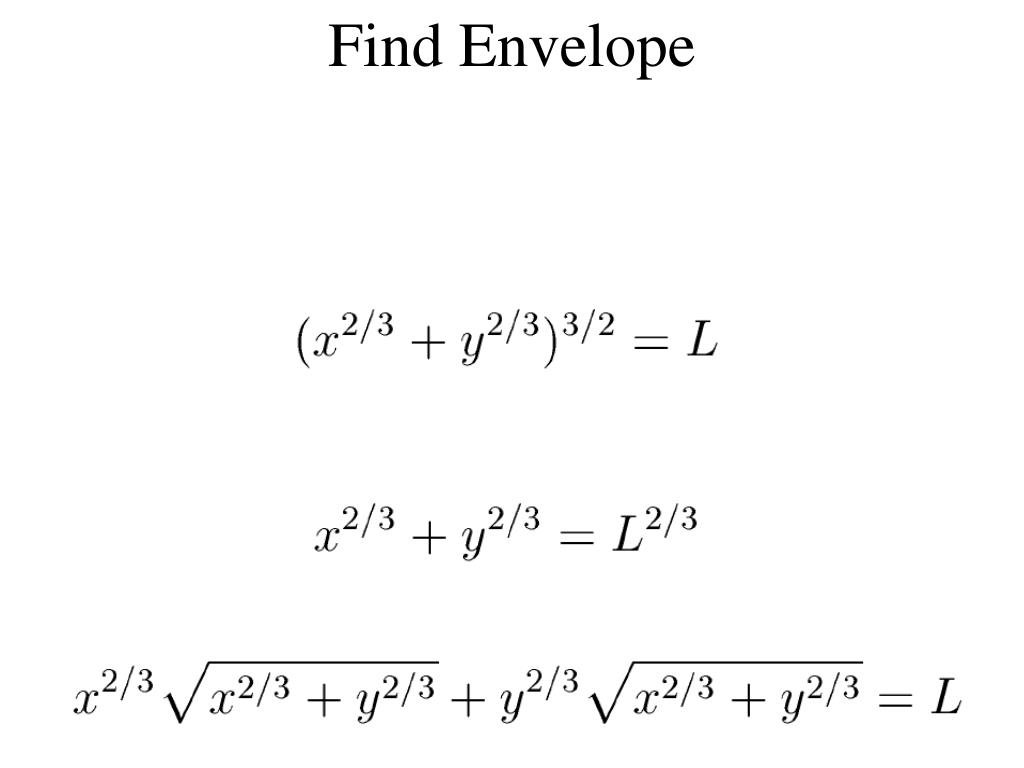

  15. Find Envelope

  16. Find Envelope

  17. Another sample family of curves and its envelope

  18. Find parametric equations for the envelope:

  19. Plot those parametric equations:

  20. Double Parameterization • Parameterize line for each a:x(t) = L cos(a)(1-t)y(t) = L sin(a) t • This defines mapping R2→ R2F(a,t) = (L cos(a)(1-t), L sin(a) t) • Fixed a line in family of lines • Fixed t  ellipse in family of ellipses • Envelope points are on boundary of image: Jacobian F = 0

  21. Mapping R2→ R2 • Jacobian F vanishes when t = sin2a • Envelope curve parameterized by( x , y ) = F (a , sin2a) = ( L cos3a, L sin3a)

  22. History of Envelopes • In 1940’s and 1950’s, some authors claimed envelopes were standard topic in calculus • Nice treatment in Courant’s 1949 Calculus text • Some later appearances in advanced calculus and theory of equations books • No instance in current calculus books I checked • Not included in Thomas (1st ed.) • Still mentioned in context of differential eqns • What happened to envelopes?

  23. Another Approach • Already saw two approaches • Intersection Approach: intersect the curves for parameter values a and a + h • Take limit as h goes to 0 • Envelope is locus of intersections of neighboring curves • Neat idea, but …

  24. Example: No intersections • Start with given ellipse • At each point construct the osculating circle (radius = radius of curvature) • Original ellipse is the envelope of this family of circles • Neighboring ellipses are disjoint!

  25. More Pictures:Family of Osculating Circlesfor an Ellipse

  26. Variations on the Ladder Problem

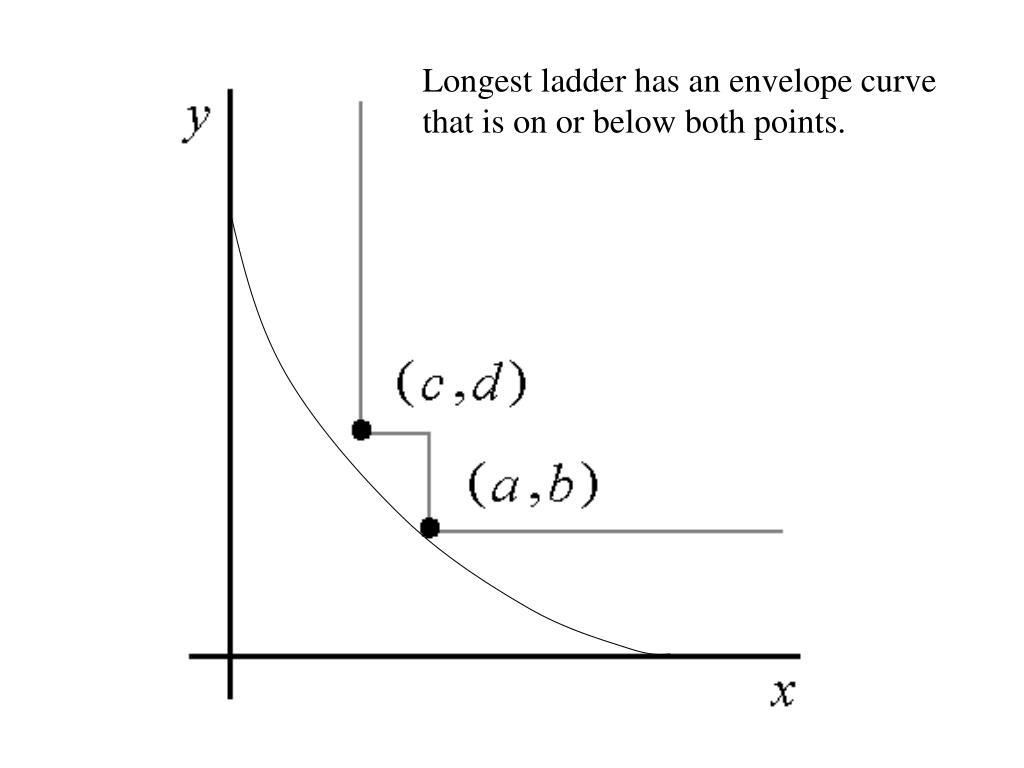

  27. Longest ladder has an envelope curve that is on or below both points.

  28. Longest ladder has an envelope curve that is tangent to curve C.

  29. The Couch Problem • Real ladders not one dimensional • Couches and desks • Generalize to: move a rectangle around the corner
