  1. Kashima 34m Antenna S/X Frontend (original) 2/8GHz Feed Horn P-cal 8080MHz PLO 2020MHz 2GHz RHCP 2GHz LHCP H PLO 7760MHz N.D. LPF (0-3.3GHz) BPF (2150-2350MHz) 2GHz IF out Hot Load 8GHz LHCP 8GHz RHCP Cold Load N.D. LPF (0-12.3GHz) BPF (8180-8600MHz) 8GHz IF out#1 H H (8180-8600MHz) 8GHz IF out#2 Cold Load P-cal H LPF (0-12.3GHz) T= 20k T= 50k H Hot Load H (7860-8360MHz) 8GHz IF out#3 N.D. Dewar

  2. Kashima 34m Antenna S/X Frontend (current) 2/8GHz Feed Horn P-cal 8080MHz PLO 2020MHz 2GHz RHCP 2GHz LHCP H PLO 7760MHz N.D. HTS-BPF (2193-2473MHz) LPF (0-3.3GHz) BPF (2150-2350MHz) 2GHz IF out Hot Load 8GHz LHCP 8GHz RHCP Sky Freq (2193-2350MHz) Dewar Cold Load N.D. LPF (0-12.3GHz) BPF (8180-8600MHz) 8GHz IF out#1 H H (8180-8600MHz) 8GHz IF out#2 Cold Load P-cal H LPF (0-12.3GHz) T= 20k T= 50k H Hot Load H (7860-8360MHz) 8GHz IF out#3 N.D. Dewar

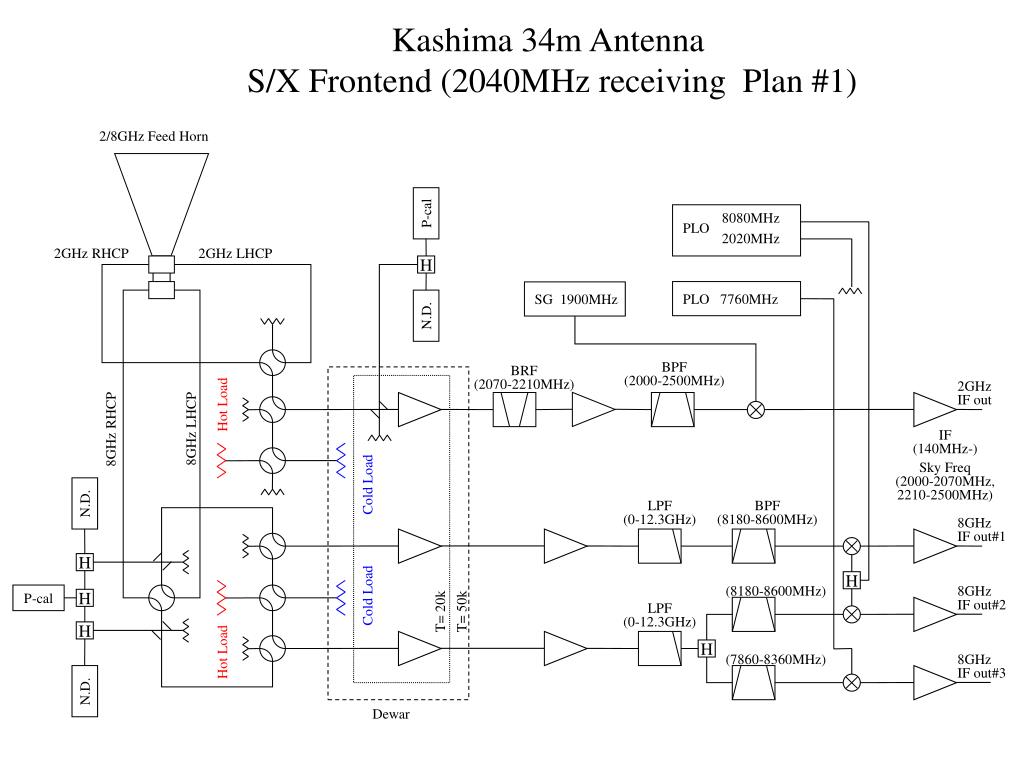

  3. Kashima 34m Antenna S/X Frontend (2040MHz receiving Plan #1) 2/8GHz Feed Horn P-cal 8080MHz PLO 2020MHz 2GHz RHCP 2GHz LHCP H PLO 7760MHz SG 1900MHz N.D. BPF (2000-2500MHz) BRF (2070-2210MHz) 2GHz IF out Hot Load 8GHz LHCP 8GHz RHCP IF (140MHz-) Sky Freq (2000-2070MHz, 2210-2500MHz) Cold Load N.D. LPF (0-12.3GHz) BPF (8180-8600MHz) 8GHz IF out#1 H H (8180-8600MHz) 8GHz IF out#2 Cold Load P-cal H LPF (0-12.3GHz) T= 20k T= 50k H Hot Load H (7860-8360MHz) 8GHz IF out#3 N.D. Dewar

  4. Kashima 34m Antenna S/X Frontend (2040MHz receiving Plan #2) 2/8GHz Feed Horn P-cal 8080MHz PLO 2020MHz 2GHz RHCP 2GHz LHCP H PLO 7760MHz SG 4240MHz 4490MHz N.D. HTS-BPF (2193-2473MHz) LPF (0-3.3GHz) BRF (2070-2210MHz) 2GHz IF out Hot Load 8GHz LHCP 8GHz RHCP Sky Freq (2047-1767MHz) (2297-2017MHz) Dewar Cold Load N.D. LPF (0-12.3GHz) BPF (8180-8600MHz) 8GHz IF out#1 H H (8180-8600MHz) 8GHz IF out#2 Cold Load P-cal H LPF (0-12.3GHz) T= 20k T= 50k H Hot Load H (7860-8360MHz) 8GHz IF out#3 N.D. Dewar
