Simple protocol for robust tunnel endpoint mtu determination sprite mtu

Simple Protocol for Robust Tunnel Endpoint

MTU Determination (sprite-mtu)

IETF 70 Routing Research Group (RRG)

Fred L. Templin

[email protected]


Mtu determination problem

MTU Determination Problem

End-to-End

Final Destination

(EMTU_R=64KB)

Tunnel

MTU=64KB

MTU=64KB

Original Source

(MTU=64KB)

MTU=9KB

Edge

Network

Tunnel

Far-End

(EMTU_R=8KB)

MTU=64KB

MTU=4KB

Tunnel

Near-End

MTU=??

MTU=2KB

Edge

Network

Internet/Enterprise Network/MANET/etc.


Tunnel mtu issues 1

Tunnel MTU Issues (1)

  • IPv4 path MTU discovery has limitations for tunnels:

    • ICMPv4 “packet too big” (PTB) messages dropped by middleboxes – result is undiagnosable black hole

    • PTB messages returned to the tunnel near-end (TNE) can’t be translated into PTBs to send back to the original source

    • PTB messages easily forged by off-path attackers

    • does not work in the presence of multi-MTU subnets, i.e., last-hop router cannot know the MTU of the tunnel far-end (TFE)

  • CHALLENGE: TNE CANNOT BLINDLY ADMIT BIG PACKETS INTO THE TUNNEL WITH DF=1


Tunnel mtu issues 2

Tunnel MTU Issues (2)

  • Unmitigated IPv4 fragmentation is harmful:

    • Existing TNEs have no way of knowing the Effective MTU to Receive (EMTU_R) of the TFE

    • Existing TNEs have no way of knowing the reassembly timeout value used by the TFE

    • Slow-path processing in fragmenting middleboxes

    • TNE has no way of controlling NATs that rewrite ip_id

    • IP fragment misassociations at TFE can cause undetected data corruption

  • CHALLENGE: TNE CANNOT BLINDLY SEND BIG PACKETS INTO THE TUNNEL WITH DF=0


Goals

Goals

  • Robust support for packets of various sizes

  • Maximize Packet Delivery Ratio

  • Manage fragmentation if necessary

  • Avoid in-the-network fragmentation

  • Avoid reassembly misassociations at TFE

  • Coexist with end-to-end MTU determination

  • Support larger MTUs


Solution sprite mtu

Solution: SPRITE-MTU

  • UDP Echo service for tunnel MTU discovery

  • Soft state management to track tunnel parameters (per RFC2003)

  • Explicit Congestion Notification for robust operation over tunnels with small MTUs

  • Improves operating conditions for end-to-end path MTU determination (RFC4821)

  • RESULT: DISCOVERS TUNNEL MTU AND MINIMIZES NUMBER OF FRAGMENTS PER PACKET (PREFERABLY DOWN TO 1)


Relevant elements of normative specifications

Relevant Elements of Normative Specifications

  • RFC2003 (IPv4-in-IPv4 Encapsulation)

    • Basic encapsulation/decapsulation specifications

    • Inner packet fragmentation when DF=0 and packet larger than the TFE’s EMTU_R

    • Setting of DF

    • Tunnel Soft State

    • Sending packet while also returning PTB

  • RFC4213 (IPv6-in-IPv4 Encapsulation)

    • Basic encapsulation/decapsulation specifications

    • Conceptual sending algorithm

    • “Configuration knob” threshold for determining when an outer packet is fragmentable


Configuration knob for fragmentable outer packets

Configuration Knob for Fragmentable Outer Packets

  • Two purposes: 1) avoid TFE receive buffer overrun, 2) avoid/minimize fragmentation on the TNE->TFE path

  • Below threshold, admit packets into tunnel without returning PTBs (TFE may need to reassemble)

  • Above threshold, admit packet into tunnel and return PTB if packet is larger than cached MTU

  • Minimums are 1280bytes for IPv6 (MUST) and 576bytes for IPv4 (SHOULD)

  • May be set to larger values based on knowledge of: 1) TFE’s EMTU_R, 2) other encapsulations that may occur on the TNE->TFE path

  • Ideally, push configuration knob up to 1480 (or better yet 1500) – but not always possible


Setting the configuration knob assuming encaps 20

1280: safest option

1280 – ~1380: probably safe for most paths

1380 – 1480: safe only if little/no additional encaps

1480 – 1500: only safe if path has larger-than-1500 MTU and TFE has larger-than-minimum EMTU_R

optimizing down to the byte level not always possible

Setting the Configuration Knob (Assuming ENCAPS=20)

1280 …. 1500


Setting df

Setting DF

  • Set DF=1 in all packets larger than threshold

  • Set DF=1 even if TNE fragments packet before sending into tunnel

  • MAY set DF=0 to increase PDR and avoid spurious PTBs, but if so must use pacing and/or soft state feedback to manage fragmentation

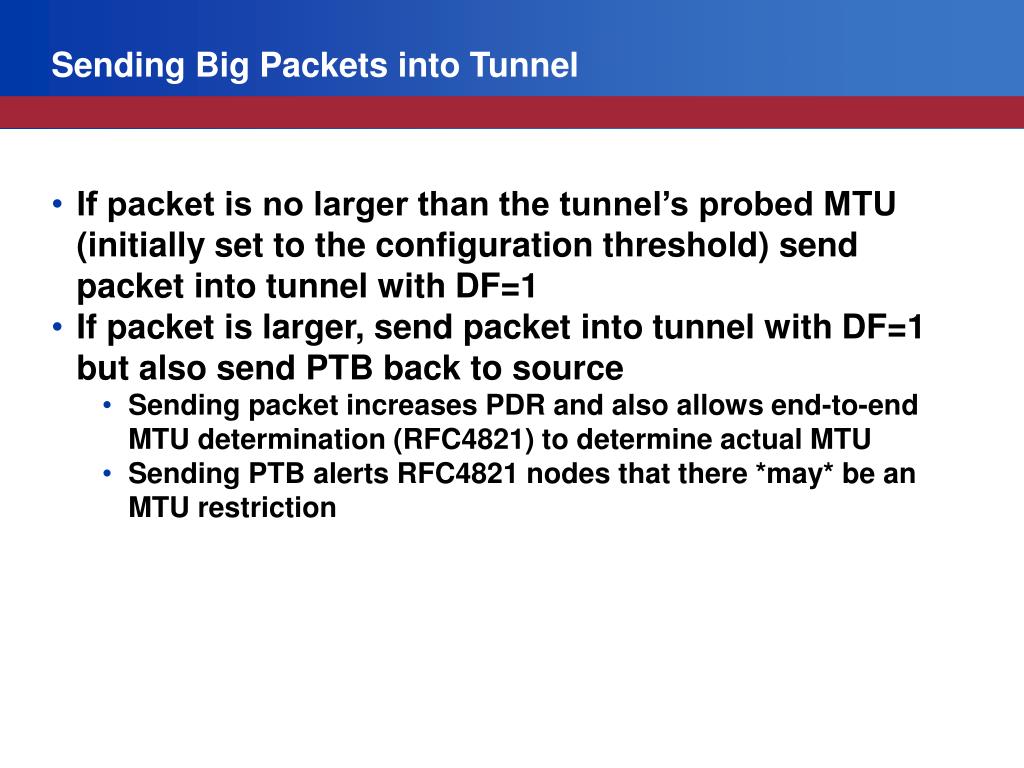

Sending big packets into tunnel

Sending Big Packets into Tunnel

  • If packet is no larger than the tunnel’s probed MTU (initially set to the configuration threshold) send packet into tunnel with DF=1

  • If packet is larger, send packet into tunnel with DF=1 but also send PTB back to source

    • Sending packet increases PDR and also allows end-to-end MTU determination (RFC4821) to determine actual MTU

    • Sending PTB alerts RFC4821 nodes that there *may* be an MTU restriction


What if it might be fragmenting

What if it Might be Fragmenting?

  • Institute pacing until pathMTU to TFE is probed

  • If probed size is no smaller than configuration threshold, relax pacing

  • If probed size is smaller than configuration threshold, or no probes returned, synchronize soft state with TFE

  • Worst case: fast links with small MTUs on TNE->TFE path (need to carefully monitor TFE’s reassembly)


Soft state management protocol

Soft State Management Protocol

  • TNE creates soft state and sends initial sprite to TFE using TFE’s on-link link local address as destination

    • TNE is asking TFE to synchronize state

  • TFE sends reply using its current sprite address as source

    • no soft state created yet – avoid buffer attacks

  • TNE sends sprite using TFE’s current sprite address as destination

    • TFE creates soft state; begins monitoring received packets

  • TNE and TFE continuously exchange sprites while packets are actively using the tunnel


Sprite mtu checksum

Sprite-mtu Checksum

  • “sprite-mtu checksum” sums every 10th byte of the packet using the Fletcher-16 algorithm

  • While synchronized, TNE includes trailing sprite-mtu checksum

  • TFE checks checksum and discards packet if checksum disagrees


Explicit congestion notification

Explicit Congestion Notification

  • TNE sets ECT(0) or ECT(1) codepoint in its sprites

  • When TFE detects incorrect sprite-mtu checksums, it begins setting CE codepoint in its sprite replys

  • TNE institutes pacing while receiving sprite replys with CE codepoint

  • TNE relaxes pacing when CE codepoint no longer set


Futures

Futures

  • IEEE 802.3as Frame Expansion

    • larger than 1500 MTUs for 802.3 links

    • may allow setting configuration threshold to > 1500

  • Larger EMTU_Rs for tunnel endpoints (up to 2KB)

  • Gigabit Ethernet 9KB jumboframes

  • Widespread use of sprite-mtu

  • Widespread use of RFC4821


Simple protocol for robust tunnel endpoint mtu determination sprite mtu

TODO

  • Some encapsulations dangerous with any level of outer fragmentation – e.g., Teredo (IPv6/UDP/IPv4)

    • NATs re-write ‘ip_id’

    • ‘ip_id’ collisions when multiple nodes behind NAT talk to the same TFE

    • solution: “UDP Fragmentation for Teredo” (draft to be written)

  • Use ICMP echo request/reply as fallback if TFE does not implement sprite-mtu (is it worth it?)
