Swallowing deglutition
1 / 11

  • Uploaded on
  • Presentation posted in: General

Swallowing(Deglutition). Voluntary Stage (oral stage) This initiates the swallowing process Involuntary Pharyngeal stage This is involuntary and constitutes passage of food through pharynx into esophagus. Esophageal stage

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.

Download Presentation


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript

Swallowing deglutition


  • Voluntary Stage (oral stage)

    This initiates the swallowing process

  • Involuntary

    Pharyngeal stage

    This is involuntary and constitutes passage of food through pharynx into esophagus.

    Esophageal stage

    This is also involuntary phase that transports food from the pharynx to the stomach

Voluntary stage oral

Voluntary stage(oral)

Food is voluntarily squeezed or rolled posteriorly into the pharynx by pressure of the tongue upward and backward against the palate.

Pharyngeal stage

Pharyngeal stage

When the bolus enters the posterior mouth and pharynx it stimulates epithelial swallowing receptor areas all around the opening of pharynx and impulses from these pass to the brain stem to initiate a series of automatic pharyngeal muscle contractions.

  • Soft palateis raised upwards closing the posterior nares.

  • The palatopharyngeal folds on each side of pharynx are pulled medially to approximate each other forming a slit allowing food that has been masticated sufficiently to pass with ease.

  • Vocal cords are approximated and larynx is pulled upward and anteriorly by neck muscles.

  • Epiglottis swings backward over the opening of larynx. The upward movement of larynx also pulls up and enlarges the opening of esophagus.The upward movement of the larynx also lifts the glottis out of the main stream of food flow, so that the food mainly passes on each side of the epiglottis rather than over its surface

Swallowing deglutition

  • Once the larynx is raised and the pharyngo esophageal sphincter becomes relaxed the entire muscular wall of pharynx contracts beginning in superior part and then spreading downward which propels the food by peristalsis into esophagus.

Nervous regulation

Nervous Regulation

Impulses go through the sensory portions of trigeminal nerve and glossopharyngeal nerve to the swallowing center in the lower pons and medulla

Swallowing deglutition

  • The motor impulses from the swallowing center go through the fifth, ninth, tenth and twelfth cranial nerves to the pharynx and esophagus.

Swallowing deglutition

  • The entire pharyngeal stage of swallowing occurs in less than 6 seconds.

  • During the pharyngeal stage the swallowing center inhibits respiratory center interrupting respiration for a fraction of second which is hardly noticeable

Esophageal stage

Esophageal Stage

  • The esophagus functions primarily to conduct food from the pharynx to the stomach.

  • Esophagus exhibits two types of peristalsis

    Primary peristalsis

    Secondary peristalsis

Receptive relaxation of stomach

Receptive Relaxation of Stomach

  • When the esophageal peristaltic wave approaches the stomach, a wave of relaxation transmitted through myenteric inhibitory neurons causes the stomach to relax before the entry of food.

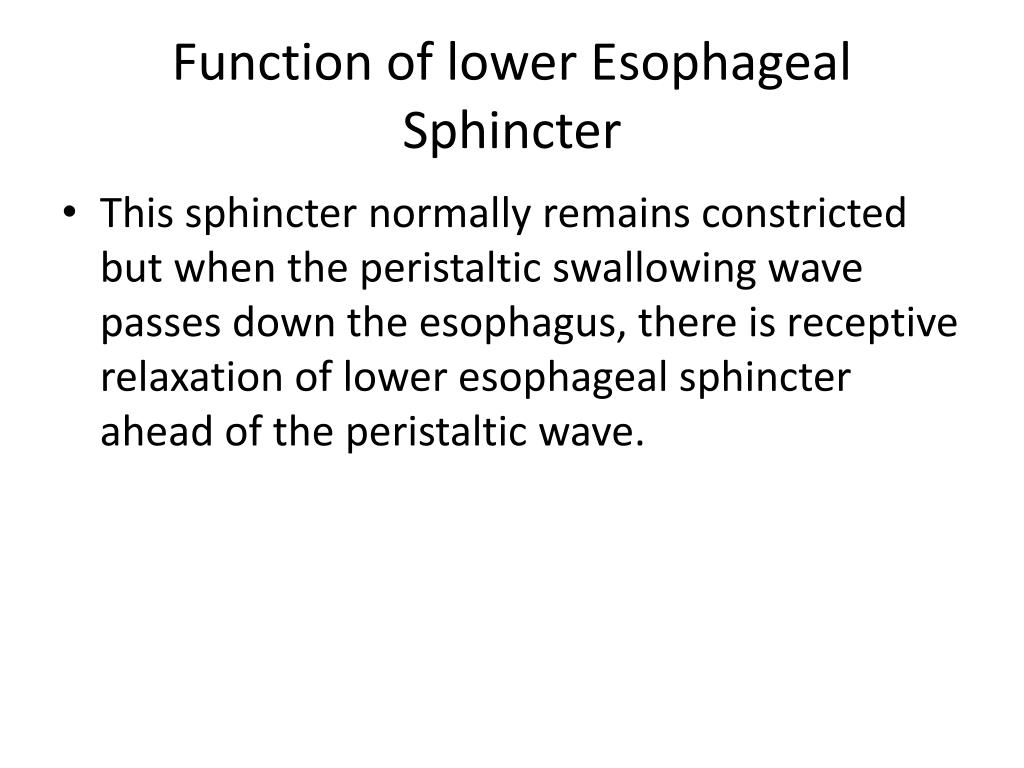

Function of lower esophageal sphincter

Function of lower Esophageal Sphincter

  • This sphincter normally remains constricted but when the peristaltic swallowing wave passes down the esophagus, there is receptive relaxation of lower esophageal sphincter ahead of the peristaltic wave.

Swallowing deglutition

  • The tonic contraction of LES prevents the reflux of stomach contents into the esophagus.

  • Another factor that helps to prevent reflux is a valvelike mechanism of a short portion of the esophagus that extends slightly into the stomach. Increased intraabdominal pressure caves the esophagus inward at this point. This valvelike closure of the lower esophagus helps to prevent high intra-abdominal pressure from forcing stomach contents backward into the esophagus e.g walking, coughing,
