Epson tm t20

Epson TM-T20

Release: 01.03.2009

EPSON Europe B.V.


Ease of use

Ease of use

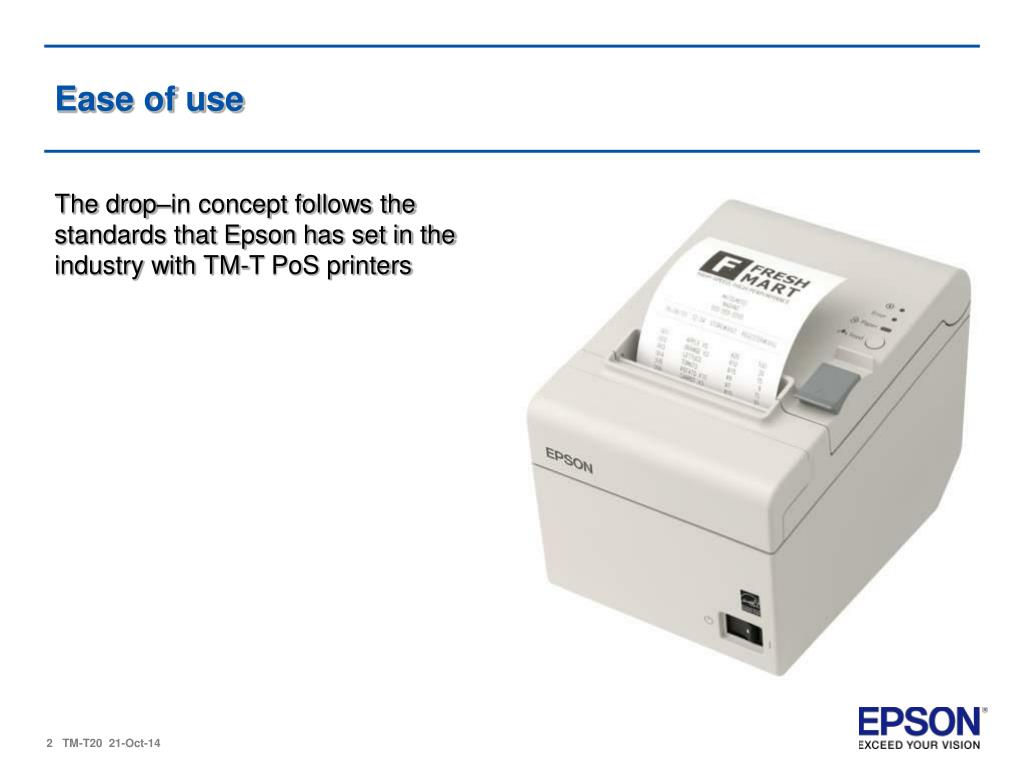

  • The drop–in concept follows the standards that Epson has set in the industry with TM-T PoS printers

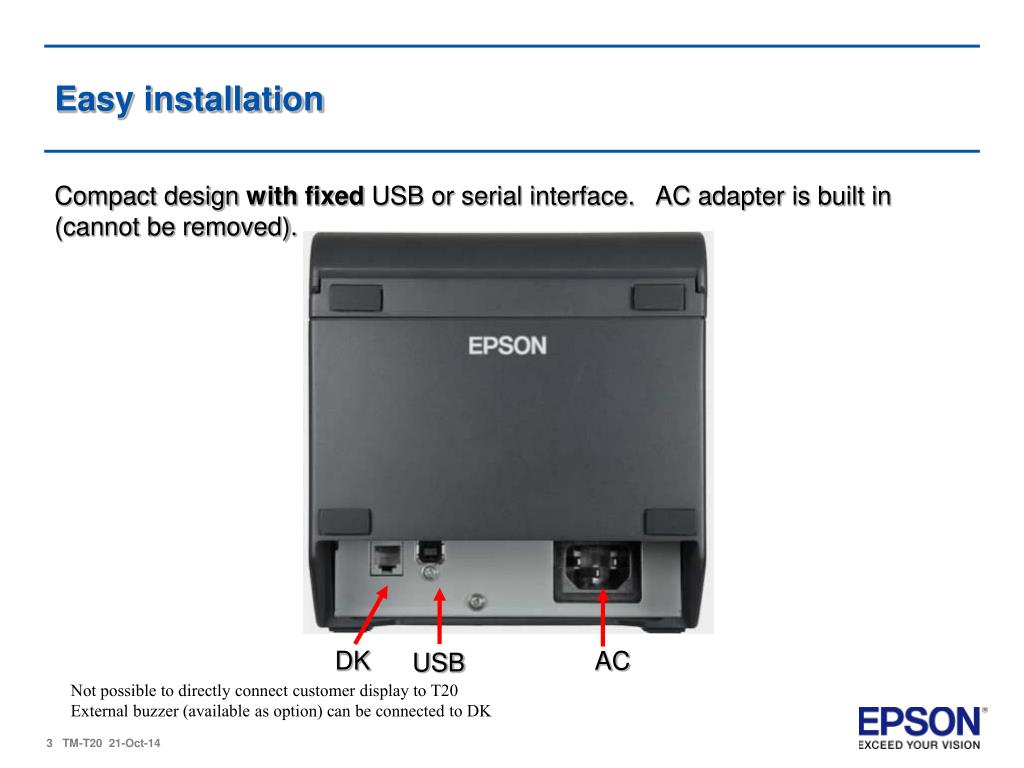

Easy installation

Easy installation

  • Compact design with fixed USB or serial interface. AC adapter is built in (cannot be removed).

DK

AC

USB

Not possible to directly connect customer display to T20External buzzer (available as option) can be connected to DK

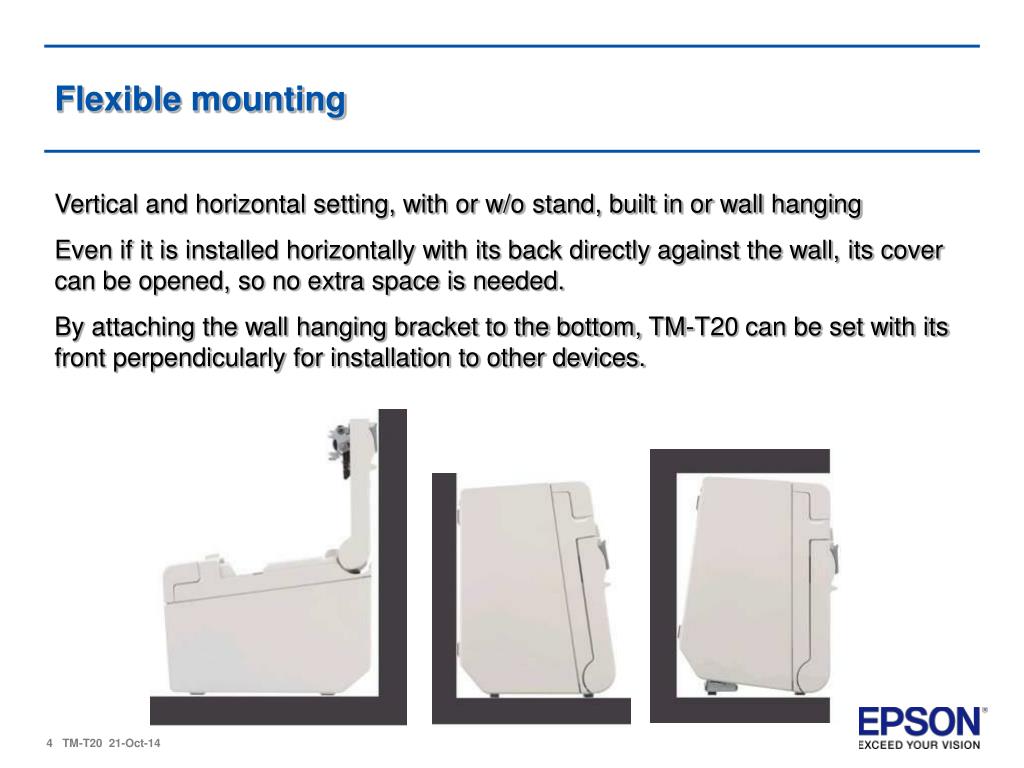

Flexible mounting

Flexible mounting

  • Vertical and horizontal setting, with or w/o stand, built in or wall hanging

  • Even if it is installed horizontally with its back directly against the wall, its cover can be opened, so no extra space is needed.

  • By attaching the wall hanging bracket to the bottom, TM-T20 can be set with its front perpendicularly for installation to other devices.


Wall mounting bracket included

Wall mounting bracket included

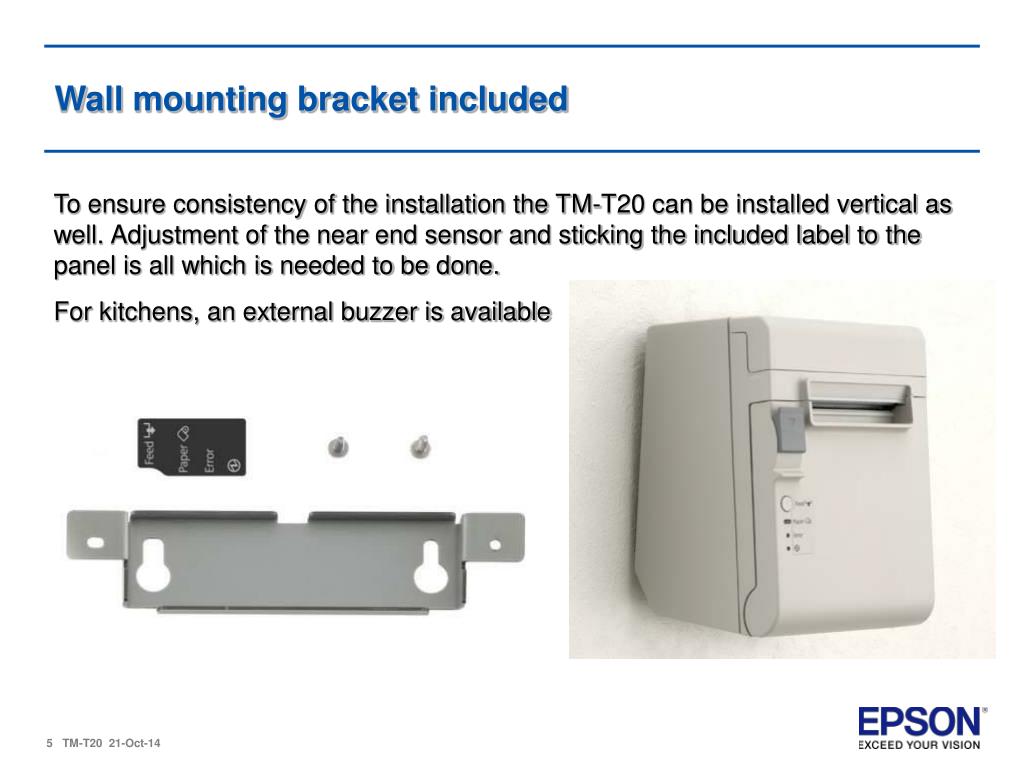

  • To ensure consistency of the installation the TM-T20 can be installed vertical as well. Adjustment of the near end sensor and sticking the included label to the panel is all which is needed to be done.

  • For kitchens, an external buzzer is available


All in box concept

All-in-box concept

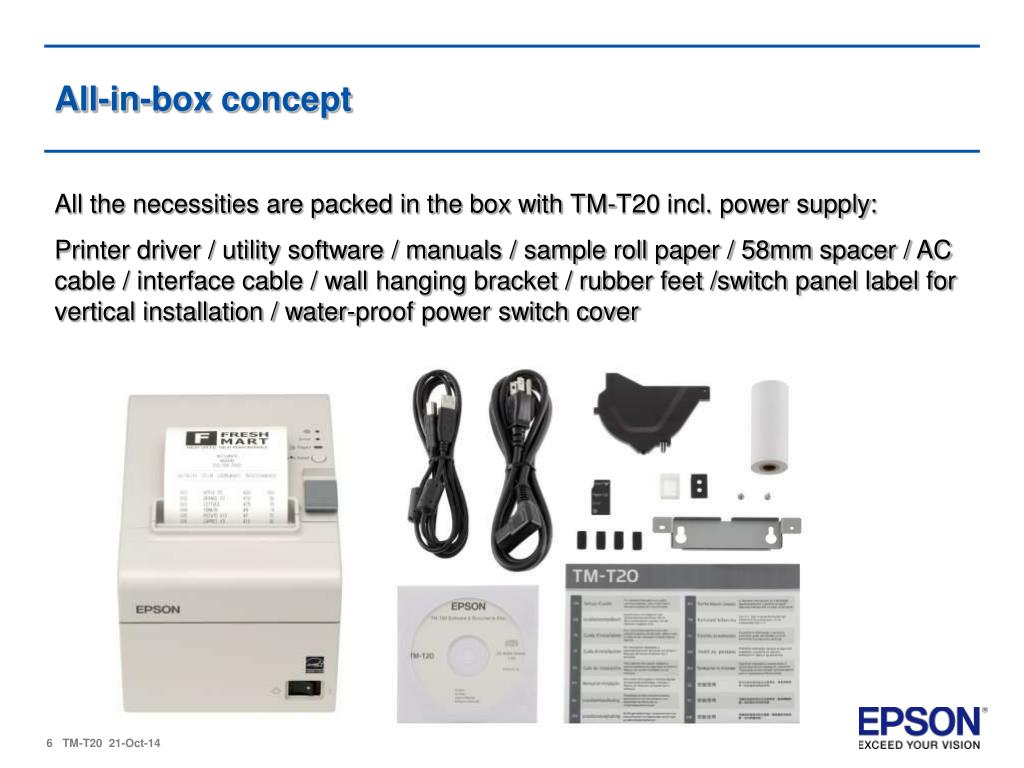

  • All the necessities are packed in the box with TM-T20 incl. power supply:

  • Printer driver / utility software / manuals / sample roll paper / 58mm spacer / AC cable / interface cable / wall hanging bracket / rubber feet /switch panel label for vertical installation / water-proof power switch cover


80 or 58 mm paper

80 or 58 mm Paper

  • The spacer to reduce the paper width from 80 to 58 mm is included in the box. This gives another option to reduce paper consumption and cost.

  • Note: To change the paper width from 80 mm to 58 mm, be sure to set the paper width with the memory switch to adjust the print area. After changing the paper width from 80 mm to 58 mm and using the printer, do not change it back to 80 mm.


4 tm t20 internal features

4. TM-T20 Internal Features


Ecology best of breed energy efficiency

Ecology: Best of breed energy efficiency

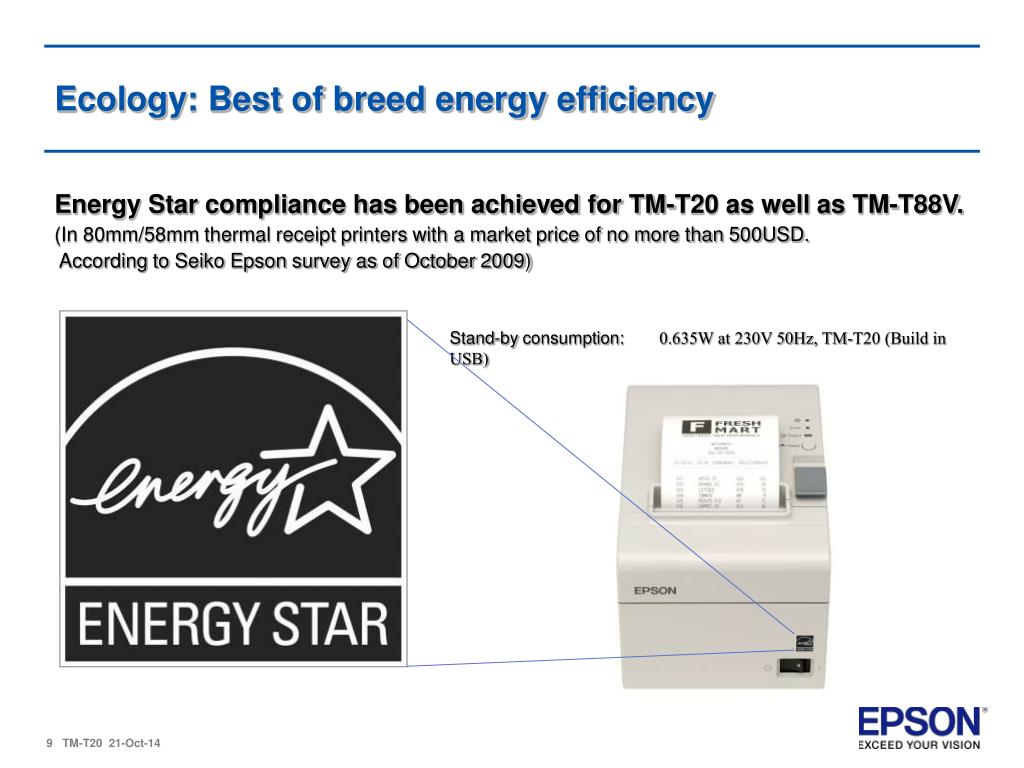

Energy Star compliance has been achieved for TM-T20 as well as TM-T88V.(In 80mm/58mm thermal receipt printers with a market price of no more than 500USD. According to Seiko Epson survey as of October 2009)

Stand-by consumption:0.635W at 230V 50Hz, TM-T20 (Build in USB)


Automatic speed adjustment function

Automatic speed adjustment function

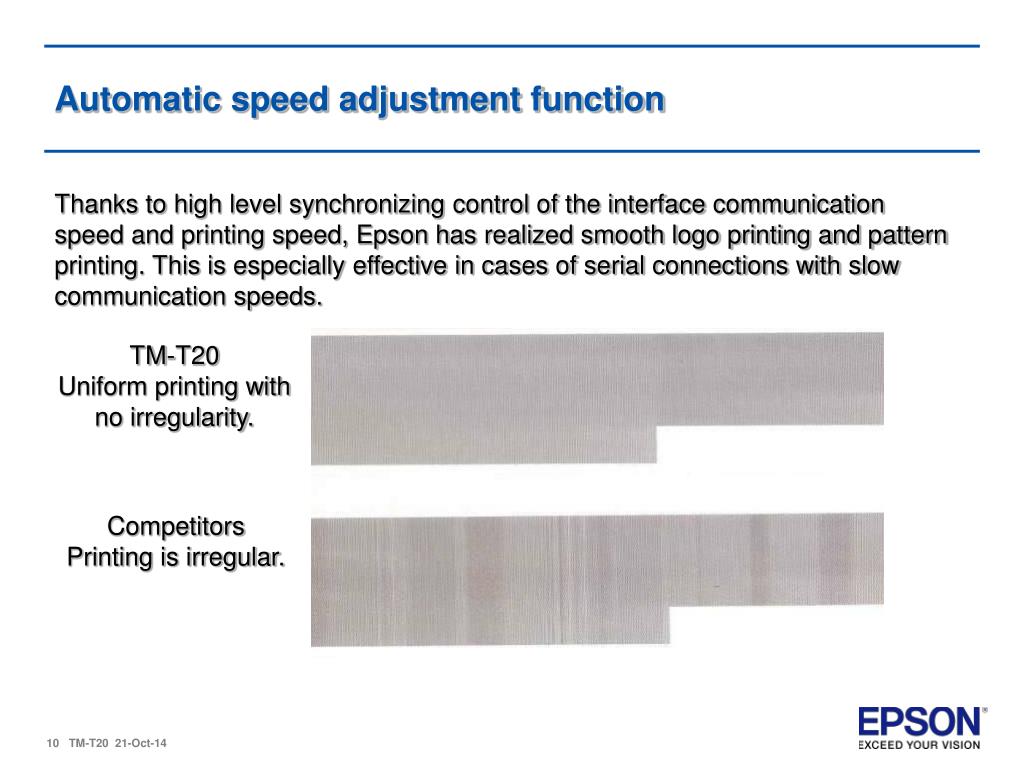

Thanks to high level synchronizing control of the interface communication speed and printing speed, Epson has realized smooth logo printing and pattern printing. This is especially effective in cases of serial connections with slow communication speeds.

TM-T20

Uniform printing with no irregularity.

Competitors

Printing is irregular.


Easy set up

Easy set-up

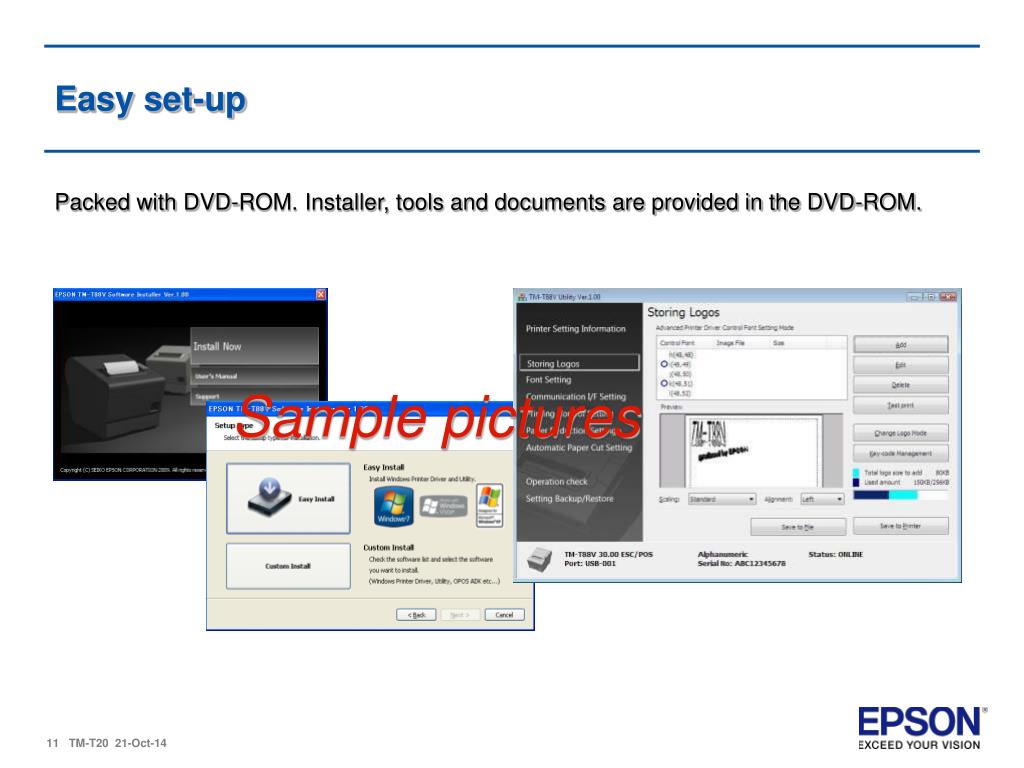

Packed with DVD-ROM. Installer, tools and documents are provided in the DVD-ROM.

Sample pictures


Virtual port driver

Customers Application

on Windows OS

Customers Application

on Windows OS

Virtual

Parallel port

Virtual

Serial port

LPT

COM

Virtual port driver

USB

USB

TM-T20

Virtual port driver

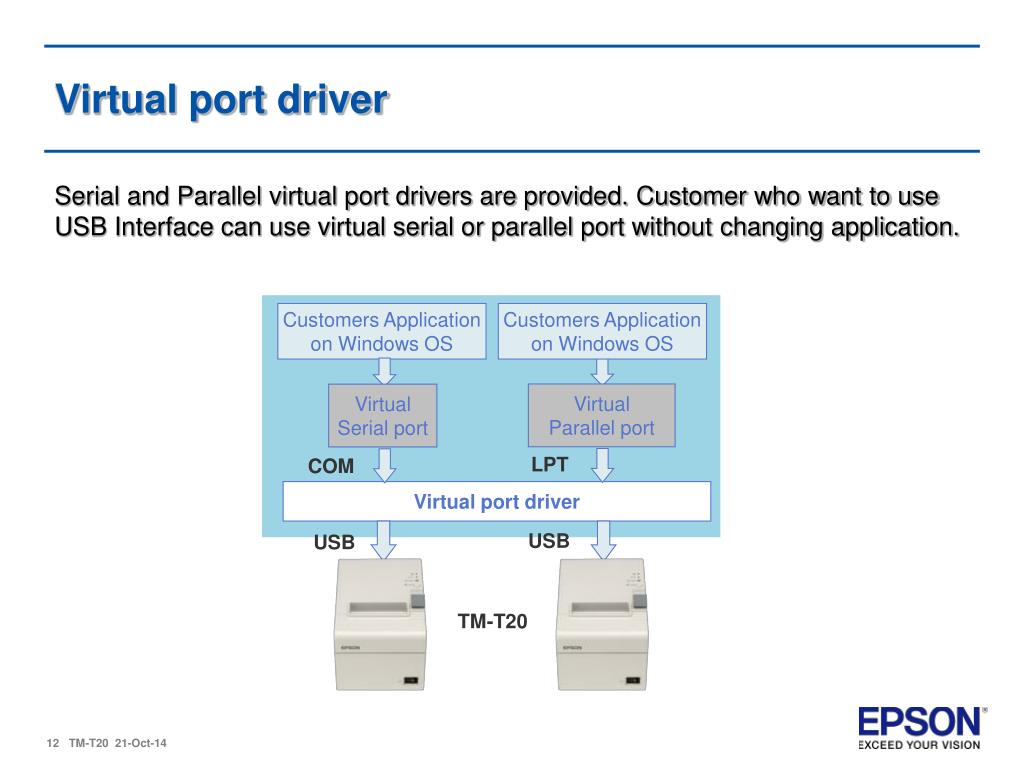

Serial and Parallel virtual port drivers are provided. Customer who want to use USB Interface can use virtual serial or parallel port without changing application.

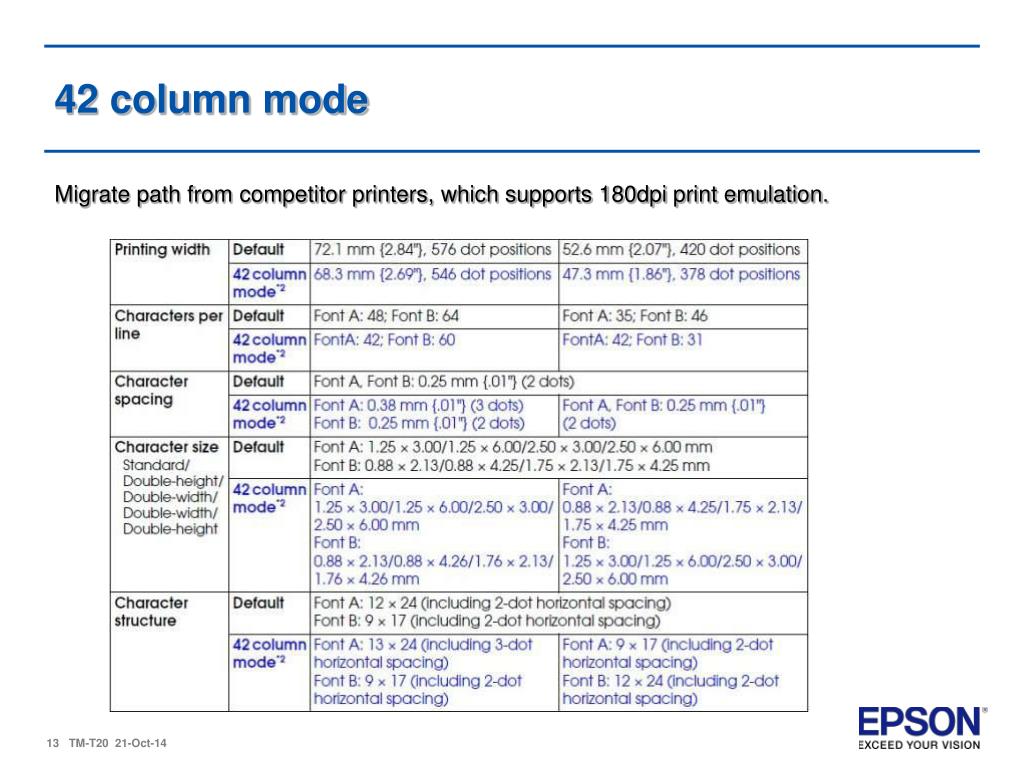

42 column mode

42 column mode

Migrate path from competitor printers, which supports 180dpi print emulation.


Print speed 150 mm s

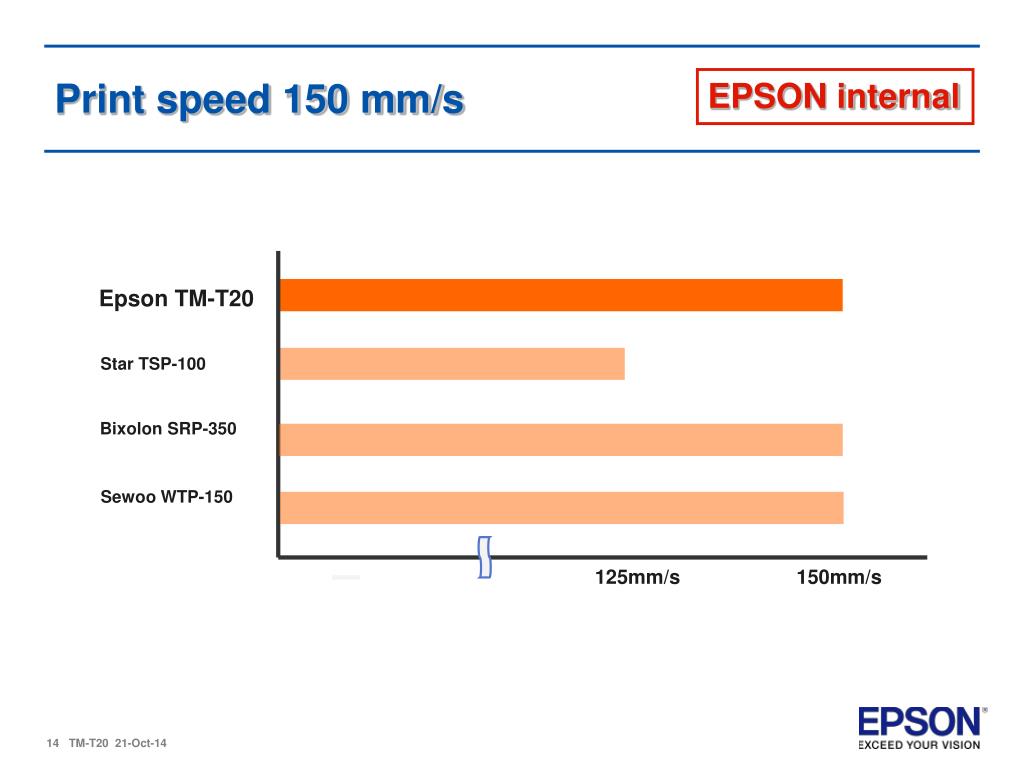

Print speed 150 mm/s

EPSON internal

Epson TM-T20

Star TSP-100

Bixolon SRP-350

Sewoo WTP-150

125mm/s

150mm/s


Reliable

Reliable

EPSON internal

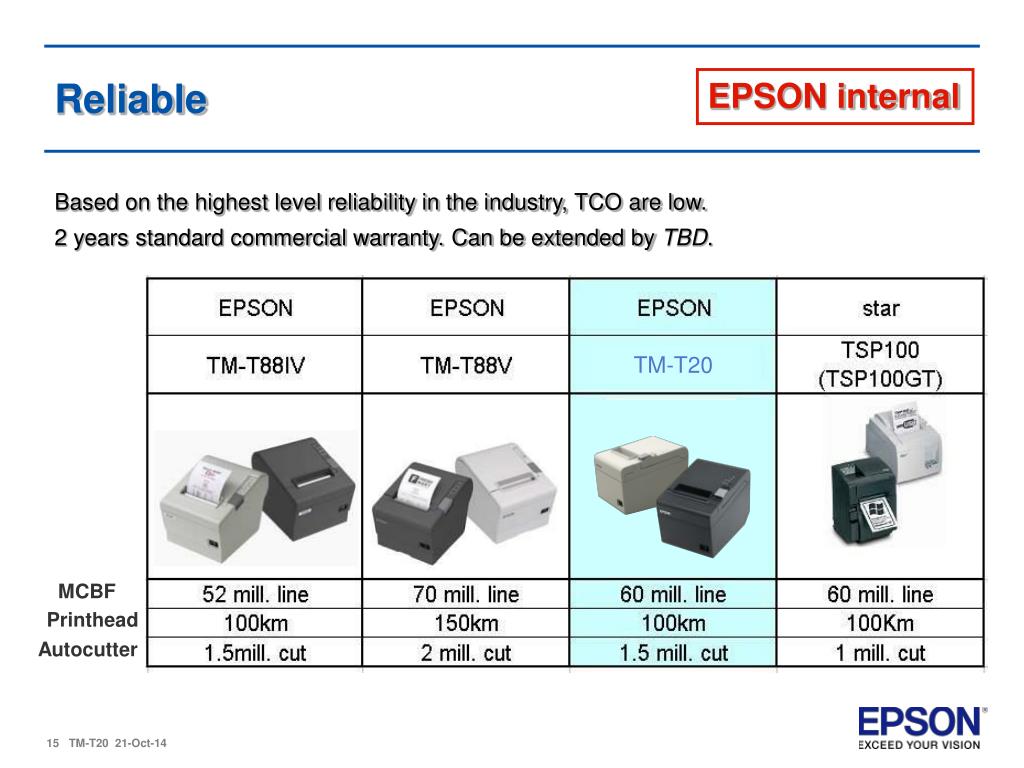

Based on the highest level reliability in the industry, TCO are low.

2 years standard commercial warranty. Can be extended by TBD.

TM-T20

MCBF

Printhead

Autocutter


Paper jam handling

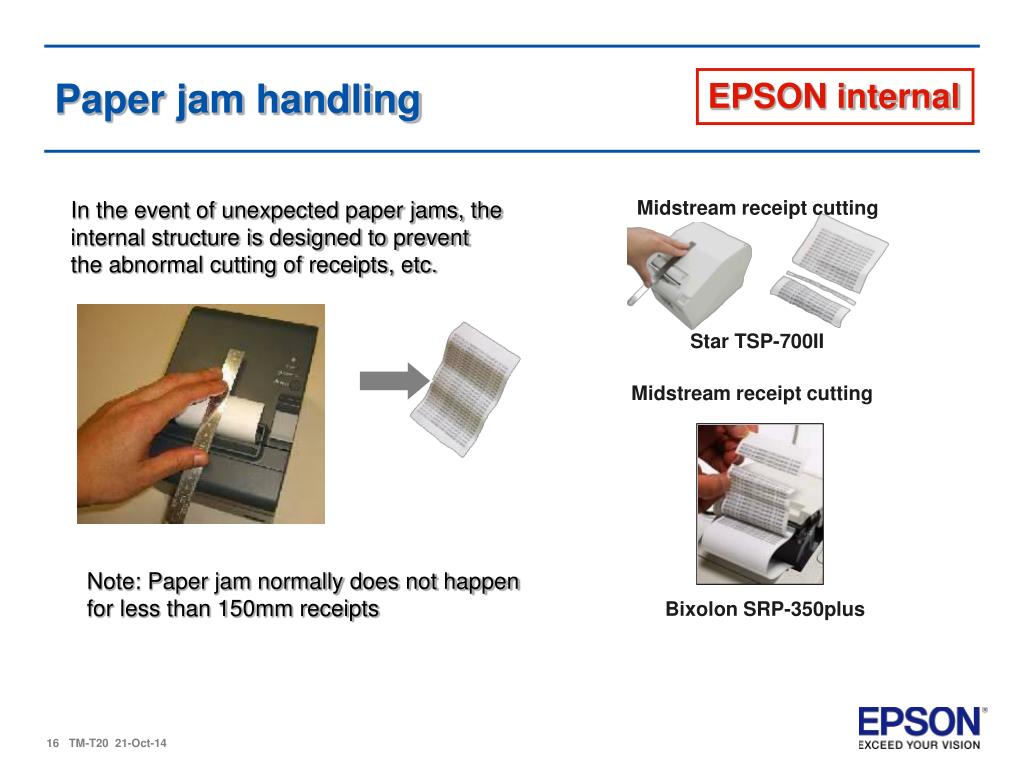

Paper jam handling

EPSON internal

In the event of unexpected paper jams, the internal structure is designed to prevent the abnormal cutting of receipts, etc.

Midstream receipt cutting

Star TSP-700II

Midstream receipt cutting

Note: Paper jam normally does not happen

for less than 150mm receipts

Bixolon SRP-350plus


5 tm t20 specs

5. TM-T20 Specs

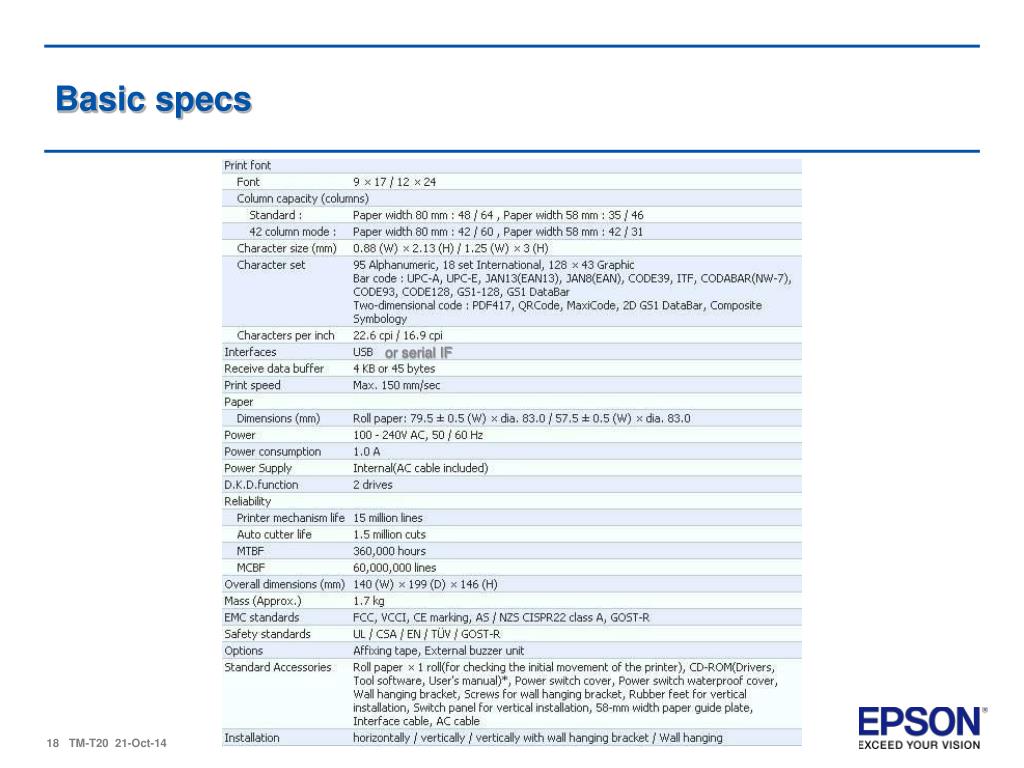

Basic specs

or serial IF

Basic specs


What s in the box

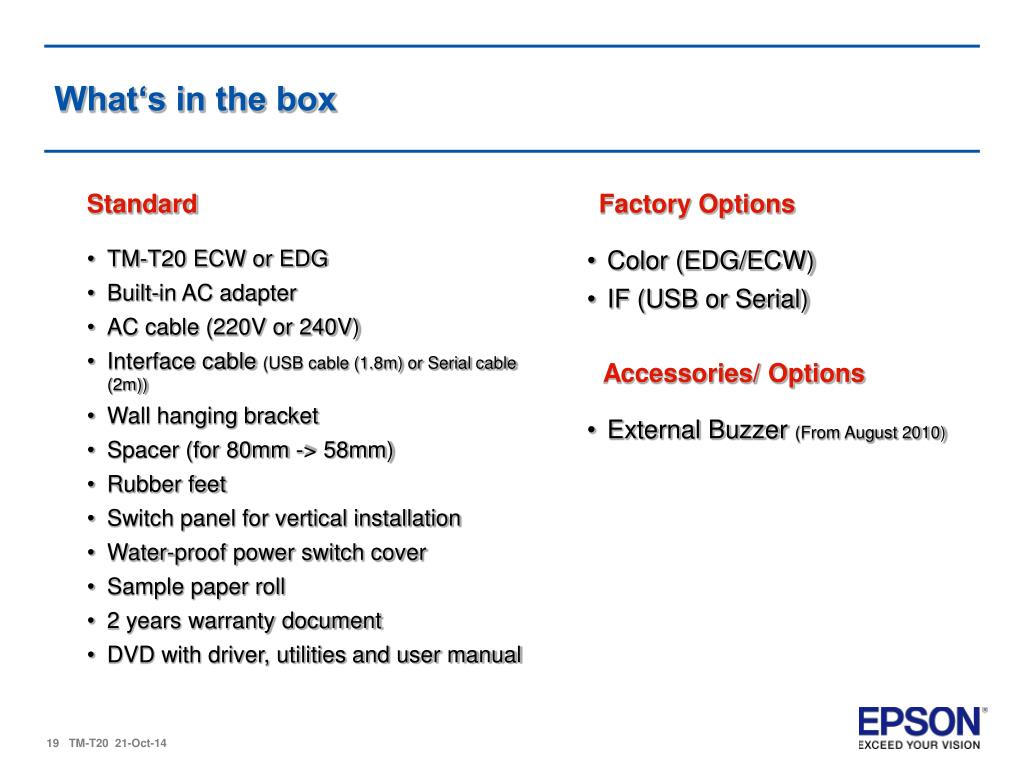

What‘s in the box

  • TM-T20 ECW or EDG

  • Built-in AC adapter

  • AC cable (220V or 240V)

  • Interface cable (USB cable (1.8m) or Serial cable (2m))

  • Wall hanging bracket

  • Spacer (for 80mm -> 58mm)

  • Rubber feet

  • Switch panel for vertical installation

  • Water-proof power switch cover

  • Sample paper roll

  • 2 years warranty document

  • DVD with driver, utilities and user manual

  • StandardFactory Options

  • Color (EDG/ECW)

  • IF (USB or Serial)

  • Accessories/ Options

  • External Buzzer (From August 2010)

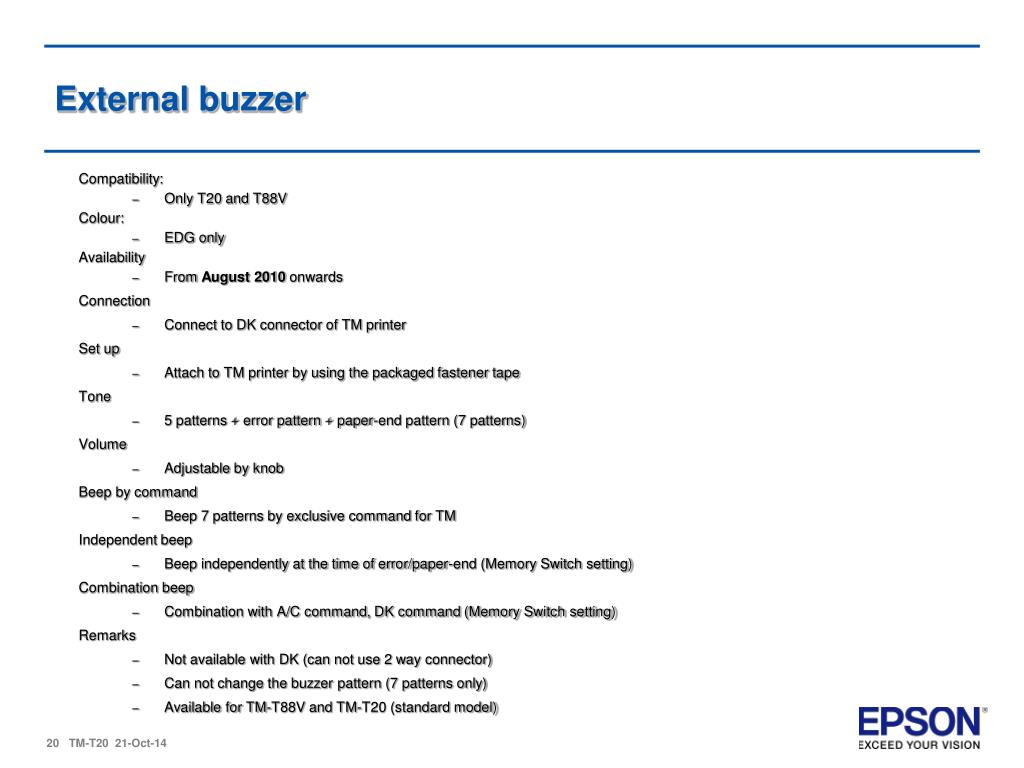

External buzzer

External buzzer

  • Compatibility:

    • Only T20 and T88V

  • Colour:

    • EDG only

  • Availability

    • From August 2010 onwards

  • Connection

    • Connect to DK connector of TM printer

  • Set up

    • Attach to TM printer by using the packaged fastener tape

  • Tone

    • 5 patterns + error pattern + paper-end pattern (7 patterns)

  • Volume

    • Adjustable by knob

  • Beep by command

    • Beep 7 patterns by exclusive command for TM

  • Independent beep

    • Beep independently at the time of error/paper-end (Memory Switch setting)

  • Combination beep

    • Combination with A/C command, DK command (Memory Switch setting)

  • Remarks

    • Not available with DK (can not use 2 way connector)

    • Can not change the buzzer pattern (7 patterns only)

    • Available for TM-T88V and TM-T20 (standard model)

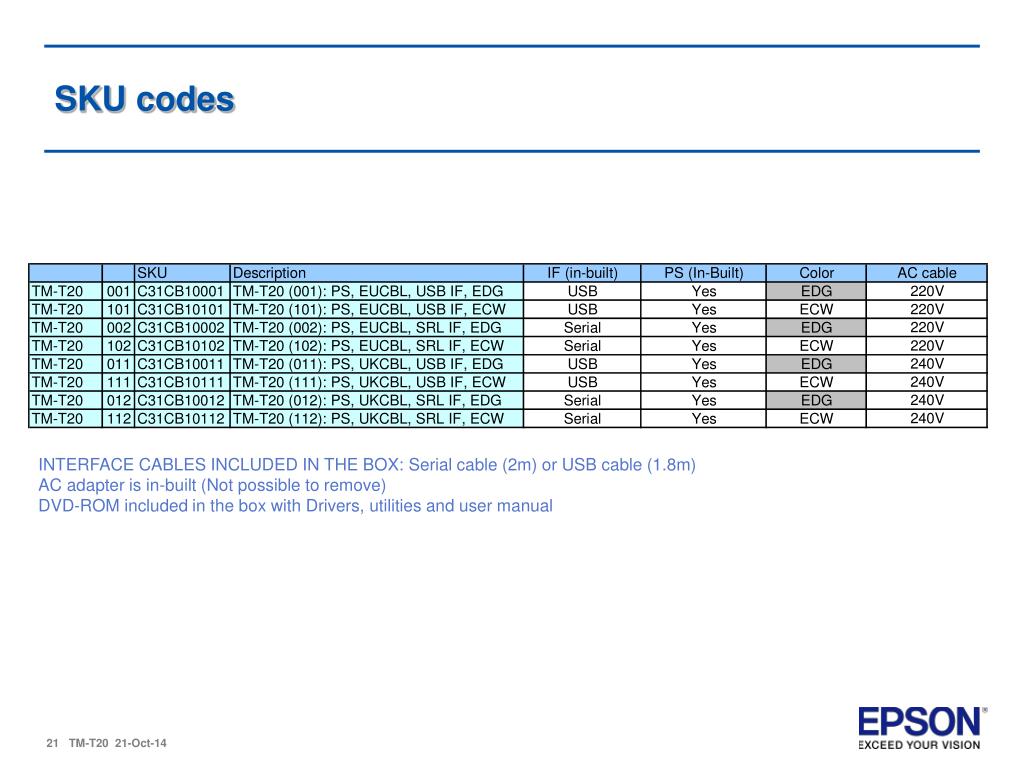

Sku codes

SKU codes

INTERFACE CABLES INCLUDED IN THE BOX: Serial cable (2m) or USB cable (1.8m)

AC adapter is in-built (Not possible to remove)

DVD-ROM included in the box with Drivers, utilities and user manual
