  1. A presentation of the concept

  2. SWEDISH EMERGENCY DISASTER EQUIPMENT The National Board of Health and Welfare

  3. DECONTAMINATION A WORLD PROBLEM

  4. ABC-Group • The National Board of Health and Welfare • The National Rescue Services Board • The Poison Information Centre • The Swedish National Defence Research Institute • SWEDE Swedish Emergency Disaster Equipment Ltd. SWEDISH EMERGENCY DISASTER EQUIPMENT

  5. First report from the ABC-Group 1995

  6. Second report from the ABC-Group 1998

  7. DECONTAMINATION ? • Why ? • Where ? • How ? SWEDISH EMERGENCY DISASTER EQUIPMENT

  8. Why ? • Chemical accidents • Attack with Chemical weapon • Terror attack • Radiak outlet Contaminated persons SWEDISH EMERGENCY DISASTER EQUIPMENT

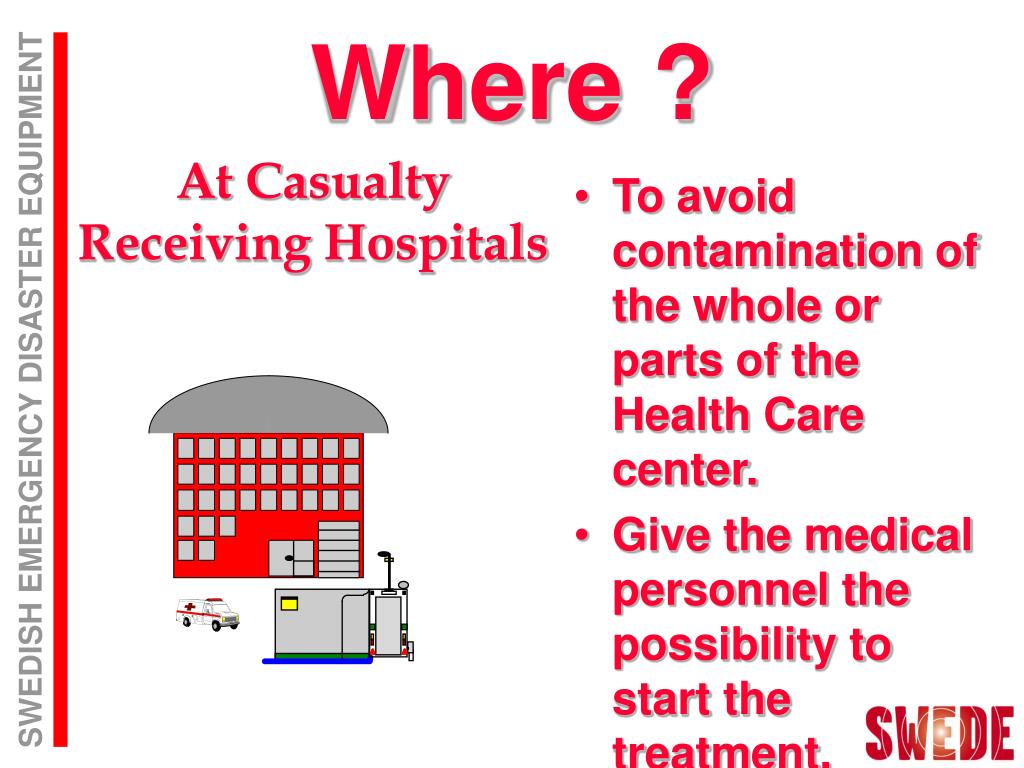

  9. To avoid contamination of the whole or parts of the Health Care center. Give the medical personnel the possibility to start the treatment. Where ? At Casualty Receiving Hospitals SWEDISH EMERGENCY DISASTER EQUIPMENT

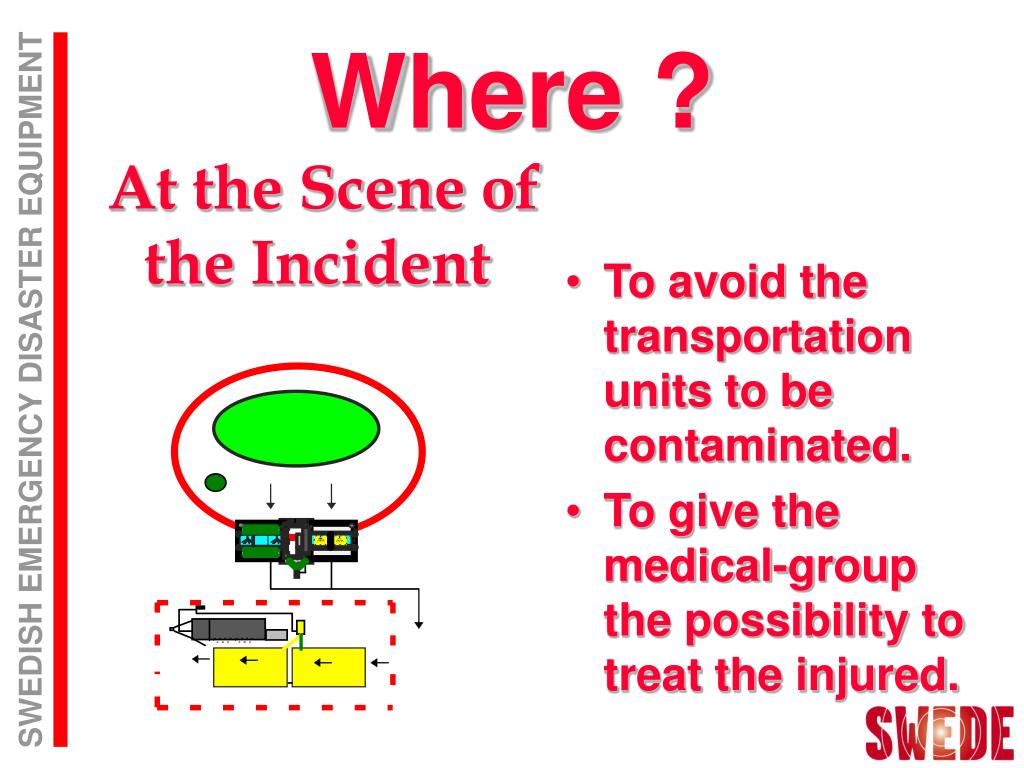

  10. To avoid the transportation units to be contaminated. To give the medical-group the possibility to treat the injured. Where ? At the Scene of the Incident SWEDISH EMERGENCY DISASTER EQUIPMENT

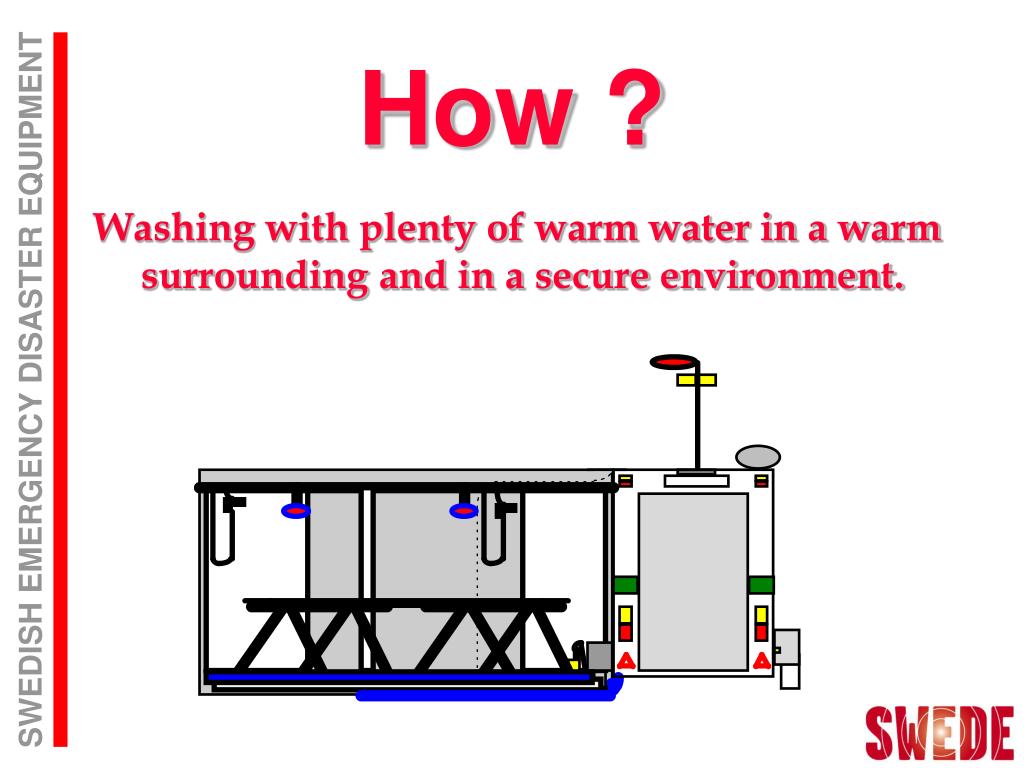

  11. How ? Washing with plenty of warm water in a warm surrounding and in a secure environment. SWEDISH EMERGENCY DISASTER EQUIPMENT

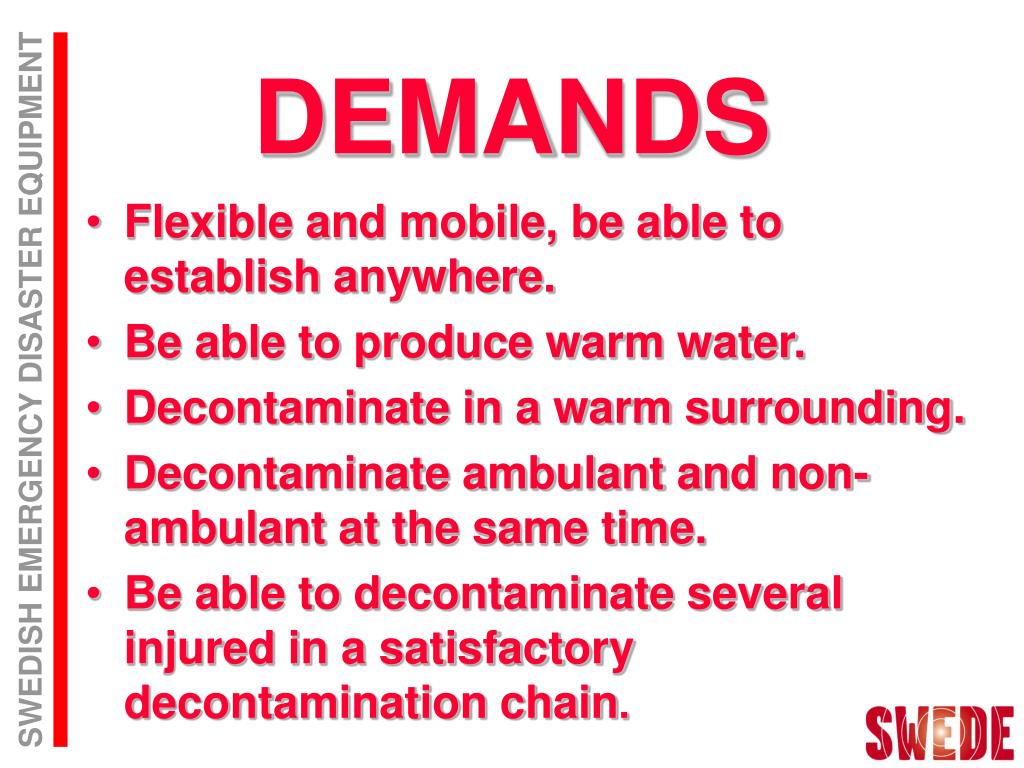

  12. DEMANDS • Flexible and mobile, be able to establish anywhere. • Be able to produce warm water. • Decontaminate in a warm surrounding. • Decontaminate ambulant and non-ambulant at the same time. • Be able to decontaminate several injured in a satisfactory decontamination chain. SWEDISH EMERGENCY DISASTER EQUIPMENT

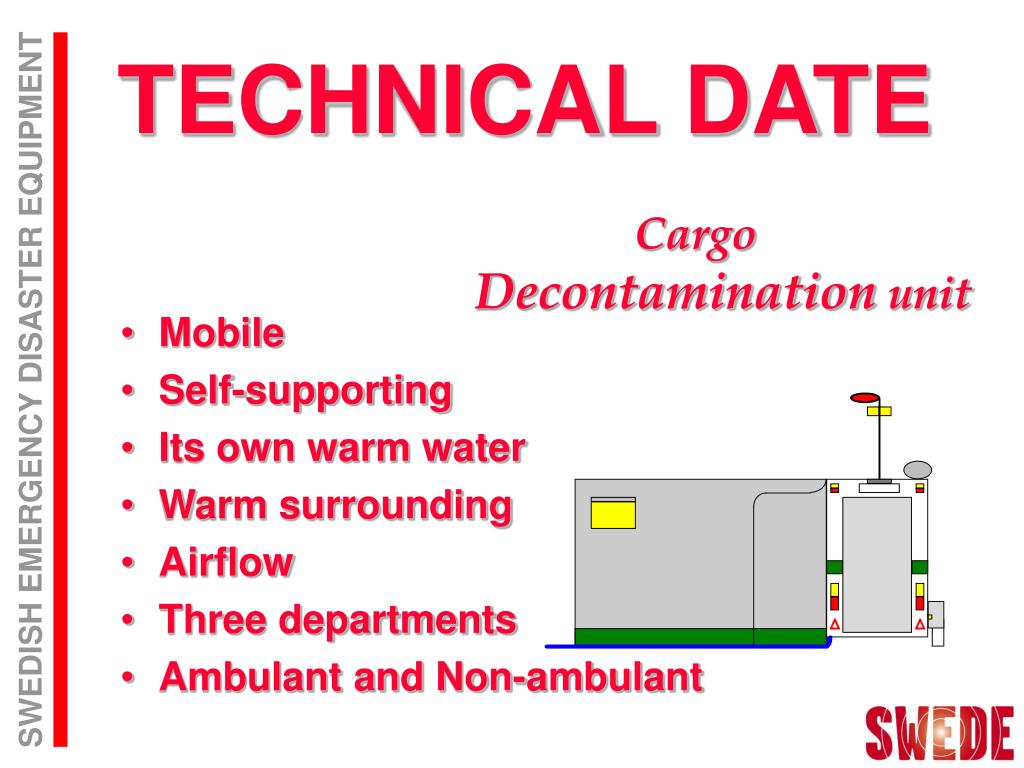

  13. Mobile Self-supporting Its own warm water Warm surrounding Airflow Three departments Ambulant and Non-ambulant TECHNICAL DATE Cargo Decontamination unit SWEDISH EMERGENCY DISASTER EQUIPMENT

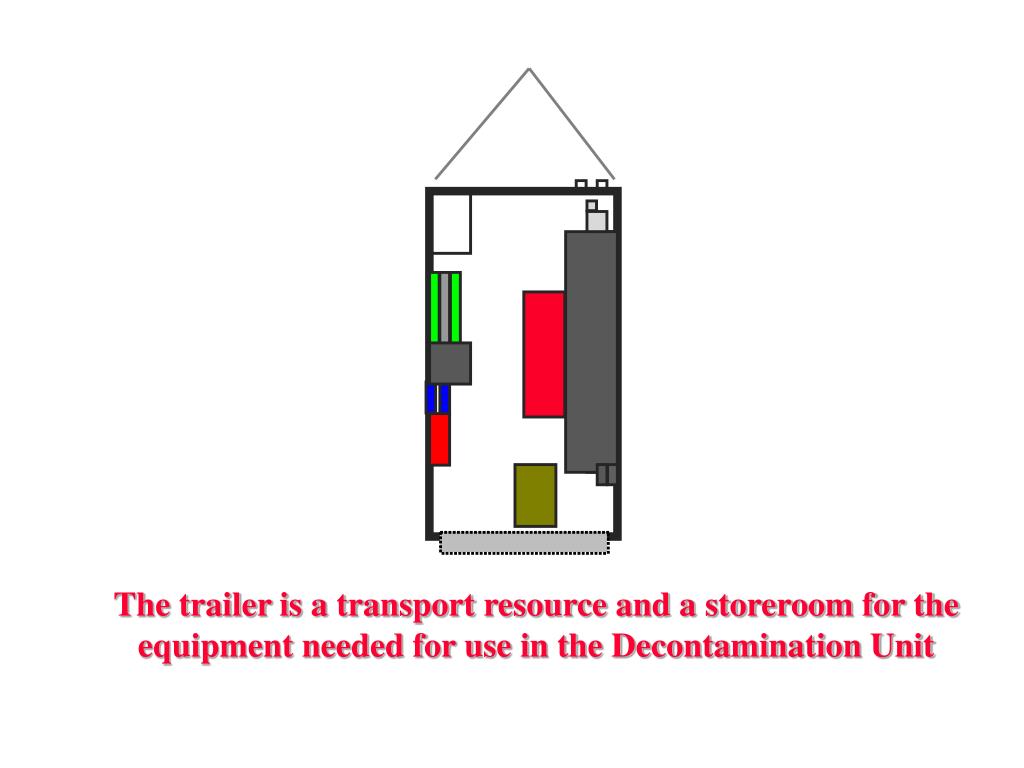

  14. The trailer is a transport resource and a storeroom for the equipment needed for use in the Decontamination Unit

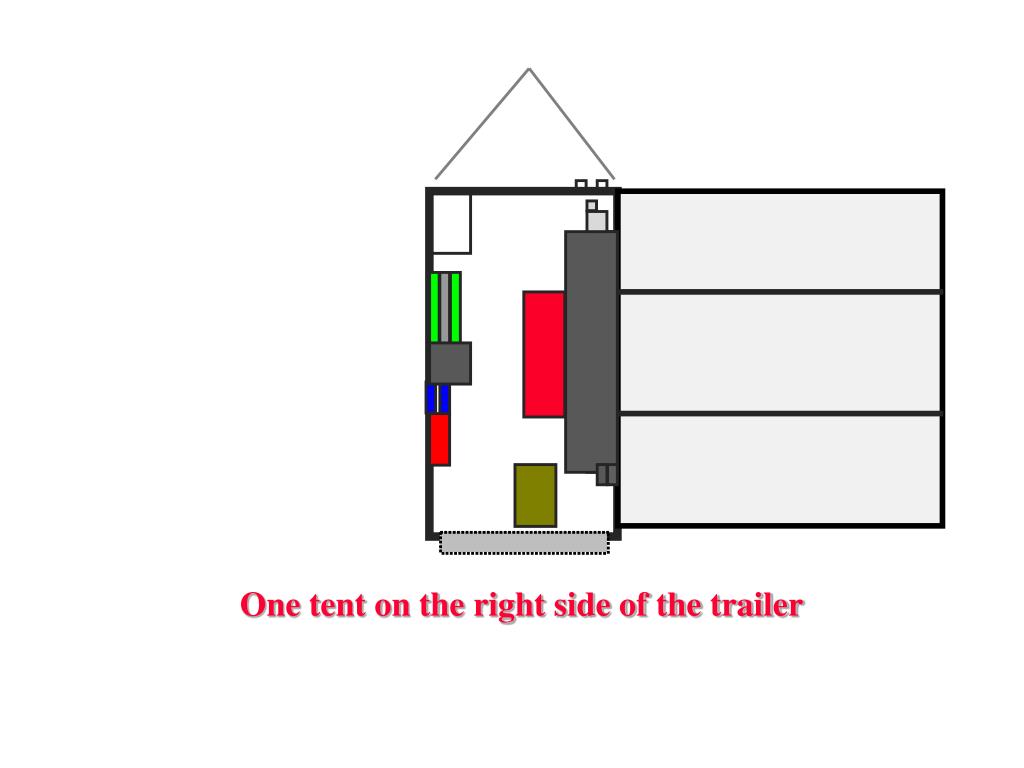

  15. One tent on the right side of the trailer

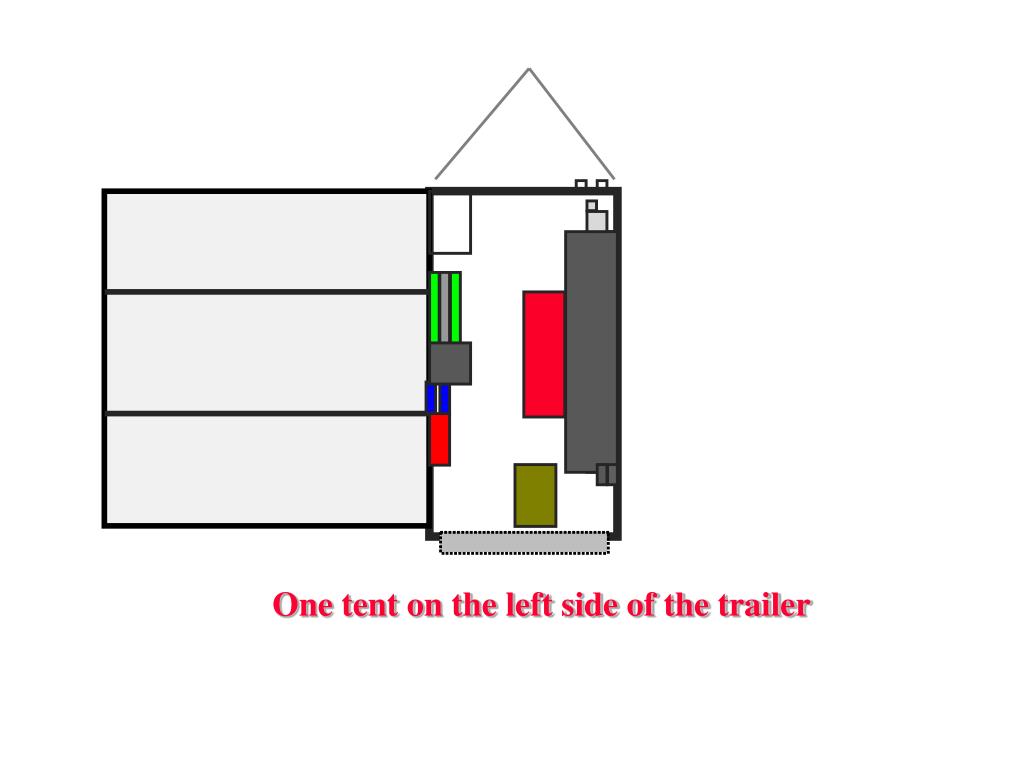

  16. One tent on the left side of the trailer

  17. Different deployment alternatives One tent to be used for ambulant casualties

  18. Different deployment alternatives One tent to be used for stretcher casualties

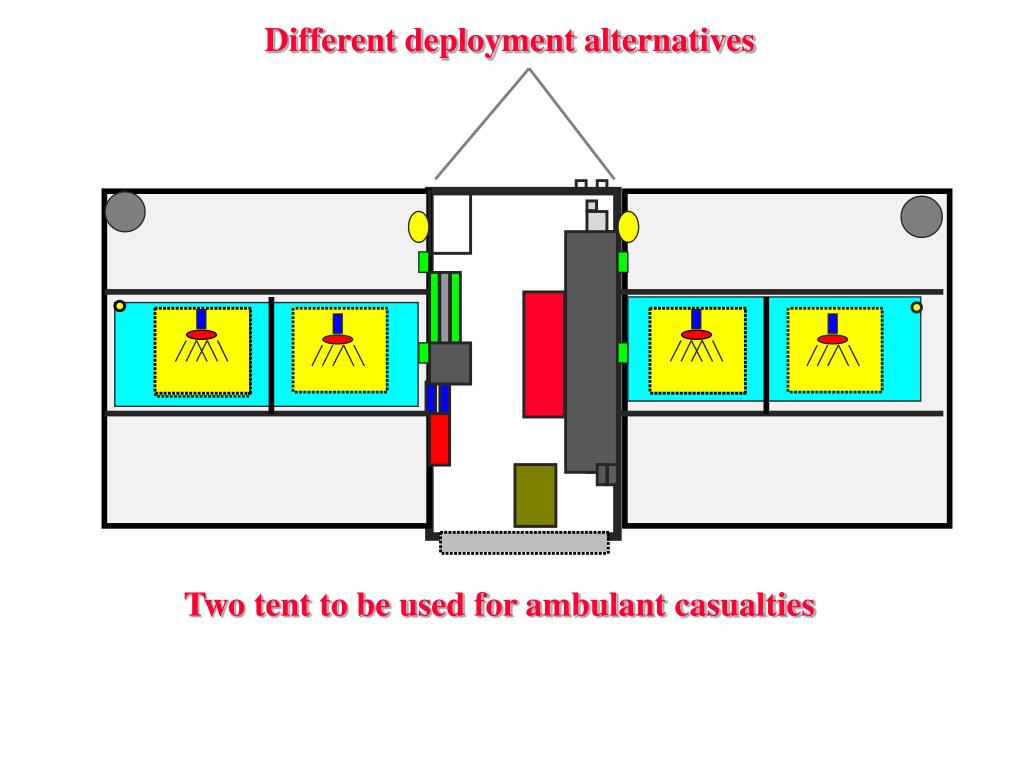

  19. Different deployment alternatives Two tent to be used for ambulant casualties

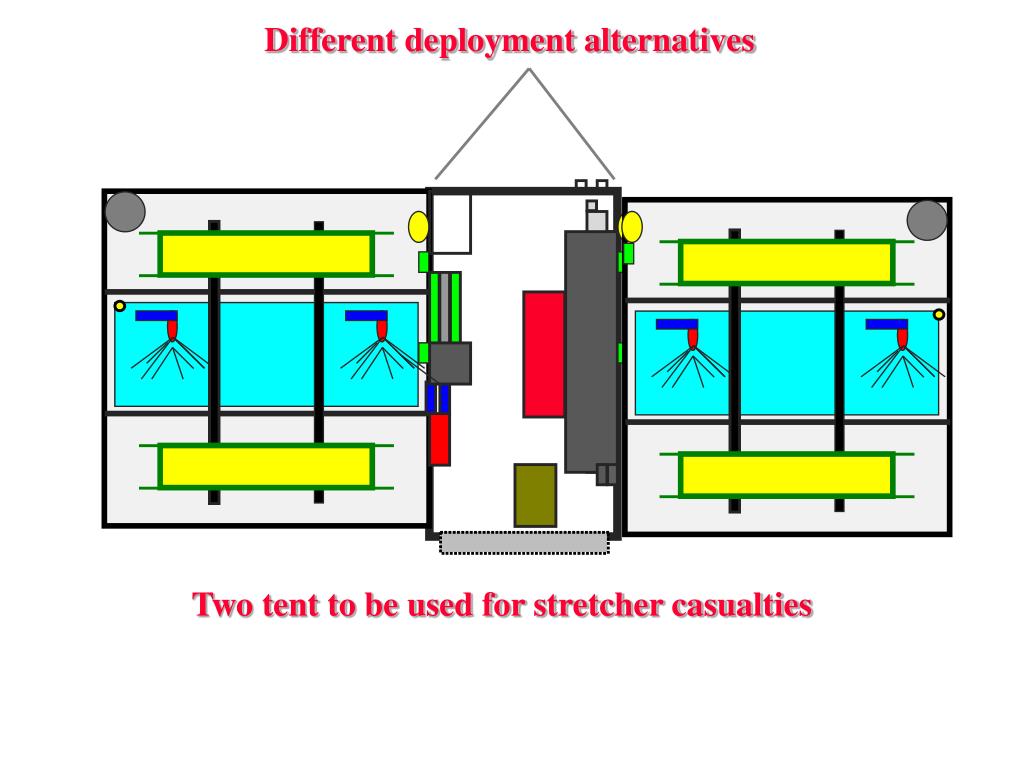

  20. Different deployment alternatives Two tent to be used for stretcher casualties

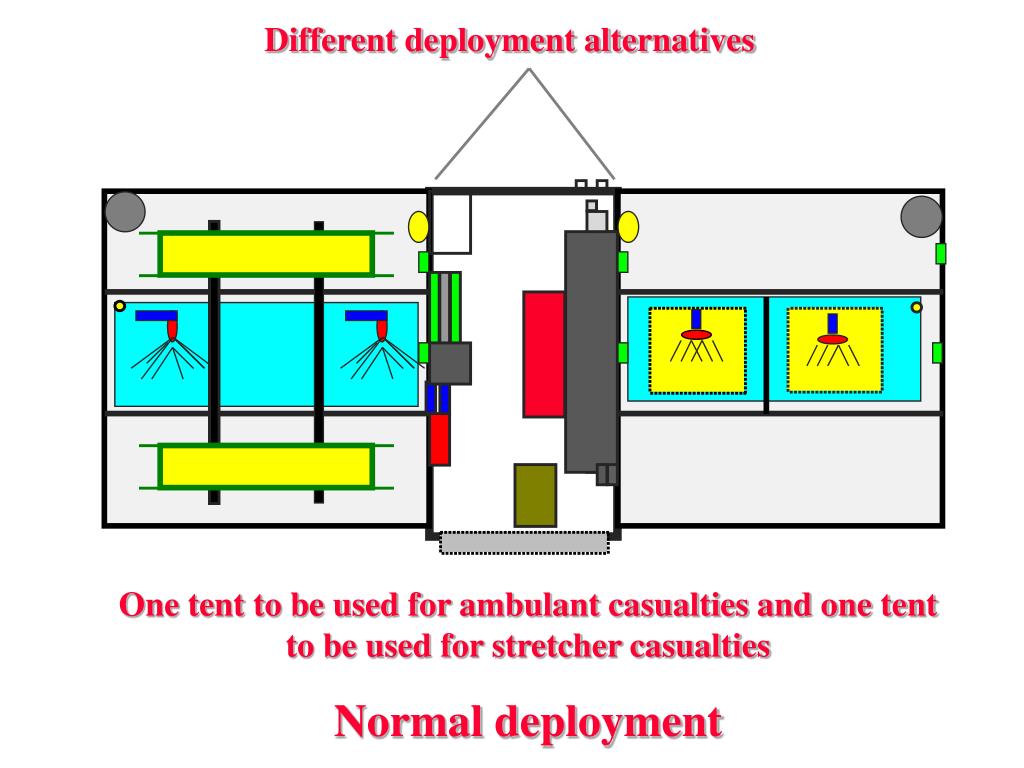

  21. Different deployment alternatives One tent to be used for ambulant casualties and one tentto be used for stretcher casualties Normal deployment

  22. Contaminated water from the shower will be collectedin inflatable collecting pools and pumped in to a 3000 m3 collecting pool.

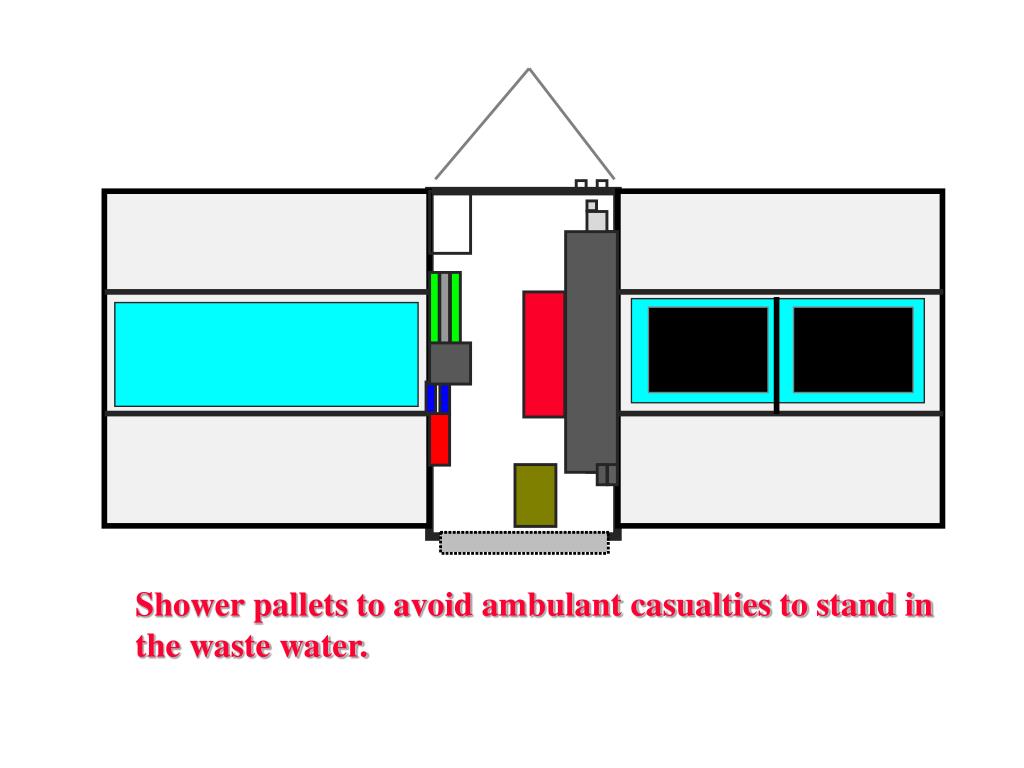

  23. Shower pallets to avoid ambulant casualties to stand inthe waste water.

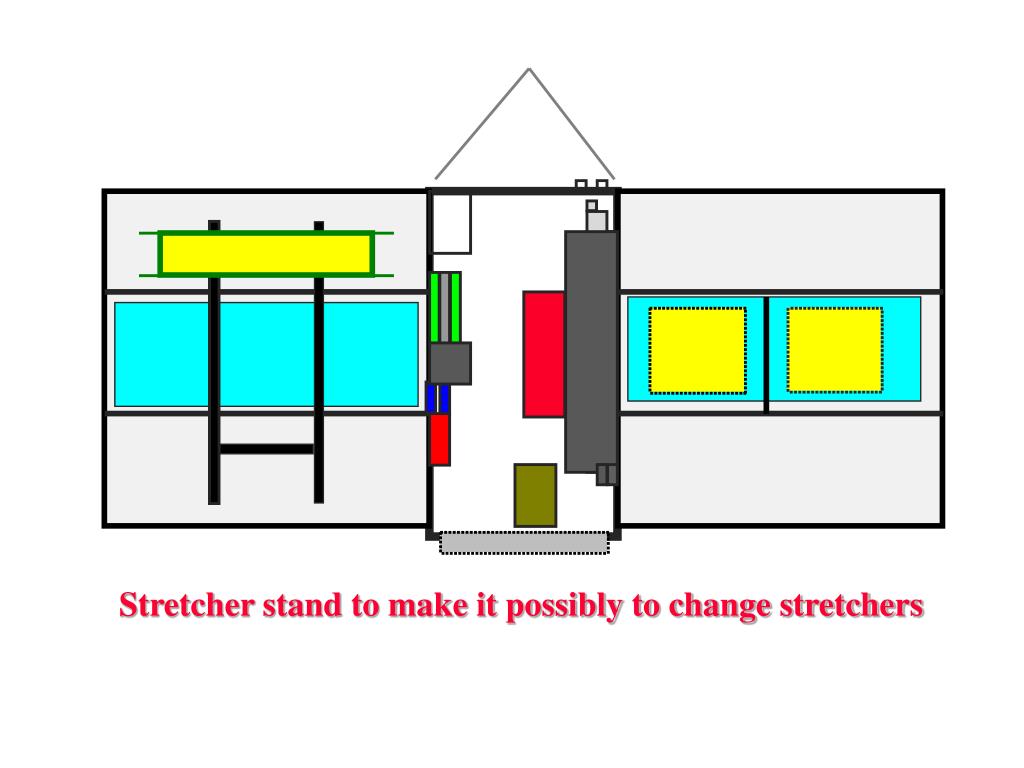

  24. Stretcher stand to make it possibly to change stretchers

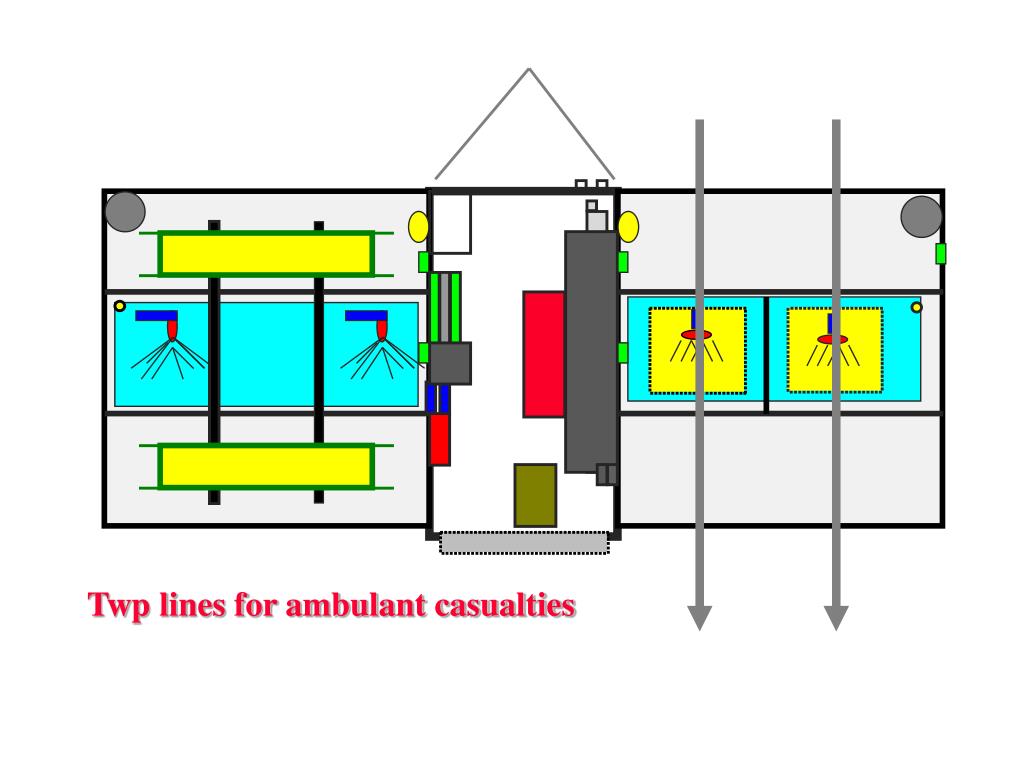

  25. Twp lines for ambulant casualties

  26. Airflow Taking contaminated air from clean to dirty side

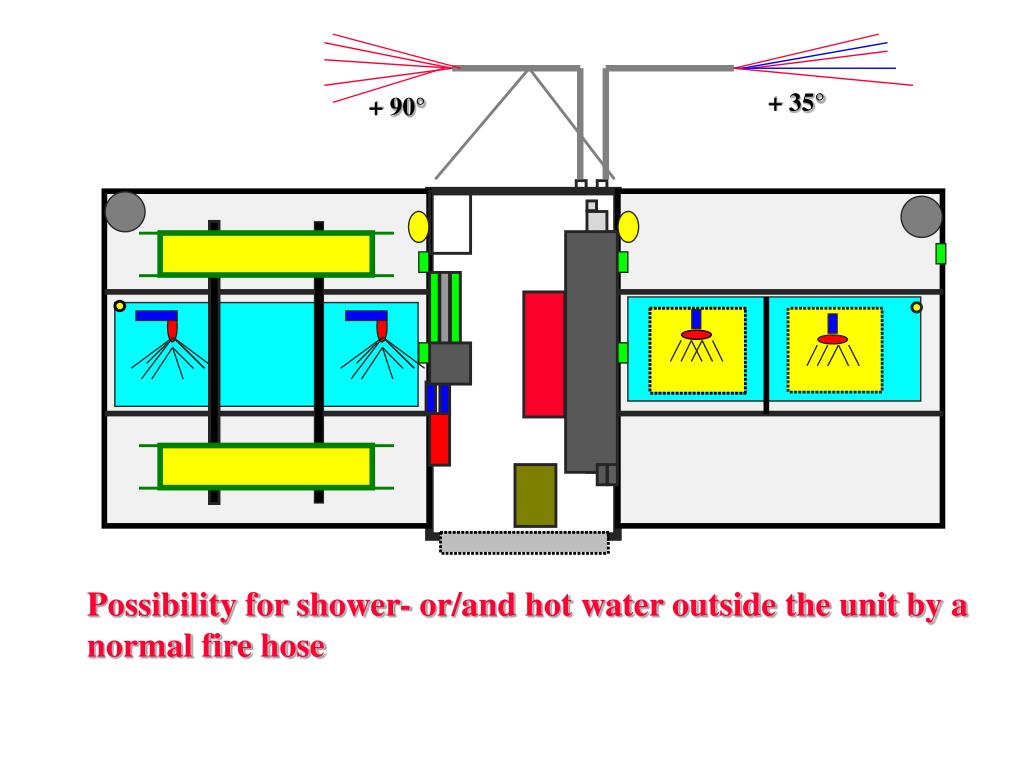

  27. + 35° + 90° Possibility for shower- or/and hot water outside the unit by a normal fire hose

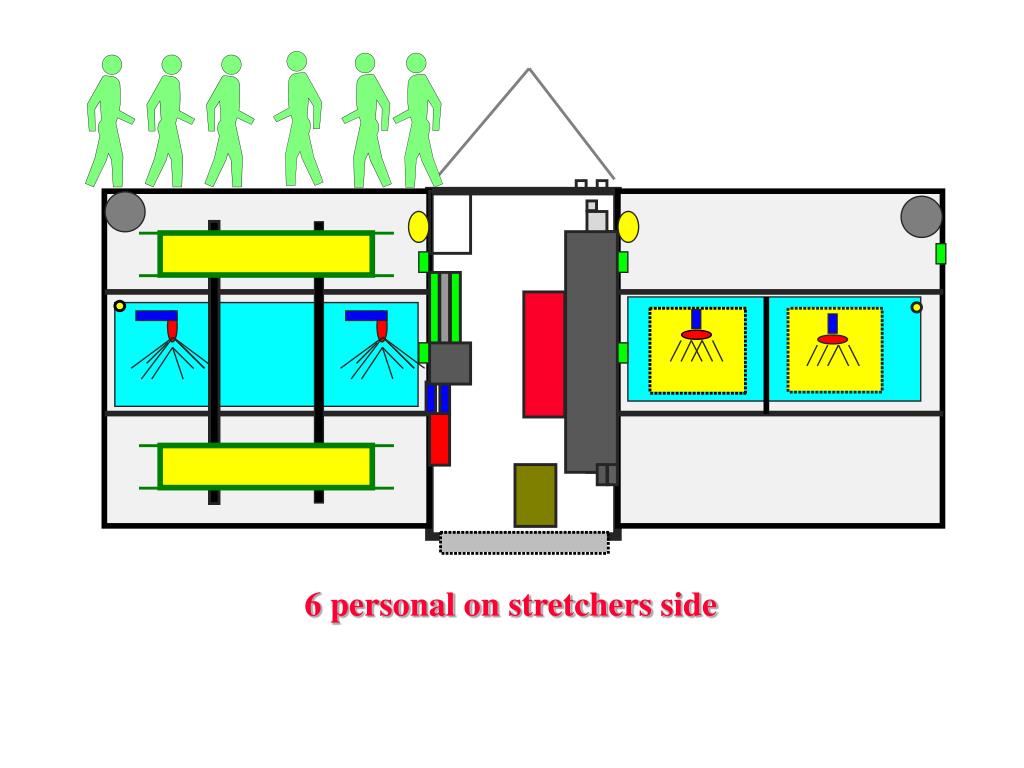

  28. 6 personal on stretchers side

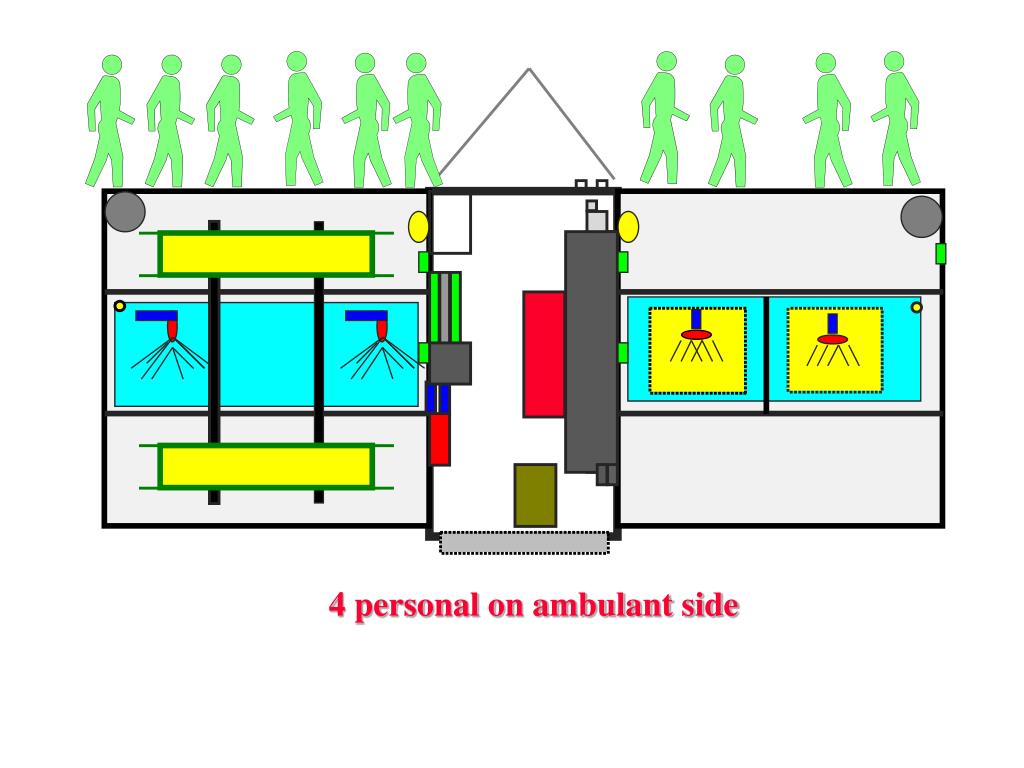

  29. 4 personal on ambulant side
