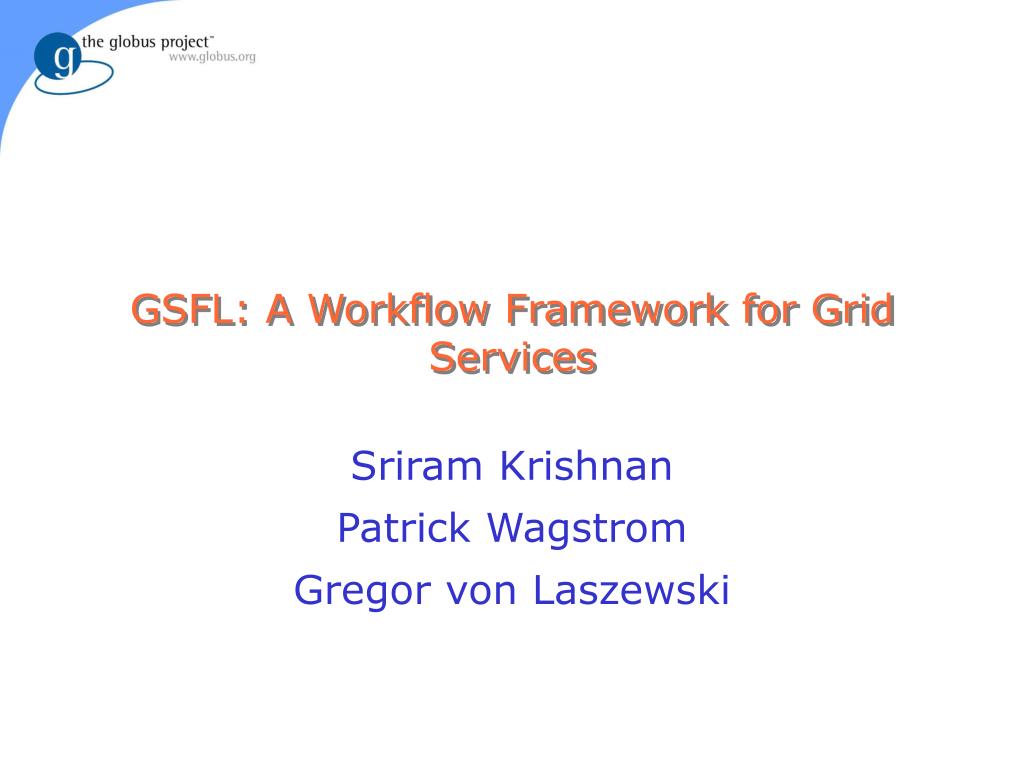

Gsfl a workflow framework for grid services

GSFL: A Workflow Framework for Grid Services

Sriram Krishnan

Patrick Wagstrom

Gregor von Laszewski

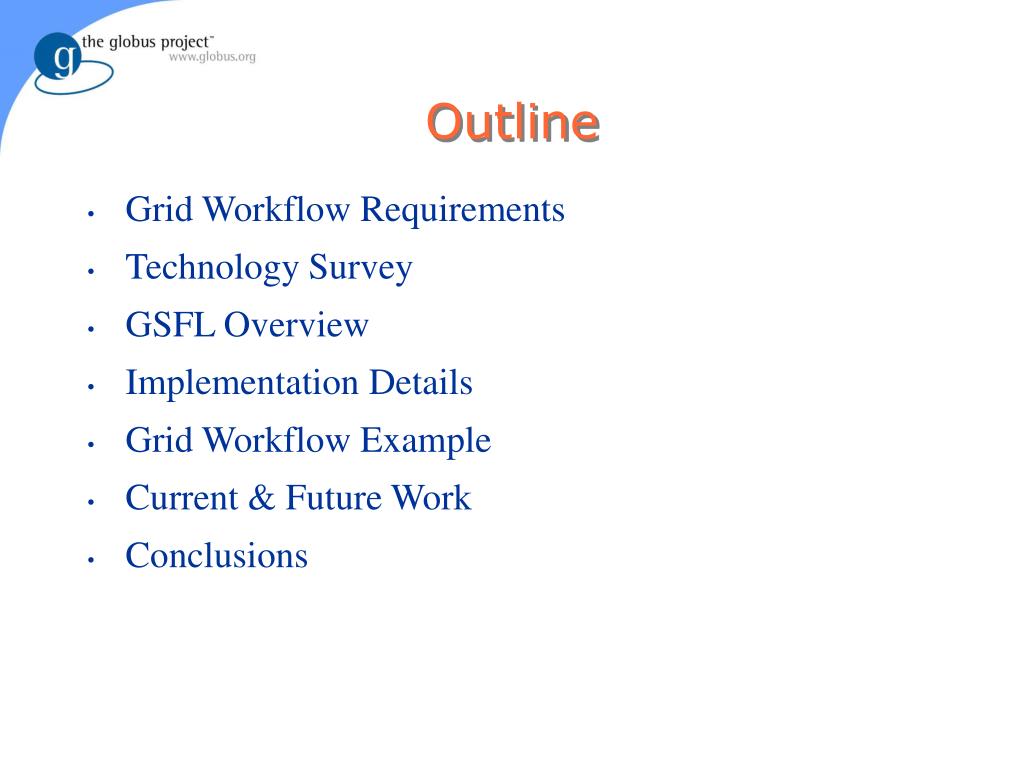

Outline

Outline

  • Grid Workflow Requirements

  • Technology Survey

  • GSFL Overview

  • Implementation Details

  • Grid Workflow Example

  • Current & Future Work

  • Conclusions

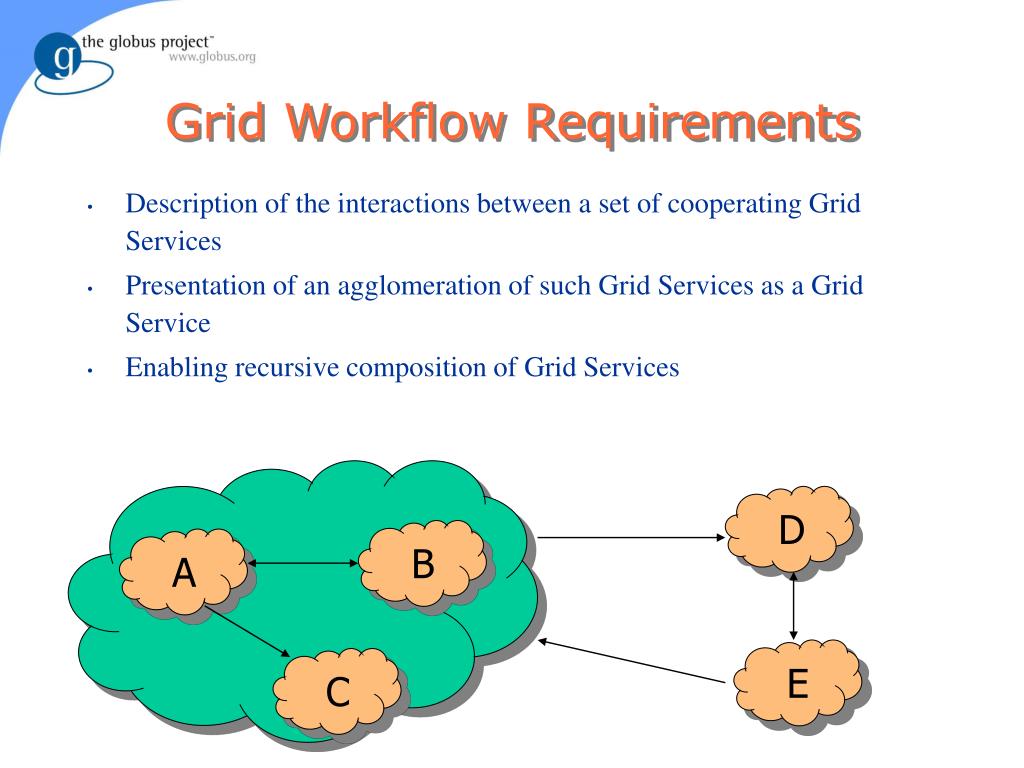

Grid workflow requirements

Grid Workflow Requirements

  • Description of the interactions between a set of cooperating Grid Services

  • Presentation of an agglomeration of such Grid Services as a Grid Service

  • Enabling recursive composition of Grid Services

D

B

A

E

C


Grid workflow requirements1

Grid Workflow Requirements

  • Ability to export entry points that will trigger a set of other activities

  • Enabling peer-to-peer and decentralized data transfer between Grid Services

Entry Point

1

B

A

2

3

Peer-to-Peer Data Transfer

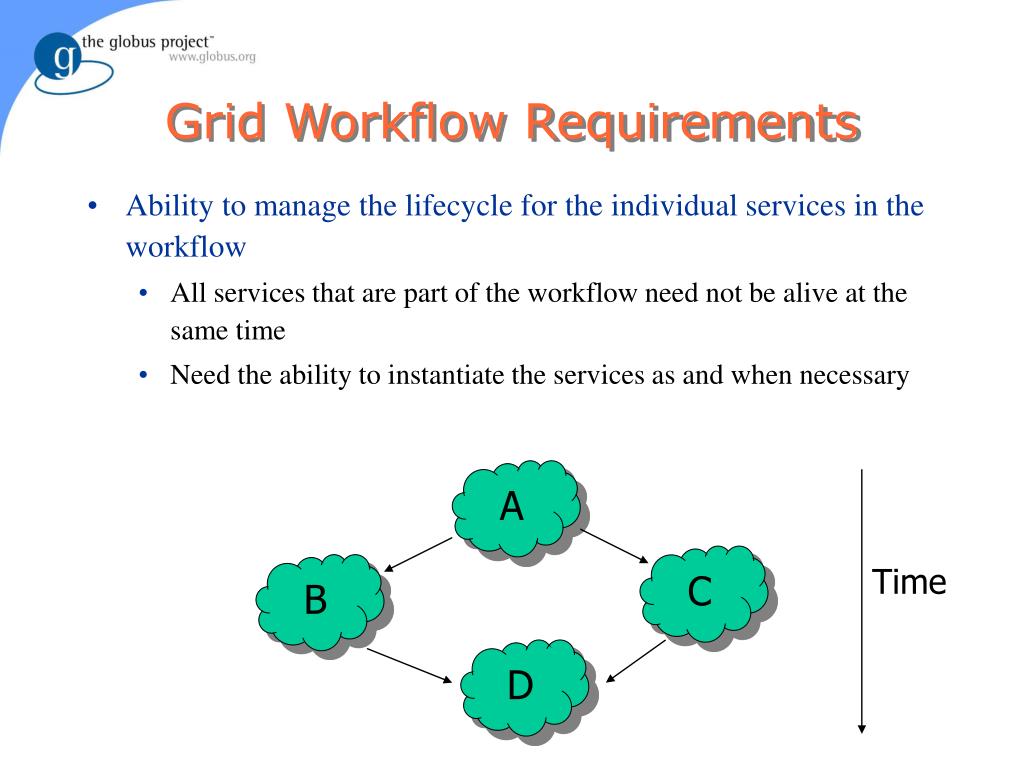

Grid workflow requirements2

Grid Workflow Requirements

  • Ability to manage the lifecycle for the individual services in the workflow

    • All services that are part of the workflow need not be alive at the same time

    • Need the ability to instantiate the services as and when necessary

A

C

B

Time

D


Technology survey

Technology Survey

  • Web Services Flow Language (WSFL)

    • Flow Model describes the orchestration of the various activities in the workflow

    • Global Model describes how these activities are implemented by the services

      • PlugLinks describe the connection between WSDL operations having dual signatures

    • Service Providers that can be located in a number of ways

      • Static, Local, UDDI, Dynamic


Technology survey1

Technology Survey

  • WSFL Pros

    • Exporting individual activities as part of the workflow

    • Recursive composition of Web services

  • WSFL Cons

    • Inadequate peer-to-peer communication mechanism between services

      • Due to the need for solicit-response and notification operations in WSDL

      • The workflow engine has to mediate at every step, and can be a bottleneck

    • Simplistic lifecycle management for the services

    • No implementation available


Technology survey2

Technology Survey

  • XLANG

    • Modeling of business processes as Autonomous Agents

      • The unit of actions is a Service Process, which consists of a set of operations according to a defined sequence

    • Sequential and parallel control flow constructs

    • Transaction support

    • Custom correlation of messages

    • Flexible handling of exceptions

    • Dynamic service referral

    • Contracts to agglomerate services

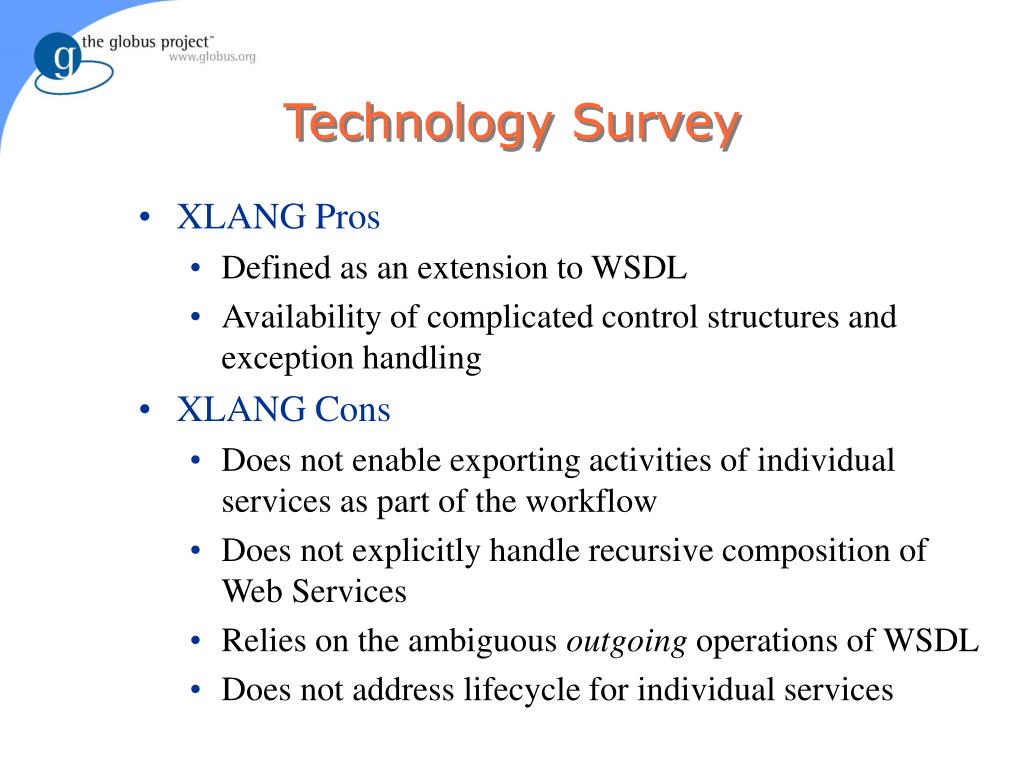

Technology survey3

Technology Survey

  • XLANG Pros

    • Defined as an extension to WSDL

    • Availability of complicated control structures and exception handling

  • XLANG Cons

    • Does not enable exporting activities of individual services as part of the workflow

    • Does not explicitly handle recursive composition of Web Services

    • Relies on the ambiguous outgoing operations of WSDL

    • Does not address lifecycle for individual services


Technology survey4

Technology Survey

  • Web Services Conversation Language (WSCL)

    • Sequencing of interactions between operations of a single interface

    • Document Type Descriptions

      • Types of documents to be exchanged

    • Interactions

      • The actions of a conversation between participants

    • Transitions

      • Ordering relationships between interactions

    • Conversations

      • Set of interactions and transitions


Technology survey5

Technology Survey

  • WSCL Pros

    • Fills the gap between mere IDLs that do not define any choreography and more complex flow languages that describe multi-party conversations

  • WSCL Cons

    • Does not define multi-party conversations

    • Does not handle recursive composition of services

    • Too simplistic for our goals


Technology survey6

Technology Survey

  • XCAT (Indiana University)

    • Application Factories for Grid based Components

    • Peer-to-Peer communication between components based on the CCA based Provides and Uses Ports

  • Condor DAGMan

    • Use of a DAG to describe inter-dependencies between jobs

    • Does not deal with either Web or Grid based services


Grid services flow language

Grid Services Flow Language

  • Language that allows specification of workflow for Grid Services in the OGSA framework

    • Defined using an XML Schema

  • Consists of :

    • Service Providers, that are part of the workflow

    • Activity Model, containing the activities that belong to the workflow

    • Composition Model, describing interactions between the services

    • Lifecycle Model, describing the lifecycle of activities and services


Service providers

Service Providers

  • List of services that are part of the workflow

    • Name : Identifier for the service in the GSFL document

    • Type : Name of the service, as specified in the WSDL for the service

    • Locator : Information needed to locate the service

      • Static : The service is up and running; the GSH is provided

      • Factory : The service has to be instantiated; the GSH of the factory is provided

      • Registry : The service is up and registered with a Registry Service; the GSH of the registry is provided


Activity model

Activity Model

  • List of activities that are part of the workflow

    • Name : Identifier for the activity in the GSFL document

    • Source : A reference to the operation which implements the activity

      • The service that acts as the source

      • The port that contains the operation

      • The operation that implements the activity


Composition model

Composition Model

  • Describes the composition of individual services into a new Grid service

  • Describes the flow of control and data between the various operations of the services

  • Describes the direct communication between services in a peer-to-peer fashion

  • Consists of :

    • Export Model, that models the activities that have to be exported as operations of the workflow

    • Notification Model, that models the direct communication between the services


Export model

Export Model

  • List of activities to be exported as operations of the workflow process

  • Each exported operation triggers a set of activities implemented by the individual services

  • For the exported operations :

    • Control Model defines the flow of control between activities of the workflow

    • Data Model defines the flow of data between the individual activities

      • Information to infer the messages and types for the exported operations


Export model1

Export Model

  • Service Providers: A, B

  • Exported Operation: X

  • Control Model: P -> Q, Q -> R

  • Data Model: P -> Q

Data

A

P

B

Q

R

Control

Exported Port

X


Notification model

Notification Model

  • Models the direct communication between the services

  • Uses the Notification Sources & Sinks provided by OGSA

  • Set of Notification Links connecting individual services, for particular topics

  • Unlike WSFL, there is no need to use poorly defined solicit-response and notification operations


Lifecycle model

Lifecycle Model

  • Models the lifecycle of the services and activities that are part of the workflow

  • Service Lifecycle

    • Ordering of services as a DAG, using Precedence Links

    • All services need not be active at the same time

  • Activity Lifecycle

    • Possible ordering of the activities for the exported workflow, using Precedence Links

    • Additional semantics to the exported activities, in a similar vein as WSCL


Gsfl a workflow framework for grid services

GSFL DEFINITION

Name, Target Namespace, Scope

IMPORTS

List of Imports : Namespace, Location

SERVICE PROVIDERS

List of Providers : Name, Type, Locator

ACTIVITY MODEL

List of Activities : Name, Source

COMPOSITION MODEL

EXPORT MODEL

Exported Activities

Activity Info

NOTIFICATION MODEL

CONTROL MODEL

DATA MODEL

Control In

Data In, Data Out

Notification Links

Control Links

Data Links

LIFECYCLE MODEL

Service Lifecycle

Activity Lifecycle

Precedence Links

Precedence Links

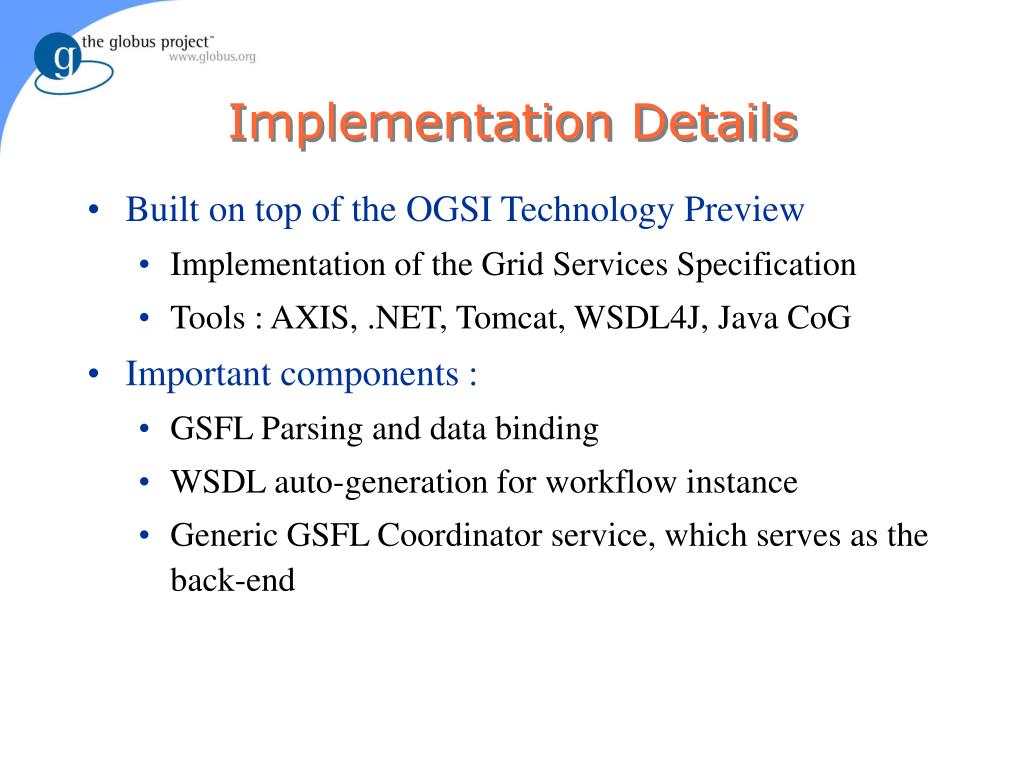

Implementation details

Implementation Details

  • Built on top of the OGSI Technology Preview

    • Implementation of the Grid Services Specification

    • Tools : AXIS, .NET, Tomcat, WSDL4J, Java CoG

  • Important components :

    • GSFL Parsing and data binding

    • WSDL auto-generation for workflow instance

    • Generic GSFL Coordinator service, which serves as the back-end


Implementation details1

Implementation Details

  • GSFL Parsing & Data Binding

    • Use of Castor to auto-generate Java source from XML schemas

      • Castor is an open source data binding framework for Java

    • Beans generated for every element of the schema (appropriate get and set methods)

    • Had to add wrappers to certain generated classes

  • WSDL auto-generation for workflow instance

    • All information needed for auto-generation is available in the GSFL document, and individual WSDLs

    • Tools used : WSDL4J, Castor, Xerces

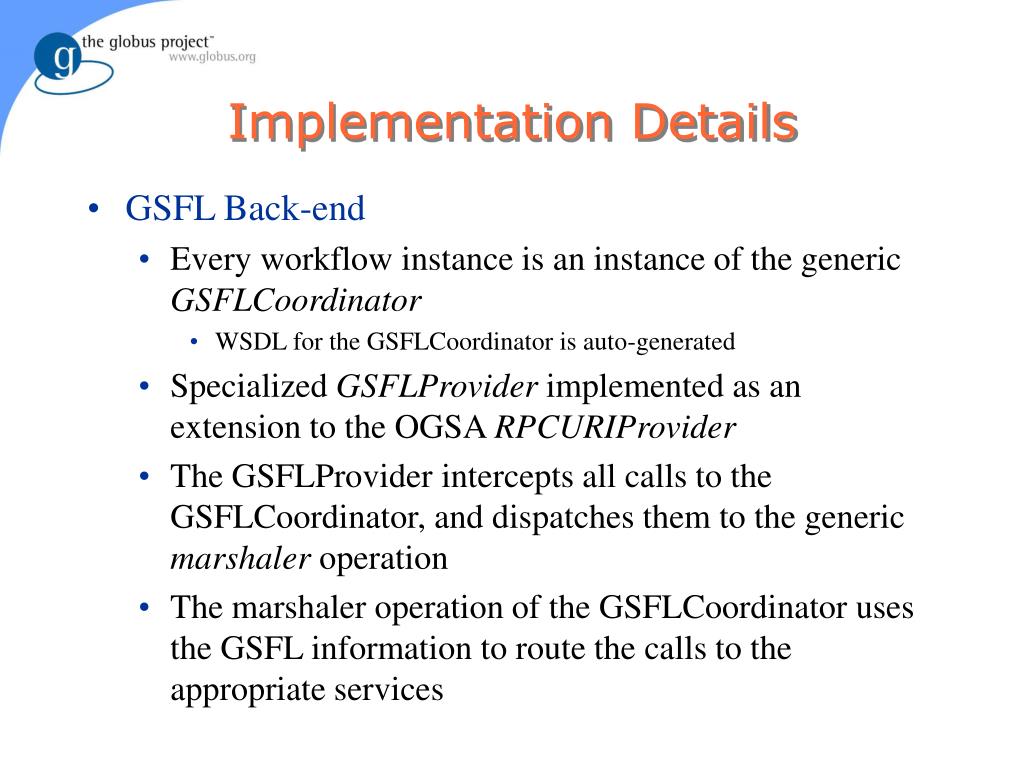

Implementation details2

Implementation Details

  • GSFL Back-end

    • Every workflow instance is an instance of the generic GSFLCoordinator

      • WSDL for the GSFLCoordinator is auto-generated

    • Specialized GSFLProvider implemented as an extension to the OGSA RPCURIProvider

    • The GSFLProvider intercepts all calls to the GSFLCoordinator, and dispatches them to the generic marshaler operation

    • The marshaler operation of the GSFLCoordinator uses the GSFL information to route the calls to the appropriate services


Implementation details3

Implementation Details

Client instantiates a workflow instance with a GSFL document

Client

Hosting Environment

Hosting Environment

instantiates a workflow

instance

GSFL

Provider

Client calls

a method on

the workflow

instance

Marshaler

Exported

Virtual

Port

Generic GSFL Coordinator

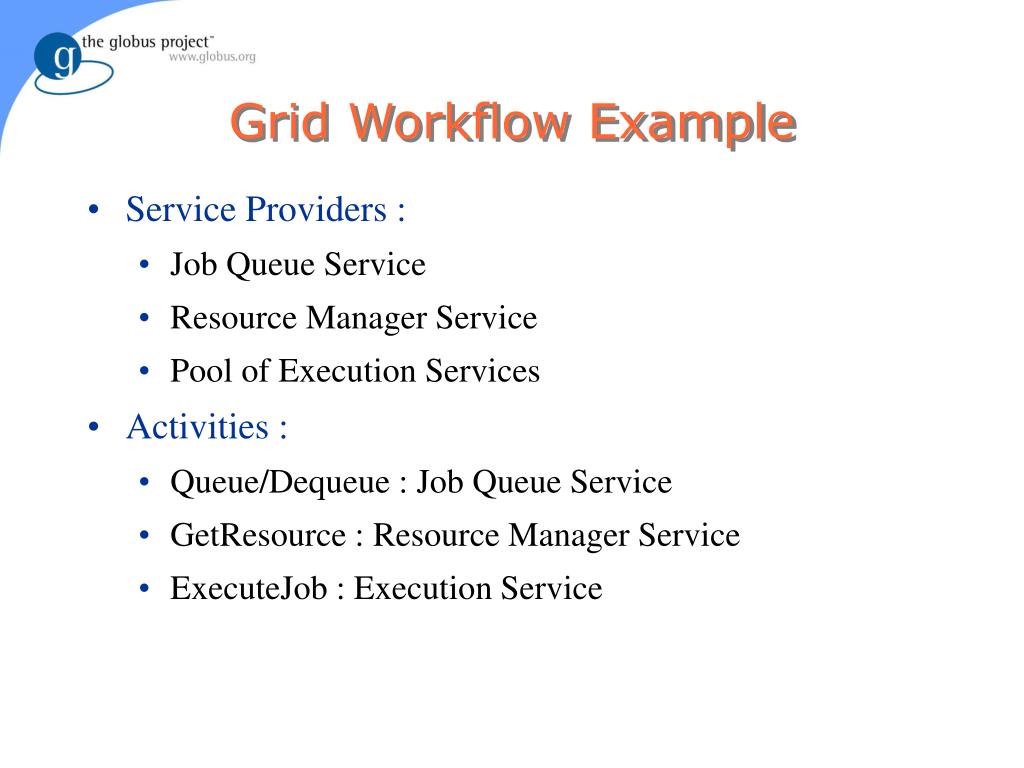

Grid workflow example

Grid Workflow Example

  • Service Providers :

    • Job Queue Service

    • Resource Manager Service

    • Pool of Execution Services

  • Activities :

    • Queue/Dequeue : Job Queue Service

    • GetResource : Resource Manager Service

    • ExecuteJob : Execution Service


Grid workflow example1

Grid Workflow Example

  • Composition Model

    • Export Model : Exported Operation - execute

      • Identical Control and Data Models

        • Dequeue : Get next job

        • GetResource : Get the best resource for the job

        • ExecuteJob : Execute the job on that resource

    • Notification Model

      • Each of the Execution services send resource information to the Resource Manager service using periodic asynchronous soft-state notifications

      • Set of Notification Links connecting the Execution Services to the Resource Manager service


Grid workflow example2

Grid Workflow Example

SubmitJob

Execute

Job

Queue

Resource

Manager

Dequeue

Get

Resource

Queue

Notification Link

ExecuteJob

Execution

Service

Execution

Service


Current and future work

Current and Future Work

  • This is a work in progress

    • Not in release shape yet

    • Continuous updates to keep up with upcoming technologies

    • Investigate the applicability of BPEL4WS

  • Addition of other features, such as :

    • Exception handling

    • Constructs for sequential and parallel control flow

    • Integration of a graphical workflow editor to construct workflow instances visually


Conclusions

Conclusions

  • GSFL provides a framework for defining workflow for Grid services within the OGSA framework

    • Recursive composition of Grid services

    • Effective peer-to-peer communication between the services

    • Lifecycle management for individual services

  • Leverages ideas from emerging Web service technologies

  • More information : [email protected]


  • Login
