  1. DENSITY D = m/v (g/cm3) • Mass usually expressed in grams • Volume usually expressed in cm3 or liters, etc.

  2. Density • Density = amount of matter per unit volume • Density is the ratio of mass to volume • If the volume stays the same and the mass increases . . . the density will increase • If the mass stays the same and the volume increases . . . The density will decrease

  3. M ÷ ÷ DXV Mass= Density = Volume= M V M D The “DMV” Triangle forVolume, Mass, and Density DxV

  4. What would take up more space??? A kilogram of feathers…..or a kilogram of steel?? OR

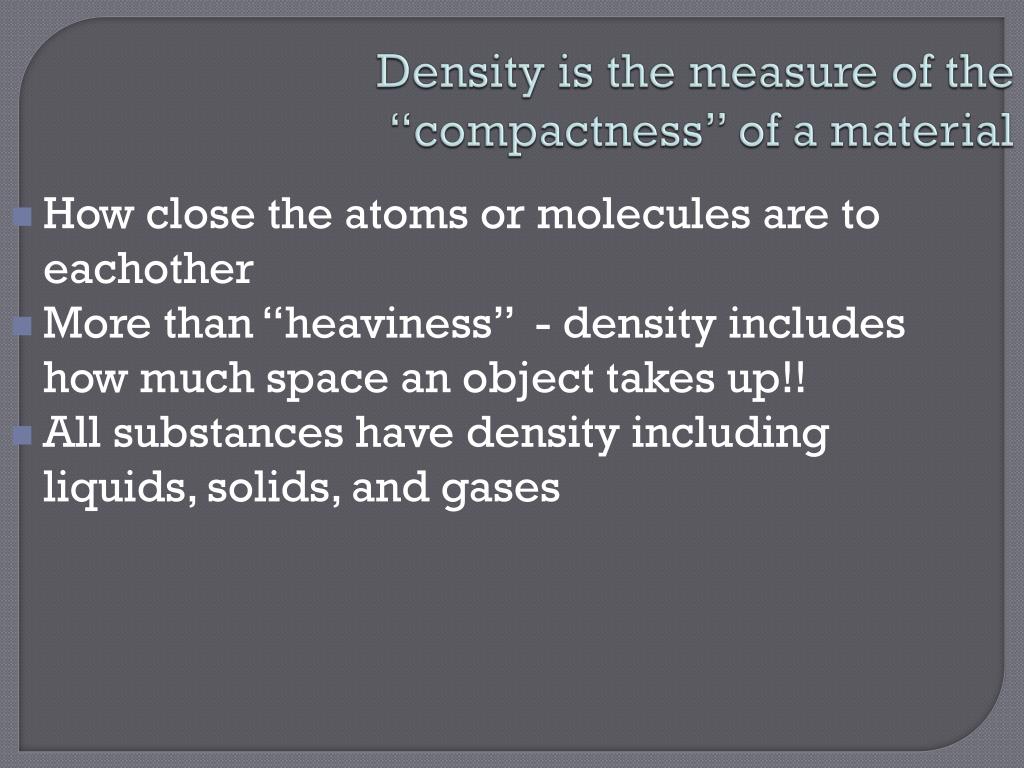

  5. How close the atoms or molecules are to eachother More than “heaviness” - density includes how much space an object takes up!! All substances have density including liquids, solids, and gases Density is the measure of the “compactness” of a material

  6. “Compactness”

  7. Significant Figures • When using our calculators we must determine the correct answer; our calculators are mindless drones and don’t know the correct answer. • There are 2 different types of numbers • Exact • Measured • Exact numbers are infinitely important • Measured number = they are measured with a measuring device (name all 4) so these numbers have ERROR. • When you use your calculator your answer can only be as accurate as your worst measurement…Doohoo Chapter Two

  8. Exact Numbers An exact number is obtained when you count objects or use a defined relationship. Counting objects are always exact 2 soccer balls 4 pizzas Exact relationships, predefined values, not measured 1 foot = 12 inches 1 meter = 100 cm For instance is 1 foot = 12.000000000001 inches? No 1 ft is EXACTLY 12 inches.

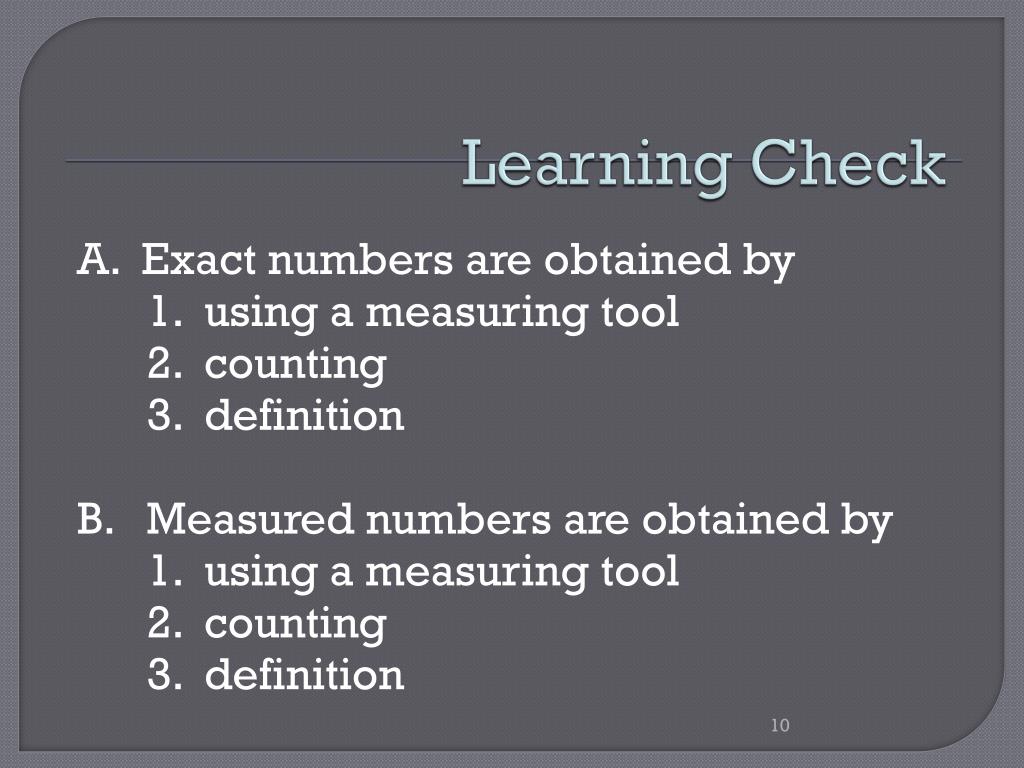

  9. Learning Check A. Exact numbers are obtained by 1. using a measuring tool 2. counting 3. definition B. Measured numbers are obtained by 1. using a measuring tool 2. counting 3. definition

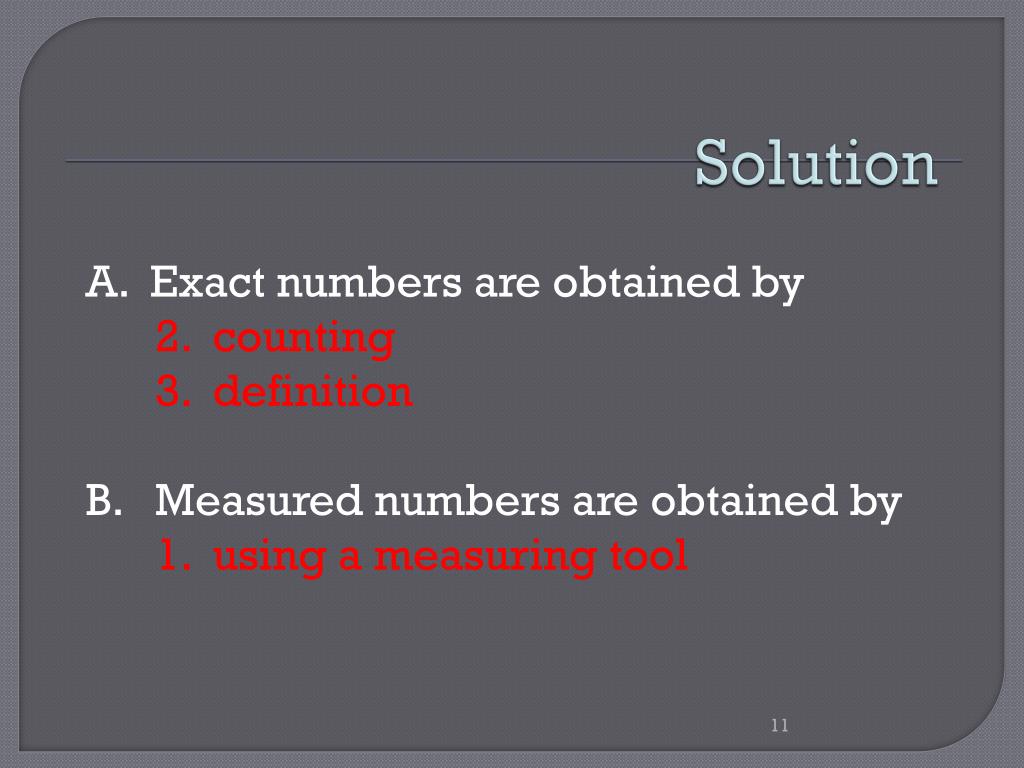

  10. Solution A. Exact numbers are obtained by 2. counting 3. definition B. Measured numbers are obtained by 1. using a measuring tool

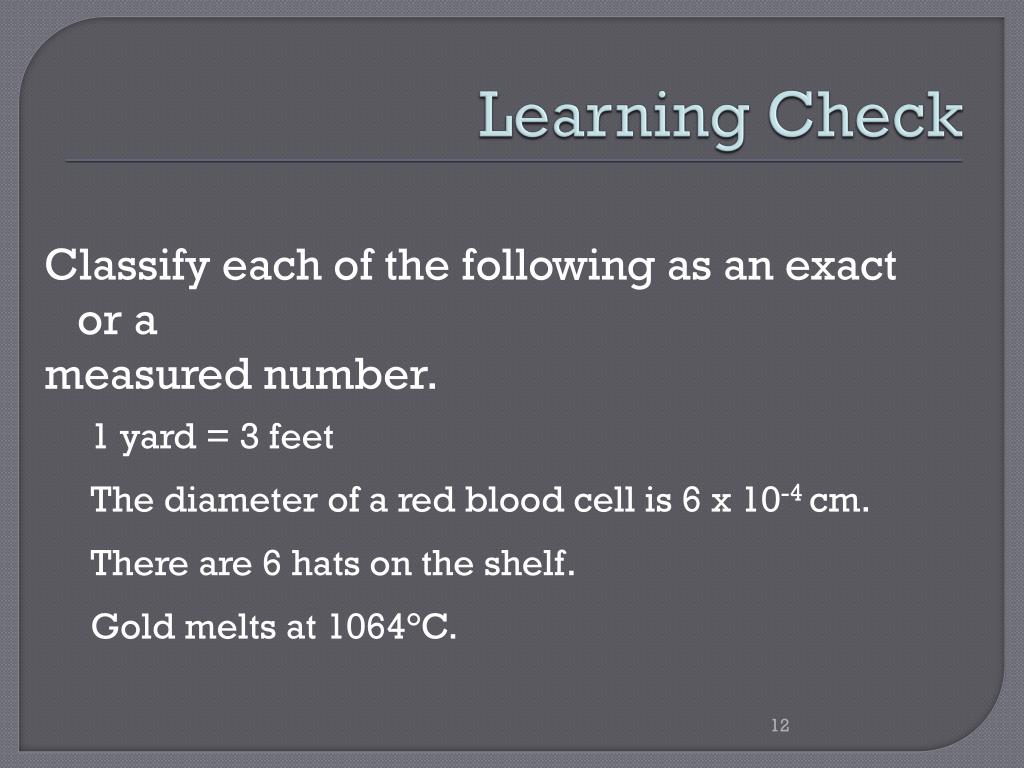

  11. Learning Check Classify each of the following as an exact or a measured number. 1 yard = 3 feet The diameter of a red blood cell is 6 x 10-4 cm. There are 6 hats on the shelf. Gold melts at 1064°C.

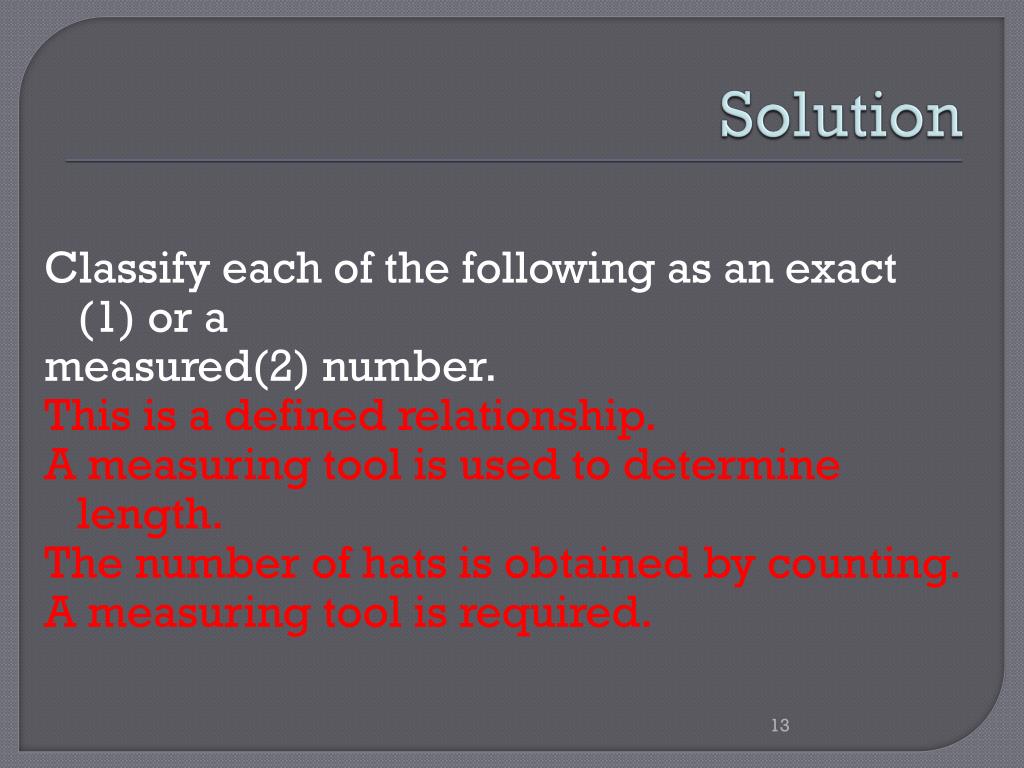

  12. Solution Classify each of the following as an exact (1) or a measured(2) number. This is a defined relationship. A measuring tool is used to determine length. The number of hats is obtained by counting. A measuring tool is required.

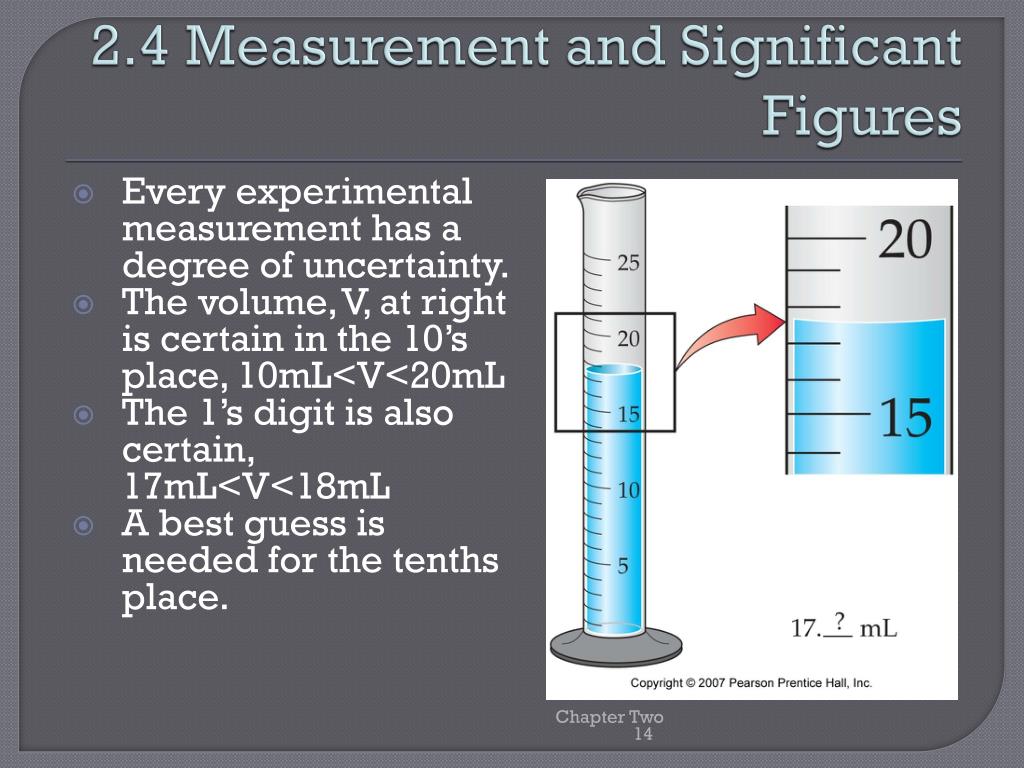

  13. 2.4 Measurement and Significant Figures Every experimental measurement has a degree of uncertainty. The volume, V, at right is certain in the 10’s place, 10mL<V<20mL The 1’s digit is also certain, 17mL<V<18mL A best guess is needed for the tenths place. Chapter Two

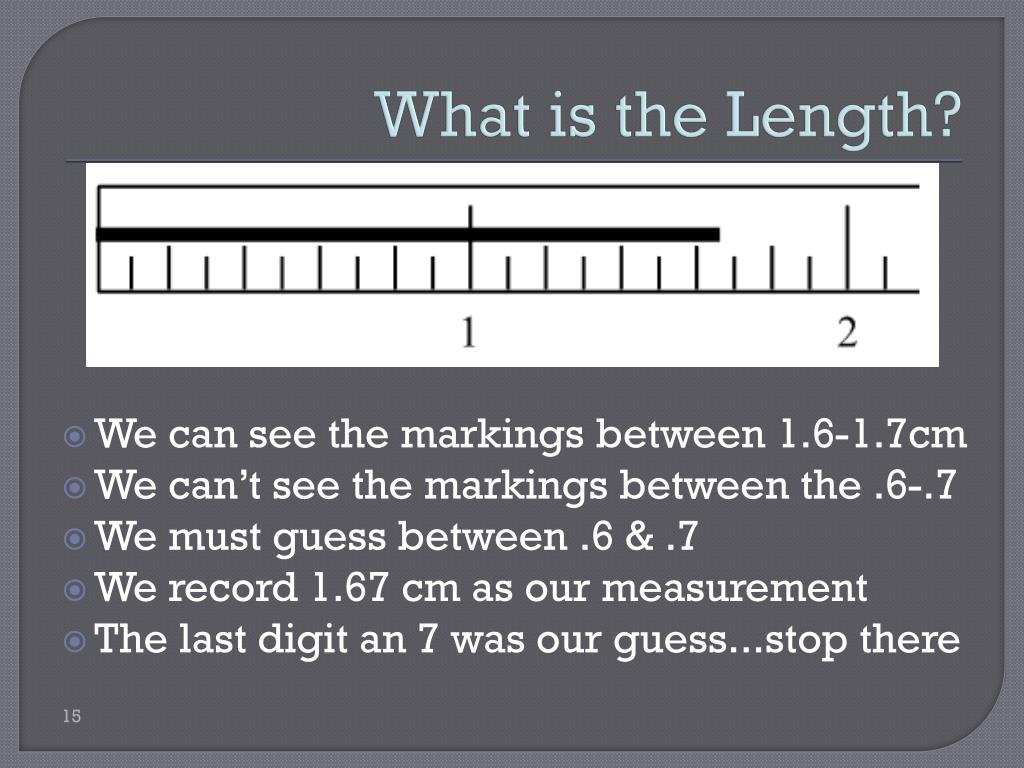

  14. What is the Length? • We can see the markings between 1.6-1.7cm • We can’t see the markings between the .6-.7 • We must guess between .6 & .7 • We record 1.67 cm as our measurement • The last digit an 7 was our guess...stop there

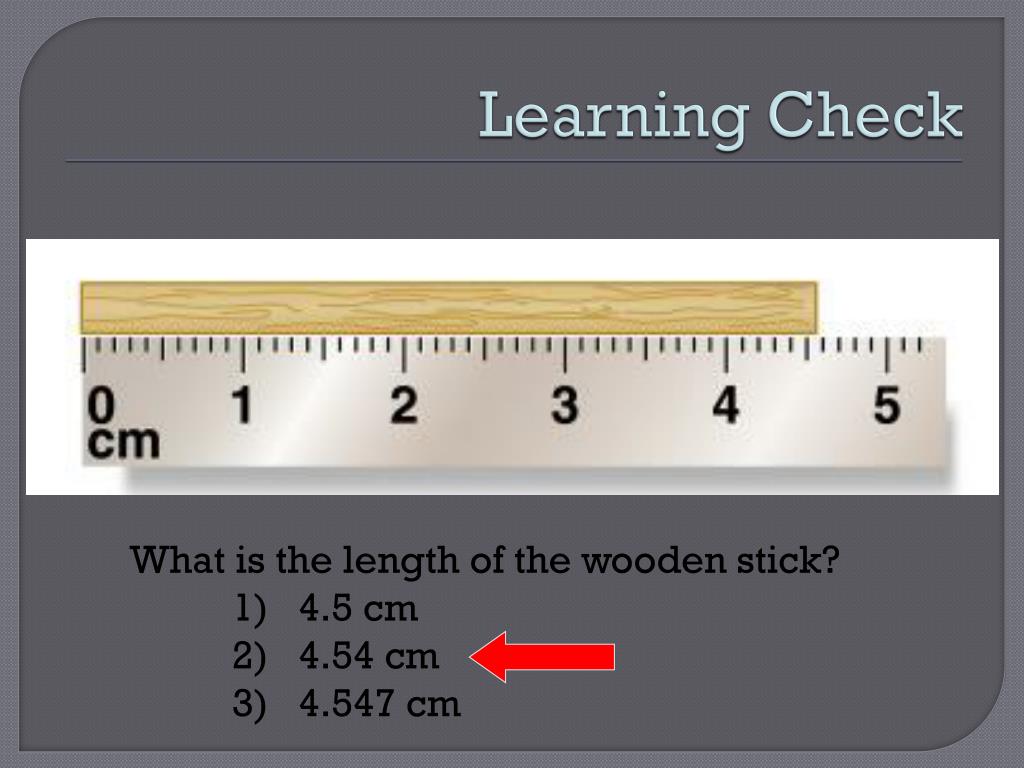

  15. Learning Check What is the length of the wooden stick? 1) 4.5 cm 2) 4.54 cm 3) 4.547 cm

  16. ? 8.00 cm or 3 (2.2/8)

  17. Measured Numbers • Do you see why Measured Numbers have error…you have to make that Guess! • All but one of the significant figures are known with certainty. The last significant figure is only the best possible estimate. • To indicate the precision of a measurement, the value recorded should use all the digits known with certainty.

  18. Below are two measurements of the mass of the same object. The same quantity is being described at two different levels of precision or certainty. Chapter Two

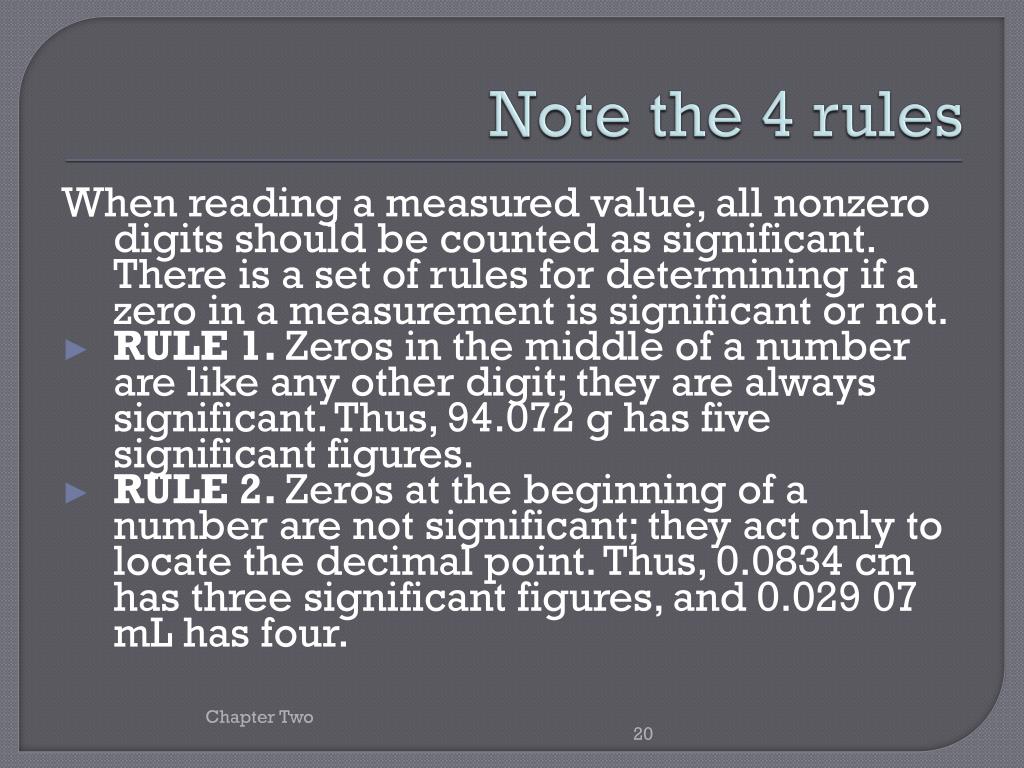

  19. Note the 4 rules When reading a measured value, all nonzero digits should be counted as significant. There is a set of rules for determining if a zero in a measurement is significant or not. • RULE 1. Zeros in the middle of a number are like any other digit; they are always significant. Thus, 94.072 g has five significant figures. • RULE 2. Zeros at the beginning of a number are not significant; they act only to locate the decimal point. Thus, 0.0834 cm has three significant figures, and 0.029 07 mL has four. Chapter Two

  20. RULE 3. Zeros at the end of a number and after the decimal point are significant. It is assumed that these zeros would not be shown unless they were significant. 138.200 m has six significant figures. If the value were known to only four significant figures, we would write 138.2 m. RULE 4. Zeros at the end of a number and before an implied decimal point may or may not be significant. We cannot tell whether they are part of the measurement or whether they act only to locate the unwritten but implied decimal point. Chapter Two

  21. 6 3 5 5 2 4 6 • All digits count • Leading 0’s don’t • Trailing 0’s do • 0’s count in decimal form • 0’s don’t count w/o decimal • All digits count • 0’s between digits count as well as trailing in decimal form 45.8736 .000239 .00023900 48000. 48000 3.982106 1.00040 Practice Rule #1 Zeros

  22. 2.5 Scientific Notation Scientific notation is a convenient way to write a very small or a very large number. Numbers are written as a product of a number between 1 and 10, times the number 10 raised to power. 215 is written in scientific notation as: 215 = 2.15 x 100 = 2.15 x (10 x 10) = 2.15 x 102 Chapter Two

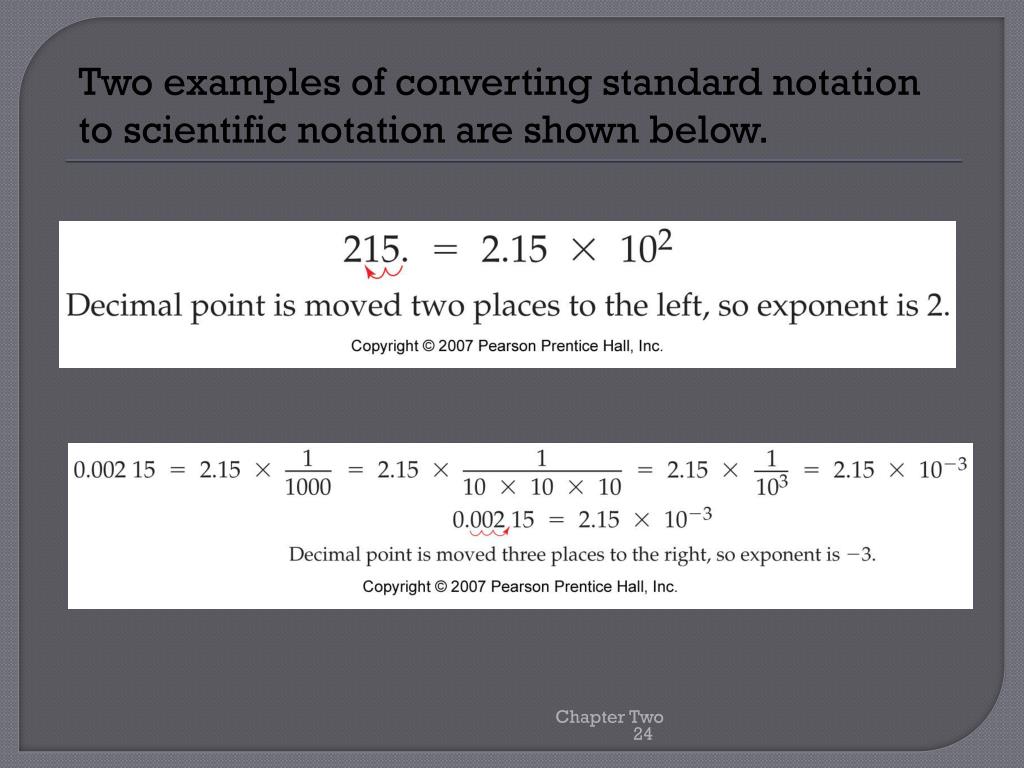

  23. Two examples of converting standard notation to scientific notation are shown below. Chapter Two

  24. Two examples of converting scientific notation back to standard notation are shown below. Chapter Two

  25. Scientific notation is helpful for indicating how many significant figures are present in a number that has zeros at the end but to the left of a decimal point. The distance from the Earth to the Sun is 150,000,000 km. Written in standard notation this number could have anywhere from 2 to 9 significant figures. Scientific notation can indicate how many digits are significant. Writing 150,000,000 as 1.5 x 108 indicates 2 and writing it as 1.500 x 108 indicates 4. Scientific notation can make doing arithmetic easier. Rules for doing arithmetic with numbers written in scientific notation are reviewed in Appendix A. Chapter Two

  26. 2.6 Rounding Off Numbers Often when doing arithmetic on a pocket calculator, the answer is displayed with more significant figures than are really justified. How do you decide how many digits to keep? Simple rules exist to tell you how. Chapter Two

  27. Once you decide how many digits to retain, the rules for rounding off numbers are straightforward: RULE 1. If the first digit you remove is 4 or less, drop it and all following digits. 2.4271 becomes 2.4 when rounded off to two significant figures because the first dropped digit (a 2) is 4 or less. RULE 2. If the first digit removed is 5 or greater, round up by adding 1 to the last digit kept. 4.5832 is 4.6 when rounded off to 2 significant figures since the first dropped digit (an 8) is 5 or greater. If a calculation has several steps, it is best to round off at the end. Chapter Two
