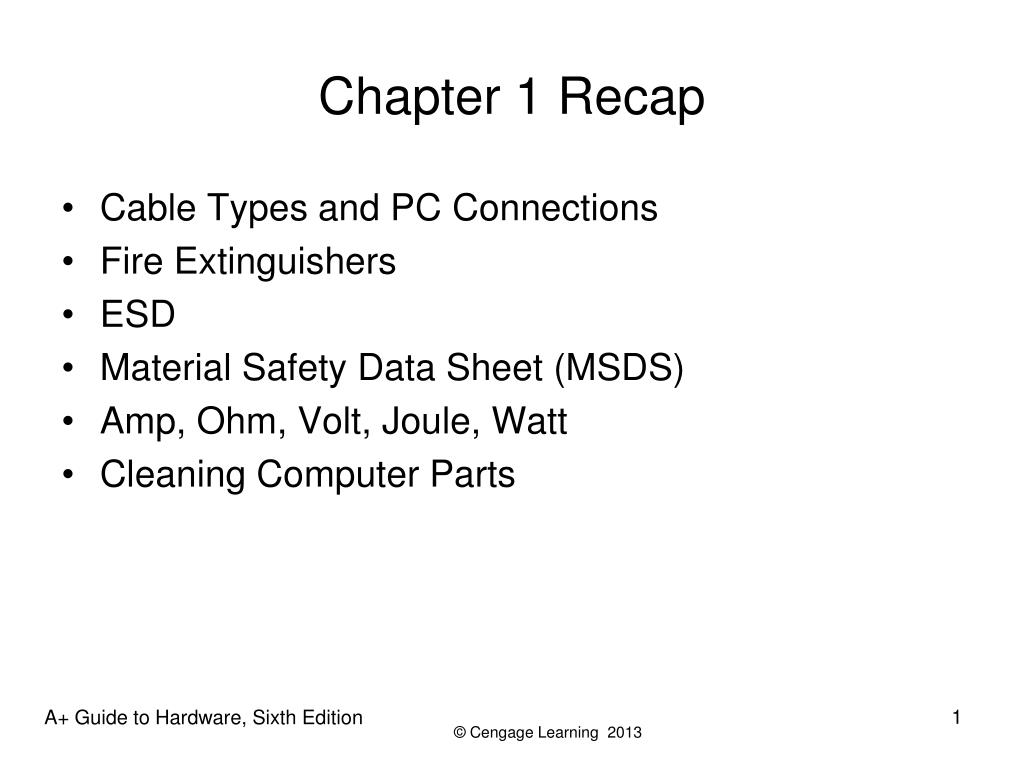

  1. Chapter 1 Recap • Cable Types and PC Connections • Fire Extinguishers • ESD • Material Safety Data Sheet (MSDS) • Amp, Ohm, Volt, Joule, Watt • Cleaning Computer Parts A+ Guide to Hardware, Sixth Edition

  2. A+ Guide to Hardware, Sixth Edition

  3. Table 1-1 Ports used with laptop and desktop computers A+ Guide to Hardware, Sixth Edition

  4. Table 1-1 Ports used with laptop and desktop computers A+ Guide to Hardware, Sixth Edition

  5. Fire Extinguisher Ratings A+ Guide to Hardware, Sixth Edition

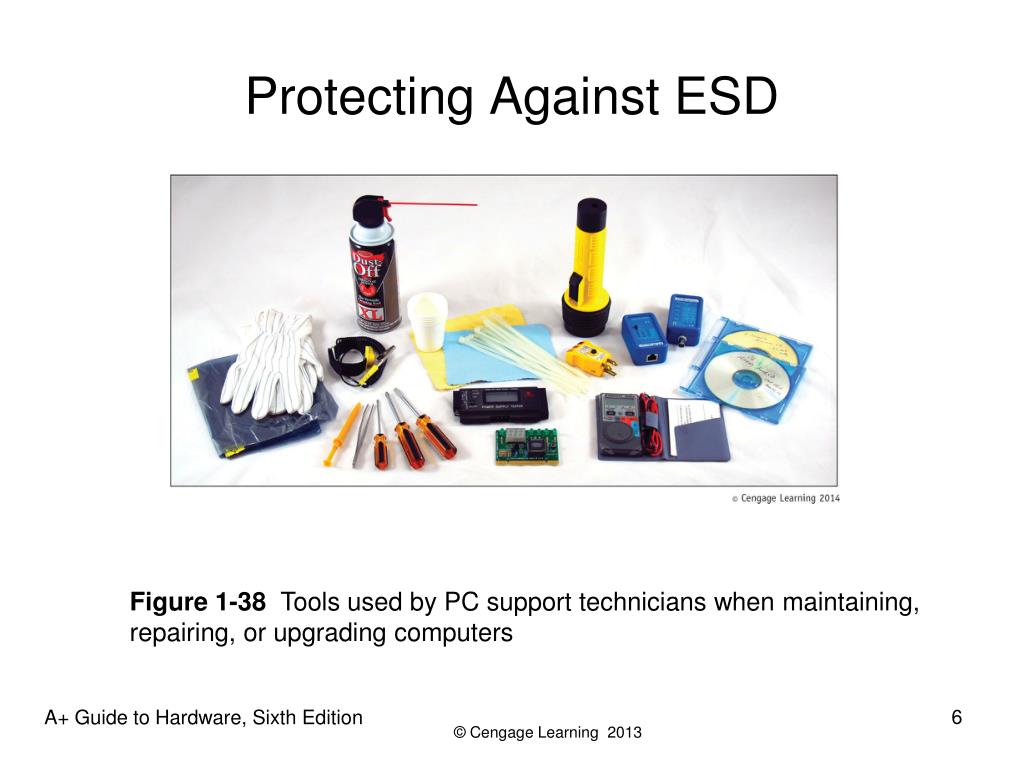

  6. Protecting Against ESD Figure 1-38 Tools used by PC support technicians when maintaining, repairing, or upgrading computers A+ Guide to Hardware, Sixth Edition

  7. A+ Guide to Hardware: Managing, Maintaining, and Troubleshooting, Sixth Edition Chapter 2 Working Inside a Computer

  8. Objectives • Learn how to take a computer apart and put it back together • Learn about the methods and devices for keeping a system cool • Learn how to select a power supply to meet the power needs of a system A+ Guide to Hardware, Sixth Edition

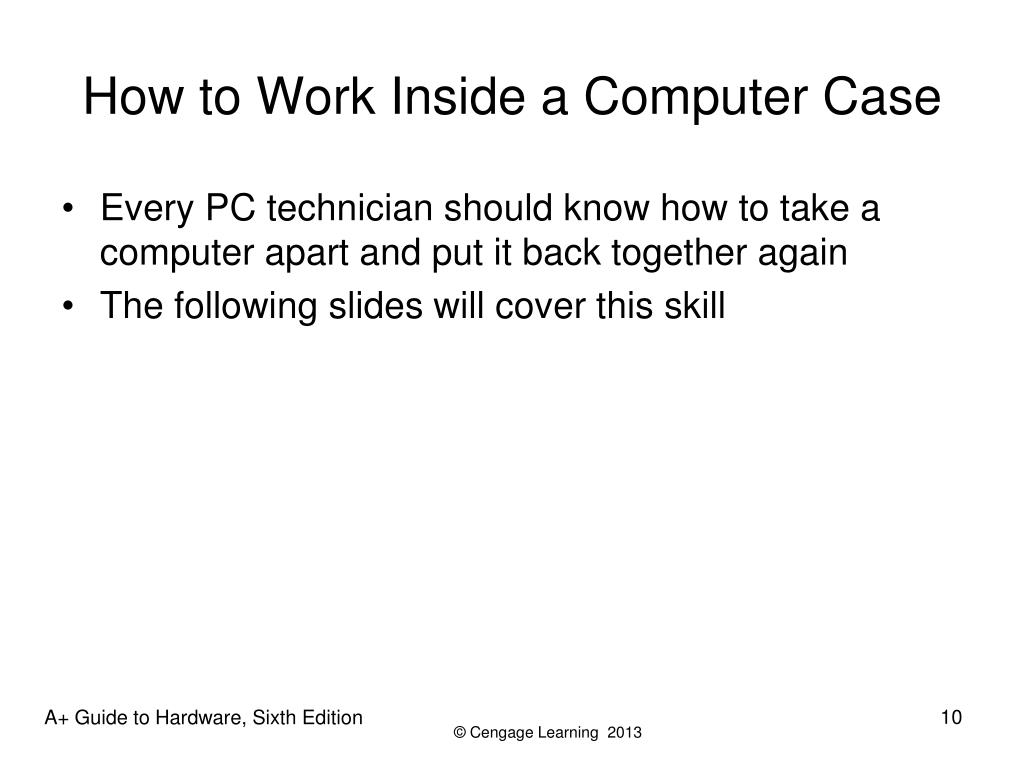

  9. How to Work Inside a Computer Case • Every PC technician should know how to take a computer apart and put it back together again • The following slides will cover this skill A+ Guide to Hardware, Sixth Edition

  10. Step 1: Plan and Organize Your Work • Make notes for backtracking • Remove loose jewelry that might get caught • Stay organized by keeping small parts in one place • Do not stack boards on top of each other • Do not touch board chips • With hands, magnetized screwdriver • Fingerprints on edge connectors may later cause corrosion A+ Guide to Hardware, Sixth Edition

  11. Step 1: Plan and Organize Your Work • Protect yourself and the equipment • Never ever touch inside of a turned on computer • Consider monitor, power supply as “black boxes” • Never remove the cover or touch inside • Protect against static electricity • Watch out for sharp edges that can cut A+ Guide to Hardware, Sixth Edition

  12. Step 2: Open the Computer Case and Examine the System • Back up important data • Power down the system and unplug it • Unplug other peripherals as well • Press and hold the power button for 3 seconds • This will drain the power supply • Have a plastic bag or cup handy to hold screws • Open the case cover • Many newer cases require you to remove the faceplate first • Some older cases require you to remove a side panel A+ Guide to Hardware, Sixth Edition

  13. Figure 2-2 Decide which side panel to remove A+ Guide to Hardware, Sixth Edition

  14. Figure 2-3 Locate the screws that hold the side panel in place A+ Guide to Hardware, Sixth Edition

  15. Figure 2-4 On this system, clips hold the side panel in place A+ Guide to Hardware, Sixth Edition

  16. Figure 2-5 Slide the panel to the rear of the case A+ Guide to Hardware, Sixth Edition

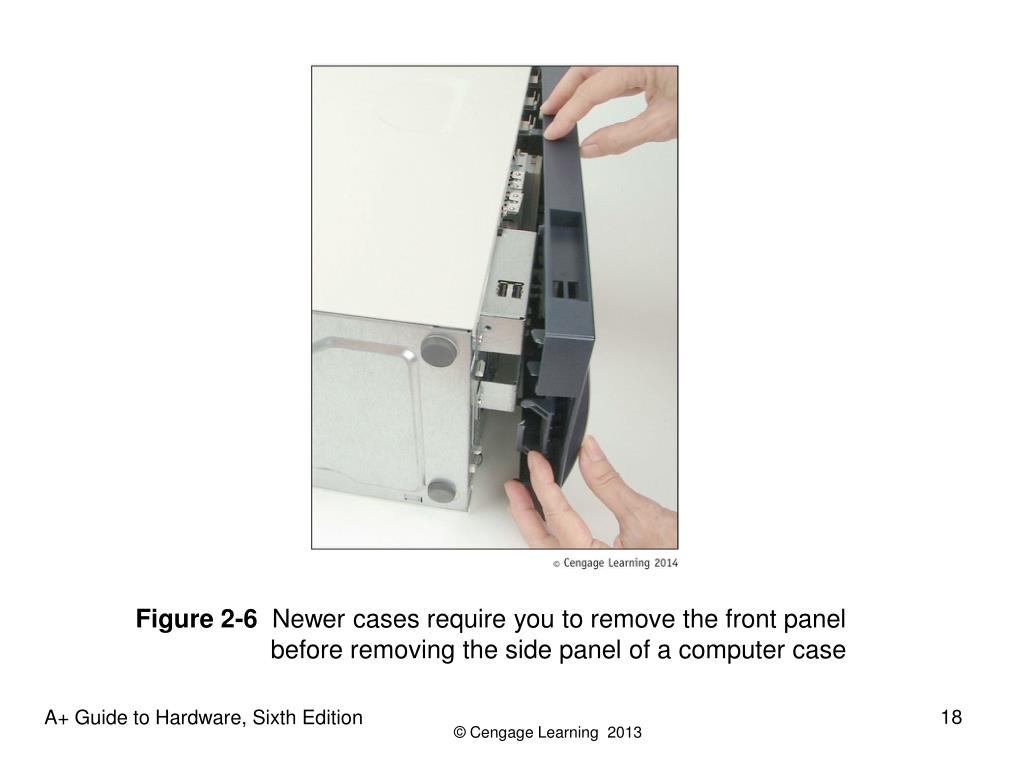

  17. Figure 2-6 Newer cases require you to remove the front panel before removing the side panel of a computer case A+ Guide to Hardware, Sixth Edition

  18. Figure 2-7 One screw holds the side panel in place A+ Guide to Hardware, Sixth Edition

  19. Figure 2-8 Slide the side panel to the front of the case and then lift it off the case A+ Guide to Hardware, Sixth Edition

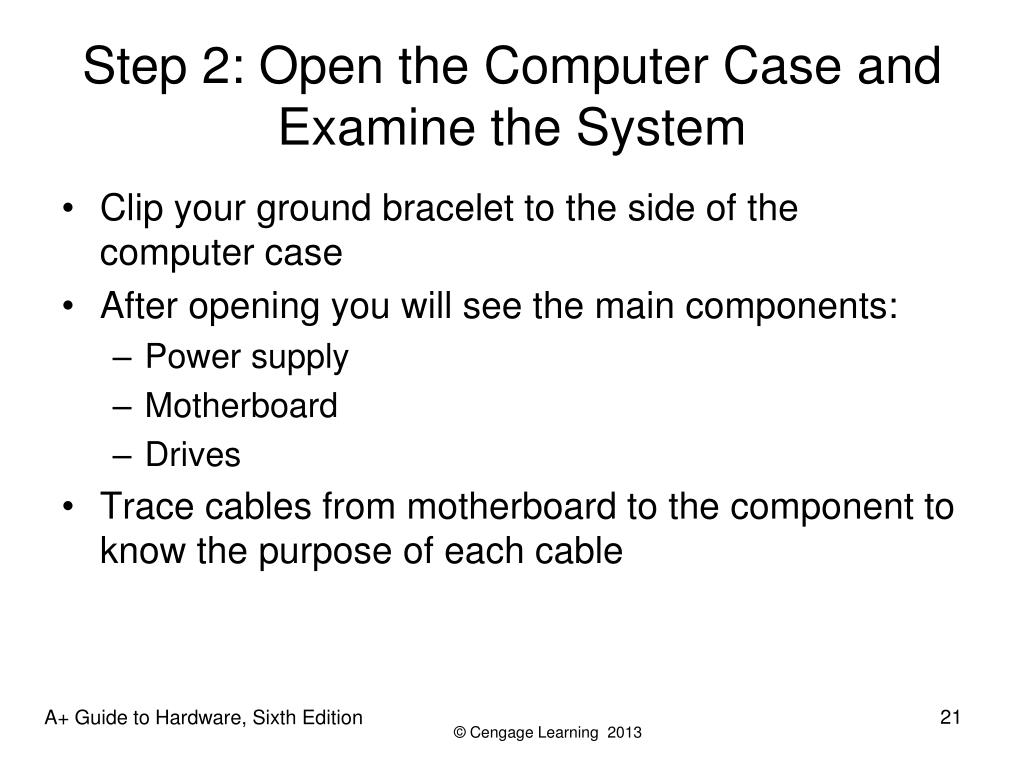

  20. Step 2: Open the Computer Case and Examine the System • Clip your ground bracelet to the side of the computer case • After opening you will see the main components: • Power supply • Motherboard • Drives • Trace cables from motherboard to the component to know the purpose of each cable A+ Guide to Hardware, Sixth Edition

  21. Figure 2-9 Attach the alligator clip of your ground bracelet to the side of the computer case A+ Guide to Hardware, Sixth Edition

  22. Step 3: Remove Expansion Cards • If removing components: • Draw a diagram of all cable connections to the motherboard, expansion cards, and drives • Use a felt-tip marker to mark components in order to indicate a cable connection, board placement, orientation, etc.. A+ Guide to Hardware, Sixth Edition

  23. Figure 2-10 Diagram the pin locations of the color-coded wires that connect to the front of the case A+ Guide to Hardware, Sixth Edition

  24. Step 3: Remove Expansion Cards • To remove expansion cards: • Remove any wire or cable connected to the card • Remove the screw holding the card to the case • Grasp the card with both hands and remove it by lifting straight up (can also rock the card from end to end) • Don’t put your fingers on edge connectors or touch a chip • It is best to store cards in an antistatic bag A+ Guide to Hardware, Sixth Edition

  25. Step 4: Remove the Motherboard, Power Supply, and Drives • Depending on the system, you may have to remove the drives and/or power supply to get to the motherboard • To remove motherboard: • Unplug power supply lines • Unplug PATA, SATA, and floppy drive cables • Disconnect wires leading from the front of the computer case to the motherboard (called front panel connectors) • Make a diagram before disconnecting A+ Guide to Hardware, Sixth Edition

  26. Step 4: Remove the Motherboard, Power Supply, and Drives • To remove motherboard (cont’d): • Disconnect any other cables or wires connected to the motherboard • Unscrew motherboard from spacers • Spacers (standoffs): round plastic or metal pegs that separate the board from the case • Spacers are necessary to keep motherboard from touching the metal case, which might cause a short • Motherboard should be free to remove from the case A+ Guide to Hardware, Sixth Edition

  27. Figure 2-16 Remove the motherboard from the case A+ Guide to Hardware, Sixth Edition

  28. Step 4: Remove the Motherboard, Power Supply, and Drives • To remove the power supply from the case: • Look for screws that attach the power supply to the computer case • Do not remove screws that hold power supply housing together (do take housing apart) • Sometimes power supplies are also attached to the case on the underside by recessed slots • Turn case over and look for slots • If present, determine in which direction you need to slide the power supply to free it from the case A+ Guide to Hardware, Sixth Edition

  29. Figure 2-17 Removing the power supply mounting screws A+ Guide to Hardware, Sixth Edition

  30. Step 4: Remove the Motherboard, Power Supply, and Drives • Tips to remove drives: • Look for screws on each side of the drive attaching the drive to the drive bay • There might be a catch underneath the drive • You must lift up as you slide the drive forward • Some drive bays have a clipping mechanism to hold the drive in the bay • Release the clip and then pull the drive forward • May have to remove the drive bay in order to remove the drives A+ Guide to Hardware, Sixth Edition

  31. Figure 2-18 To remove this CD drive, first pull the clip forward to release the drive from the bay A+ Guide to Hardware, Sixth Edition

  32. Figure 2-19 Push down on the clip and then slide the removable bay forward and out of the case A+ Guide to Hardware, Sixth Edition

  33. Figure 2-20 Drives in this removable bay are held in place with screws on each side of the bay A+ Guide to Hardware, Sixth Edition

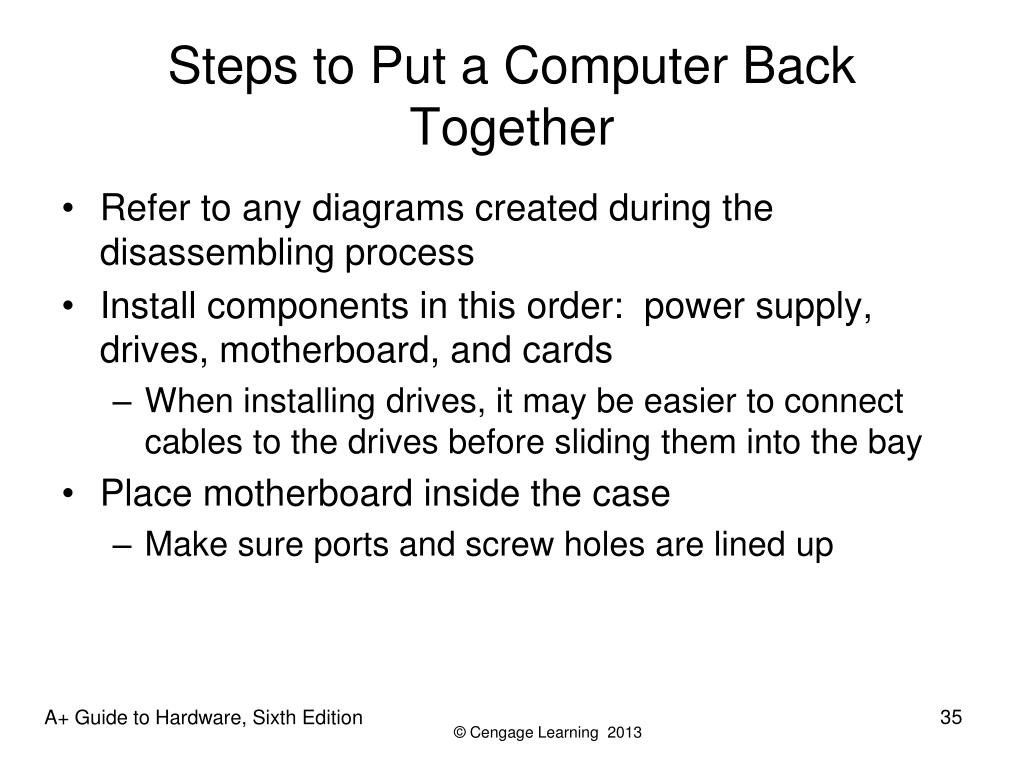

  34. Steps to Put a Computer Back Together • Refer to any diagrams created during the disassembling process • Install components in this order: power supply, drives, motherboard, and cards • When installing drives, it may be easier to connect cables to the drives before sliding them into the bay • Place motherboard inside the case • Make sure ports and screw holes are lined up A+ Guide to Hardware, Sixth Edition

  35. Figure 2-22 Align screw holes in the case with those on the motherboard A+ Guide to Hardware, Sixth Edition

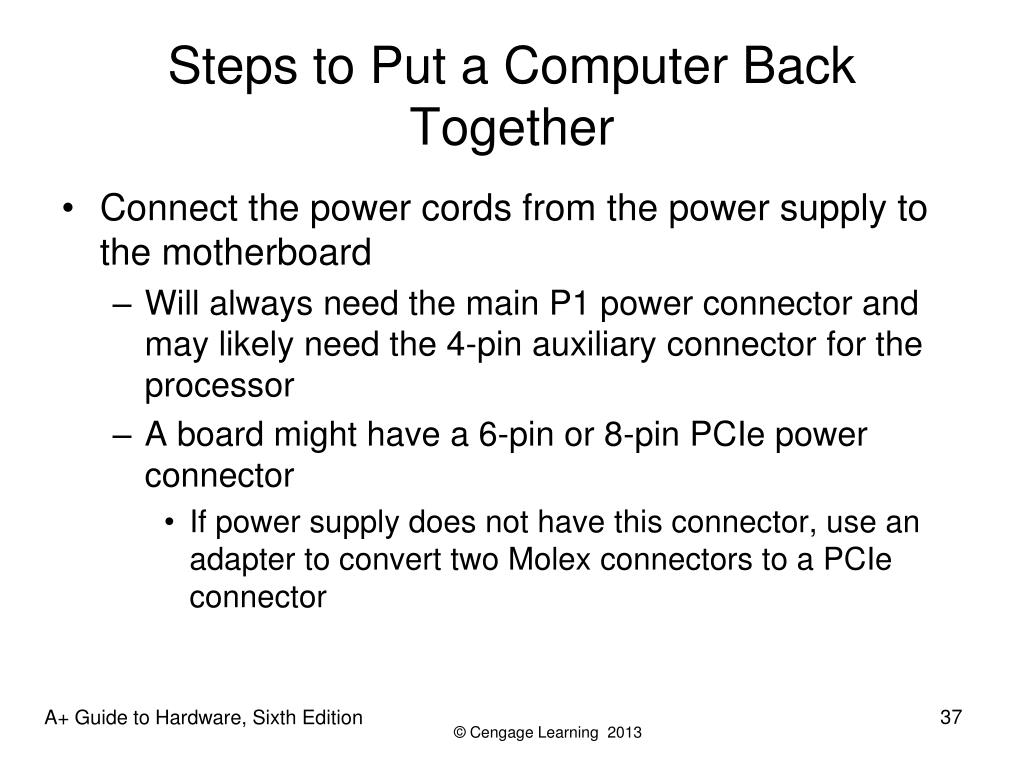

  36. Steps to Put a Computer Back Together • Connect the power cords from the power supply to the motherboard • Will always need the main P1 power connector and may likely need the 4-pin auxiliary connector for the processor • A board might have a 6-pin or 8-pin PCIe power connector • If power supply does not have this connector, use an adapter to convert two Molex connectors to a PCIe connector A+ Guide to Hardware, Sixth Edition

  37. Figure 2-24 The 24-pin connector supplies power to the motherboard A+ Guide to Hardware, Sixth Edition

  38. Figure 2-25 The auxiliary 4-pin power cord provides power to the processor A+ Guide to Hardware, Sixth Edition

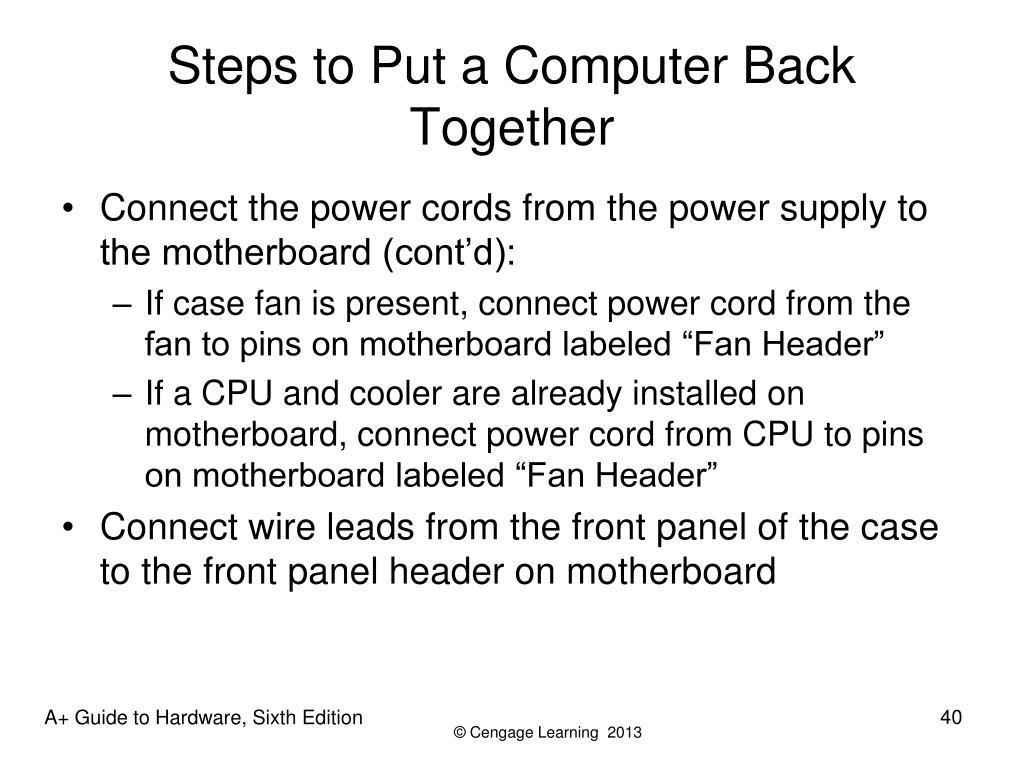

  39. Steps to Put a Computer Back Together • Connect the power cords from the power supply to the motherboard (cont’d): • If case fan is present, connect power cord from the fan to pins on motherboard labeled “Fan Header” • If a CPU and cooler are already installed on motherboard, connect power cord from CPU to pins on motherboard labeled “Fan Header” • Connect wire leads from the front panel of the case to the front panel header on motherboard A+ Guide to Hardware, Sixth Edition

  40. Figure 2-28 Seven connectors from the front panel connect to the motherboard A+ Guide to Hardware, Sixth Edition

  41. Figure 2-29 Front panel header uses color-coded pins and labels A+ Guide to Hardware, Sixth Edition

  42. Steps to Put a Computer Back Together • Look for a small triangle embedded on the connector that marks one of the outside wires as pin 1 • Line up pin 1 on connector with pin 1 marked on motherboard • If labels on motherboard are not clear, consult user guide for help Figure 2-30 Look for the small triangle embedded on the wire lead connectors to orient the connector correctly to the motherboard connector pins A+ Guide to Hardware, Sixth Edition

  43. Steps to Put a Computer Back Together • Connect wires to ports on the front panel of the case • Audio ports or USB ports are examples • Install the video card and other expansion cards • Double-check each connection • Plug in keyboard, monitor, and mouse • In classroom environment, have instructor check work • Turn on the power and check that the PC is working properly • If not, most likely a loose connection A+ Guide to Hardware, Sixth Edition

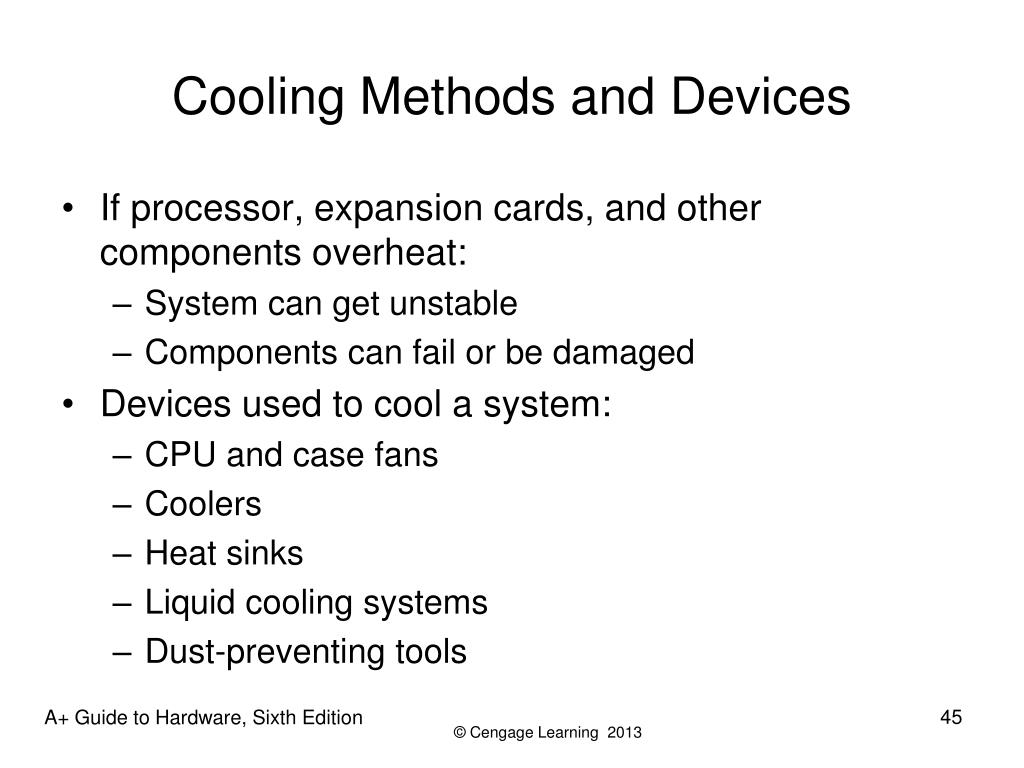

  44. Cooling Methods and Devices • If processor, expansion cards, and other components overheat: • System can get unstable • Components can fail or be damaged • Devices used to cool a system: • CPU and case fans • Coolers • Heat sinks • Liquid cooling systems • Dust-preventing tools A+ Guide to Hardware, Sixth Edition

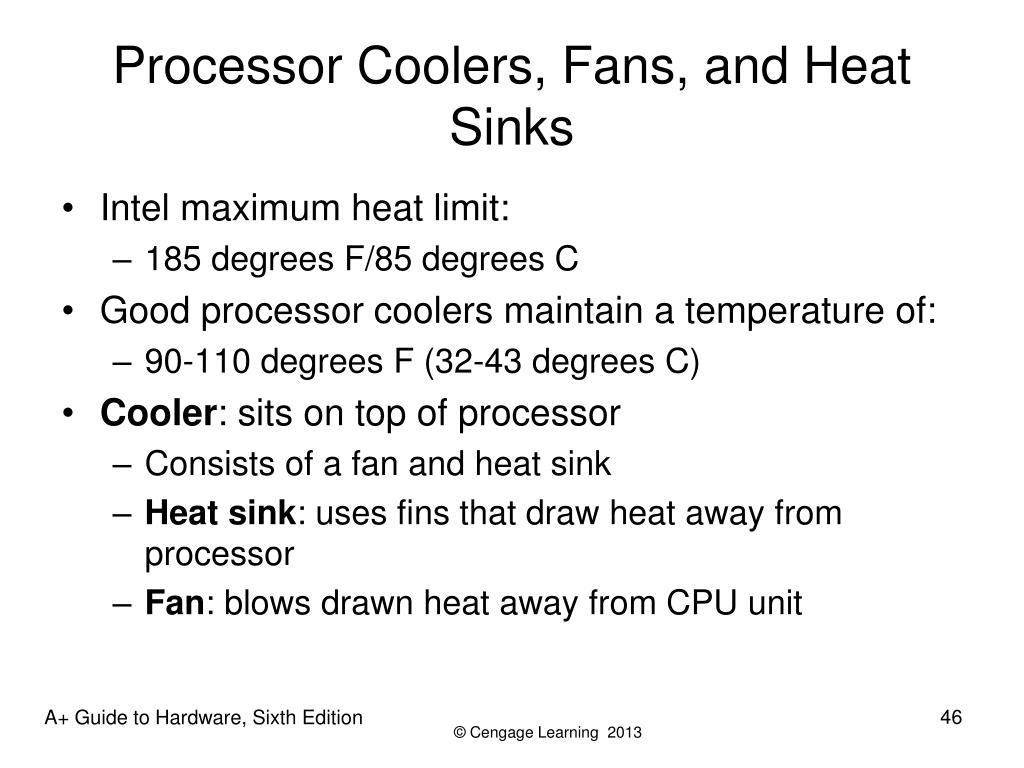

  45. Processor Coolers, Fans, and Heat Sinks • Intel maximum heat limit: • 185 degrees F/85 degrees C • Good processor coolers maintain a temperature of: • 90-110 degrees F (32-43 degrees C) • Cooler: sits on top of processor • Consists of a fan and heat sink • Heat sink: uses fins that draw heat away from processor • Fan: blows drawn heat away from CPU unit A+ Guide to Hardware, Sixth Edition

  46. Figure 2-35 A cooler sits on top of a processor to help keep it cool A+ Guide to Hardware, Sixth Edition

  47. Processor Coolers, Fans, and Heat Sinks • Cooler (cont’d): • Made of aluminum, copper or combination of both • Bracketed to motherboard using a wire or plastic clip • A creamlike thermal compound eliminates air pockets, helping to draw heat off the processor • Found between bottom of cooler heatsink and top of processor • Makes an airtight connection between fan and processor • Gets power using a 4-pin fan header on the motherboard A+ Guide to Hardware, Sixth Edition

  48. Figure 2-37 Thermal compound is already stuck to the bottom of this cooler that was purchased boxed with the processor A+ Guide to Hardware, Sixth Edition

  49. Figure 2-38 A cooler fan gets its power from a 4-pin PWM header on the motherboard A+ Guide to Hardware, Sixth Edition
