Multiscale packed bed reactor with extra dimension

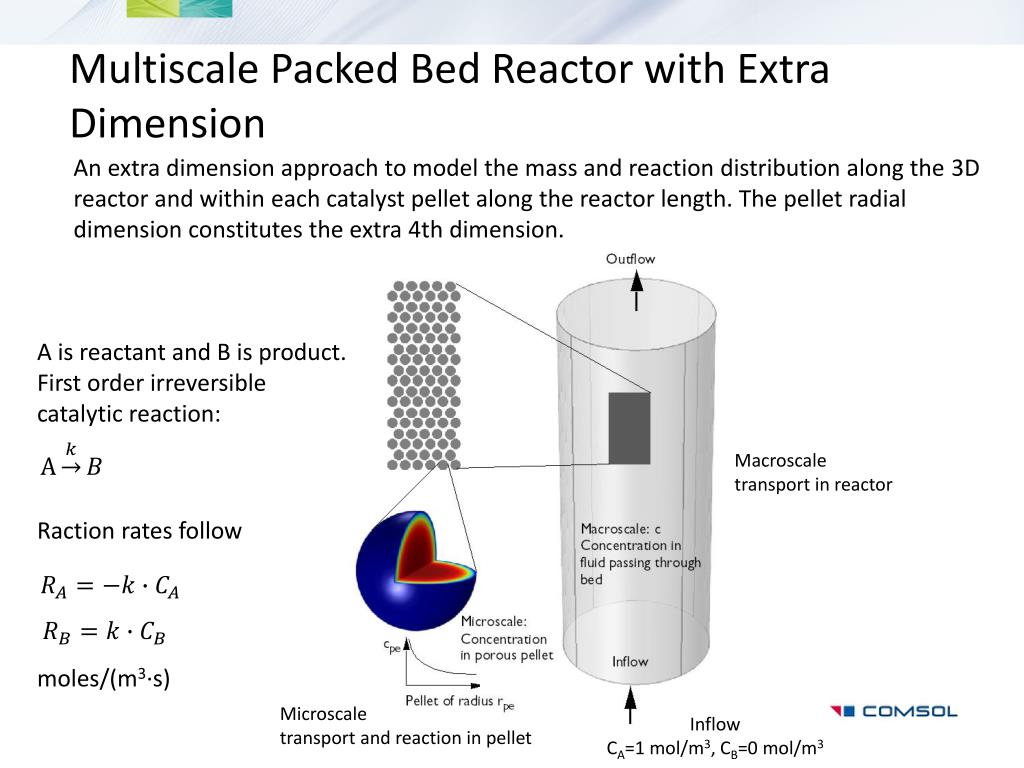

Multiscale Packed Bed Reactor with Extra Dimension

An extra dimension approach to model the mass and reaction distribution along the 3D reactor and within each catalyst pellet along the reactor length. The pellet radial dimension constitutes the extra 4th dimension.

A is reactant and B is product.First order irreversible

catalytic reaction:

Macroscale

transport in reactor

Raction rates follow

moles/(m3·s)

Microscale

transport and reaction in pellet

Inflow

CA=1 mol/m3, CB=0 mol/m3


Equations

Equations

In bed volume, transport by convection

and diffusion

In bed volume, velocity determined by Darcy’s law

In pellet, reaction and transport by diffusion, spherical formulation

At pellet boundary, flux continuity and concentration continuity is assured


Results macroscale

Results, macroscale

Bed pressure distribution,

gauge pressure.

Concentration distribution of reactantA in the macro space. A is consumedby the pellet reactions along the flowpath.


Results microscale

Results, microscale

Example plots of the pellet concentrations

at center of column, at 1 m height position


Results microscale1

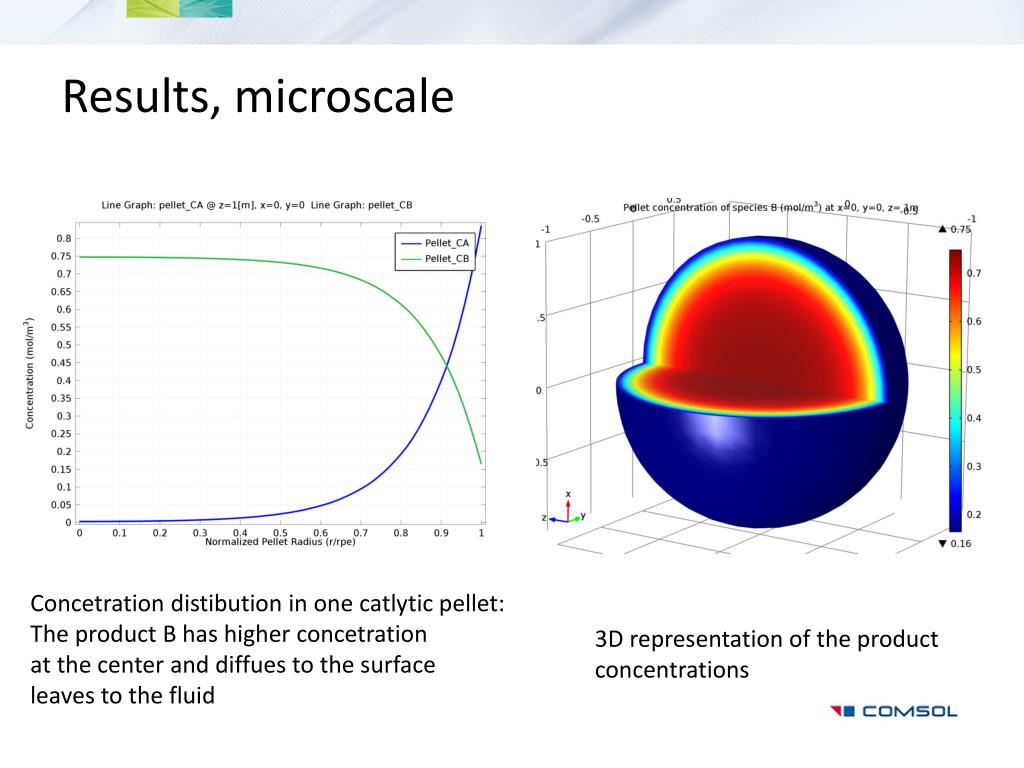

Results, microscale

Concetration distibution in one catlytic pellet:

The product B has higher concetrationat the center and diffues to the surfaceleaves to the fluid

3D representation of the product

concentrations


Step by step instructions are available in model documentation

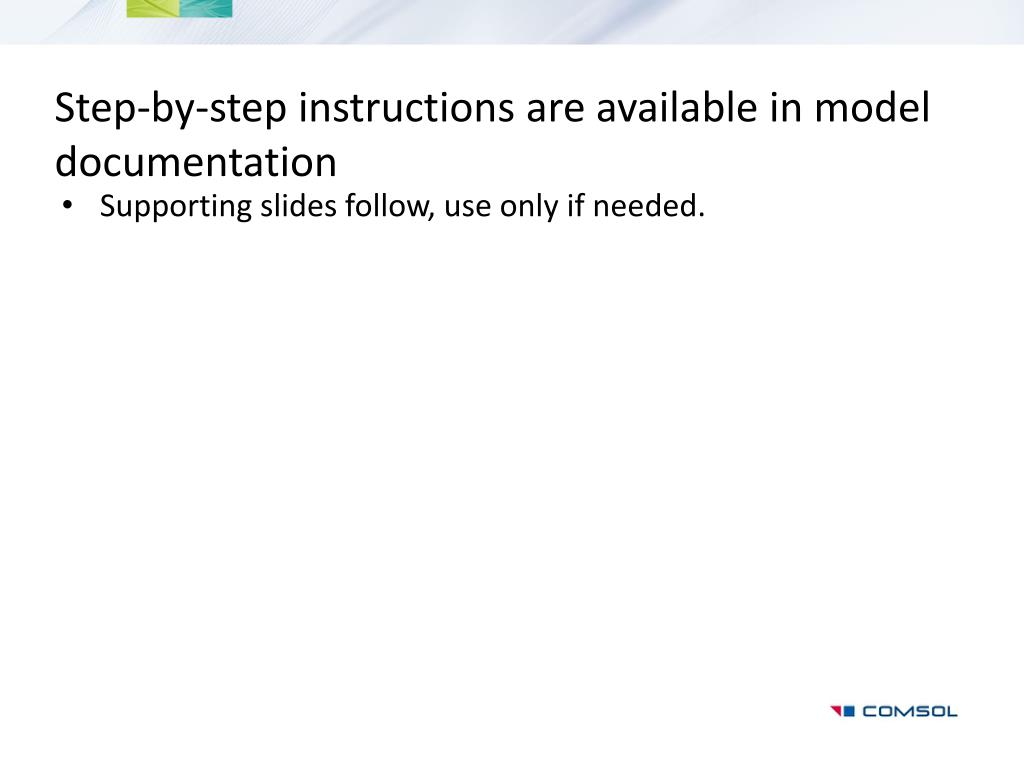

Step-by-step instructions are available in model documentation

  • Supporting slides follow, use only if needed.


Multiscale packed bed reactor with extra dimension

Preferences Dialog Box. Click Model Builder, select the Enable technology preview functionality check box, and then click OK.


Multiscale packed bed reactor with extra dimension

Define Parameters & Variables

Load .txt files


Multiscale packed bed reactor with extra dimension

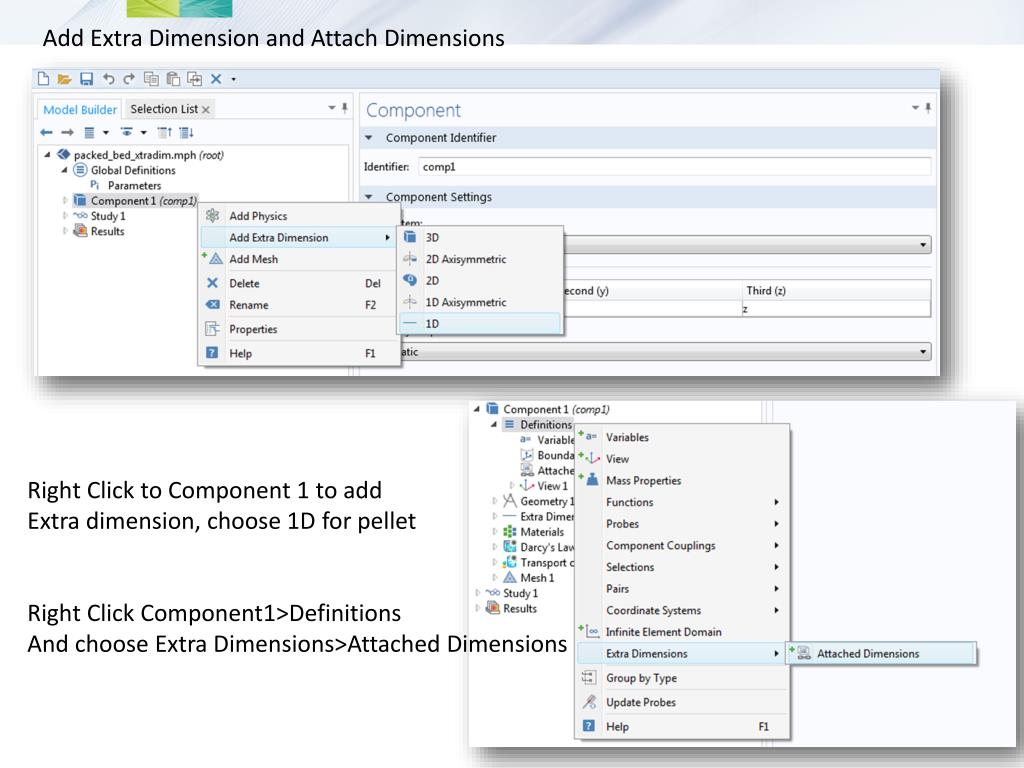

Add Extra Dimension and Attach Dimensions

Right Click to Component 1 to add

Extra dimension, choose 1D for pellet

Right Click Component1>Definitions

And choose Extra Dimensions>Attached Dimensions


Multiscale packed bed reactor with extra dimension

Create geometry of packed bed reactor


Multiscale packed bed reactor with extra dimension

SCreate geometry for extra dimension which is 1D, for normalized pellet radius

Note that x=0 represent the center of pellet and x=1 is the surface of the pellet


Multiscale packed bed reactor with extra dimension

Meshing Extra dimension geometry

Mesh the extra dimension geometry

Using the above values for size


Multiscale packed bed reactor with extra dimension

Meshing the reactor geometry

Use structured meshes by combining triangular with swept meshes

There are 5 elements in the swept direction


Multiscale packed bed reactor with extra dimension

Assign Material Property and choose water from add materials node


Multiscale packed bed reactor with extra dimension

Define Physics

Darcy’s Law for fluid flow

Assign porosity and permeability

in matrix properties for packed bed


Multiscale packed bed reactor with extra dimension

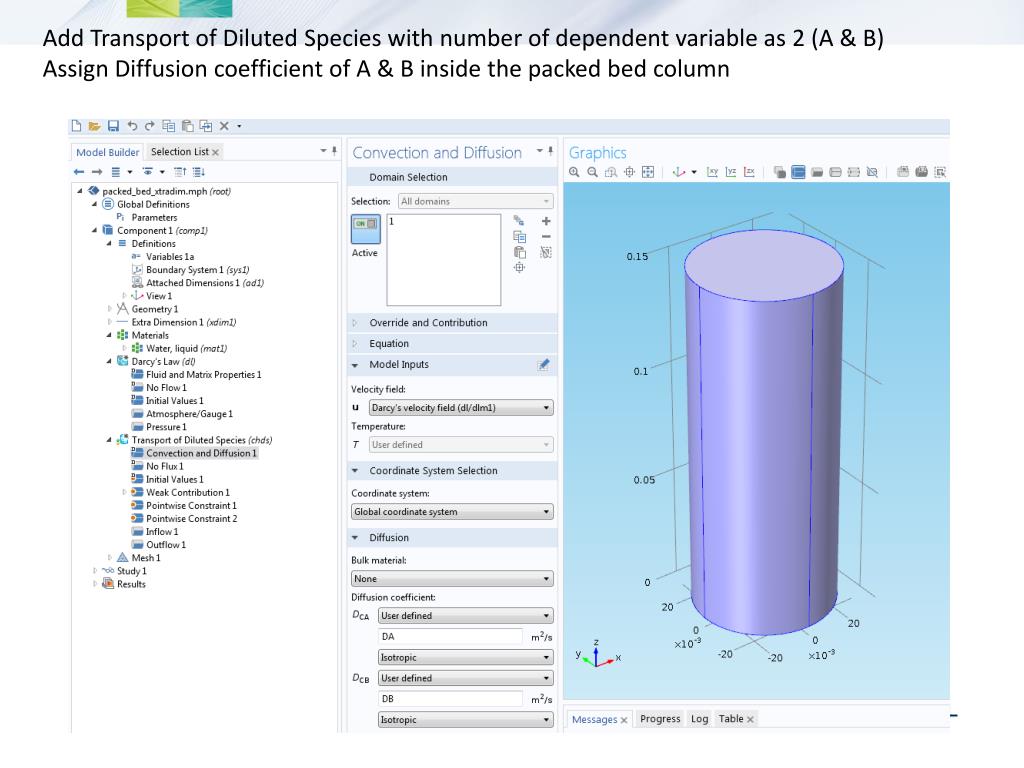

Add Transport of Diluted Species with number of dependent variable as 2 (A & B)

Assign Diffusion coefficient of A & B inside the packed bed column


Multiscale packed bed reactor with extra dimension

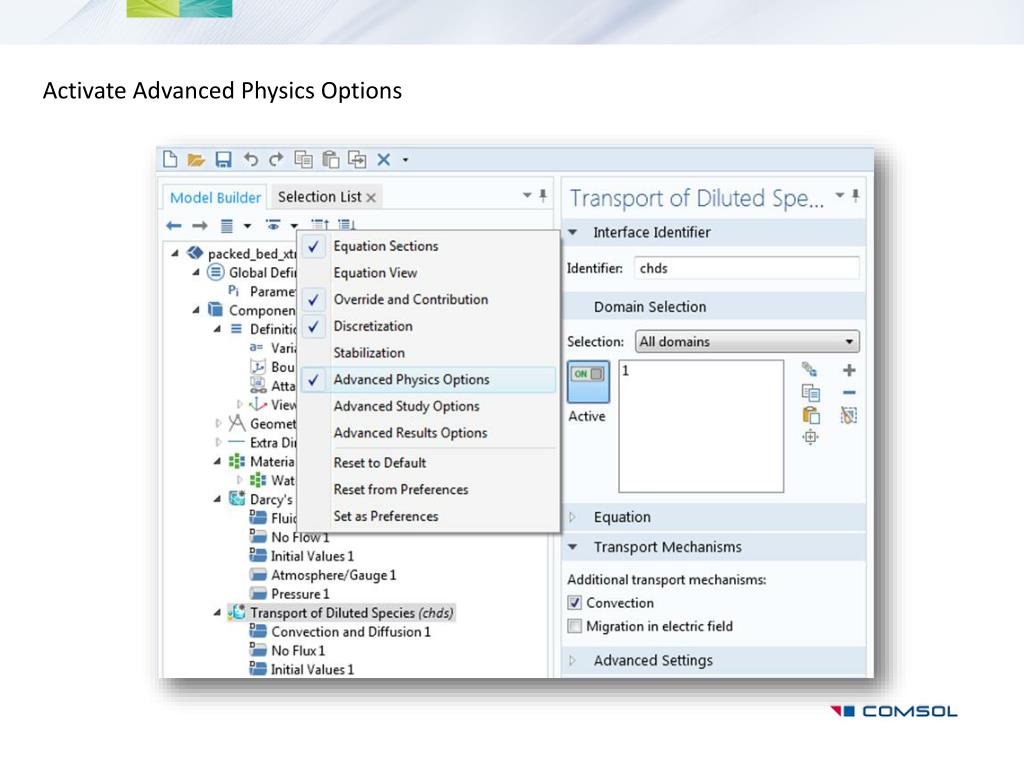

Activate Advanced Physics Options


Multiscale packed bed reactor with extra dimension

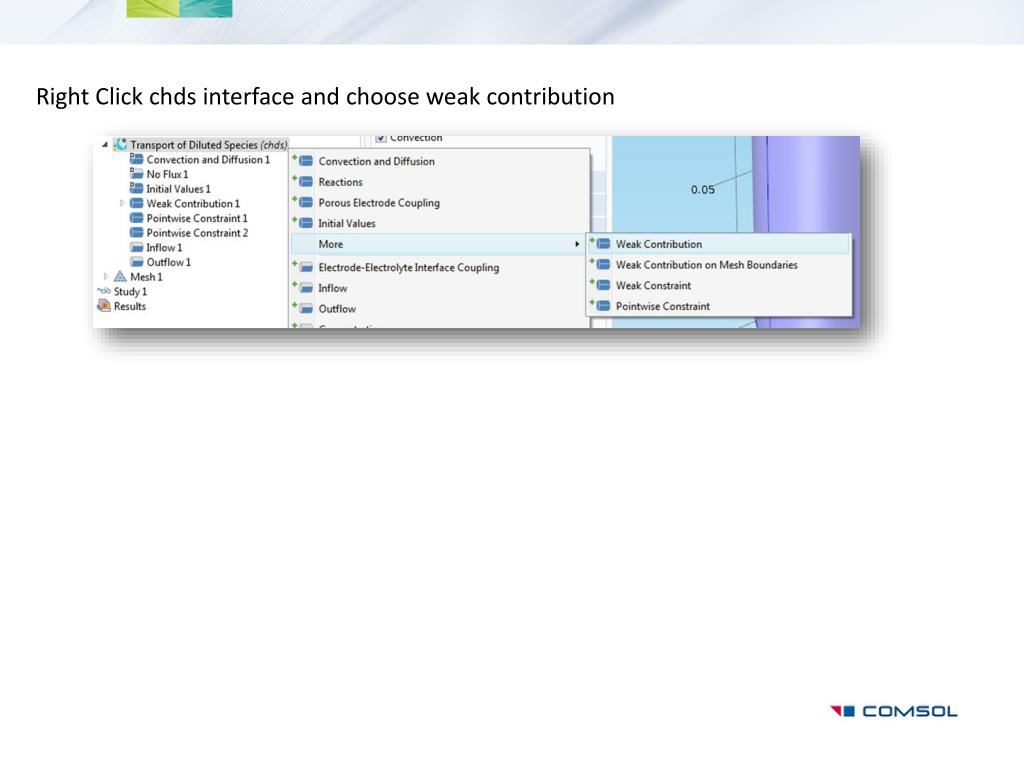

Right Click chds interface and choose weak contribution


Multiscale packed bed reactor with extra dimension

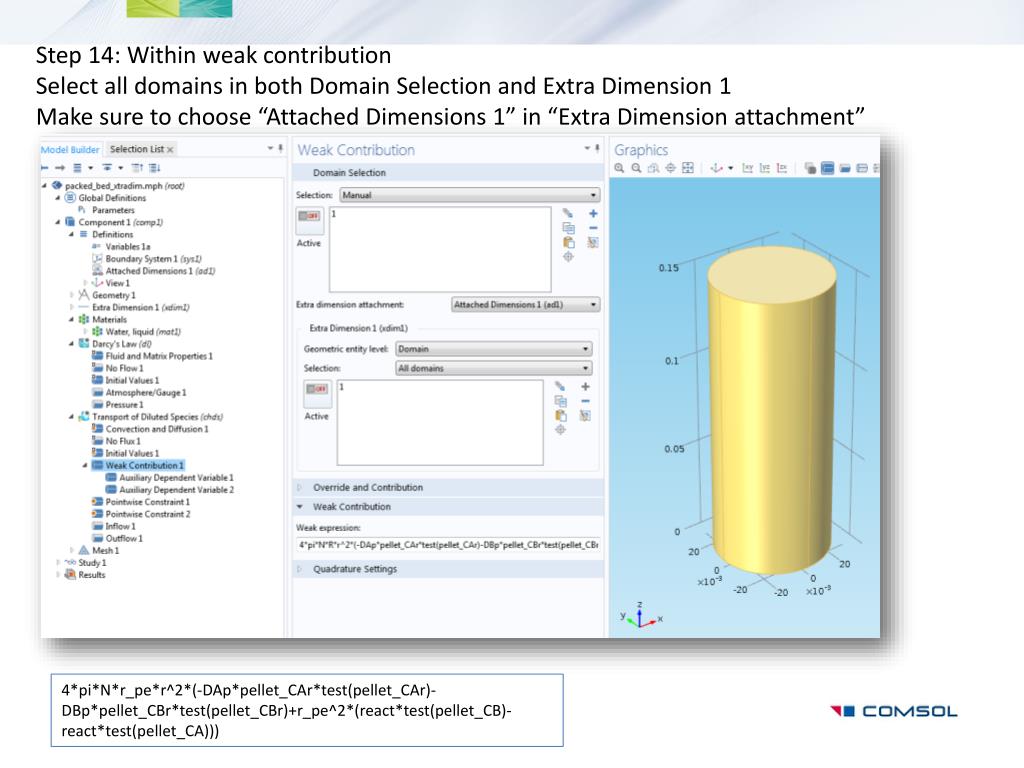

Step 14: Within weak contribution

Select all domains in both Domain Selection and Extra Dimension 1

Make sure to choose “Attached Dimensions 1” in “Extra Dimension attachment”

4*pi*N*r_pe*r^2*(-DAp*pellet_CAr*test(pellet_CAr)-DBp*pellet_CBr*test(pellet_CBr)+r_pe^2*(react*test(pellet_CB)-react*test(pellet_CA)))


Multiscale packed bed reactor with extra dimension

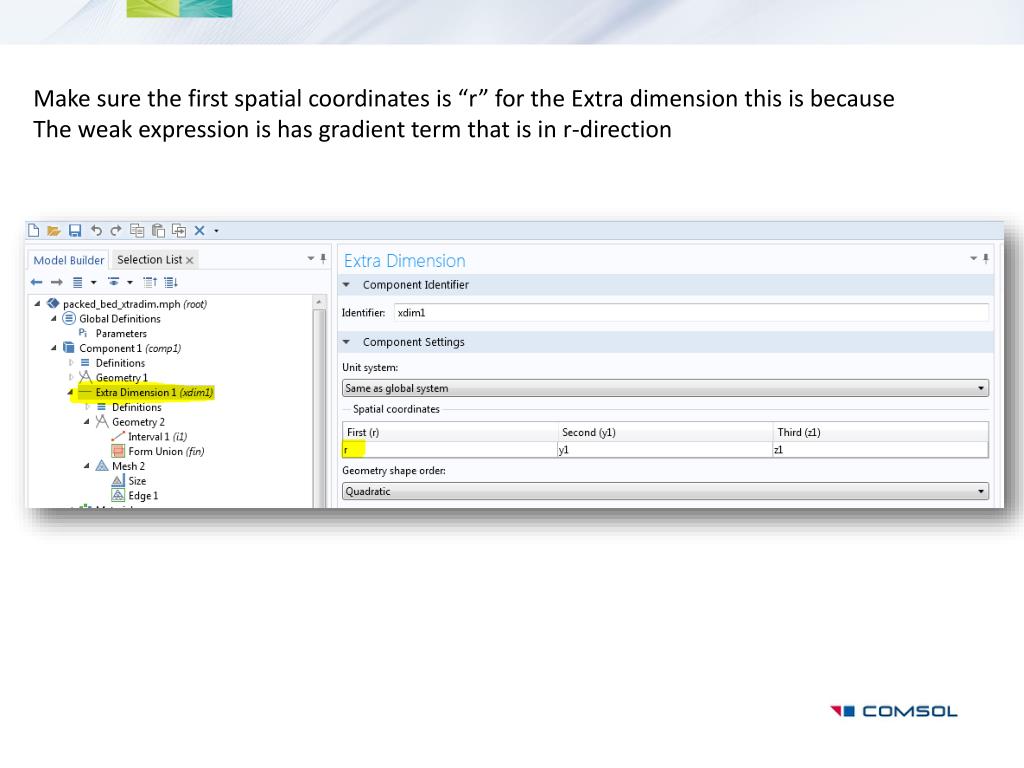

Make sure the first spatial coordinates is “r” for the Extra dimension this is because

The weak expression is has gradient term that is in r-direction


Multiscale packed bed reactor with extra dimension

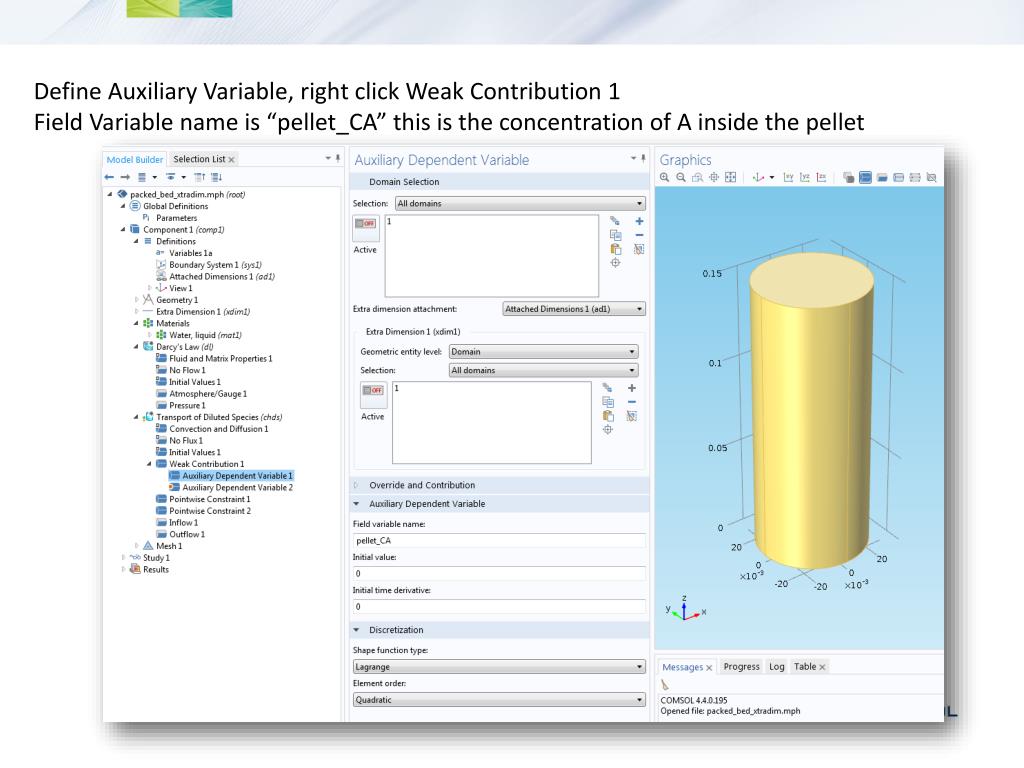

Define Auxiliary Variable, right click Weak Contribution 1

Field Variable name is “pellet_CA” this is the concentration of A inside the pellet


Multiscale packed bed reactor with extra dimension

Define Auxiliary Variable, right click Weak Contribution 1

Field Variable name is “pellet_CB” this is the concentration of B inside the pellet


Multiscale packed bed reactor with extra dimension

Add Inflow boundary condition, Only specie A comes in

A is converted to B from reaction inside the pellet

A ---> B


Multiscale packed bed reactor with extra dimension

Add Outflow boundary condition


Multiscale packed bed reactor with extra dimension

Results: Plotting concentration inside the pellet along the 3D reactor

Make a duplicate of solution 1

Under Data Sets

Change the Component to

Extra Dimension 1 in the setting

window


Multiscale packed bed reactor with extra dimension

Add 1d Plot group and make sure the Data set is selected as

Solution 3


Multiscale packed bed reactor with extra dimension

Add Line Plot and Type the following expression

“comp1.atxd3(0,0,0.1,pellet_CA)”

This gives concentration of A inside pellet at position z=0.1 in the column

Similar line plot is added for concentration of B


Multiscale packed bed reactor with extra dimension

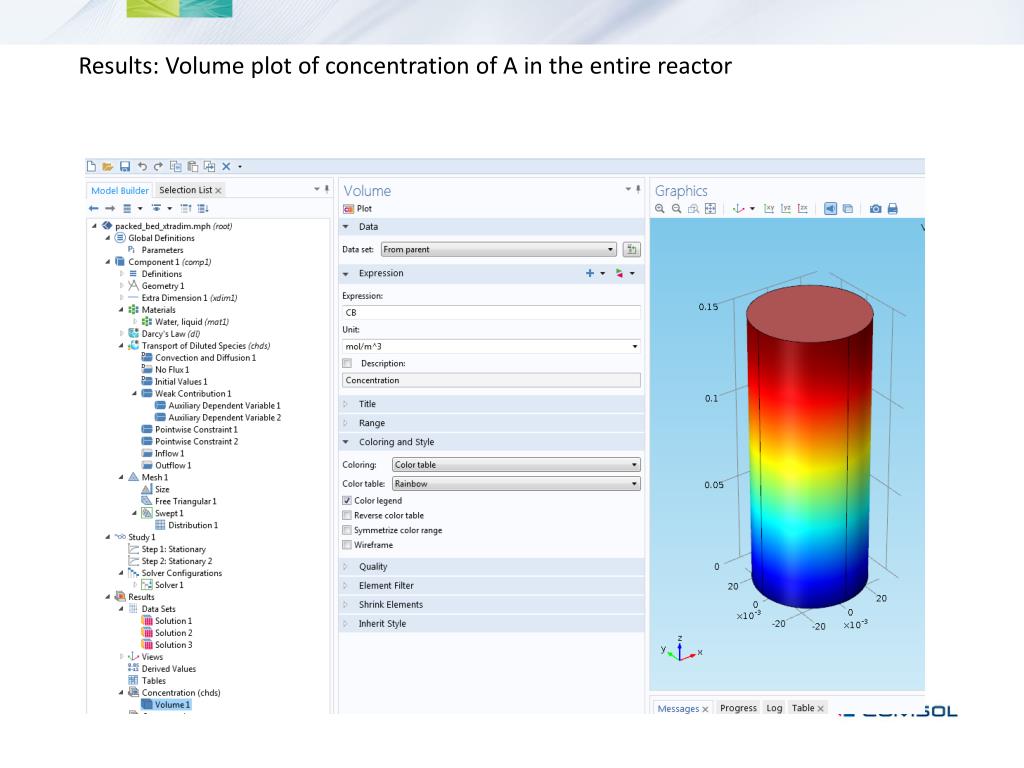

Results: Volume plot of concentration of A in the entire reactor
