Warm Up April 23

Warm Up April 23. 1. Solve for arc ABC. 244 . 2. Solve for x and y. x = 105  y = 100 . EOCT Week 14 #3. Review HW. Case I: Vertex is AT the center. P. Case II: Vertex is ON circle. ANGLE. ARC. ARC. ANGLE. Chomp, Chomp. Ex. 1 Solve for x. x. 84 °. x = 42 . 202 °.

kipling
Download Presentation

Warm Up April 23

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Warm Up April 23 1. Solve for arc ABC 244 2. Solve for x and y. x = 105 y = 100

  2. EOCT Week 14 #3

  3. Review HW

  4. Case I:Vertex is AT the center P

  5. Case II:Vertex is ON circle ANGLE ARC ARC ANGLE Chomp, Chomp

  6. Ex. 1 Solve for x. x 84° x = 42

  7. 202° Ex. 2 Solve for y. y y = 79

  8. Case III:Vertex is INSIDEcircle (not the center) ARC ANGLE ARC

  9. Ex. 3 Solve for x. 93° X 113° x= 103

  10. Ex. 4 Solve for x 88 84 X x= 100

  11. Q D x T y U Ex. 5 QU is a diameter x= 15 y = 15 z = 95 z

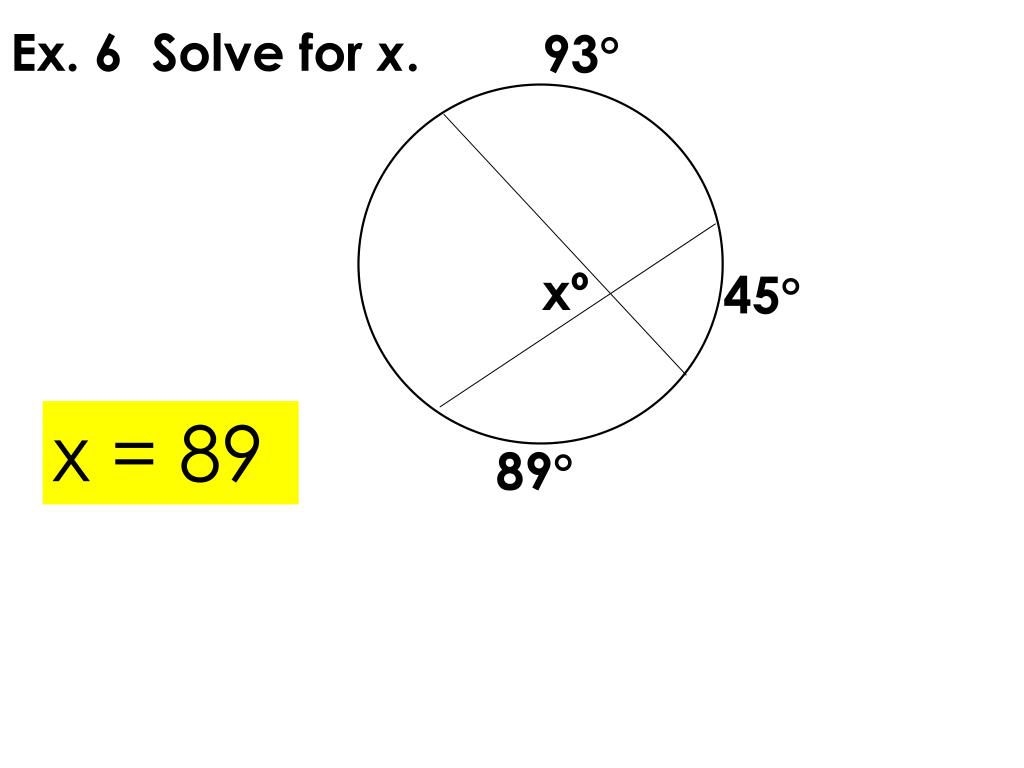

  12. Ex. 6 Solve for x. 93 xº 45 89 x = 89

  13. Case IV:Vertex is OUTSIDE circle ANGLE small ARC LARGE ARC LARGE ARC LARGE ARC small ARC ANGLE small ARC ANGLE

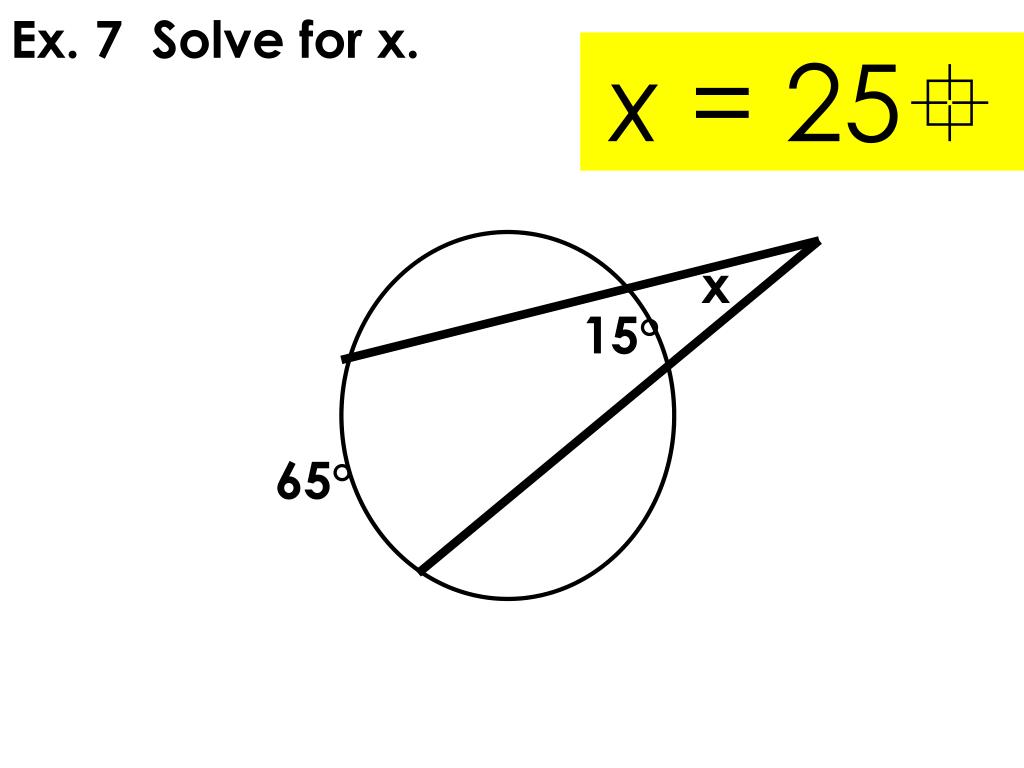

  14. Ex. 7 Solve for x. x = 25 x 15° 65°

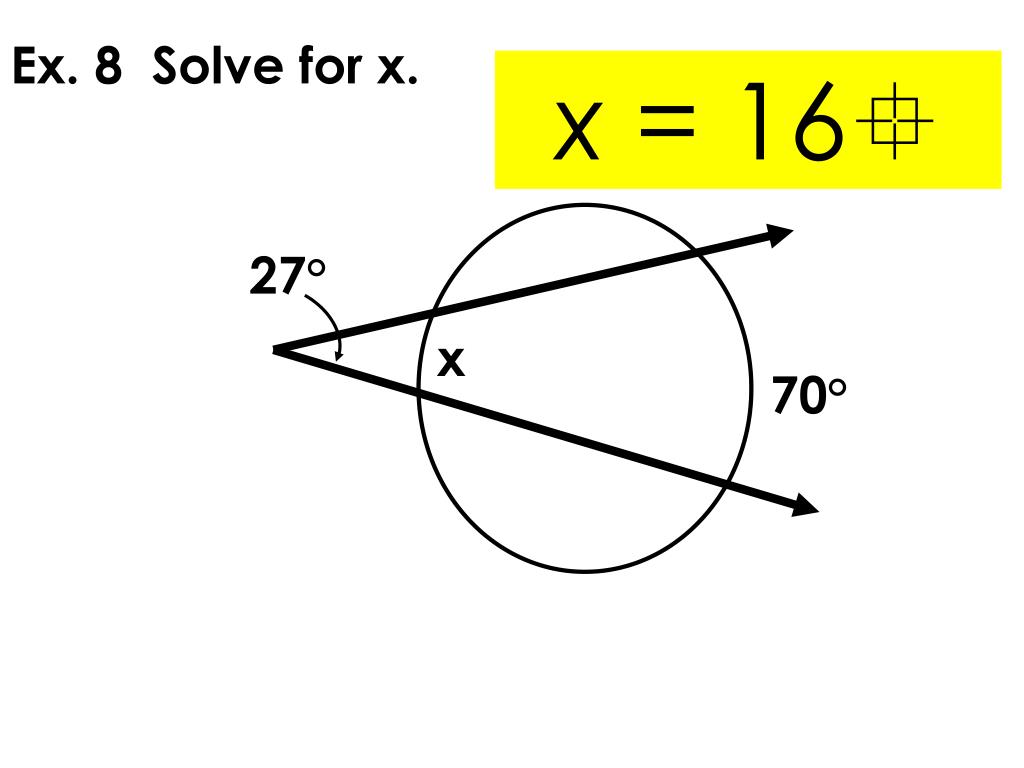

  15. Ex. 8 Solve for x. x= 16 27° x 70°

  16. Ex. 9 Solve for x. x = 80 260° x

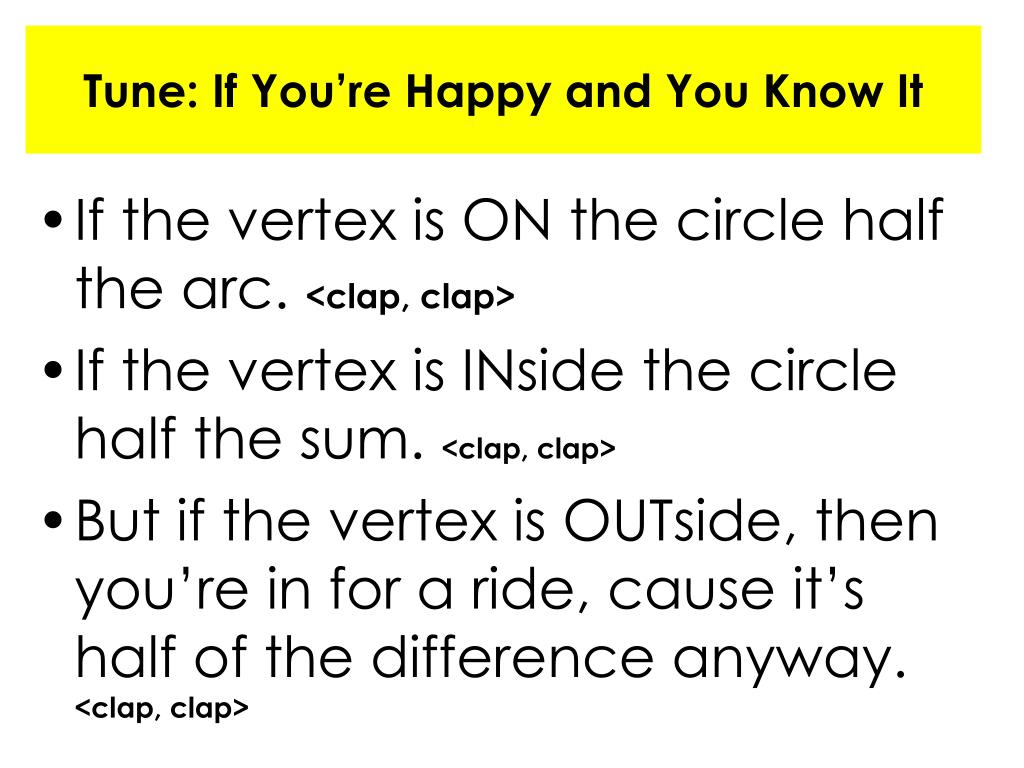

  17. Tune: If You’re Happy and You Know It • If the vertex is ON the circle half the arc. <clap, clap> • If the vertex is INside the circle half the sum. <clap, clap> • But if the vertex is OUTside, then you’re in for a ride, cause it’s half of the difference anyway. <clap, clap>

  18. Momma Lion Worksheet16 problems

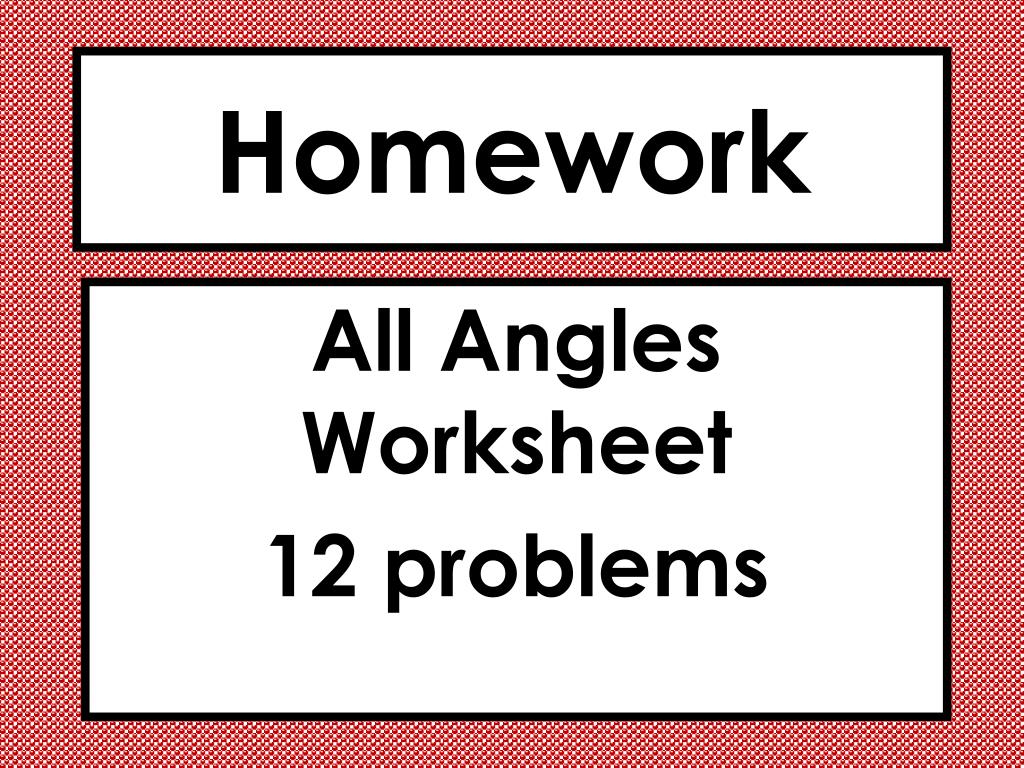

  19. Homework All Angles Worksheet 12 problems
