  1. 1st Quarter 2014VRL Report Gentry Tubbsgtubbs@spp.org

  2. VICXFRWAYSTE • Monitored Element-VICTORY HILL XF 230/115 • Contingent Element-WAYSIDE-STEGALL 230 kV • Reason for Violating: Increase in external impacts as well as units lagging on dispatch.

  3. Wyoming NPPD NPPD NPPD NPPD Iowa Iowa VICXFRWAYSTE SCSE 200 MW OPPD OPPD MEC MEC LES LES Missouri Missouri SECI SECI KCPL KCPL WR WR West MPS MPS East Colorado Colorado EDE EDE AECI AECI New Mexico New Mexico SPA SPA WFEC WFEC AECC/EES AECC/EES OKGE OKGE CSWS CSWS ERCOTN200 MW SPS SPS BLKW 200 MW ERCOTE 600 MW EES EES Arkansas Arkansas Texas Texas

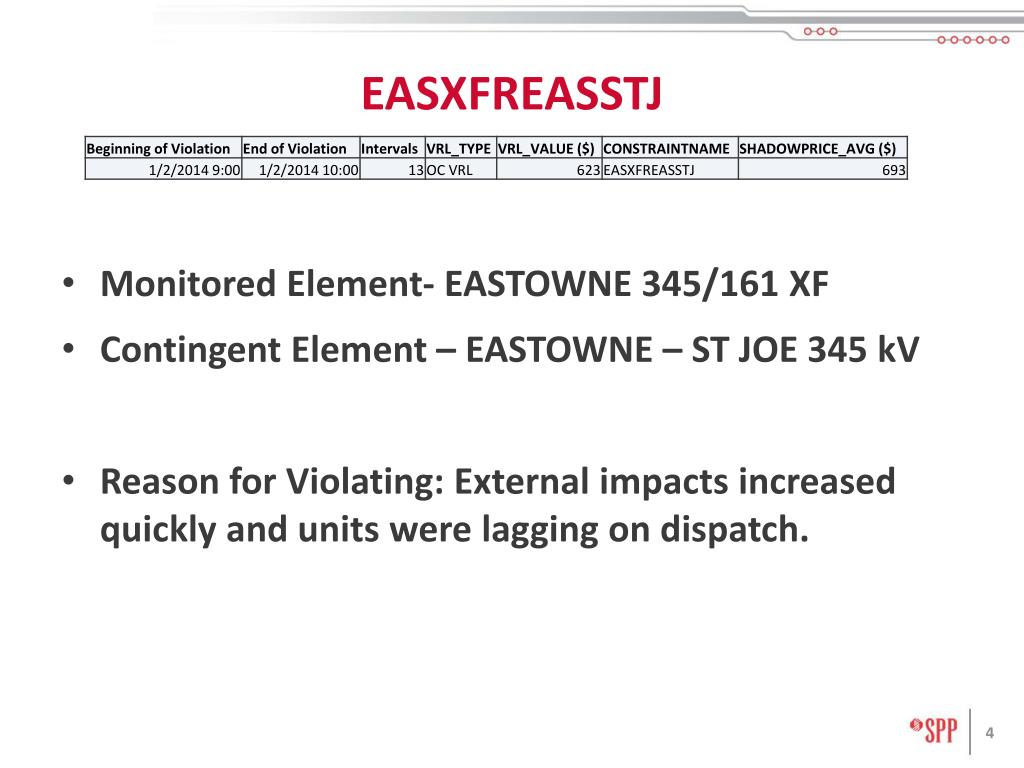

  4. EASXFREASSTJ • Monitored Element- EASTOWNE 345/161 XF • Contingent Element – EASTOWNE – ST JOE 345 kV • Reason for Violating: External impacts increased quickly and units were lagging on dispatch.

  5. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD MEC MEC MEC LES LES LES Missouri Missouri Missouri EASXFREASSTJ SECI SECI SECI KCPL KCPL KCPL WR WR WR West West MPS MPS MPS East East Colorado Colorado Colorado EDE EDE EDE AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

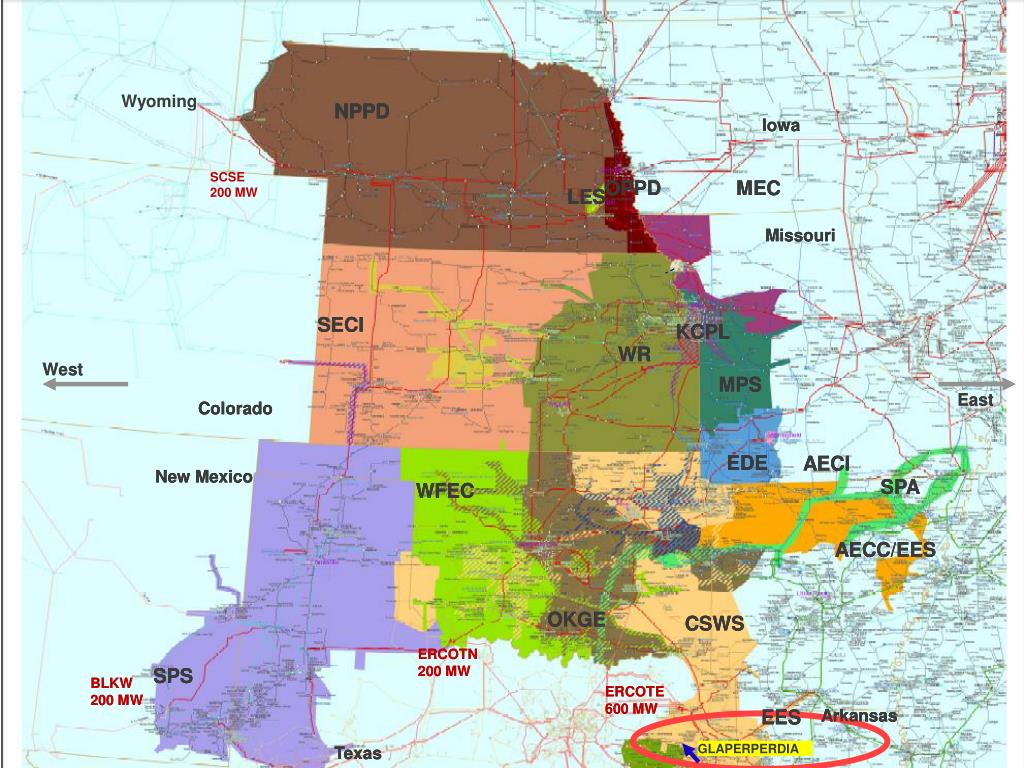

  6. GLAPERPERDIA • Monitored Element- Gladewater – Perdue 138 kV • Contingent Element – Perdue – Diana 138 kV • Reason for Violating: High load in NE Texas

  7. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD MEC MEC MEC LES LES LES Missouri Missouri Missouri SECI SECI SECI KCPL KCPL KCPL WR WR WR West West MPS MPS MPS East East Colorado Colorado Colorado EDE EDE EDE AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES EES Arkansas Arkansas Arkansas Arkansas Texas Texas Texas GLAPERPERDIA

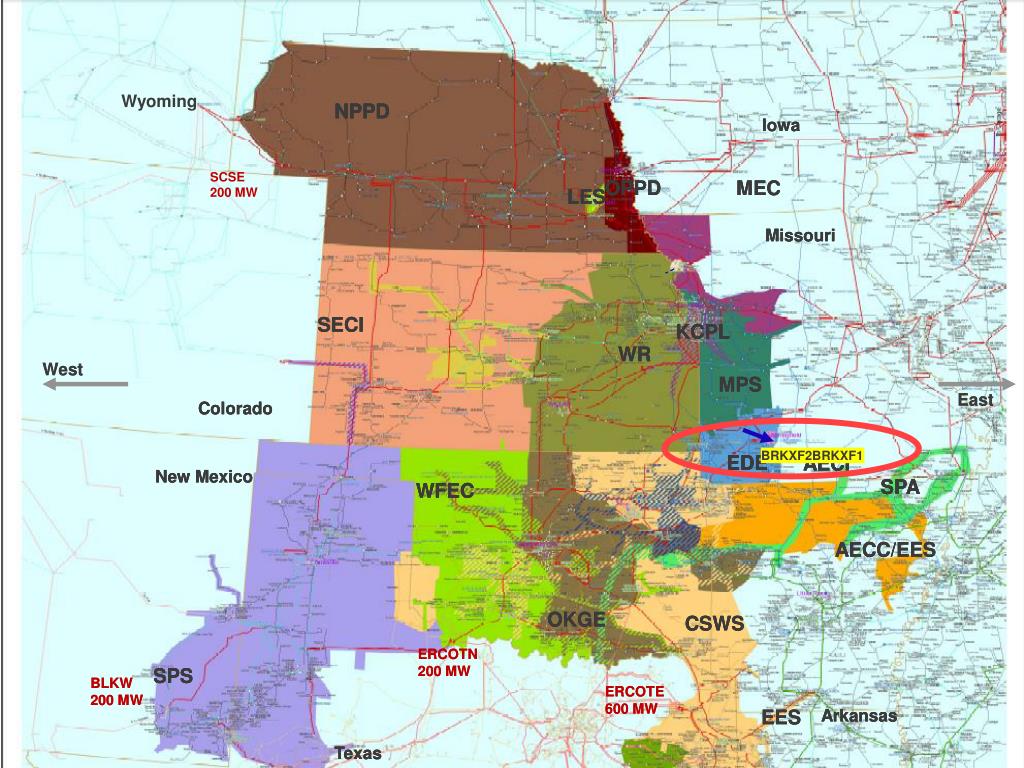

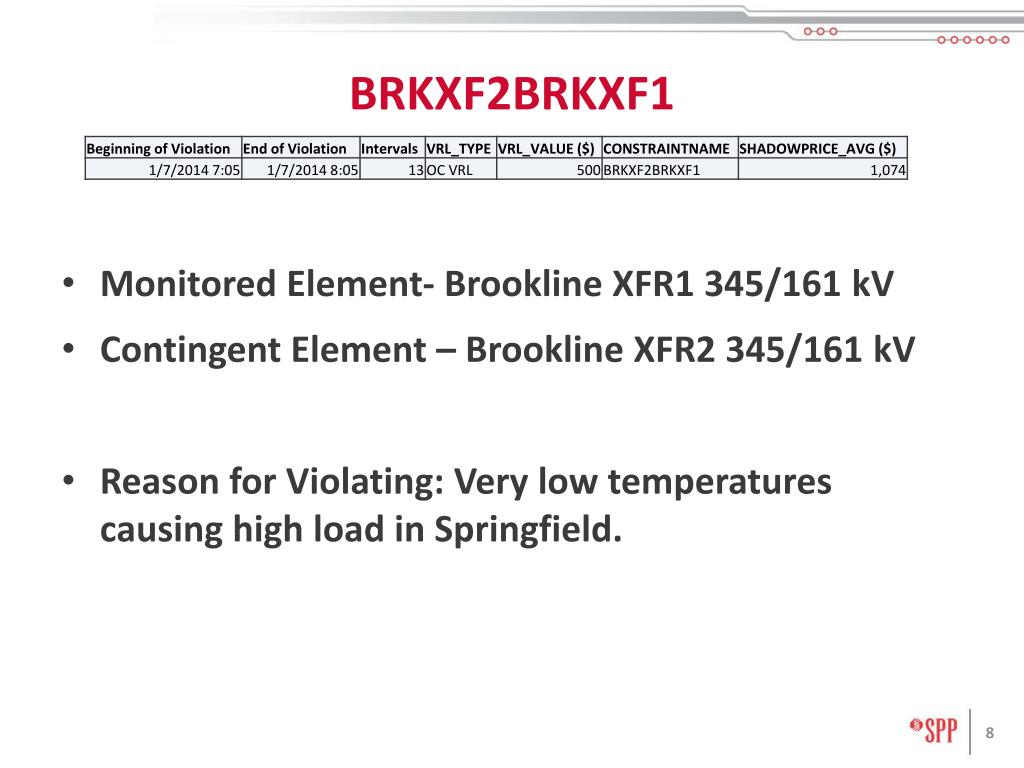

  8. BRKXF2BRKXF1 • Monitored Element- Brookline XFR1 345/161 kV • Contingent Element – Brookline XFR2 345/161 kV • Reason for Violating: Very low temperatures causing high load in Springfield.

  9. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD MEC MEC MEC LES LES LES Missouri Missouri Missouri SECI SECI SECI KCPL KCPL KCPL WR WR WR West West MPS MPS MPS East East Colorado Colorado Colorado EDE EDE EDE EDE AECI AECI AECI AECI BRKXF2BRKXF1 New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

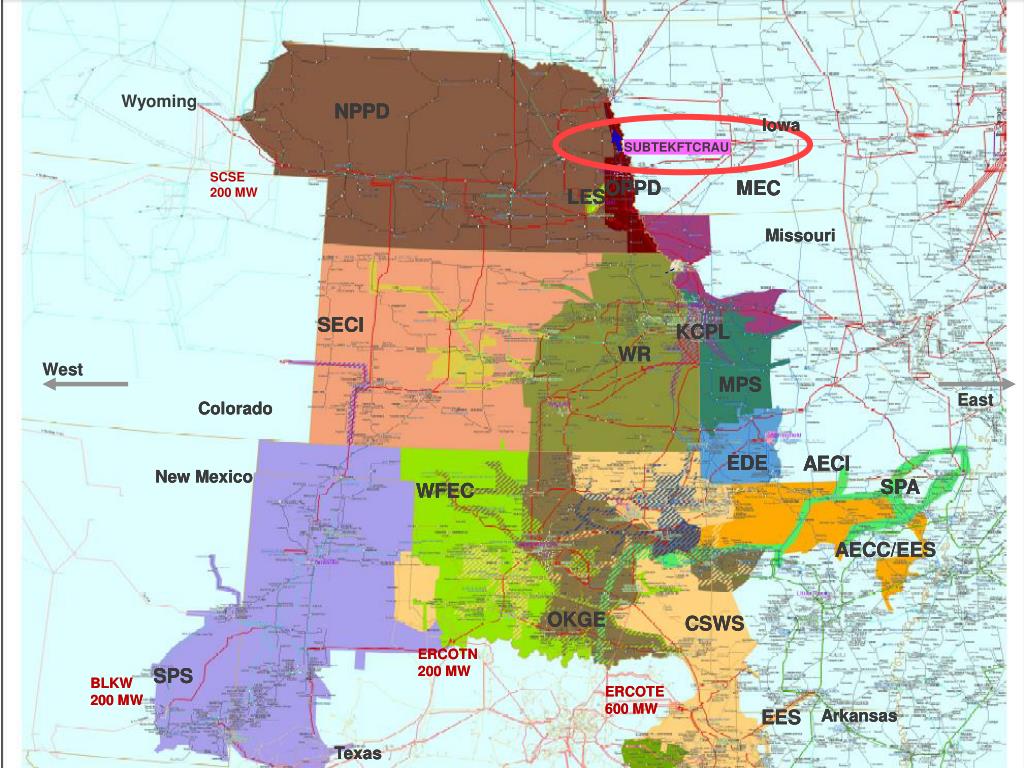

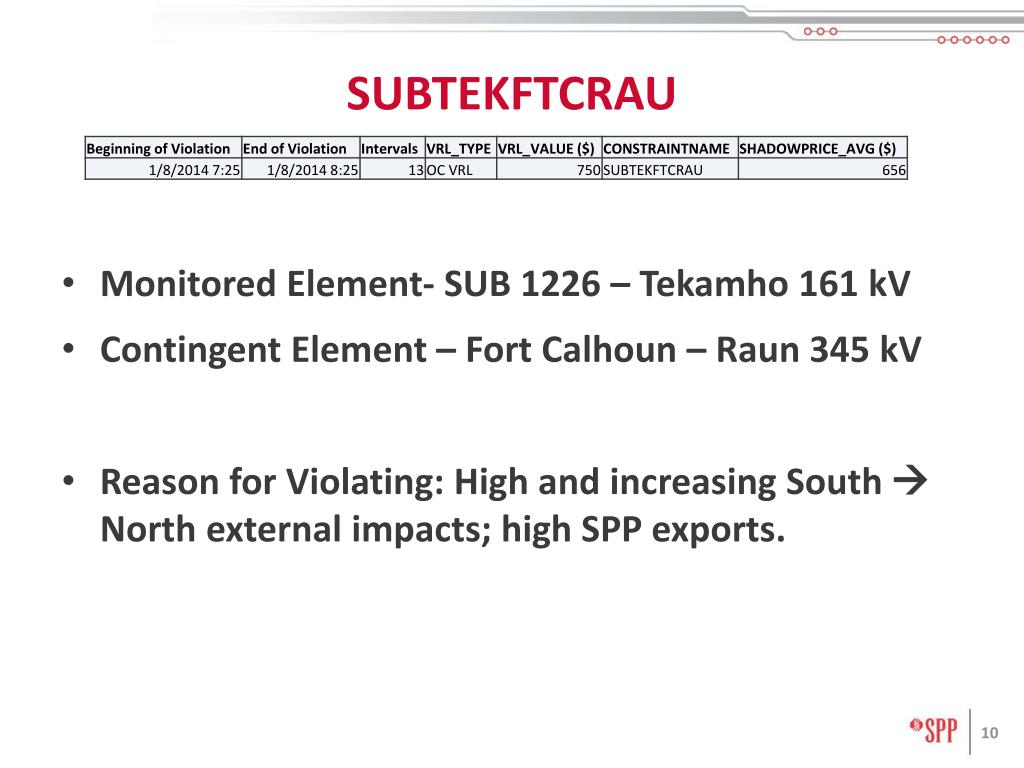

  10. SUBTEKFTCRAU • Monitored Element- SUB 1226 – Tekamho 161 kV • Contingent Element – Fort Calhoun – Raun 345 kV • Reason for Violating: High and increasing South  North external impacts; high SPP exports.

  11. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa Iowa SUBTEKFTCRAU SCSE 200 MW OPPD OPPD OPPD OPPD MEC MEC MEC MEC LES LES LES Missouri Missouri Missouri SECI SECI SECI KCPL KCPL KCPL WR WR WR West West MPS MPS MPS East East Colorado Colorado Colorado EDE EDE EDE EDE AECI AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

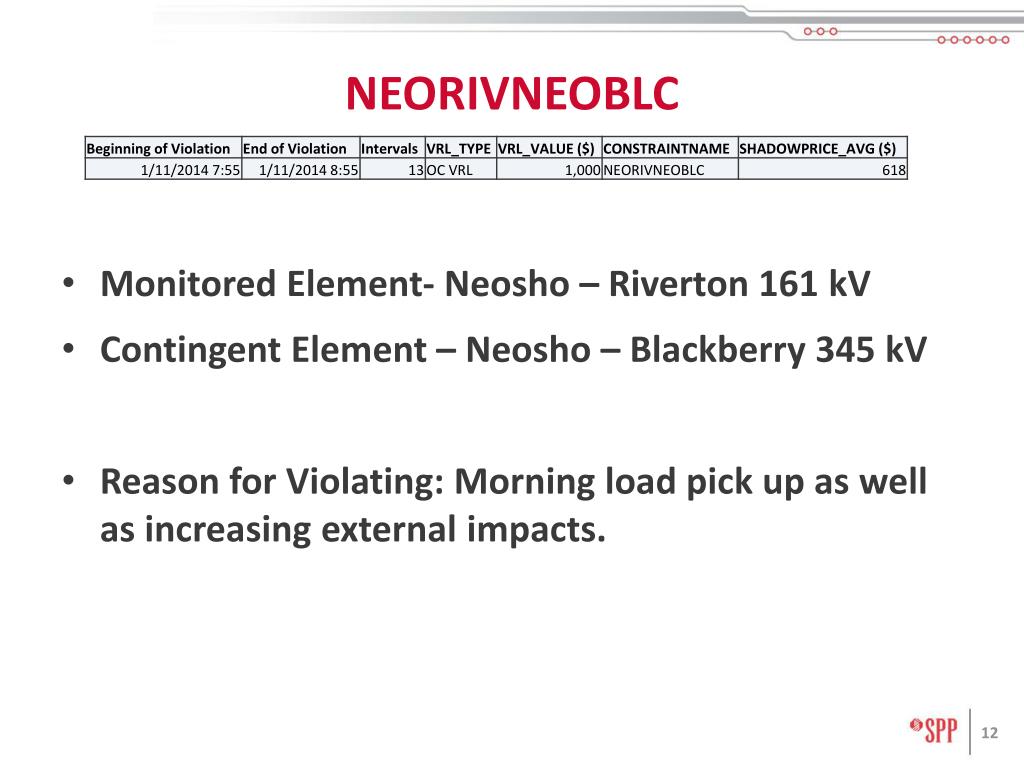

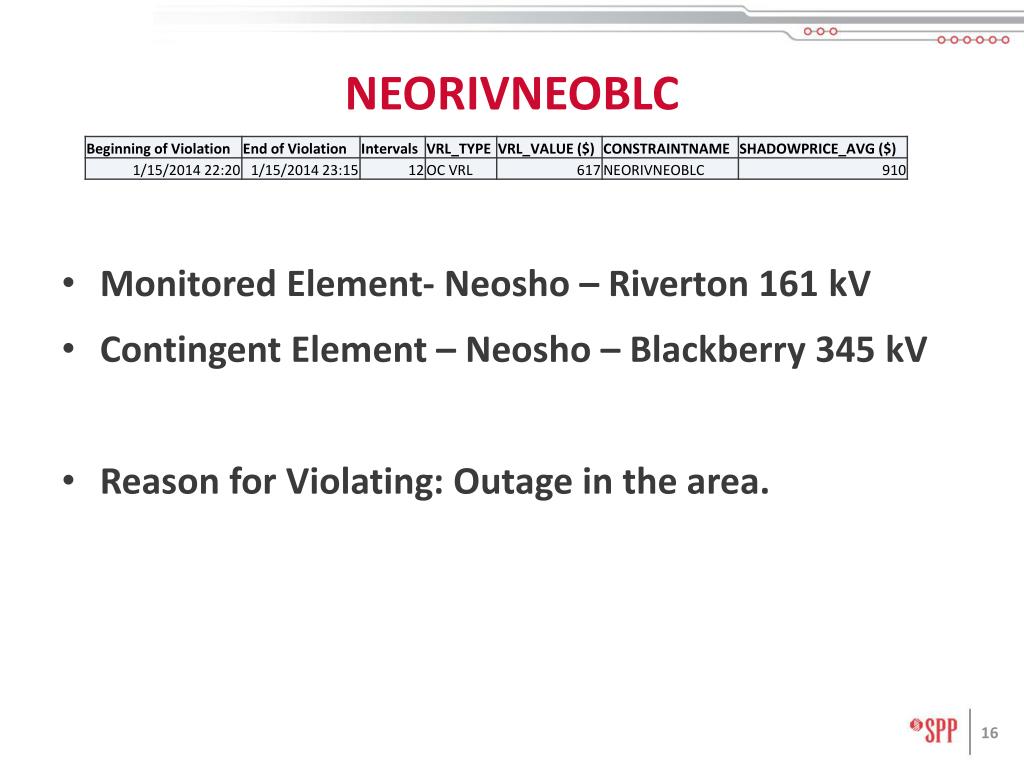

  12. NEORIVNEOBLC • Monitored Element- Neosho – Riverton 161 kV • Contingent Element – Neosho – Blackberry 345 kV • Reason for Violating: Morning load pick up as well as increasing external impacts.

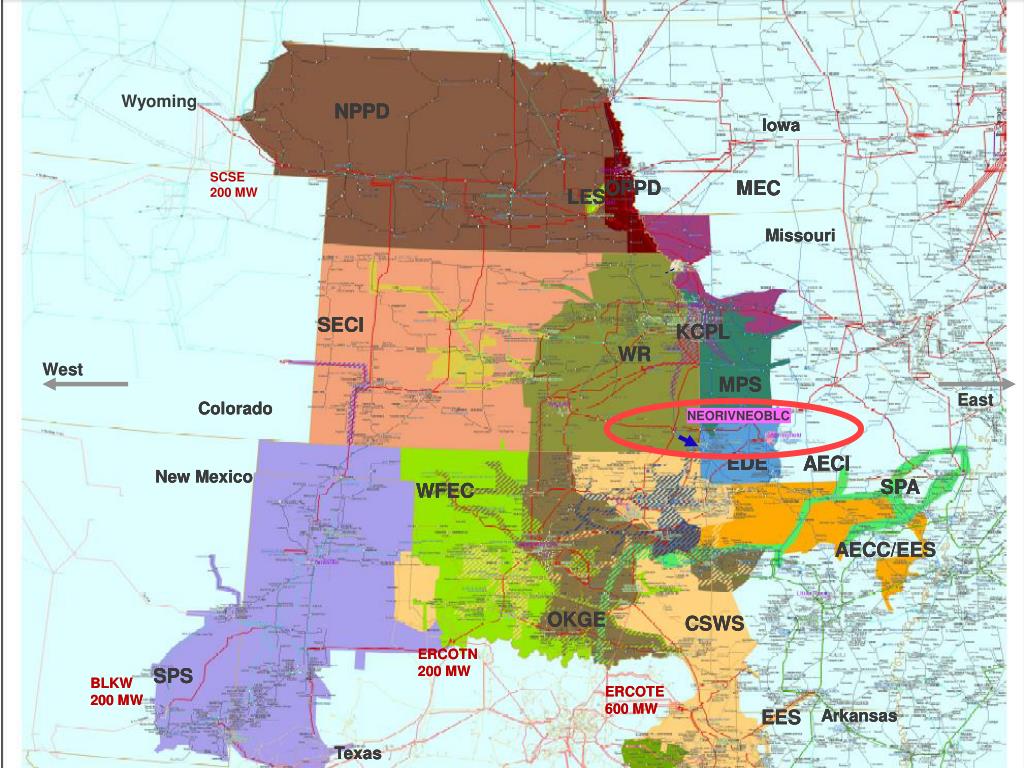

  13. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD OPPD MEC MEC MEC MEC LES LES LES Missouri Missouri Missouri SECI SECI SECI KCPL KCPL KCPL WR WR WR West West MPS MPS MPS East East Colorado Colorado Colorado NEORIVNEOBLC EDE EDE EDE EDE AECI AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

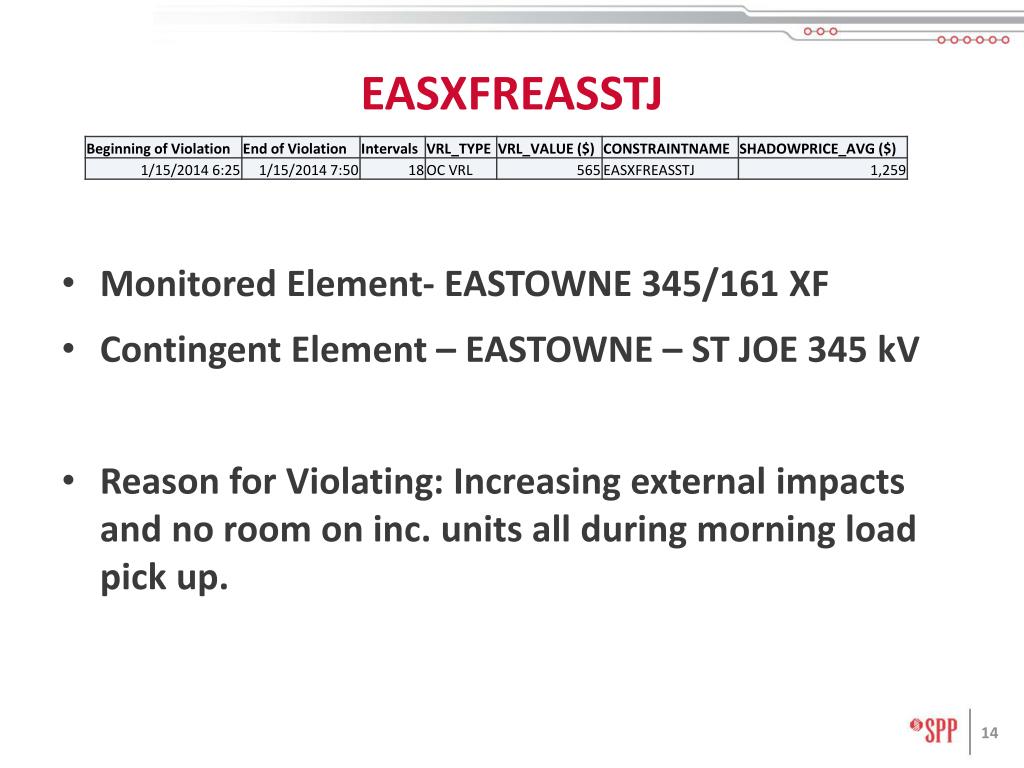

  14. EASXFREASSTJ • Monitored Element- EASTOWNE 345/161 XF • Contingent Element – EASTOWNE – ST JOE 345 kV • Reason for Violating: Increasing external impacts and no room on inc. units all during morning load pick up.

  15. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD OPPD OPPD OPPD MEC MEC MEC MEC MEC MEC LES LES LES LES LES Missouri Missouri Missouri Missouri Missouri EASXFREASSTJ SECI SECI SECI KCPL KCPL KCPL KCPL KCPL WR WR WR WR WR West West MPS MPS MPS MPS MPS East East East East Colorado Colorado Colorado EDE EDE EDE EDE AECI AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

  16. NEORIVNEOBLC • Monitored Element- Neosho – Riverton 161 kV • Contingent Element – Neosho – Blackberry 345 kV • Reason for Violating: Outage in the area.

  17. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD OPPD MEC MEC MEC MEC LES LES LES Missouri Missouri Missouri SECI SECI SECI KCPL KCPL KCPL WR WR WR West West MPS MPS MPS East East Colorado Colorado Colorado NEORIVNEOBLC EDE EDE EDE EDE AECI AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

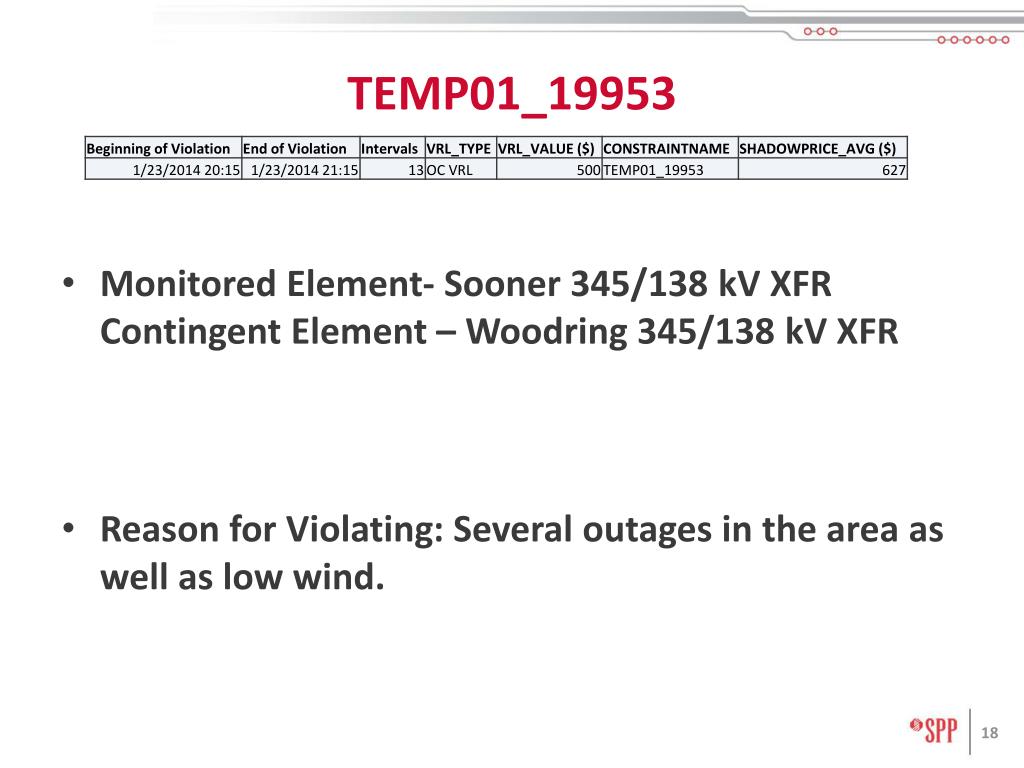

  18. TEMP01_19953 • Monitored Element- Sooner 345/138 kV XFR Contingent Element – Woodring 345/138 kV XFR • Reason for Violating: Several outages in the area as well as low wind.

  19. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD OPPD MEC MEC MEC MEC LES LES LES Missouri Missouri Missouri SECI SECI SECI KCPL KCPL KCPL WR WR WR West West MPS MPS MPS East East Colorado Colorado Colorado EDE EDE EDE AECI AECI AECI AECI T1 SONXFRWOOXFR New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

  20. ONEBANNESTUL • Monitored Element- Oneta – Broken Arrow North 138 kV • Contingent Element – North Eastern Sta. – Tulsa North 345 kV • Reason for Violating: Several outages in the area as well as increasing South  North Impacts.

  21. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD OPPD MEC MEC MEC MEC LES LES LES Missouri Missouri Missouri SECI SECI SECI KCPL KCPL KCPL WR WR WR West West MPS MPS MPS East East Colorado Colorado Colorado EDE EDE EDE AECI AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC ONEBANNESTUL AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

  22. TEMP15_19958 • Monitored Element- Springfield – Clay 161kV • Contingent Element – Battlefield - Mainstreet 161kV • Reason for Violating: Outages in Springfield, increasing external impacts, and morning load pick up.

  23. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD OPPD MEC MEC MEC MEC LES LES LES Missouri Missouri Missouri SECI SECI SECI KCPL KCPL KCPL WR WR WR West West MPS MPS MPS East East Colorado Colorado Colorado T15 SPRCLABATMAI EDE EDE EDE EDE AECI AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

  24. ONEBANNESTUL • Monitored Element- Oneta – Broken Arrow North 138 kV • Contingent Element – North Eastern Sta. – Tulsa North 345 kV • Reason for Violating: Outages in Tulsa and morning load pick up.

  25. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD OPPD MEC MEC MEC MEC LES LES LES Missouri Missouri Missouri SECI SECI SECI KCPL KCPL KCPL WR WR WR West West MPS MPS MPS East East Colorado Colorado Colorado EDE EDE EDE AECI AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC ONEBANNESTUL AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

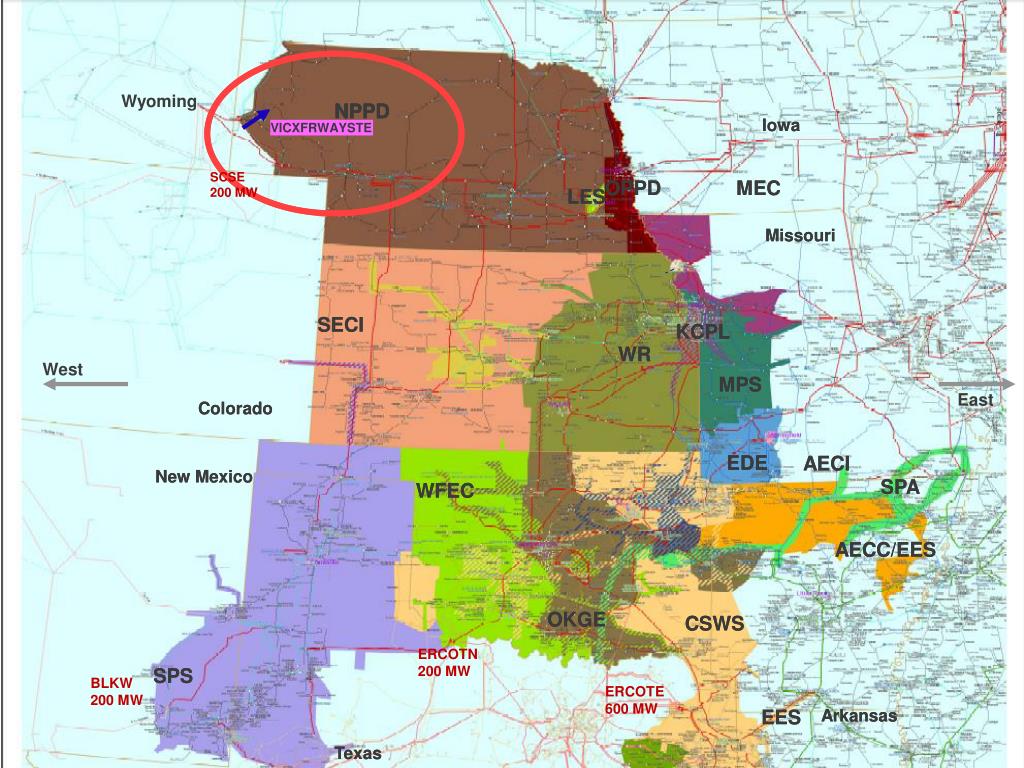

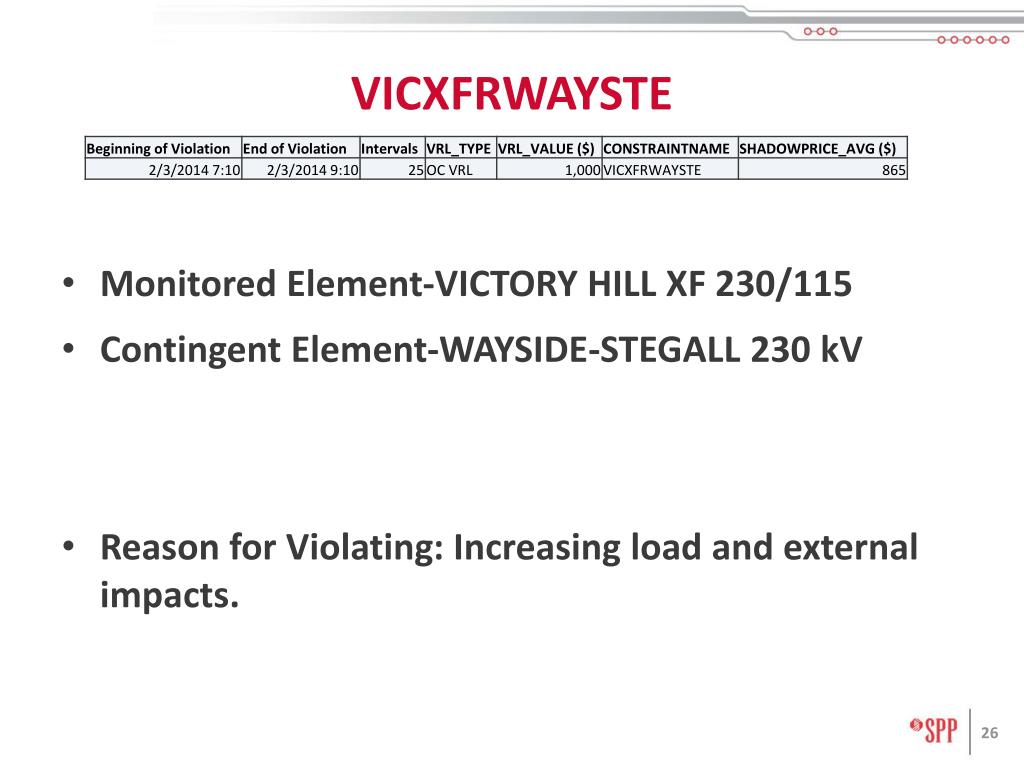

  26. VICXFRWAYSTE • Monitored Element-VICTORY HILL XF 230/115 • Contingent Element-WAYSIDE-STEGALL 230 kV • Reason for Violating: Increasing load and external impacts.

  27. Wyoming NPPD NPPD NPPD NPPD Iowa Iowa VICXFRWAYSTE SCSE 200 MW OPPD OPPD MEC MEC LES LES Missouri Missouri SECI SECI KCPL KCPL WR WR West MPS MPS East Colorado Colorado EDE EDE AECI AECI New Mexico New Mexico SPA SPA WFEC WFEC AECC/EES AECC/EES OKGE OKGE CSWS CSWS ERCOTN200 MW SPS SPS BLKW 200 MW ERCOTE 600 MW EES EES Arkansas Arkansas Texas Texas

  28. EASXFREASSTJ • Monitored Element- EASTOWNE 345/161 XF • Contingent Element – EASTOWNE – ST JOE 345 kV • Reason for Violating: Very large swing of external impacts from northsouth to south  north appeared to be driven by drop in MISO wind and increase in MISO dispatch.

  29. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD OPPD OPPD OPPD MEC MEC MEC MEC MEC MEC LES LES LES LES LES Missouri Missouri Missouri Missouri Missouri EASXFREASSTJ SECI SECI SECI KCPL KCPL KCPL KCPL KCPL WR WR WR WR WR West West MPS MPS MPS MPS MPS East East East East Colorado Colorado Colorado EDE EDE EDE EDE AECI AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

  30. TEMP81_19967 • Monitored Element- CLEARW_MILAN_1 • Contingent Element – FINNEY_HITCH • Reason for Violating: Sharp increase in wind as well as planned outages in the area.

  31. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD OPPD OPPD OPPD MEC MEC MEC MEC MEC MEC LES LES LES LES LES Missouri Missouri Missouri Missouri Missouri SECI SECI SECI KCPL KCPL KCPL KCPL KCPL WR WR WR WR WR West West MPS MPS MPS MPS MPS T81 MILCLEFINHIT East East East East Colorado Colorado Colorado EDE EDE EDE EDE AECI AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

  32. EASXFREASSTJ • Monitored Element- EASTOWNE 345/161 XF • Contingent Element – EASTOWNE – ST JOE 345 kV • Reason for Violating: Large increase in North  South loading.

  33. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD OPPD OPPD OPPD MEC MEC MEC MEC MEC MEC LES LES LES LES LES Missouri Missouri Missouri Missouri Missouri EASXFREASSTJ SECI SECI SECI KCPL KCPL KCPL KCPL KCPL WR WR WR WR WR West West MPS MPS MPS MPS MPS East East East East Colorado Colorado Colorado EDE EDE EDE EDE AECI AECI AECI AECI New Mexico New Mexico New Mexico SPA SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

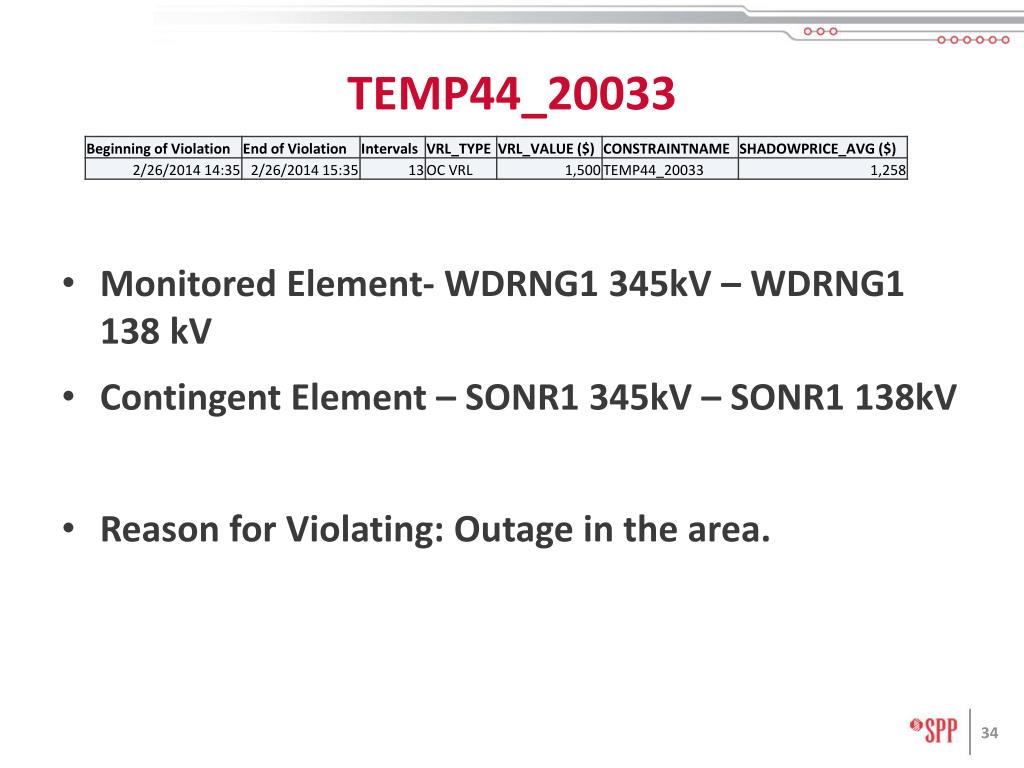

  34. TEMP44_20033 • Monitored Element- WDRNG1 345kV – WDRNG1 138 kV • Contingent Element – SONR1 345kV – SONR1 138kV • Reason for Violating: Outage in the area.

  35. Wyoming NPPD NPPD NPPD NPPD NPPD Iowa Iowa Iowa SCSE 200 MW OPPD OPPD OPPD OPPD OPPD OPPD MEC MEC MEC MEC MEC MEC LES LES LES LES LES Missouri Missouri Missouri Missouri Missouri SECI SECI SECI KCPL KCPL KCPL KCPL KCPL WR WR WR WR WR West West MPS MPS MPS MPS MPS East East East East Colorado Colorado Colorado EDE EDE EDE EDE AECI AECI AECI AECI T44 WOOXFRSOOXFR New Mexico New Mexico New Mexico SPA SPA SPA WFEC WFEC WFEC AECC/EES AECC/EES AECC/EES OKGE OKGE OKGE CSWS CSWS CSWS ERCOTN200 MW ERCOTN200 MW SPS SPS SPS BLKW 200 MW BLKW 200 MW ERCOTE 600 MW ERCOTE 600 MW EES EES EES Arkansas Arkansas Arkansas Texas Texas Texas

  36. VICXFRWAYSTE • Monitored Element-VICTORY HILL XF 230/115 • Contingent Element-WAYSIDE-STEGALL 230 kV • Reason for Violating: Increasing external impacts in the South  North direction (MISO wind dropping a lot).

  37. Wyoming NPPD NPPD NPPD NPPD Iowa Iowa VICXFRWAYSTE SCSE 200 MW OPPD OPPD MEC MEC LES LES Missouri Missouri SECI SECI KCPL KCPL WR WR West MPS MPS East Colorado Colorado EDE EDE AECI AECI New Mexico New Mexico SPA SPA WFEC WFEC AECC/EES AECC/EES OKGE OKGE CSWS CSWS ERCOTN200 MW SPS SPS BLKW 200 MW ERCOTE 600 MW EES EES Arkansas Arkansas Texas Texas

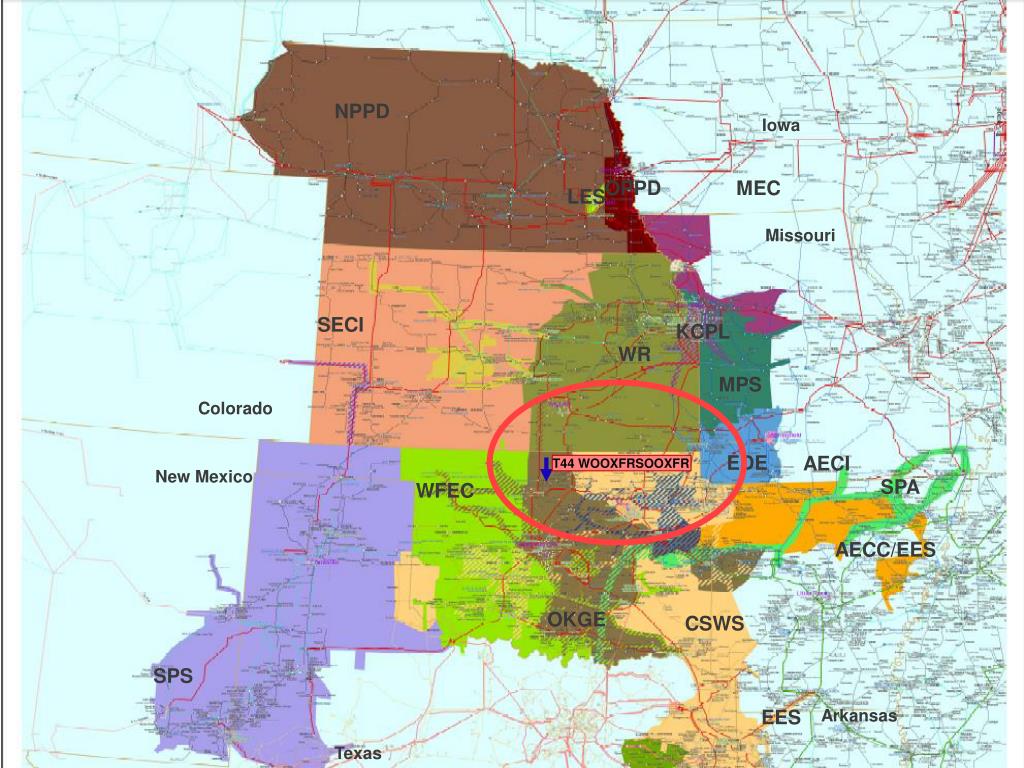

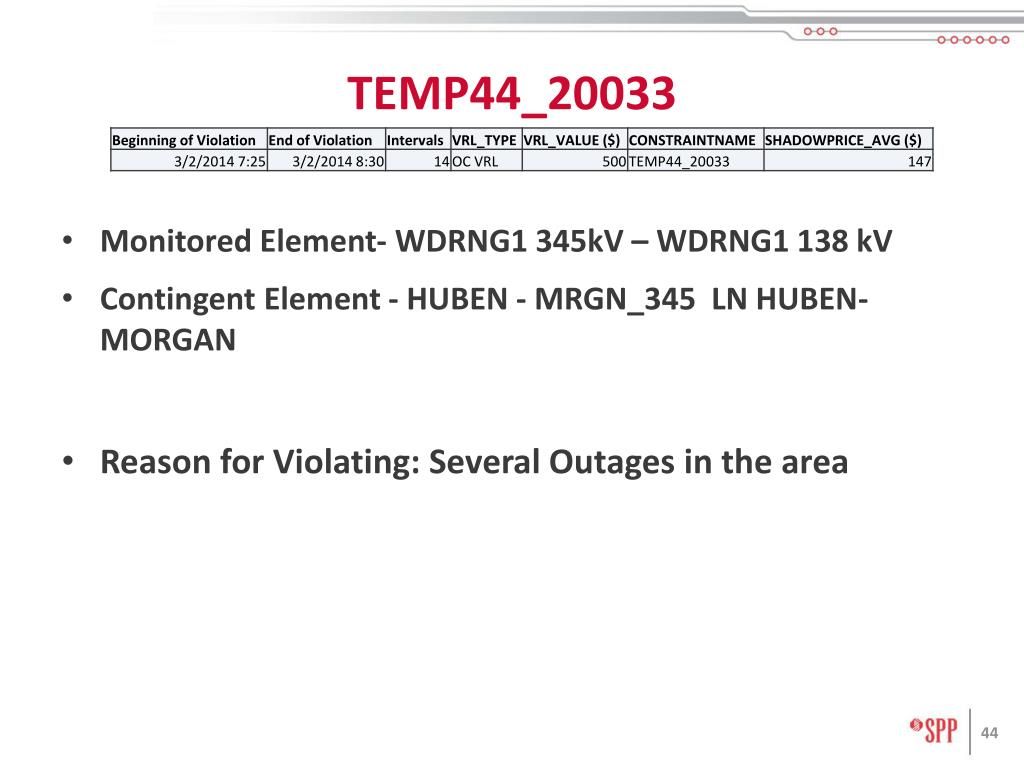

  38. TEMP44_20033 • Monitored Element- WDRNG1 345kV – WDRNG1 138 kV • Contingent Element - HUBEN - MRGN_345 LN HUBEN-MORGAN • Reason for Violating: Several outages in the area

  39. NPPD Iowa OPPD MEC LES Missouri SECI KCPL WR MPS Colorado EDE AECI T44 WOOXFRSOOXFR New Mexico SPA WFEC AECC/EES OKGE CSWS SPS EES Arkansas Texas

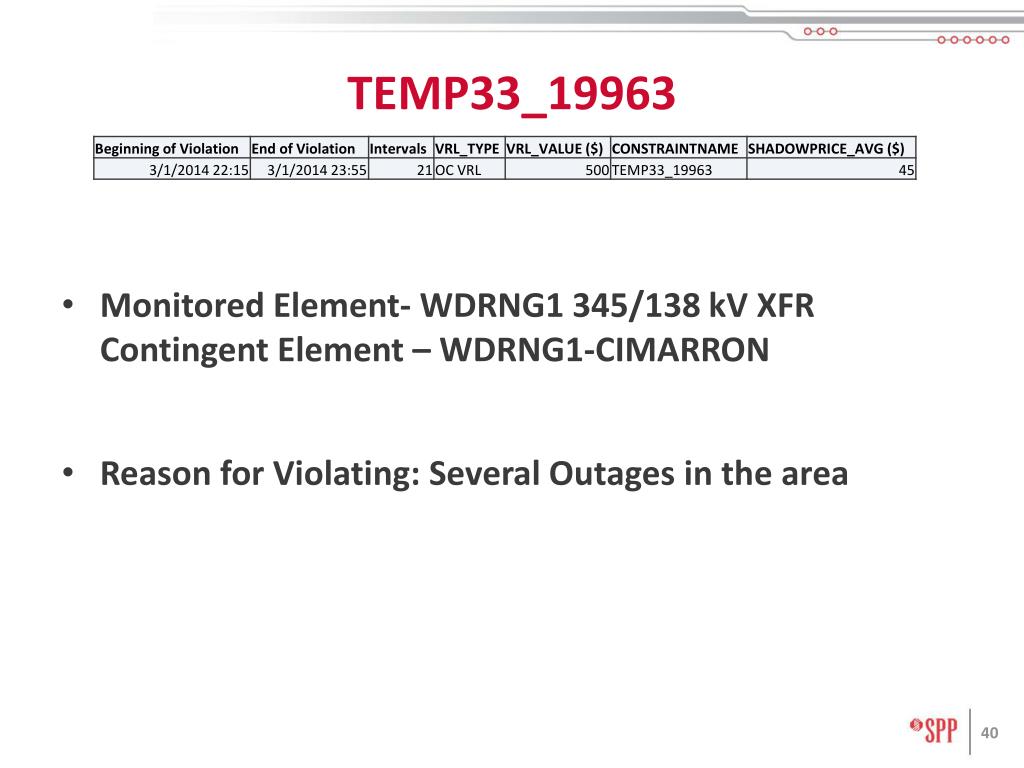

  40. TEMP33_19963 • Monitored Element- WDRNG1 345/138 kV XFR Contingent Element – WDRNG1-CIMARRON • Reason for Violating: Several Outages in the area

  41. NPPD Iowa OPPD MEC LES Missouri SECI KCPL WR MPS Colorado T33 WOOXFRWOOCIM EDE EDE AECI AECI New Mexico SPA WFEC AECC/EES OKGE CSWS SPS EES Arkansas Texas

  42. TEMP33_19963 • Monitored Element- WDRNG1 345/138 kV XFR (XFR: A) • Contingent Element – WDRNG1-CIMARRON (LN:8621) • Reason for Violating: Several Outages in the area

  43. NPPD Iowa OPPD MEC LES Missouri SECI KCPL WR MPS Colorado T33 WOOXFRWOOCIM EDE EDE AECI AECI New Mexico SPA WFEC AECC/EES OKGE CSWS SPS EES Arkansas Texas

  44. TEMP44_20033 • Monitored Element- WDRNG1 345kV – WDRNG1 138 kV • Contingent Element - HUBEN - MRGN_345 LN HUBEN-MORGAN • Reason for Violating: Several Outages in the area

  45. NPPD Iowa OPPD MEC LES Missouri SECI KCPL WR MPS Colorado EDE AECI T44 WOOXFRSOOXFR New Mexico SPA WFEC AECC/EES OKGE CSWS SPS EES Arkansas Texas

  46. TEMP44_20033 • Monitored Element- WDRNG1 345kV – WDRNG1 138 kV • Contingent Element - HUBEN - MRGN_345 LN HUBEN-MORGAN • Reason for Violating: Several Outages in the area

  47. NPPD Iowa OPPD MEC LES Missouri SECI KCPL WR MPS Colorado EDE AECI T44 WOOXFRSOOXFR New Mexico SPA WFEC AECC/EES OKGE CSWS SPS EES Arkansas Texas

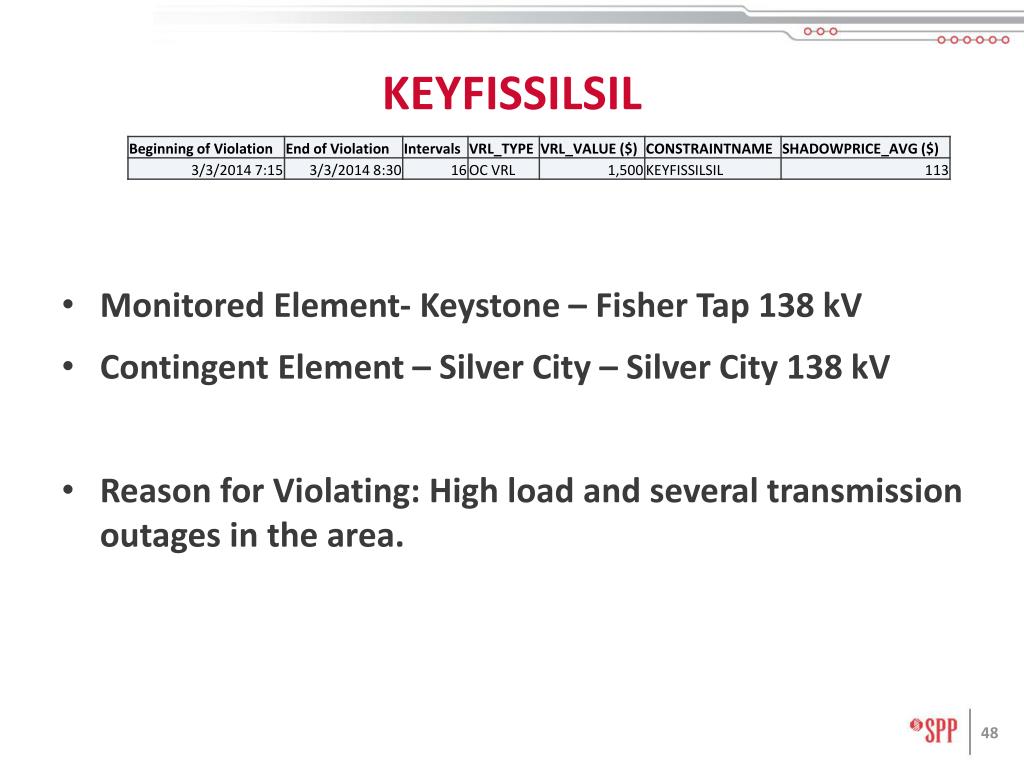

  48. KEYFISSILSIL • Monitored Element- Keystone – Fisher Tap 138 kV • Contingent Element – Silver City – Silver City 138 kV • Reason for Violating: High load and several transmission outages in the area.

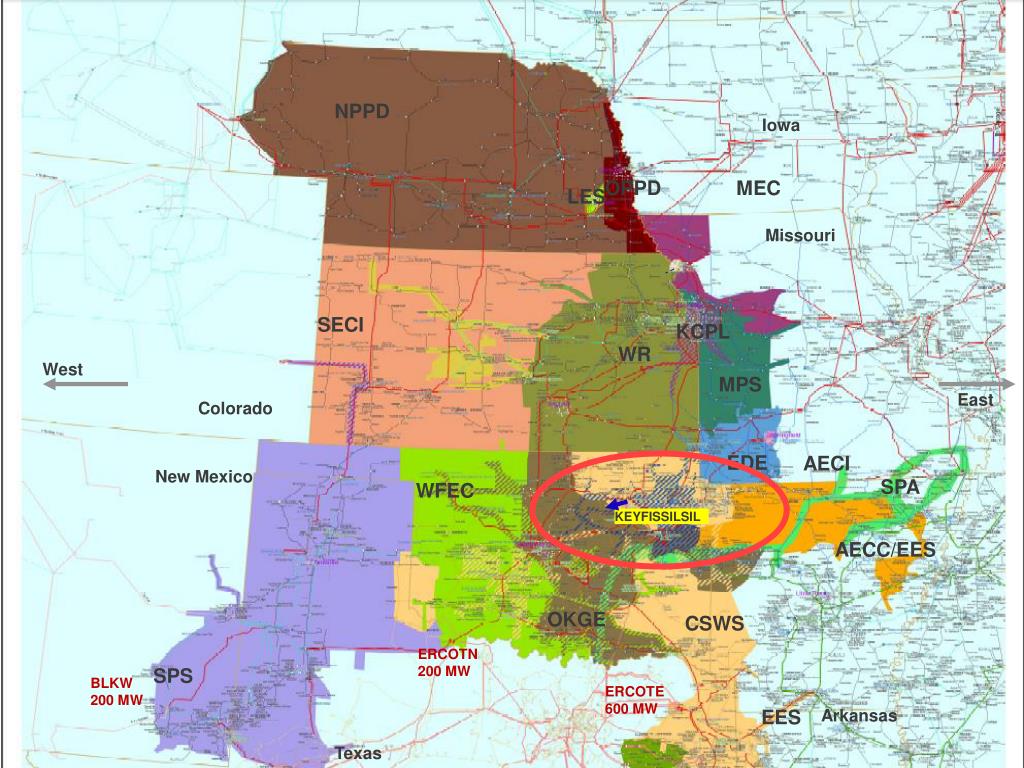

  49. NPPD Iowa OPPD MEC LES Missouri SECI KCPL WR West MPS East Colorado EDE AECI New Mexico SPA WFEC KEYFISSILSIL AECC/EES OKGE CSWS ERCOTN200 MW SPS BLKW 200 MW ERCOTE 600 MW EES Arkansas Texas

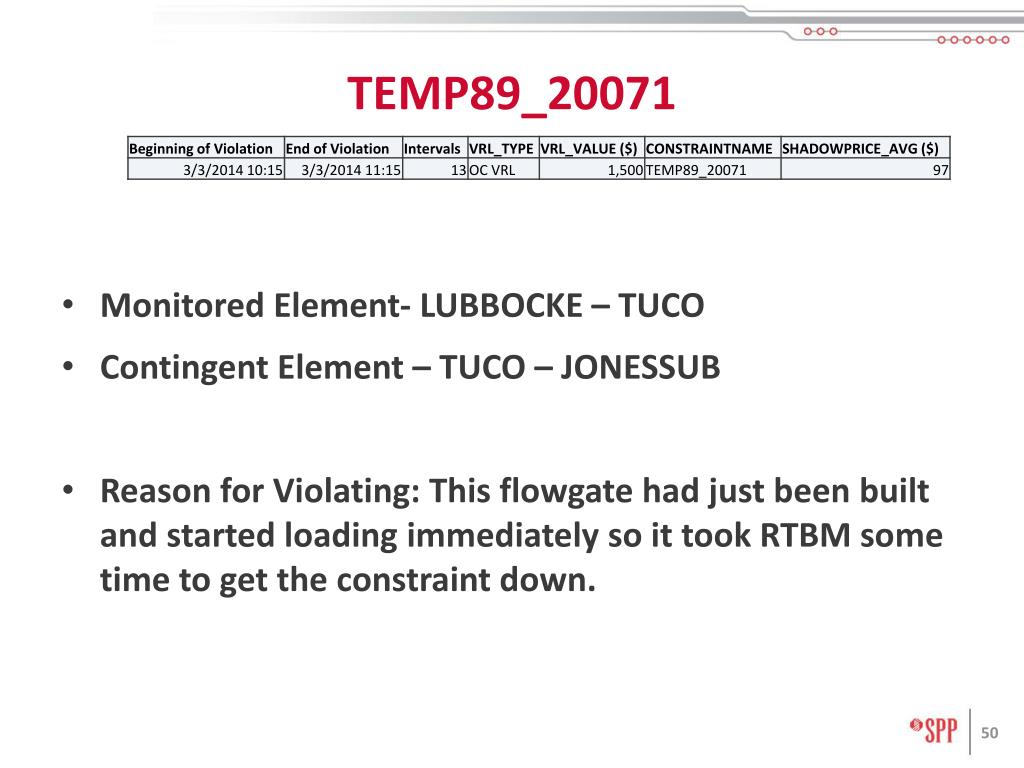

  50. TEMP89_20071 • Monitored Element- LUBBOCKE – TUCO • Contingent Element – TUCO – JONESSUB • Reason for Violating: This flowgate had just been built and started loading immediately so it took RTBM some time to get the constraint down.
